outer race
The bearing inner race must engage with outer race.

Installing the angular contact ball bearing into the shift fork

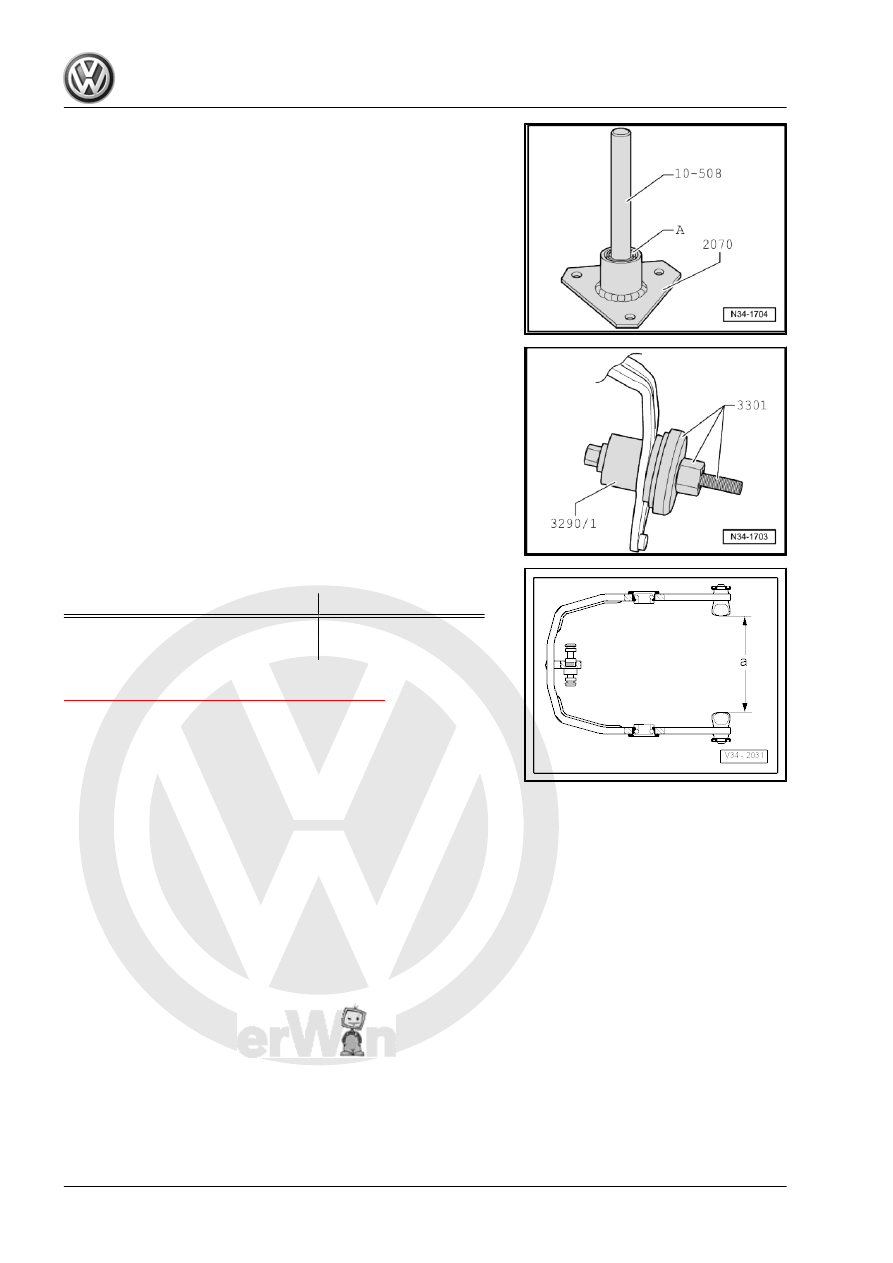

The recess in the Subframe Support Tool - Press Piece - 3290/1-

point to the ball bearing.

Shift Fork with the Shift Segments Installed


Dimension -a- (mm)

1st/2nd gear shift fork

87.2 to 87.4

3rd/4th gear shift fork

93.6 to 93.8

Shift segment allocation. Refer to

⇒ Fig. ““Shift Segment Identification”“ , page 193

194

Special Tools

Special tools and workshop equipment required

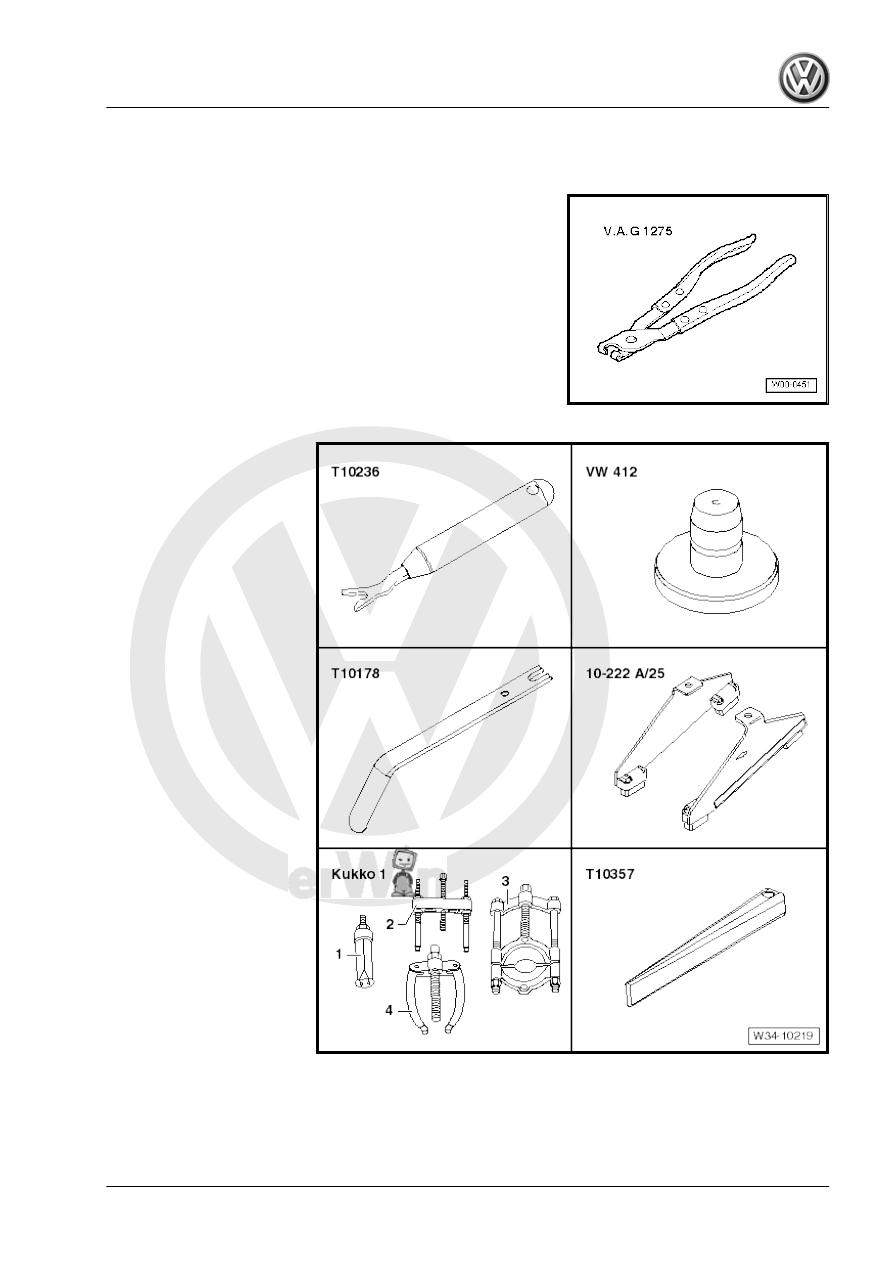

♦ Hose Clamp Pliers - VAG1275-

♦ Assembly Tool - T10178- or

flat iron, 200 x 25 x 5

♦ Release Tool - T10236-
♦ Wedge Tool - T10357-
♦ Punch - VW412-
♦ Adapter - 10-222A/25- or

flat iron, 350 x 30 x 5

♦ - 4- Counter-support - 22/4-

11. Special Tools

195

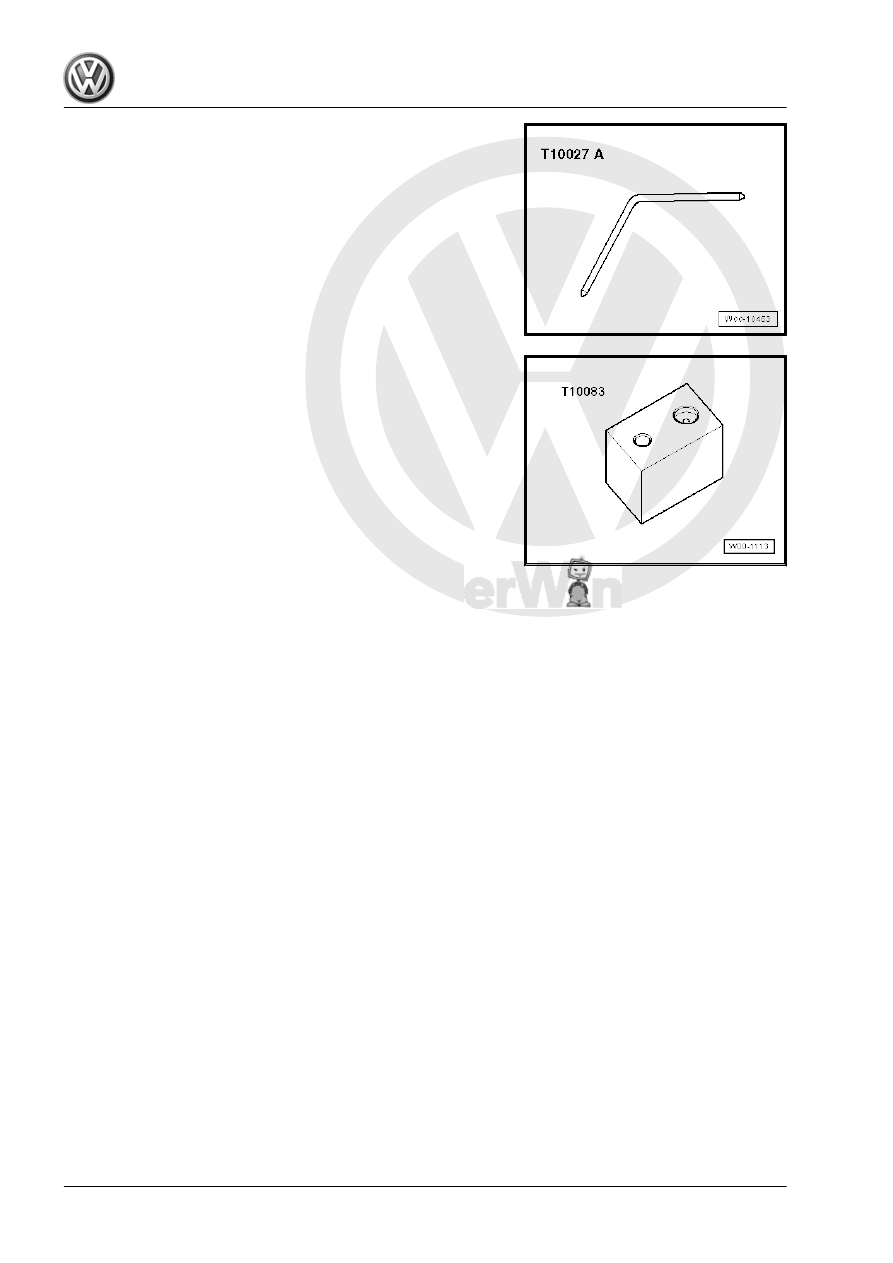

♦ Pressing Support - T10083-

196

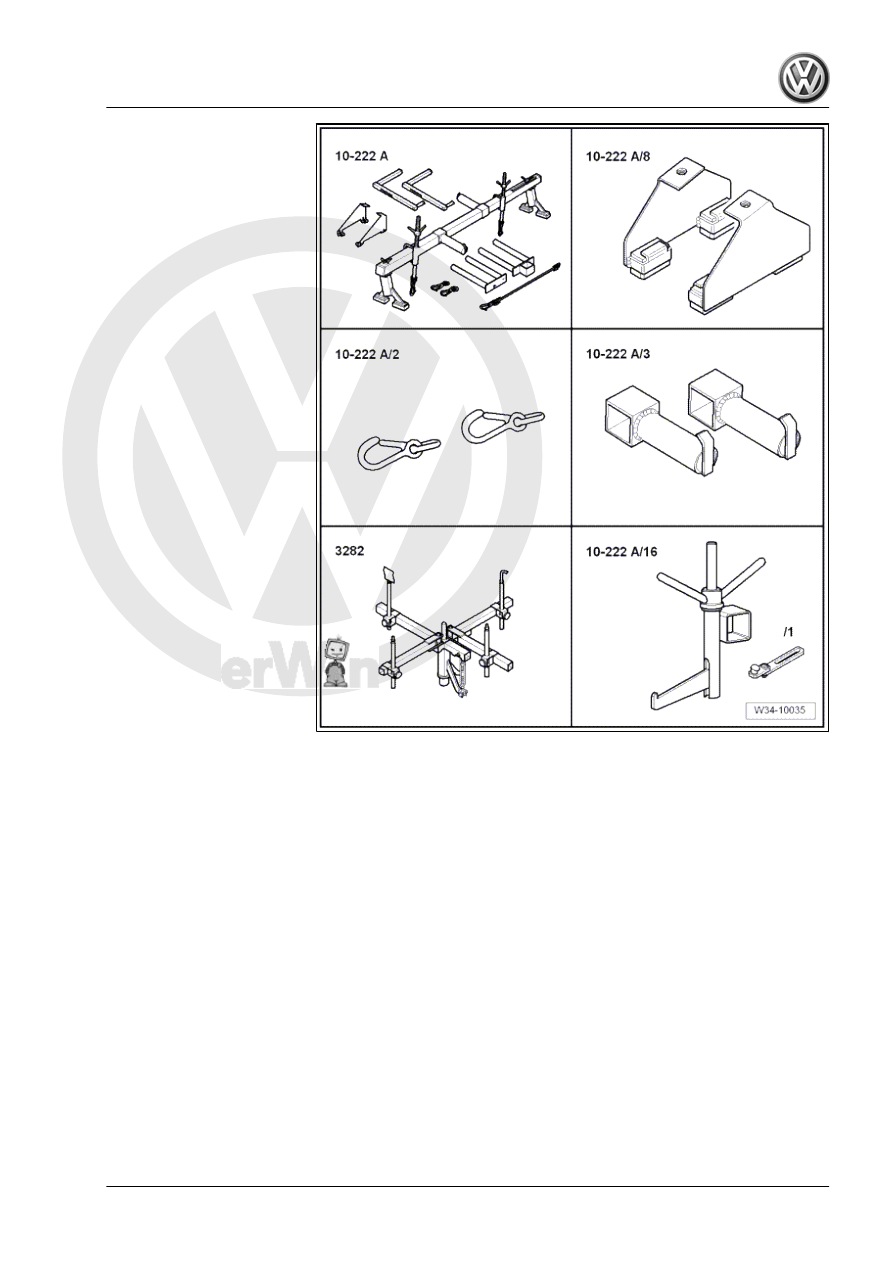

10-222A-

♦ Additional Hooks -

10-222A/2-

♦ Engine Support Adapter -

10-222A/3-

♦ Engine Support Adapter -

10-222A/8-

♦ Engine Support Adapter -

10-222A/16-

♦ Transmission Support -

3282-

11. Special Tools

197
