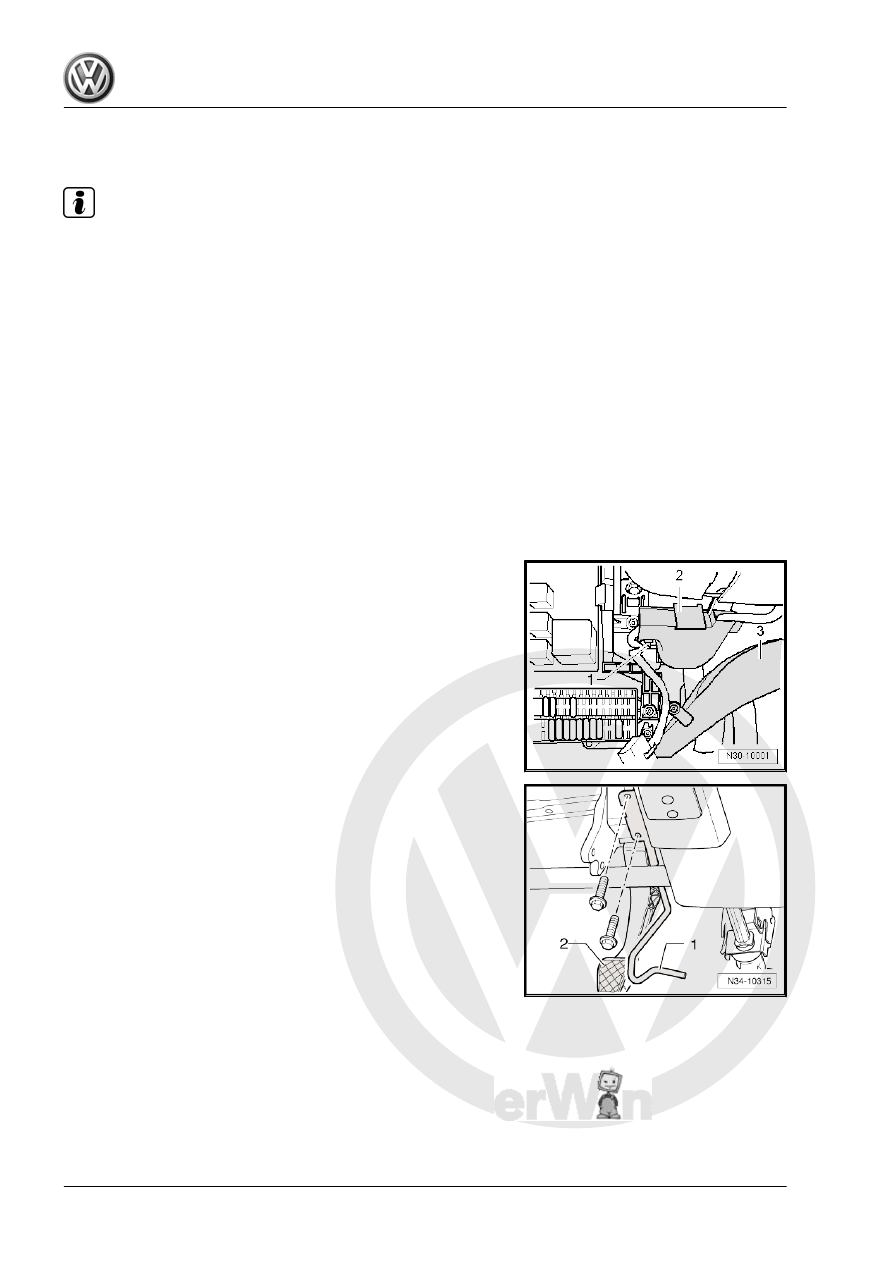

Note

The knee airbag is installed above the foot pedal assembly.

– Determine whether a coded radio is installed. If so, obtain the

anti-theft code.

– Disconnect the battery ground cable with the ignition switched

off. Refer to ⇒  Electrical Equipment; Rep. Gr.  27 ; Battery;

Battery, Disconnecting and Connecting .

Continuation for All
– Move the driver seat all the way back and raise the steering

wheel to the highest position.

– Remove the trim and the cover under the trim on the driver

side. Refer to ⇒  Body Interior; Rep. Gr.  68 .

Vehicles with Knee Airbag
– Remove the knee airbag bracket and the crash bolster. Refer

to ⇒  Body Interior; Rep. Gr.  69 .

Continuation for All
– Remove the cable guide -2- from the steering column.
– Remove the footwell vents -3-. Refer to ⇒  Heating, Ventilation

Removing, Jetta from MY 2011 .

Vehicles without Knee Airbag
There are different ways of securing the impact bolster -1- in front

of the clutch pedal -2-. The crash bolster may look different than

what is shown in the following illustrations.

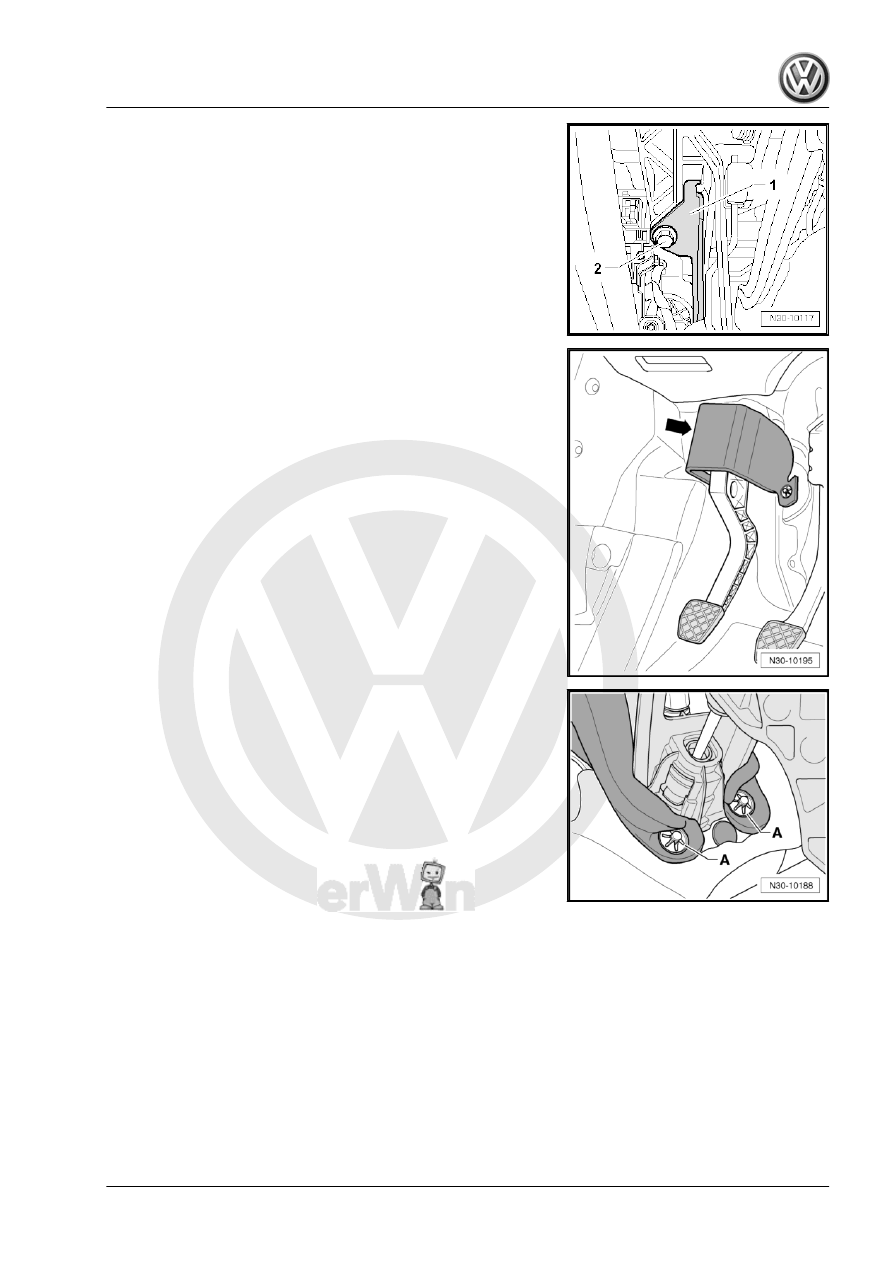

Securing with Two Bolts
– Remove the crash bolster -1- (2 bolts).

18

– Remove the damper -arrow- at the bottom of the mounting

bracket/clutch pedal, if equipped.

– Remove the washers -A- for the damper.
– Remove the damper.

1. Clutch Mechanism, Servicing

19

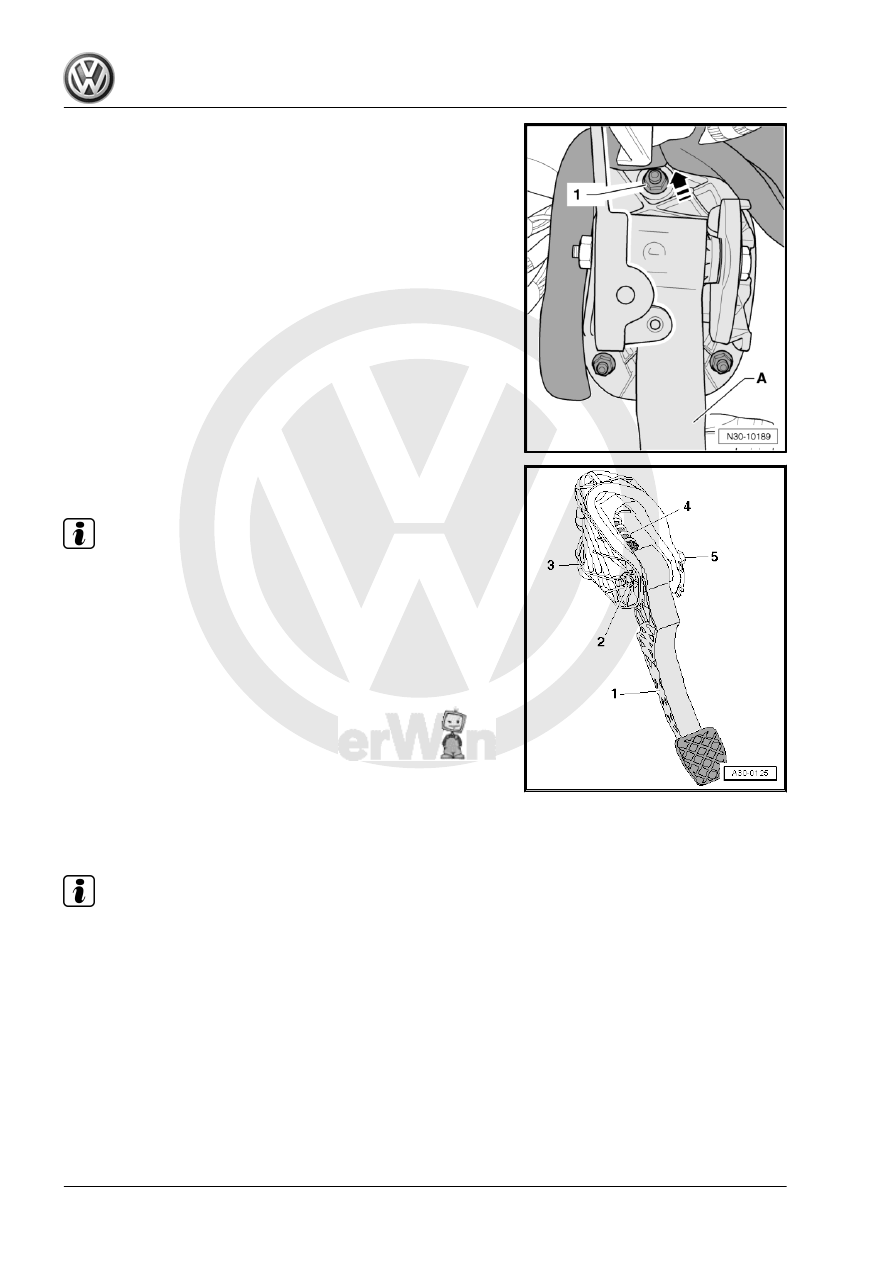

-A- upward in the direction of the -arrow-.

– Remove the nut -2- and the bolt -5- and then remove the clutch

pedal -1- from the mounting bracket -3-.

Note

The clutch pedal remains engaged in the clutch master cylinder

actuator rod.

– Swivel the clutch pedal slightly downward and remove the

over-center spring -4- from the mounting bracket.

1.3.2

Installing

Install in reverse order of removal while. Note the following:

Note

Replace the self-locking nuts.

20

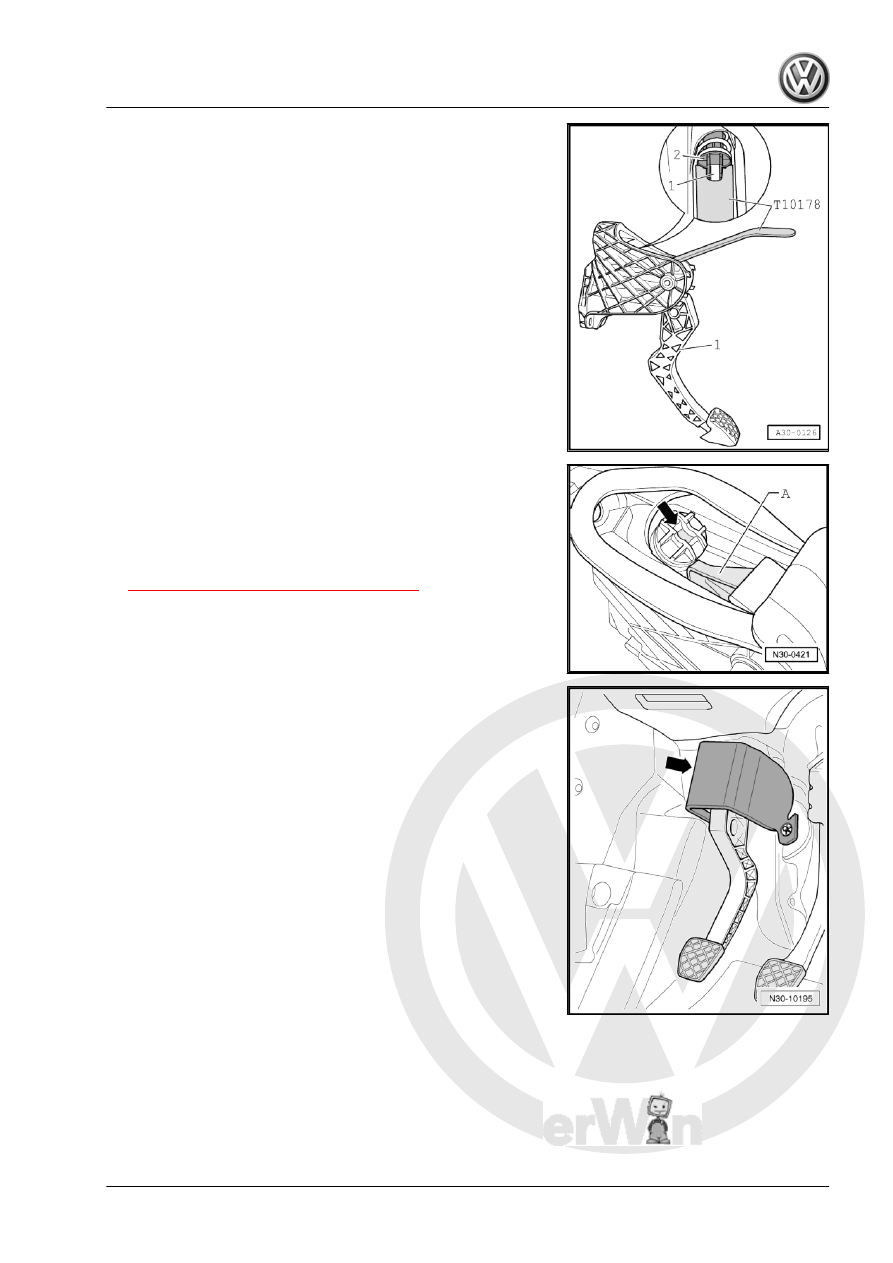

the top. Hold the end of the spring in its installed position with

Over-Center Spring Assembly Tool - T10178- when installing

the spring.

• The mounting area -arrow- for the clutch pedal pivot pin -A-

must be positioned vertically.

– Insert the clutch pedal pivot pin into the mounting cup of the

over-center spring.

– Press the clutch pedal slightly, push the bolt through and tight‐

en the self-locking nut to the tightening specification. Refer to

⇒ “1.3.3 Tightening Specifications”, page 22

 .

Some vehicles have a damper -arrow- on the mounting bracket/

clutch pedal.
– Bring it back into its installed position.
Vehicles without Knee Airbag

1. Clutch Mechanism, Servicing

21
