♦ Dimension -a- = 1.5 ± 1 mm
♦ Dimension -b- = 1 ± 1 mm
♦ Dimension -c- = 1 ± 1 mm
If measured values differ from specifications, respective glass

panel must be adjusted.
♦ Adjusting front glass panel

⇒ page 189

♦ Adjusting rear glass panel

⇒ page 189

Adjusting front glass panel

Note

The glass panel height adjustment is performed after the glass

panel has been closed from slide open position.

– Remove trim panel

⇒ page 185

 .

– Loosen only both front bolts -2- left and right for glass panel

-1-.

– Close glass panel.

– Adjust glass panel -1- as shown in illustration.
♦ Dimension -a- = 1.5 ± 1 mm
♦ Dimension -b- = 1 ± 1 mm
♦ Dimension -c- = 1 ± 1 mm
– Tighten left and right bolts (5 Nm).
– Install trim

⇒ page 186

 .

Adjusting rear glass panel

2. Panorama sliding sunroof (Arvin-Meritor)

189



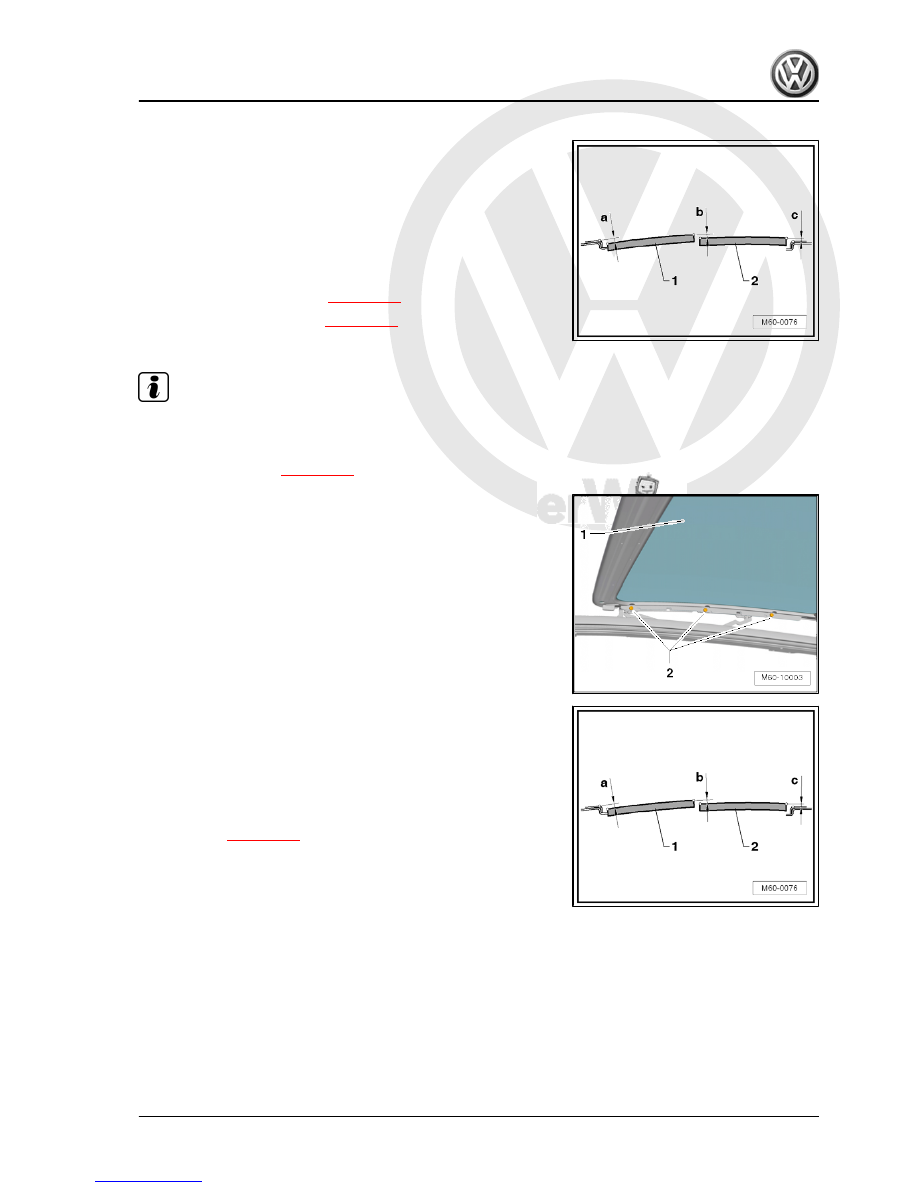

– Adjust rear glass panel -2- as shown in illustration.
♦ Dimension -a- = 1.5 ± 1 mm
♦ Dimension -b- = 1 ± 1 mm
♦ Dimension -c- = 1 ± 1 mm
– Tighten left and right bolts (5 Nm).

2.8

Renewing seals for rear glass panel

– Remove rear glass panel

⇒ page 187

 .

Renew front and inner seals

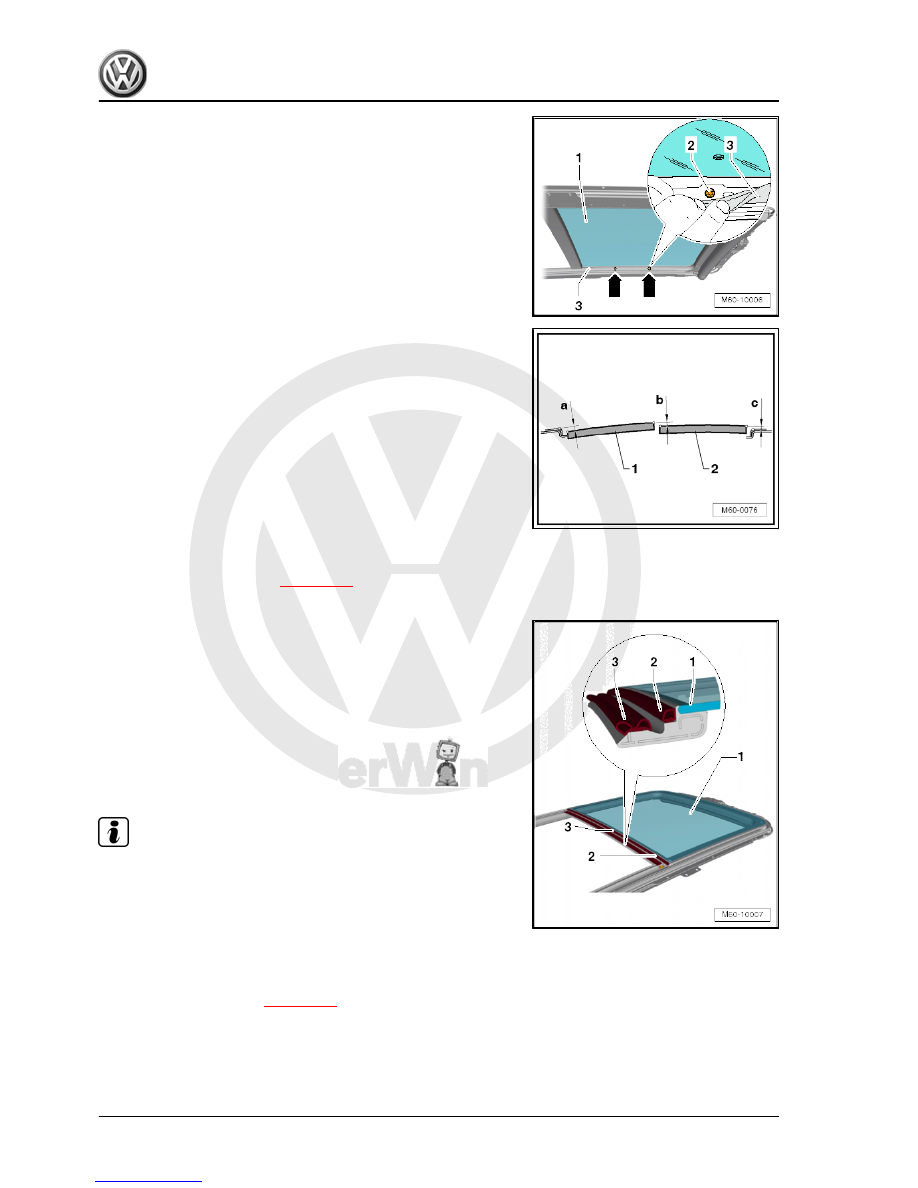

– Pull respective seal -1- off rear glass panel.
♦ 2 Front seal
♦ 3 Inner seal
– Remove existing adhesive residue using adhesive strip re‐

mover -VAS 6349- .

– Bonding surface on glass panel must be free of dust and

grease.

– Clean bonding surface completely using cleaning solution -D

009 401 04- .

Note

To guarantee a good bonding of seal, do not bond at a tempera‐

ture below 20°C.

– Remove protective backing from adhesive tape of new seal

and press on seal at both ends.

– Sprain any seal excess length evenly.
– Press in seal evenly using roller for door insulation foil -3356- .
– Install rear glass panel

⇒ page 187

 .

Removing side seal

190



– Bonding surface on glass panel must be free of dust and

grease.

– Clean bonding surface completely using cleaning solution -D

009 401 04- .

Note

New seal is supplied in excess length. Cut new seal to appro‐

priate length. It is recommended to leave new seal 1-2 mm

longer and to sprain any excess length.

To guarantee a good bonding of seal, do not bond at a tem‐

perature below 20°C.

– Pull off protective backing from adhesive tape of new seal.

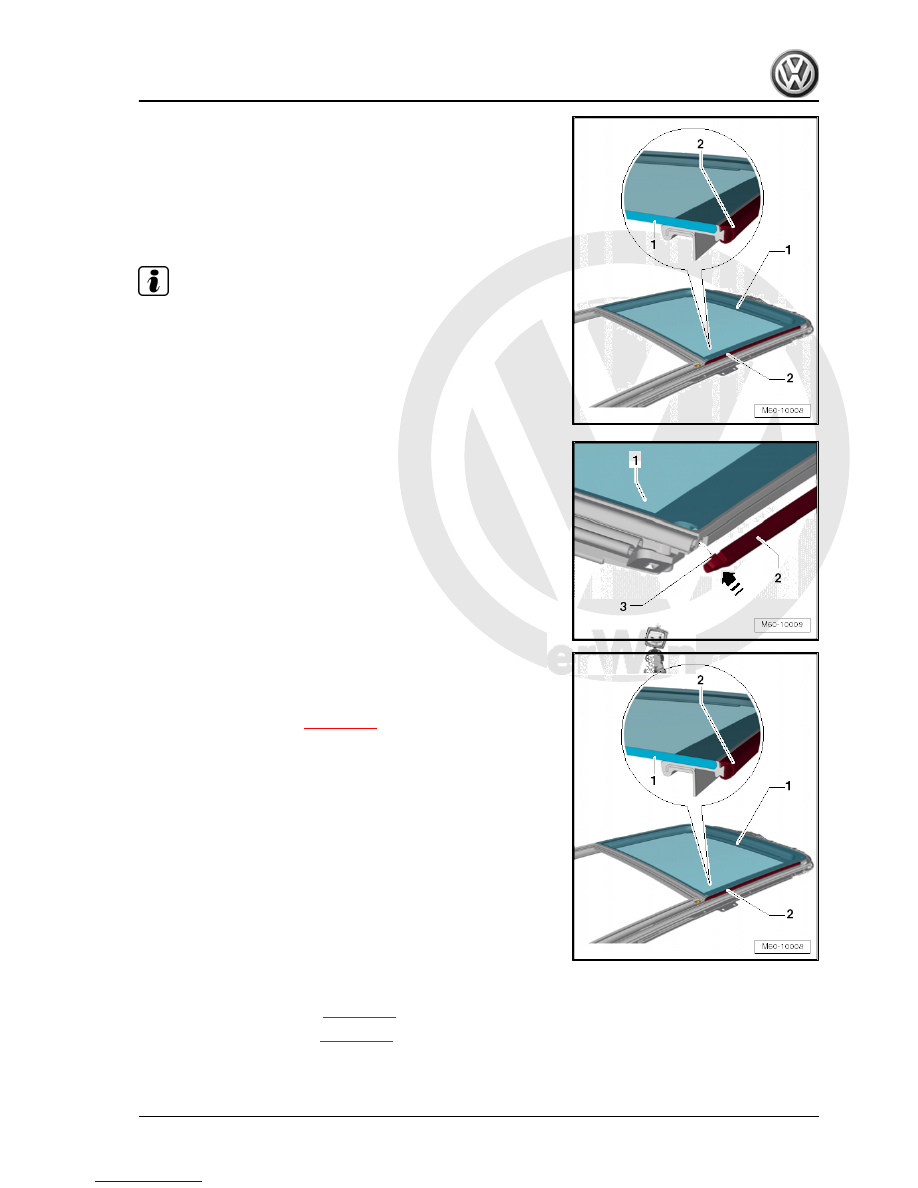

– Set new seal -2- with fastener -3- on glass panel -1-.
– Press seal on both ends.

– Press seal -2- onto profile of glass panel -1- and sprain any

excess length evenly.

– Press in seal evenly using roller for door insulation foil -3356- .
– Install rear glass panel

⇒ page 187

 .

2.9

Renewing outer seal

– Remove front glass panel

⇒ page 185

 .

– Remove rear glass panel

⇒ page 187

 .

2. Panorama sliding sunroof (Arvin-Meritor)

191



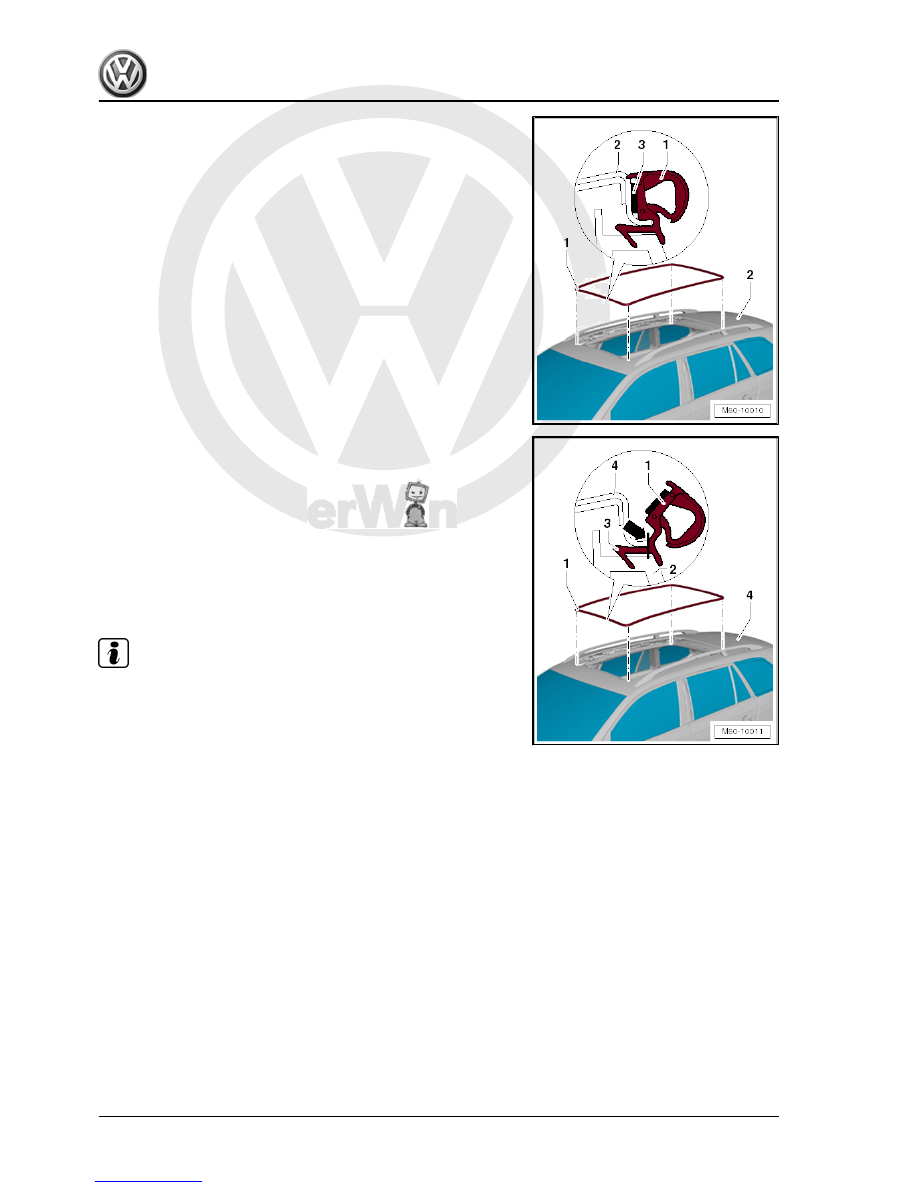

with edge of roof -4-.

– Remaining part -3- stays between roof -4- and assembly frame

-2-.

– Remove existing adhesive residue using adhesive strip re‐

mover -VAS 6349- .

– Entire bonding surface on roof cut-out must be free of dust and

grease.

– Clean bonding surface completely using cleaning solution -D

009 401 04- .

Note

New seal is supplied in excess length. Cut new seal to appro‐

priate length. It is recommended to leave new seal 1-2 mm

longer and to sprain any excess length.

To guarantee a good bonding of seal, do not bond at a tem‐

perature below 20°C.

After bonding outer seal, wait at least 30 min before fitting

glass panel to assure seal does not unstick.
