Volkswagen Golf / Golf Plus. Manual - part 340





Checking glow plug system

Removing, installing and checking glow plugs

⇒ page 198

Characteristics of ceramic glow plugs

⇒ page 199

Removing, installing and checking ceramic glow plugs

⇒ page 200

1.1

Removing, installing and checking glow

plugs

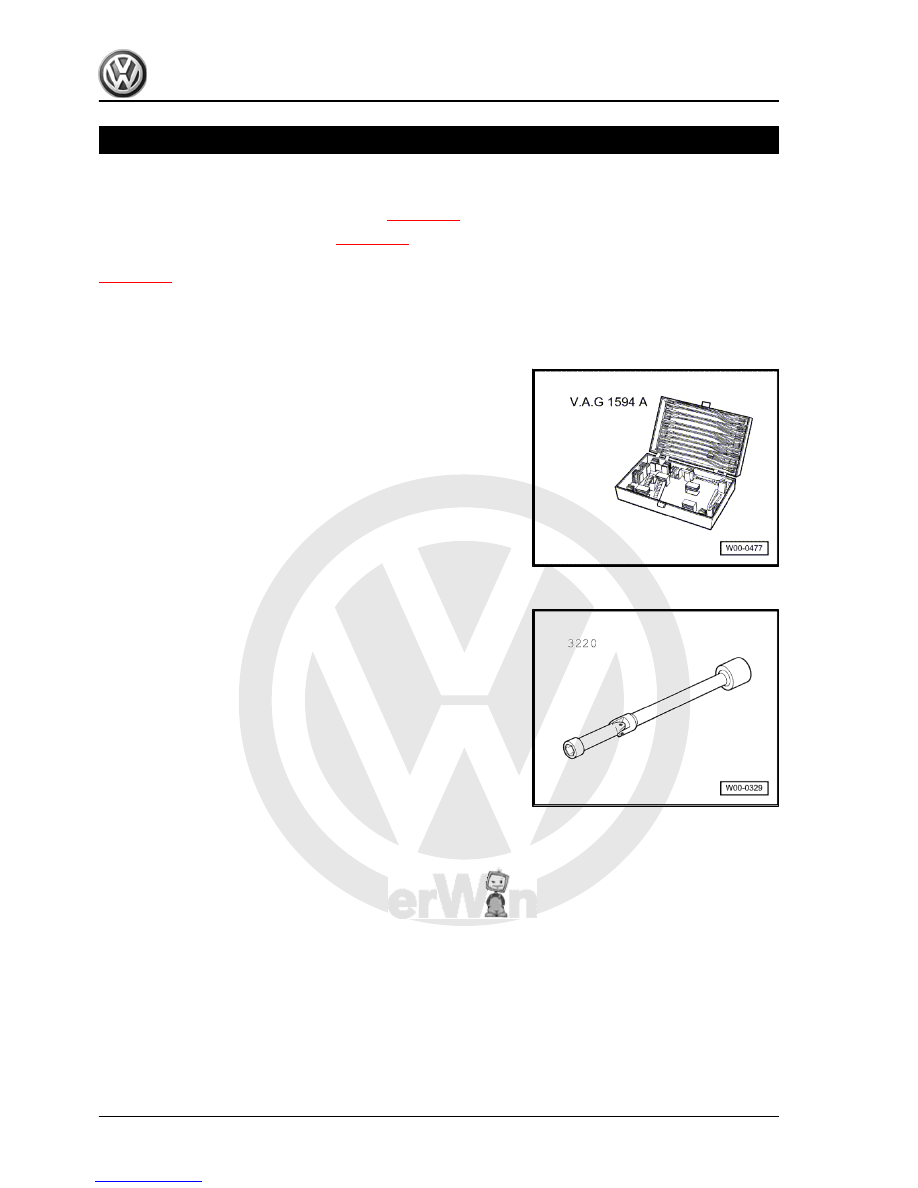

Special tools and workshop equipment required
♦ Auxiliary measuring set -V.A.G 1594 C-

♦ Diode test lamp -V.A.G 1527 B-
♦ Jointed spanner -3220-

Test requirements
• Battery voltage at least 11.5 V
• Ignition switched off
Test procedure
– Pull glow plug connectors off glow plugs.

4-cylinder diesel engine (1.9 l engine) - Edition 01.2009

198

     Rep. Gr.28 - Glow plug system



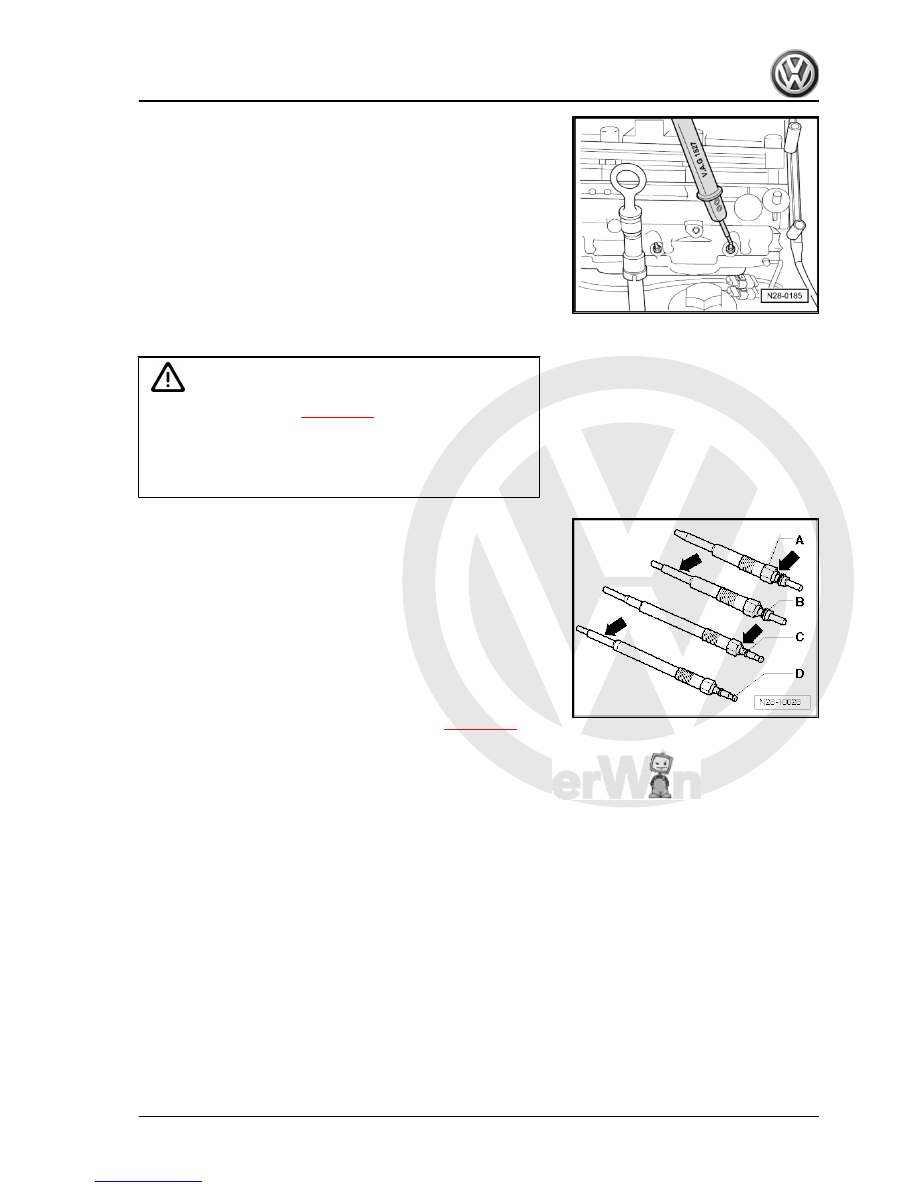

– Place probe of diode test lamp -V.A.G 1527 B- on each glow

plug one after the other. If diode lights up, glow plug is OK. If

diode does not light up, replace glow plug.

– Remove and install glow plugs using jointed spanner -3220- .

Specified torque: 15 Nm.

1.2

Characteristics of ceramic glow plugs

WARNING

The ceramic glow plugs

⇒ page 199

 are sensitive to jolts and

bending. For this reason a glow plug which has dropped from

a small height (approx. 2 cm) must not be used, even if there

is no obvious damage. It is absolutely necessary to follow the

installation instructions, otherwise the heater pin of the glow

plug can break and cause engine damage.

Visual features of ceramic glow plugs
Vehicles with 2 valves per cylinder head
-A- = Metal glow plug, colour-coded -arrow-.
-B- = Ceramic glow plug with support tube -arrow-, not colour-

coded.
Vehicles with 4 valves per cylinder head
-C- = Metal glow plug, colour-coded -arrow-.
-D- = Ceramic glow plug with support tube -arrow-, not colour-

coded.
Remove and install or check ceramic glow plugs

⇒ page 200

 .

4-cylinder diesel engine (1.9 l engine) - Edition 01.2009

1. Checking glow plug system

199

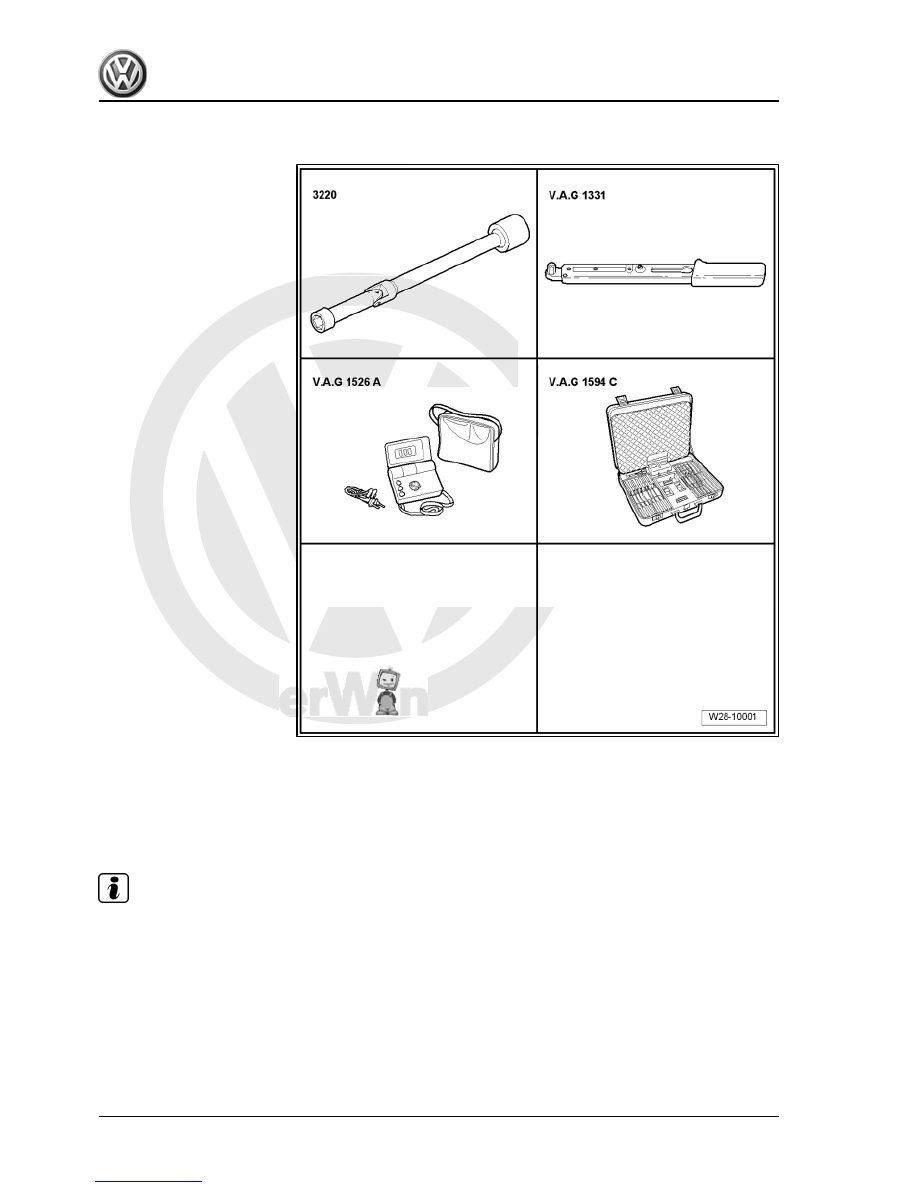

Special tools and workshop

equipment required
♦ Jointed spanner -3220-
♦ Torque wrench (5…50 Nm)

-V.A.G 1331-

♦ Hand-held multimeter -

V.A.G 1526 A-

♦ Auxiliary measuring set -

V.A.G 1594 C-

Test prerequisites
• Engine is cold
• Ignition switched off
Procedure

Note

Do not cant ceramic glow plugs when removing and installing.

Remove any components hindering assembly.

– Pull connectors off ceramic glow plugs.
– Remove ceramic glow plugs using U/J extension and socket,

10 mm -3220- .

Installation is carried out in the reverse order. When installing,

note the following:
– Before installing the drilling in cylinder head and the threads

must completely cleaned of all deposits.

4-cylinder diesel engine (1.9 l engine) - Edition 01.2009

200

     Rep. Gr.28 - Glow plug system



glow plugs.

– Screw ceramic glow plugs into cylinder head by hand using U/

J extension and socket, 10 mm -3220- .

– Then tighten the ceramic glow plugs. Specified torque: 15 Nm.

WARNING

♦ After installing and before the engine is started, always

perform a resistance test on all ceramic glow plugs when

engine is cold.

♦ If the defective ceramic glow plug is broken, remove all

fragments from the engine, otherwise these can cause

damage to the engine.

♦ Specification: max. 1 Ω
– If the specification is exceeded, renew the defective ceramic

glow plug.

4-cylinder diesel engine (1.9 l engine) - Edition 01.2009

1. Checking glow plug system

201
