Volkswagen Golf / Golf Plus. Manual - part 262





s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

– Ensure that gaps are parallel and specified dimensions are

maintained ⇒ Body Repairs; Rep. Gr.  00 ; Technical data;

Body gap dimensions .

4.5

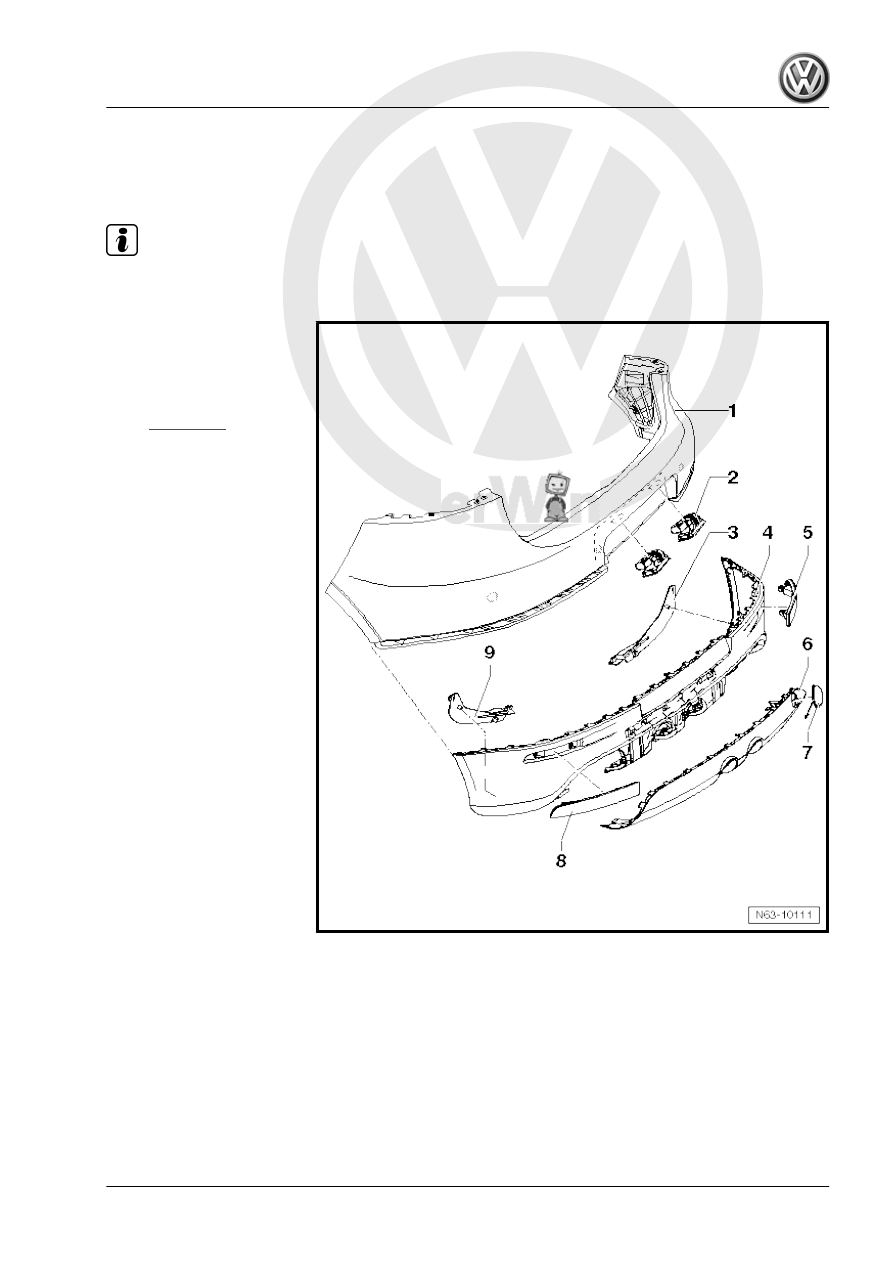

Rear bumper attachments for R32

Note

Minor differences will be encountered on removal and installing, depending on version.

1 - Cover

❑ With various forms for

number plate

❑ Material PP/EPDM
❑ Removing and installing

⇒ page 167

2 - Number plate lights

❑ Qty. 2
❑ Removing ⇒  Electrical

system; Rep. Gr.  94 ;

Lights, bulbs, switches -

exterior; Number plate

illumination

3 - Right fitting bracket
4 - Spoiler

❑ With various forms for

number plate

❑ Material PC/ABS
❑ Engaged in cover
❑ Can be removed only

when bumper has been

removed

5 - Rear right reflector

❑ Engaged in spoiler
❑ Can be removed only

when bumper has been

removed

6 - Trim

❑ Material PC/ABS
❑ Engaged in cover
❑ Can be removed only

when bumper has been

removed

7 - Towing eye cap

❑ Engaged in cover

8 - Rear left reflector

❑ Engaged in spoiler
❑ Can be removed only when bumper has been removed

9 - Left fitting bracket

General body repairs, exterior - Edition 04.2008

4. Rear bumper for R32 and GTI special models

169

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

4.6

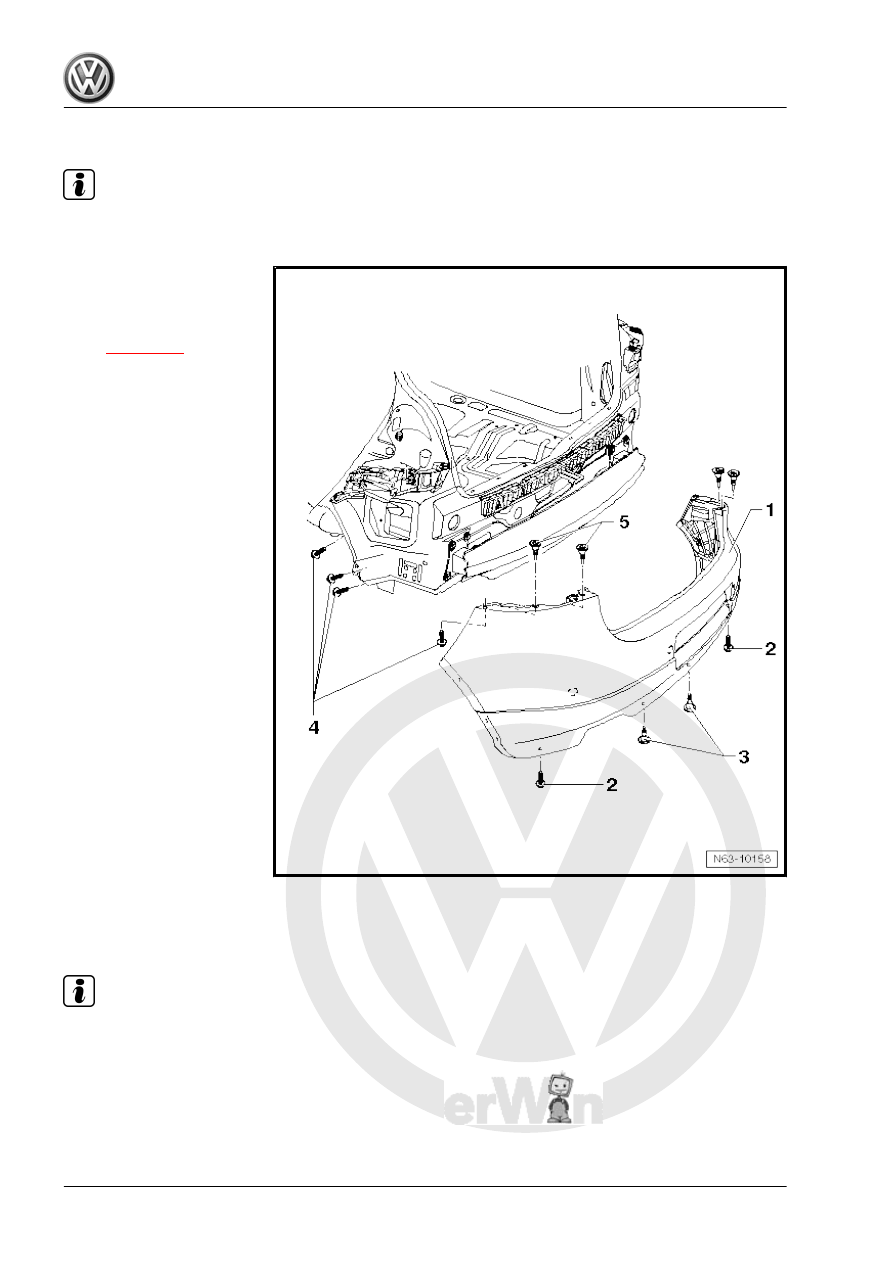

Assembly overview - rear bumper cover for GTI special models

Note

Minor differences may be encountered in the assembly overview depending on version.

1 - Cover

❑ Material: PP/EPDM PU-

RIM

❑ Removing and installing

⇒ page 170

2 - Bolt

❑ Qty. 2
❑ 2 Nm

3 - Bolt

❑ Qty. 2
❑ 5 Nm

4 - Bolt

❑ Qty. 4 per side.
❑ 2 Nm

5 - Bolt

❑ Qty. 2 per side.
❑ 5 Nm

4.7

Removing and installing rear bumper

cover for GTI special models

Note

The removal and installation procedures may have to be modified

slightly depending on version.

General body repairs, exterior - Edition 04.2008

170

     Rep. Gr.63 - Bumpers

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

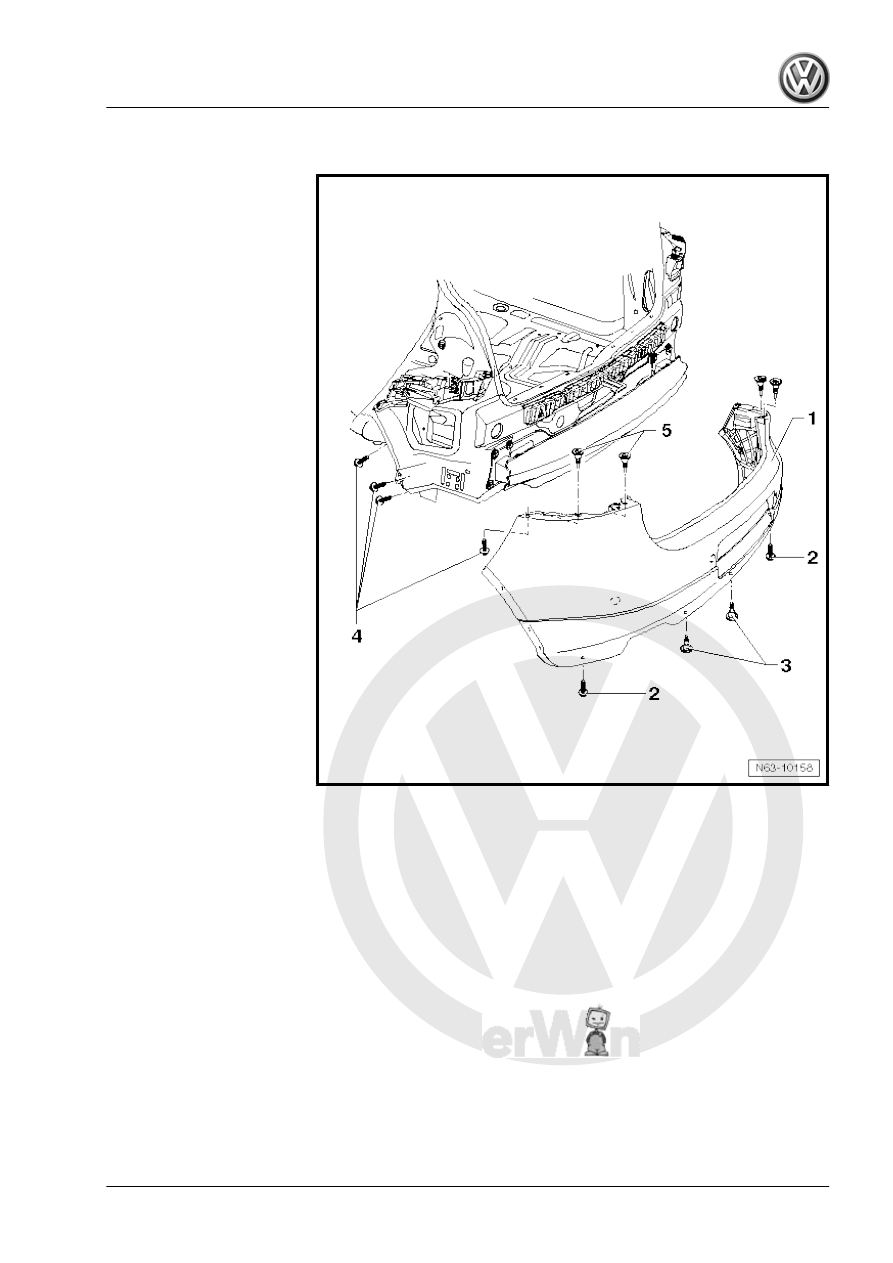

4.7.1

Removing

– Remove tail lights ⇒  Electrical system; Rep. Gr.  94 ; Lights,

bulbs, switches - exterior; Removing and installing tail lights .

– Remove bolts -4- on left and right in area of wheel housing

liner.

– From below, remove bolts -2- and -3-.
– Unscrew bolts -5- from above on left and right beneath tail

lights.

Further dismantling requires the help of a second mechanic.
– With help of a second mechanic pull cover -1- parallel out of

guides.

– Separate connectors for existing electrical components of

number plate light ⇒  Electrical system; Rep. Gr.  94 ; Lights,

bulbs, switches - exterior; Number plate lights and, if fitted, ⇒

Electrical system; Rep. Gr.  94 ; Lights, bulbs, switches - ex‐

terior; Parking aid .

4.7.2

Installing

Installation is carried out in reverse order of removal.

General body repairs, exterior - Edition 04.2008

4. Rear bumper for R32 and GTI special models

171

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

– Ensure that gaps are parallel and specified dimensions are

maintained ⇒ Body Repairs; Rep. Gr.  00 ; Technical data;

Body panel gaps/shut lines .

4.8

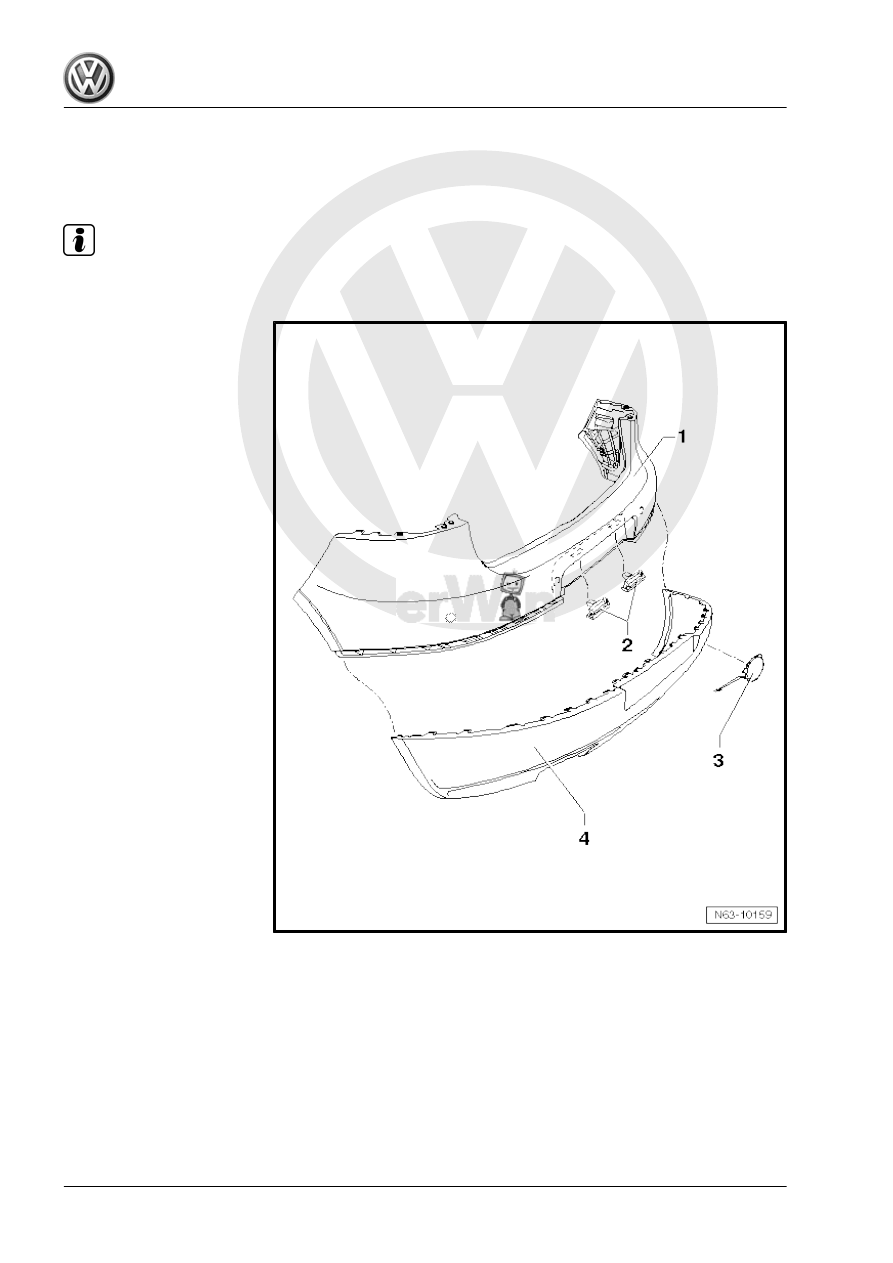

Rear bumper attachments for GTI special models

Note

Minor differences will be encountered on removal and installing, depending on version.

1 - Cover

❑ Material: PP/EPDM PU-

RIM

❑ Removing and instal‐

ling:

2 - Number plate lights

❑ Qty. 2
❑ Removing:
– ⇒  Electrical system;

Rep. Gr.  94 ; Lights,

bulbs, switches - exteri‐

or; Number plate lights .

3 - Towing eye cap

❑ Engaged in cover.

4 - Spoiler

❑ Material: PU-RIM
❑ Engaged in cover
❑ Can be removed only

when bumper has been

removed

General body repairs, exterior - Edition 04.2008

172

     Rep. Gr.63 - Bumpers
