Volkswagen Golf / Golf Plus. Manual - part 236





s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

– First clean painted surface as much as possible using a dry

cloth. Remove remaining adhesive with adhesive remover

D 002 000 10.

– Cleaning plastic trim: allow adhesive sealant to cure (approx.

one hour) and then peel off.

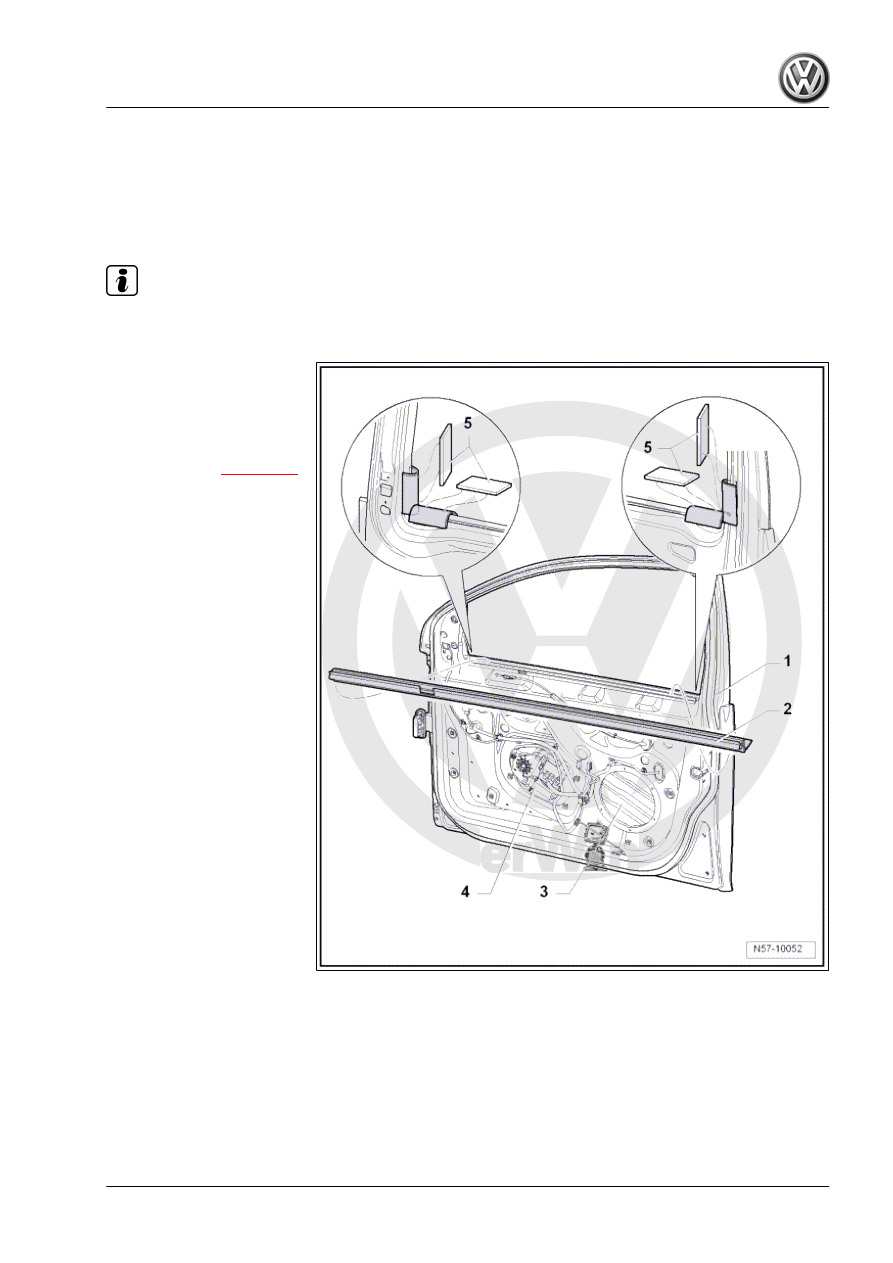

1.13

Assembly overview - door inner part

Note

The right side is shown. The left side is similar.

1 - Door inner part
2 - Window slot seal
3 - Loudspeaker
4 - Window regulator motor

❑ Removing

⇒ page 199

5 - Insulation

❑ Qty. 4
❑ 20 mm x 40 mm com‐

mercially available tex‐

tile adhesive tape

General body repairs, exterior - Edition 04.2008

1. Front door

65

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

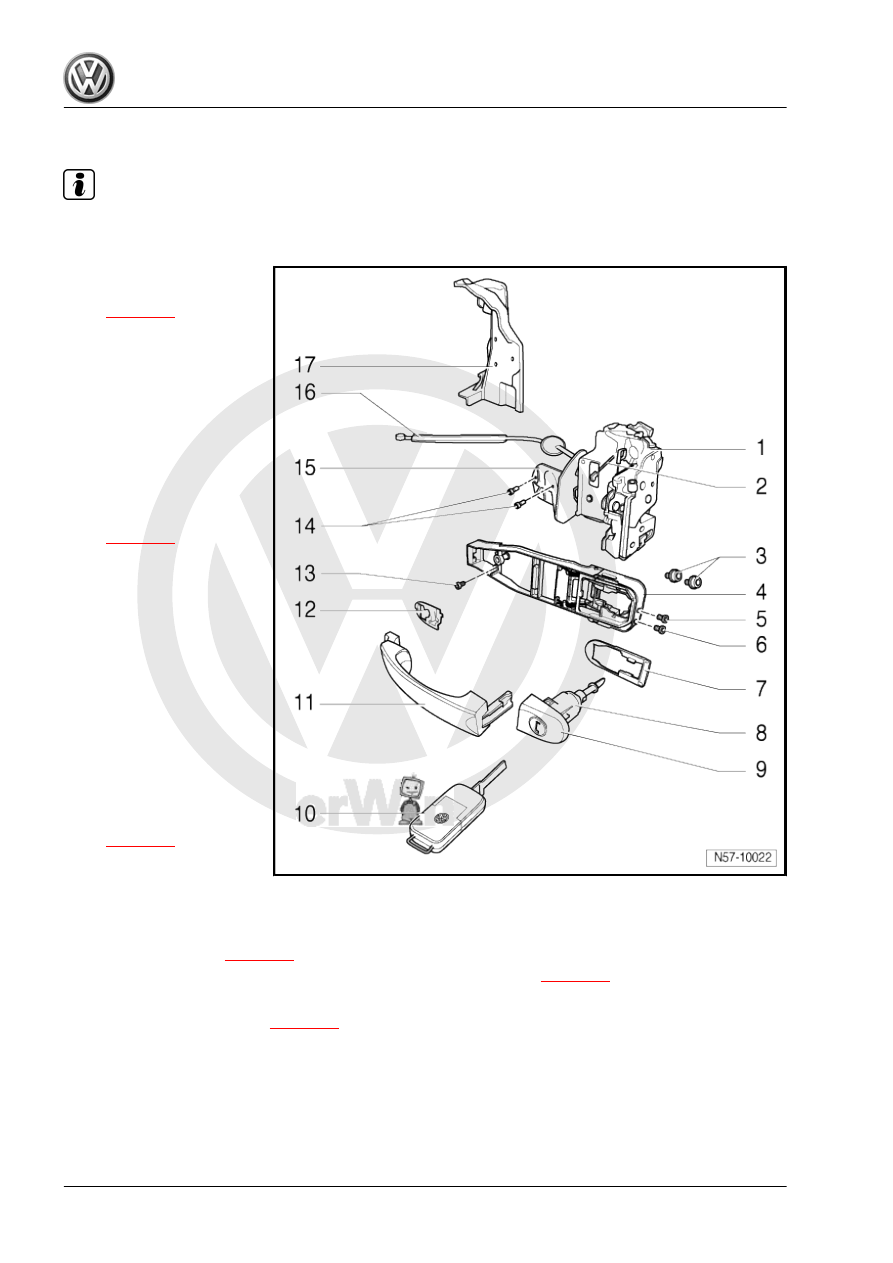

1.14

Assembly overview - door handle and door lock

Note

Only the left side is shown. The procedure for the right side is similar.

1 - Door lock

❑ Removing and installing

⇒ page 72

2 - Cable

❑ To release lock from

outer door handle

3 - Bolt

❑ To secure lock on door

inner part

❑ 18 Nm
❑ Qty. 2

4 - Bearing plate

❑ Removing and installing

⇒ page 70

5 - Bolt

❑ For lock cylinder

6 - Locking screw

❑ Not fitted on all models
❑ This bolt is installed to

provide additional se‐

curity for the bearing

plate

7 - Base
8 - Lock cylinder housing

❑ Only on driver side
❑ Installed on the passen‐

ger side is just a housing

❑ Removing and installing

⇒ page 67

9 - Cover

❑ For lock cylinder housing
❑ Secured to lock cylinder housing with three locking lugs

10 - Key

❑ Changing battery

⇒ page 82

❑ Adapting new or additional key to remote control and immobiliser

⇒ page 81

11 - Door handle with base

❑ Removing and installing

⇒ page 68

12 - Base

❑ Part of door handle

13 - Torx screw

❑ Socket -T 10072-

14 - Spreader rivet

❑ Not installed on Golf

General body repairs, exterior - Edition 04.2008

66

     Rep. Gr.57 - Front doors, door components, central locking

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

15 - Retaining bracket

❑ Not installed on Golf

16 - Cable

❑ To release lock from inner door handle

17 - Cover

❑ Not supplied as part of door lock
❑ Secured to door lock with three locking lugs

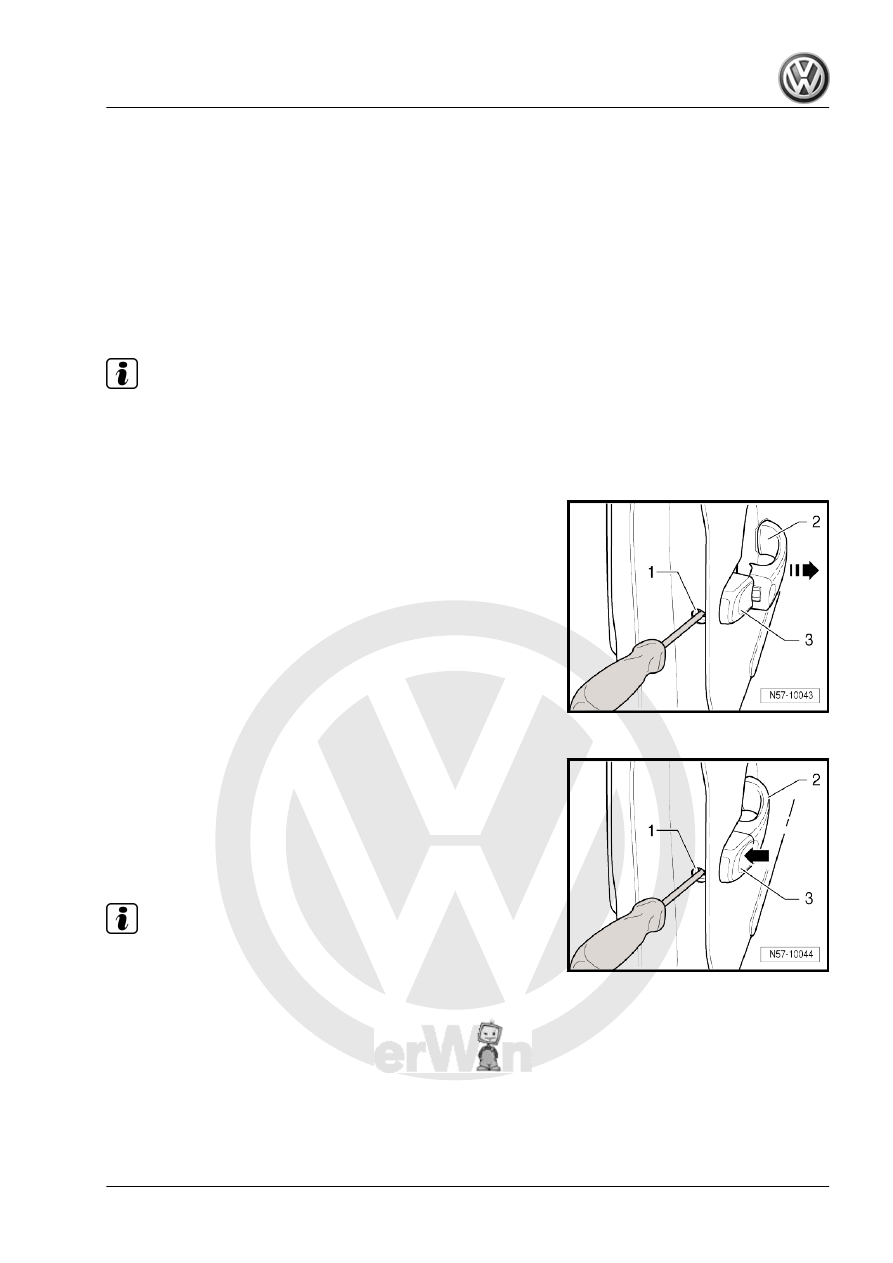

1.15

Removing and installing housing

Note

The removal and installation sequence is only for the right hous‐

ing. The removal and installation of the right lock cylinder is

similar.

1.15.1

Removing

– Lever out caps in front of bolts -1-.
– Pull door handle -2- in -direction of arrow- and unscrew bolt

-1- using socket wrench -T 10072- until housing -3- can be

pulled out.

1.15.2

Installing

– Fit housing -3- in door handle mounting plate at right angles

-arrow-.

Door handle -2- must rest only lightly against door panel.
– Now tighten bolt -1- in bearing plate using socket -T 10072- .
The door handle -2- locates in the housing -3- with a well audible

click.

Note

During installation, housing must be pressed against door panel.

Door handle rests only lightly against door panel.

Further installation is performed in the reverse order of removal.
• Then always check function while door is still open, as an in‐

correctly fitted and adjusted Bowden cable cannot open the

door.

General body repairs, exterior - Edition 04.2008

1. Front door

67

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

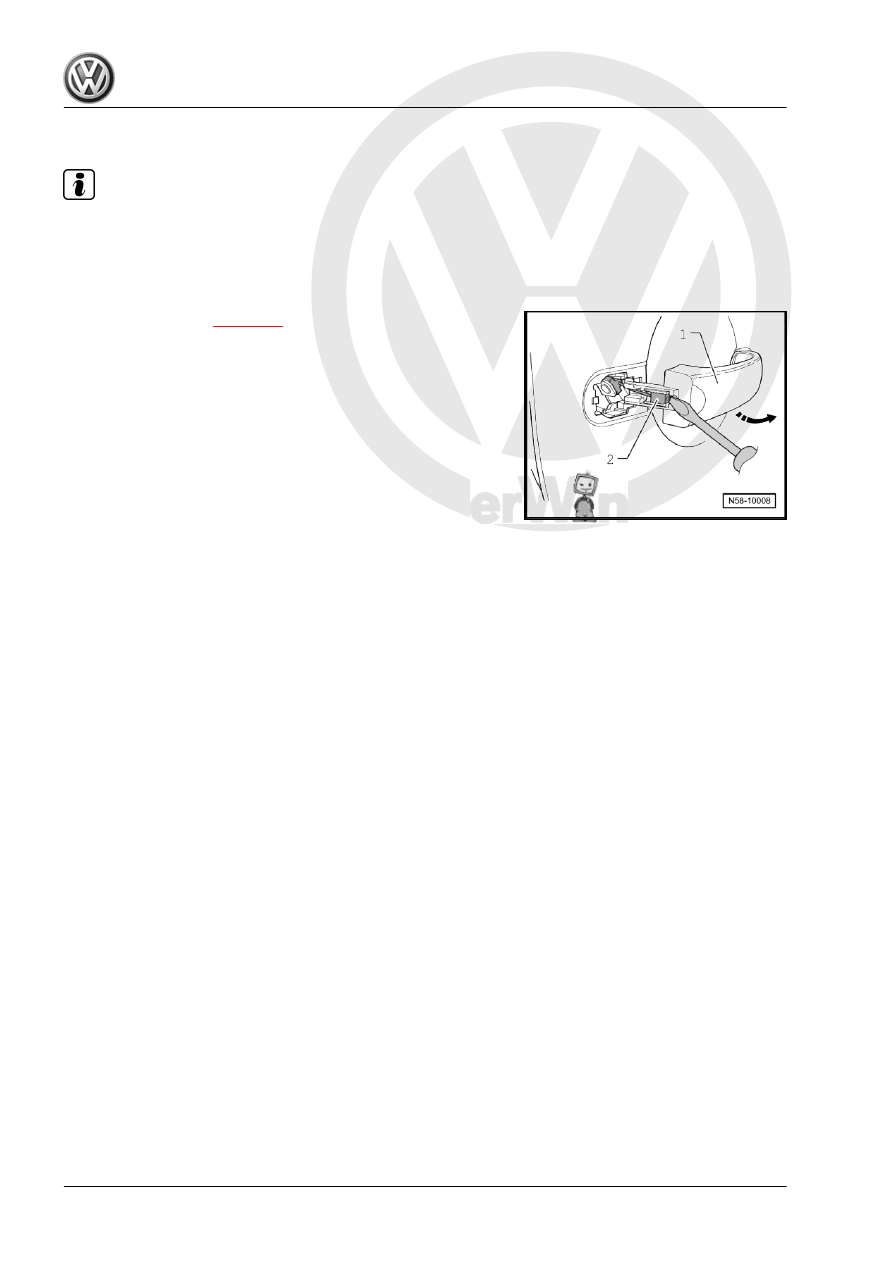

1.16

Removing and installing door handle

Note

The removal and installation sequence is only for the right door

handle. The removal and installation of the left door handle is

similar.

1.16.1

Removing

– Removing housing

⇒ page 67

 .

– Lever clip -2- out of door handle -1-.
– Swivel door handle -1- out of door -arrow-.

General body repairs, exterior - Edition 04.2008

68

     Rep. Gr.57 - Front doors, door components, central locking
