Volkswagen Golf / Golf Plus. Manual - part 191





s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

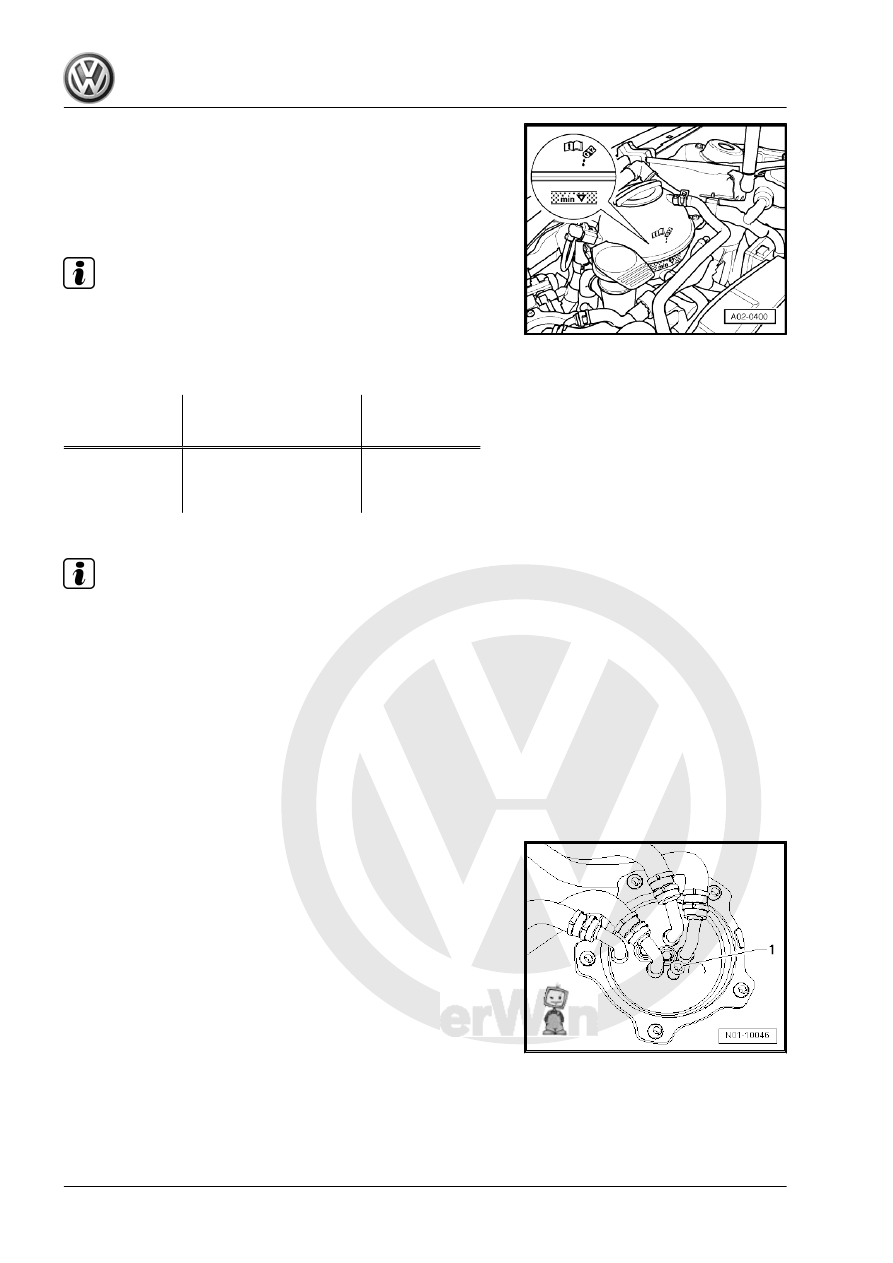

♦ Delivery inspection: Coolant level above “MIN. marking”

-arrow-.

♦ Inspection service: Coolant level above “MIN. marking”

-arrow-.

– If coolant level is too low, replenish required amount according

to mixture ratio.

Note

If fluid loss is greater than can be expected through normal use,

determine source and rectify (repair measure).

4.23.3

Mixture ratio:

Frost protection

to

Coolant additive G12 Plus

Plus /

TL VW 774 G

Water

3)

-25 °C

approx. 40 %

approx. 60 %

-35 °C

approx. 50 %

approx. 50 %

-40 °C

approx. 60 %

approx. 40 %

3) Use clean tap water only.

Note

Coolant additive G12 Plus Plus according to TL VW 774 G

prevents frost and corrosion damage, scaling and also raises

boiling point of coolant. For these reasons, the cooling system

must be filled all-year-round with a frost and corrosion protec‐

tion additive.

Because of its high boiling point, the coolant improves engine

reliability under heavy loads, particularly in countries with trop‐

ical climates.

The coolant concentration must not be reduced by adding wa‐

ter even in warmer seasons and in warmer countries. The anti-

freeze portion must be at least 40 %.

4.24

Fuel filter: Renew

Maintenance - Edition 11.2009

74

    4. Descriptions of work

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

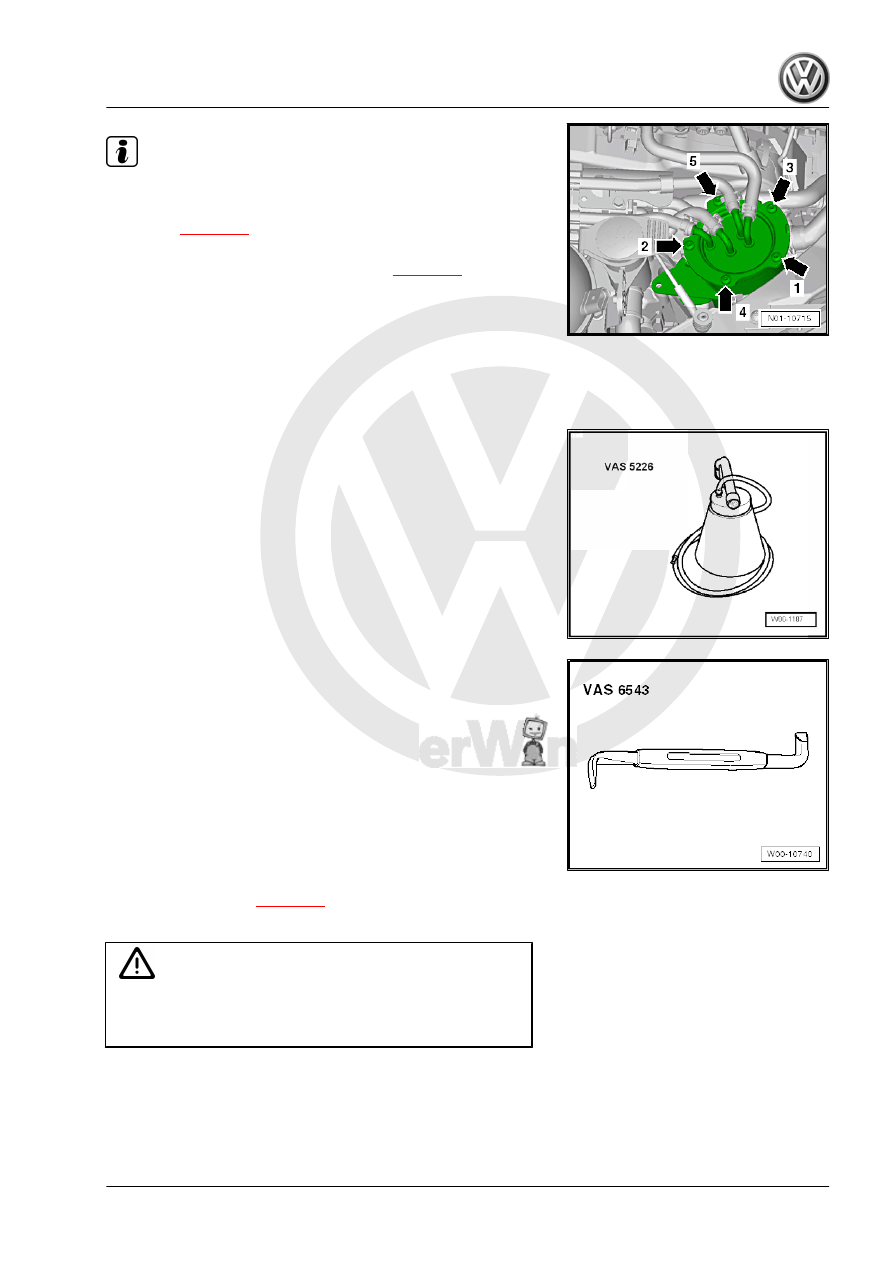

Note

There are two different fuel filter systems.

System 1 is fitted with a water extraction plug -1-, descriptions

of work

⇒ page 75

 .

System 2 is “not” fitted with a water extraction plug, see illus‐

tration N01-10288, descriptions of work

⇒ page 77

 .

4.24.1

Renewing fuel filter: Fuel filter system

with water extraction plug

Special tools and workshop equipment required
♦ Diesel extractor -VAS 5226-

♦ Angled screwdriver -VAS 6543-

Remove engine cover

⇒ page 89

 .

Removing:

Caution

Do NOT pull fuel hoses off fuel filter cover and do NOT lever

at connection. Leaks could occur and the fuel filter upper part

can be damaged.

Maintenance - Edition 11.2009

4. Descriptions of work

75

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

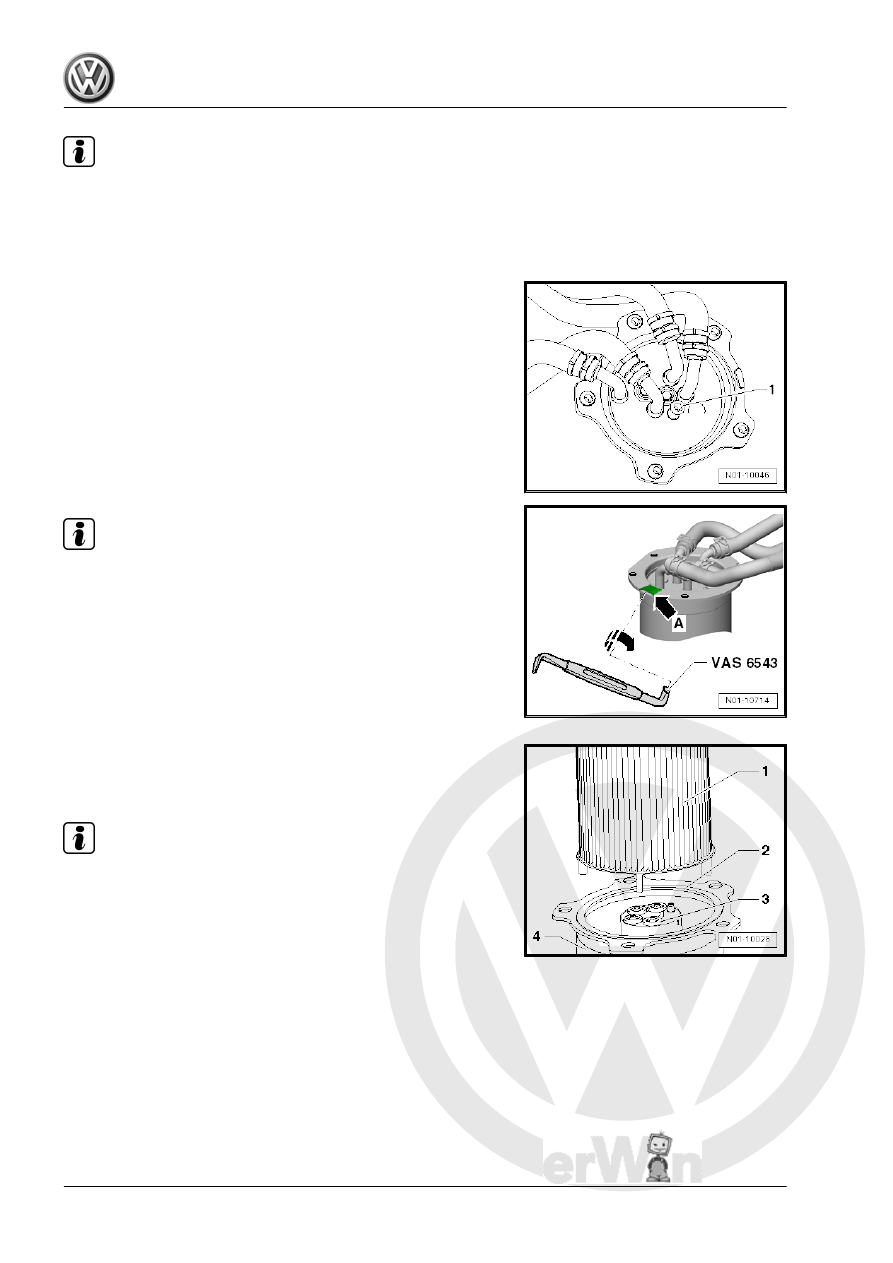

Note

Ensure that no diesel fuel contacts other components in the

engine compartment. Clean immediately, if necessary.

Observe disposal regulations!

Carry out the following procedure:
– Remove water extraction plug -1-.
– Fit hose of diesel extractor -VAS 5226- onto connector.
– Extract about 100 ml diesel fuel using diesel extractor -VAS

5226- .

– Renew seal of water extraction plug.
– Tighten water extraction plug to 3 Nm.
– Remove all securing screws of fuel filter upper part and re‐

move fuel filter upper part.

Note

If the fuel filter upper part is stuck, loosen as follows:

The fuel filter upper part can be raised at assembly groove

-arrow A- using angled screwdriver -VAS 6543- .
♦ The assembly groove can be of different size, depending on

the type of upper part.

– Insert appropriate side of angled screwdriver -VAS 6543- in

assembly groove -arrow A- and turn angled screwdriver -VAS

6543- .

– Remove easy change filter -1- and seal -2- from fuel filter lower

part -4-.

– Renew seal -3-.

Note

Observe disposal regulations!

Maintenance - Edition 11.2009

76

    4. Descriptions of work

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

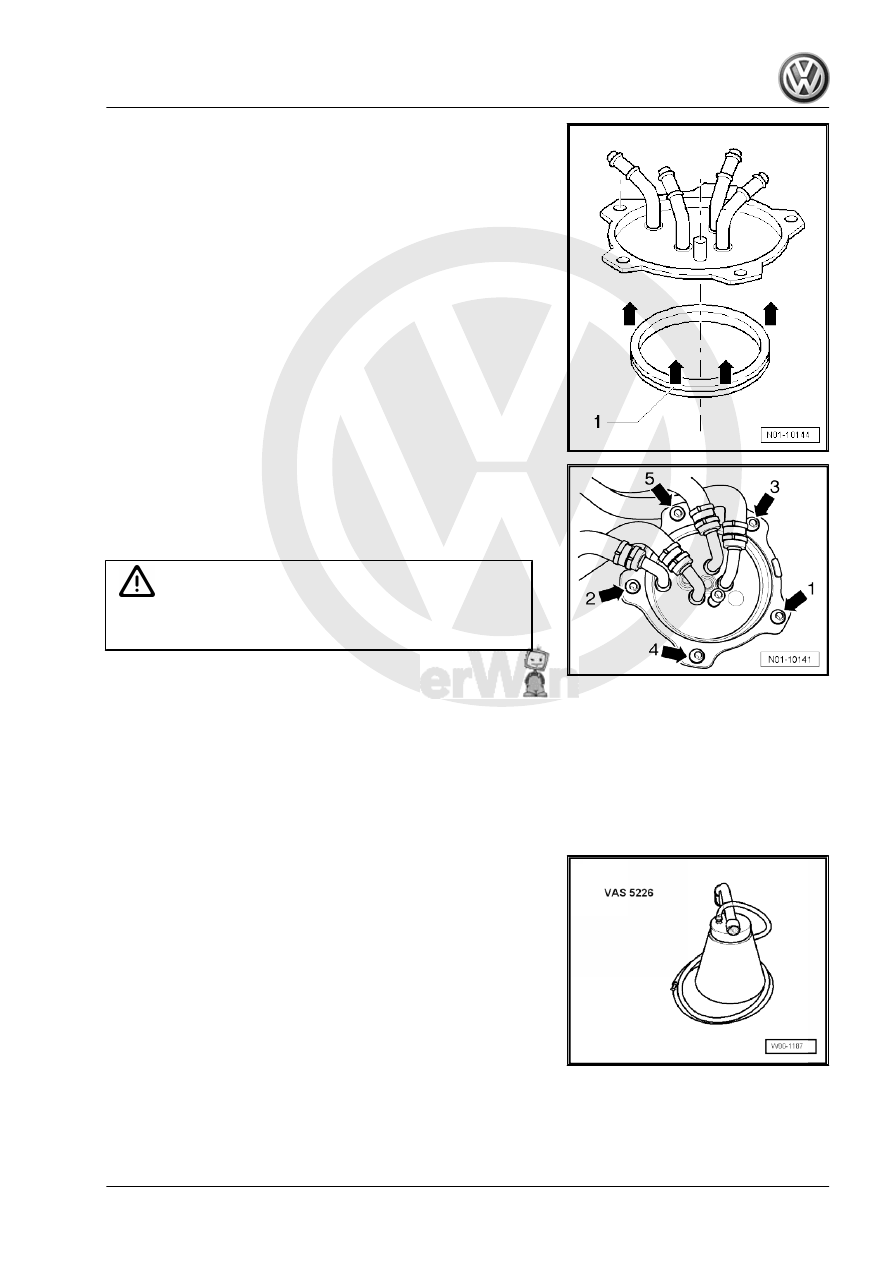

– Insert new easy change filter into fuel filter lower part.

– Moisten new seal -1- lightly with diesel fuel and fit on fuel filter

upper part.

– Place fuel filter upper part with seal properly onto fuel filter

lower part, press on firmly and evenly until the fuel filter upper

part is correctly seated.

Caution

Do NOT tighten bolts for upper part, before it is correctly seated

onto lower part.

– Screw all bolts into fuel filter lower part and tighten hand-tight.
– Then tighten bolts to 5 Nm according to sequence shown in

illustration.

This procedure prevents the seal from being damaged.

4.24.2

Renewing fuel filter: Fuel filter system

without water extraction plug

Special tools and workshop equipment required
♦ Diesel extractor -VAS 5226-

Maintenance - Edition 11.2009

4. Descriptions of work

77
