Note

The following work description applies to the front left window

regulator. Reactivate the other window automatic functions in the

same manner by operating the respective switch in the driver

door.

– Switch on ignition.
– Close all doors and windows completely.
– Hold the front left side window in “closed” position, by pulling

and holding switch for longer than 1 second.

– Pull switch again for 1 second. The side window must now go

up or down by itself when switch is briefly pulled or pressed.

– Switch off ignition.

4.16

Vehicle system test: Perform test

– Connect vehicle diagnostic tester

⇒ page 32

 .

– Switch on ignition.
– Select operating mode “Guided fault finding” on display.
– Then perform vehicle identification on vehicle diagnostic test‐

er .

The programme now automatically performs a vehicle system test

and reads all control units available for this vehicle type.
– Press

>

 button.

Now all faults are listed.

Note

At this point it is useful to change to operating mode guided

functions to carry out further operations with diagnostic tester

and to prevent a second vehicle identification on vehicle diag‐

nostic tester .

To do this, press button operating mode and then guided func‐

tions.

For further procedure see respective work descriptions.

To return to guided fault finding, press button operating mode

and then guided fault finding.

Caution

The vehicle must always be delivered to the customer with fault

memory cleared.

Static faults
If one or more static faults are found in the fault memory, we rec‐

ommend in agreement with the customer to rectify these faults

using guided fault finding.
Sporadic faults
If only sporadic faults or notes are stored in the fault memory and

the customer has no complaints in conjunction with the electronic

vehicle system, clear fault memory.

Maintenance - Edition 11.2009

62

    4. Descriptions of work

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

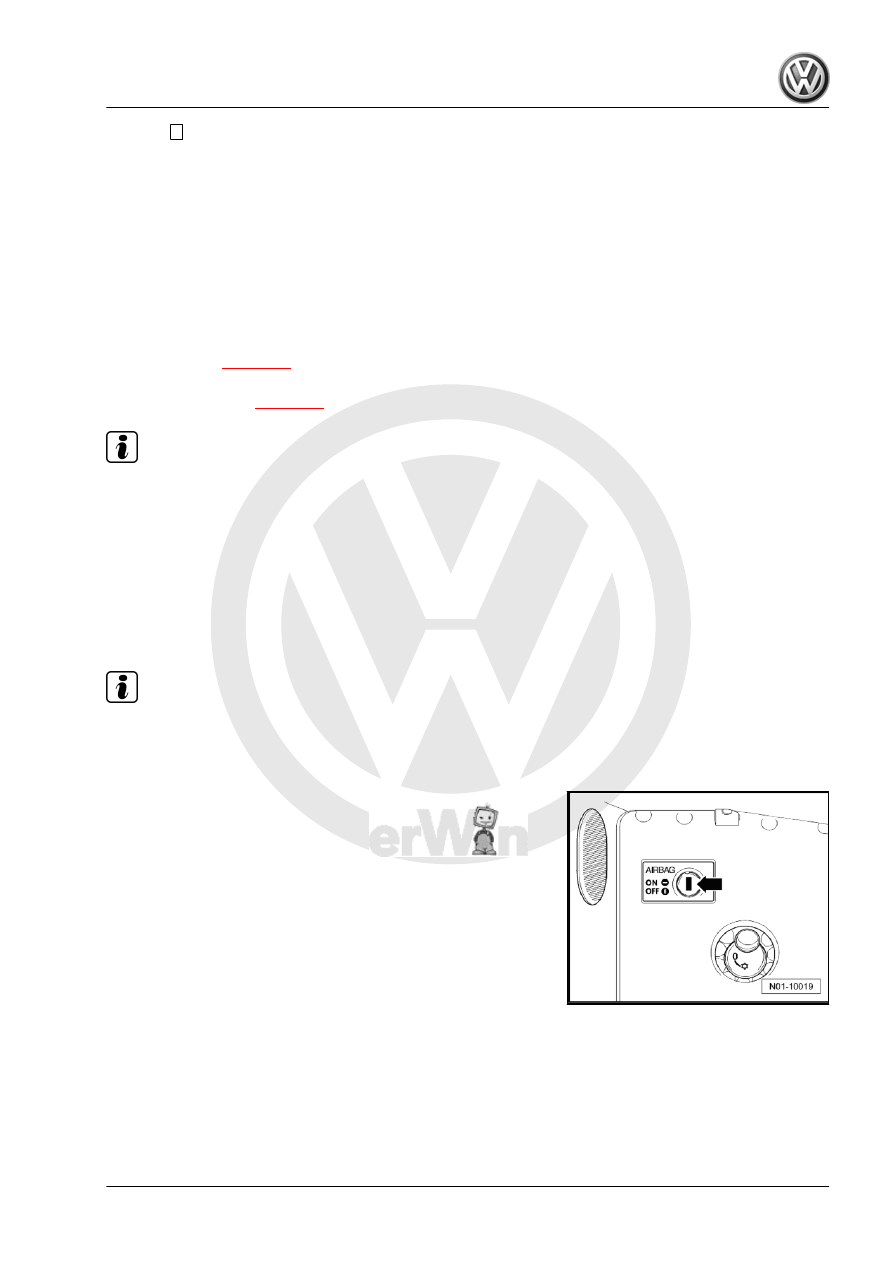

– Press

>

 button again to reach the test plan.

– Now finish guided fault finding using GoTo button and then

End.

All fault memories are read again.
Now it is shown on display that all sporadic faults have been

cleared, the diagnosis log is sent “online” automatically.
The vehicle system test is completed.

4.17

Front passenger front airbag: Check key

switch and “On/Off function”

Front passenger front airbag: Check key switch and “On/Off func‐

tion”, Golf 2004▸

⇒ page 63

 .

Front passenger front airbag: Check key switch and “On/Off func‐

tion”, Golf Plus 2005▸

⇒ page 64

 .

Note

There are vehicles which are fitted with automatic passenger

airbag deactivation (e.g. vehicles for the North American mar‐

ket). This is performed by a seat occupancy recognition and

not manually by the key switch.

There are also vehicles which are not fitted with seat occu‐

pancy recognition and manual passenger airbag deactivation.

In this case the airbag can only be deactivated using vehicle

diagnostic tester .

4.17.1

Note

The “Airbag ON/OFF” switch is located in the glove box.

Front passenger front airbag: Check key switch and “On/Off func‐

tion”
– Using vehicle key, turn key switch to position “Airbag Off”

-arrow-. The key slot must point in the direction of travel (for‐

wards).

Maintenance - Edition 11.2009

4. Descriptions of work

63

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

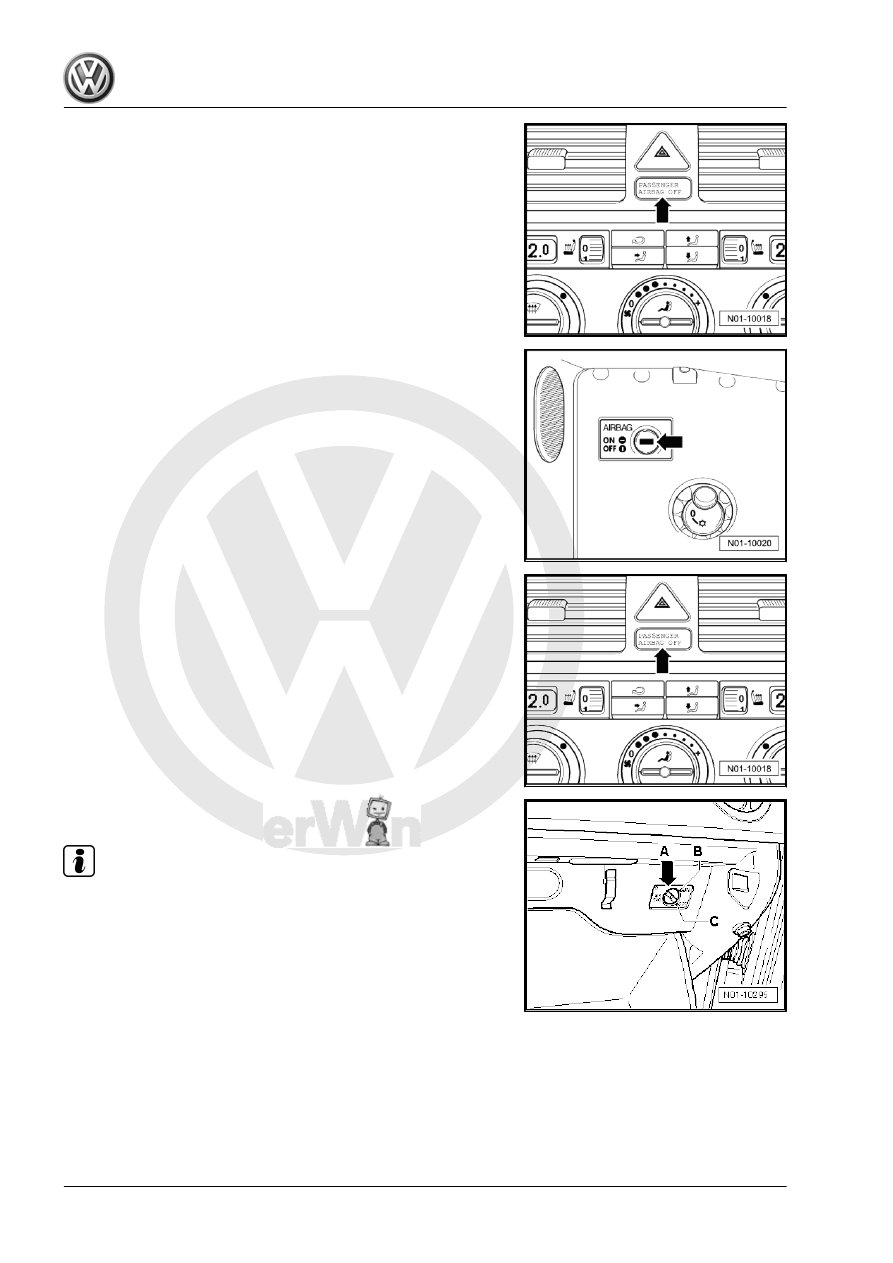

– Switch on ignition. Warning lamp “passenger airbag off”

-arrow- must also light up after self-test (passenger airbag de‐

activated).

– Switch off ignition.

– Using vehicle key -arrow-, turn key switch to position “Airbag

ON”. The key slot must be horizontal (point to sides of vehicle).

– Switch on ignition. Warning lamp “Passenger Airbag Off”

-arrow- goes out after self-test (passenger airbag activated).

– Switch off ignition.

4.17.2

Golf Plus 2005▸

Note

The “Airbag ON/OFF” switch is located in the glove box.

Front passenger front airbag: Check key switch and “On/Off func‐

tion”
– Using vehicle key, turn key switch -A- to position -arrow C-

“Airbag Off”.

Maintenance - Edition 11.2009

64

    4. Descriptions of work

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

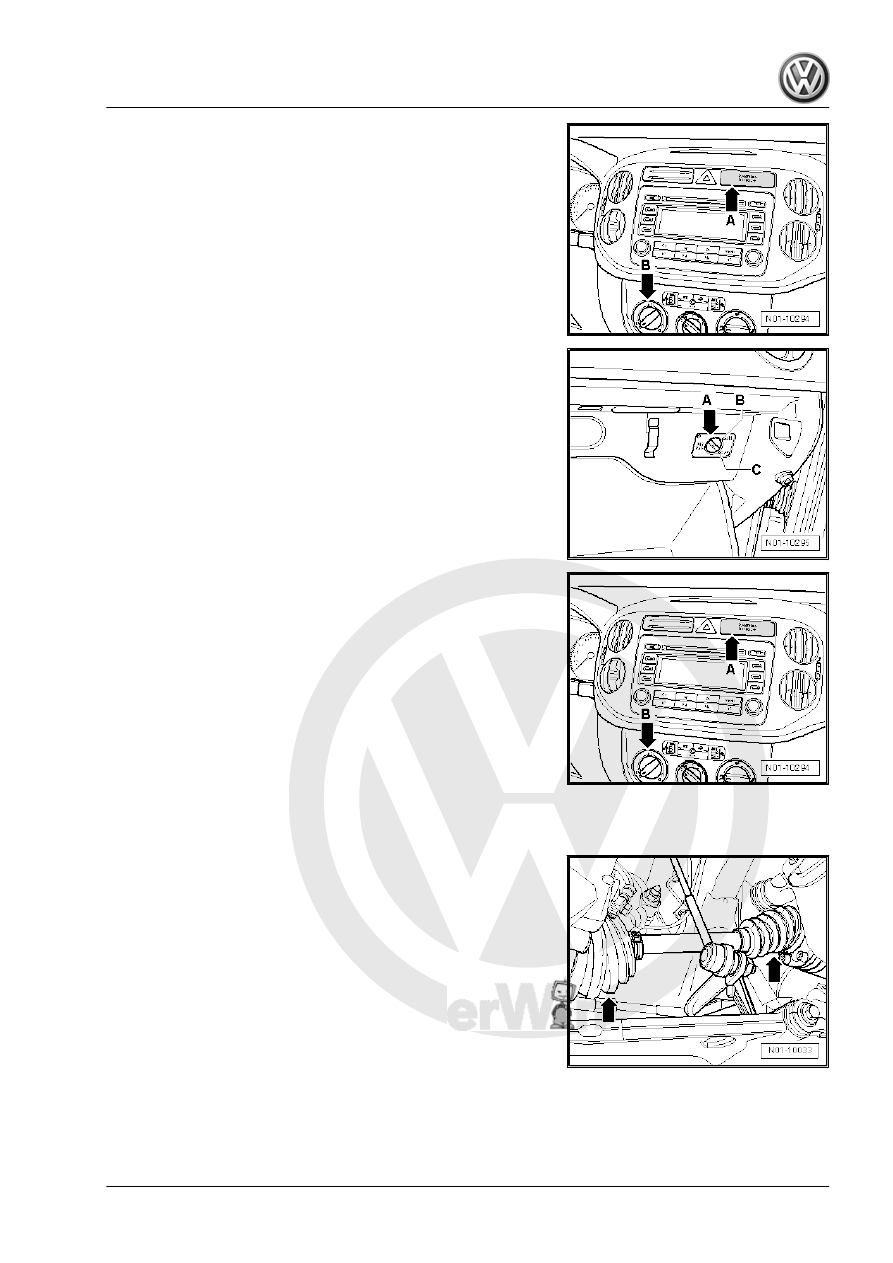

– Switch on ignition.
– Warning lamp “Passenger airbag off” -arrow A- must also light

up after self-test (passenger airbag deactivated).

– Switch off ignition.
– Using vehicle key, turn key switch -arrow A- to position “Airbag

ON” -arrow B-.

– Switch on ignition.
– Warning lamp “Passenger Airbag Off” -arrow A- goes out after

self-test (passenger airbag activated).

– Switch off ignition.

4.18

Protective bellows: Visual check

Carry out the following procedure:
– Check outer bellows and inner bellows -arrows- for leaks and

damage.

Maintenance - Edition 11.2009

4. Descriptions of work

65
