The ball hub and joint body are paired. Do not interchange them.

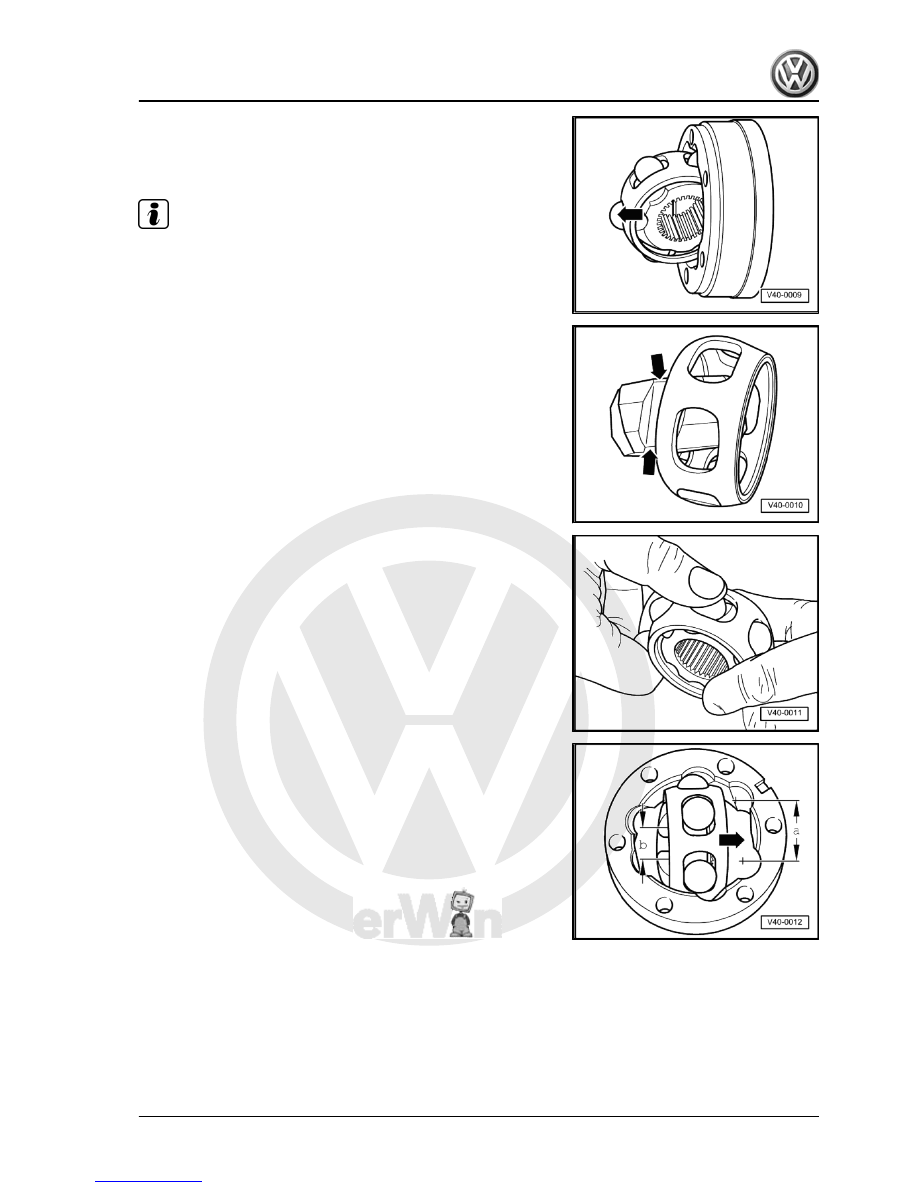

– Tip ball hub out of ball cage via ball track -arrows-.
– Check joint body, ball hub, ball cage and balls for pitting and

traces of seizing.

Excessive circumferential backlash in the joint is noticeable dur‐

ing load change jolts. In this case the joint must be replaced.

Smoothing and traces of wear of the balls are no reason to renew

the joint.
Installing

– Insert hub into cage via the two chamfers. The hub can be

installed in any position. Press balls into cage.

The ball hub has two different distances between the ball tracks:

a smaller one and a larger one.

– Insert hub complete with cage and balls into joint body, making

sure that a smaller gap -b- faces open side of joint body.

– Also make sure that chamfer on inner circumference of ball

hub is visible after swinging it into place.

19. Assembly overview - drive shaft

285

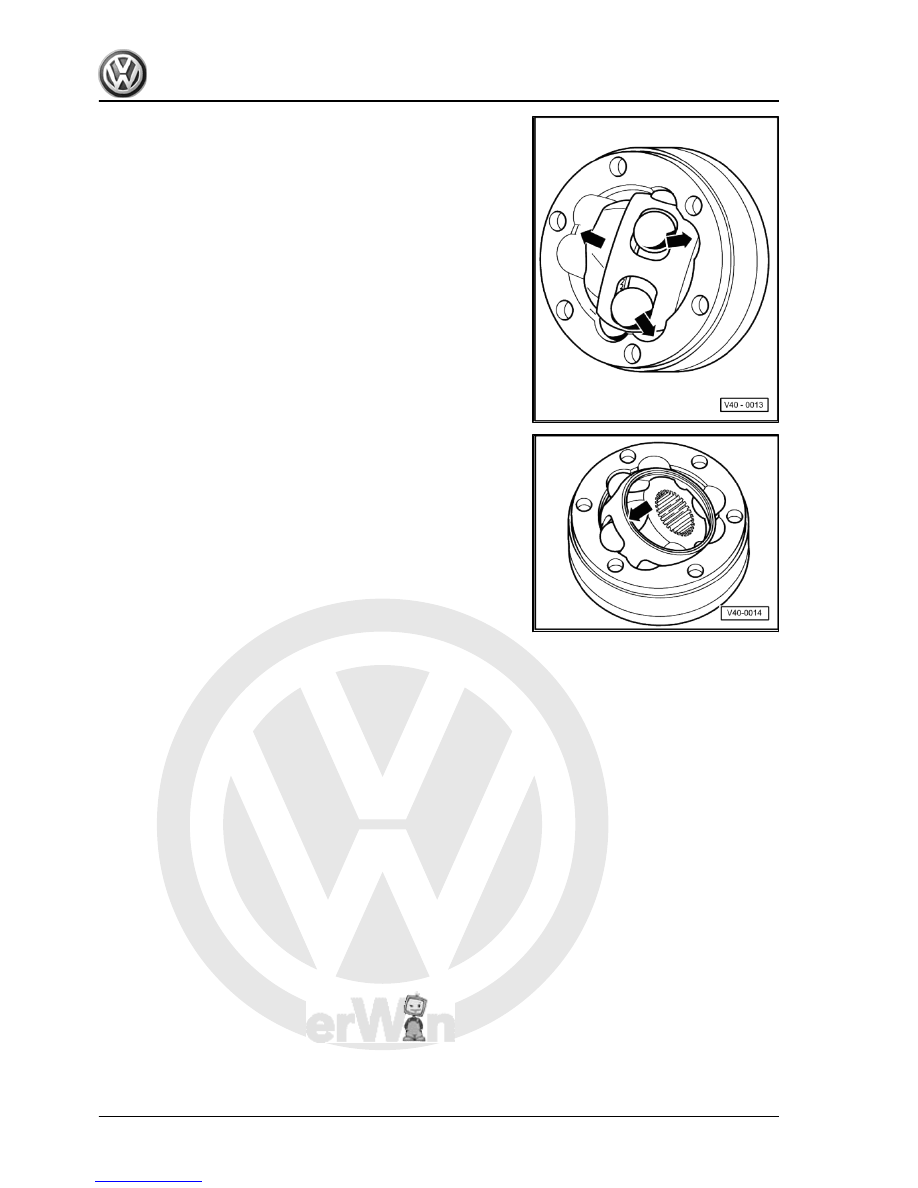

– Swivel in hub with balls by applying firm pressure to cage

-arrow-.

– Checking function of constant velocity joint
The constant velocity joint is correctly assembled if the ball hub

can be moved by hand backwards and forwards over its entire

range of axial movement.

286

     Rep. Gr.42 - Rear suspension



Appraisal of accident vehicles

A checklist for evaluating running gear of accident vehicles can

be found under

⇒ page 1

 .

1. Appraisal of accident vehicles

287



Wheel bolt to wheel hub for all vehicles
Specified torque: 120 Nm.

288
