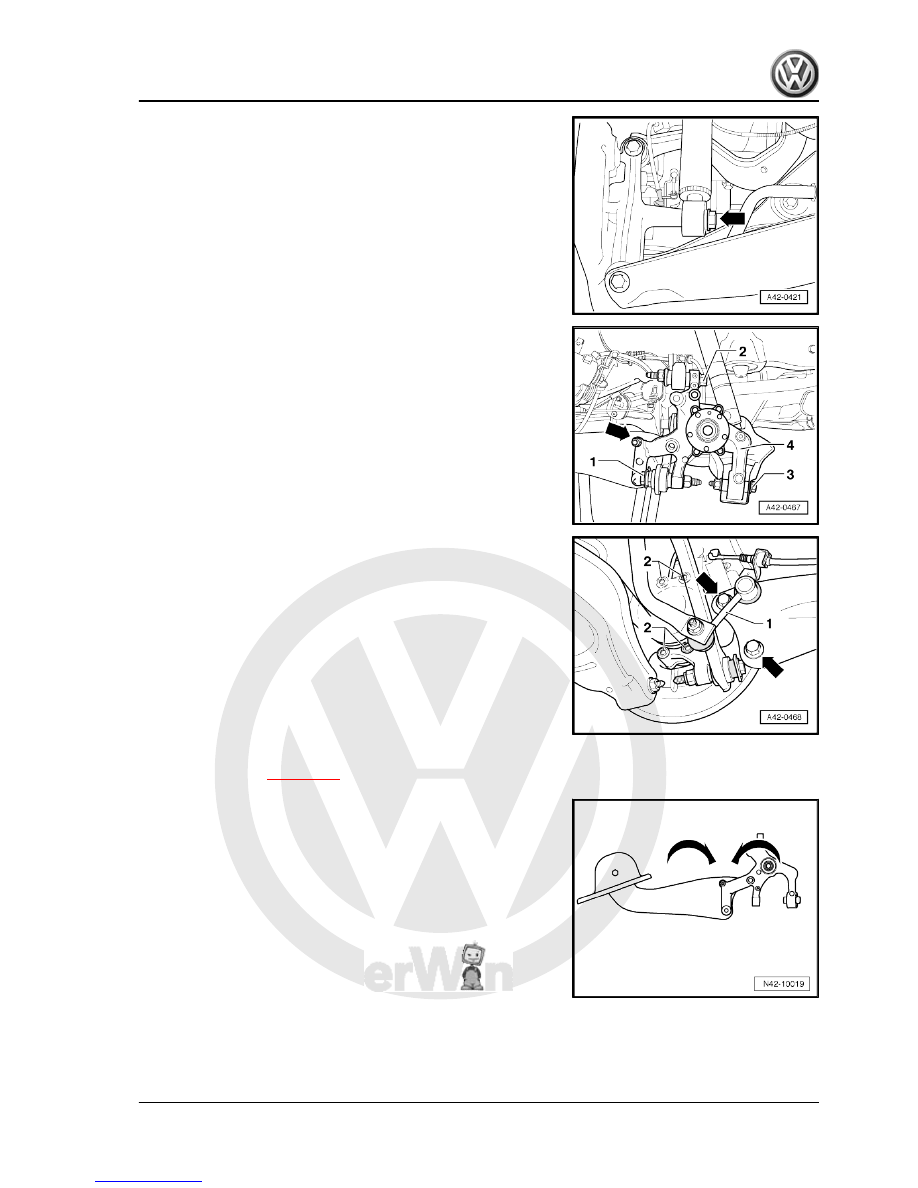

lower transverse link -3- from wheel housing -4-.

– Unbolt coupling rod from wheel bearing housing -arrow-.

– Hold wheel bearing housing and unscrew bolts -arrows-.
– Remove coupling rod -1- from trailing arm.
– Take out wheel bearing housing.
Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
Threaded connection for trailing arm and wheel bearing housing

may be tightened only after all other components (particularly the

spring and shock absorber) of respective wheel suspension have

been installed. To tighten, wheel suspension must be in extended

position. Only then do trailing arm and wheel bearing housing

move to the necessary position -arrows-.
– Install coil spring

⇒ page 173

 .

Position: threaded connection between trailing arm and wheel

bearing housing
It is important to keep to the specified sequence for the following

operations.

13. Assembly overview - wheel bearing housing, trailing link (four-wheel drive, subframe made from aluminium and wheel bearing housing

made from cast steel)

237

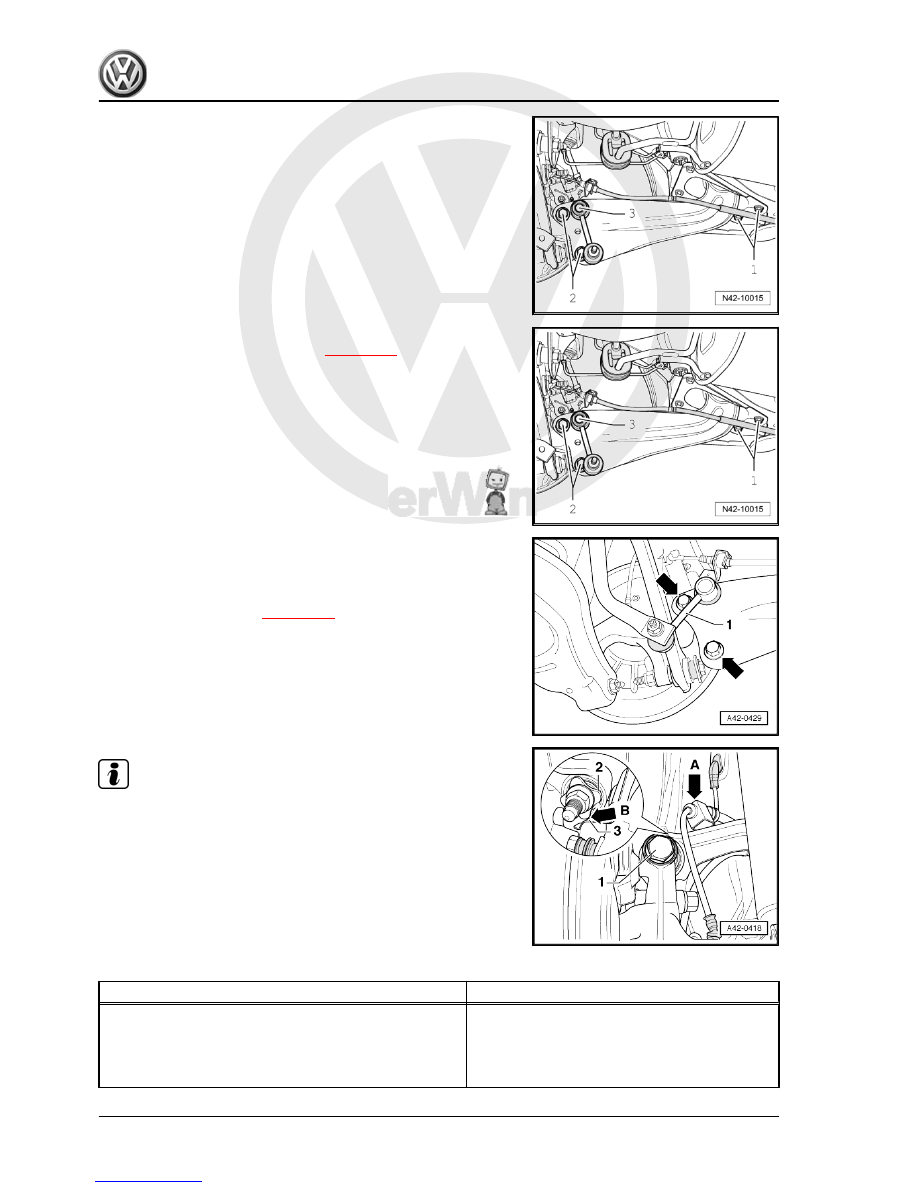

– Attach coupling rod -3- to trailing arm but do not tighten nut

yet.

– Lower wheel suspension again using engine and gearbox jack

-V.A.G 1383 A- and remove support -T10149- from wheel hub.

– Tighten bolts -2- for trailing arm to specified torque, observing

the required component position

⇒ page 237

 .

– Bolt coupling rod -1- to wheel bearing housing and anti-roll bar.
The threaded connections on the wheel bearing housing may be

tightened only when the dimension measured between the centre

of wheel hub and lower edge of wheel housing before work was

started has been attained

⇒ page 188

 .

Note

The washer -2- must be installed so that there is a gap

-arrow B- between the washer and the backplate -3-.

Specified torques

Component

Specified torque

Upper transverse link to wheel bearing housing

♦ Use new nuts and bolts
♦ Tighten threaded connections only when vehicle is in

the normal running position.

130 Nm + 90°

238

     Rep. Gr.42 - Rear suspension



Wheel bearing housing to lower suspension link

♦ Use new nuts and bolts
♦ Tighten threaded connections only when vehicle is in

the normal running position.

90 Nm + 90°

Wheel bearing housing to track rod

♦ Use new nuts and bolts
♦ Tighten threaded connections only when vehicle is in

the normal running position.

130 Nm + 90°

Trailing arm to wheel bearing housing

♦ Use new bolts

90 Nm + 90°

Coupling rod to wheel bearing housing

♦ Use new nut

45 Nm

Splash plate to wheel bearing housing

10 Nm

ABS speed sensor to wheel bearing housing

9 Nm

Shock absorber to wheel bearing housing

180 Nm

Brake disc to wheel bearing housing.

4 Nm

Drive shaft to wheel hub “hexagon bolt”

♦ Use new bolt

180 Nm + 180°

Drive shaft to wheel hub “12-point bolt”

♦ Use new bolt

70 Nm + 90°

13. Assembly overview - wheel bearing housing, trailing link (four-wheel drive, subframe made from aluminium and wheel bearing housing

made from cast steel)

239

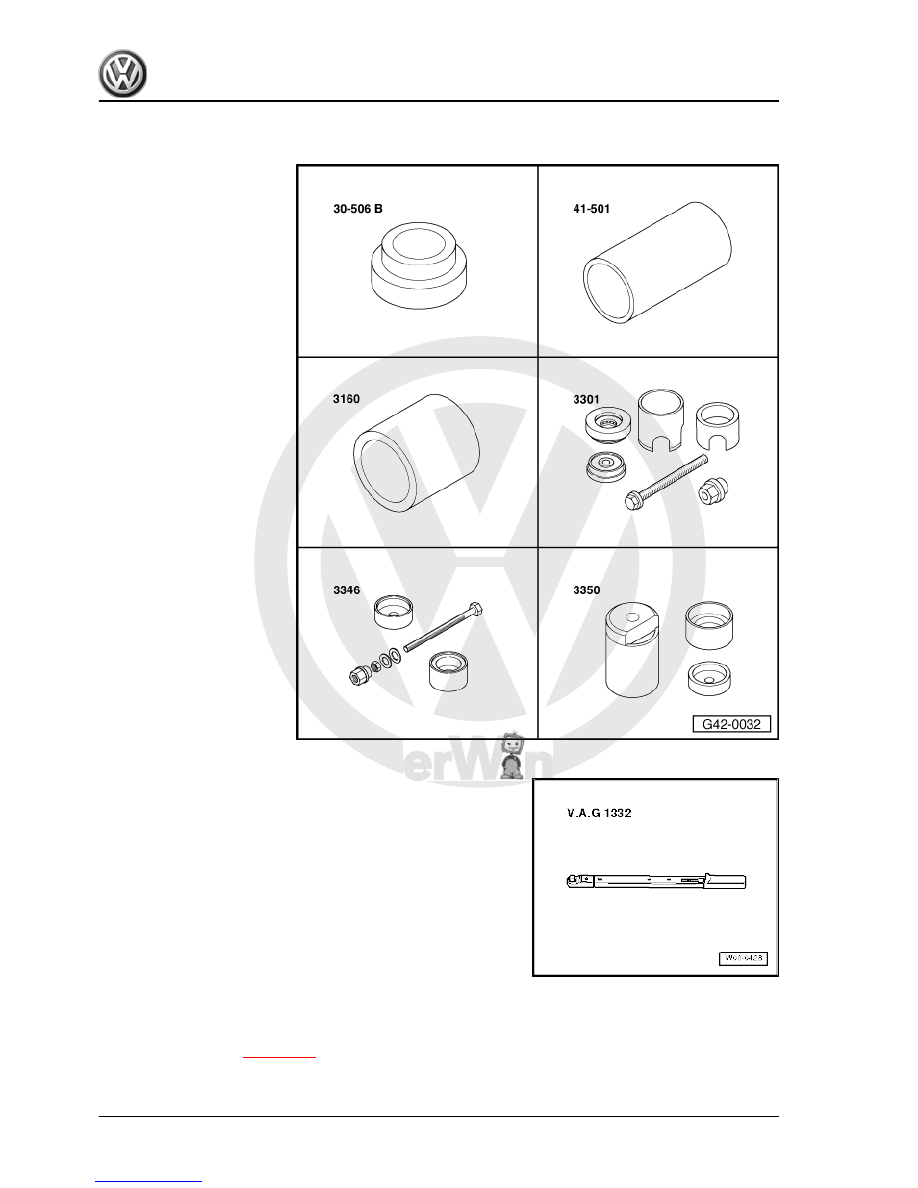

Special tools and workshop

equipment required
♦ Press tool -30 - 506 B-
♦ Drift sleeve -41 - 501-
♦ Sleeve -3160-
♦ Assembly tool -3301-
♦ Assembly tool -3346-
♦ Assembly tool -3350-

♦ Torque wrench -V.A.G 1332-

Removing
– Remove wheel.
– Remove coil spring

⇒ page 257

 .

– Remove brake carrier with brake caliper and tie to body with

wire ⇒  Rep. Gr.  46 .

240

     Rep. Gr.42 - Rear suspension
