Do not open brake line.

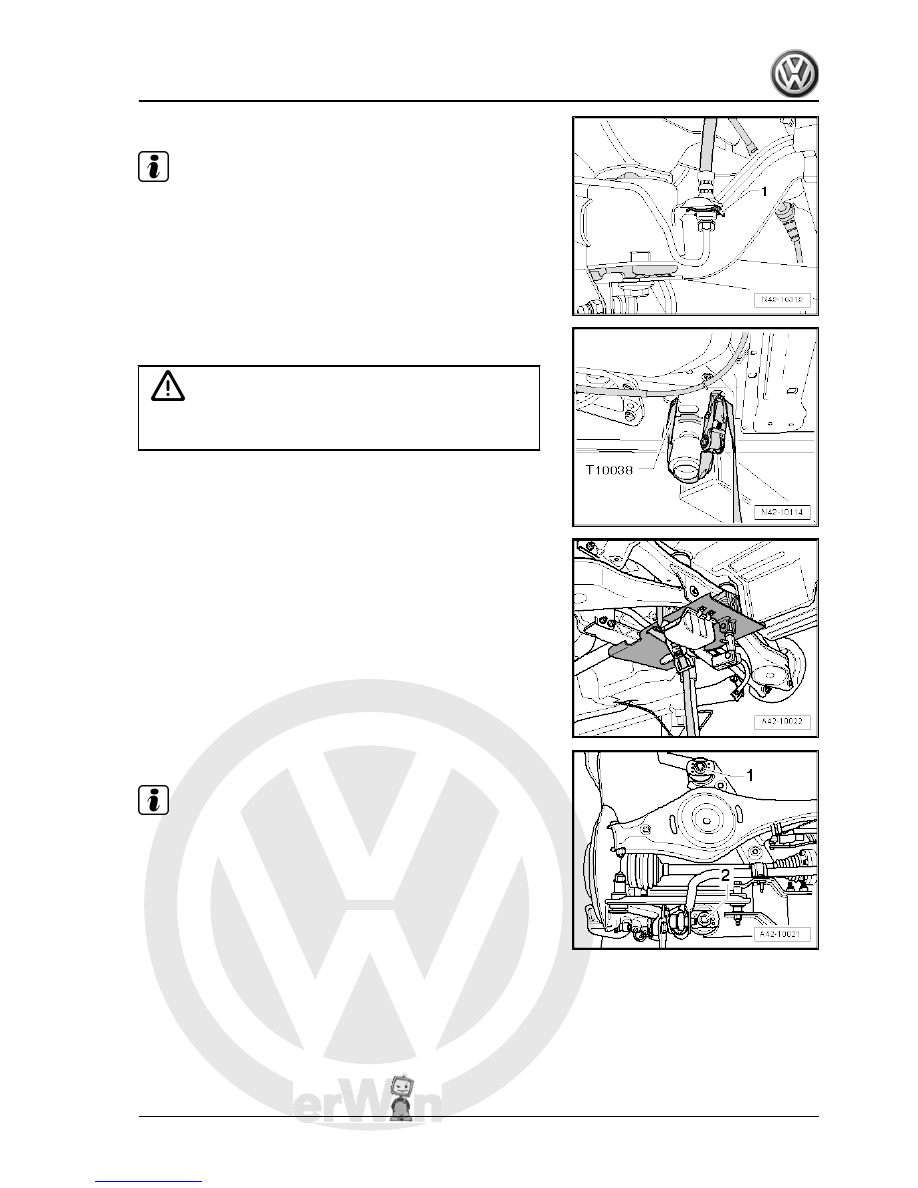

– Now strap vehicle to the lifting platform arms on both sides of

the vehicle using tensioning straps -T10038- .

WARNING

If the vehicle is not strapped down there is a great danger that

the vehicle will slip off the lifting platform!

– Position engine and gearbox jack -V.A.G 1383 A- with univer‐

sal gearbox support -V.A.G 1359/2- beneath subframe and

secure with strap.

– Unscrew one hexagon bolt -1- or -2- on both sides.

Note

Only the left vehicle side is shown to improve clarity.

To secure the subframe in place, ensure that at positions -1- and

-2- the locating pins -T10096- are screwed in one after the other

on both sides of vehicle.

10. Assembly overview - subframe made from steel, final drive (four-wheel drive)

209



The locating devices -T10096- must only be tightened to a max‐

imum of 20 Nm; otherwise the threads of the locating pins may

be damaged.

– Replace the subframe securing bolts on both sides one after

the other with locating pins -T10096- and tighten to 20 Nm.

The position of the subframe is now fixed.
– Lower subframe 10 cm using engine and gearbox jack -V.A.G

1383 A- .

– Mark installation position of bonded rubber bush relative to

subframe using e.g. a felt tip pen.

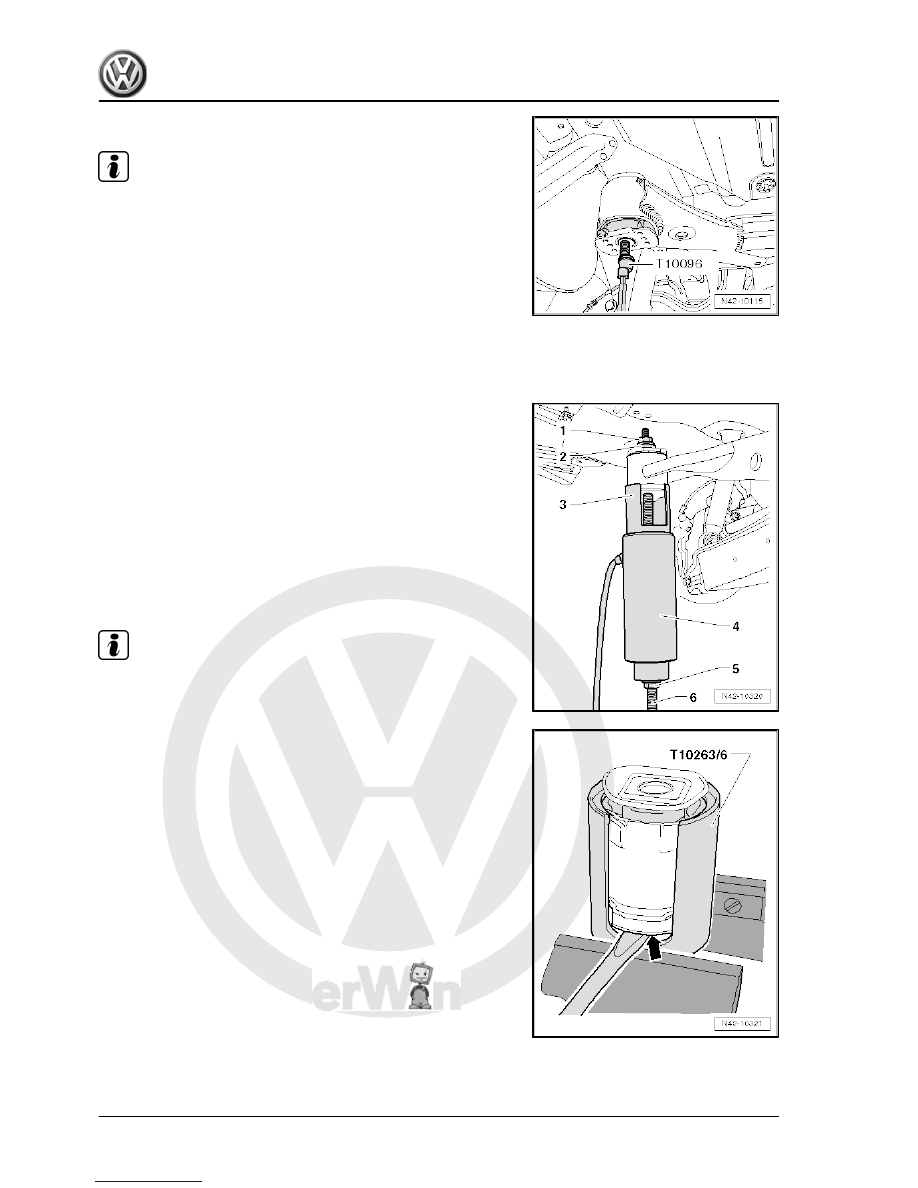

– Position special tools as shown in illustration.
1 - Nut -T10263/5-
2 - Washer , from -T10263-
3 - Tube -T10263/6-
4 - Hydraulic press -VAS 6178- and thrust piece -T10205/13-
5 - Nut -T10263/5-
6 - Spindle -T10263/4-
– Take up play in special tools.
– Pull out bonded rubber bush by actuating the pump.

Note

The outer ring of the bush shears off when pulling out the bonded

rubber bush. This occurs with a loud bang.

– The bonded rubber bush must be removed from the tube -

T10356/6- once the bush has been pulled out.

– Clamp tube -T10356/6- on the intended surfaces in a vice.
– Insert a screwdriver between tube -T10356/6- and bonded

rubber bush and lever bush out of tube -arrow-. If necessary,

apply a drift to bush and drive out with light hammer blows.

Pulling in rear bonded rubber bush
Install in reverse order. Note the following points:

210

     Rep. Gr.42 - Rear suspension



parts catalogue “ETKA” .
The bonded rubber bush must be installed in a certain direction;

note mark on subframe.

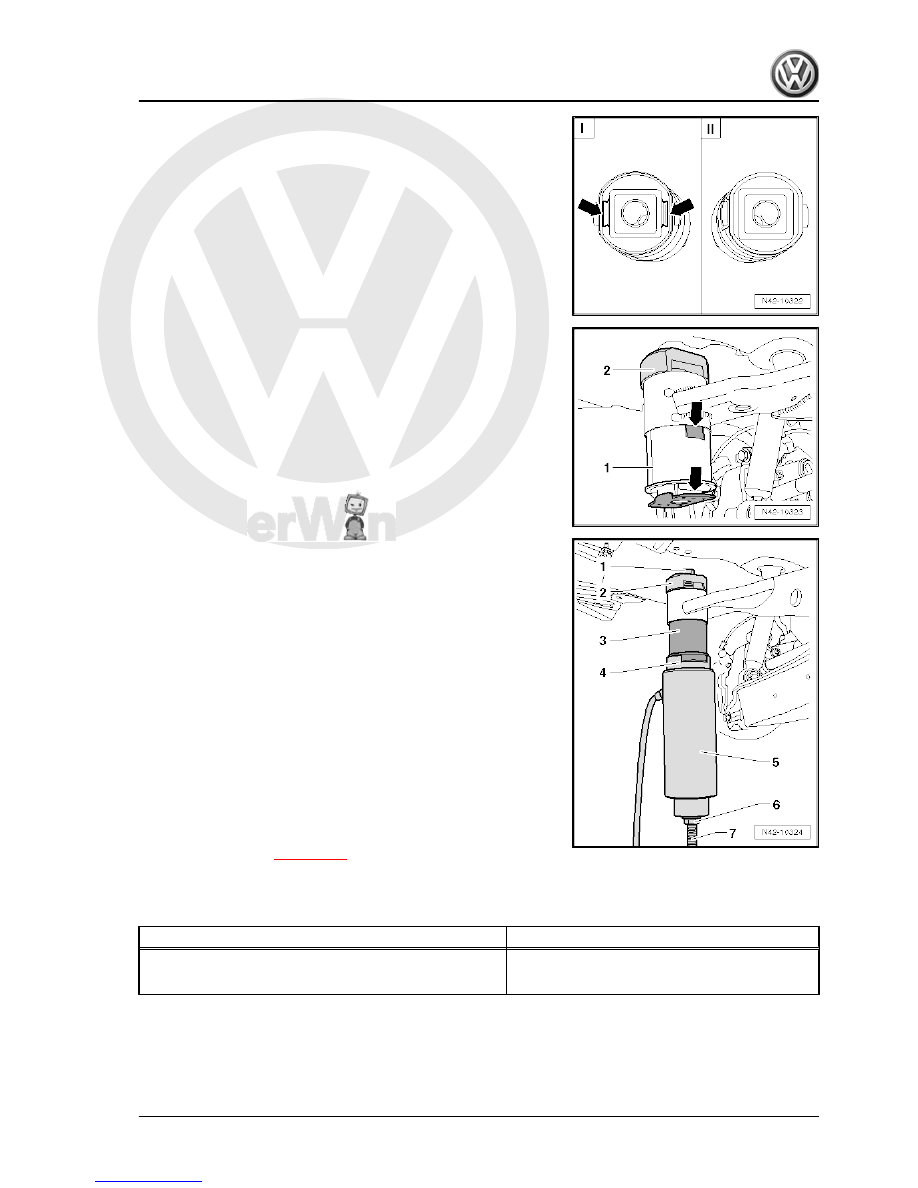

– Insert bonded rubber bush -1- in subframe so that the nose

and the plate -arrows- face perpendicular to direction of travel.

– Apply thrust piece -T10263/3- -2- so that flattened sides also

face perpendicular to direction of travel.

– Insert special tools with bonded rubber bush into subframe as

shown.

1 - Nut -T10263/5-
2 - Thrust piece -T10263/3-
3 - Bonded rubber bush
4 - Thrust piece -T10263/2-
5 - Hydraulic press -VAS 6178- and thrust piece -T10205/13-
6 - Nut -T10263/5-
7 - Spindle -T10263/4-
– Pre-tension special tools with bonded rubber bush.
– By actuating the pump, carefully draw bonded rubber bush in

until collar lies “flush” on subframe.

– Install rear silencer of exhaust system ⇒  Rep. Gr.  26 ; Exhaust

system; Removing and installing parts of the exhaust system .

– Install coil springs

⇒ page 257

 .

– Fit rear wheels.

Specified torques

Component

Specified torque

Subframe to body

♦ Use new bolts!

90 Nm + 90° further

10. Assembly overview - subframe made from steel, final drive (four-wheel drive)

211



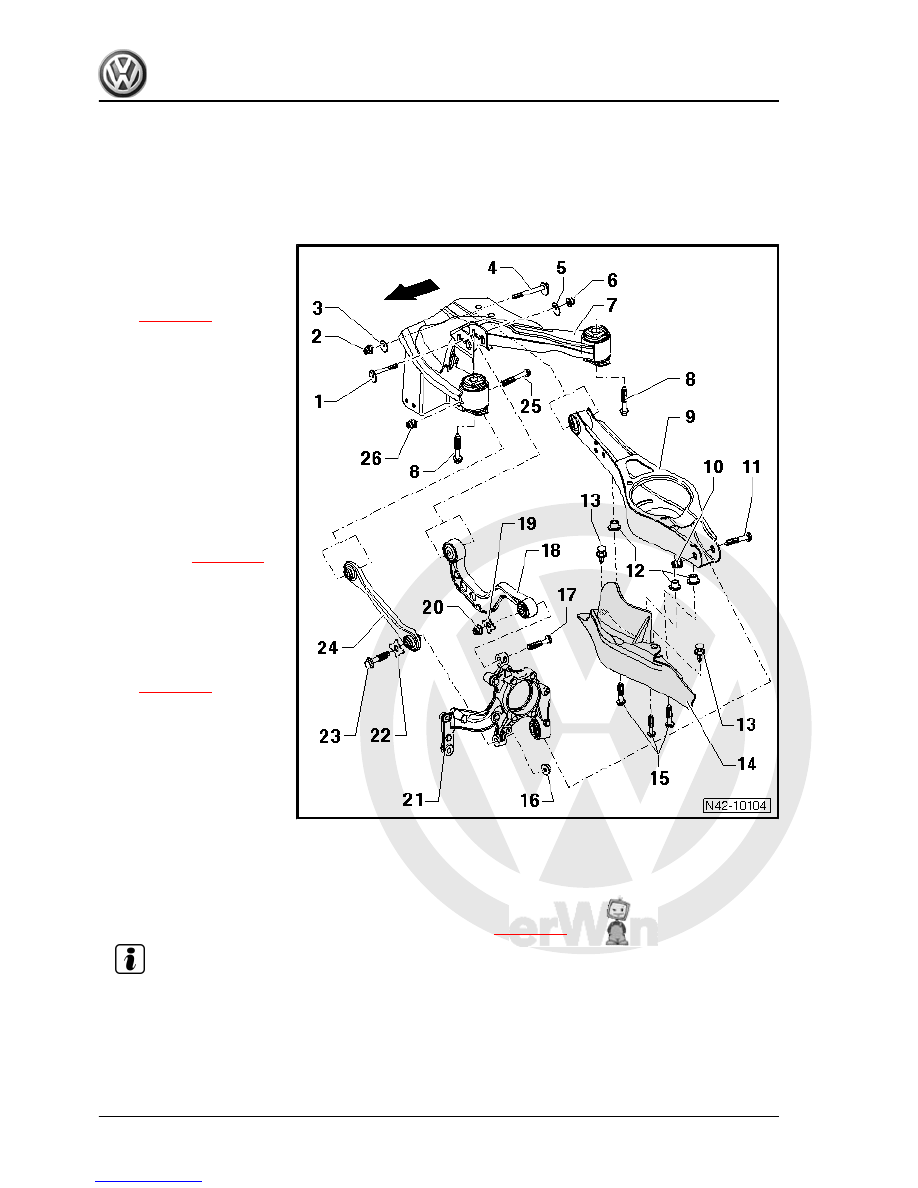

frame made from aluminium and wheel bearing housing made from

cast steel)

-Arrow- indicates direction of travel.

1 - Eccentric bolt

❑ Check wheel alignment

whenever this compo‐

nent is loosened

⇒ page 305

 .

❑ Do not turn more than

90° in either direction

(i.e. from minimum to

maximum adjustment

position).

2 - Nut

❑ M12 x 1.5
❑ 95 Nm
❑ Self-locking
❑ Always renew after re‐

moving

❑ Always tighten threaded

connections in unladen

position

⇒ page 187

3 - Eccentric washer

❑ Inner hole with lug

4 - Eccentric bolt

❑ Check wheel alignment

whenever this compo‐

nent is loosened

⇒ page 305

 .

❑ Do not turn more than

90° in either direction

(i.e. from minimum to

maximum adjustment

position)

5 - Eccentric washer

❑ Inner hole with lug

6 - Nut

❑ M12 x 1.5
❑ 95 Nm
❑ Self-locking
❑ Always renew after removing
❑ Always tighten threaded connections in unladen position

⇒ page 187

Note

7 - Subframe
8 - Bolt

❑ M12 x 1.5 x 125
❑ 90 Nm + 90° further
❑ Always renew after removing

212

     Rep. Gr.42 - Rear suspension
