Volkswagen Golf / Golf Plus. Manual - part 50





catalogue “ETKA” .
The bonded rubber bush must be installed in a certain direction;

note mark on subframe.

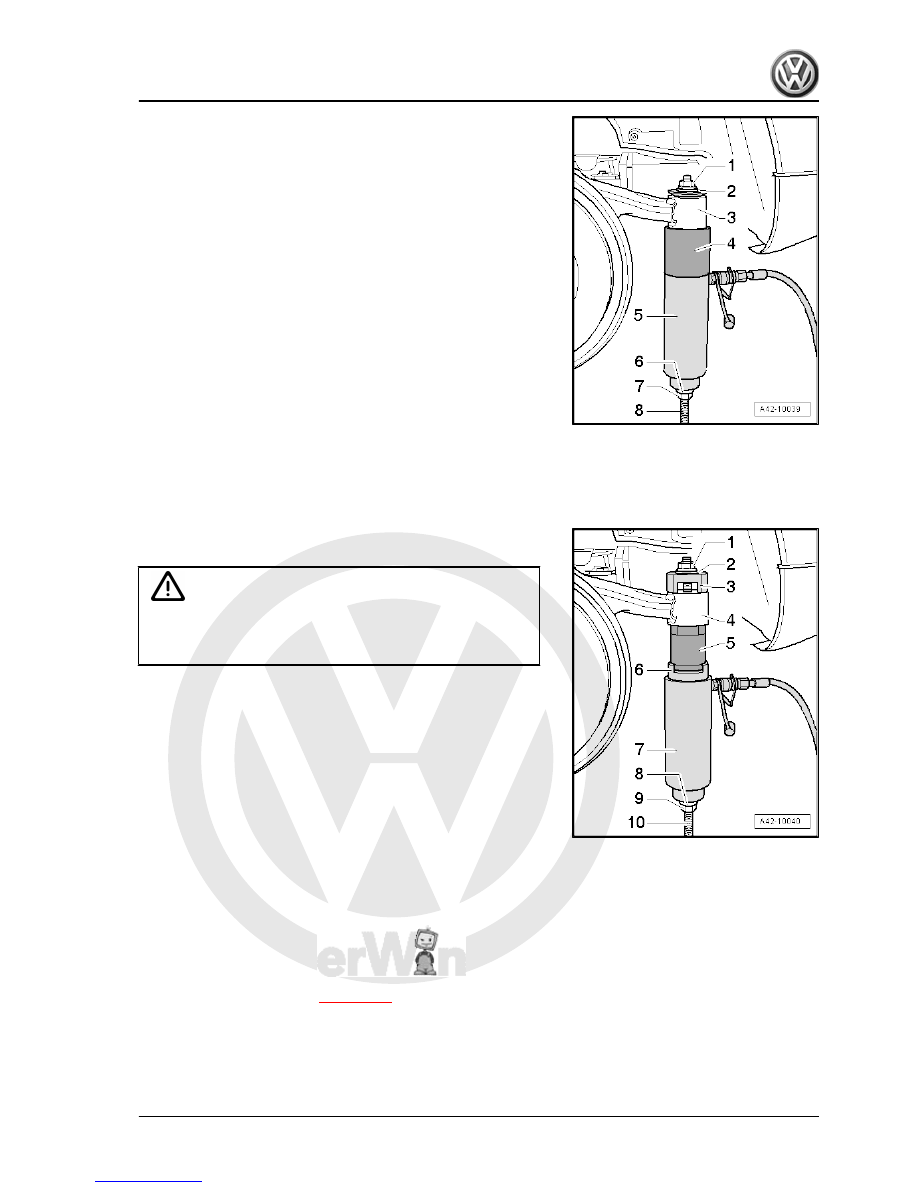

– Set up special tools with bonded rubber bush on subframe as

shown.

WARNING

Thrust piece -T10263/3- must be positioned so that lugs on

bonded rubber bush align with free aperture on thrust piece -

T10263/3- .

1 - Nut -T10263/5-
2 - Washer (commercial type)
3 - Thrust piece -T10263/3-
4 - Subframe
5 - Bonded rubber bush
6 - Thrust piece -T10263/2-
7 - Hydraulic press -VAS 6178-
8 - Washer (commercial type)
9 - Nut -T10263/5-
10 - Spindle -T10263/4-
– Take up play in special tools and bonded rubber bush.
– Operate pump to carefully pull bonded rubber bush in until

collar lies “flush” on subframe.

– Perform wheel alignment

⇒ page 305

 .

9. Assembly overview - subframe made from aluminium, final drive (four-wheel drive)

197



Specified torque

Subframe to body

♦ Use new bolts

90 Nm + 90°

Track rod to subframe

♦ Use new nuts and bolts
♦ Tighten threaded connections only when vehicle is in

the normal running position.

90 Nm + 90°

198

     Rep. Gr.42 - Rear suspension



drive)

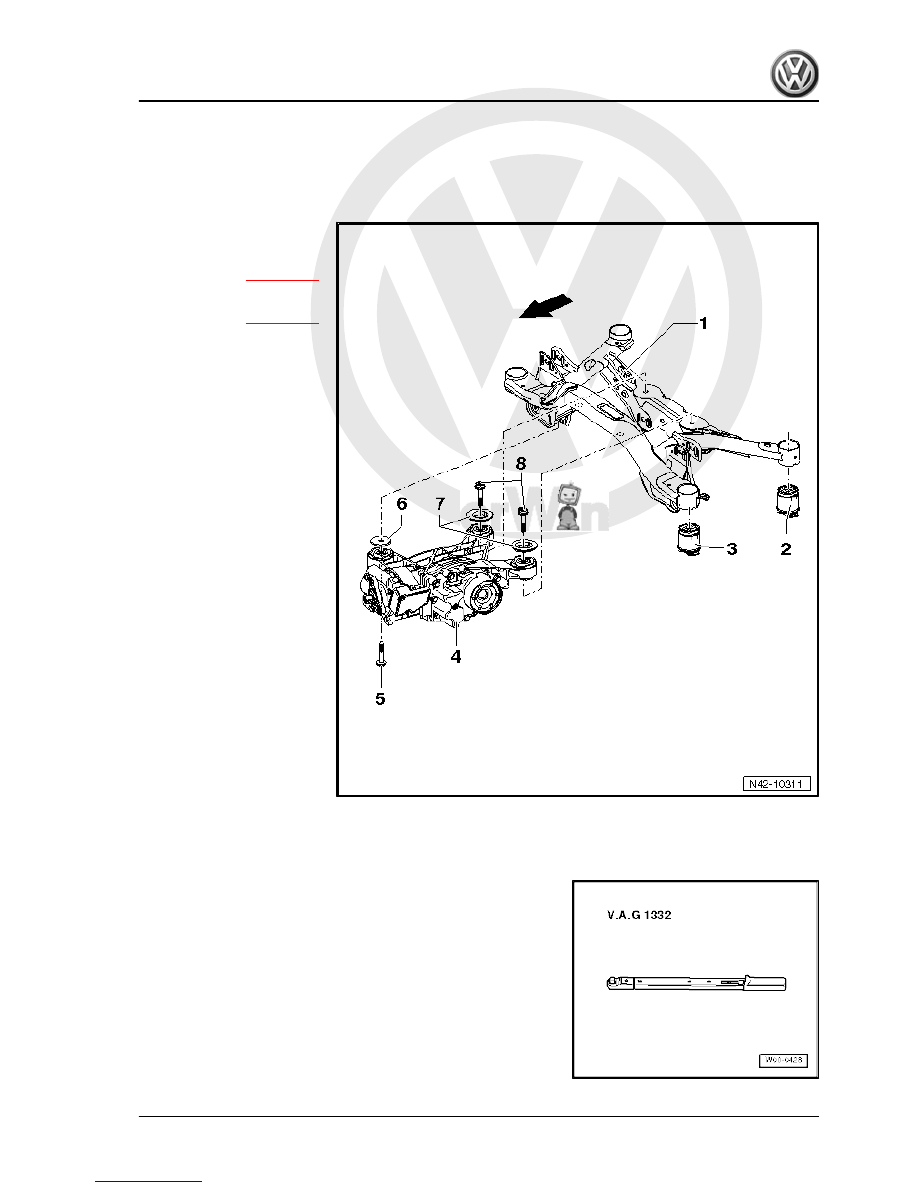

-Arrow- indicates direction of travel.

1 - Subframe
2 - Rear bonded rubber bush

❑ Renewing

⇒ page 205

3 - Front bonded rubber bush

❑ Renewing

⇒ page 205

4 - Final drive

❑ Removing and installing

⇒  Rep. Gr.  39 ; Remov‐

ing and installing rear fi‐

nal drive .

5 - Bolt

❑ M12 x 105
❑ 60 Nm + 90° further
❑ Renew each time after

removing

6 - Washer

❑ Installed between final

drive and subframe.

7 - Washer

❑ Washer must be placed

with holes on lugs of

bonded rubber bush.

8 - Bolt

❑ M12 x 105
❑ 60 Nm + 90° further
❑ Renew each time after

removing

10.1

Removing and installing rear axle

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1332-

10. Assembly overview - subframe made from steel, final drive (four-wheel drive)

199

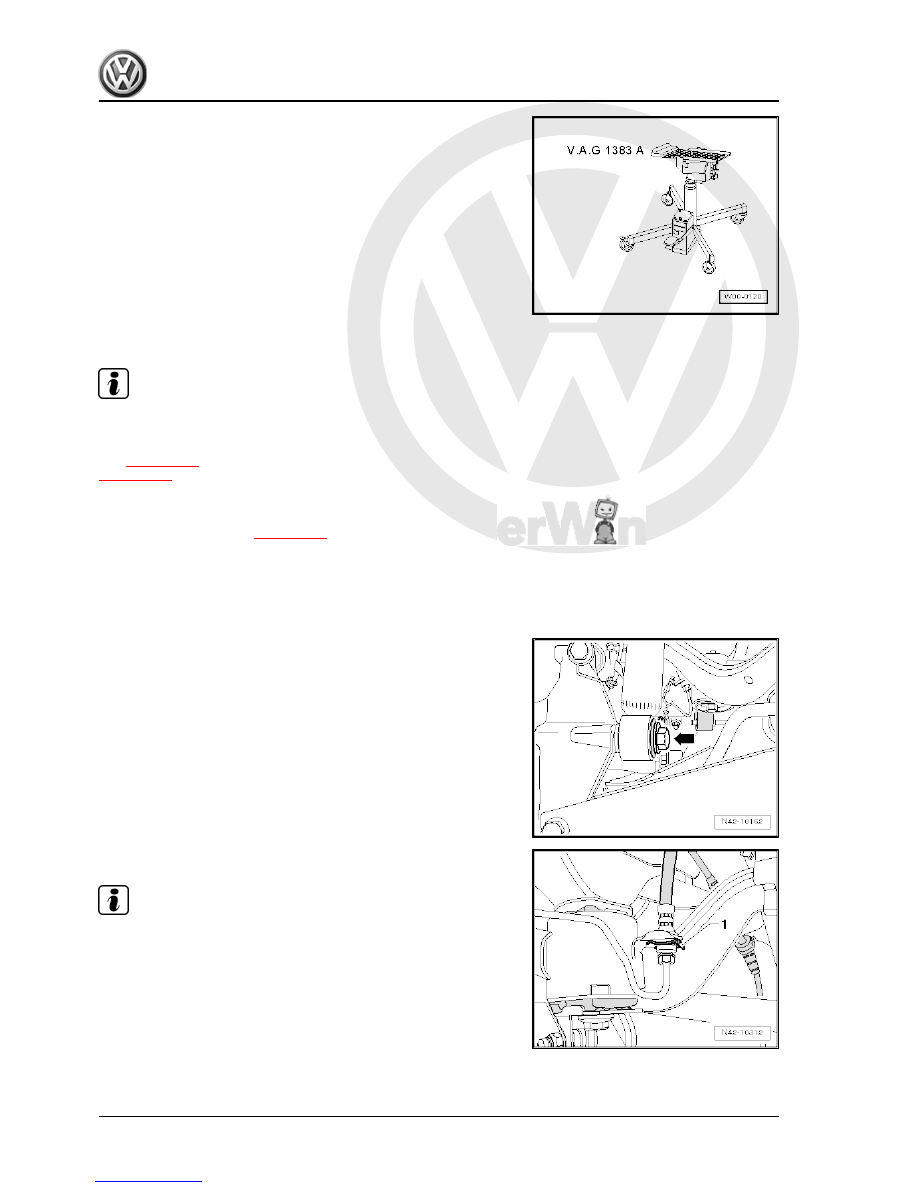

Note

Please note that subsequent assembly work for which the hexa‐

gon or twelve-point bolt of the drive shaft has to be loosened

requires that the vehicle is stood on its wheels. Loosen hexagon

bolt

⇒ page 274

 or loosen twelve-point bolt of drive shaft

⇒ page 275

 .

– Remove wheels.
– Removing coil spring

⇒ page 257

 .

– Remove rear exhaust system silencer ⇒  Rep. Gr.  26 ; Ex‐

haust system; Removing and installing parts of the exhaust

system .

– Disconnect electrical connections between rear axle and

body.

– Remove bolt -arrow-.

– Remove clip -1-.

Note

Do not open brake line.

200

     Rep. Gr.42 - Rear suspension
