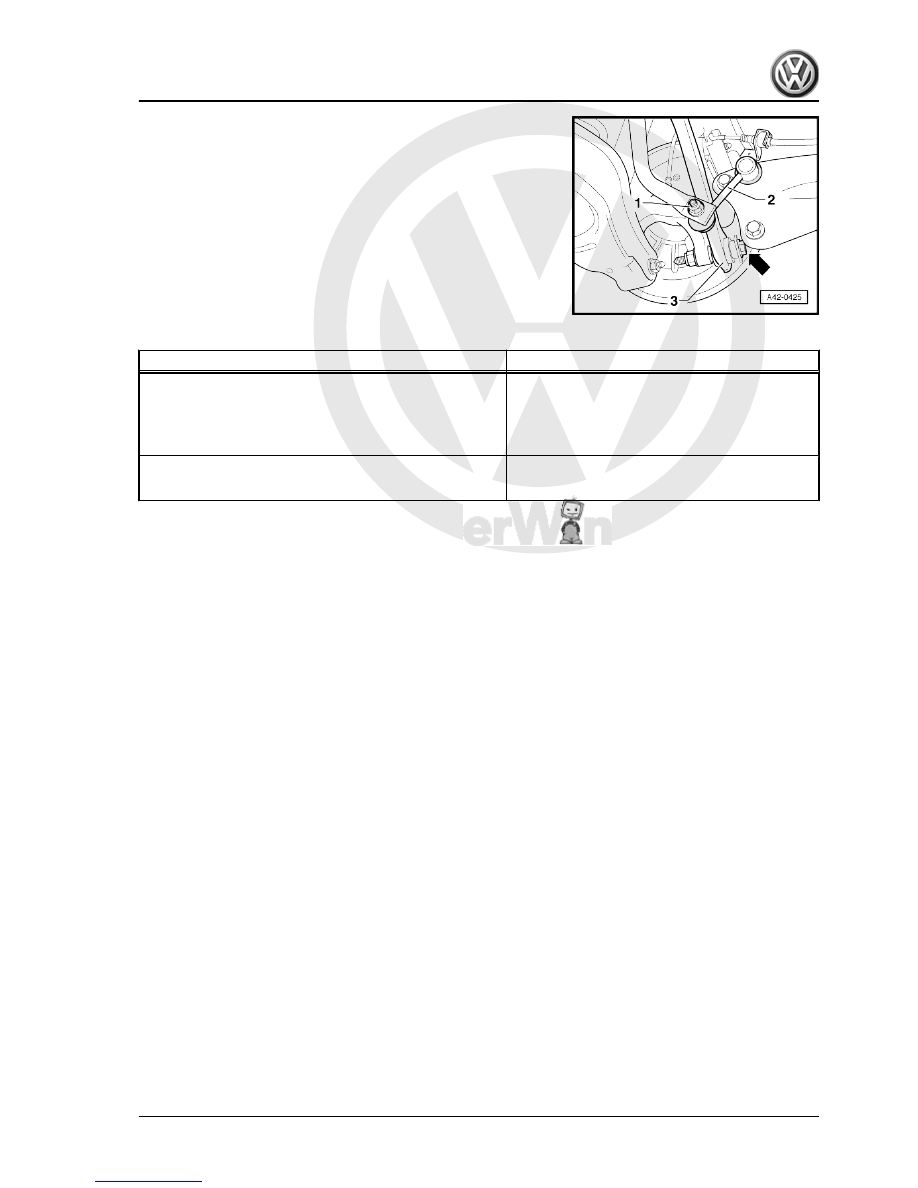

Component

Specified torque

Anti-roll bar to subframe

♦ Use new bolts
♦ Tighten threaded connections only when vehicle is in

the normal running position

25 Nm + 45°

Anti-roll bar to coupling rod

♦ Use new nut

45 Nm

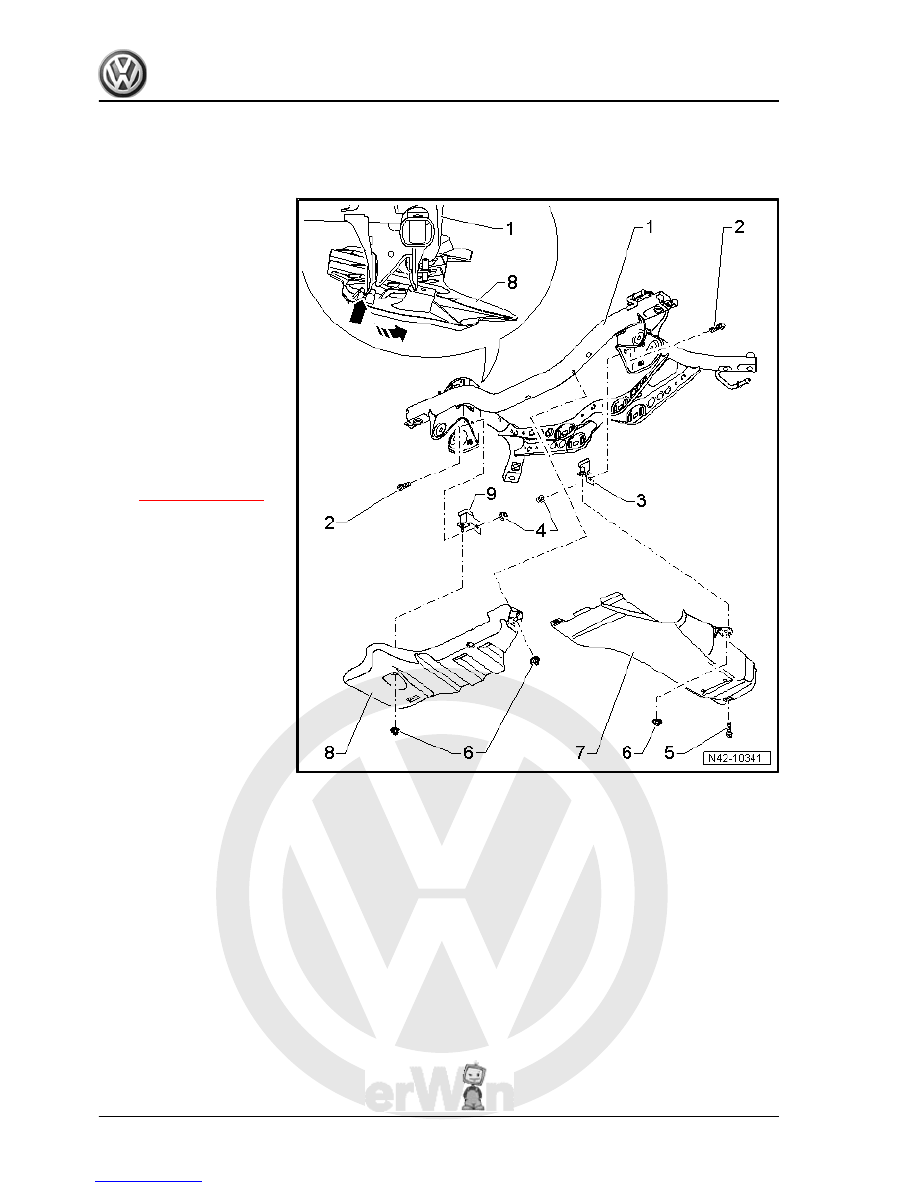

6. Assembly overview: anti-roll bar (front-wheel drive)

181



Golf Plus BlueMotion (front-wheel drive)

1 - Subframe
2 - Bolt
3 - Angle piece
4 - Nut

❑ 20 Nm

5 - Bolt
6 - Nut

❑ 2 Nm

7 - Left shield
8 - Right shield
Installing

– Hook in shield on sub‐

frame

⇒ Item 1 (page 182)

-arrow-

– Pivot shield in

-direction of arrow- onto

rivet screws and tighten

nuts

9 - Angle piece

❑ With rivet screw

182

     Rep. Gr.42 - Rear suspension



wheel drive)

8.1

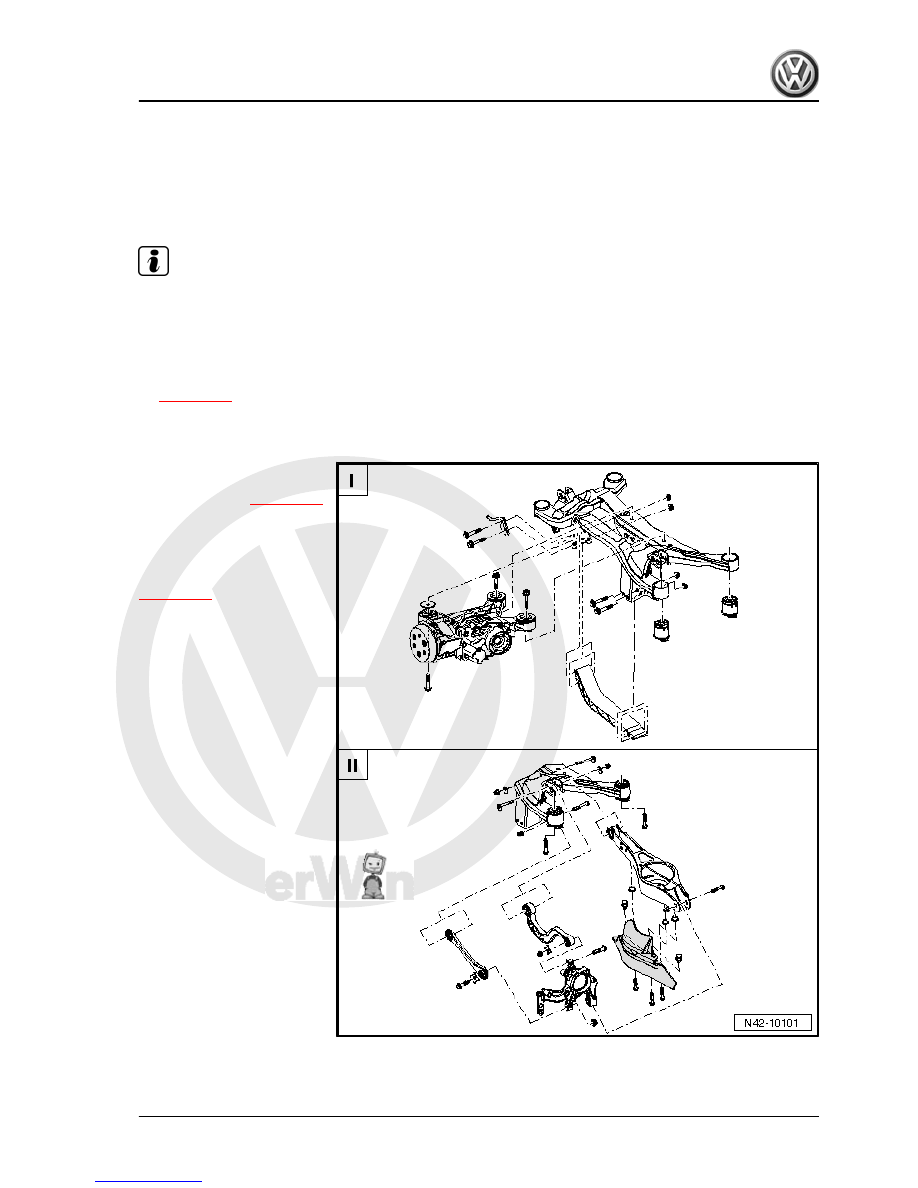

Overview of rear axle (aluminium)

Note

It is not permitted to weld or straighten load-bearing or wheel-guiding components of the suspension.

Always renew self-locking nuts.

Always renew corroded nuts and bolts.

Bonded rubber bushes can be twisted only to a limited extent. Therefore, tighten the bolted connections of

components with bonded rubber bushes only when the wheel bearing housing is raised to unladen position

⇒ page 187

 .

Always renew bonded rubber bush on both sides of the vehicle.

I - Assembly overview - sub‐

frame, final drive (four-wheel

drive, aluminium)

⇒ page 189

II - Assembly overview - control

arm, track rod (four-wheel

drive, subframe made from

aluminium and wheel bearing

housing made from cast steel)

⇒ page 212

8. Repairing rear suspension (four-wheel drive)

183



subframe made from alumini‐

um and wheel bearing housing

made from cast steel)

⇒ page 234

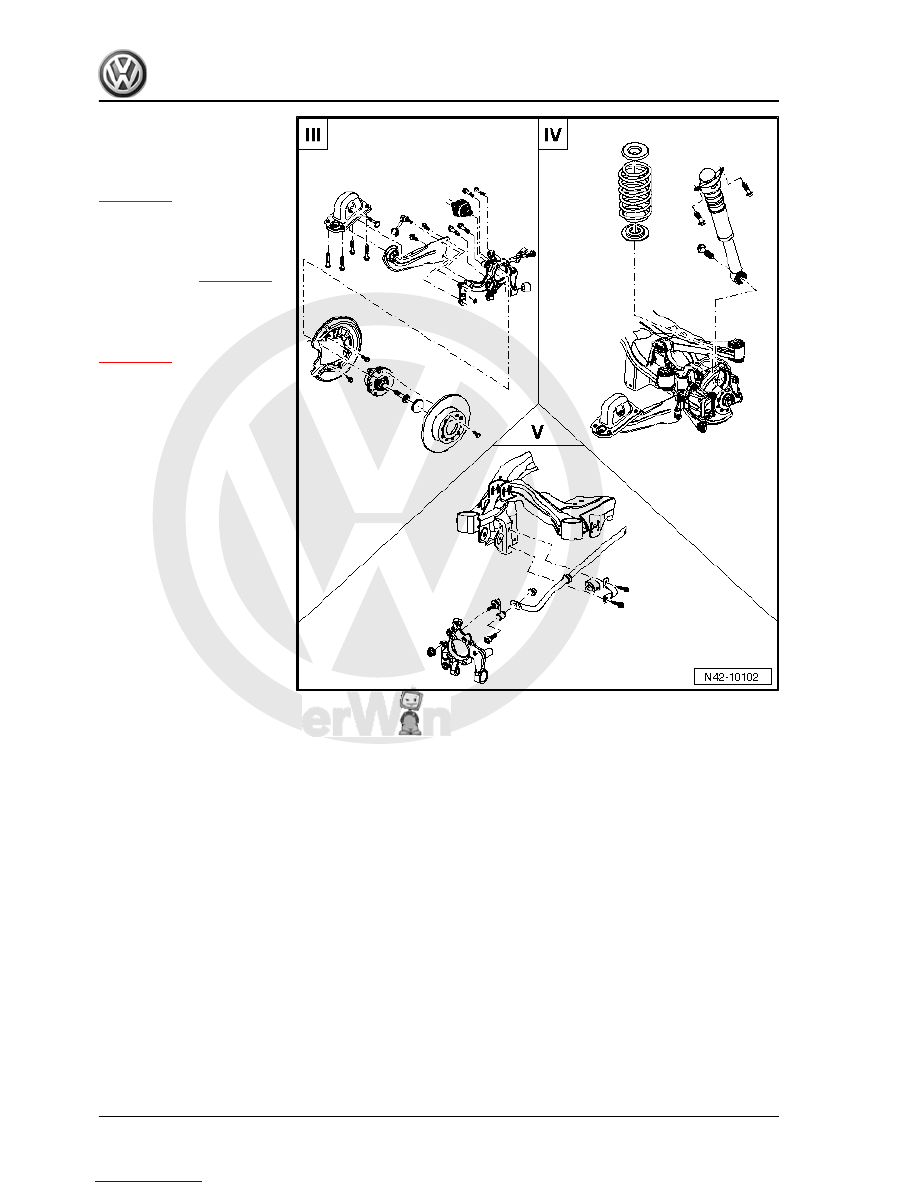

IV - Shock absorber, coil spring

(four-wheel drive, subframe

made from aluminium and

wheel bearing housing made

from cast steel)

⇒ page 257

V - Anti-roll bar (four-wheel

drive, subframe made from

aluminium and wheel bearing

housing made from cast steel)

⇒ page 265

184

     Rep. Gr.42 - Rear suspension
