Toyota Auris (2018 year). Manual in english - page 5





4-5. Toyota Safety Sense
287
Operational conditions
The pre-crash safety system is enabled and determines that the possibility of
a frontal collision with a vehicle is high.
Each function is operational at the following speeds:
Pre-crash warning:
• Vehicle speed is approximately 15 to 140 km/h (10 to 85 mph).
• The relative speed between your vehicle and a preceding vehicle is
approximately 15 km/h (10 mph) or more.
Pre-crash brake assist:
• Vehicle speed is approximately 30 to 80 km/h (20 to 50 mph).
• The relative speed between your vehicle and a preceding vehicle is
approximately 30 km/h (20 mph) or more.
Pre-crash braking:
• Vehicle speed is approximately 10 to 80 km/h (7 to 50 mph).
• The relative speed between your vehicle and a preceding vehicle is
approximately 10 km/h (7 mph) or more.
4
The system may not operate in the following situations:
If a battery terminal has been disconnected and reconnected and then the
vehicle has not been driven for a certain amount of time
If the shift lever is in R
If VSC is disabled (only the pre-crash safety warning function will be opera-
tional)
Cancelation of the pre-crash safety braking
If either of the following occur while the pre-crash safety braking function is
operating, it will be canceled:
• The accelerator pedal is depressed strongly.
• The steering wheel is turned sharply or abruptly.
If the vehicle is stopped by the operation of the pre-crash safety braking
function, the operation of the pre-crash safety braking function will be
canceled after the vehicle has been stopped for approximately 2 seconds.
288
4-5. Toyota Safety Sense

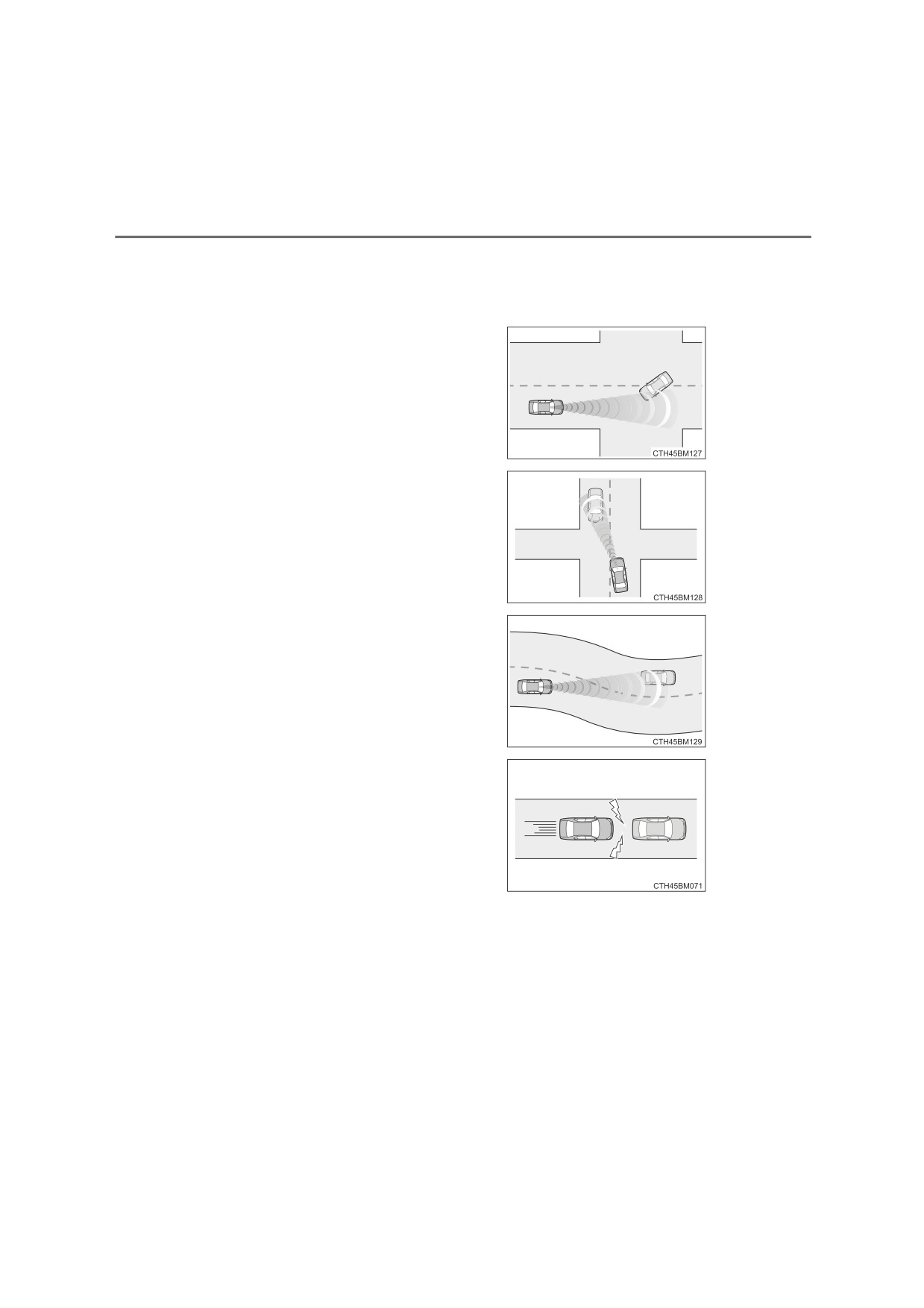

Conditions under which the system may operate even if there is no pos-
sibility of a collision
In some situations such as the following, the system may determine that
there is a possibility of a frontal collision and operate.
• When passing a vehicle in an oncom-
ing lane that is stopped to make a
right/left turn
• When passing an oncoming vehicle
while making a left or right turn
• When driving on a road where relative
location to vehicle ahead in an adja-
cent lane may change, such as on a
winding road
• When rapidly closing on a preceding
vehicle
• If the front of the vehicle is raised or lowered, such as when the road sur-
face is uneven or undulating
4-5. Toyota Safety Sense
289
• When passing extremely close to a
vehicle or structural object
• When there is a vehicle or object by
the roadside at the entrance of a
curve
• When driving on a narrow path surrounded by a structure, such as in a
tunnel or on an iron bridge
4
• When there is a reflective object
(manhole cover, steel plate, etc.),
steps, dip, or a protrusion on the road
surface or roadside
• When passing through a place with a
low structure above the road (low ceil-
ing, traffic sign, etc.)
• When there is a structural object
(overpass, traffic sign, billboard,
street light, etc.) at the top of an uphill
road
290
4-5. Toyota Safety Sense
• When rapidly closing on an electric
toll gate barrier, parking area barrier,
or other barrier that opens and closes
• When using an automatic car wash
• When approaching a low hanging
object that may contact the vehicle,
such as a banner, tree branches or
thick grass
• When the vehicle is hit by water,
snow, dust, etc. from a vehicle ahead
• When driving through steam or
smoke
• When there are patterns or paint on the road or a wall that may be mis-
taken for a vehicle
• When the front part of the vehicle is
raised or lowered
4-5. Toyota Safety Sense
291
• When the sensor is misaligned due to
a strong impact being applied to the
sensor, etc.
• When the vehicle is being parked in a
place where there is a low hanging
object at the height of the front sensor
• When the windshield is covered with
raindrops, etc.
4
292
4-5. Toyota Safety Sense
Situations in which the system may not operate properly
In some situations such as the following, a vehicle may not be detected by
the front sensor, preventing the system from operating properly:
• If an oncoming vehicle is approaching your vehicle
• When approaching the side or front of a vehicle
• If a preceding vehicle has a small rear end, such as an unloaded truck
• If a preceding vehicle has a low rear
end, such as a low bed trailer
• If a vehicle ahead is carrying a load which protrudes past its rear bumper
• If a vehicle ahead has extremely high
ground clearance
• If a vehicle ahead is irregularly shaped, such as a tractor or side car
• If the sun or other light is shining directly on a vehicle ahead
• If a vehicle cuts in front of your vehicle
or emerges from beside a vehicle
• If a vehicle ahead makes an abrupt maneuver (such as sudden swerving,
acceleration or deceleration)
• When suddenly cutting behind a preceding vehicle
4-5. Toyota Safety Sense
293

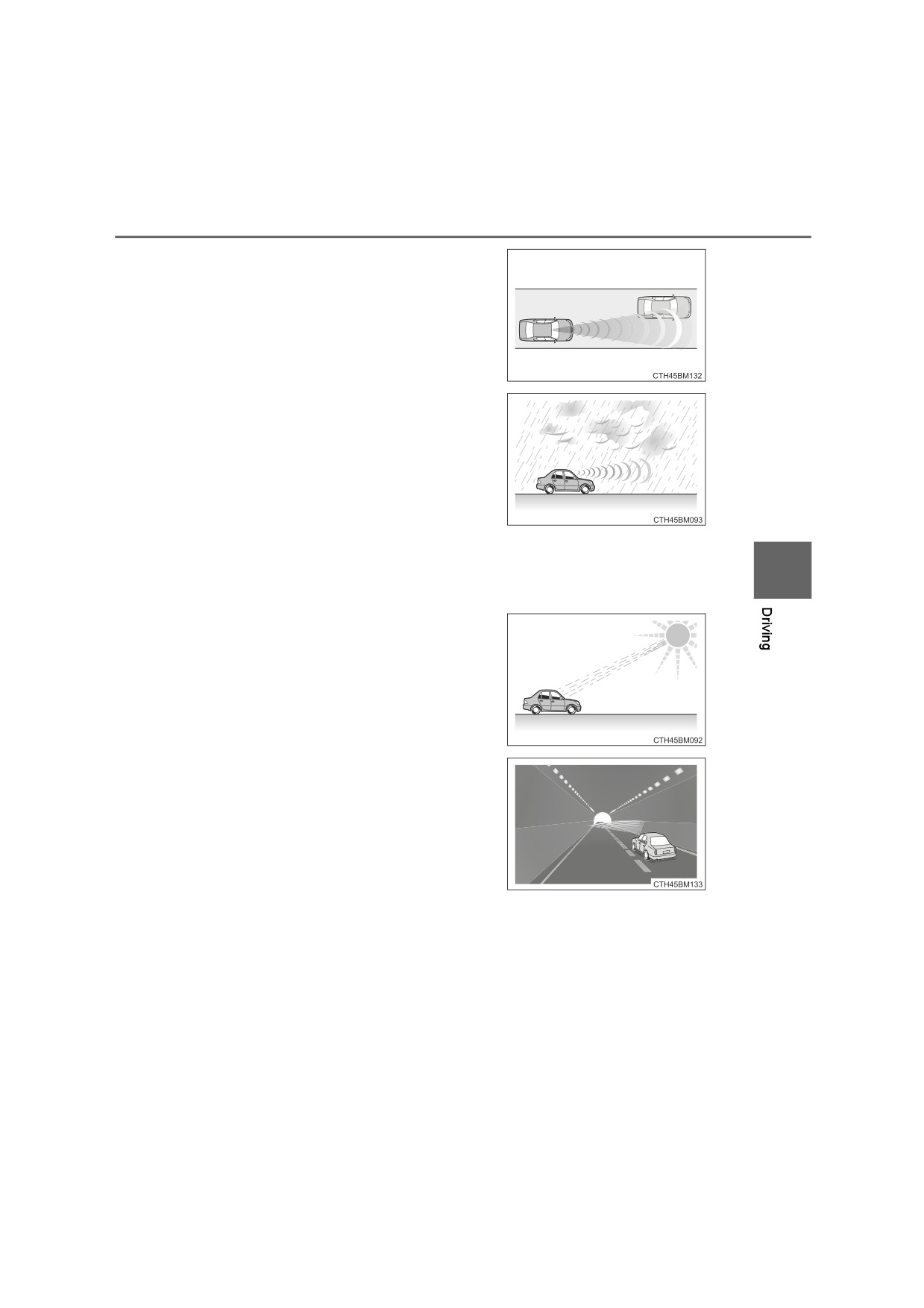

• When a vehicle ahead is not directly
in front of your vehicle
• When driving in inclement weather
such as heavy rain, fog, snow or a
sand storm
• When the vehicle is hit by water, snow, dust, etc. from a vehicle ahead
• When driving through steam or smoke that may obscure vehicles ahead
4
• When driving in a place where the surrounding brightness changes sud-
denly, such as at the entrance or exit of a tunnel
• When a very bright light, such as the
sun or the headlights of oncoming
traffic, shines directly into the front
sensor
• When the surrounding area is dim,
such as at dawn or dusk, or while at
night or in a tunnel
• While driving on a curve and for a certain amount of time after driving on
a curve
294
4-5. Toyota Safety Sense
• If your vehicle is skidding
• When the front part of the vehicle is
raised or lowered
• If the wheels are misaligned
• If a wiper blade is blocking the front sensor
• The vehicle is wobbling.
• The vehicle is being driven at extremely high speeds.
• When driving on roads with sharp bends or uneven surfaces
• When a preceding vehicle is a poor reflector of laser
• When the sensor is misaligned due to
a strong impact being applied to the
sensor, etc.
In some situations such as the following, sufficient braking force may not be
obtained, preventing the system from performing properly:
• If the braking functions cannot operate to their full extent, such as when
the brake parts are extremely cold, extremely hot, or wet
• If the vehicle is not properly maintained (brakes or tires are excessively
worn, improper tire inflation pressure, etc.)
• When the vehicle is being driven on a gravel road or other slippery sur-
face
4-5. Toyota Safety Sense
295
If the PCS warning light flashes or illuminates and a warning message is
displayed on the multi-information display
The pre-crash safety system may be temporarily unavailable or there may be
a malfunction in the system.
In the following situations, the warning light will turn off, the message will
disappear and the system will become operational when normal operating
conditions return:
• When the area around the front sensor is hot, such as in the sun
• When the windshield is fogged up or covered with condensation or ice
(P. 432, 439)
• When driving in conditions where the front sensor cannot detect an
object, such as in the dark (at night on a road without street lights or other
lights, etc.), when bright light is shining into the sensor, or in snow or fog.
• When the front sensor or the area around either sensor is cold, such as in
an extremely cold environment
• If the area in front of the front sensor is obstructed, such as when the
hood is open
If the PCS warning light continues to flash or illuminate or the warning mes-
4
sage does not disappear, the system may be malfunctioning. Have the vehi-
cle inspected by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional immediately.
If VSC is disabled
If TRC and VSC are disabled (P. 359), the pre-crash safety brake assist
and pre-crash safety braking functions are also disabled. However, the pre-
crash safety warning function will still operate.
The PCS warning light illuminates and “Pre-Crash Brake is disabled due to
VSC OFF.” is displayed on the multi-information display.
296
4-5. Toyota Safety Sense
LDA (Lane Departure Alert)
Summary of function
When driving on roads with white (yellow) lines, this function alerts the
driver when the vehicle might depart from its lane.
The LDA system recognizes visi-
ble white (yellow) lines with the
front sensor on the upper portion
of the windshield.
Lane departure alert function
When the system determines that
the vehicle might depart from its
lane, a warning is displayed on
the multi-information display and
the warning buzzer sounds to
alert the driver.
When the warning buzzer sounds,
check the surrounding road situa-
tion and carefully operate the
steering wheel to move the vehicle
back to the center within the white
(yellow) lines.
: If equipped
4-5. Toyota Safety Sense
297
WARNING
Before using the LDA system
Do not rely solely upon the LDA system. LDA is not a system which auto-
matically drives the vehicle or reduces the amount of attention that must be
paid to the area in front of the vehicle. The driver must always assume full
responsibility for driving safely by always paying careful attention to the sur-
rounding conditions and operate the steering wheel to correct the path of
the vehicle. Also, make sure to take adequate breaks when fatigued, such
as from driving for a long period of time.
Failure to perform appropriate driving operations and pay careful attention
may lead to an accident, resulting in death or serious injury.
To avoid operating the LDA by mistake
When not using the LDA system, use the LDA switch to turn the system off.
Preventing LDA system malfunctions and operations performed by
mistake
Do not modify the headlights or place stickers, etc., on the surface of the
4
lights.
Do not modify the suspension etc. If the suspension etc. needs to be
replaced, contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Do not install or place anything on the hood or grille. Also, do not install a
grille guard (bull bars, kangaroo bar, etc.).
If your windshield needs repairs, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
298
4-5. Toyota Safety Sense
Turning the LDA system on
Press the LDA switch to turn the
LDA system on.
The LDA indicator illuminates and
a message is displayed on the
multi-information display.
Press the LDA switch again to turn
the LDA system off.
When the LDA system is turned on
or off, operation of the LDA system
continues in the same condition
the next time the engine is started
Indication on the multi-information display
Inside of displayed white lines
Inside of displayed white lines
is white
is black
Indicates that the system is recog-
Indicates that the system is not
nizing white (yellow) lines. When
able to recognize white (yellow)
the vehicle departs from its lane,
lines or is temporarily canceled.
the white line displayed on the
side the vehicle departs from
flashes orange.
4-5. Toyota Safety Sense
299
If “Check LDA system.” is displayed on the multi-information display
If the LDA indicator does not come on when the LDA switch is pressed to turn
the system on, the system may be malfunctioning. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional immediately.
Operation conditions
This function operates when all of the following conditions are met.
LDA is turned on.
Vehicle speed is approximately 50 km/h (32 mph) or more.
System recognizes white (yellow) lines.
Width of traffic lane is approximately 3 m (9.8 ft.) or more.
Turn signal lever is not operated.
Vehicle is driven on a straight road or around a gentle curve with a radius of
more than approximately 150 m (492 ft.).
No system malfunctions are detected. (P. 569)
4
Temporary cancellation of functions
When operation conditions are no longer met, a function may be temporarily
canceled. However, when the operation conditions are met again, operation
of the function is automatically restored. (P. 299)
Lane departure alert function
The warning buzzer may be difficult to hear due to external noise, audio play-
back, etc.
White (yellow) lines are only on one side of road
The LDA system will not operate for the side on which white (yellow) lines
could not be recognized.
After the vehicle has been parked in the sun
The LDA system may not be available and a warning message may be dis-
played for a while after starting off. When the temperature in the cabin
decreases and the temperature around the front sensor (P. 279) becomes
suitable for its operation, the system will begin to operate.
If there are lane markers on only one side of the vehicle
The lane departure warning will not operate for the side on which lane mark-
ers could not be recognized.
300
4-5. Toyota Safety Sense
Conditions in which functions may not operate properly
In the following situations, the front sensor may not detect white (yellow) lines
and various functions may not operate normally.
There are shadows on the road that run parallel with, or cover, the white
(yellow) lines.
The vehicle is driven in an area without white (yellow) lines, such as in front
of a tollgate or checkpoint, or at an intersection, etc.
The white (yellow) lines are cracked, or cat's eyes (reflective markers) or
stones are present.
The white (yellow) lines cannot be seen or are difficult to see due to sand,
etc.
The vehicle is driven on a road surface that is wet due to rain, puddles, etc.
The traffic lines are yellow (which may be more difficult to recognize than
lines that are white).
The white (yellow) lines cross over a curb, etc.
The vehicle is driven on a bright surface, such as concrete.
The vehicle is driven on a surface that is bright due to reflected light, etc.
The vehicle is driven in an area where the brightness changes suddenly,
such as at the entrances and exits of tunnels, etc.
Light from the headlights of an oncoming vehicle, the sun, etc., enters the
camera.
The vehicle is driven where the road diverges, merges, etc.
The vehicle is driven on a slope.
The vehicle is driven on a road which tilts left or right, or a winding road.
The vehicle is driven on an unpaved or rough road.
The vehicle is driven around a sharp curve.
The traffic lane is excessively narrow or wide.
The vehicle is extremely tilted due to carrying heavy luggage or having
improper tire pressure.
The distance to the preceding vehicle is extremely short.
The vehicle is moving up and down a large amount due to road conditions
during driving (poor roads or road seams).
The headlight lenses are dirty and emit a faint amount of light at night, or the
beam axis has deviated.
The vehicle has just changed lanes or crossed an intersection.
Warning messages for the LDA system
Warning messages are used to indicate a system malfunction or to inform the
driver of the need for caution while driving.
Customization
P. 122
4-5. Toyota Safety Sense
301
Automatic High Beam
The Automatic High Beam uses an in-vehicle front sensor to
assess the brightness of streetlights, the lights of vehicles
ahead etc., and automatically turns the high beam on or off as
necessary.
WARNING
Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Always drive safely, taking care to
observe your surroundings and turning the high beam on or off manually if
necessary.
To prevent incorrect operation of the Automatic High Beam system
Do not overload the vehicle.
4

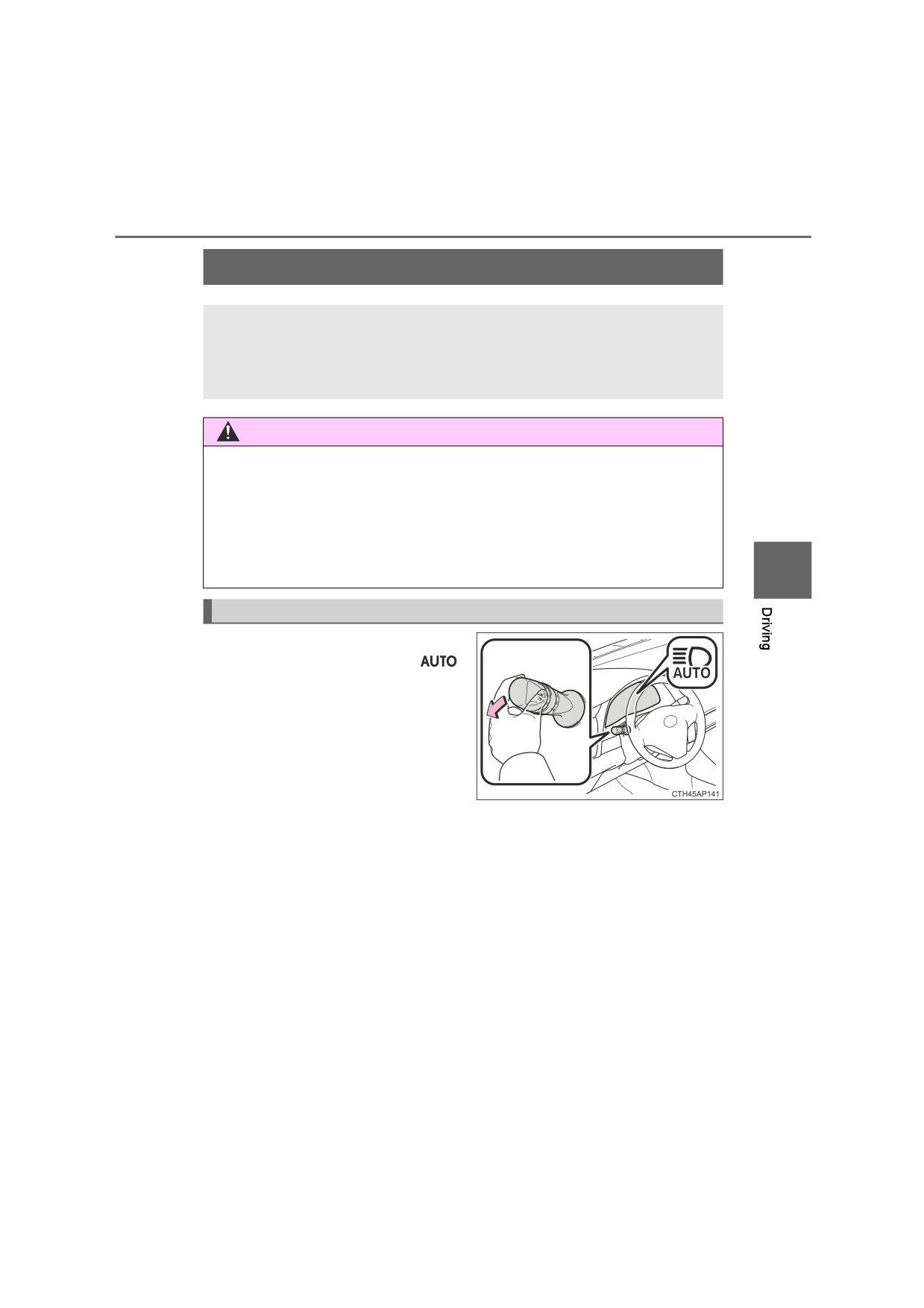

Activating the Automatic High Beam system
Push the lever away from you with
the headlight switch in
position.
The Automatic High Beam indica-
tor will come on when the head-
lights are turned on automatically
to indicate that the system is
active.
: If equipped
302
4-5. Toyota Safety Sense
Turning the high beam on/off manually
Switching to low beam
Pull the lever to original posi-
tion.
The Automatic High Beam indi-
cator will turn off.
Push the lever away from you to
activate the Automatic High
Beam system again.
Switching to high beam
Turn the light switch to
position.
The Automatic High Beam indi-
cator will turn off and the high
beam indicator will turn on.
4-5. Toyota Safety Sense
303
High beam automatic turning on or off conditions
When all of the following conditions are fulfilled, the high beam will be auto-
matically turned on (after approximately 1 second):
• Vehicle speed is approximately 40 km/h (25 mph) or more.
• The area ahead of the vehicle is dark.
• There are no vehicles ahead with headlights or tail lights turned on.
• There are few streetlights on the road ahead.
If any of the following conditions is met, the high beams will turn off automat-
ically:
• Vehicle speed is below approximately 30 km/h (19 mph).
• The area ahead of the vehicle is not dark.
• Vehicles ahead have their headlights or tail lights turned on.
• There are many streetlights on the road ahead.
Front sensor detection information
The high beam may not be automatically turned off in the following situa-
tions:
• When vehicles ahead suddenly appear from a curve
4
• When the vehicle is cut in front of by another vehicle
• When vehicles ahead are hidden from sight due to repeated curves, road
dividers or roadside trees
• When vehicles ahead appear from the faraway lane on wide road
• When vehicles ahead have no lights
The high beam may be turned off if a vehicle ahead that is using fog lights
without using the headlights is detected.
House lights, street lights, traffic signals, and illuminated billboards or signs
may cause the high beam to switch to the low beams, or the low beams to
remain on.
The following factors may affect the amount of time taken to turn the high
beam on or off:
• The brightness of headlights, fog lights, and tail lights of vehicles ahead
• The movement and direction of vehicles ahead
• When a vehicle ahead only has operational lights on one side
• When a vehicle ahead is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface,
etc.)
• The number of passengers and amount of luggage
The high beam may be turned on or off when the driver does not expect it.
Bicycles or similar objects may not be detected.
304
4-5. Toyota Safety Sense
In the situations shown below, the system may not be able to accurately
detect surrounding brightness levels. This may cause the low beams to
remain on or the high beams to cause problems for pedestrians, vehicles
ahead or other parties. In these cases, manually switch between the high
and low beams.
• In bad weather (rain, snow, fog, sandstorms, etc.)
• The windshield is obscured by fog, mist, ice, dirt, etc.
• The windshield is cracked or damaged.
• The front sensor is deformed or dirty.
• The front sensor temperature is extremely high.
• Surrounding brightness levels are equal to those of headlights, tail lights
or fog lights.
• Vehicles ahead have headlights or tail lights that are either switched off,
dirty, are changing color, or are not aimed properly.
• When driving through an area of intermittently changing brightness and
darkness.
• When frequently and repeatedly driving ascending/descending roads, or
roads with rough, bumpy or uneven surfaces (such as stone-paved
roads, gravel tracks, etc.).
• When frequently and repeatedly taking curves or driving on a winding
road.
• There is a highly reflective object ahead of the vehicle, such as a sign or
a mirror.
• The back of a vehicle ahead is highly reflective, such as a container on a
truck.
• The vehicle’s headlights are damaged or dirty, or are not aimed properly.
• The vehicle is listing or titling due to a flat tire, a trailer being towed, etc.
• The high beam and low beam are repeatedly being switched between in
an abnormal manner.
• The driver believes that the high beam may be causing problems or dis-
tress to other drivers or pedestrians nearby.
4-5. Toyota Safety Sense
305
RSA (Road Sign Assist)
Summary of function
RSA recognizes specific road signs using the front sensor and pro-
vides information to the driver via the multi-information display.
If the system judges that the vehicle is being driven over the speed
limit, performing prohibited actions, etc., in relation to the recognized
road signs, it alerts the driver using a warning display and warning
buzzer*.
*: This setting needs to be customized.
Front sensor
4
: If equipped
306
4-5. Toyota Safety Sense
Indication on the multi-information display
After the front sensor recognizes a sign, it is displayed on the multi-
information display when the vehicle passes the sign.
● When the driving assist system
information is selected, a maxi-
mum of 3 signs can be dis-
played. (P. 119)
● When other than the driving
assist system information is
selected, a speed limit sign or
an all canceled sign can be dis-
played. (P. 119)
A no overtaking sign and a speed
limit sign with supplemental mark
are not displayed. However, if
signs other than speed limit signs
are recognized, they are men-
tioned in a stack under the current
speed limit sign.
4-5. Toyota Safety Sense
307
Types of recognized road signs
The following types of road signs, including electronic signs and blink-
ing signs, are recognized.
A non-official (not meeting the Vienna Convention) or a recently intro-
duced traffic sign may not be recognized.
Type
Multi-information display
Speed limit begins/ends*1
Rain
Speed limit with
supplemental
4
mark
(Displayed simul-
Ice
taneously with
speed limit)
On/off ramp*2
Supplemental
(Display example)
mark exists
(Contents not rec-
ognized)
No overtaking begins/ends
All canceled
(All restrictions canceled. Returns to
default road regulation.)
*1: A speed limit sign with a value greater than 130 may not be recognized
and a wrong speed limit may be displayed.
*2: If the turn signal indicator is not operated when changing lanes, the mark
does not display.
308
4-5. Toyota Safety Sense
Warning display
In the following situations, the RSA system alerts the driver using a
warning display.
● When the vehicle speed exceeds the speed warning threshold
applied to the speed limit of the sign displayed on the multi-informa-
tion display, the sign color becomes inverted.
● If it is detected that your vehicle is overtaking when a no overtaking
sign is displayed on the multi-information display, the sign flashes.
Depending on the situation, traffic environment
(traffic direction,
speed, unit) may be detected incorrectly and a warning display may
not operate properly.
Automatic turn-off of RSA sign display
One or more signs automatically turn off in the following situations.
A new sign is not recognized for a certain distance.
The road changes due to a left or right turn, etc.
Depending on the situation, the driving behavior (turning, lane change, etc.)
may be detected incorrectly and the automatic turn-off may not operate
properly.
4-5. Toyota Safety Sense
309
Conditions in which the function may not operate or detect correctly
In the following situations, RSA does not operate normally and may not rec-
ognize signs, display the incorrect sign, etc. However, this does not indicate a
malfunction.
The front sensor is misaligned due to a strong impact being applied to the
sensor, etc.
Dirt, snow, stickers, etc., are on the windshield near the front sensor.
In inclement weather such as heavy rain, fog, snow or sand storms
Light from an oncoming vehicle, the sun, etc., enters the front sensor.
The sign is small, dirty, faded, tilted or bent, and if an electronic sign, the
contrast is poor.
All or part of the sign is hidden by the leaves of a tree, a pole, etc.
The sign is only visible to the front sensor for a short amount of time.
The driving scene (turning, lane change, etc.) is judged incorrectly.
Even if it is a sign not appropriate for the currently traveled lane, such a sign
exists directly after a freeway branches, or in an adjacent lane just before
4
merging.
Stickers are attached to the rear of the preceding vehicle.
A sign resembling a system compatible sign is recognized.
The vehicle is driven in a country with a different direction of traffic.
Side road speed signs may be detected and displayed (if positioned in sight
of the front sensor) while the vehicle is traveling on the main road.
Roundabout exit road speed signs may be detected and displayed (if posi-
tioned in sight of the front sensor) while traveling on a roundabout.
The speed information displayed on the meter and that displayed on the
Navigation system (if equipped) may be different due to the Navigation sys-
tem using map data.
310
4-5. Toyota Safety Sense
When driving vehicle in country with different speed unit
Since RSA recognizes signs based on the set unit of the meter, it is neces-
sary to change the set unit of the meter. Adjust the set unit of the meter to the
speed unit of signs in the current location. (P. 663)
Turning the system on/off
1
Select
on the settings display
(P. 125)
2
Press the enter/set switch on the meter
control switches.
Speed limit sign display
If the engine switch was last turned off while a speed limit sign was displayed
on the multi-information display, the same sign displays again when the
engine switch is turned to “ON” position (vehicles without smart entry & start
system) or IGNITION ON mode (vehicles with smart entry & start system).
When “Check RSA system.” is displayed on the multi-information dis-
play
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately.
Customization
The settings for warning display, warning buzzer*, speeding warning thresh-
old, etc., can be changed. (Customizable feature: P. 663)
*: If a speed limit with supplemental mark is exceeded, the warning buzzer
does not operate.
WARNING
Before using the RSA
Do not rely solely upon the RSA system. RSA is a system which supports
the driver by providing information, but it is not a replacement for a driver’s
own vision and awareness. Drive safely by always paying careful attention
to the traffic rules.
Inappropriate or negligent driving could lead to an unexpected accident.
4-6. Using the driving support systems
311
Stop & Start system (Smart Stop)
The Stop & Start system stops and restarts the engine according
to the brake pedal or shift lever operation (vehicles with a
Multidrive), or clutch pedal operation (vehicles with a manual
transmission) when the vehicle is stopped.
Stop & Start system operation (vehicles with a Multidrive)
When the shift lever is in D or M
Stopping the engine
While driving with the shift lever
in D or M, depress the brake
pedal, and stop the vehicle.
4
The Stop & Start indicator will
come on.
Restarting the engine
Release the brake pedal.
The Stop & Start indicator will turn off.
: If equipped
312
4-6. Using the driving support systems
When the shift lever is shifted to P or N
Stopping the engine
Depress the brake pedal,
1
and stop the vehicle.
2
Shift the shift lever to P or N.
(P. 248)
The Stop & Start indicator will
come on.
If the shift lever is shifted to P or
N from D or M while the engine
is stopped by the Stop & Start
system, the engine will remain
stopped.
Restarting the engine
Shift the shift lever to D, M, or R. (P. 248)
Depress the brake pedal while shifting the shift lever.
The Stop & Start indicator will turn off.
Stop & Start system operation
(vehicles with a manual transmission)
Stopping the engine
With the clutch pedal fully
1
depressed, depress the
brake pedal, and stop the
vehicle.
Shift the shift lever to N (P.
2
255), and release the clutch
pedal.
The Stop & Start indicator will
come on.
Restarting the engine
Check that the shift lever is in N and depress the clutch pedal.
The Stop & Start indicator will turn off.
4-6. Using the driving support systems
313

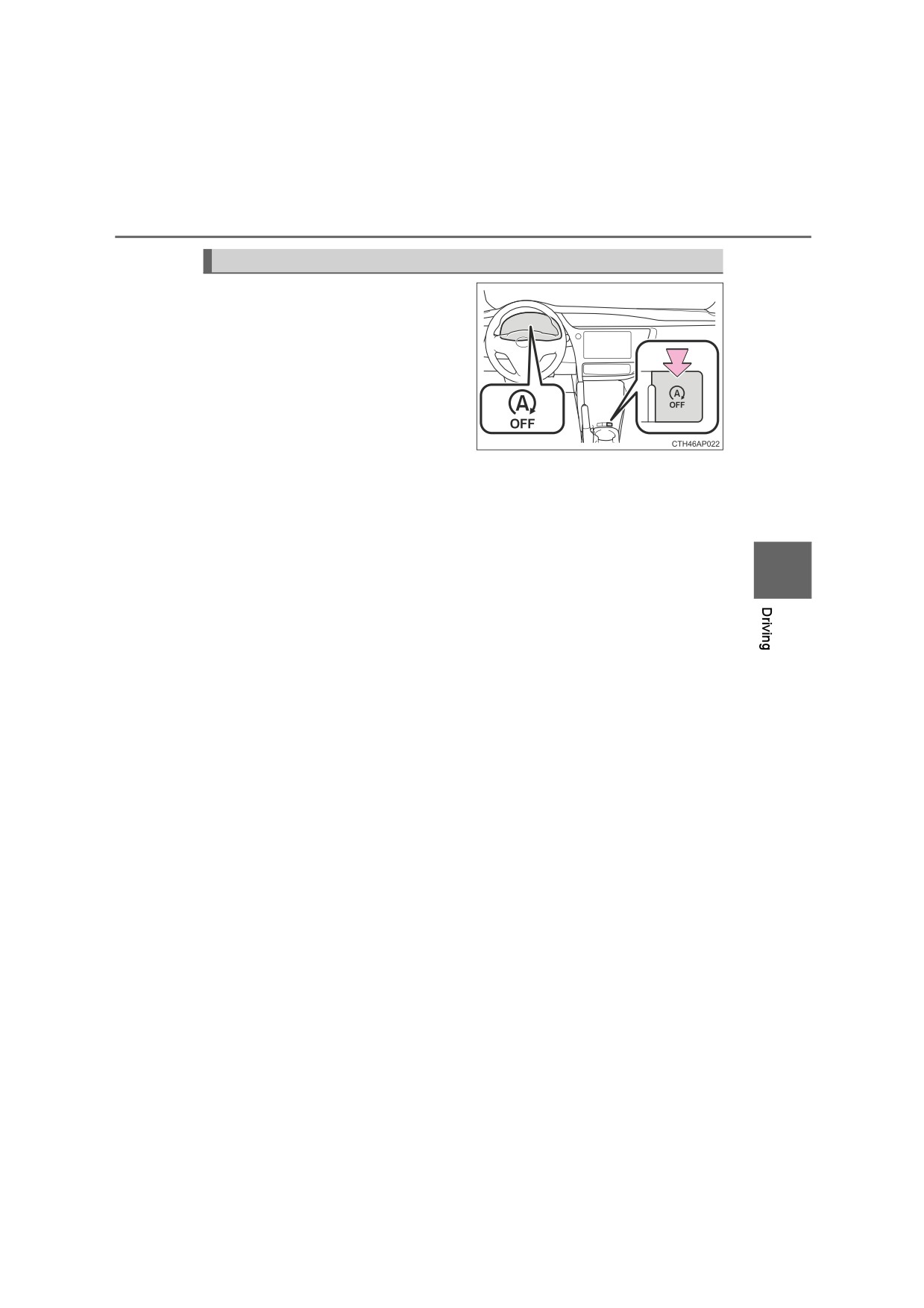

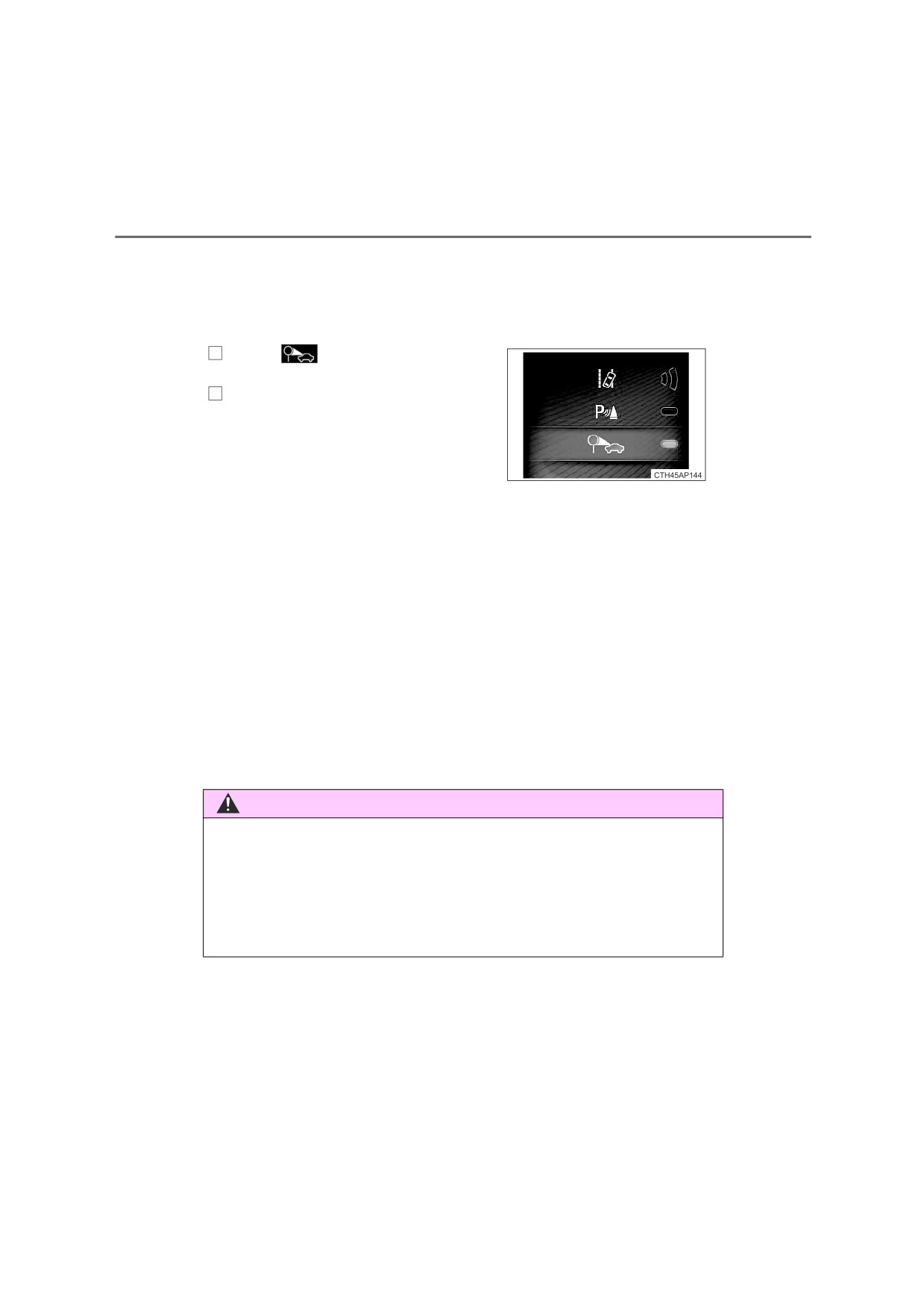

Disabling the Stop & Start system
Press the Stop & Start cancel
switch to disable the Stop & Start
system.
The Stop & Start cancel indicator
will come on.
Pressing the switch again will
enable the Stop & Start system and
the Stop & Start cancel indicator
will turn off.
Automatic reactivation of the Stop & Start system
Vehicles without a smart entry & start system
Even if the Stop & Start system is disabled by the Stop & Start can-
cel switch, it will be automatically re-enabled once the engine
switch is turned to the “LOCK” position then to the “START” posi-
4
tion.
Vehicles with a smart entry & start system
Even if the Stop & Start system is disabled by the Stop & Start can-
cel switch, it will be automatically re-enabled once the engine
switch is turned off, and then the engine is started.
If the Stop & Start cancel switch is pressed while the vehicle is
stopped
● When the engine is stopped by the Stop & Start system, pressing
the Stop & Start cancel switch will restart the engine.
From the next time the vehicle is stopped (after Stop & Start sys-
tem has been turned off), the engine will not be stopped.
● With the Stop & Start system disabled, pressing the Stop & Start
cancel switch will re-enable the system but not stop the engine.
From the next time the vehicle is stopped (after Stop & Start sys-
tem has been turned on), the engine will be stopped.
314
4-6. Using the driving support systems
Hill-start assist control (vehicles with a Multidrive)
After the engine is stopped by the Stop & Start system when the vehi-
cle is on an incline, brake force is temporarily maintained to prevent
rolling backwards until the engine is restarted and drive force is gener-
ated.
When drive force is generated, the maintained brake force is automat-
ically canceled.
● This function operates on flat surfaces as well as steep inclines.
● Sound may be generated from the brakes, but this is not a malfunc-
tion.
● Brake pedal response may change and vibration may occur, but
these are not malfunctions.
Operating conditions
The Stop & Start system is operational when all of the following conditions
are met:
• Vehicles with a Multidrive: The brake pedal is being depressed firmly.
• Vehicles with a Multidrive: The shift lever is in a position other than R.
is off.
• The driver’s seat belt is fastened.
• The engine is adequately warmed up.
• The driver’s door is closed.
• Vehicles with a Multidrive: The accelerator pedal is not being depressed.
• Vehicles with a manual transmission: The clutch pedal is not being
depressed.
• The outside temperature is -5°C (23°F) or higher.
• Vehicles with a manual transmission: The shift lever is in N.
• The hood is closed.
4-6. Using the driving support systems
315
In the following situations the engine may not be stopped by the Stop & Start
system. This is not a malfunction of the Stop & Start system.
• The air conditioning system is being used when the ambient temperature
is high or low.
• The battery is not sufficiently charged or is undergoing a periodic
recharge.
• The brake booster vacuum is low.
• Vehicles with a Multidrive: The vehicle is stopped on a steep incline.
• The steering wheel is being operated.
• Due to traffic or other circumstances the vehicle is stopped repeatedly.
• The vehicle is being driven in a high altitude area.
• Engine coolant temperature or transmission fluid temperature is
extremely low or high.
• The battery fluid temperature is extremely low or high.
• The battery was recently replaced or the battery terminals were recently
disconnected.
• Vehicles with a power heater: The power heater is being used.
In the following situations, the engine will restart automatically if the engine
4
is stopped by the Stop & Start system. (To enable stopping of the engine by
the Stop & Start system, drive the vehicle.)
• The air conditioning system is turned on.
is turned on.
• The steering wheel is operated.
• Vehicles with a Multidrive: The shift lever is shifted to R from D or M.
• Vehicles with a Multidrive: The shift lever is shifted to D, M or R from P or
N.
• The driver’s seat belt is unfastened.
• The driver’s door is opened.
• Vehicles with a Multidrive: The accelerator pedal is depressed.
• The Stop & Start cancel switch is pressed.
• The vehicle starts to roll on an incline.
• Vehicles with a power heater: The power heater is turned on.
In the following situations, the engine may restart automatically if the engine
is stopped by the Stop & Start system. (To enable stopping of the engine by
the Stop & Start system, drive the vehicle.)
• The brake pedal is pumped or strongly depressed.
• The air conditioning system is being used.
• The battery is not sufficiently charged.
316
4-6. Using the driving support systems
Hood
Vehicles with a Multidrive: If the hood is opened while the engine is stopped
by the Stop & Start system with the shift lever in D or M, the engine will stall
and will not be able to be restarted by the automatic engine start function. In
this case, restart the engine using the normal engine starting procedure.
(P. 234, 238)
Vehicles with a Multidrive: If the hood is opened while the engine is stopped
by the Stop & Start system with the shift lever in P or N, the engine will be
restarted automatically.
Vehicles with a manual transmission: If the hood is opened while the engine
is stopped by the Stop & Start system, the engine will stall and will not be
able to be restarted by the automatic engine start function. In this case,
restart the engine using the normal engine starting procedure.
(P. 234, 238)
If the hood is closed after the engine is started with the hood open, the Stop
& Start system will not operate. Close the hood, turn the engine switch off,
wait 30 seconds or more, and then start the engine.
When to use the Stop & Start system
Vehicles with a manual transmission: If the engine is stopped by the Stop &
Start system and the shift lever is shifted into a position other than N with the
clutch pedal released, a buzzer will sound and Stop & Start indicator will
flash. This indicates that the engine is only stopped by the Stop & Start sys-
tem, not that the engine has been turned off completely.
Use the Stop & Start system when stopping the vehicle temporarily at red
lights, intersections, etc. When stopping the vehicle for a longer period of
time, stop the engine completely.
When the system does not operate, is canceled, or is malfunctioning, warn-
ing messages (vehicles with a 2-ring meter only) and a warning buzzer are
used to inform the driver. (P. 319)
Vehicles with a smart entry & start system: If the engine switch is pressed
when the engine is stopped by the Stop & Start system, the engine will stall
and will not be able to be restarted by the automatic engine start function. In
this case, restart the engine using the normal engine starting procedure.
(P. 234, 238)
When the engine is restarted by the Stop & Start system, the power outlet
may be temporarily unusable, but this is not a malfunction.
Installation and removal of electrical components and wireless devices may
affect the Stop & Start system. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for details.
4-6. Using the driving support systems
317
If the windshield is fogged up while the engine is stopped by the Stop &
Start system
Turn
on. (The engine will start due to the automatic engine start func-
tion.): P. 439
If the windshield fogs up frequently, press the Stop & Start cancel switch to
disable the system.
Air conditioning system while the engine is stopped by the Stop & Start
system
While the engine is stopped by the Stop & Start system, the air conditioning
system (cooling, heating and dehumidifying functions) is canceled and will
only blow air or will stop blowing air. In order to prevent the air conditioning
system from being canceled, disable the Stop & Start system by pressing the
Stop & Start cancel switch.
Changing the idling stop time with the air conditioning system on
The length of time the Stop & Start system will operate when the air condition-
ing system is on can be changed by performing the following operation. (The
4
length of time the Stop & Start system will operate when the air conditioning
system is off cannot be changed.)
Vehicles with a 3-ring meter
Setting by pressing and holding the Stop & Start cancel switch
Each time the Stop & Start cancel
switch is pressed and held for 3 sec-
onds or more, the length of the opera-
tion time will be changed. The current
setting will be displayed on the multi-
information display.
1
Standard
2
Extended
Vehicles with a 2-ring meter
Setting by pressing and holding the Stop & Start cancel switch
Each time the Stop & Start cancel switch is pressed and held for 3 seconds
or more, the system switches between standard and extended. The system
status can be confirmed on the multi-information display
(Settings
display) screen. (P. 125)
Settings from the
(Settings display) screen of the multi-information
display
P. 125
318
4-6. Using the driving support systems
The Stop & Start system protection function
Vehicles without a smart entry & start system: When an excessively loud
sound is being projected by the audio system, the audio system may be
automatically cut off in order to reduce battery consumption. If it occurs, turn
the engine switch off, wait for 3 seconds or longer and then turn it to “ACC”
or “ON” position to re-enable the audio system.
Vehicles with a smart entry & start system: When an excessively loud sound
is being projected by the audio system, the audio system may be automati-
cally cut off in order to reduce battery consumption. If it occurs, turn the
engine switch off, wait for 3 seconds or longer and then turn it to ACCES-
SORY mode or IGNITION ON mode to re-enable the audio system.
The audio system may not be activated when the battery terminals are dis-
connected and then reconnected. If it occurs, turn the engine switch off and
then repeat the following operation twice to activate the audio system nor-
mally.
• Vehicles without a smart entry & start system: Turn the engine switch to
“ON” position and then to OFF.
• Vehicles with a smart entry & start system: Turn the engine switch to
IGNITION ON mode and then to OFF.
Replacing the battery
P. 627
Displaying the Stop & Start system status
P. 123
4-6. Using the driving support systems
319
Multi-information display messages (vehicles with a 2-ring meter)
If the following situations,
and a message may be displayed on the
multi-information display.
When the engine cannot be stopped by the Stop & Start system
Message
Details
The brake pedal is not depressed
“Depress
brake
enough.
firmly to activate.”
If the brake pedal is depressed further, the
system will operate.
• The air conditioning system is being
used when the ambient temperature is
high or low.
If the difference between the set tempera-
“For climate con-
ture and cabin temperature is small, the
trol.”
system will be enabled.
4
is ON.
320
4-6. Using the driving support systems
Message
Details
The battery charge amount may be low.
Engine stop is temporarily prohibited to
prioritize charging of the battery, but if the
engine is operated for a short while,
engine stop is allowed.
A refresh charge may be occurring
(Examples: A short time after replacing
the battery, removing battery terminals,
etc.)
After a refresh charge of approximately 5
to 40 minutes completes, the system can
be operated.
The engine may have been started with
“Battery charging.”
the hood opened.
Close the hood, turn the engine switch off,
wait for a short while, and then start the
engine.
The battery may be cold.
Operating the engine for a short while
allows the system to recover due to the
temperature increase in the engine com-
partment.
The battery may be extremely hot.
If the engine is stopped and the engine
compartment is allowed to cool sufficiently,
the system recovers.
The vehicle is being driven in a high
altitude area.
“For brake sys-
The brake booster vacuum is low.
tem.”
When the brake booster vacuum reaches
a predetermined level, the system will be
enabled.
The engine has been started with the
hood opened.
“Bonnet open.”
To enable the system, close the hood, turn
the engine switch off, wait for a short
while, and then start the engine.
“Driver seat belt
The driver seat belt is not fastened.
unbuckled.”
4-6. Using the driving support systems
321
Message
Details
A non-dedicated battery for the Stop &
“Non-dedicated
Start system may have been installed.
battery.”
The Stop & Start system does not operate.
(8NR-FTS engine
Have the vehicle inspected by any autho-
only)
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
When the engine automatically restarts while stopped by the Stop & Start
system
Message
Details
• The air conditioning system has been
“For climate con-
turned on or is being used.
trol.”
has been turned on.
The brake pedal has been depressed fur-
4
ther or pumped.
“For brake sys-
The system will be enabled after the
tem.”
engine runs and the brake booster vac-
uum reaches a predetermined level.
The battery charge amount may be low.
The engine is restarted to prioritize battery
“Battery charging.”
charging. Operating the engine for a short
while allows the system to recover.
“Steering
wheel
The steering wheel was operated.
turned.”
“Bonnet open.”
The hood has been opened.
“Driver seat belt
The driver seat belt has been unfastened.
unbuckled.”
Vehicles with a manual transmission: When the engine cannot be restarted
by the Stop & Start system
Message
Details
The shift lever has been shifted from N to
“Stop & Start sys-
another position with the clutch pedal
tem active. Shift to
released.
N and depress
To restart the engine, shift the shift lever to
clutch to restart.”
N and then depress the clutch pedal.
322
4-6. Using the driving support systems
If “Stop & Start system malfunction. Inspect at dealer.” is displayed on
the multi-information display (vehicles with a 2-ring meter)
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
If the Stop & Start cancel indicator continues to flash
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
WARNING
When the Stop & Start system is operating
Vehicles with a Multidrive: Depress the brake pedal and apply the parking
brake when necessary while the engine is stopped by the Stop & Start sys-
tem (while the Stop & Start indicator is on).
Vehicles with a manual transmission: Keep the shift lever in N and depress
the brake pedal or apply the parking brake while the engine is stopped by
the Stop & Start system (while the Stop & Start indicator is on).
Do not allow anyone to leave the vehicle while the engine is stopped by
the Stop & Start system (while the Stop & Start indicator is on).
An accident may occur due to the automatic engine start function.
Ensure that the engine is not stopped by the Stop & Start system while the
vehicle is in a poorly ventilated area. The engine may restart due to the
automatic engine start function, causing exhaust gases to collect and
enter the vehicle, possibly resulting in death or a serious health hazard.
4-6. Using the driving support systems
323
NOTICE
To ensure the system operates correctly
If any of the following situations occur, the Stop & Start system may not
operate correctly. Have your vehicle checked by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
While the driver’s seat belt is fastened, the driver’s and front passenger’s
seat belt reminder light flashes.
Even though the driver’s seat belt is not fastened, the driver’s and front
passenger’s seat belt reminder light does not illuminate.
Vehicles with a 3-ring meter: Even though the driver’s door is closed, the
open door warning light is illuminated or the interior light is illuminated
when the interior light switch is in the door position.
Vehicles with a 2-ring meter: Even though the driver’s door is closed, the
open door warning is displayed on the multi-information display or the inte-
rior light is illuminated when the interior light switch is in the door position.
Vehicles with a 3-ring meter: Even though the driver’s door is open, the
4
open door warning light does not illuminate or the interior light does not
illuminate when the interior light switch is in the door position.
Vehicles with a 2-ring meter: Even though the driver’s door is open, the
open door warning is not displayed on the multi-information display or the
interior light does not illuminate when the interior light switch is in the door
position.
324
4-6. Using the driving support systems

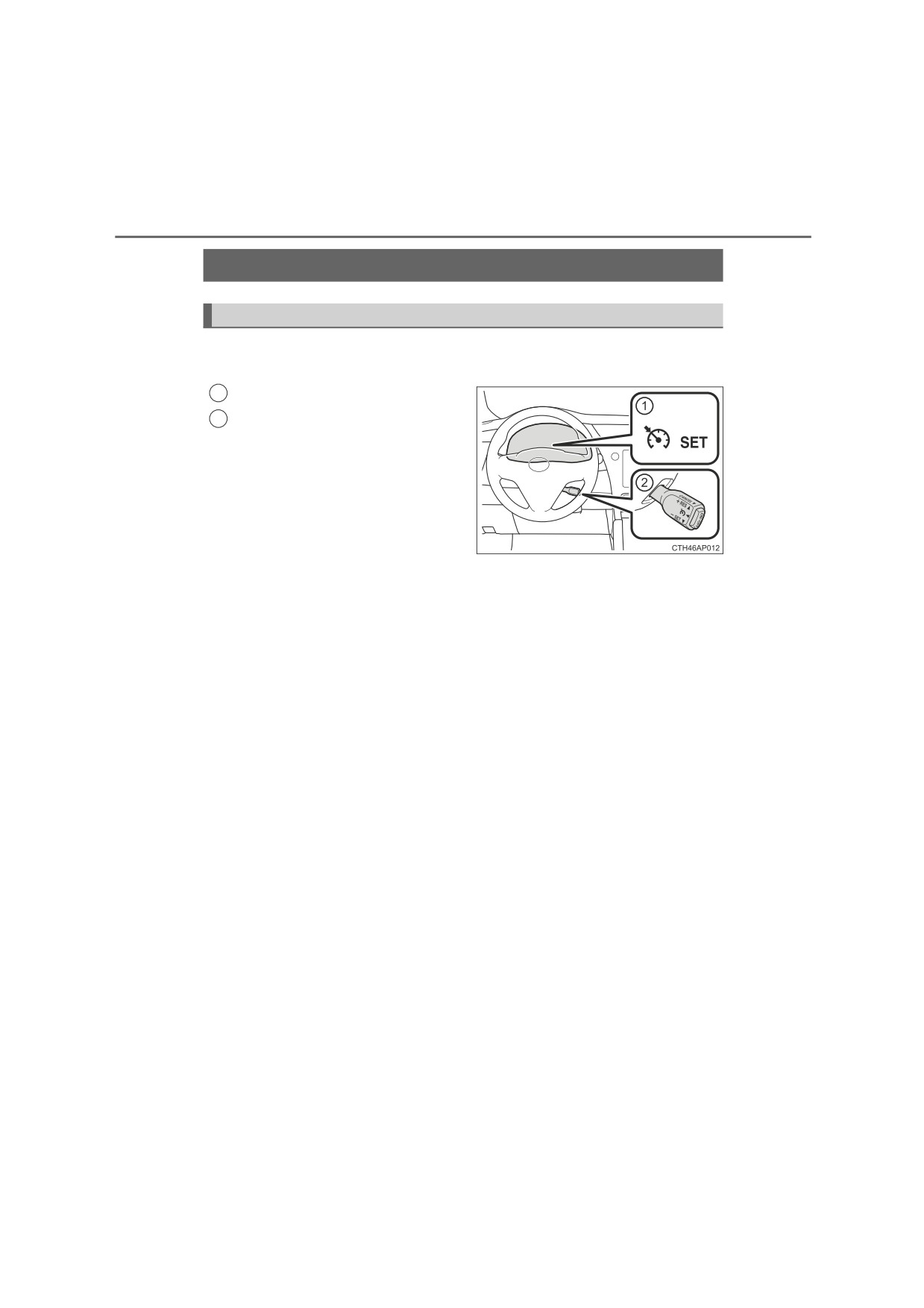

Cruise control
Summary of functions
Use the cruise control to maintain a set speed without operating the
accelerator pedal.
1
Indicators
2
Cruise control switch
: If equipped
4-6. Using the driving support systems
325
Setting the vehicle speed
Press the “ON-OFF” button to
1
activate the cruise control.
Cruise control indicator will come
on.
Press the button again to deacti-
vate the cruise control.
Accelerate or decelerate, with
2
accelerator pedal operation, to
the desired vehicle speed
(above approximately 40 km/h
[25 mph]) and push the lever
4
down to set the speed.
Cruise control “SET” indicator will
come on.
The vehicle speed at the moment
the lever is released becomes the
set speed.
326
4-6. Using the driving support systems
Adjusting the set speed
To change the set speed, operate the lever until the desired set speed
is obtained.
1
Increases the speed
2
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the lever
in the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1.6 km/h (1 mph) each time the lever is
operated.
Large adjustment: The set speed can be increased or decreased continu-
ally until the lever is released.
Canceling and resuming the constant speed control
Pulling the lever toward you
1
cancels the constant speed
control.
The speed setting is also canceled
when the brake pedal or clutch
pedal (manual transmission only)
is depressed.
Pushing the lever up resumes
2
the constant speed control.
However, resuming is available when the vehicle speed is more than
approximately 40 km/h (25 mph).
4-6. Using the driving support systems
327
Cruise control can be set when
Vehicles with a Multidrive
The shift lever is in the D or range 4 or higher of M has been selected.
Range 4 or higher has been selected by using the paddle shift.
(vehicles with paddle shift switch)
Vehicle speed is above approximately 40 km/h (25 mph).
Vehicles with a manual transmission
Vehicle speed is above approximately 40 km/h (25 mph).
Accelerating after setting the vehicle speed
The vehicle can be accelerated by operating accelerator pedal. After accel-
erating, the set speed resumes.
Even without canceling the cruise control, the set speed can be increased
by first accelerating the vehicle to the desired speed and then pushing the
lever down to set the new speed.
Automatic cruise control cancelation
4
Cruise control is automatically canceled in any of the following situations.
Actual vehicle speed falls more than approximately 16 km/h (10 mph) below
the set speed.
At this time, the memorized set speed is not retained.
Actual vehicle speed is below approximately 40 km/h (25 mph).
VSC is activated.
Speed limiter is activated. (if equipped)
If the cruise control indicator light comes on in yellow (vehicles with a 3-
ring meter) or “Check cruise control system.” is displayed on the multi-
information display (vehicles with a 2-ring meter)
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels imme-
diately after being activated, there may be a malfunction in the cruise control
system. Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
328
4-6. Using the driving support systems
WARNING
To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
In heavy traffic
On roads with sharp bends
On winding roads
On slippery roads, such as those covered with rain, ice or snow
On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
When your vehicle is towing a trailer or during emergency towing
4-6. Using the driving support systems
329

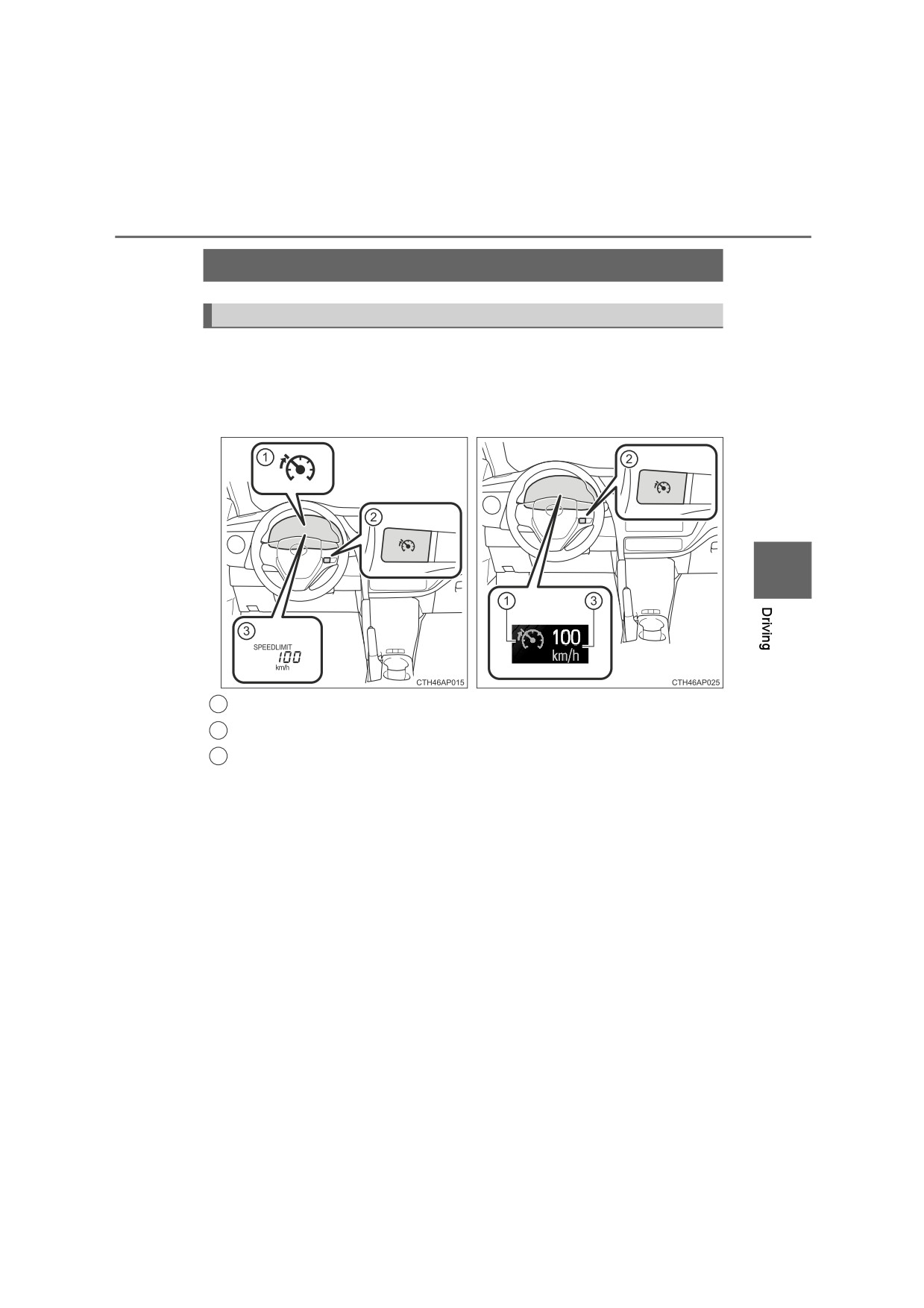

Speed limiter
Summary of functions
A desired maximum speed can be set using the cruise control switch.
The speed limiter prevents vehicle speed from exceeding the set
speed.
Vehicles with a 3-ring meter
Vehicles with a 2-ring meter
4
1
Indicator
2
Speed limiter switch
3
Set speed
: If equipped
330
4-6. Using the driving support systems
Setting the vehicle speed
1
Turn the speed limiter switch
on.
Press the switch once more to
*1
*2
deactivate the speed limiter.
Type A
Type B
Accelerate or decelerate to the
2
desired speed and push the
lever down to set the desired
maximum speed.
If the lever is pushed down while
the vehicle speed is below 30 km/h
(20 mph), the set speed will be 30
km/h (20 mph).
*1
*2
*1: Vehicles with a 3-ring meter
*2: Vehicles with a 2-ring meter
Adjusting the set speed
1
Increase speed
2
Decrease speed
Hold the lever until the desired
speed setting is obtained.
Fine adjustment of the set speed
can be made by lightly pushing the
lever up or down and releasing it.
4-6. Using the driving support systems
331
Canceling and resuming the speed limiter
1
Cancel
Pull the lever towards you to can-
cel the speed limiter.
2
Resume
To resume use of the speed limiter,
push the lever up.
Exceeding the set speed
In the following situations, the vehicle speed exceeds the set speed and dis-
play characters will flash:
When fully depressing the accelerator pedal
When driving down a slope
4
Automatic speed limiter cancelation
The speed limiter is automatically canceled in any of the following situations:
Cruise control is activated.
8NR-FTS engine only: When the VSC system and/or TRC system is turned
off by pressing the VSC OFF switch.
If the speed limiter indicator comes on in yellow (vehicles with a 3-ring
meter) or “Check speed limiter system.” is displayed on the multi-infor-
mation display (vehicles with a 2-ring meter)
Stop the engine and then restart the engine. After restarting the engine, set
the speed limiter. If the speed limiter cannot be set, there may be a malfunc-
tion in the speed limiter. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
332
4-6. Using the driving support systems
WARNING
To avoid operating the speed limiter by mistake
Keep the speed limiter button off when not in use.
Situations unsuitable for speed limiter
Do not use speed limiter in either of the following situations.
Doing so may result in control of the vehicle being lost and could cause an
accident resulting in death or serious injury.
On slippery roads, such as those covered with rain, ice or snow
On steep hills
When your vehicle is towing a trailer
4-6. Using the driving support systems
333
Toyota parking assist-sensor
Vehicles without a navigation/multimedia system:
The distance from your vehicle to nearby obstacles when paral-
lel parking or maneuvering into a garage is measured by the
sensors and communicated via the multi-information display
and a buzzer. Always check the surrounding area when using
this system.
Vehicles with a navigation/multimedia system:
Refer to the “Navigation and multimedia system Owner’s man-
ual”.
Types of sensors
4
1
Front center sensors
4
Rear corner sensors
2
Front corner sensors
5
Rear center sensors
3
Front side sensors
: If equipped
334
4-6. Using the driving support systems
Enabling/disabling the Toyota parking assist-sensor system
This system can be enabled/disabled on the multi-information dis-
play.
1
Display the settings display (P. 119), and then press
/
on the meter control switches to select
2
Press
on the meter con-
trol switches to enable/dis-
able the system.
When enabled, the Toyota
parking assist-sensor indica-
tor will illuminate.
Display
When the sensors detect an obstacle, a graphic is shown on the multi
information display depending on the position and distance to the
obstacle.
1
Front center sensor operation
2
Front corner sensor and front
side sensor operation
3
Rear corner sensor operation
4
Rear center sensor operation
4-6. Using the driving support systems
335
The distance display and buzzer
When a sensor detects an obstacle, the direction of and the approxi-
mate distance to the obstacle are displayed and the buzzer sounds.
Corner sensors
Approximate distance to
Multi-information
Buzzer
obstacle
display
50 to 37.5 cm
Medium
(1.6 to 1.2 ft.)
37.5 to 25 cm
Fast
(1.2 to 0.8 ft.)
4
Less than 25 cm
Continuous
(0.8 ft.)
336
4-6. Using the driving support systems
Front side sensors
Approximate distance to
Multi-information
Buzzer
obstacle
display
Less than 25 cm
Continuous
(0.8 ft.)
Center sensors
Approximate distance to
Multi-information
Buzzer
obstacle
display
Front: 100 to 55 cm
(3.3 to 1.8 ft.)
Slow
Rear: 150 to 55 cm
(4.9 to 1.8 ft.)
55 to 42.5 cm
Medium
(1.8 to 1.4 ft.)
42.5 to 30 cm
Fast
(1.4 to 1.0 ft.)
Less than 30 cm
Continuous
(1.0 ft.)
4-6. Using the driving support systems
337

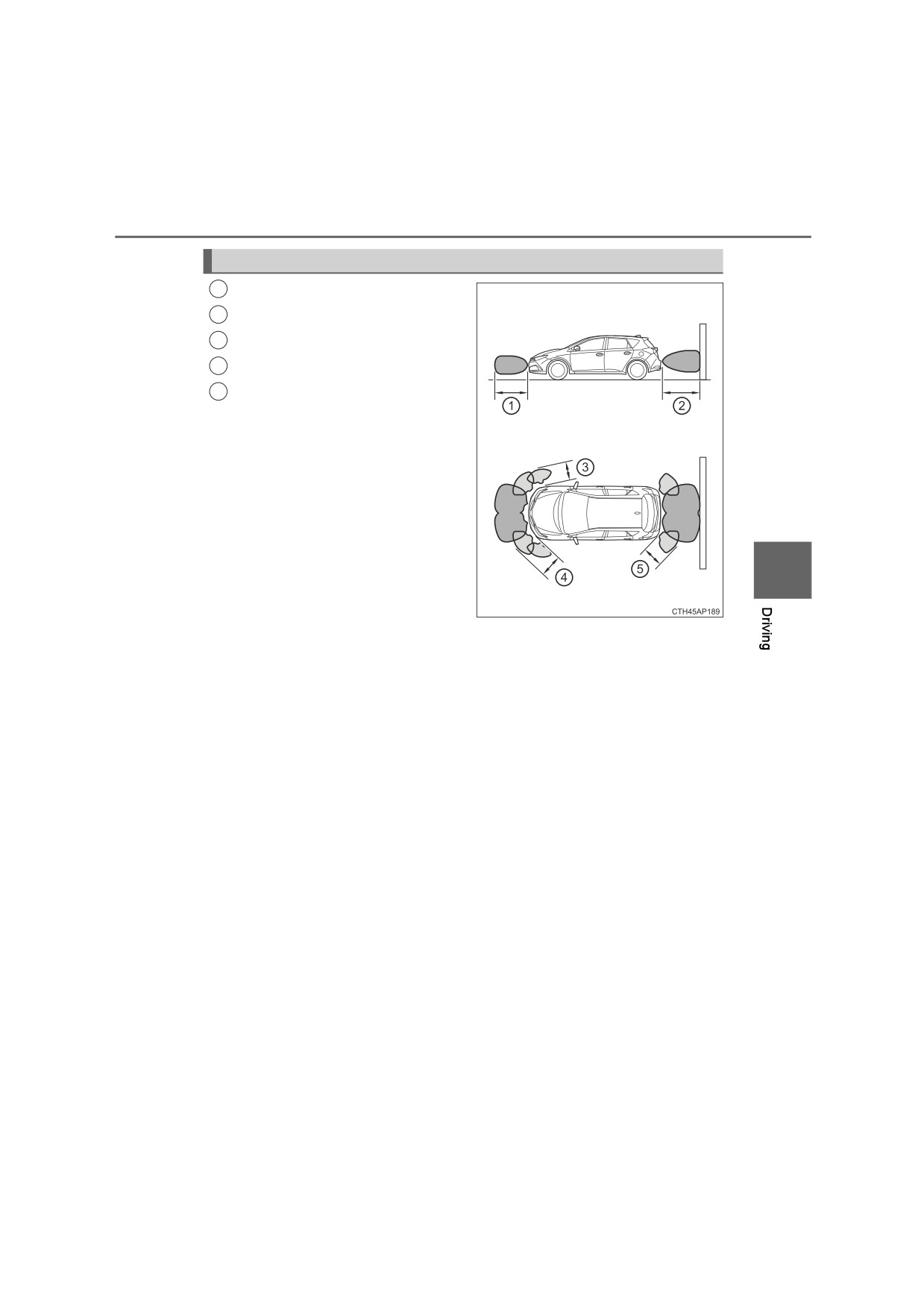

Detection range of the sensors
1
Approximately 100 cm (3.3 ft.)
2
Approximately 150 cm (4.9 ft.)
3
Approximately 25 cm (0.8 ft.)
4
Approximately 50 cm (1.6 ft.)
5
Approximately 50 cm (1.6 ft.)
The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect obstacles
that are extremely close to the
vehicle.
The range of the sensors may
change depending on the shape of
the object etc.
4
338
4-6. Using the driving support systems
The Toyota parking assist-sensor can be operated when
Vehicles without a smart entry & start system:
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system:
The engine switch is in IGNITION ON mode.
Front sensors:
• Vehicles with a Multidrive:
The shift lever is in a position other than P.
• Vehicles with a manual transmission:
The parking brake is not applied.
• The vehicle speed is less than about 10 km/h (6 mph).
(At any speed when the shift lever is in R)
Rear sensors:
The shift lever is in R.
Sensor detection information
Certain vehicle conditions and the surrounding environment may affect the
ability of the sensor to correctly detect obstacles. Particular instances where
this may occur are listed below.
• There is dirt, snow or ice on the sensor.
• A sensor is frozen.
• A sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass.
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle
engines, air brakes of large vehicles, or other loud noises producing ultra-
sonic waves.
• There is another vehicle equipped with parking assist sensors in the
vicinity.
• A sensor is coated with a sheet of spray or heavy rain.
• The vehicle is equipped with a fender pole or wireless antenna.
• Towing eyelet is installed.
• A bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or curved curb.
• In harsh sunlight or intense cold weather.
• A non-genuine Toyota suspension (lowered suspension etc.) is installed.
In addition to the examples above, there are instances in which, because of
their shapes, signs and other objects may be judged by the sensor to be
closer than they are.
4-6. Using the driving support systems
339
The shape of the obstacle may prevent the sensor from detecting it. Pay
particular attention to the following obstacles:
• Wires, fences, ropes, etc.
• Cotton, snow and other materials that absorb sound waves
• Sharply-angled objects
• Low obstacles
• Tall obstacles with upper sections projecting outwards in the direction of
your vehicle
If “Clean sonar.” is displayed on the multi-information display
A sensor may be dirty or covered with snow or ice. In this case, clean the
sensor and the system should return to normal.
If a sensor is frozen due to low temperatures, a warning message may be dis-
played or an obstacle may not be detected. When the sensor thaws out, the
system should return to normal.
If “Check sonar system.” is displayed on the multi-information display
The system may not operate due to the malfunction of a sensor.
Have the vehicle inspected by any authorized Toyota dealer or repairer, or
4
another duly qualified and equipped professional.
WARNING
Caution when using the Toyota parking assist-sensor
Observe the following precautions.
Failing to do so may result in the vehicle being unable to be driven safely
and possibly cause an accident.
Do not use the sensor at speeds in excess of 10 km/h (6 mph).
Do not attach any accessories within the sensor range.
NOTICE
Notes on the Toyota parking assist-sensor
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.
If your vehicle is involved in an accident, it will affect the sensors and may
result in a system failure.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
340
4-6. Using the driving support systems

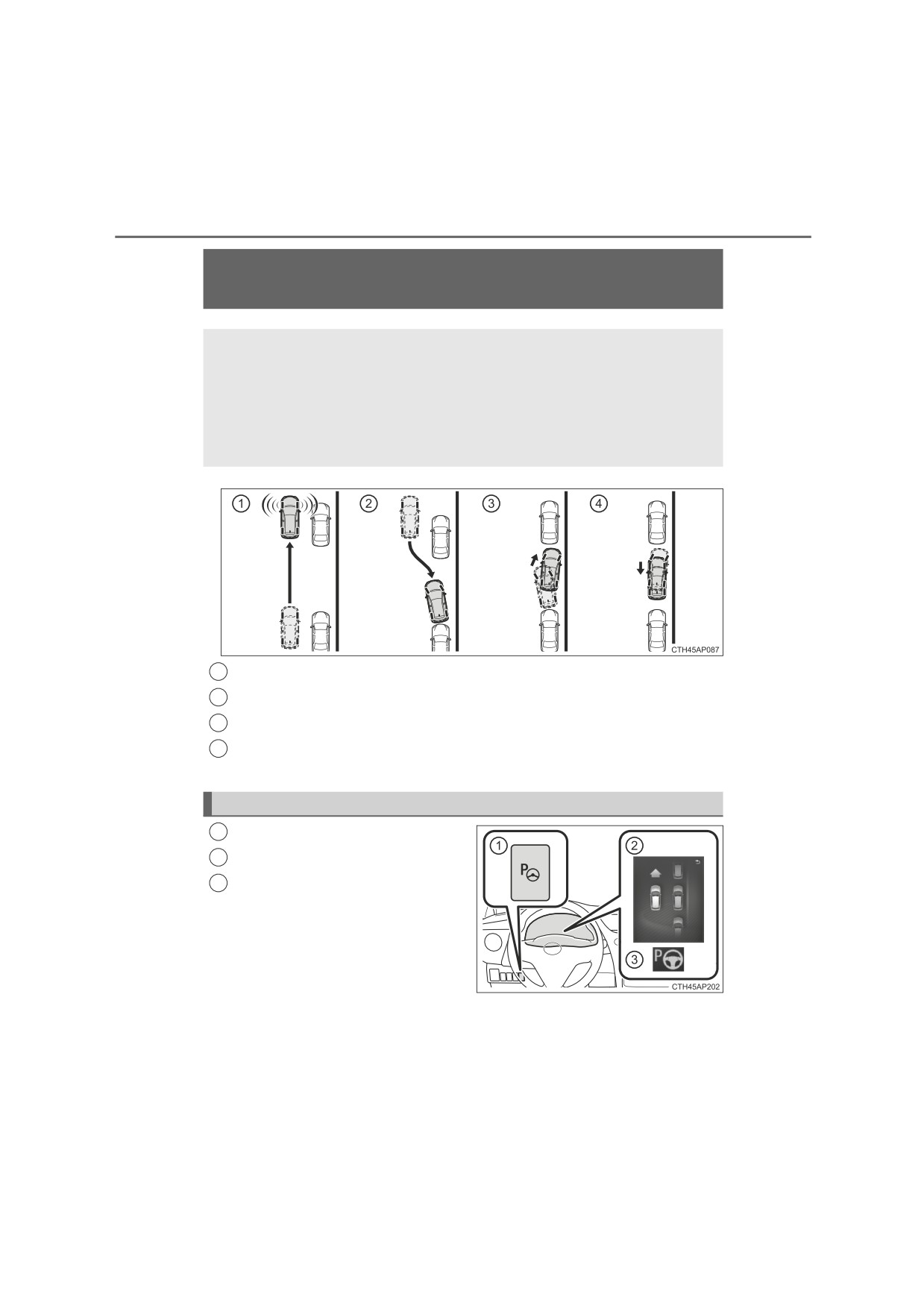

Simple-IPA (Simple-Intelligent Parking
Assist)
Simple-IPA is a system that assists parallel parking operations.
When parking between two parked vehicles or in the space
behind one parked vehicle, the sensors installed on the sides of
the front bumper are utilized and a space which the vehicle can
be parked in is detected. Parking operations are then assisted
by automatic operation of the steering wheel.
1
Detecting allowable parking space
2
Parking the vehicle in a detected parking space*
3
Turning the steering wheel to park in the target parking space*
4
Parking in the target parking space is complete*
*: The steering wheel is operated automatically.
Simple-IPA switch and multi-information display
1
Simple-IPA switch
2
Display
3
Indicator
: If equipped
4-6. Using the driving support systems
341
Operating Simple-IPA
Operate Simple-IPA according to the multi-information display and the
buzzer.
The system detects parking spaces on the front passenger’s side of the
vehicle and assists with parking in a detected space.
When parking in a space on the driver’s side of the vehicle, move the turn
signal lever to indicate turning on the driver’s seat side. Leave the turn sig-
nal lever in that position until automatic steering begins.
1
Turn the Simple-IPA switch on
with the vehicle driving at
30
km/h (18 mph) or less.
The multi-information display
changes to the parking space
detection screen when the system
is operating.
4
2
Drive the vehicle while main-
taining a distance of approxi-
Approx. 1 m (3 ft.)
mately
1 m (3 ft.) from the
parked vehicles.
Drive the vehicle as parallel to the
parked vehicles and curb as possi-
ble.
Lower vehicle speeds allow the
system to assist in parking the
vehicle more parallel to the parked
vehicles and curb, and in a more
proper position between vehicles
at the front and rear of a parking
space.
The required length for a parking
space to be detected is the total
vehicle length plus approximately 1
m (3 ft.).
Maintain a vehicle speed of 30 km/h (18 mph) or less.
342
4-6. Using the driving support systems
3
When the multi-information dis-
play changes, reduce the vehi-
cle speed.
Move the vehicle forward slowly
until the buzzer sounds.
4
Stop the vehicle when the
buzzer sounds.
The multi-information display will
change.
Visually check that the detected
space is safe for parking.
If the vehicle moves 10 m (32 ft.) or
more after the buzzer sounds,
detection of a new parking space
will begin.
4-6. Using the driving support systems
343
5
Shift the shift lever to R.
The multi-information display will
change, Simple-IPA indicator will
come on and automatic steering
will begin. While taking care not to
catch your hands on the steering
wheel and checking the safety of
the surrounding area, reverse the
vehicle slowly by operating the
accelerator and brake pedals.
During automatic steering, main-
tain a vehicle speed of 6 km/h (3
mph) or less.
4
When the multi-information dis-
6
play changes, reduce the vehi-
cle speed.
While checking the safety of the
area behind the vehicle, reverse
the vehicle slowly.
344
4-6. Using the driving support systems

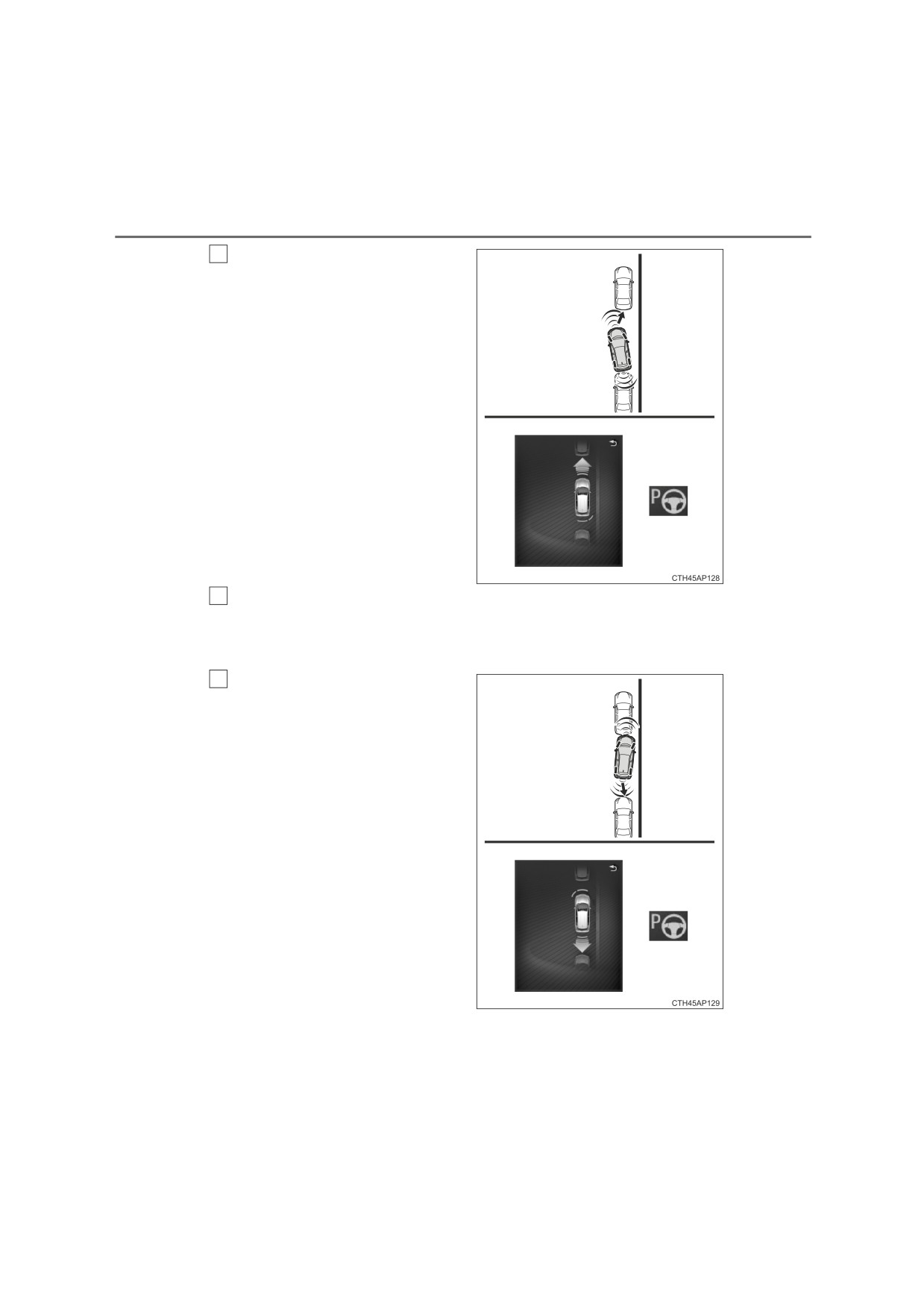

7
When the rear Toyota parking
assist-sensor’s warning buzzer
sounds continuously, com-
pletely stop the vehicle immedi-
ately.
The multi-information display will
change when the warning buzzer
starts sounding continuously.
Shift the shift lever to D (Multidrive) or 1 (manual transmission).
8
While the steering wheel is turning, keep the vehicle at a complete stop.
When the steering wheel stops turning, move the vehicle forward slowly
while checking the safety of the area in front of the vehicle.
When the front Toyota parking
9
assist-sensor’s warning buzzer
sounds continuously, com-
pletely stop the vehicle immedi-
ately.
The multi-information display will
change when the warning buzzer
starts sounding continuously.
4-6. Using the driving support systems
345
10
Shift the shift lever to R.
While the steering wheel is turning, keep the vehicle at a complete stop.
When the steering wheel stops turning, reverse the vehicle slowly while
checking the safety of the area behind the vehicle.
11
Repeat steps
7
through
10
until the parking assist opera-
tion has completed.
When the parking assist operation
has completed, the buzzer sounds,
the Simple-IPA indicator turns off
and the multi-information display
changes.
Adjust the vehicle position and/or
angle as necessary to complete
parking the vehicle.
4
346
4-6. Using the driving support systems
When a message is shown on the multi-information display
Message
Cause
What to do
The vehicle speed
Reduce vehicle speed
“IPA slot not detected,
exceeded 30 km/h (18
to 30 km/h (18 mph) or
speed too high.”
mph).
less.
The Simple-IPA switch
Turn the Simple-IPA
was turned off.
switch on.
The Simple-IPA switch
Park the vehicle manu-
was turned on while
ally or detect another
reversing.
parking space.
The shift lever was
Park the vehicle manu-
shifted to R during
“IPA cancelled, take
ally or detect another
detection of a parking
over.”
parking space.
space.
The shift lever was
shifted to a position
other than R after the
Park the vehicle manu-
automatic
steering
ally or detect another
began and before the
parking space.
vehicle enters a park-
ing space.















Content      ..     3      4      5      6     ..
