5-1. Using the air conditioning system and defogger

367

Seat heaters^/seat ventilators^

The seat heaters warm the seats and the seat ventilators main-

tain good airflow by blowing air through the seats.

WARNING

● Care should be taken to prevent injury if anyone in the following categories

comes in contact with the seats when the heater is on:

• Babies, small children, the elderly, the sick and the physically chal-

lenged

• Persons with sensitive skin

• Persons who are fatigued

• Persons who have taken alcohol or drugs that induce sleep (sleeping

drugs, cold remedies, etc.)

● Observe the following precautions to prevent the minor burns or overheat-

ing

• Do not cover the seat with a blanket or cushion when using the seat

heater.

5

• Do not use seat heater more than necessary.

NOTICE

● Do not put heavy objects that have an uneven surface on the seat and do

not stick sharp objects (needles, nails, etc.) into the seat.

● To prevent battery discharge, do not use the functions when the engine is

off.

: If equipped

368

5-1. Using the air conditioning system and defogger

Seat heaters/ventilators

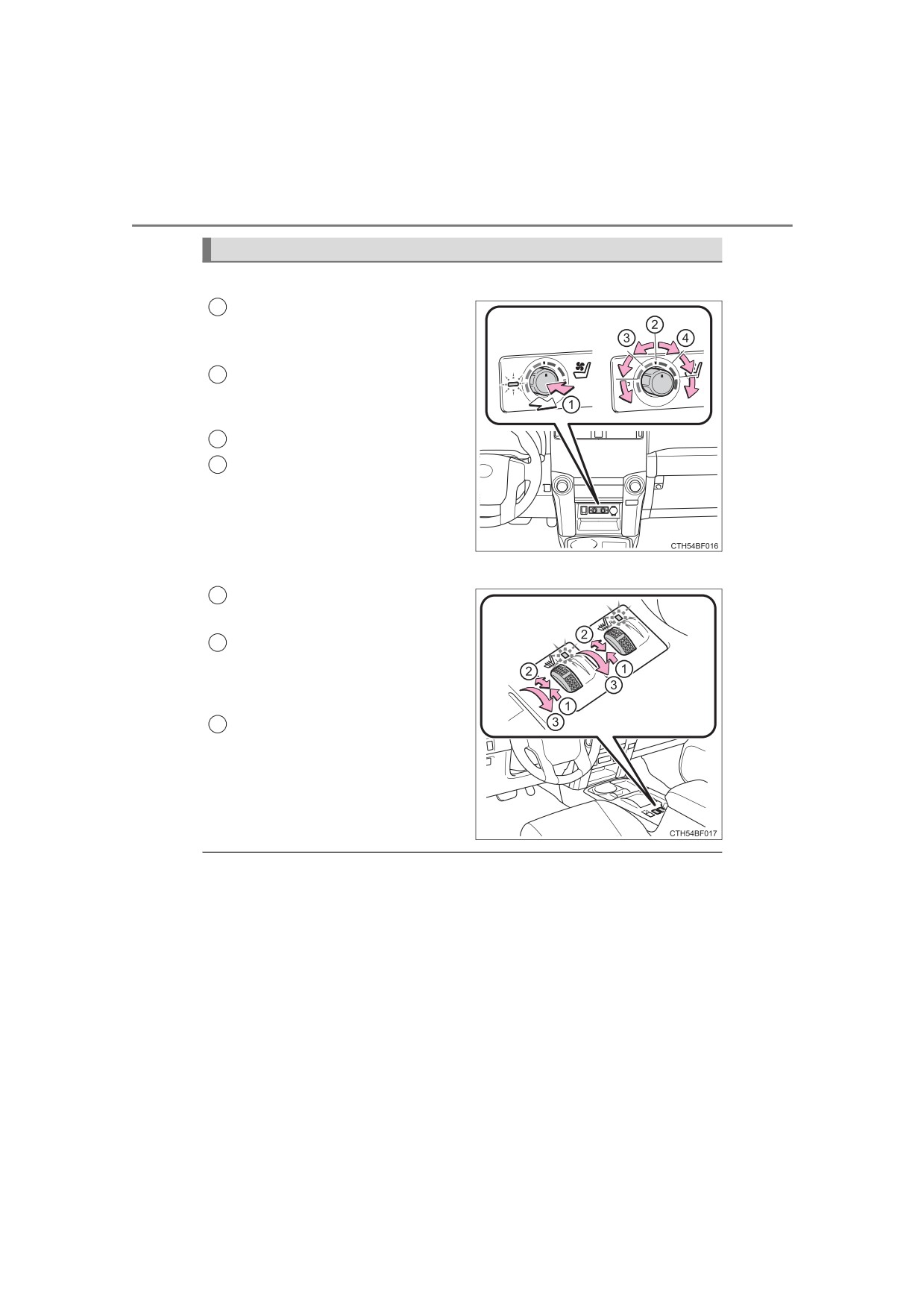

 Vehicles with ventilator

Press the knob to release it,

1

and turn the knob to the desired

temperature setting.

2

OFF

Press the knob to lock it when not

in use.

3

Ventilation

4

Heat

 Vehicles without ventilator

1

On

The indicator light comes on.

Adjusts the seat temperature

2

The further you move the dial for-

ward, the warmer the seat

becomes.

3

Off

Move the dial fully backward. The

indicator light turns off.

■ The seat heaters/seat ventilators can be used when

 Vehicles without a smart key system

The engine switch is in the “ON” position.

 Vehicles with a smart key system

The engine switch is in IGNITION ON mode.

5-2. Using the interior lights

369

Interior lights list

5

1

Rear interior light (P. 370)

2

Front interior light/front personal lights (P. 370)

3

Shift lever light (when the engine switch is in the “ACC” or “ON”

position [without a smart key system] or the engine switch is in

ACCESSORY or IGNITION ON mode [with a smart key system])

4

Inside door handle lights (if equipped)

5

Outer foot lights (if equipped)

6

Engine switch light (vehicles without a smart key system)

7

Footwell lights (if equipped)

8

Door courtesy lights

Turning the instrument panel light control dial fully downward disables

the inside door handle lights, footwell lights and shift lever light.

(P. 91)

370

5-2. Using the interior lights

Interior lights

■ Front

1

Turns the lights off

2

Turns the door position on

■ Rear

1

Turns the door position on

2

Turns the light off

3

Turns the light on

Personal lights

Turns the lights on/off

5-2. Using the interior lights

371

■ Illuminated entry system

 Vehicles without a smart key system

The lights automatically turn on/off according to the engine switch position,

whether the doors are locked/unlocked, and whether the doors are open/

closed.

 Vehicles with a smart key system

The lights automatically turn on/off according to engine switch mode, the

presence of the electronic key, whether the doors are locked/unlocked, and

whether the doors are opened/closed.

■ To prevent battery discharge

If the following lights remain on, the lights will go off automatically after 20

minutes:

● Engine switch light

● Front interior light

● Rear interior light

● Personal lights

● Footwell lights

● Inside door handle lights

5

● Door courtesy lights

■ Customization

Setting (e.g. the time elapsed before lights turn off) can be changed.

(Customizable features: P. 557)

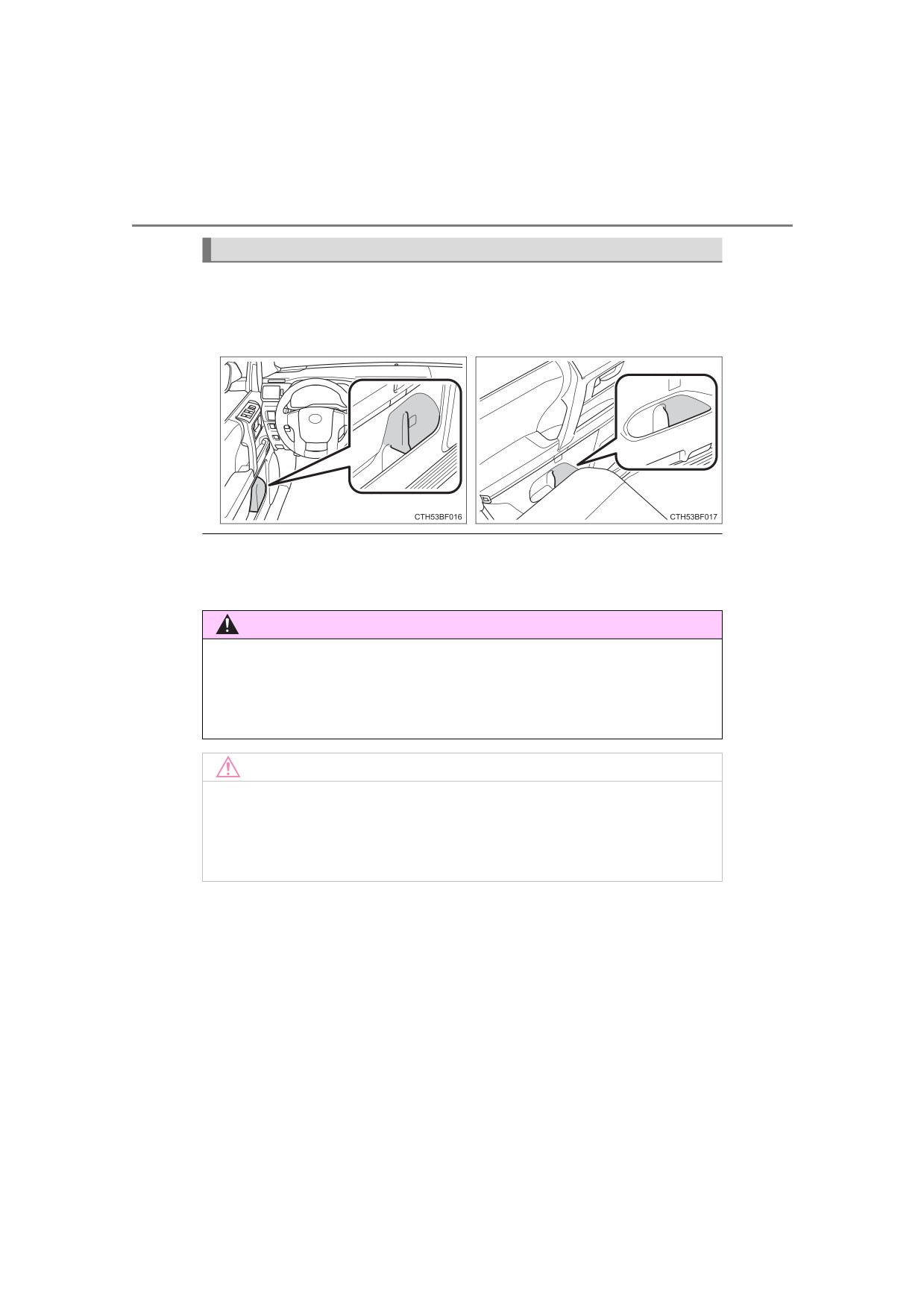

NOTICE

■ To prevent battery discharge

Do not leave the lights on longer than necessary when the engine is not

running.

372

5-3. Using the storage features

List of storage features

1

Auxiliary box (P. 376)

5

Cup holders (P. 374)

2

Glove box (P. 373)

6

Pen holder (P. 377)

3

Bottle holders (P. 378)

7

Console box (P. 373)

4

Tissue pocket (P. 377)

8

Coin holder (P. 377)

WARNING

● Do not leave glasses, lighters or spray cans in the storage spaces, as this

may cause the following when cabin temperature becomes high:

• Glasses may be deformed by heat or cracked if they come into contact

with other stored items.

• Lighters or spray cans may explode. If they come into contact with other

stored items, the lighter may catch fire or the spray can may release

gas, causing a fire hazard.

● When driving or when the storage compartments are not in use, keep the

lids closed. In the event of sudden braking or sudden swerving, an acci-

dent may occur due to an occupant being struck by an open lid or the

items stored inside.

5-3. Using the storage features

373

Glove box

The glove box can be opened by pressing the lock release button and

can be locked and unlocked by using the master key (vehicles without

a smart key system) or the mechanical key (vehicles with a smart key

system).

1

Open

2

Unlock

3

Lock

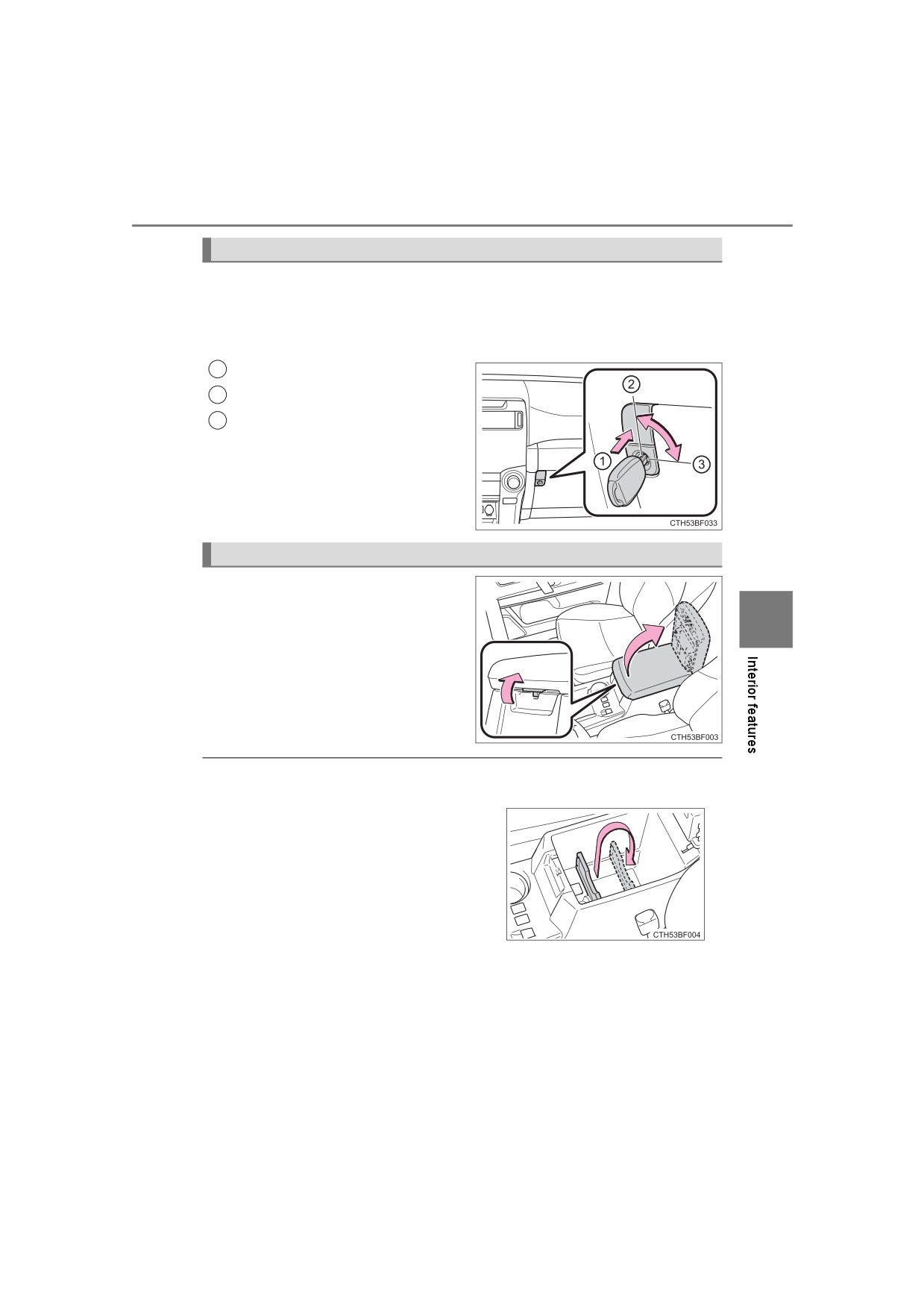

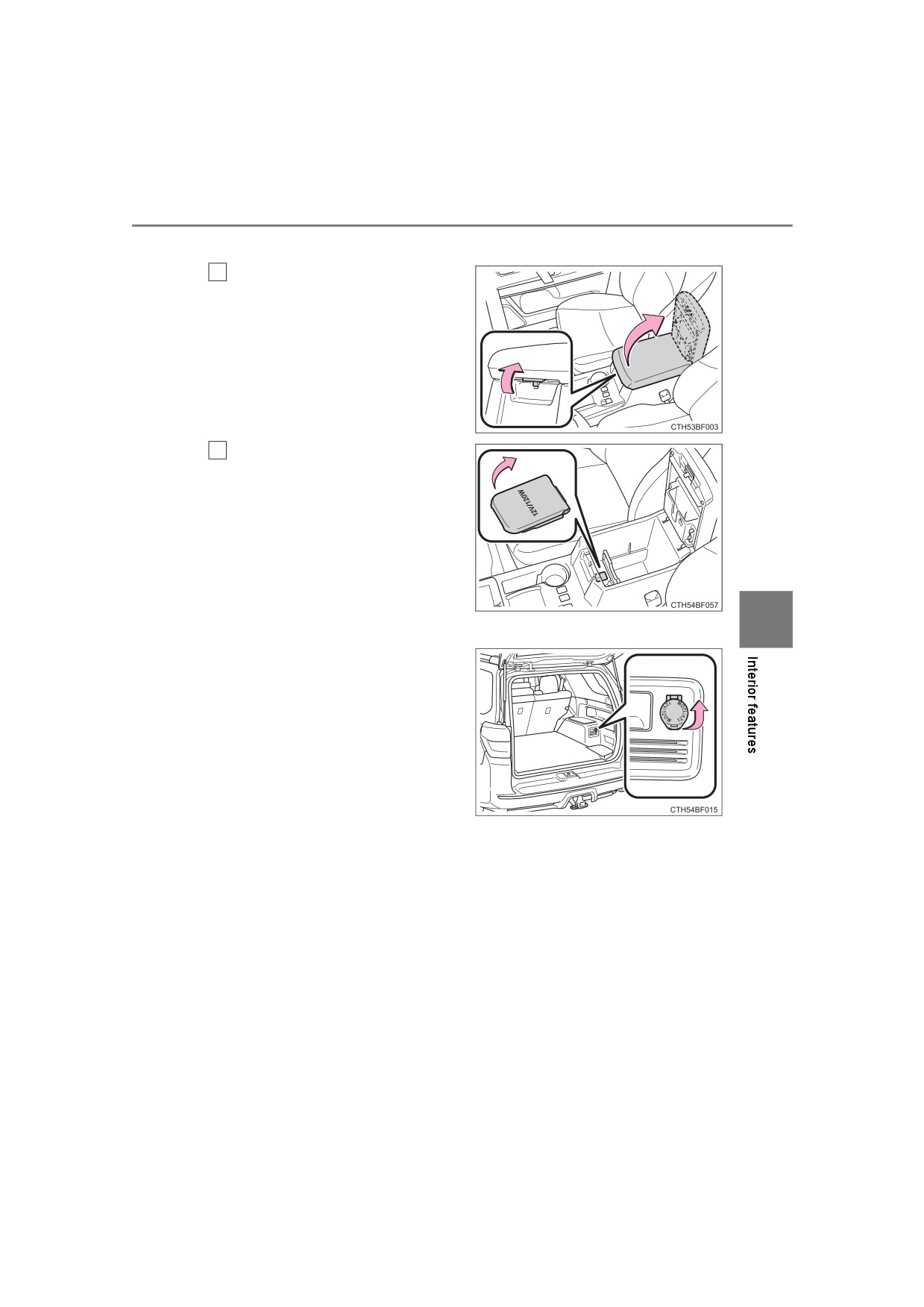

Console box

Lift the lid while pulling up

the

knob to release the lock.

5

■The separator can be used in either of the

positions shown in the illus-

tration

Change the separator position.

374

5-3. Using the storage features

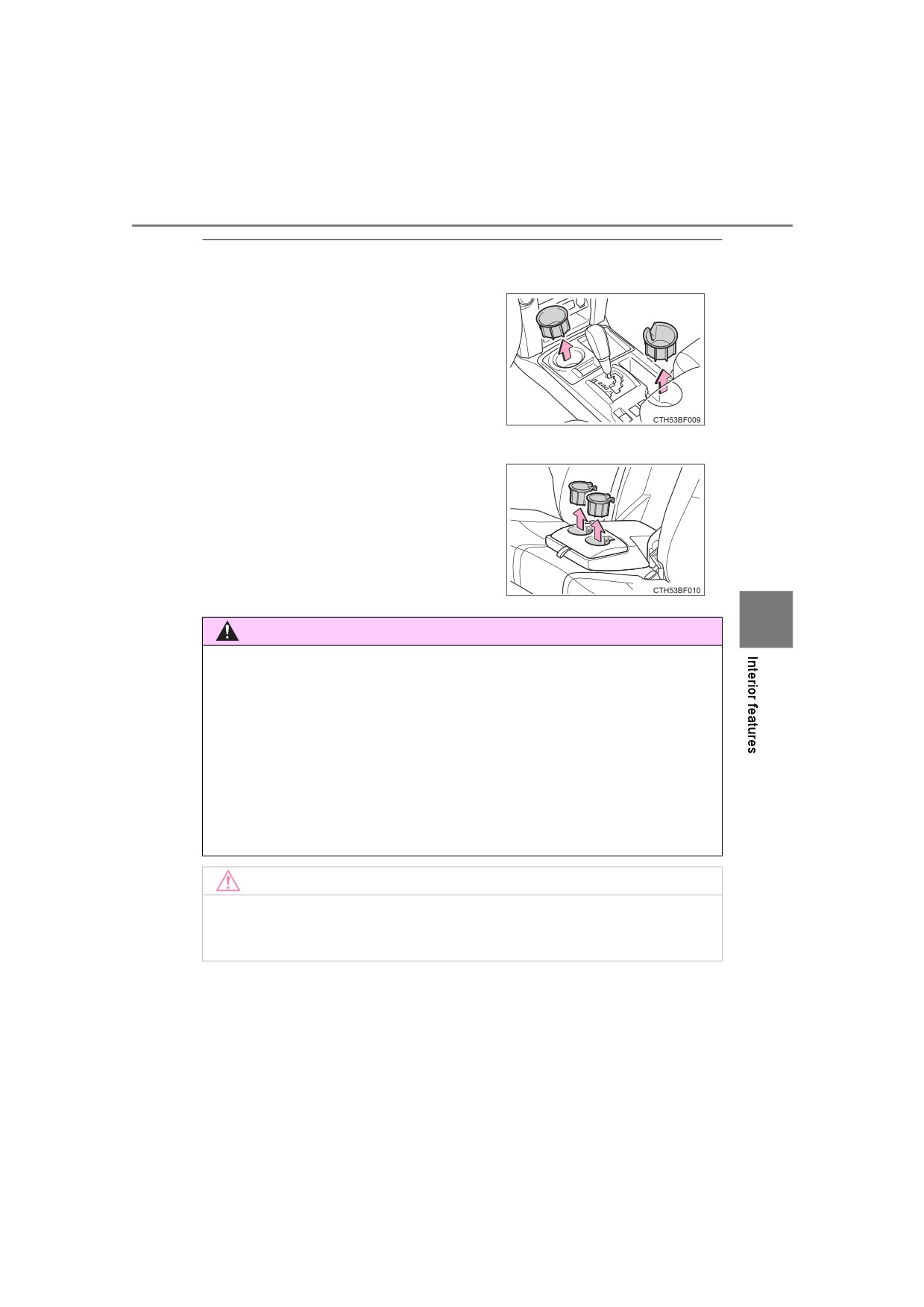

Cup holders

 Front seats

 Rear seats (without third row

seats)

Pull down the rear seat center

armrest.

 Second row seats (with third

 Third row seats (if equipped)

row seats)

Pull down the second row seat

center armrest and press down

the button on the armrest.

5-3. Using the storage features

375

■ Adjusting the size of the cup holders

 Front seats

Remove the adapter.

 Rear seats (without third row seats)

Remove the adapter.

5

WARNING

■ Items unsuitable for the cup holders

Do not place anything other than cups or aluminum cans in the cup holders.

Even with the lid is closed, items must not be stored in the cup holders.

Other items may be thrown out of the holders in the event of an accident or

sudden braking, causing injury. If possible, cover hot drinks to prevent

burns.

■ When not in use (second row seat cup holders only)

Keep the cup holders closed. In the event of sudden braking, an accident

may occur due to an occupant being struck by the open cup holders or the

items stored inside.

NOTICE

■ To prevent damage to the rear cup holders (second row seats only)

Stow the cup holders before stowing the armrest.

376

5-3. Using the storage features

Auxiliary box (if equipped)

Push the lid.

WARNING

■ Items unsuitable for storing

Do not store items heavier than 0.4 lb. (0.2 kg).

Doing so may cause the auxiliary box to open and the items inside may fall

out, resulting in an accident.

5-3. Using the storage features

377

Coin holder/tissue pocket/pen holder

5

Lift the lid while pulling up the knob to release the lock.

1

Coin holder

2

Tissue pocket

3

Pen holder

378

5-3. Using the storage features

Bottle holders

 Front seats

 Rear seats (without third row

seats)/second row seats (with

third row seats)

■When using the bottle holder

● When storing a bottle, close the cap.

● The bottle may not be stored depending on its size or shape.

WARNING

■ Items unsuitable for the bottle holder

Do not place anything other than a bottle in the bottle holders.

Other items may be thrown out of the holders in the event of an accident or

sudden braking and cause injury.

NOTICE

■ Items that should not be stowed in the bottle holders

Put the cap on before stowing a bottle. Do not place open bottles in the bot-

tle holders, or glasses and paper cups containing liquid. The contents may

spill and glasses may break.

5-3. Using the storage features

379

Luggage compartment features

■ Cargo hooks

 Vehicles with third seats

1

Fold down the third seats. (P. 144)

2

Raise the hook to use.

The cargo hooks are provided

for securing loose items.

 Vehicles without third seats

Raise the hook to use.

The cargo hooks are provided

5

for securing loose items.

380

5-3. Using the storage features

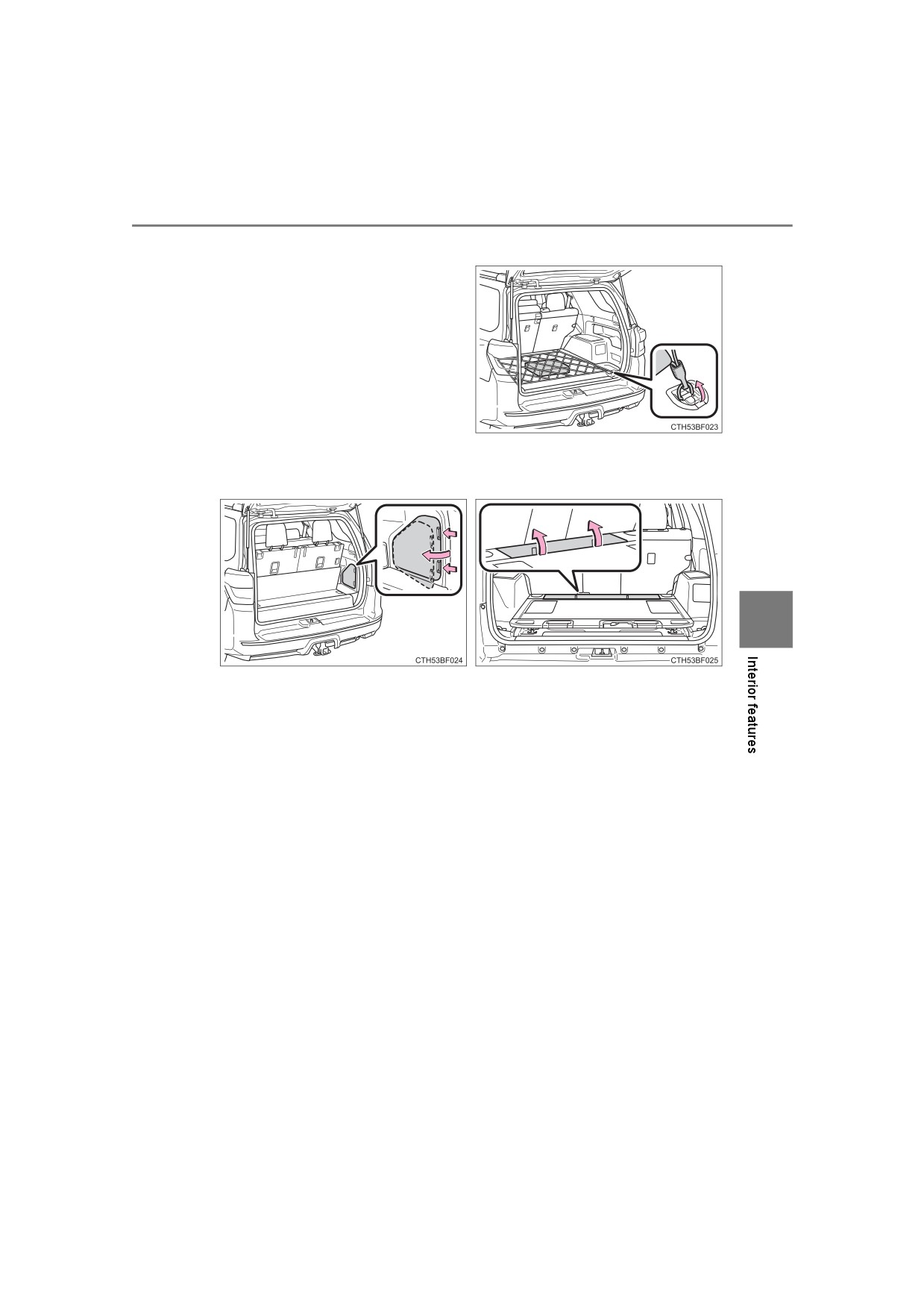

■ Cargo net hooks

The cargo net itself is not included as original equipment.

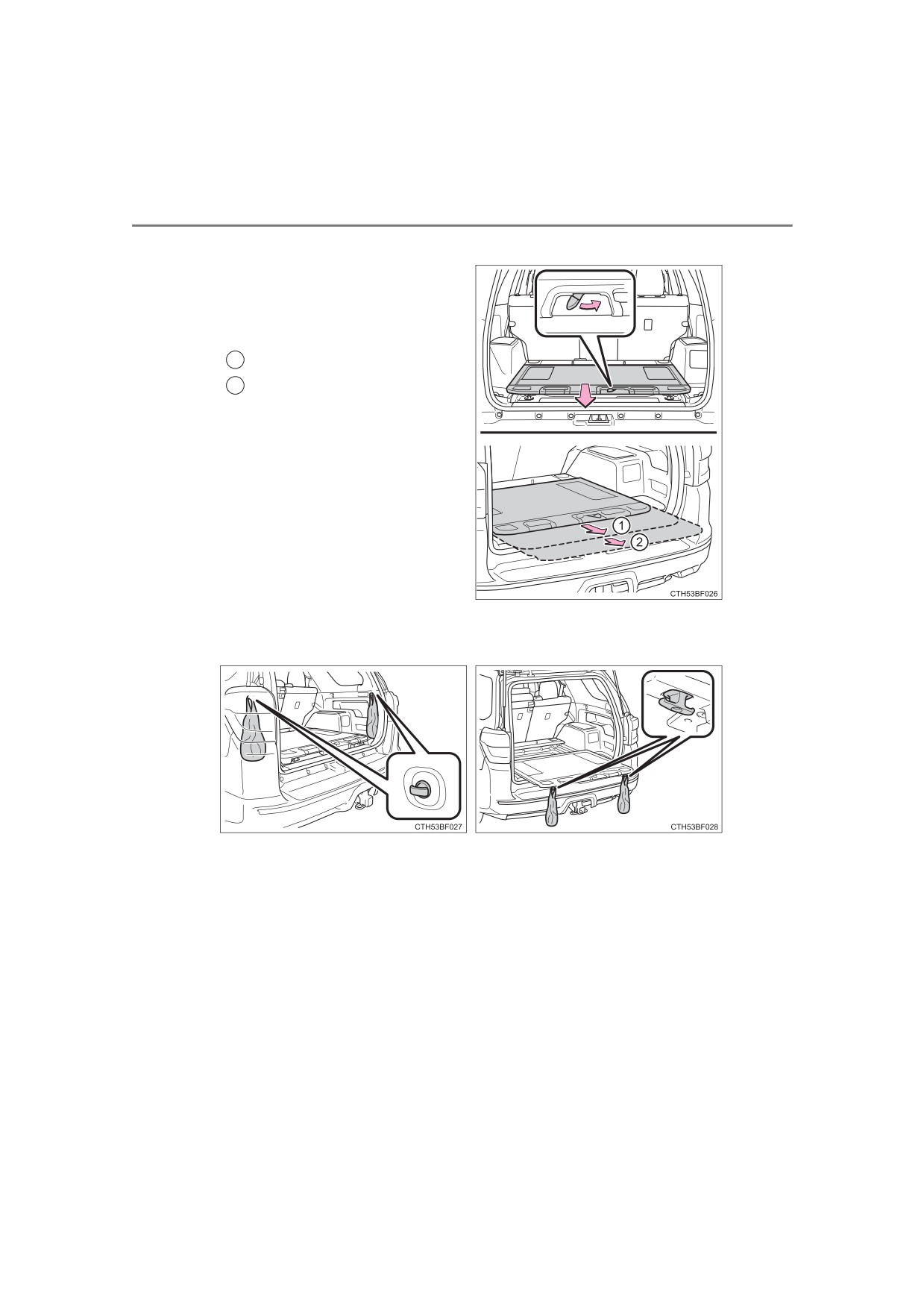

 Vehicles with third seats (pattern 1)

Raise the rear cargo hook to

use.

 Vehicles with third seats (pattern 2)

1

Fold down the third seats. (P. 144)

2

Raise the cargo hook to use.

 Vehicles without third seats (pattern 1)

Raise the rear cargo hook to

use.

5-3. Using the storage features

381

 Vehicles without third seats (pattern 2)

Raise the cargo hook to use.

■ Storage compartment

 Type A (if equipped)

 Type B (if equipped)

5

Open the storage compartment as shown.

382

5-3. Using the storage features

■ Slide deck (if equipped)

Slide the deck while turning the

lock release lever, and then

release the lever after sliding

the deck to the lock position.

1

Half-slide locked position

2

Full-slide locked position

■ Grocery bag hooks

 Type A

 Type B (if equipped)

Type B only: To use the grocery bag hooks, slide the slide deck to

the full-slide locked position.

5-3. Using the storage features

383

WARNING

■ When the cargo hooks are not in use

To avoid injury, always return the cargo hooks to their stowed positions.

■ Slide deck operating precaution (if equipped)

● Be careful not to get hands or feet pinched by the slide deck.

● Be careful not to allow the slide deck to hit any persons or luggage while

sliding the deck.

● Do not operate the slide deck while someone is on it.

Doing so may cause an accident.

● If operating the slide deck when the vehicle is stopped on an incline, the

slide deck may move faster. Be careful not to allow the slide deck to hit

you or pinch your fingers etc.

● After sliding the deck, make sure it is securely locked in position.

● Do not close the back door while any person is sitting on the slide deck or

any person is between the slide deck and back door.

● Do not stow any objects into the space between the slide deck rails.

5

NOTICE

■ To prevent damage to the cargo net hooks

Avoid hanging things other than a cargo net on them.

■ Slide deck weight capacity (if equipped)

Do not load anything heavier than 440 lb. (200 kg) on the sliding deck.

■Grocery bag hook weight capacity

Do not hang any object heavier than 8.8 lb. (4 kg) on the grocery bag hooks.

■ When using the slide deck (if equipped)

● Do not close the back door while the slide deck is sliding out. Doing so

may cause the back door or slide deck to break.

● If operating the slide deck when the vehicle is stopped on an incline, the

slide deck may move faster. Be careful as luggage may become damaged

or fly out and damage the cabin.

384

5-4. Other interior features

Other interior features

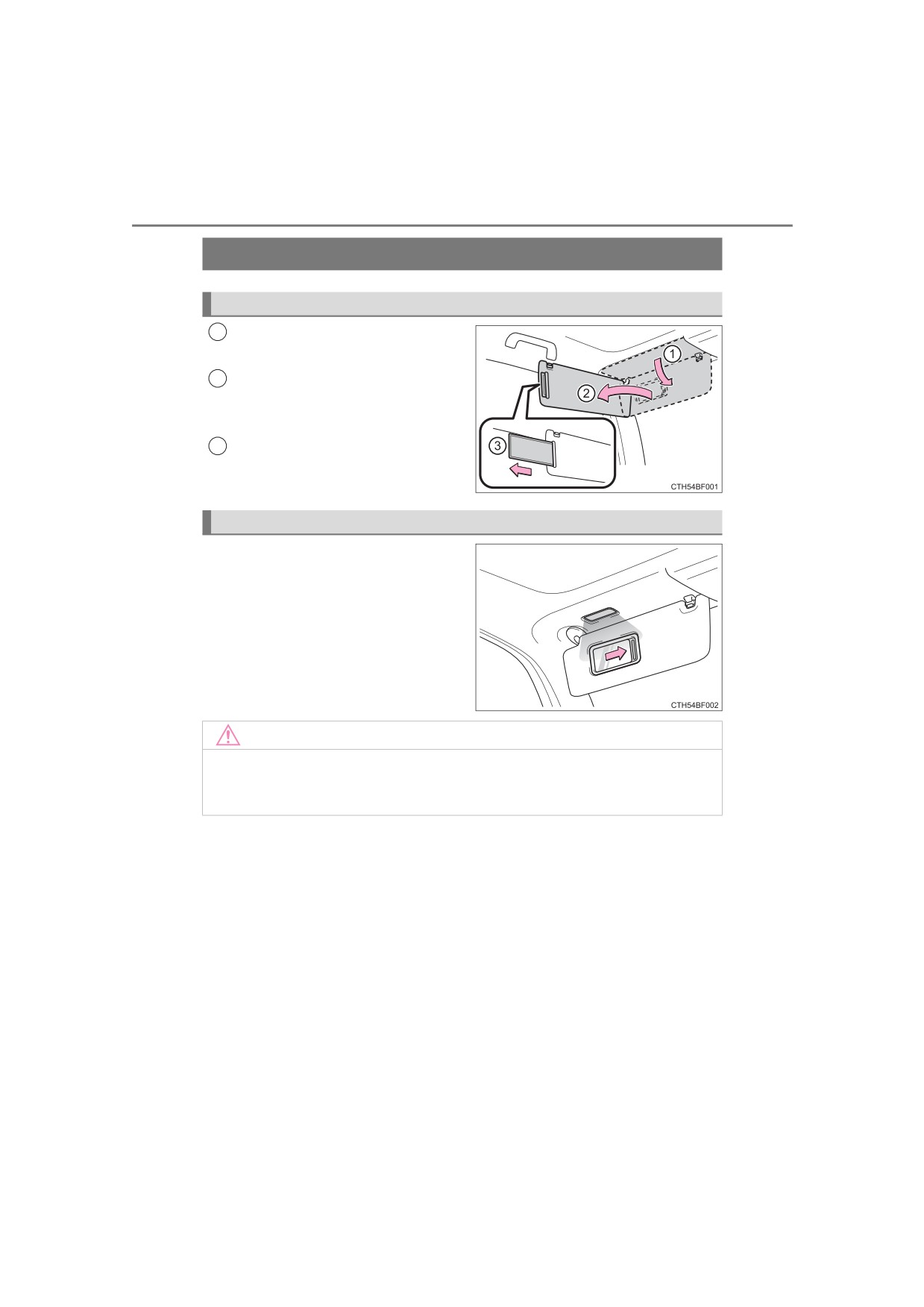

Sun visors

To set the visor in the forward

1

position, flip it down.

To set the visor in the side posi-

2

tion, flip down, unhook, and

swing it to the side.

To use the side extender, place

3

the visor in the side position,

then slide it backward.

Vanity mirrors

Slide the cover to open.

The light turns on when the cover

is opened.

NOTICE

■ To prevent battery discharge

Do not leave the vanity lights on for extended periods while the engine is off.

5-4. Other interior features

385

Clock

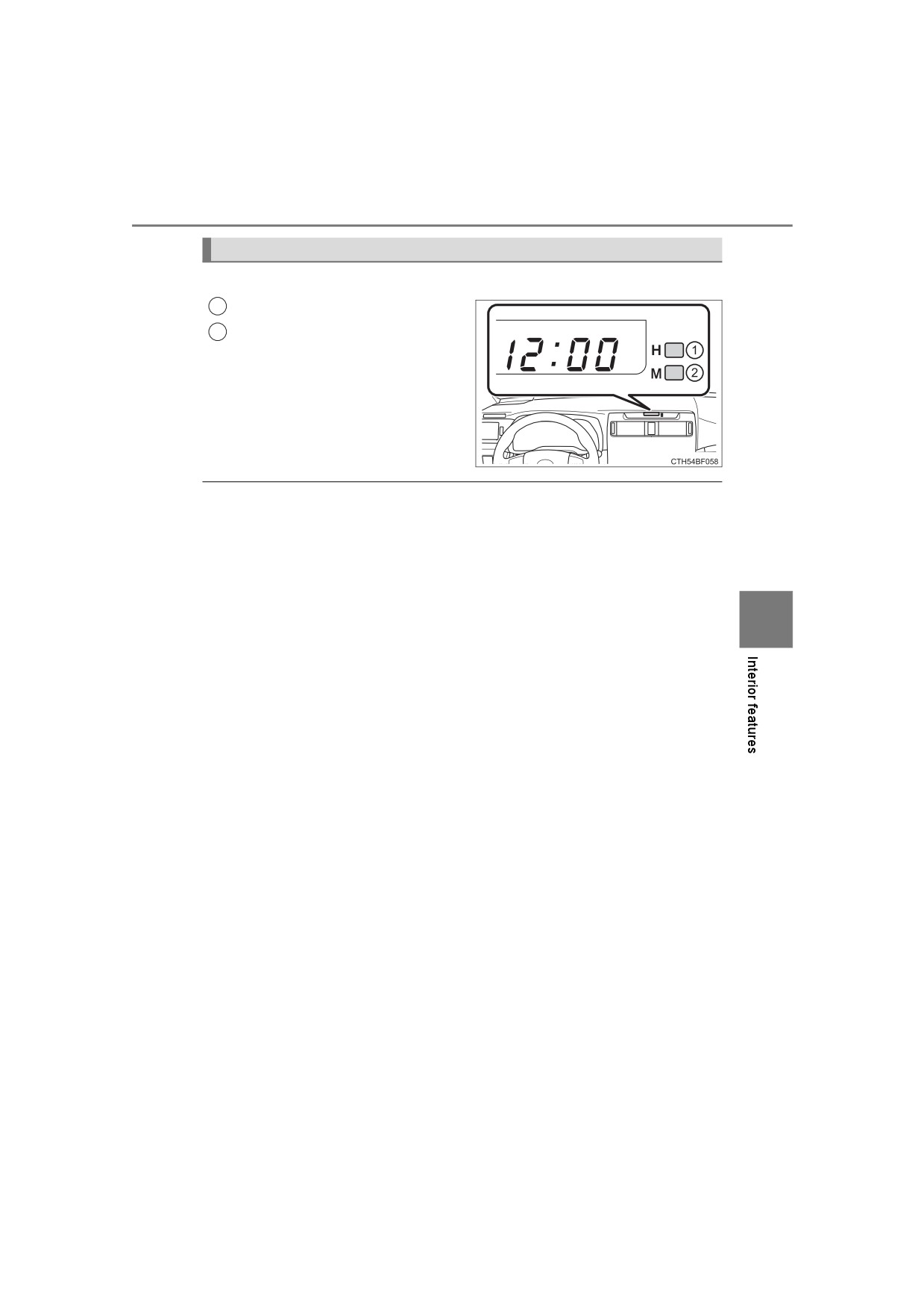

The clock can be adjusted by pressing the buttons.

1

Adjusts the hours

2

Adjusts the minutes

■ The clock is displayed when

 Vehicles without a smart key system

The engine switch is in the “ACC” or “ON” position.

 Vehicles with a smart key system

The engine switch is in ACCESSORY or IGNITION ON mode.

■ When disconnecting and reconnecting battery terminals

5

The clock data will be reset.

386

5-4. Other interior features

Power outlets (120 V AC)

The power outlet can be used for electrical appliances.

 Main switch

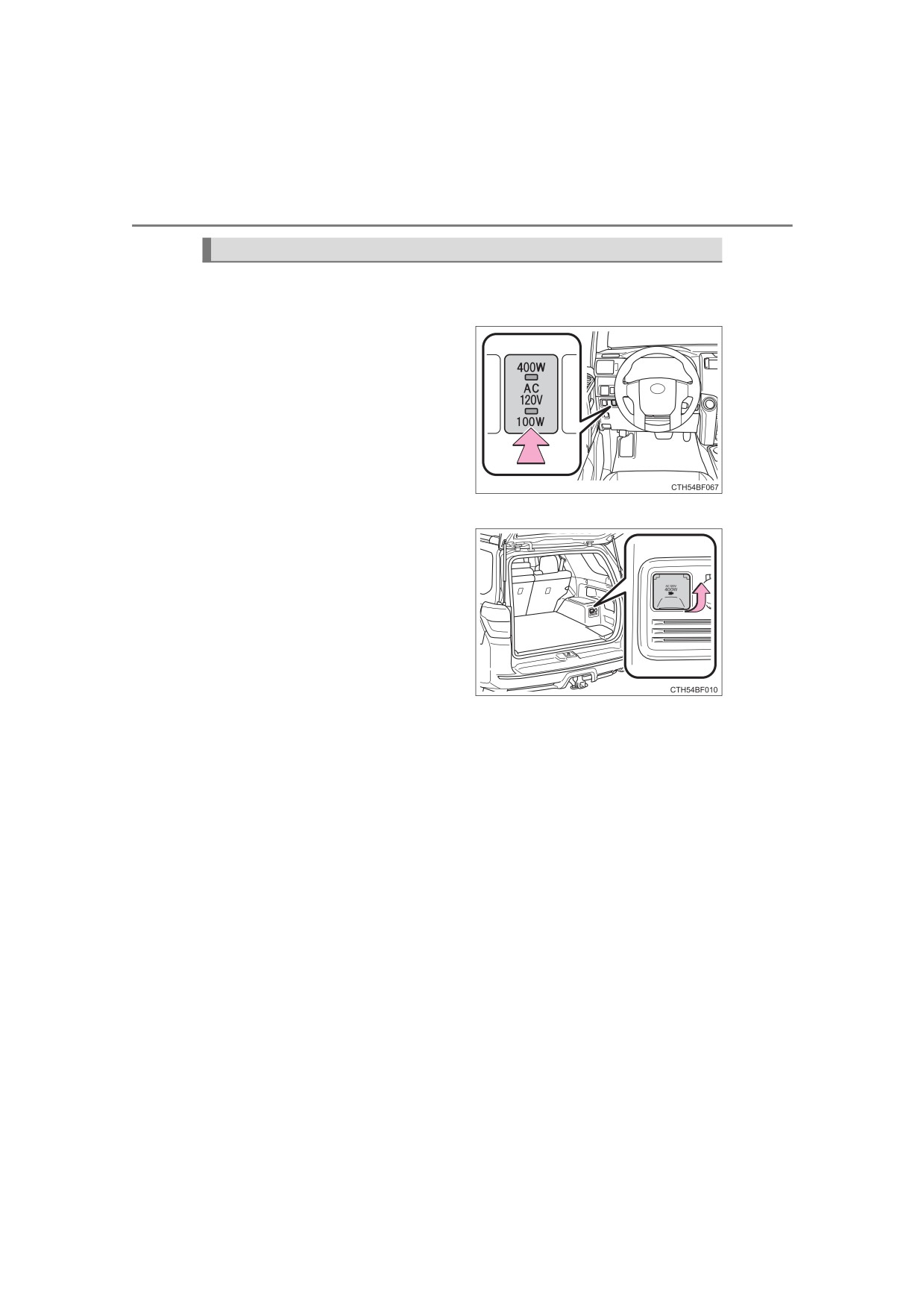

To use the power outlet, turn on

the main switch.

The power supply starts a few sec-

onds after the main switch is

pressed.

 Power outlet socket (luggage compartment)

Open the lid.

■ Maximum available capacity of the power outlet

● While the vehicle is being driven

The maximum capacity of the power outlet is always 120 V AC/

100 W.

● When the vehicle is stationary

The maximum capacity of the power outlet varies depending on

the position of the shift lever.

• The maximum capacity is 120 V AC/100 W when the shift

lever is in any position other than P or N.

• The maximum capacity is 120 V AC/400 W when the shift

lever is in P or N.

The maximum capacity of 400 W can only be restored by turning the

power outlet main switch off and then on again with the shift lever in

P or N.

5-4. Other interior features

387

■ The power outlet can be used when

The engine is running.

■The indicator light changes according to the maximum available capac-

ity as follows:

1

120 V AC/400 W

2

120 V AC/100 W

■ When the power outlet is in operation

The sound of the cooling fan may be heard from the right side of the luggage

compartment. This is normal and does not indicate a malfunction.

■ If the engine is started with the power outlet main switch on

The maximum capacity of the power supply may decrease to below the stan-

dard, or may be cut off completely, even when the vehicle is stationary.

■The protection circuit may be activated to cut the power supply if any of

5

the following conditions apply:

● The engine is started with the power outlet main switch on.

● Use of electrical appliances exceeding the maximum capacity is attempted.

A sound may be heard when the protection circuit is activated. This is nor-

mal and does not indicate a malfunction.

● Electrical appliances, which consume power exceeding 100 W, have been

used continuously for a long time period.

● The total power usage by all electrical features (headlights, air conditioning,

etc.) has exceeded the total vehicle maximum for an extended period of

time.

■ If the protection circuit is activated and the power supply is cut, conduct

the following procedure:

1

Park the vehicle in a safe place, and then securely apply the parking brake.

2

Check and ensure that the shift lever is in P or N.

Make sure that the power consumption of the electric appliance is within

3

the maximum capacity of the power outlet and the appliance is not broken.

Press the power outlet main switch again.

4

When the cabin temperature is high, open the windows to cool the tempera-

ture down. Once it reaches the normal temperature, turn the power outlet

main switch on again.

If the power supply does not resume even after the above procedure has

been performed, have the vehicle inspected by your Toyota dealer.

5-4. Other interior features

389

NOTICE

■ To avoid damaging the power outlet and the plug

● Close the power outlet lid when not in use.

● Do not allow foreign objects or liquids to enter the power outlet, as this

may cause a short circuit.

● Do not use plug adaptors to connect too many plugs to the power outlet.

● After removing a plug, gently close the power outlet lid.

■ To prevent the fuse from being blown

Do not use a 120 V AC appliance that requires more than the maximum

capacity of the power outlet. If a 120 V AC appliance that consumes more

than the maximum capacity is used, the protection circuit will cut the power

supply.

■ Appliances that may not operate properly (120 V AC)

The following 120 V AC appliances may not operate even if their power con-

sumption is under maximum capacity.

● Appliances with high initial peak wattage

● Measuring devices that process precise data.

● Other appliances that require an extremely stable power supply

5

■ To prevent battery discharge

Turn off all the vehicle's electronic equipment and accessories, such as the

headlights and air conditioning, when electrical appliances that consume in

excess of 100 W are used continuously for long periods of time.

■ To prevent any damage caused by heat

● Do not use any electrical appliances that give off intense heat, such as

toasters, in any locations including the internal or external trim, seats and

deck.

● Do not use any electrical appliances that are easily affected by vibration or

heat inside the vehicle. Vibration while driving, or the heat of the sun while

parking, may result in damage to those electrical appliances.

390

5-4. Other interior features

NOTICE

■ If any electrical appliances are to be used while driving

Securely fasten both the appliances and their cables to prevent them from

falling or getting caught in any of the power train components.

■ If the power outlet is loose when an electrical appliance plug is con-

nected

Replace the outlet. Contact your Toyota dealer for any necessary replace-

ments.

■ If the power outlet gets dirty

Turn the main switch off and use a soft, clean cloth to wipe it gently. Do not

use any cleansing materials, such as organic solvents, wax, or compound

cleaners, as these may damage the power outlet or cause it to malfunction.

Power outlets

Please use as a power supply for electronic goods that use less than

12 VDC / 10 A (power consumption of 120 W).

When using electronic goods, make sure that the power consumption

of all the connected power outlets is less than 120 W.

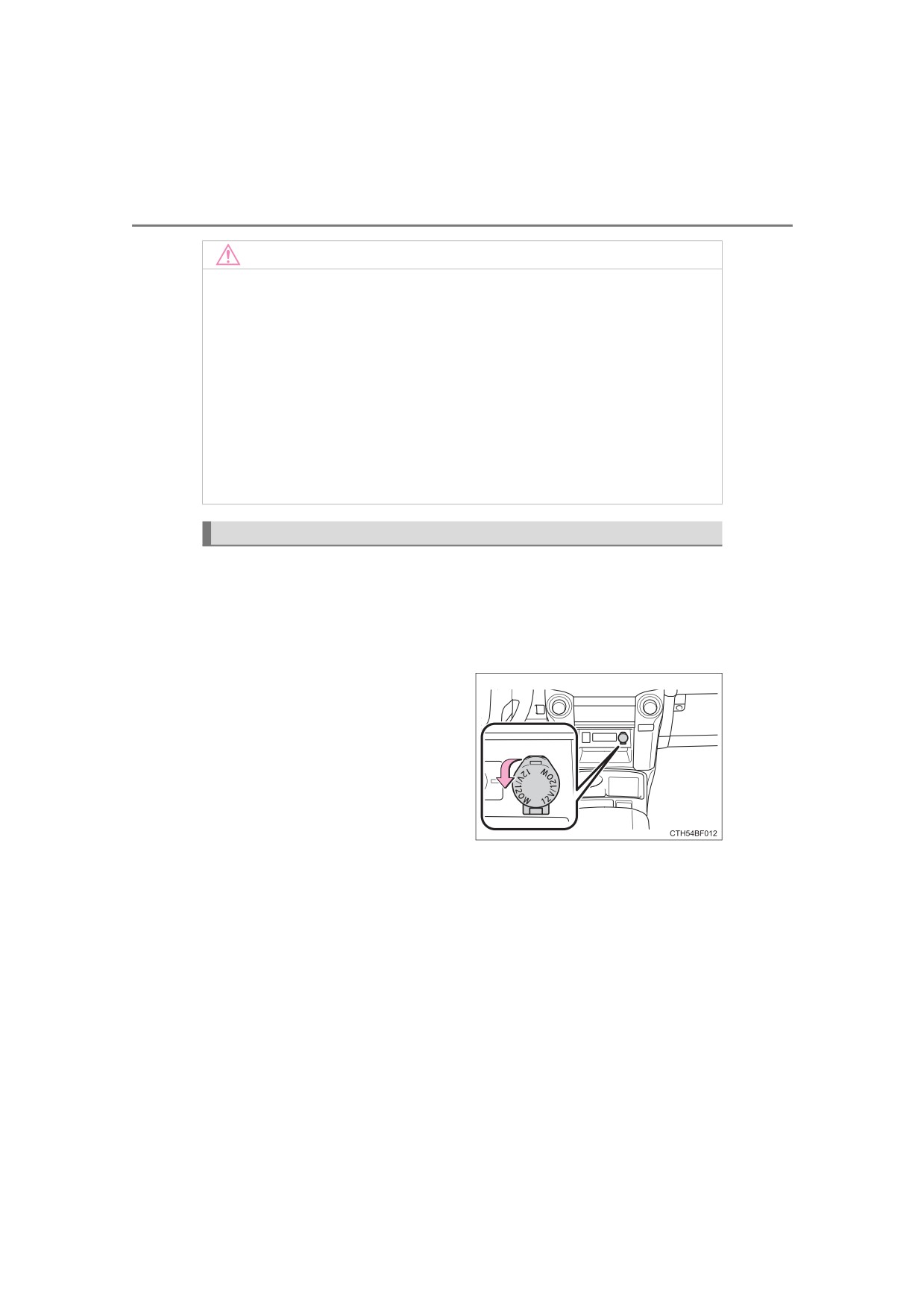

 Center panel

Open the lid.

5-4. Other interior features

391

 Console box (inside)

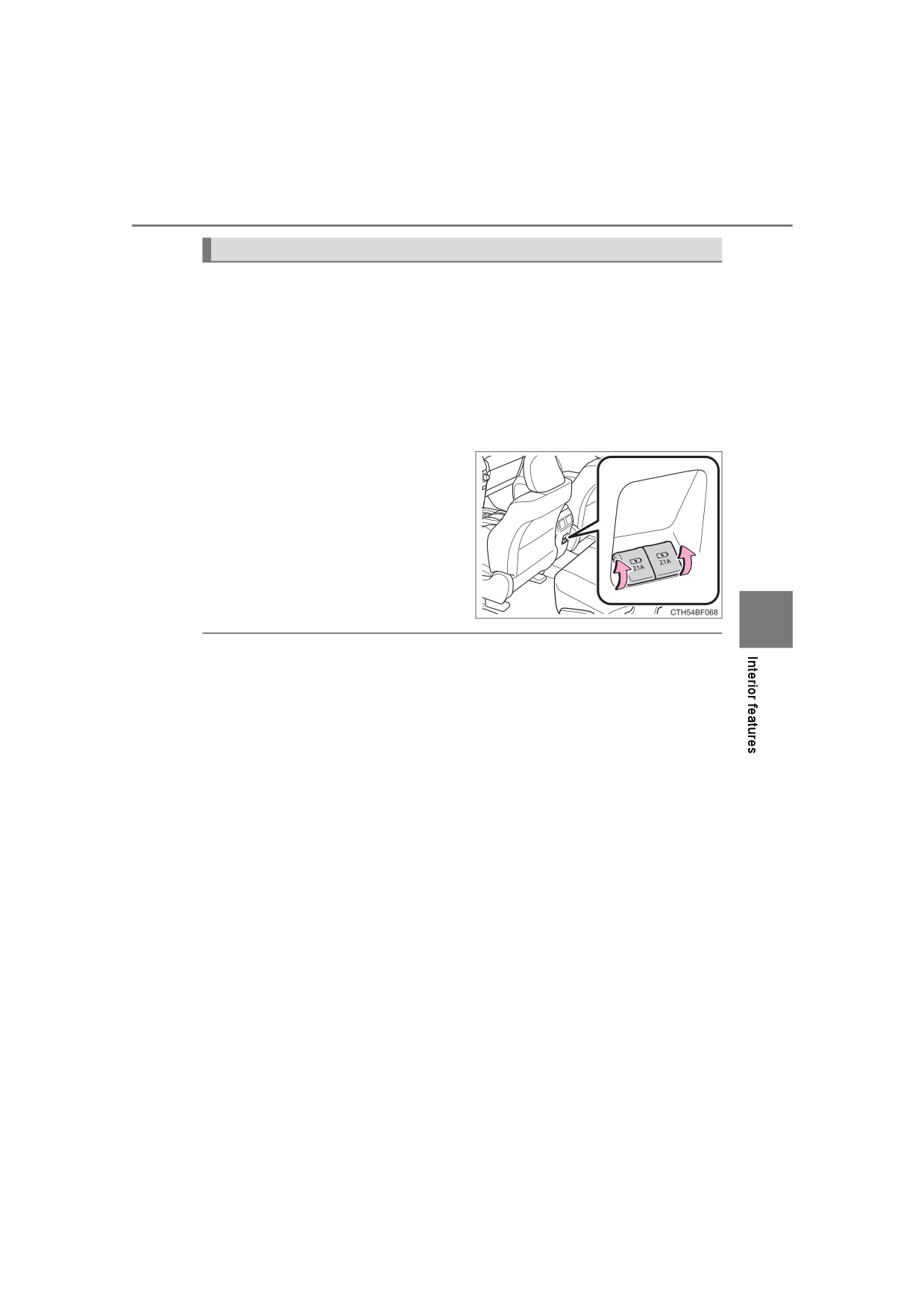

Lift the lid while pulling up the

1

knob to release the lock.

2

Open the lid.

5

 Luggage compartment

Open the lid.

392

5-4. Other interior features

■The power outlets can be used when

 Vehicles without a smart key system

The engine switch is in the “ACC” or “ON” position.

 Vehicles with a smart key system

The engine switch is in ACCESSORY or IGNITION ON mode.

■When turning the engine switch off

Disconnect electrical devices with charging functions, such as mobile battery

packs.

If such devices are left connected, the engine switch may not be turned off

normally.

NOTICE

■ To avoid damaging the power outlets

Close the power outlet lids when the power outlets are not in use.

Foreign objects or liquids that enter the power outlets may cause a short cir-

cuit.

■ To prevent battery discharge

Do not use the power outlets longer than necessary when the engine is off.

5-4. Other interior features

393

USB charging ports

The USB charging ports are used to supply 2.1 A of electricity at 5 V

to external devices (power consumption of 10.5 W).

The USB charging ports are for charging only. They are not designed

for data transfer or other purposes.

Depending on the external device, it may not charge properly. Refer to

the manual included with the device before using a USB charging

port.

■ Using the USB charging ports

Open the lid.

5

■The USB charging ports can be used when

The engine switch is in ACCESSORY or IGNITION ON mode.

■ Situations in which the USB charging ports may not operate correctly

● If a device which consumes more than 2.1 A at 5 V (10.5 W) is connected

● If a device designed to communicate with a personal computer, such as a

USB memory device, is connected

● If the connected external device is turned off (depending on device)

● If the temperature inside the vehicle is high, such as after the vehicle has

been parked in the sun

■ About connected external devices

Depending on the connected external device, charging may occasionally be

suspended and then start again. This is not a malfunction.

5-4. Other interior features

395

Armrest

Pull down the armrest for use.

NOTICE

Do not apply too much load on the armrest.

Assist grips

An assist grip (type A) installed on

5

the ceiling can be used to support

your body while sitting on the

seat.

An assist grip (type B) installed on

the pillar can be used when get-

ting in or out of the vehicle and

others.

1

Assist grip (type A)

2

Assist grip (type B)

WARNING

■ Assist grip (type A)

Do not use the assist grip (type A) when getting in or out of the vehicle or

rising from your seat.

NOTICE

Do not hang any heavy object or put a heavy load on the assist grip.

396

5-4. Other interior features

Garage door opener^

The garage door opener can be programmed to operate garage

doors, gates, entry doors, door locks, home lighting systems,

security systems, and other devices.

The garage door opener (HomeLink^® Universal Transceiver) is manu-

factured under license from HomeLink^®.

■HomeLink^® programming procedure

The programming procedures can also be

found at the following URL.

Website: www.homelink.com/toyota

For support, contact customer support at

the following. Help Line: 1-800-355-3515

Programming the HomeLink®

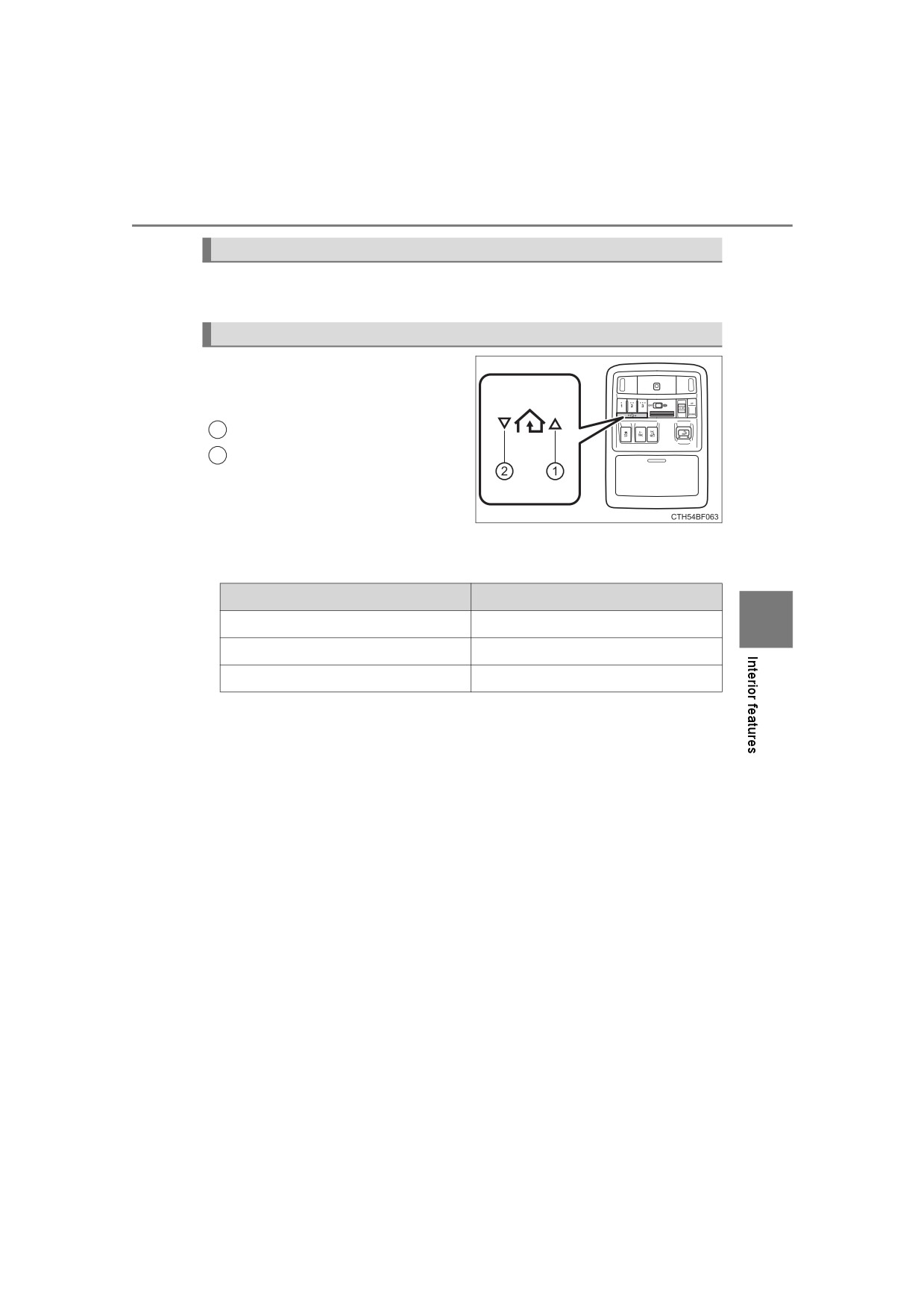

The HomeLink^® compatible transceiver in your vehicle has 3 buttons

which can be programmed to operate 3 different devices. Refer to the

programming method below appropriate for the device.

1

HomeLink^® Indicator light

2

Garage door operation indica-

tors (P. 401)

3

Buttons

: If equipped

5-4. Other interior features

397

■ Before programming HomeLink^®

● During programming, it is possible that garage doors, gates, or

other devices may operate. For this reason, make sure that peo-

ple and objects are clear of the garage door or other devices to

prevent injury or other potential harm.

● It is recommended that a new battery be placed in the remote

control transmitter for more accurate programming.

● Garage door openers manufactured after 1995 may be equipped

with rolling code protection. If this is the case, you will need a

stepladder or other sturdy, safe device to reach the “learn” or

“smart” button on the garage door opener motor.

■ Programming HomeLink^®

Steps

1

through

3

must be performed within 60 seconds, other-

wise the indicator light will stop flashing and programming will not

be able to be completed.

Press and release the HomeLink^® button you want to program

1

and check that the HomeLink^® indicator light flashes orange.

5

Point the remote control

2

transmitter for the device 1 to

3 in. (25 to 75 mm) from the

HomeLink^® buttons.

Keep the HomeLink^® indicator

light in view while programming.

Program a device.

3

5-4. Other interior features

399

■ Programming a rolling code system

2 or more people may be necessary to complete rolling code pro-

gramming.

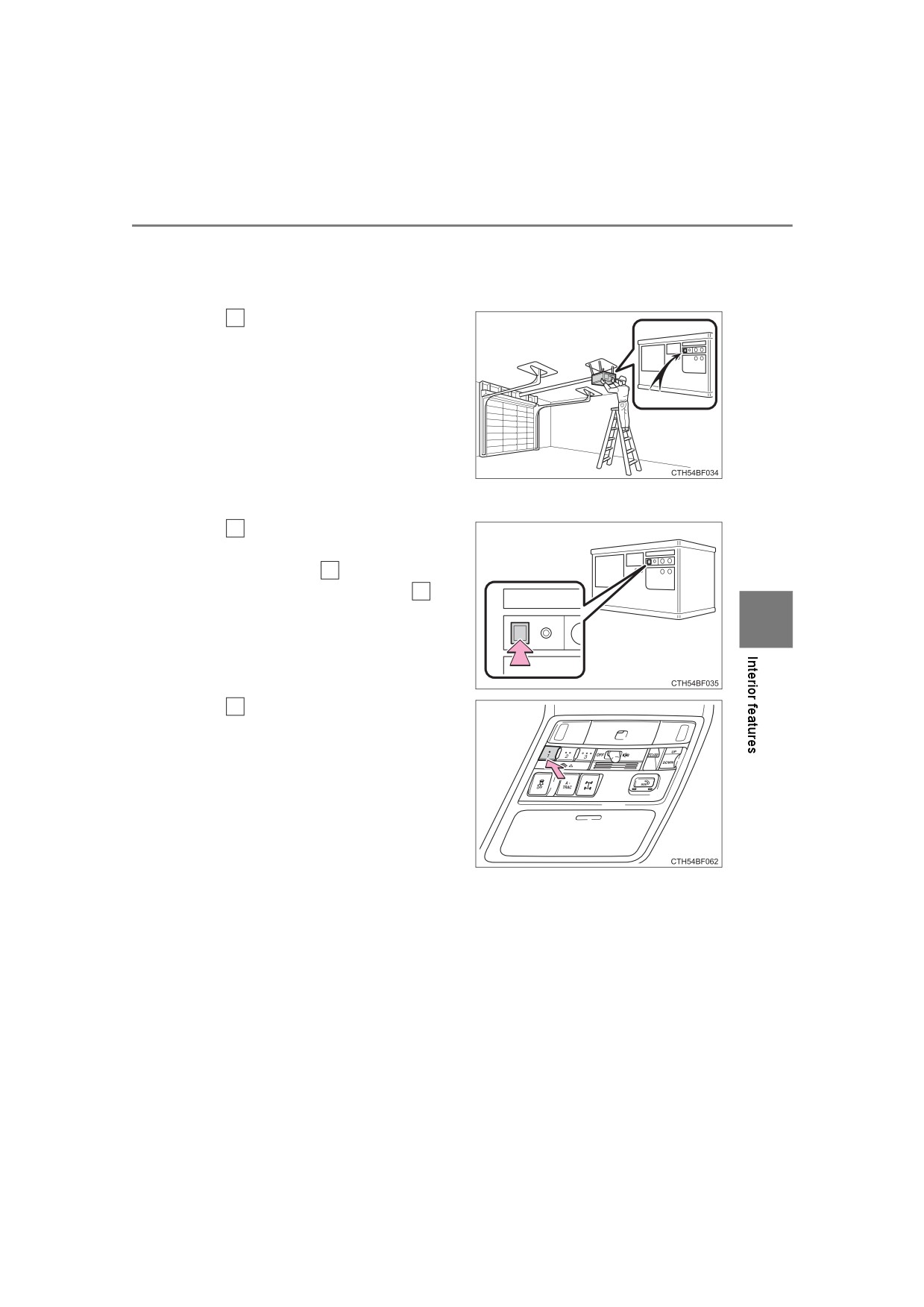

Locate the “learn” or “smart”

1

button on the garage door

opener motor in the garage.

This button can usually be found

where the hanging antenna wire

is attached to the unit. The

name and color of the button

may vary by manufacturer.

Please refer to the owner’s man-

ual supplied with the garage

door opener motor for details.

2

Press and release the “learn”

or “smart” button.

Perform

3

within

30 sec-

onds after performing

2

5

Press and hold the pro-

3

grammed HomeLink^® button

(located inside the vehicle)

for 2 seconds and release it.

Repeat this sequence (press/

hold/release) up to 3 times to

complete programming.

If the garage door opener

motor activates when the

HomeLink^®

button

is

pressed, the garage door

opener motor recognizes the

HomeLink^® signal.

5-4. Other interior features

401

Operating HomeLink^®

Press the appropriate HomeLink^® button. The HomeLink^® indicator

light should turn on.

Garage door operation indicators

The status of the opening and

closing of a garage door is shown

by the indicators.

1

Opening

2

Closing

This function is only available if the

garage door opener motor used is

a compatible device.

(To check

device compatibility, refer to the

owner’s manual supplied with the

garage door opener motor.)

Color

Status

5

Orange (flashing)

Currently opening/closing

Green

Opening/closing has completed

Red (flashing)

Feedback signals cannot be received

The indicators can operate within approximately 820 ft. (250 m) of the

garage door. However, if there are obstacles between the garage door

and the vehicle, such as houses and trees, feedback signals from the

garage door may not be received.

To recall the previous door operation status, press and release either

HomeLink^® buttons “1” and “2” or “2” and “3” simultaneously for 2 sec-

onds. The last recorded status will be displayed for 5 seconds.

402

5-4. Other interior features

Erasing the entire HomeLink® memory (all three programs)

Press and hold the 2 outside but-

tons for

10 seconds until the

HomeLink^®

indicator

light

changes from continuously lit

(orange) to rapidly flashing

(green).

If you sell your vehicle, be sure to

erase the programs stored in the

HomeLink^® memory.

■Programs stored in the HomeLink^® memory

● The registered codes are not erased even if the 12-volt battery cable is dis-

connected.

● If learning failed when registering a different code to a HomeLink^® button

that already has a code registered to it, the already registered code is not

erased.

■ Before programming

● Install a new battery in the transmitter.

● The battery side of the transmitter must be pointed away from the Home-

Link^®.

WARNING

■When programming a garage door or other remote control device

The garage door may operate, so ensure people and objects are out of dan-

ger to prevent potential harm.

■ Conforming to federal safety standards

Do not use the HomeLink^® Compatible Transceiver with any garage door

opener or device that lacks safety stop and reverse features as required by

federal safety standards.

This includes any garage door that cannot detect an obstruction object. A

door or device without these features increases the risk of death or serious

injury.

■When operating or programming HomeLink^®

Never allow a child to operate or play with the HomeLink^® buttons.

6-1. Maintenance and care

405

■ Wheels and wheel ornaments

● Remove any dirt immediately by using a neutral detergent.

● Wash detergent off with water immediately after use.

● To protect the paint from damage, make sure to observe the following pre-

cautions.

• Do not use acidic, alkaline or abrasive detergent

• Do not use hard brushes

• Do not use detergent on the wheels when they are hot, such as after driv-

ing or parking in hot weather

■ Brake pads and calipers

Rust may form if the vehicle is parked with wet brake pads or disc rotors,

causing them to stick. Before parking the vehicle after it is washed, drive

slowly and apply the brakes several times to dry the parts.

■Bumpers and side moldings

Do not scrub with abrasive cleaners.

■ Plated portions

If dirt cannot be remove, clean the parts as follows:

● Use a soft cloth dampened with an approximately 5% solution of neutral

detergent and water to clean the dirt off.

● Wipe the surface with a dry, soft cloth to remove any remaining moisture.

● To remove oily deposits, use alcohol wet wipes or a similar product.

■ Notes for a smart key system (if equipped)

6

If the door handle becomes wet while the electronic key is within the effective

range, the door may lock and unlock repeatedly. In this case, follow the fol-

lowing correction procedures to wash the vehicle:

• Place the electronic key in a location 6 ft. (2 m) or more away from the vehi-

cle. (Take care to ensure that the key is not stolen.)

• Set the electronic key to battery-saving mode to disable the smart key sys-

tem. (P. 122)

WARNING

■ When washing the vehicle

Do not apply water to the inside of the engine compartment. Doing so may

cause the electrical components etc. to catch fire.

■ Precautions regarding the exhaust pipe

Exhaust gases cause the exhaust pipe to become quite hot.

When washing the vehicle, be careful not to touch the pipe until it has

cooled sufficiently, as touching hot exhaust pipe can cause burns.

406

6-1. Maintenance and care

NOTICE

■ To prevent paint deterioration and corrosion on the body and compo-

nents (aluminum wheels etc.)

● Wash the vehicle immediately in the following cases:

• After driving near the sea coast

• After driving on salted roads

• If coal tar or tree sap is present on the paint surface

• If dead insects, insect droppings or bird droppings are present on the

paint surface

• After driving in an area contaminated with soot, oily smoke, mine dust,

iron powder or chemical substances

• If the vehicle becomes heavily soiled with dust or mud

• If liquids such as benzene and gasoline are spilled on the paint surface

● If the paint is chipped or scratched, have it repaired immediately.

● To prevent the wheels from corroding, remove any dirt and store in a place

with low humidity when storing the wheels.

■ Cleaning the exterior lights

● Wash carefully. Do not use organic substances or scrub with a hard brush.

This may damage the surfaces of the lights.

● Do not apply wax to the surfaces of the lights.

Wax may cause damage to the lenses.

Content      ..     8      9      10      11     ..
