Toyota Camry (2019 year). Manual - part 5

1-2. Child safety

Fo
r safety and securi

CAMRY_U

◆

Removing a child restraint system installed with a seat belt

Press the buckle release button
and fully retract the seat belt.

When  releasing  the  buckle,  the
child  restraint  system  may
spring up due to the rebound of
the  seat  cushion.  Release  the
buckle  while  holding  down  the
child restraint system.
Since the seat belt automatically
reels itself, slowly return it to the
stowing position.

1-2. Child safety

CAMRY_U

WARNING

■

When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious inju-
ries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be
used to cut the belt.

●

Ensure that the belt and plate are securely locked and the seat belt is not
twisted.

●

Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.

●

After securing a child restraint system, never adjust the seat.

●

When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.

●

Follow all installation instructions provided by the child restraint system
manufacturer.

●

When securing some types of child restraint systems in rear seats, it may
not be possible to properly use the seat belts in positions next to the child
restraint without interfering with it or affecting seat belt effectiveness. Be
sure your seat belt fits snugly across your shoulder and low on your hips. If
it does not, or if it interferes with the child restraint, move to a different
position. Failure to do so may result in death or serious injury.

■

When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. (

P. 30)

■

Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of sud-
den braking, sudden swerving or an accident.

1-2. Child safety

Fo
r safety and securi

CAMRY_U

■

Child restraint LATCH anchors
LATCH  anchors  are  provided
for  the  outboard  rear  seats.
(Marks  displaying  the  location
of  the  anchors  are  attached  to
the seats.)

■

When installing in the rear outboard seats
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.

If the head restraint interferes
with  the  child  restraint  sys-
tem installation and the head
restraint  can  be  removed,
remove  the  head  restraint.
(

P. 170)

Remove the cover.

Child restraint system fixed with a child restraint LATCH anchor

1-2. Child safety

CAMRY_U



With flexible lower attachments

Latch the hooks of the lower
straps onto the LATCH
anchors.
For owners in Canada:
The symbol on a child
restraint system indicates the
presence of a lower connec-
tor system.



With rigid lower attachments

Latch the buckles onto the
LATCH anchors.
For owners in Canada:
The symbol on a child
restraint system indicates the
presence of a lower connec-
tor system.

If the child restraint has a top tether strap, follow the child
restraint manufacturer’s operation manual regarding the installa-
tion, using the top tether strap to latch onto the top tether strap
anchor. (

P. 70)

Canada only

1-2. Child safety

Fo
r safety and securi

CAMRY_U

After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. (

P. 66)

■

When installing in the rear center seat
There  are  no  LATCH  anchors  behind  the  rear  center  seat.  How-
ever, the inboard LATCH anchors of the outboard seats, which are
16.1 in. (410 mm) apart, can be used if the child restraint system
manufacturer’s  instructions  permit  use  of  those  anchors  with  the
anchor spacing stated.
Child  restraint  systems  with  rigid  lower  attachments  cannot  be
installed in the center seat. This type of child restraint system can
only be installed in the outboard seat.

■

Laws and regulations pertaining to anchors
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to SAE J1819.

WARNING

■

When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.

●

When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system.

●

Follow all installation instructions provided by the child restraint system
manufacturer.

●

Never attach two child restraint system attachments to the same anchor. In
a collision, one anchor may not be strong enough to hold two child
restraint system attachments and may break.
If the LATCH anchors are already in use, use the seat belt to install a child
restraint system in the center seat.

●

If the seat is adjusted, reconfirm the security of the child restraint system.

1-2. Child safety

CAMRY_U

■

Anchor brackets (for top tether strap)
Anchor brackets are provided for each rear seat.
Use anchor brackets when fixing the top tether strap.

■

Fixing the top tether strap to the anchor bracket
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.

Adjust the head restraint to
the upmost position.

If the head restraint interferes
with the child restraint system
installation

and

the

head

restraint can be removed,
remove the head restraint.
(

P. 170)

Using an anchor bracket (for top tether strap)



Seats with an adjustable type
head restraint



Seats with an integrated type
head restraint

Anchor brackets

1-2. Child safety

Fo
r safety and securi

CAMRY_U

Open the anchor bracket cover, latch the hook onto the anchor
bracket and tighten the top tether strap.

Make sure the top tether strap is securely latched. (

P. 66)

When installing the child restraint system with the head restraint being
raised, be sure to have the top tether strap pass underneath the head
restraint.

■



Seats with an adjustable type
head restraint



Seats with an integrated type
head restraint

Hook

Top tether strap

Hook

Top tether strap

1-2. Child safety

CAMRY_U

WARNING

■

When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Firmly attach the top tether strap and make sure that the belt is not twisted.

●

Do not attach the top tether strap to anything other than the anchor
bracket.

●

After securing a child restraint system, never adjust the seat.

●

Follow all installation instructions provided by the child restraint system
manufacturer.

●

When installing the child restraint system with the head restraint being
raised, after the head restraint has been raised and then the anchor
bracket has been fixed, do not lower the head restraint.

NOTICE

■

Anchor brackets (for top tether strap)
When not in use, make certain to close the lid. If it remains open, the lid
may be damaged.

Fo
r safety and securi

CAMRY_U

1-3. Emergency assistance

■

System components

Microphone
LED light indicators
“SOS” button

Safety Connect



: If equipped

Safety  Connect  is  a  subscription-based  telematics  service  that
uses Global Positioning System (GPS) data and embedded cel-
lular technology to provide safety and security features to sub-
scribers.  Safety  Connect  is  supported  by  Toyota’s  designated
response  center,  which  operates  24  hours  per  day,  7  days  per
week.
Safety  Connect  service  is  available  by  subscription  on  select,
telematics hardware-equipped vehicles.
By  using  the  Safety  Connect  service,  you  are  agreeing  to  be
bound  by  the  Telematics  Subscription  Service Agreement  and
its Terms and Conditions, as in effect and amended from time to
time, a current copy of which is available at Toyota.com in the
United  States,  Toyotapr.com  in  Puerto  Rico  and  Toyota.ca  in
Canada. All use of the Safety Connect service is subject to such
then-applicable Terms and Conditions.

1-3. Emergency assistance

CAMRY_U

■

Services
Subscribers have the following Safety Connect services available:
● Automatic Collision Notification

Helps drivers receive necessary response from emergency ser-
vice providers. (

P. 76)

: U.S. Patent No. 7,508,298 B2

● Stolen Vehicle Location

Helps drivers in the event of vehicle theft. (

P. 76)

● Emergency Assistance Button (“SOS”)

Connects drivers to response-center support. (

P. 76)

● Enhanced Roadside Assistance

Provides drivers various on-road assistance. (

P. 77)

■

Subscription
After you have signed the Telematics Subscription Service Agree-
ment and are enrolled, you can begin receiving services.
A variety of subscription terms are available for purchase. Contact
your Toyota dealer, call the following appropriate Safety Connect
response center or push the “SOS” button in your vehicle for further
subscription details.

• The United States

1-855-405-6500

• Canada

1-888-869-6828

• Puerto Rico

1-877-855-8377

1-3. Emergency assistance

Fo
r safety and securi

CAMRY_U

■

Safety Connect Services Information

●

Phone calls using the vehicle’s Bluetooth

technology will not be possible

during Safety Connect.

●

Safety Connect is available beginning Fall 2009 on select Toyota models (in
the  contiguous  United  States  only).  Contact  with  the  Safety  Connect
response center is dependent upon the telematics device being in operative
condition, cellular connection availability, and GPS satellite signal reception,
which  can  limit  the  ability  to  reach  the  response  center  or  receive  emer-
gency  service  support.  Enrollment  and  Telematics  Subscription  Service
Agreement  are  required.  A  variety  of  subscription  terms  are  available;
charges vary by subscription term selected and location.

●

Automatic Collision Notification, Emergency Assistance and Stolen Vehicle
Location are available in the United States, including Hawaii and Alaska,
Puerto Rico and Canada, and Enhanced Roadside Assistance are available
in the United States, Puerto Rico and Canada.

●

Automatic Collision Notification, Emergency Assistance, Stolen Vehicle and
Enhanced Road Assistance are not available in the U.S. Virgin Islands.
For vehicles first sold in the U.S. Virgin Islands, no Safety Connect services
will function in or outside the U.S. Virgin Islands.

●

Safety Connect services are not subject to section 255 of the Telecommuni-
cations Act and the device is not TTY compatible.

■

Languages
The Safety Connect response center will offer support in multiple languages.
The Safety Connect system will offer voice prompts in English, Spanish, and
French. Please indicate your language of choice when enrolling.

■

When contacting the response center
You may be unable to contact the response center if the network is busy.

When the engine switch is turned to IGNITION ON mode, the red indi-
cator light comes on for 2 seconds then turns off. Afterward, the green
indicator light comes on, indicating that the service is active.
The following indicator light patterns indicate specific system usage
conditions:
● Green indicator light on = Active service
● Green indicator light flashing = Safety Connect call in process
● Red indicator light (except at vehicle start-up) = System malfunction

(contact your Toyota dealer)

● No indicator light (off) = Safety Connect service not active

Safety Connect LED light Indicators

1-3. Emergency assistance

CAMRY_U

■

Automatic Collision Notification
In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding  agent  receives  the  vehicle’s  location  and  attempts  to
speak with the vehicle occupants to assess the level of emergency.
If  the  occupants  are  unable  to  communicate,  the  agent  automati-
cally  treats the call  as  an  emergency,  contacts  the  nearest emer-
gency services provider to describe the situation, and requests that
assistance be sent to the location.

■

Stolen Vehicle Location
If your vehicle is stolen, Safety Connect can work with local author-
ities to assist them in locating and recovering the vehicle. After filing
a police report, call the Safety Connect response center at 1-855-
405-6500 in the Unites States, 1-877-855-8377 in Puerto Rico or 1-
888-869-6828 in  Canada,  and  follow  the prompts  for  Safety Con-
nect to initiate this service.
In  addition  to assisting law enforcement with  recovery of  a stolen
vehicle, Safety-Connect-equipped vehicle location data may, under
certain  circumstances,  be  shared  with  third  parties  to  locate  your
vehicle. Further information is available at Toyota.com in the United
States, Toyotapr.com in Puerto Rico and Toyota.ca in Canada.

■

Emergency Assistance Button (“SOS”)
In the event of an emergency on the road, push the “SOS” button to
reach the Safety Connect response center. The answering agent
will determine your vehicle’s location, assess the emergency, and
dispatch the necessary assistance required.

If you accidentally press the “SOS” button, tell the response-center
agent that you are not experiencing an emergency.

Safety Connect services

1-3. Emergency assistance

Fo
r safety and securi

CAMRY_U

■

Enhanced Roadside Assistance
Enhanced  Roadside  Assistance  adds  GPS  data  to  the  already
included warranty-based Toyota roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs,
such as: towing, flat tire, fuel delivery, etc. For a description of the
Enhanced  Roadside  Assistance  services  and  their  limitations,
please  see  the  Safety  Connect  Terms  and  Conditions,  which  are
available  at  Toyota.com  in  the  United  States,  Toyotapr.com  in
Puerto Rico and Toyota.ca in Canada.

Important! Read this information before using Safety Connect.

■

Exposure to radio frequency signals
The Safety Connect system installed in your vehicle is a low-power
radio transmitter and receiver. It receives and also sends out radio
frequency (RF) signals.
In August 1996, the Federal Communications Commission (FCC)
adopted RF exposure guidelines with safety levels for mobile wire-
less phones. Those guidelines are consistent with the safety stan-
dards previously set by the following U.S. and international
standards bodies.
● ANSI (American National Standards Institute) C95.1 [1992]
● NCRP (National Council on Radiation Protection and Measure-

ment) Report 86 [1986]

● ICNIRP (International Commission on Non-Ionizing Radiation

Protection) [1996]

Those standards were based on comprehensive and periodic eval-
uations of the relevant scientific literature. Over 120 scientists, engi-
neers, and physicians from universities, and government health
agencies and industries reviewed the available body of research to
develop the ANSI Standard (C95.1).
The design of Safety Connect complies with the FCC guidelines in
addition to those standards.

Safety information for Safety Connect

1-3. Emergency assistance

CAMRY_U

■

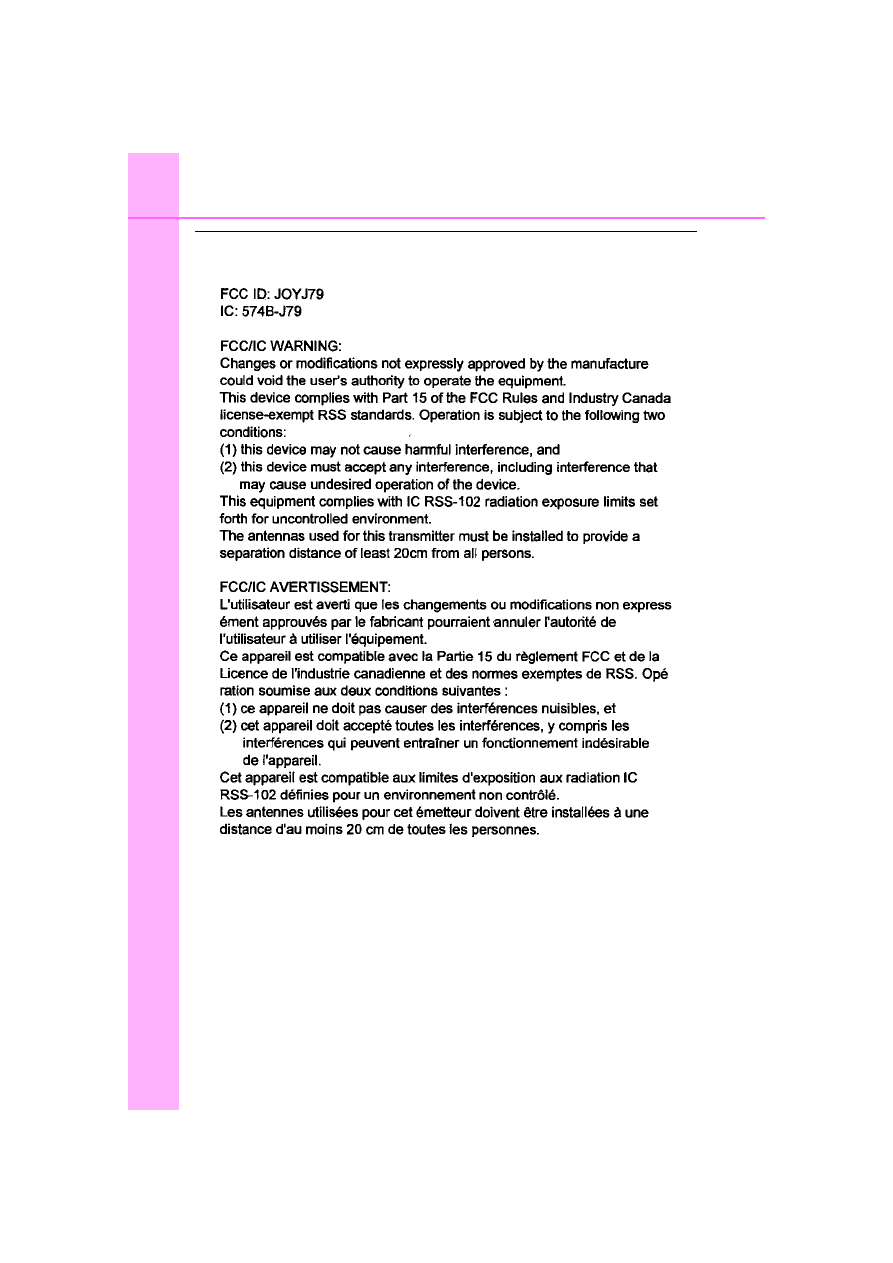

Certification for Safety Connect

Fo
r safety and securi

CAMRY_U

1-4. Theft deterrent system

Vehicles without a smart key sys-
tem:
The  indicator  light  flashes  after
the  key  has  been  removed  from
the  engine  switch  to  indicate  that
the system is operating.
The  indicator  light  stops  flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with a smart key system:
The indicator light flashes after the engine switch has been turned off
to indicate that the system is operating.
The  indicator  light  stops  flashing  after  the  engine  switch  has  been
turned  to ACCESSORY  or  IGNITION  ON  mode  to  indicate  that  the
system has been canceled.

■

System maintenance
The vehicle has a maintenance-free type engine immobilizer system.

■

Conditions that may cause the system to malfunction

●

If the grip portion of the key is in contact with a metallic object

●

If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

Engine immobilizer system

The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

1-4. Theft deterrent system

CAMRY_U

■

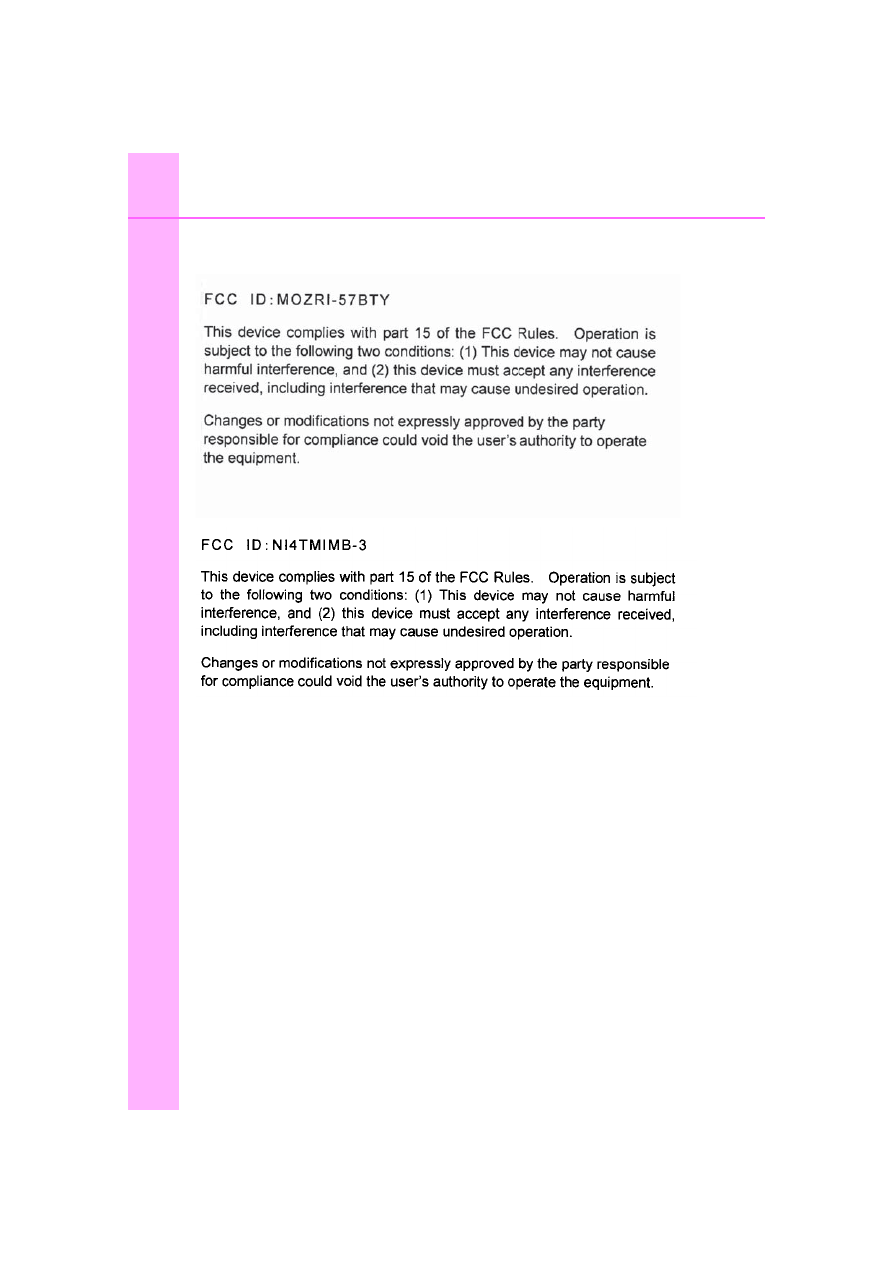

Certifications for the engine immobilizer system



For vehicles sold in the U.S.A.

Content .. 3 4 5 6 ..
