Toyota Avalon (2019 year). Manual - part 24





369

6-2. Maintenance

6

Mai
ntenan

ce and care

Vehicle interior

Items

Check points

Accelerator pedal

• The  accelerator  pedal  should

move  smoothly  (without  uneven
pedal effort or catching).

Automatic

transmission

“Park”

mechanism

• When  parked  on  a  slope  and  the

shift  lever  is  in  P,  is  the  vehicle
securely stopped?

Brake pedal

• Does  the  brake  pedal  move

smoothly?

• Does the brake pedal have appro-

priate clearance from the floor?

(

P. 472)

• Does  the  brake  pedal  have  the

correct amount of free play?

(

P. 472)

Brakes

• The vehicle should not pull to one

side when the brakes are applied.

• The  brakes  should  work  effec-

tively.

• The  brake  pedal  should  not  feel

spongy.

• The  brake  pedal  should  not  get

too  close  to  the  floor  when  the
brakes are applied.

Head restraints (adjustable type)

• Do  the  head  restraints  move

smoothly and lock securely?

Indicators/buzzers

• Do  the  indicators  and  buzzers

function properly?

Lights

• Do all the lights come on?

Parking brake

• Does  the  parking  brake  operate

normally?

• When  parked  on  a  slope  and  the

parking brake is on, is the vehicle
securely stopped?

370

6-2. Maintenance

Seat belts

• Do  the  seat  belts  operate

smoothly?

• The seat belts should not be dam-

aged.

Seats

• Do the seat controls operate prop-

erly?

Steering wheel

• Does  the  steering  wheel  rotate

smoothly?

• Does the steering wheel have the

correct amount of free play?

• There  should  not  be  any  strange

sounds  coming  from  the  steering
wheel.

Vehicle exterior

Items

Check points

Items

Check points

Doors/trunk

• Do  the  doors/trunk  operate

smoothly?

Engine hood

• Does the engine hood lock system

work properly?

Fluid leaks

• There  should  not  be  any  signs  of

fluid leakage after the vehicle has
been parked.

Tires

• Is the tire inflation pressure cor-

rect?

• The  tires  should  not  be  dam-

aged or excessively worn.

• Have  the  tires  been  rotated

according  to  the  maintenance

schedule?

• The  wheel  nuts  should  not  be

loose.

Windshield wipers

• The wiper blades should not show

any  signs  of  cracking,  splitting,
wear,  contamination  or  deforma-
tion.

• The wiper blades should clear the

windshield  without  streaking  or
skipping.

371

6-2. Maintenance

6

Mai
ntenan

ce and care

WARNING

If the engine is running
Turn the engine off and ensure that there is adequate ventilation before per-
forming maintenance checks.

372

6-2. Maintenance

The OBD system determines that a problem exists somewhere in the
emission control system. Your vehicle may not pass the I/M test and
may need  to  be  repaired. Contact  your Toyota  dealer to  service  the
vehicle.

● When the battery is disconnected or discharged

Readiness codes that are set during ordinary driving are erased.
Also,  depending  on  your  driving  habits,  the  readiness  codes  may
not be completely set.

● When the fuel tank cap is loose

The  malfunction  indicator  lamp  comes  on  indicating  a  temporary
malfunction and your vehicle may not pass the I/M test.

The error code in the OBD system will not be cleared unless the vehi-
cle is driven 40 or more times.

Contact your Toyota dealer to prepare the vehicle for re-testing.

Emission inspection and maintenance (I/M)

programs

Some states have vehicle emission inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system
monitors the operation of the emission control system.

If the malfunction indicator lamp comes on

Your vehicle may not pass the I/M test in the following situations:

When the malfunction indicator lamp still remains on after sev-
eral driving trips

If your vehicle does not pass the I/M test

373

6

Mai
ntenan

ce and care

6-3. Do-it-yourself maintenance

Do-it-yourself service precautions

If  you  perform  maintenance  by  yourself,  be  sure  to  follow  the
correct procedure as given in these sections.

Items

Parts and tools

Battery condition
(

P. 384)

• Warm water

• Baking soda

• Grease

• Conventional wrench (for terminal clamp bolts)

Brake fluid level
(

P. 383)

• SAE J1703 or FMVSS No.116 DOT 3

SAE J1704 or FMVSS No.116 DOT 4

• Rag or paper towel
• Funnel (used only for adding brake fluid)

Engine

coolant

level (

P. 381)

• “Toyota  Super  Long  Life  Coolant”  or  a  similar  high

quality  ethylene  glycol-based  non-silicate,  non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
U.S.A.:
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
Canada:
“Toyota Super Long Life Coolant” is pre-mixed with
55% coolant and 45% deionized water.

• Funnel (used only for adding engine coolant)

Engine oil level
(

P. 378)

• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)

Fuses (

P. 410)

• Fuse with same amperage rating as original

Radiator/con-
denser (

P. 382)

Tire

inflation

pressure

(

P. 401)

• Tire pressure gauge

• Compressed air source

Washer fluid
(

P. 386)

• Water or washer fluid containing antifreeze (for win-

ter use)

• Funnel (used only for adding water or washer fluid)

374

6-3. Do-it-yourself maintenance

WARNING

The  engine  compartment  contains  many  mechanisms  and  fluids  that  may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.

When working on the engine compartment

Keep  hands,  clothing  and  tools  away  from  the  moving  fan  and  engine
drive belt.

Be  careful  not  to  touch  the  engine,  radiator,  exhaust  manifold,  etc.  right
after driving as they may be hot. Oil and other fluids may also be hot.

Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.

Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.

Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.

When working near the electric cooling fan or radiator grille
Be sure the engine switch is off. With the engine switch in IGNITION ON
mode, the electric cooling fan may automatically start to run if the air condi-
tioning is on and/or the coolant temperature is high. (

P. 382)

Safety glasses
Wear  safety  glasses  to  prevent  flying  or  falling  material,  fluid  spray,  etc.
from getting in your eyes.

NOTICE

If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.

375

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

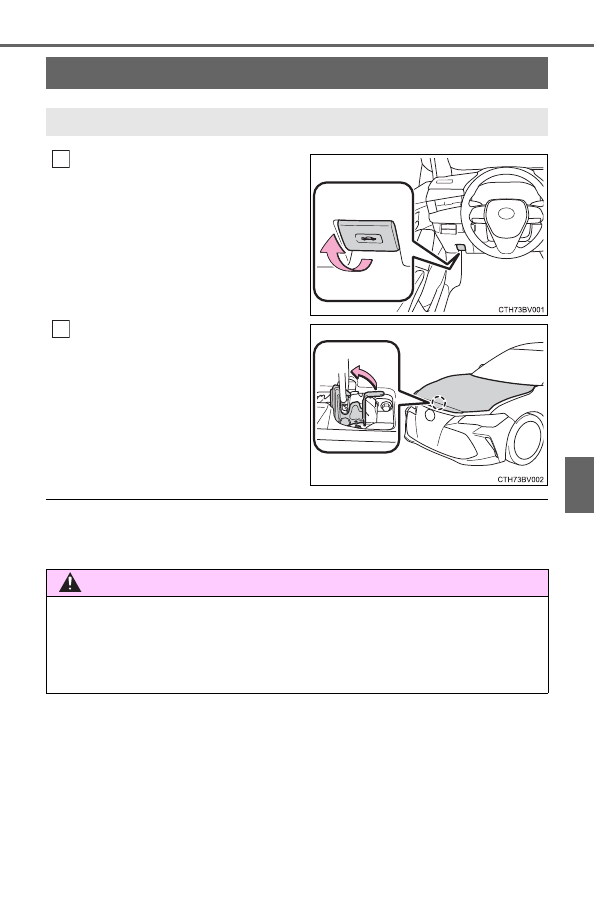

Pull the hood lock release lever.

The hood will pop up slightly.

Pull up the auxiliary catch lever
and lift the hood.

Open hood warning buzzer
If the vehicle reaches a speed of 3 mph (5 km/h), the master warning light
flashes and a buzzer sounds to indicate that the hood is not fully closed.

Hood

Release the lock from the inside of the vehicle to open the hood.

1

2

WARNING

Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.

376

6-3. Do-it-yourself maintenance

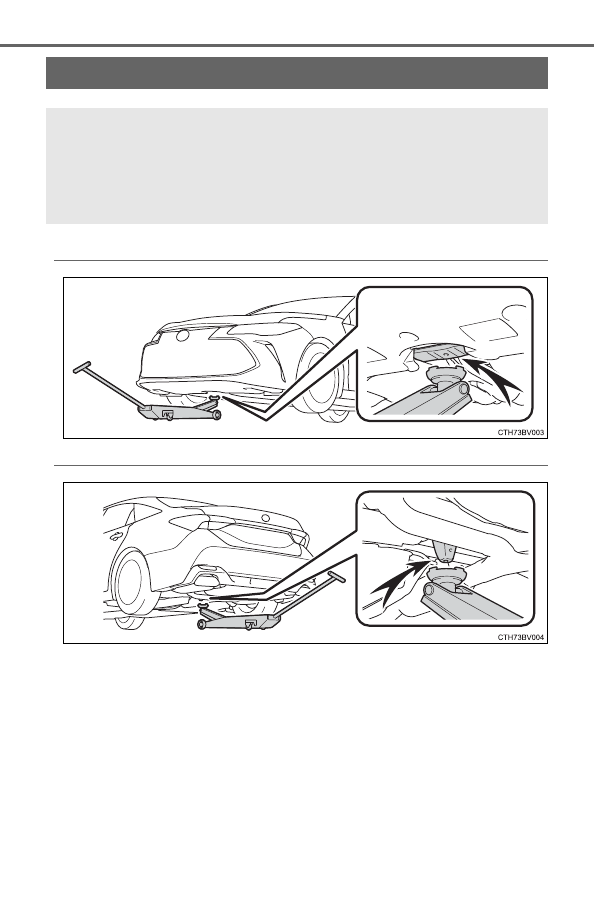

Front

Rear

Positioning a floor jack

When  using  a  floor  jack,  follow  the  instructions  in  the  manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly.  Improper  placement  may  damage  your  vehicle  or  cause
injury.

377

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

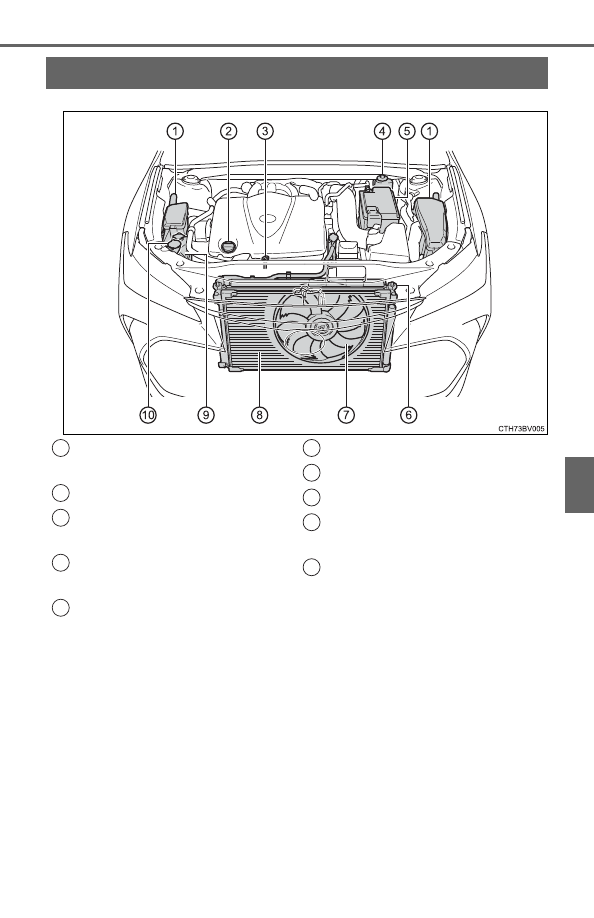

Engine compartment

Fuse boxes (if equipped)

(

P. 410)

Engine oil filler cap (

P. 379)

Engine oil level dipstick

(

P. 378)

Brake fluid reservoir

(

P. 383)

Battery

(

P. 384)

Radiator

(

P. 382)

Electric cooling fan
Condenser

(

P. 382)

Engine coolant reservoir

(

P. 381)

Washer fluid tank (

P. 386)

1

2
3

4

5

6
7
8
9

10

378

6-3. Do-it-yourself maintenance

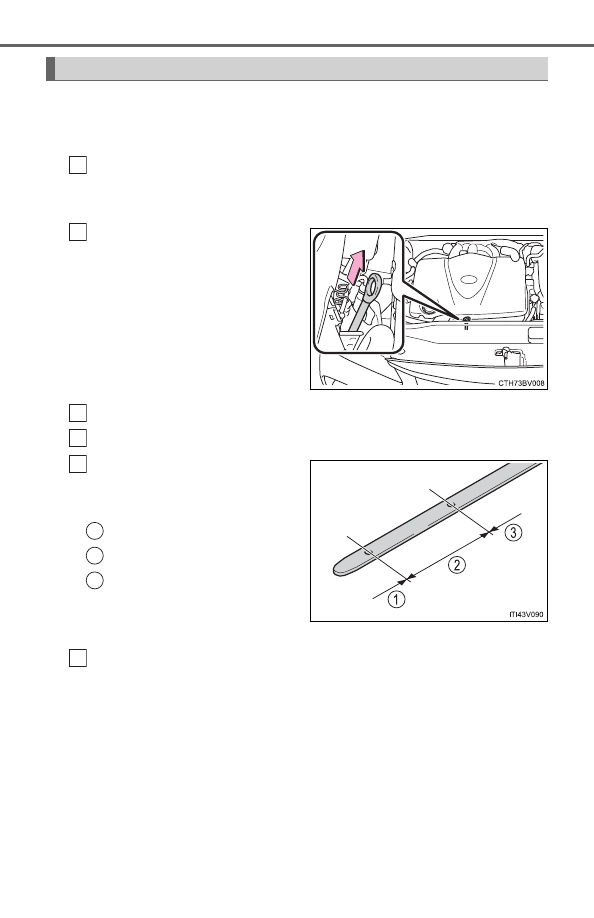

With the engine at operating temperature and turned off, check the oil
level on the dipstick.

Checking the engine oil

Park  the  vehicle  on  level  ground. After  warming  up  the  engine
and  turning  it  off,  wait  more  than  5  minutes  for  the  oil  to  drain
back into the bottom of the engine.
Holding a rag under the end,
pull the dipstick out.

Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end,
pull  the  dipstick  out  and
check the oil level.

Low
Normal
Excessive

The  shape  of  the  dipstick  may
differ  depending  on  the  type  of
vehicle or engine.

Wipe the dipstick and reinsert it fully.

Engine oil

1

2

3
4
5

1
2
3

6

379

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

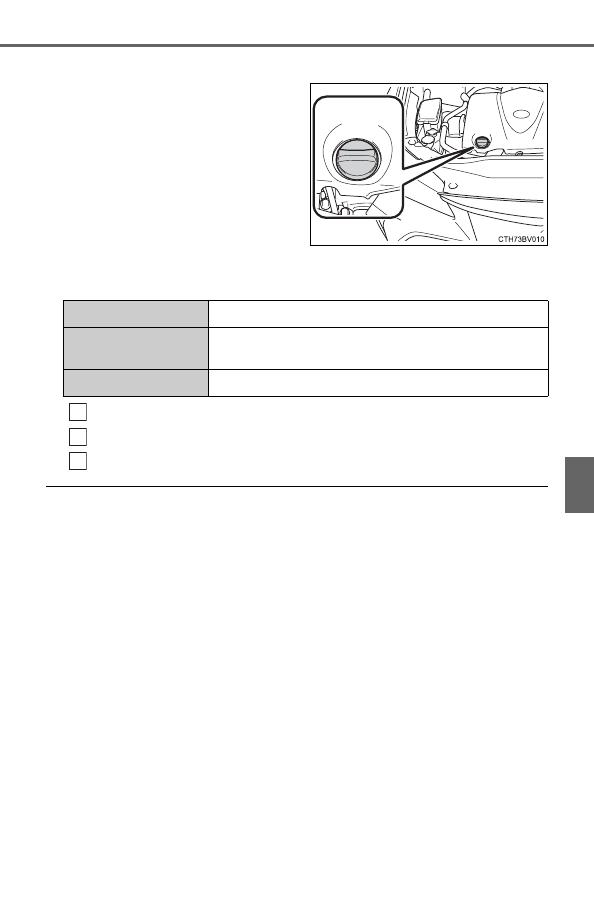

Adding engine oil
If  the  oil  level  is  below  or  near
the low level mark, add engine
oil  of  the  same  type  as  that
already in the engine.

Make  sure  to  check  the  oil  type  and  prepare  the  items  needed
before adding oil.

Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.

Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations,  oil  consumption  may  increase,  and  engine  oil  may  need  to  be
refilled in between oil maintenance intervals.

When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine

If low quality oil or oil of an inappropriate viscosity is used

When driving at high engine speeds or with a heavy load, or when driving
while accelerating or decelerating frequently

When leaving the engine idling for a long time, or when driving frequently
through heavy traffic

Engine oil selection

P. 469

Oil quantity
(Low

 Full)

1.9 qt. (1.8 L, 1.6 lmp. qt.)

Items

Clean funnel

1
2
3

380

6-3. Do-it-yourself maintenance

WARNING

Used engine oil

Used  engine  oil  contains  potentially  harmful  contaminants  which  may
cause  skin  disorders  such  as  inflammation  and  skin  cancer,  so  care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.

Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground.
Call your Toyota dealer, service station or auto parts store for information
concerning recycling or disposal.

Do not leave used engine oil within the reach of children.

NOTICE

To prevent serious engine damage
Check the oil level on a regular basis.

When replacing the engine oil

Be careful not to spill engine oil on the vehicle components.

Avoid overfilling, or the engine could be damaged.

Check the oil level on the dipstick every time you refill the vehicle.

Be sure the engine oil filler cap is properly tightened.

381

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

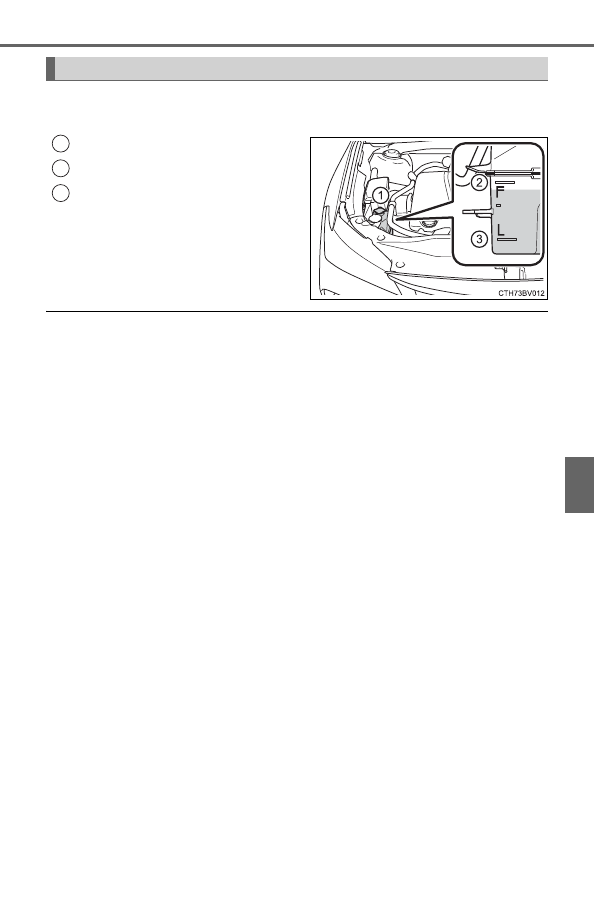

The coolant level is satisfactory if it is between the “F” and “L” lines on
the reservoir when the engine is cold.

Reservoir cap
“F” line
“L” line

If  the  level  is  on  or  below  the  “L”
line, add coolant up to the “F” line.
(

P. 459)

Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -31

F [-35C])

Canada:
“Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deion-
ized water. (Minimum temperature: -44

F [-42C])

For more details about engine coolant, contact your Toyota dealer.

If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock
and water pump.
If you cannot find a leak, have your Toyota dealer test the cap and check for
leaks in the cooling system.

Engine coolant

1
2
3

382

6-3. Do-it-yourself maintenance

Check the radiator and condenser and clear away any foreign objects.
If  either of  the  above parts  is  extremely  dirty  or you  are not  sure of
their condition, have your vehicle inspected by your Toyota dealer.

WARNING

When the engine is hot
Do not remove the engine coolant reservoir cap or the radiator cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.

NOTICE

When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.

If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.

Radiator and condenser

WARNING

When the engine is hot
Do not touch the radiator or condenser as they may be hot and cause seri-
ous injuries, such as burns.

383

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

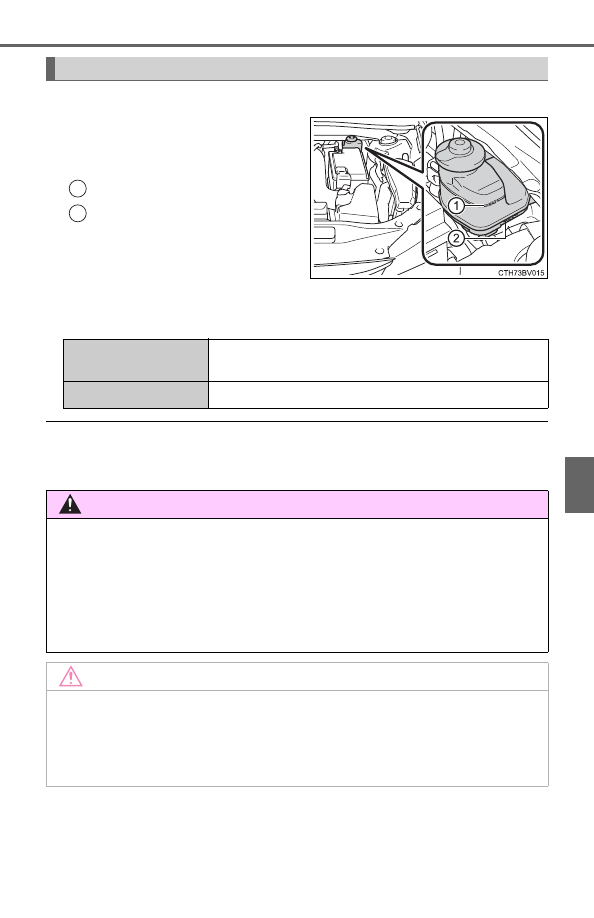

Checking fluid level
The brake fluid level should be
between  the  “MAX”  and  “MIN”
lines on the tank.

“MAX”
“MIN”

Adding fluid
Make sure to check the fluid type and prepare the necessary item.

Brake fluid can absorb moisture from the air
Excess moisture in the brake fluid can cause a dangerous loss of braking effi-
ciency. Use only newly opened brake fluid.

Brake fluid

1
2

Fluid type

SAE J1703 or FMVSS No.116 DOT 3 brake fluid
SAE J1704 or FMVSS No.116 DOT 4 brake fluid

Item

Clean funnel

WARNING

When filling the reservoir
Take  care  as  brake  fluid  can  harm  your  hands  and  eyes  and  damage
painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean
water immediately.
If you still experience discomfort, see a doctor.

NOTICE

If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear out or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, there may be a serious problem.

384

6-3. Do-it-yourself maintenance

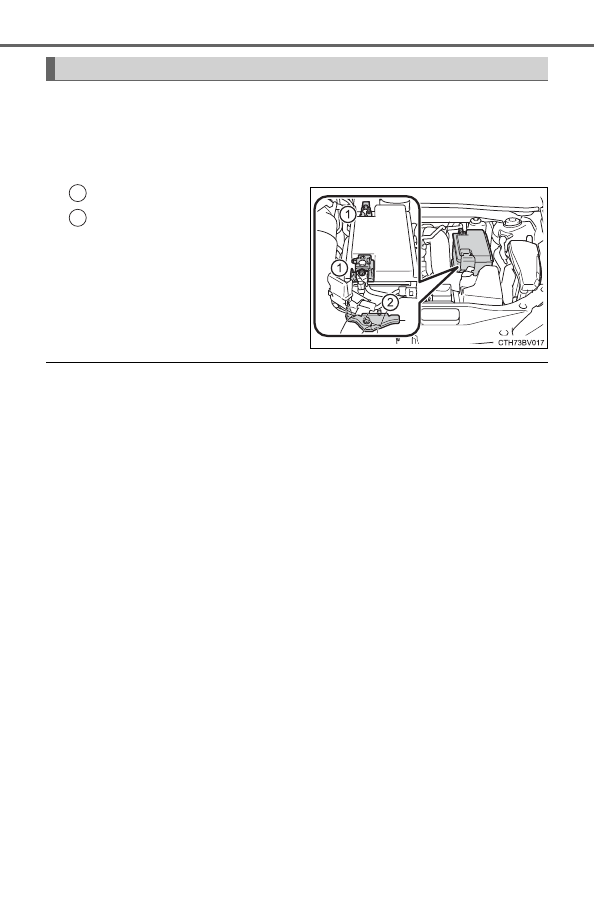

Check the battery as follows.

Battery exterior
Make  sure  that  the  battery  terminals  are  not  corroded  and  that
there are no loose connections, cracks, or loose clamps.

Terminals
Hold-down clamp

Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:

If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.

Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the battery.

After recharging/reconnecting the battery

Unlocking the doors using the smart key system may not be possible imme-
diately  after  reconnecting  the  battery.  If  this  happens,  use  the  wireless
remote control or the mechanical key to lock/unlock the doors.

Start the engine with the engine switch in ACCESSORY mode. The engine
may  not  start  with  the  engine  switch  turned  off.  However,  the  engine  will
operate normally from the second attempt.

The engine switch mode is recorded by the vehicle. If the battery is recon-
nected, the vehicle will return the engine switch mode to the status it was in
before  the  battery  was  disconnected.  Make  sure  to  turn  off  the  engine
before disconnecting the battery. Take extra care when connecting the bat-
tery if the engine switch mode prior to discharge is unknown.

If the system will not start even after multiple attempts, contact your Toyota
dealer.

Battery

1
2















Content   ..  22  23  24  25   ..
