SECTION 8

SPECIFICATIONS

Specifications

Dimensions and weight

248

Engine

248

Fuel

248

Service specifications

249

Tires

251

Fuses

252

247

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Dimensions and weight

Engine

Fuel

Overall length

Model:

Fuel type:

mm (in.):

4180 (164.6)

1NZ−FE

Unleaded gasoline, Octane Rating

87

(Research Octane Number 91) or higher

Overall width

Type:

mm (in.):

1660 (65.4)

4 cylinder in line, 4 cycle, gasoline

Fuel tank capacity, L (gal., Imp. gal.):

1690 (66.5)∗1

45 (11.9, 9.9)

Bore and stroke, mm (in.):

Overall height

75.0

84.7

(2.95

3.33)

mm (in.):

1510 (59.4)∗2

Displacement, cm3 (cu. in.):

1520 (59.8)∗3

1497 (91.3)

Wheelbase

mm (in.):

2370 (93.3)

Front tread

mm (in.):

1440 (56.7)

Rear tread

mm (in.):

1420 (55.9)

Vehicle capacity weight

(occupants+luggage)

kg(lb.):

351 (775)

∗1: With Sports Fender And Rocker Panel

Extensions

∗2: With P175/65R14 81S tires

∗3: With P185/60R15 84T tires

248

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Service specifications

ENGINE

Oil grade:

COOLING SYSTEM

Valve clearance (engine cold), mm (in.):

API grade SL

“Energy−Conserving” or

Total capacity, L (qt., Imp. qt.):

Intake

0.15—0.25 (0.006—0.010)

ILSAC multigrade engine oil

Manual transmission

4.4 (4.7, 3.9)

Exhaust

0.25—0.35 (0.010—0.014)

Automatic transmission

4.3 (4.5, 3.8)

Please contact your Toyota dealer for fur-

Spark plug type:

ther details.

Coolant type:

DENSO

K16R−U

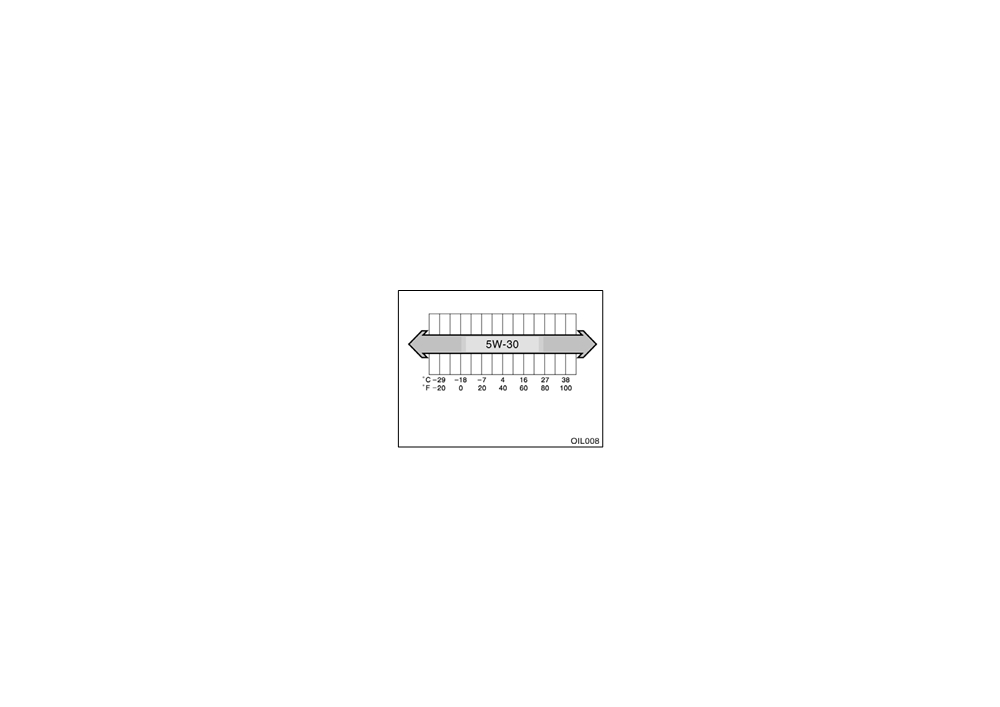

Recommended oil viscosity:

“Toyota Super Long Life Coolant” is

NGK

BKR5EYA

used in your Toyota vehicle at factory

SAE 5W−30

Spark plug gap, mm(in.):

fill. In order to avoid technical problems,

0.8

(0.031)

only use

“Toyota Super Long Life

Coolant” or similar high quality ethylene

Drive belt tension measured with Boroughs

glycol based non−silicate, non−amine,

drive belt tension gauge No. BT−33−73F

non−nitrite, and non−borate coolant with

(used belt), lbf:

long−life hybrid organic acid technology.

Generator belt

100

20

(Coolant with long−life hybrid organic

Power steering pump belt

65

10

acid technology is a combination of low

ENGINE LUBRICATION

phosphates and organic acids.)

Oil capacity

(drain and refill), L

(qt., Imp.

Do not use plain water alone.

Outside temperature

qt.):

Please contact your Toyota dealer for

With filter

3.7 (3.9, 3.3)

further details.

Without filter

3.4 (3.6, 3.0)

BATTERY

“Toyota Genuine Motor Oil” is used in

Open voltage∗ at 20_C (68_F):

your Toyota vehicle. Use Toyota approved

12.6—12.8 V Fully charged

“Toyota Genuine Motor Oil” or equivalent

12.2—12.4 V Half charged

to satisfy the following grade and viscos-

11.8—12.0 V Discharged

ity.

∗: Voltage that is checked

20 minutes af-

ter the key is removed with all the lights

turned off

Charging rates:

5 A max.

249

2005 ECHO from Aug. ’04 Prod. (OM52636U)

CLUTCH

Generally, it is necessary to change

BRAKES

automatic transmission fluid only if your

Pedal free play, mm (in.):

Minimum pedal clearance when depressed

vehicle is driven under one of the Special

5—15 (0.2—0.6)

with the pressure of

490 N (50 kgf,

110

Operating Conditions listed in your

lbf) with the engine running, mm (in.):

Fluid type:

“Scheduled

Maintenance

Guide”

or

55 (2.2)

SAE J1703 or FMVSS No. 116 DOT 3

“Owner’s Manual Supplement”. When

Pedal free play, mm (in.):

MANUAL TRANSAXLE

changing the automatic transmission fluid,

1—6 (0.04—0.24)

use only “Toyota Genuine ATF Type T−IV”

Oil capacity, L (qt., Imp. qt.):

(ATF JWS3309 or NWS6500) to aid in

Pad wear limit, mm (in.):

1.9 (2.0, 1.7)

assuring optimum transaxle performance.

1.0

(0.04)

Oil type:

Notice: Using automatic transmission

Lining wear limit, mm (in.):

Gear oil API GL−4 or GL−5

fluid other than

“Toyota Genuine ATF

1.0

(0.04)

Recommended oil viscosity:

Type T−IV” may cause deterioration in

Parking brake adjustment when pulled with

SAE 75W−90

shift quality, locking up of your trans-

the force of 196 N (20 kgf, 44 lbf):

AUTOMATIC TRANSAXLE

mission accompanied by vibration, and

6—9 clicks

ultimately damage the automatic trans-

Fluid capacity

(drain and refill), L

(qt.,

Fluid type:

mission of your vehicle.

Imp. qt.):

2.9 (3.1, 2.6)

SAE J1703 or FMVSS No. 116 DOT 3

Fluid type:

STEERING

Toyota Genuine ATF Type T−IV

Wheel free play:

Change automatic transmission fluid only

Less than 30 mm (1.2 in.)

as necessary.

Power steering fluid type:

Automatic transmission fluid DEXRONrII

or III

250

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Tires

Tire size and cold tire inflation pressure:

Except spare tire

kPa (kgf/cm2 or bar, psi)

Tire size

Front

Rear

Wheel size

P175/65R14 81S

220 (2.2, 32)

220 (2.2, 32)

14 x 5 1/2J, 14 x 5 1/2JJ

P185/60R15 84T

220 (2.2, 32)

220 (2.2, 32)

15 x 5J

Spare tire

Tire size

Tire inflation pressure kPa (kgf/cm2 or bar, psi)

Wheel size

T115/70D14∗1

420

(4.2,

60)

14 x 4T

T125/70D16∗2

420

(4.2,

60)

16 x 4T

∗1: With P175/65R14 81S tires

∗2: With P185/60R15 84T tires

Wheel nut torque, N·m (kgf·m, ft·Ibf):

103 (10.5, 76)

NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pres-

sure” through “Aluminum wheel precautions”, page 227 through 235 in Section 7−2.

251

2005 ECHO from Aug. ’04 Prod. (OM52636U)

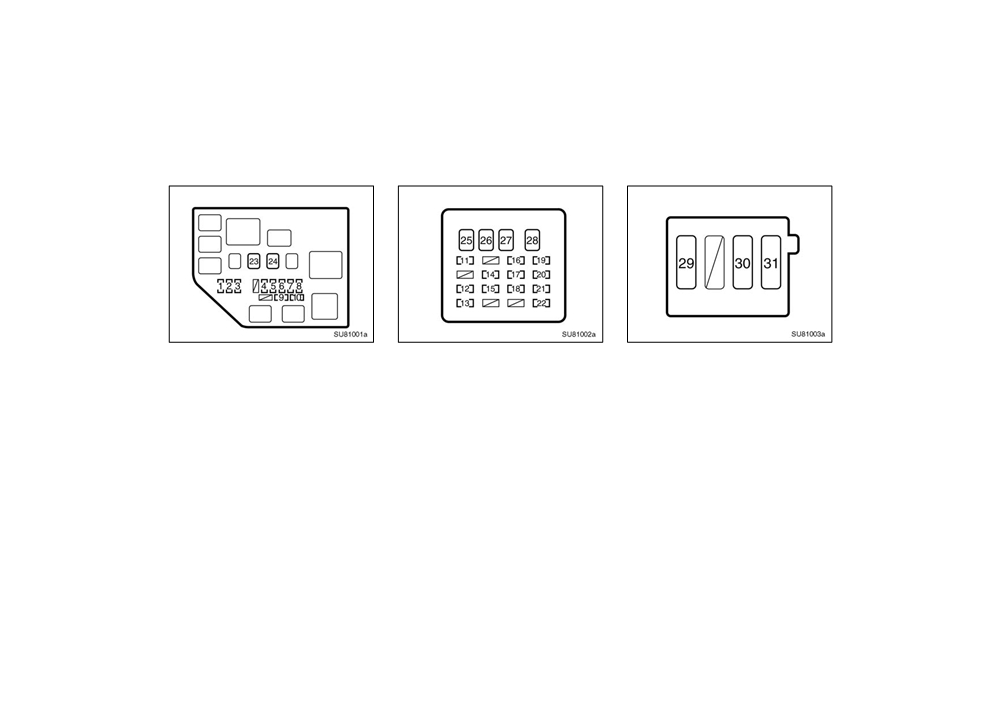

Fuses

Engine compartment

Instrument panel

Engine compartment

Fuses (type A)

7. EFI

15 A: Multiport fuel injection sys-

14. WIPER

20 A: Windshield wipers and

tem/sequential multiport fuel injection

washer

1. P/POINT 15 A: No circuit

system

15. ECU−IG 7.5 A: Anti−lock brake system,

2. H−LP RH/H−LP LO RH 10 A: Right−

8. DOME

15 A: Clock, audio, interior

electric cooling fan

hand headlight

light, gauges of meters, wireless re-

16. D/L 25 A: Power door lock system

3. H−LP LH/H−LP LO LH

10 A: Left−

mote control system

hand headlight

17. ECU−B 7.5 A: SRS airbag system

9. SPARE 15 A: Spare

4. ST 30 A: Starter system

18. OBD 7.5 A: On−board diagnosis sys-

10. SPARE 30 A: Spare

tem

5. AM2 15 A: Starter system, SRS airbag

11. GAUGE 10 A: Back−up lights, charging

system, multiport fuel injection sys-

19. TAIL

10 A: Tail lights, parking lights,

system, air conditioning system, power

tem/sequential multiport fuel injection

license plate lights, audio, illuminations

window system, gauges of meters

system, discharge warning system

20. FOG 15 A: Front fog lights

12. ACC

15 A: Clock, audio, cigarette

6. HORN 15 A: Horn

lighter

13. A.C 7.5 A: Air conditioning system

252

2005 ECHO from Aug. ’04 Prod. (OM52636U)

21. HAZ 10 A: Turn signal lights, emergen-

cy flashers

22. STOP 10 A: Stop lights, high mounted

stop light, anti−lock brake system, shift

lock system, multiport fuel injection

system/sequential multiport fuel injec-

tion system

Fuses (type B)

23. HTR SUB1 50 A: Air conditioning sys-

tem (PTC 1)

24. RDI 30 A: Electric cooling fan

25. AM1 40 A: “ACC”, “GAUGE”, “WIPER”,

and “ECU−IG” fuses

26. POWER 30 A: Power windows

27. HTR 40 A: Air conditioning system

28. DEF 30 A: Rear window defogger sys-

tem.

Fuses (type C)

29. MAIN

60 A:

“EFI”,

“DOME”,

“HORN”,

“ST”,

“AM2”,

“H−LP LH”, and

“H−LP

RH” fuse

30. ALT

100 or

120 A:

“ECU−B”,

“TAIL”,

“D/L”,

“OBD”,

“A.C”,

“HTR”,

“POWER”,

“STOP” and “FL DEF” fuses

31. ABS 60 A: Anti−lock brake system

253

2005 ECHO from Aug. ’04 Prod. (OM52636U)

254

2005 ECHO from Aug. ’04 Prod. (OM52636U)

SECTION 9

REPORTING SAFETY DEFECTS FOR U.S.

OWNERS

Reporting safety defects for U.S. owners

Reporting safety defects for U.S. owners

256

255

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Reporting safety defects for

U.S. owners

If you believe that your vehicle

To contact NHTSA, you may either

has a defect which could cause a

call the Auto Safety Hotline toll−

crash or could cause injury or

free

at

1−800−424−9393

(or

death, you should immediately in-

366−0123 in Washington,D.C. area)

form the National Highway Traffic

or write to: NHTSA, U.S.Depart-

Safety Administration (NHTSA) in

ment of Transportation, Washing-

addition to notifying Toyota Motor

ton,D.C.

20590. You can also ob-

Sales, U.S.A., Inc.

tain other information about motor

(Toll−free: 1−800−331−4331).

vehicle safety from the Hotline.

If NHTSA receives similar com-

plaints, it may open an investiga-

tion, and if it finds that a safety

defect exists in a group of ve-

hicles, it may order a recall and

remedy campaign. However,

NHTSA cannot become involved

in individual problems between

you, your dealer, or Toyota Motor

Sales, U.S.A., Inc.

256

2005 ECHO from Aug. ’04 Prod. (OM52636U)

U −6

Quick index

D If a service reminder indicator or warning buzzer comes on

90

D If your vehicle will not start

180

D If your engine stalls while driving

183

D If your vehicle overheats

183

D If you have a flat tire

184

D If your vehicle needs to be towed

195

D Tips for driving during break-in period

146

D How to start the engine

172

D General maintenance

209

D Complete index

NO TAG

Gas station information

Fuel type:

UNLEADED gasoline, Octane Rating 87 (Research Octane Number 91)

or higher

See page 146 for detailed information.

Fuel tank capacity:

45 L (11.9 gal., 9.9 lmp.gal.)

Engine oil:

API grade SL “Energy−Conserving” or ILSAC

multigrade engine oil is recommended.

See page 222 for detailed information.

Tire information: See pages 227 through 235.

Tire inflation pressure: See page 251.

Publication No. OM52636U

Part No. 01999-52636

Printed in Japan 01−0408−00

I

2005 ECHO from Aug. ’04 Prod. (OM52636U)

You should know as much about the quality and

importance of proper maintenance of your new

vehicle as the people who built it.

The Toyota authorized Repair Manual

tells you how to maintain your vehicle and

enables you to correctly perform your own

maintenance.

The best way to keep your new vehicle in top

running order is to maintain it properly from

the moment you drive it off the showroom

floor.

The Toyota authorized Repair Manual is

packed with literally everything you need to

know to perform your own maintenance in

virtually every area of your new vehicle.

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Maintenance procedures for the engine,

chassis, body, electrical system, and more,

are clearly explained and illustrated.

Periodic maintenance and tune−up

Where to obtain the

Periodic maintenance and tune−up helps to pre-

Repair Manual

vent small problems from growing into larger ones lat-

er on. The repair manual outlines exactly what main-

tenance is required and clearly explains how to do the

The repair manual for ECHO, written in Eng-

work yourself step−by−step.

lish, may be purchased as applicable from any

Areas covered include such things as spark plug re-

Toyota dealer.

placement, valve clearance adjustment and engine oil

Pub. Name: 2005 ECHO Repair Manual

and filter replacement.

Pub. No.: RM1119U1

RM1119U2

2005 ECHO from Aug. ’04 Prod. (OM52636U)

WE REALLY CARE ABOUT YOU Ċ PLEASE BUCKLE UP

Toyota has made a special effort to encourage use of seat belts.

Toyota belts are:

D Comfortable

D Easy to use

D Convenient

We encourage you to use your belts every time you drive.

2005 ECHO from Aug. ’04 Prod. (OM52636U)

U
