Foreword
Welcome to the growing group of value−conscious people who drive Toyotas. We are proud of the advanced engineering and
quality construction of each vehicle we build.
This Owner’s Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants
follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble−free motoring. For
important information about this manual and your Toyota, read the following pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle very well and is interested in your complete
satisfaction. Your Toyota dealer will provide quality maintenance and any other assistance you may require.
If there is not a Toyota dealer near you, or you need emergency assistance for any reason, please call the following number:
D U.S. OWNERS:
Toyota Customer Assistance Center
Toll−free:1−800−331−4331
D CANADIAN OWNERS: Toyota Canada Customer Interaction Centre
Toll−free:1−888−TOYOTA−8 (1−888−869−6828)
Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of Toyota’s policy of
continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may
find some explanations for equipment not installed on your vehicle.
© 2004 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota
Motor Corporation.
2005 ECHO from Aug. ’04 Prod. (OM52636U)
i
Important information about this manual
Safety and vehicle damage warnings
Safety symbol
Throughout this manual, you will see safety and vehicle
damage warnings. You must follow these warnings carefully
to avoid possible injury or damage.
The types of warnings, what they look like, and how they
are used in this manual are explained as follows.
CAUTION
This is a warning against anything which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to reduce the risk of injury to yourself and
others.
When you see the safety symbol
shown above, it means:
“Do not...”;
“Do not do this”; or
“Do not let this
NOTICE
happen”.
This is a warning against anything which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed about what you must or
must not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
ii
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Important information about your Toyota
The purpose of all occupant restraint systems is to help
Occupant restraint systems
reduce the possibility of death or serious injury in the
Toyota encourages you and your family to take the time
event of a collision. None of these systems, either indi-
to read Section 1−3 of this Owner’s Manual carefully. In
vidually or together, can ensure that there is no injury in
terms of helping you understand how you can receive
the event of collision. However, the more you know
the maximum benefit of the occupant restraint systems
about these systems and how to use them properly, the
this vehicle provides, Section 1−3 of this Owner’s Manu-
greater your chances become of surviving an accident
al is the most important section for you and your family
without death or serious injury.
to read.
Seat belts provide the primary restraint to all occupants
Section
1−3 describes the function and operation con-
of the vehicle, and every occupant of the vehicle should
cerning seats, seat belts, SRS airbags and child re-
wear seat belts properly at all times. Children should
straint systems of this vehicle and some potential haz-
always be secured in child restraint systems that are
ards you should be aware of. These systems work to-
appropriate for their age and size. SRS
(Supplemental
gether along with the overall structure of this vehicle in
Restraint System) airbags are, as their names imply,
order to provide occupant restraint in the event of a
designed to work with, and be supplemental to, seat
crash. The effect of each system is enhanced when it is
belts and are not substitutes for them. SRS airbags can
used properly and together with other systems. No
be very effective in reducing the risk of head and chest
single occupant restraint system can, by itself, provide
injuries by preventing contact of the head and chest with
you or your family with the equal level of restraint which
interior portions of the vehicle.
these systems can provide when used together. That is
why it is important for you and your family to under-
stand the purpose and proper use of each of these
systems and how they relate to each other.
iii
2005 ECHO from Aug. ’04 Prod. (OM52636U)
In order to be effective, the SRS airbags must deploy
New vehicle warranty
with tremendous speed. The rapid deployment of the
SRS airbags makes the SRS airbags themselves poten-
Your new vehicle is covered by the following Toyota
tial sources of serious injury if an occupant is too close
limited warranties:
to an airbag, or if an object or some part of his or her
D New vehicle warranty
body has been placed between the occupant and the
D Emission control systems warranty
airbag at the time of deployment. This is just one exam-
D Others
ple of how the instructions in Section
1−3 of this Own-
er’s Manual will help ensure proper use of the occupant
For further information, please refer to the
“Owner’s
restraint systems, and increase the safety they can pro-
Warranty Information Booklet” or
“Owner’s Manual
vide to you and your family in the event of an accident.
Supplement”.
Toyota recommends you to read the provisions in Sec-
tion
1−3 carefully and refer to them as needed during
your time of ownership of this vehicle.
Your responsibility for
maintenance
It is the owner’s responsibility to make sure that the
specified maintenance is performed. Section
6 gives de-
tails of these maintenance requirements. Also included
in Section
6 is general maintenance. For scheduled
maintenance information, please refer to the
“Scheduled
Maintenance Guide” or “Owner’s Manual Supplement”.
iv
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Important health and safety
Accessories, spare parts and
information about your Toyota
modification of your Toyota
A wide variety of non−genuine spare parts and accesso-
CAUTION
ries for Toyota vehicles are currently available in the
market. You should know that Toyota does not warrant
D WARNING: Engine exhaust, some of its constitu-
these products and is not responsible for their perfor-
ents, and a wide variety of automobile compo-
mance, repair, or replacement, or for any damage they
nents contain or emit chemicals known to the
State of California to cause cancer and birth de-
may cause to, or adverse effect they may have on,
fects and other reproductive harm. In addition,
your Toyota vehicle.
oils, fuels and fluids contained in vehicles as
This vehicle should not be modified with non−genuine
well as waste produced by component wear con-
Toyota products. Modification with non−genuine Toyota
tain or emit chemicals known to the State of
products could affect its performance, safety or durabili-
California to cause cancer and birth defects or
other reproductive harm.
ty, and may even violate governmental regulations. In
addition, damage or performance problems resulting from
D Battery posts, terminals and related accessories
contain lead and lead compounds. Wash your
the modification may not be covered under warranty.
hands after handling. Used engine oil contains
chemicals that have caused cancer in laboratory
animals. Always protect your skin by washing
thoroughly with soap and water.
v
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Spark ignition system of your
Tires and loading on your Toyota
Toyota
Underinflated or overinflated tire inflation pres-
sure and the excess load may result in the
The spark ignition system in your Toyota meets all re-
deterioration of steering ability and braking abil-
quirements of the Canadian Interference−Causing Equip-
ity, leading to an accident. Check the tire infla-
ment Standard.
tion pressure periodically and be sure to keep
the load limits given in this Owner’s Manual.
For details about tire inflation pressure and
load limits, see pages
227 and 167.
Installation of a mobile
two−way radio system
As the installation of a mobile two−way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, anti−lock brake system, SRS airbag
system and seat belt pretensioner system, be sure to
check with your Toyota dealer for precautionary mea-
sures or special instructions regarding installation.
vi
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in
your Toyota contain explosive chemicals. If the vehicle
is scrapped with the airbags and pretensioners left as
they are, it may cause an accident such as a fire. Be
sure to have the systems of the SRS airbag and seat
belt pretensioner removed and disposed of by the quali-
fied service shop or by your Toyota dealer before you
dispose of your vehicle.
vii
2005 ECHO from Aug. ’04 Prod. (OM52636U)
viii
2005 ECHO from Aug. ’04 Prod. (OM52636U)
SECTION 1− 1
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview
2
Instrument cluster overview
4
Indicator symbols on the instrument panel
7
1
2005 ECHO from Aug. ’04 Prod. (OM52636U)

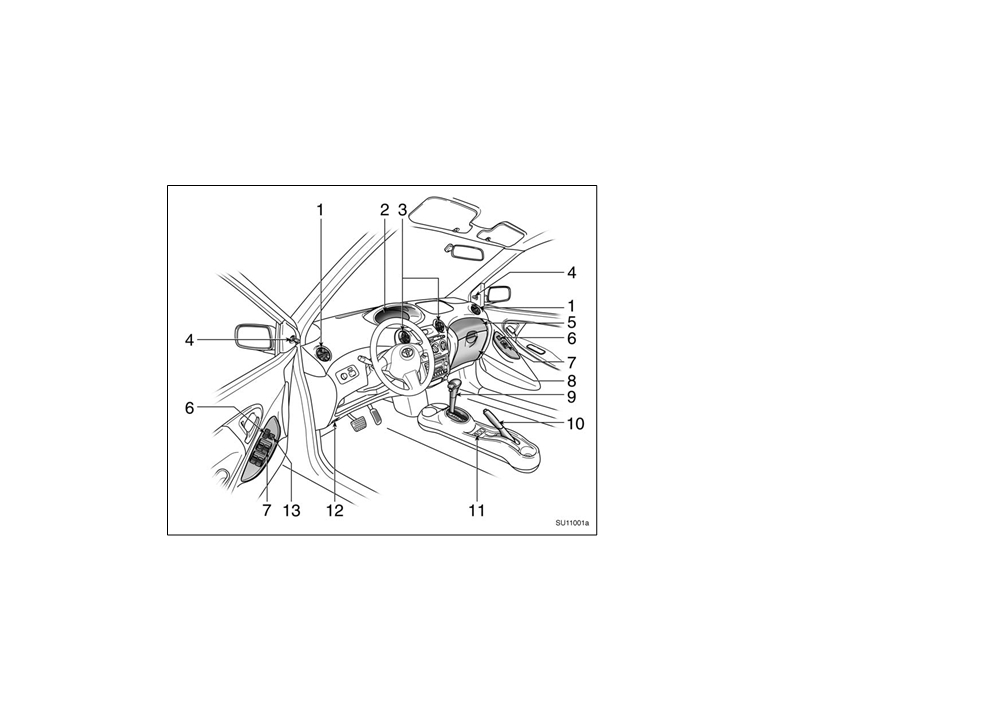

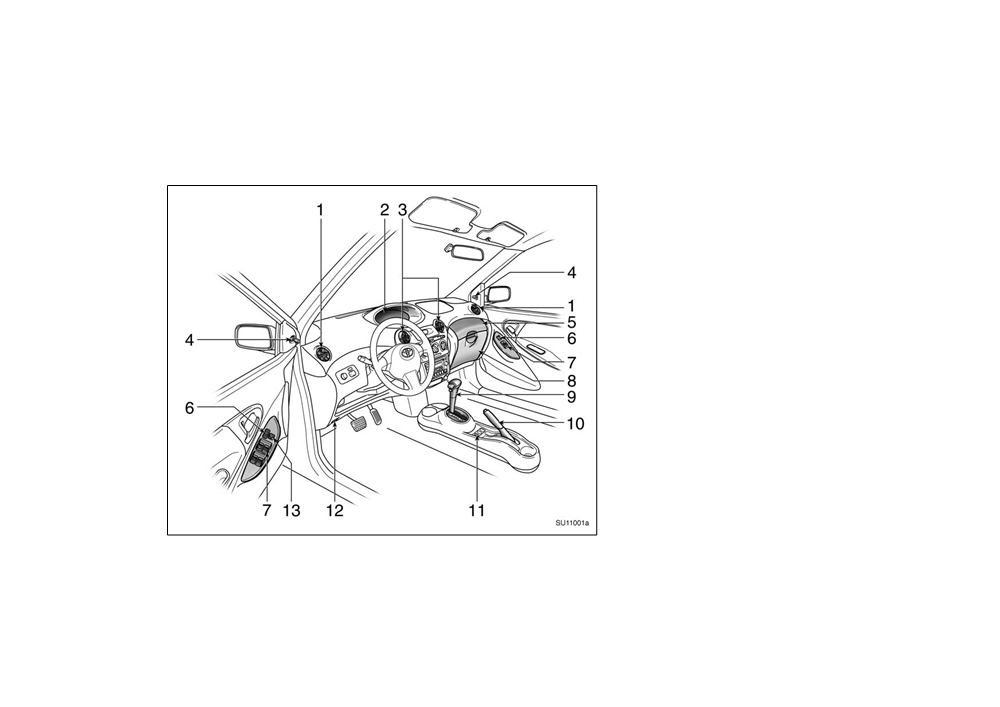

Instrument panel overview
1.
Side vents
2.
Instrument cluster
3.
Center vents
4.
Rear view mirror remote control levers
5.
Auxiliary box
6.
Power door lock switches
(with power windows)
7.
Power window switches
8.
Glove box
9.
Automatic transmission selector lever or
manual transmission gear shift lever
10.
Parking brake lever
11.
Power door lock switch
(without power windows)
12.
Hood lock release lever
13.
Window lock switch
2
2005 ECHO from Aug. ’04 Prod. (OM52636U)

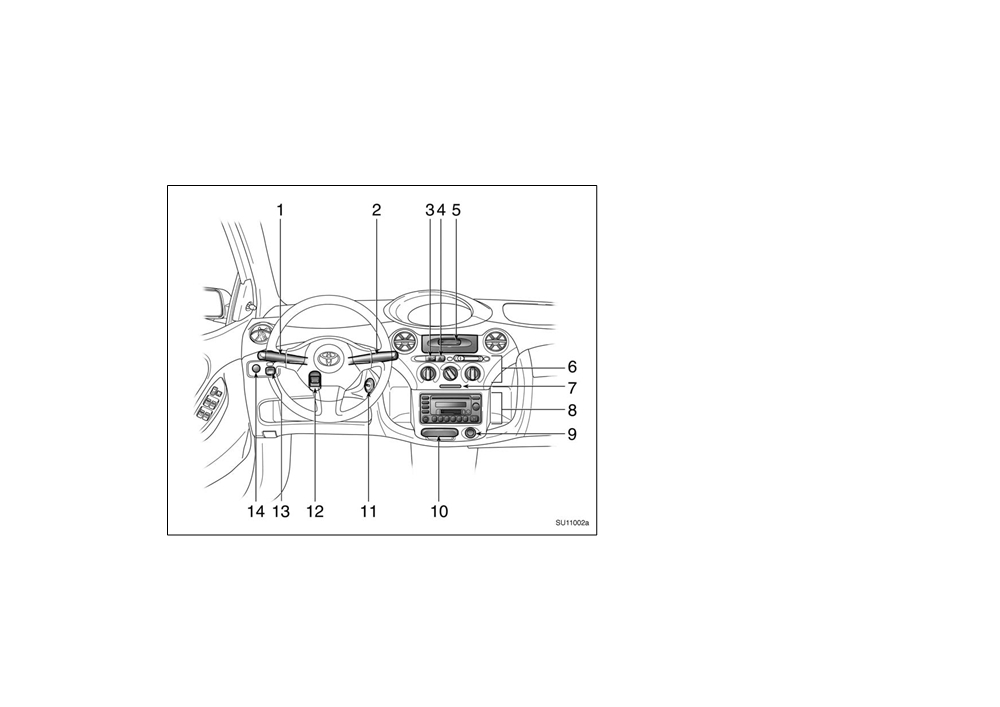

1. Headlight and turn signal switches
2. Wiper and washer switches
3. Rear window defogger switch
4. Emergency flasher switch
5. Clock
6. Air conditioning controls
7. Security indicator light/Front passen-
ger’s seat belt reminder light
8. Audio system
9. Cigarette lighter/Power outlet
10. Ashtray/Coin box
11. Ignition switch
12. Tilt steering lock release lever
13. Power rear view mirror control switches
14. Instrument panel light control knob
3
2005 ECHO from Aug. ’04 Prod. (OM52636U)

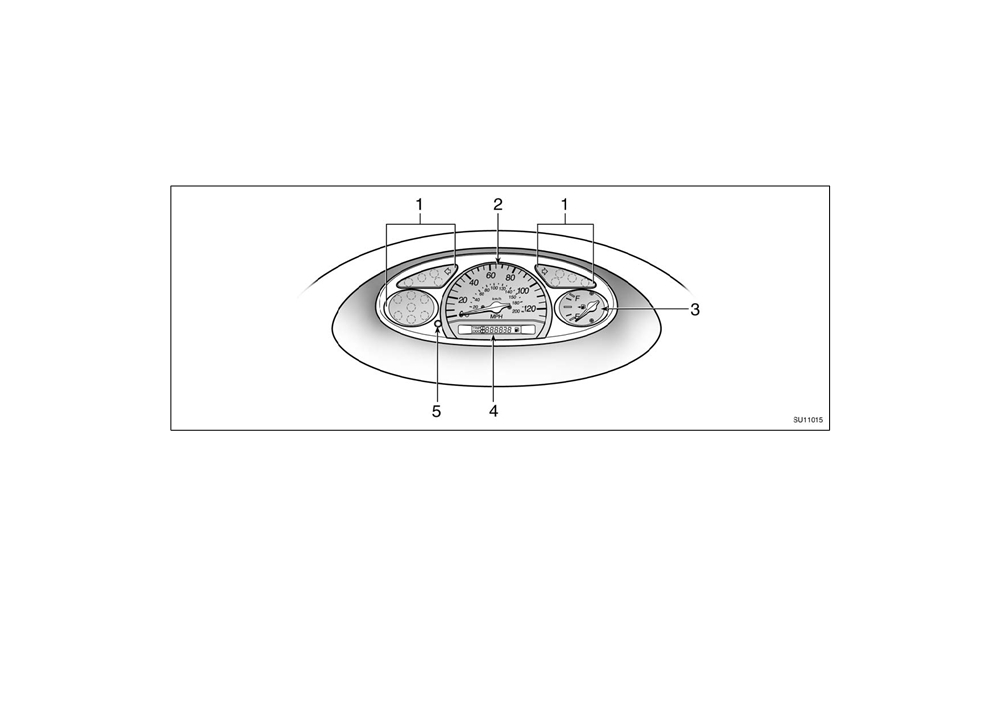

Instrument cluster overview
"Type A
1. Service reminder indicators and
3. Fuel gauge
5. Trip meter reset knob
indicator lights
4. Odometer and two trip meters
2. Speedometer
4
2005 ECHO from Aug. ’04 Prod. (OM52636U)
"Type B
1. Service reminder indicators and
3. Fuel gauge
5. Trip meter reset knob
indicator lights
4. Odometer and two trip meters
2. Speedometer
5
2005 ECHO from Aug. ’04 Prod. (OM52636U)

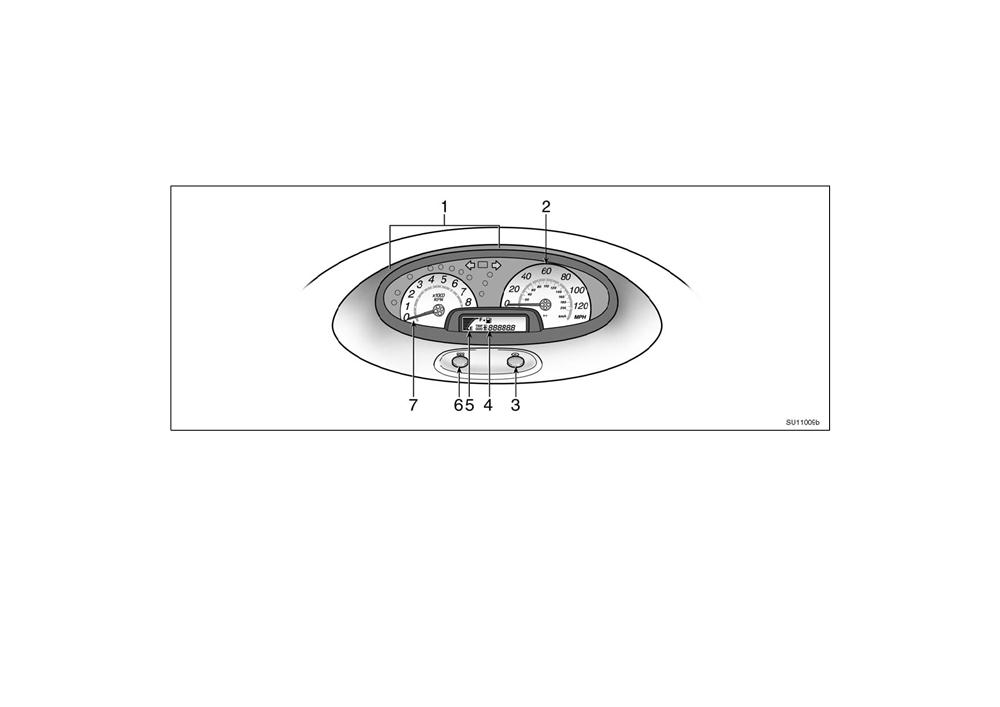

"Type C
1. Service reminder indicators and
4. Odometer and two trip meters
6. Trip meter reset button
indicator lights
5. Fuel gauge
7. Tachometer
2. Speedometer
3. Extinction canceling button
6
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Indicator symbols on the instrument panel
or
Low fuel level warning light∗1
(type A)
Brake system warning light∗1
Low fuel level indicator light∗1
(type B)
Driver’s seat belt reminder light∗1
Low windshield washer fluid level warning light∗1
Front passenger’s seat belt reminder light∗1
Discharge warning light∗1
Turn signal indicator lights
Malfunction indicator lamp∗1
Headlight high beam indicator light
Low engine oil pressure warning light∗1
Overdrive−off indicator light
or
Low engine coolant temperature indicator light
Anti-lock brake system warning light∗1
(in blue)∗2
High engine coolant temperature warning light
(in red)∗1
Open door warning light∗1
∗1:
For details, see “Service reminder indicators and warning
buzzers” on page 90 in Section 1−6.
SRS warning light∗1
∗2:
For details, see “Engine coolant temperature indicator and
warning light” on page 87 in Section 1−6.
7
2005 ECHO from Aug. ’04 Prod. (OM52636U)
8
2005 ECHO from Aug. ’04 Prod. (OM52636U)
|
|
|
