4-3. Operating the lights and wipers

255

■The rear window wiper and washer can be operated when

● The power switch is in ON mode.

● The glass hatch is closed.

■If no washer fluid sprays

Check that the washer nozzle is not blocked if there is washer fluid in the

washer fluid reservoir.

NOTICE

■ When the rear window is dry

Do not use the wiper, as it may damage the rear window.

■ When the washer fluid tank is empty

Do not operate the switch continually as the washer fluid pump may over-

heat.

■ When a nozzle becomes blocked

In this case, contact your Toyota dealer.

4

Do not try to clear it with a pin or other object. The nozzle will be damaged.

HIGHLANDER_HV_U (OM0E032U)

256

4-4. Refueling

Opening the fuel tank cap

The fuel tank of your vehicle has a special structure, which

requires a reduction in fuel tank pressure before refueling. After

the opener switch has been pressed, it will take several seconds

until the vehicle is ready for refueling.

Before refueling the vehicle

● Turn the power switch off and ensure that all the doors and win-

dows are closed.

● Confirm the type of fuel.

■Fuel types

→P. 650

■Fuel tank opening for unleaded gasoline

To help prevent incorrect fueling, your vehicle has a fuel tank opening that

only accommodates the special nozzle on unleaded fuel pumps.

HIGHLANDER_HV_U (OM0E032U)

4-4. Refueling

257

WARNING

■ When refueling the vehicle

Observe the following precautions while refueling the vehicle. Failure to do

so may result in death or serious injury.

● After exiting the vehicle and before opening the fuel door, touch an

unpainted metal surface to discharge any static electricity. It is important to

discharge static electricity before refueling because sparks resulting from

static electricity can cause fuel vapors to ignite while refueling.

● Always hold the grips on the fuel tank cap and turn it slowly to remove it.

A whooshing sound may be heard when the fuel tank cap is loosened.

Wait until the sound cannot be heard before fully removing the cap. In hot

weather, pressurized fuel may spray out the filler neck and cause injury.

● Do not allow anyone that has not discharged static electricity from their

body to come close to an open fuel tank.

● Do not inhale vaporized fuel.

Fuel contains substances that are harmful if inhaled.

4

● Do not smoke while refueling the vehicle.

Doing so may cause the fuel to ignite and cause a fire.

● Do not return to the vehicle or touch any person or object that is statically

charged.

This may cause static electricity to build up, resulting in a possible ignition

hazard.

■ When refueling

Observe the following precautions to prevent fuel overflowing from the fuel

tank:

● Securely insert the fuel nozzle into the fuel filler neck.

● Stop filling the tank after the fuel nozzle automatically clicks off.

● Do not top off the fuel tank.

NOTICE

■Refueling

● Finish refueling within 30 minutes. If more than 30 minutes passes, the

internal valve closes. In this condition, fuel may spill out if you continue to

refuel the vehicle. About 5 minutes after the valve is closed, a message

“Close Fuel Lid” will appear on the multi-information display. To refuel the

vehicle again, tighten the fuel tank cap and close the fuel filler door, and

then press the opener switch again.

● Do not spill fuel during refueling.

Doing so may damage the vehicle, such as causing the emission control

system to operate abnormally or damaging fuel system components or the

vehicle’s painted surface.

HIGHLANDER_HV_U (OM0E032U)

258

4-4. Refueling

Opening the fuel tank cap

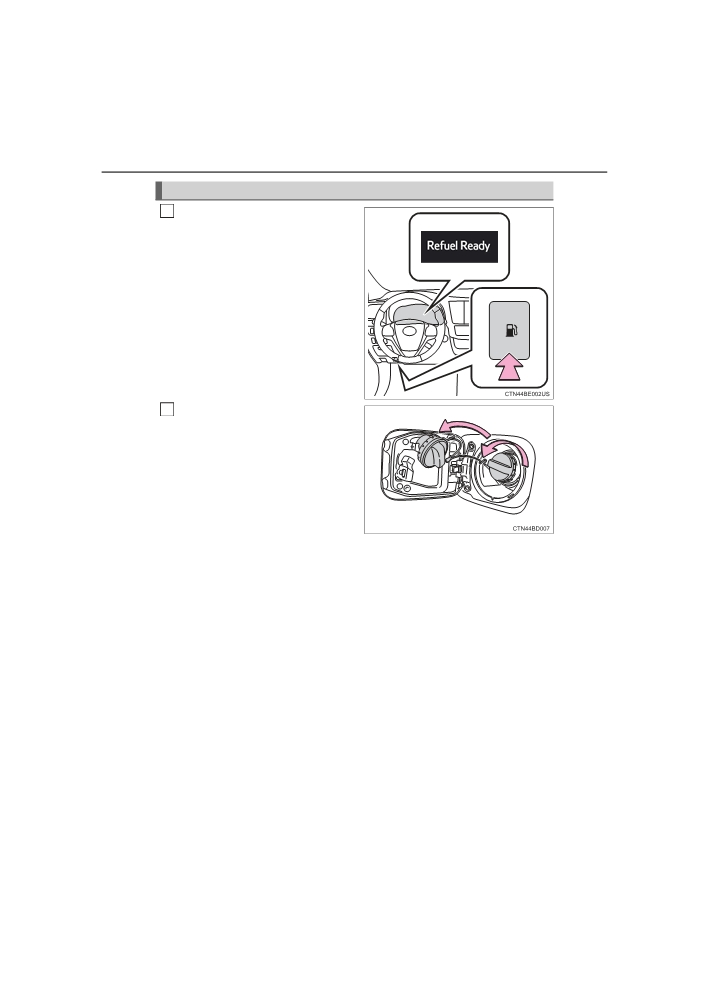

Press the opener switch.

1

When the message “Refuel Ready”

appears, the fuel filler door will

open.

Turn the fuel tank cap slowly to

2

remove it and hang it on the

back of the fuel filler door.

HIGHLANDER_HV_U (OM0E032U)

4-4. Refueling

259

■ Message displays

Message illustrations used in this section are intended as examples, and may

differ from the image that is actually displayed on the multi-information dis-

play.

■ If the fuel filler door does not open and a “Please Wait Now Opening”

message appears on the multi-information display

Fuel tank pressure is being reduced. The fuel filler door will open within about

10 seconds of the switch being pressed.

■ When the fuel filler door cannot be opened by pressing the inside switch

If the fuel filler door opener switch cannot be operated, contact your Toyota

dealer. In the event that urgent refueling is required, follow the procedure

below.

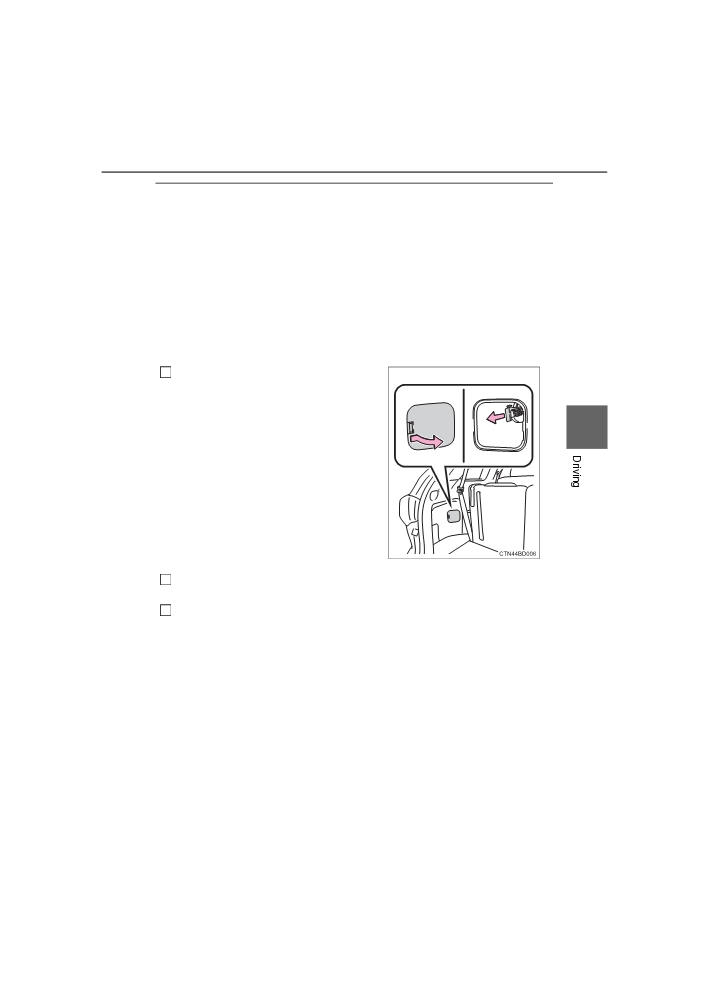

Open the fuel filler door using the lever

1

in the luggage compartment.

4

Remove the cap slowly. Take care to prevent fuel from spilling out, as fuel

2

tank pressure may not have been adequately reduced.

Fill the fuel tank carefully and slowly. Use caution, as air being discharged

3

from inside the fuel tank may cause fuel to spray out from the filler opening

during refueling.

HIGHLANDER_HV_U (OM0E032U)

260

4-4. Refueling

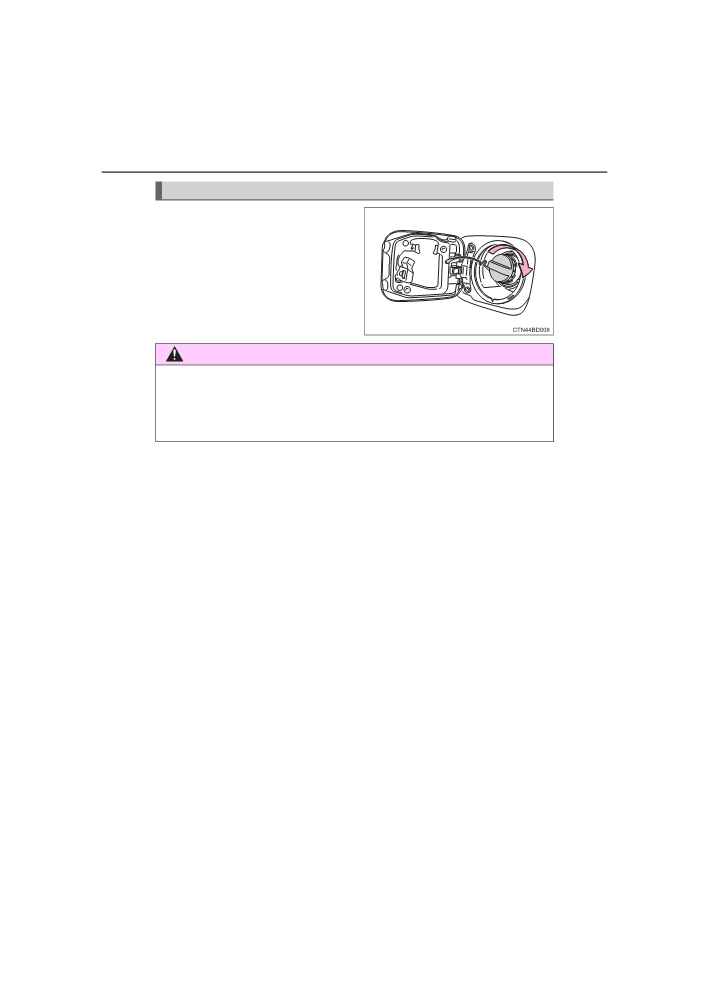

Closing the fuel tank cap

After refueling, turn the fuel tank

cap until you hear a click. Once

the cap is released, it will turn

slightly in the opposite direction.

WARNING

■ When replacing the fuel tank cap

Do not use anything but a genuine Toyota fuel tank cap designed for your

vehicle. Doing so may cause a fire or other incident which may result in

death or serious injury.

HIGHLANDER_HV_U (OM0E032U)

4-5. Using the driving support systems

261

Toyota Safety Sense P

The Toyota Safety Sense P consists of the following drive assist

systems and contributes to a safe and comfortable driving expe-

rience:

◆ PCS (Pre-Collision System)

→P. 268

◆ LDA (Lane Departure Alert with steering control)

→P. 282

◆ Automatic High Beam

→P. 245

4

◆ Dynamic radar cruise control

→P. 292

WARNING

■ Toyota Safety Sense P

The Toyota Safety Sense P is designed to operate under the assumption

that the driver will drive safely, and is designed to help reduce the impact to

the occupants and the vehicle in the case of a collision or assist the driver in

normal driving conditions.

As there is a limit to the degree of recognition accuracy and control perfor-

mance that this system can provide, do not overly rely on this system. The

driver is always responsible for paying attention to the vehicle's surround-

ings and driving safely.

HIGHLANDER_HV_U (OM0E032U)

262

4-5. Using the driving support systems

Vehicle data recording

The pre-collision system is equipped with a sophisticated computer

that will record certain data, such as:

•

Accelerator status

•

Brake status

•

Vehicle speed

•

Operation status of the pre-collision system functions

•

Information (such as the distance and relative speed between your

vehicle and the vehicle ahead or other objects)

•

Images from the camera sensor (available only when the pre-colli-

sion braking function or the pre-collision brake assist function was

operating)

The pre-collision system does not record conversations, sounds or

images of the inside of the vehicle.

● Data usage

Toyota may use the data recorded in this computer to diagnose

malfunctions, conduct research and development, and improve

quality.

Toyota will not disclose the recorded data to a third party except:

• With the consent of the vehicle owner or with the consent of the

lessee if the vehicle is leased

• In response to an official request by the police, a court of law or a

government agency

• For use by Toyota in a lawsuit

• For research purposes where the data is not tied to a specific

vehicle or vehicle owner

● Recorded images can be erased using a specialized device.

The image recording function can be disabled. However, if the func-

tion is disabled, data from when the pre-collision system operates

will not be available.

HIGHLANDER_HV_U (OM0E032U)

4-5. Using the driving support systems

263

Sensors

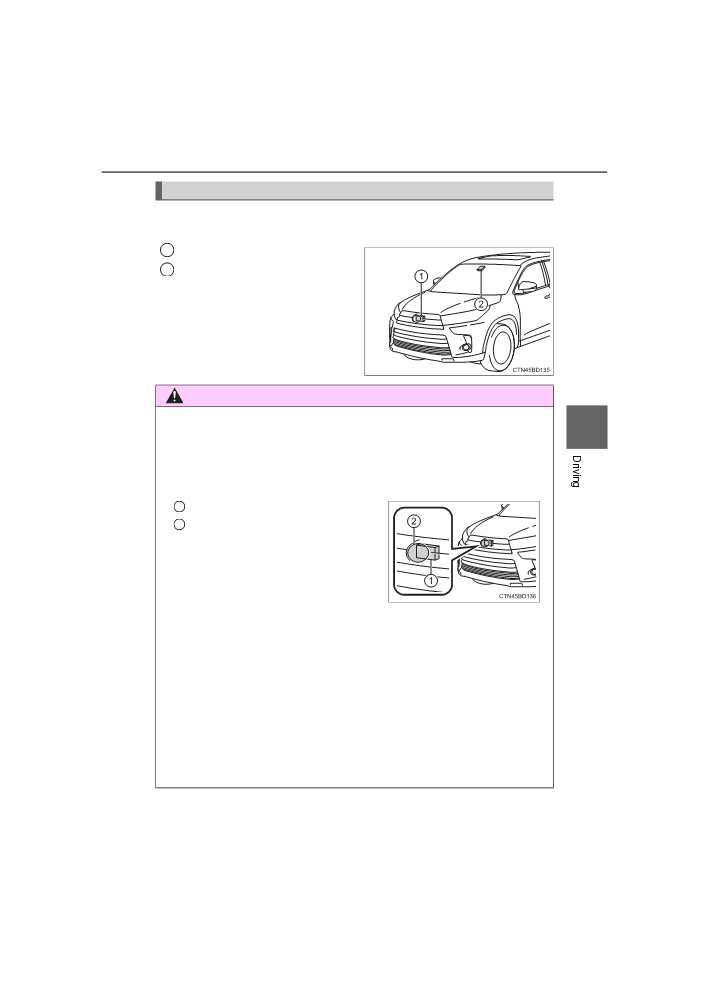

Two types of sensors, located behind the front grille and windshield,

detect information necessary to operate the drive assist systems.

1

Radar sensor

2

Camera sensor

WARNING

■ To avoid malfunction of the radar sensor

4

Observe the following precautions.

Otherwise, the radar sensor may not operate properly, possibly leading to

an accident resulting in death or serious injury.

● Keep the radar sensor and front grille emblem clean at all times.

1

Radar sensor

2

Front grille emblem

If the front of the radar sensor or the

front or back of the front grille emblem

is dirty or covered with water droplets,

snow, etc., clean it.

Clean the radar sensor and front grille

emblem with a soft cloth so you do not

mark or damage them.

● Do not attach accessories, stickers (including transparent stickers) or

other items to the radar sensor, front grille emblem or surrounding area.

● Do not subject the radar sensor or surrounding area to a strong impact.

If the radar sensor, front grille, or front bumper has been subjected to a

strong impact, have the vehicle inspected by your Toyota dealer.

● Do not disassemble the radar sensor.

● Do not modify or paint the radar sensor, front grille emblem or surrounding

area.

● If the radar sensor, front grille, or front bumper needs to be removed and

installed, or replaced, contact your Toyota dealer.

HIGHLANDER_HV_U (OM0E032U)

264

4-5. Using the driving support systems

WARNING

■ To avoid malfunction of the camera sensor

Observe the following precautions.

Otherwise, the camera sensor may not operate properly, possibly leading to

an accident resulting in death or serious injury.

● Keep the windshield clean at all times.

• If the windshield is dirty or covered with an oily film, water droplets,

snow, etc., clear the windshield.

• If a glass coating agent is applied to the windshield, it will still be neces-

sary to use the windshield wipers to remove water droplets, etc. from

the area of the windshield in front of the camera sensor.

• If the inner side of the windshield where the camera sensor is installed

is dirty, contact your Toyota dealer.

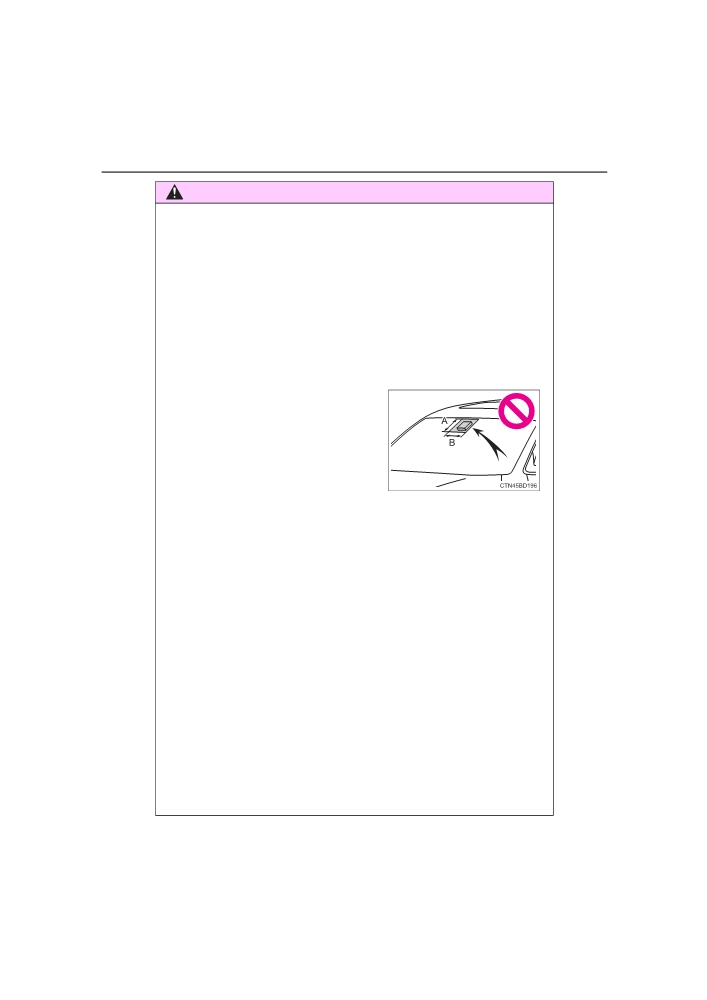

● Do not attach objects, such as stickers,

transparent stickers, etc., and so forth,

to the outer side of the windshield in

front of the camera sensor

(shaded

area in the illustration).

A: From the top of the windshield to

approximately 0.4 in. (1 cm) below

the bottom of the camera sensor

B: Approximately

7.9 in.

(20 cm)

(Approximately 4.0 in. (10 cm) to the

right and left from the center of the

camera sensor)

● If the part of the windshield in front of the camera sensor is fogged up or

covered with condensation or ice, use the windshield defogger to remove

the fog, condensation or ice. (→P. 436)

● If water droplets cannot be properly removed from the area of the wind-

shield in front of the camera sensor by the windshield wipers, replace the

wiper insert or wiper blade.

If the wiper inserts or wiper blades need to be replaced, contact your

Toyota dealer.

● Do not attach window tinting to the windshield.

● Replace the windshield if it is damaged or cracked.

If the windshield needs to be replaced, contact your Toyota dealer.

● Do not get the camera sensor wet.

● Do not allow bright lights to shine into the camera sensor.

● Do not dirty or damage the camera sensor.

When cleaning the inside of the windshield, do not allow glass cleaner to

contact the lens. Also, do not touch the lens.

If the lens is dirty or damaged, contact your Toyota dealer.

HIGHLANDER_HV_U (OM0E032U)

4-5. Using the driving support systems

265

WARNING

● Do not subject the camera sensor to a strong impact.

● Do not change the installation position or direction of the camera sensor or

remove it.

● Do not disassemble the camera sensor.

● Do not modify any components of the vehicle around the camera sensor

(inside rear view mirror, etc.) or ceiling.

● Do not attach any accessories that may obstruct the camera sensor to the

hood, front grille or front bumper. Contact your Toyota dealer for details.

● If a surfboard or other long object is to be mounted on the roof, make sure

that it will not obstruct the camera sensor.

● Do not modify the headlights or other lights.

4

HIGHLANDER_HV_U (OM0E032U)

266

4-5. Using the driving support systems

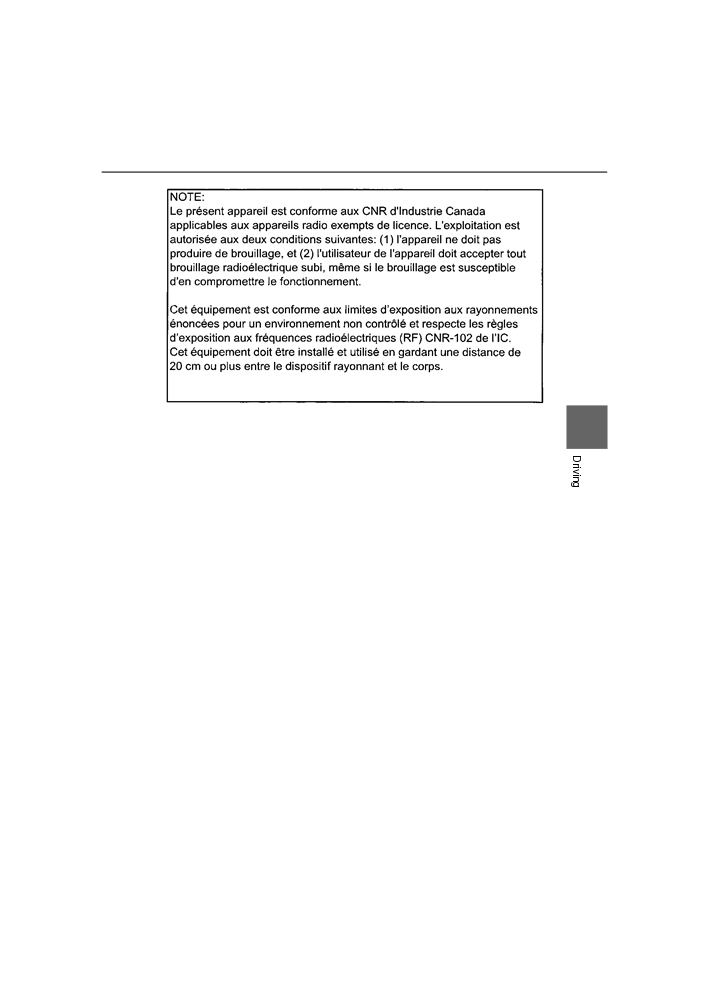

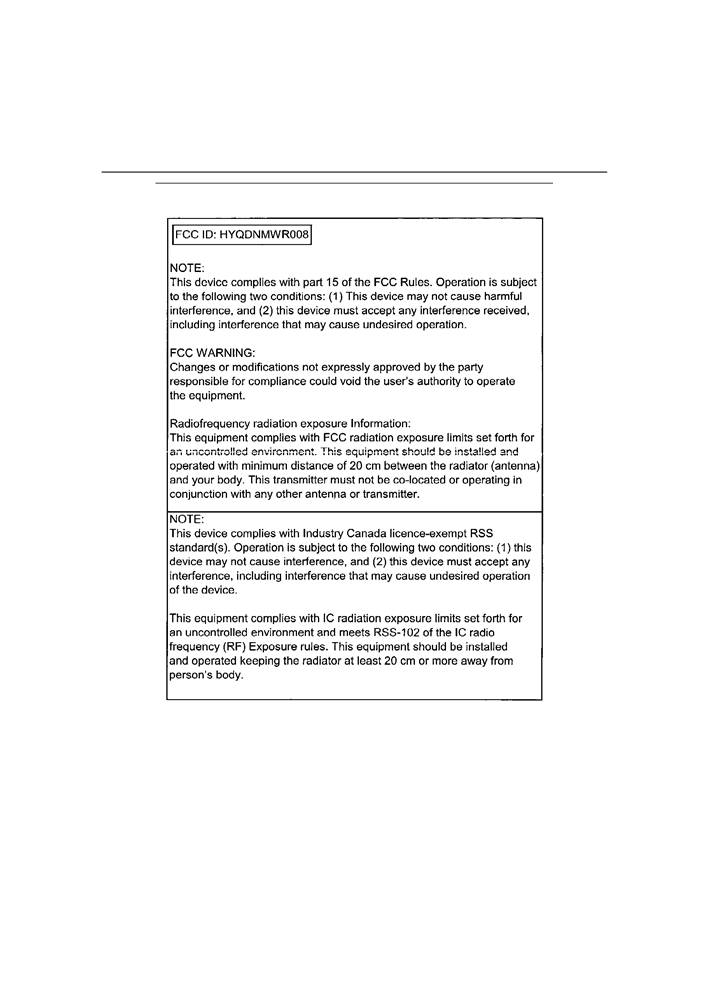

■ Certification

HIGHLANDER_HV_U (OM0E032U)

4-5. Using the driving support systems

267

4

HIGHLANDER_HV_U (OM0E032U)

268

4-5. Using the driving support systems

PCS (Pre-Collision System)

The pre-collision system uses a radar sensor and camera sen-

sor to detect vehicles and pedestrians*1 in front of your vehicle.

When the system determines that the possibility of a frontal col-

lision with a vehicle or pedestrian is high, a warning operates to

urge the driver to take evasive action and the potential brake

pressure is increased to help the driver avoid the collision. If the

system determines that the possibility of a frontal collision with

a vehicle or pedestrian is extremely high, the brakes are auto-

matically applied to help avoid the collision or help reduce the

impact of the collision.

The pre-collision system can be disabled/enabled and the warning

timing can be changed. (→P. 272)

*1: Depending on the region in which the vehicle was sold, the pedestrian

detection function may not be available. See the following table for

details.

Countries/areas

Function availability

Regions

U.S. mainland, Canada,

The pedestrian detection

Region A

Hawaii

function is available

The pedestrian detection

Guam, Saipan, Puerto Rico

Region B

function is not available

HIGHLANDER_HV_U (OM0E032U)

4-5. Using the driving support systems

269

◆ Pre-collision warning

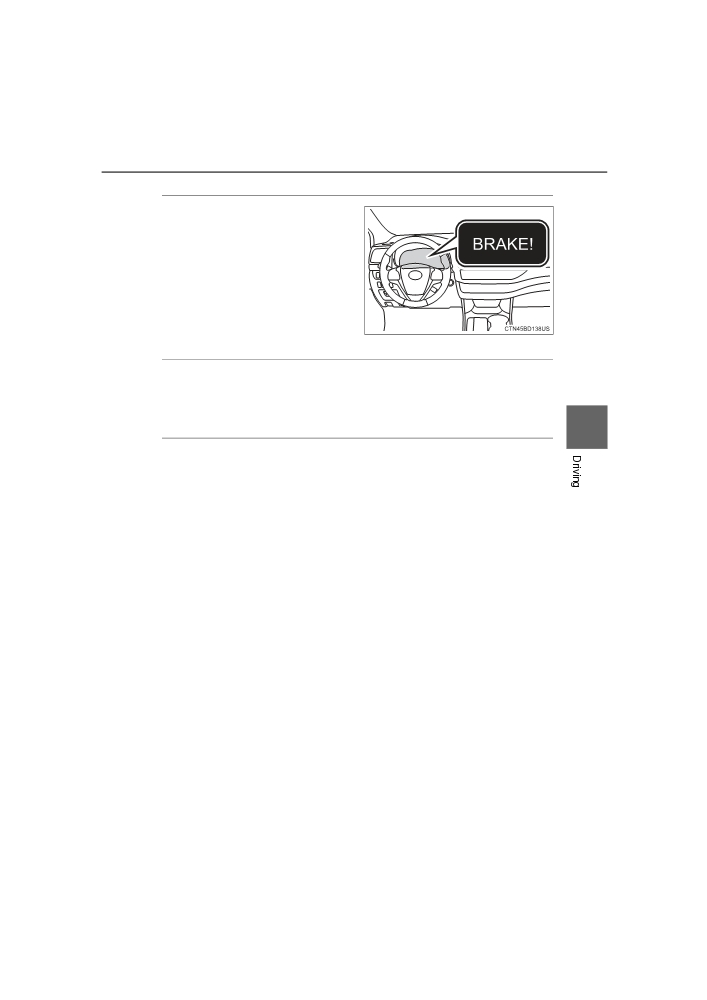

When the system determines

that the possibility of a frontal

collision is high, a buzzer will

sound and a warning message

will be displayed on the multi-

information display to urge the

driver to take evasive action.

◆ Pre-collision brake assist

When the system determines that the possibility of a frontal colli-

sion is high, the system applies greater braking force in relation to

how strongly the brake pedal is depressed.

4

◆ Pre-collision braking

When the system determines that the possibility of a frontal colli-

sion is high, the system warns the driver. If the system determines

that the possibility of a frontal collision is extremely high, the brakes

are automatically applied to help avoid the collision or reduce the

collision speed.

HIGHLANDER_HV_U (OM0E032U)

4-5. Using the driving support systems

271

WARNING

■ When to disable the pre-collision system

In the following situations, disable the system, as it may not operate prop-

erly, possibly leading to an accident resulting in death or serious injury:

●When the vehicle is being towed

● When your vehicle is towing another vehicle

● When transporting the vehicle via truck, boat, train or similar means of

transportation

● When the vehicle is raised on a lift with the hybrid system on and the tires

are allowed to rotate freely

● When inspecting the vehicle using a drum tester such as a chassis dyna-

mometer or speedometer tester, or when using an on vehicle wheel bal-

ancer

●When a strong impact is applied to the front bumper or front grille, due to

an accident or other reasons

4

● If the vehicle cannot be driven in a stable manner, such as when the vehi-

cle has been in an accident or is malfunctioning

●When the vehicle is driven in a sporty manner or off-road

● When the tires are not properly inflated

● When the tires are very worn

● When tires of a size other than specified are installed

● When tire chains are installed

● When a compact spare tire or an emergency tire puncture repair kit is used

● If equipment (snow plow, etc.) that may obstruct the radar sensor or cam-

era sensor is temporarily installed to the vehicle

HIGHLANDER_HV_U (OM0E032U)

Content   ..  14  15  16  17   ..
