Pictorial index

17

6

Fuel filler door

P. 256

Refueling method

P. 256

Fuel type/fuel tank capacity

P. 641

7

Tires

P. 522

Tire size/inflation pressure

P. 646

Winter tires/tire chain

P. 337

Checking/rotation/tire pressure warning system

P. 522

Coping with flat tires

P. 596

8

Hood

P. 506

Opening

P. 506

Engine oil

P. 642

Coping with overheat

P. 630

Warning messages

P. 578

Light bulbs of the exterior lights for driving

(Replacing method: P. 545, Watts: P. 649)

9

Headlights/daytime running lights*

P. 241

10

Daytime running lights*/parking lights*

P. 241

11

Front fog lights*

P. 249

12

Front turn signal lights/parking lights*

P. 239

13

Stop/tail lights

P. 241

Hill-start assist control

P. 329

14

License plate lights

P. 241

15

Back-up lights

Shifting the shift lever to R

P. 233

16

Side marker lights

P. 241

17

Turn signal lights

P. 239

*: If equipped

HIGHLANDER_HV_U (OM0E032U)

18

Pictorial index

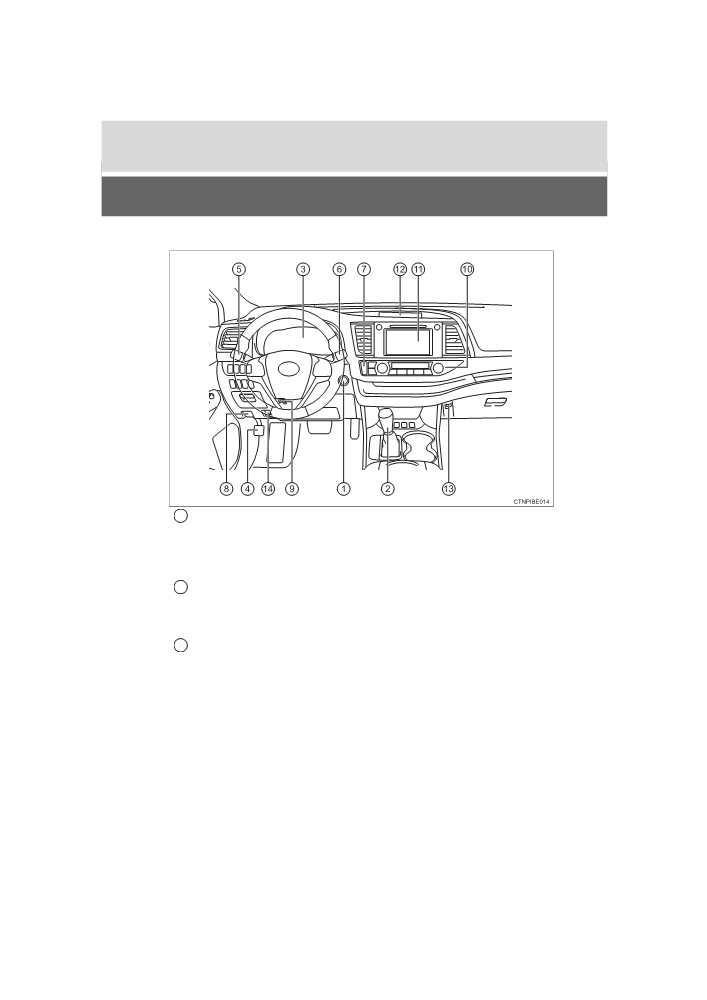

■Instrument panel

1

Power switch

P. 225

Starting the hybrid system/changing the modes

P. 225

Emergency stop of the hybrid system

P. 561

When the hybrid system will not start

P. 620

Warning messages

P. 591

2

Shift lever

P. 233

Changing the shift position

P. 233

Precautions for towing

P. 562

When the shift lever does not move

P. 237

3

Meters

P. 103

Reading the meters/adjusting the instrument panel lights

P. 103

Warning lights/indicator lights

P. 98

When a warning light comes on

P. 567

Multi-information display

P. 107

Display

P. 107

Energy monitor

P. 113

When a warning message or indicator is displayed

P. 576

HIGHLANDER_HV_U (OM0E032U)

Pictorial index

19

4

Parking brake

P. 240

Applying/releasing

P. 240

Precautions for winter season

P. 338

Warning buzzer/message

P. 576

5

Turn signal lever

P. 239

Headlight switch

P. 241

Headlights/tail lights/daytime running lights

P. 241

Front fog lights*1

P. 249

6

Wiper and washer switch

P. 250, 254

Usage

P. 250, 254

Adding washer fluid

P. 516

Warning messages

P. 586

7

Emergency flasher switch

P. 560

8

Hood lock release lever

P. 506

9

Tilt and telescopic steering lock release lever

P. 171

Adjustment

P. 171

10

Automatic air conditioning system

P. 434

Usage

P. 434

Rear window defogger

P. 436

11

Entune Audio*1

P. 349

Entune Audio Plus*1, 2

Entune Premium Audio*1, 2

12

Clock

P. 462

13

Power back door main switch*1

P. 133

14

Fuel filler door opener switch

P. 258

*1: If equipped

*2: For vehicles with Entune Premium Audio or Entune Audio Plus, refer to

“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

HIGHLANDER_HV_U (OM0E032U)

20

Pictorial index

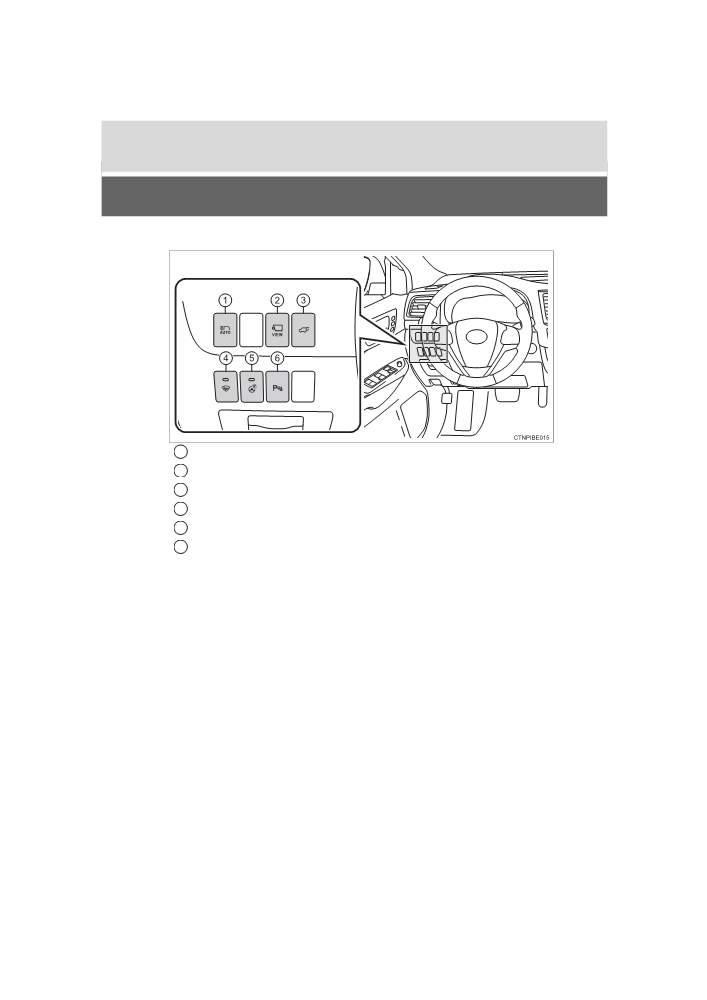

■Switches

1

Automatic High Beam switch

P. 245

2

Camera switch*1, 2

3

Power back door switch*1

P. 130

4

Windshield wiper de-icer switch

P. 436

5

Heated steering wheel switch*1

P. 445

6

Intuitive parking assist switch*1, 2

HIGHLANDER_HV_U (OM0E032U)

Pictorial index

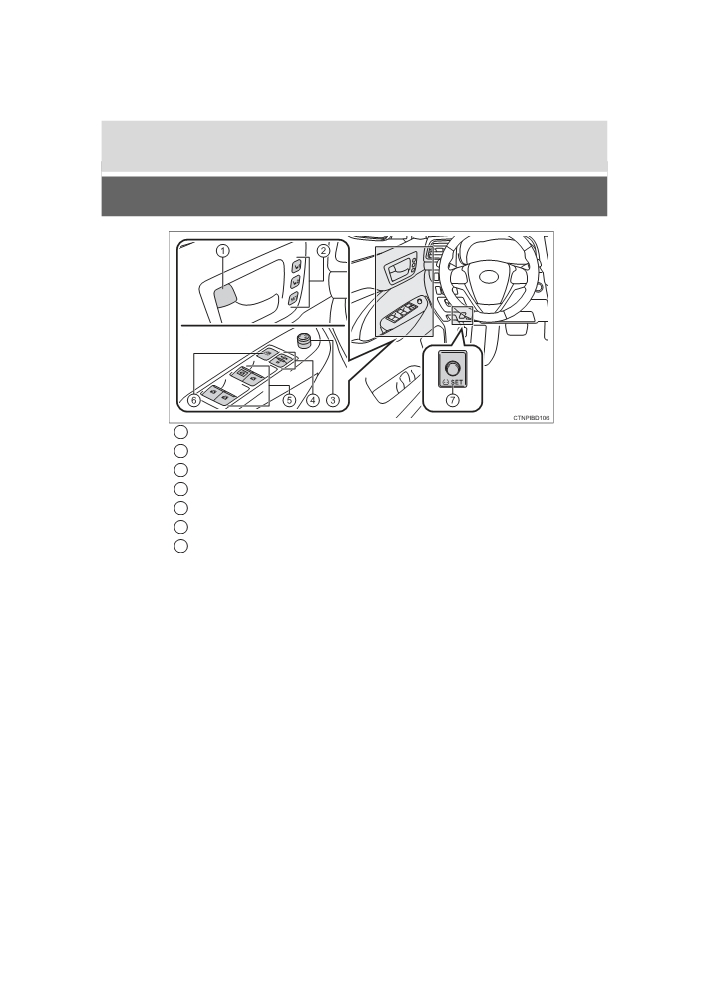

21

1

Inside lock buttons

P. 126

2

Driving position memory switches*1

P. 163

3

Outside rear view mirror switch

P. 175

4

Door lock switches

P. 126

5

Power window switches

P. 177

6

Window lock switch

P. 178

7

Tire pressure warning reset switch

P. 525

*1: If equipped

*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

HIGHLANDER_HV_U (OM0E032U)

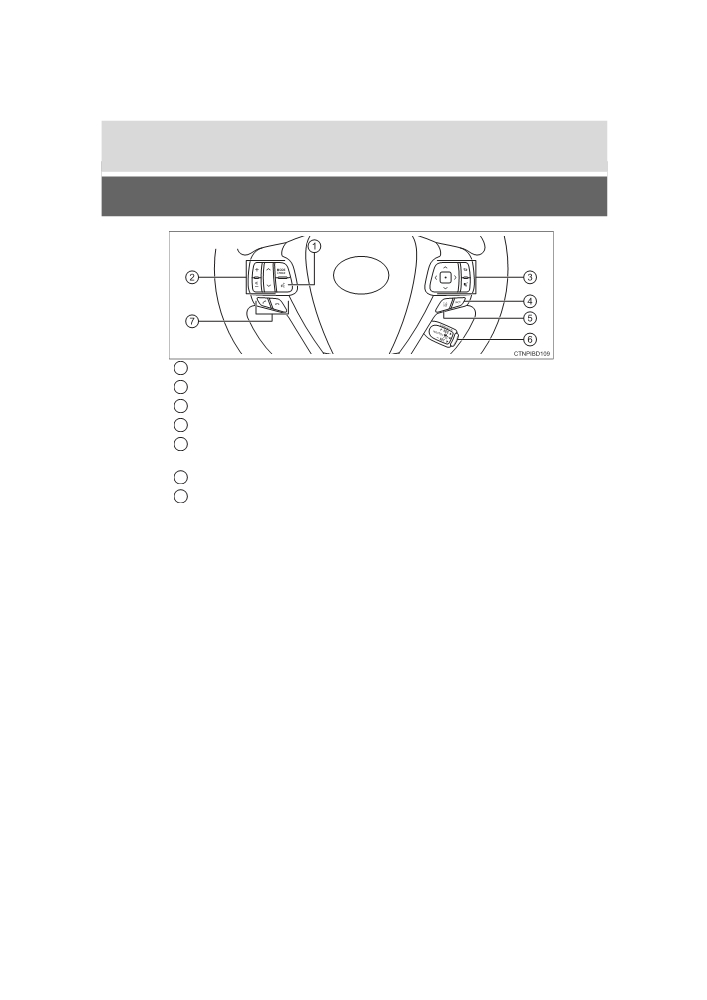

22

Pictorial index

1

Talk switch*1

P. 427

2

Audio remote control switches*1

P. 352

3

Meter control switches

P. 108

4

Vehicle-to-vehicle distance switch

P. 292

5

LDA (Lane Departure Alert with steering control)

switch

P. 285

6

Dynamic radar cruise control switch

P. 292

7

Telephone switches*1

P. 408

HIGHLANDER_HV_U (OM0E032U)

Pictorial index

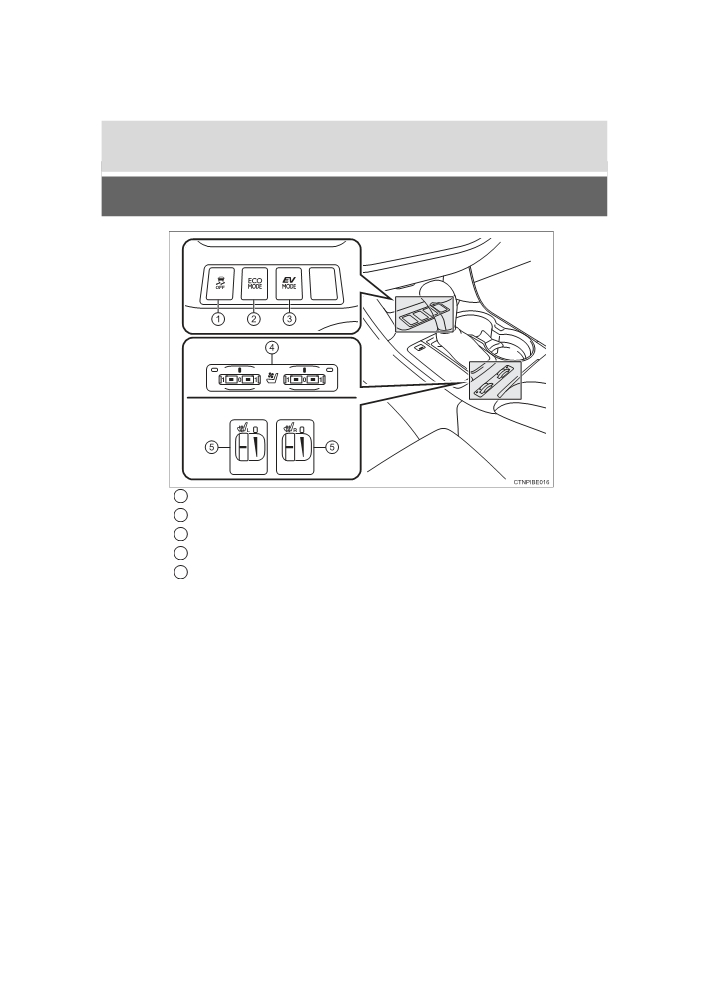

23

 Type A

 Type B

1

VSC OFF switch

P. 330

2

“ECO MODE” switch

P. 234

3

EV drive mode switch

P. 231

4

Seat heater/ventilator switches*2

P. 445

5

Seat heater switches*2

P. 445

*1: For vehicles with Entune Premium Audio or Entune Audio Plus, refer to

“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

*2: If equipped

HIGHLANDER_HV_U (OM0E032U)

24

Pictorial index

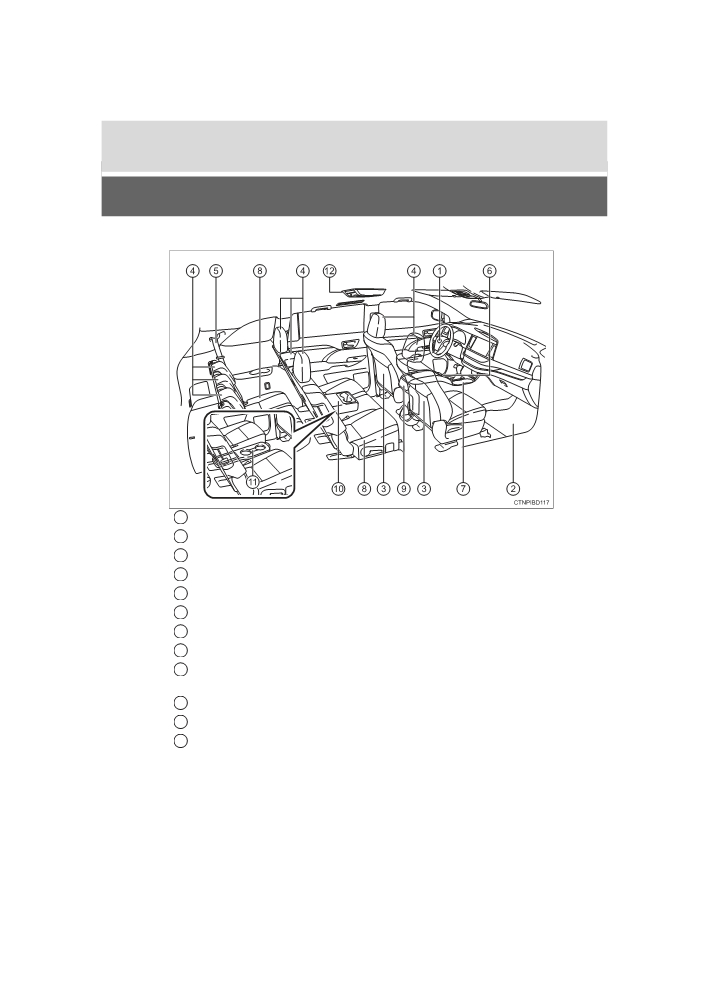

■Interior

1

SRS airbags

P. 41

2

Floor mats

P. 28

3

Front seats

P. 154

4

Head restraints

P. 167

5

Seat belts

P. 32

6

Console box

P. 450

7

Cup holders

P. 452

8

Rear seats

P. 156

9

Rear automatic air conditioning switches

P. 441

Second seat heater switches*1

P. 446

10

Armrest

P. 469

11

Side table*1

P. 471

12

Rear seat entertainment system*1, 2

HIGHLANDER_HV_U (OM0E032U)

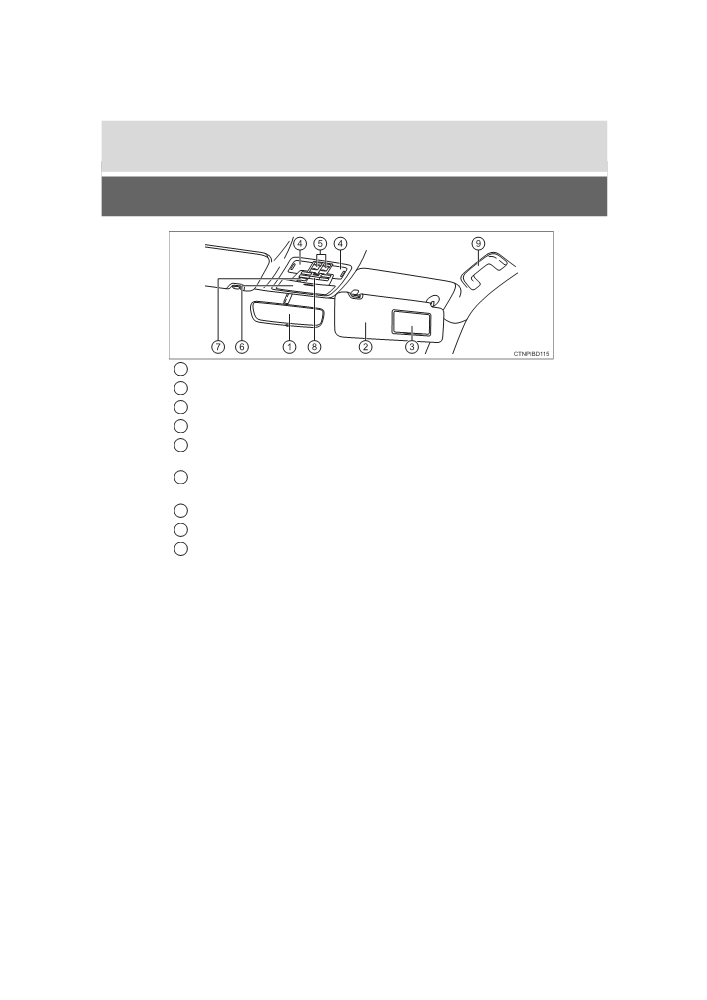

Pictorial index

25

1

Inside rear view mirror

P. 173

2

Sun visors

P. 461

3

Vanity mirrors

P. 461

4

Interior lights/personal lights

P. 447

5

Moon roof switches*1

P. 181

Panoramic moon roof switches*1

P. 185

6

Auxiliary boxes

P. 454

Conversation mirror

P. 462

7

“SOS” button*1

P. 479

8

Garage door opener switches*1

P. 472

9

Assist grips

P. 470

*1: If equipped

*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

HIGHLANDER_HV_U (OM0E032U)

26

Pictorial index

HIGHLANDER_HV_U (OM0E032U)

27

For safety and security

1

1-1. For safe use

Before driving

28

For safe driving

30

Seat belts

32

SRS airbags

41

Front passenger occupant

classification system

54

Safety information for

children

61

Child restraint systems

62

Installing child restraints

66

Exhaust gas precautions

80

1-2. Hybrid system

Hybrid system features

81

Hybrid system

precautions

85

1-3. Theft deterrent system

Immobilizer system

91

Alarm

93

HIGHLANDER_HV_U (OM0E032U)

28

1-1. For safe use

Before driving

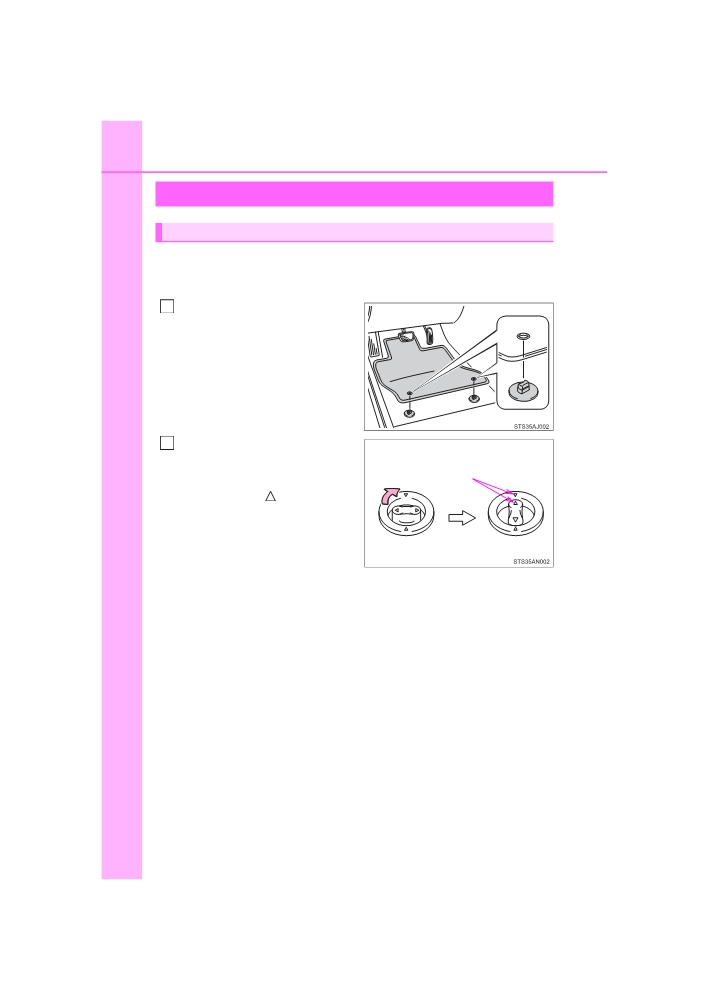

Floor mat

Use only floor mats designed specifically for vehicles of the same

model and model year as your vehicle. Fix them securely in place

onto the carpet.

Insert the retaining hooks (clips)

1

into the floor mat eyelets.

Turn the upper knob of each

2

retaining hook (clip) to secure

the floor mats in place.

*

*: Always align the

marks.

The shape of the retaining hooks (clips) may differ from that shown in the

illustration.

HIGHLANDER_HV_U (OM0E032U)

1-1. For safe use

29

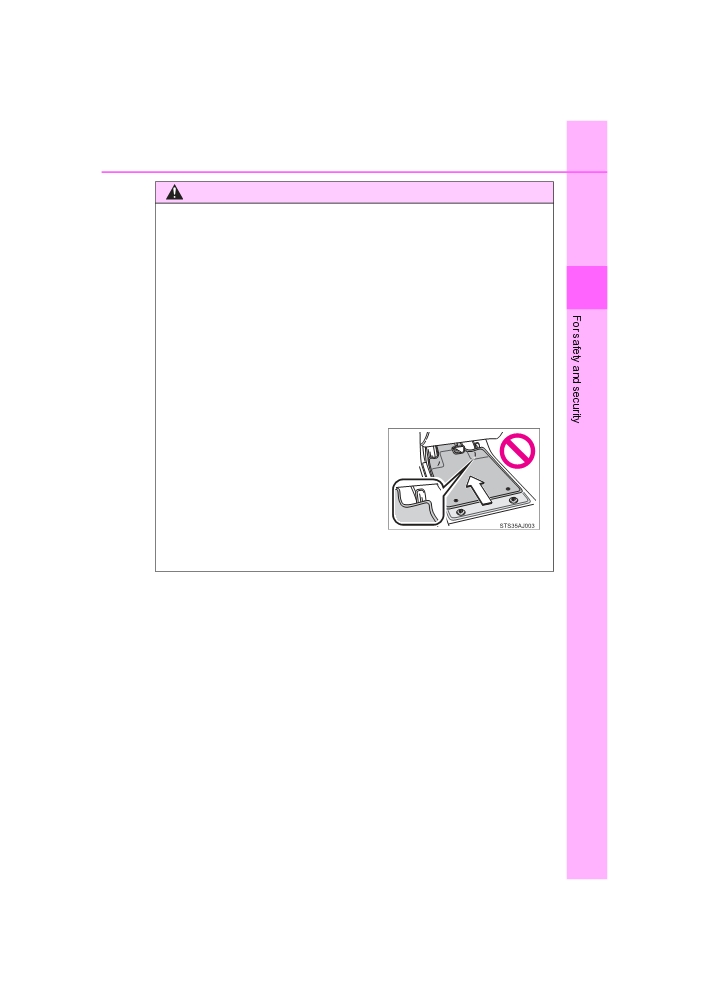

WARNING

Observe the following precautions.

Failure to do so may cause the driver’s floor mat to slip, possibly interfering

with the pedals while driving. An unexpectedly high speed may result or it may

become difficult to stop the vehicle. This could lead to an accident, resulting in

death or serious injury.

1

■ When installing the driver’s floor mat

● Do not use floor mats designed for other models or different model year

vehicles, even if they are Toyota Genuine floor mats.

● Only use floor mats designed for the driver’s seat.

● Always install the floor mat securely using the retaining hooks (clips) pro-

vided.

● Do not use two or more floor mats on top of each other.

● Do not place the floor mat bottom-side up or upside-down.

■Before driving

● Check that the floor mat is securely

fixed in the correct place with all the

provided retaining hooks

(clips). Be

especially careful to perform this check

after cleaning the floor.

●With the hybrid system stopped and the

shift lever in P, fully depress each pedal

to the floor to make sure it does not

interfere with the floor mat.

HIGHLANDER_HV_U (OM0E032U)

30

1-1. For safe use

For safe driving

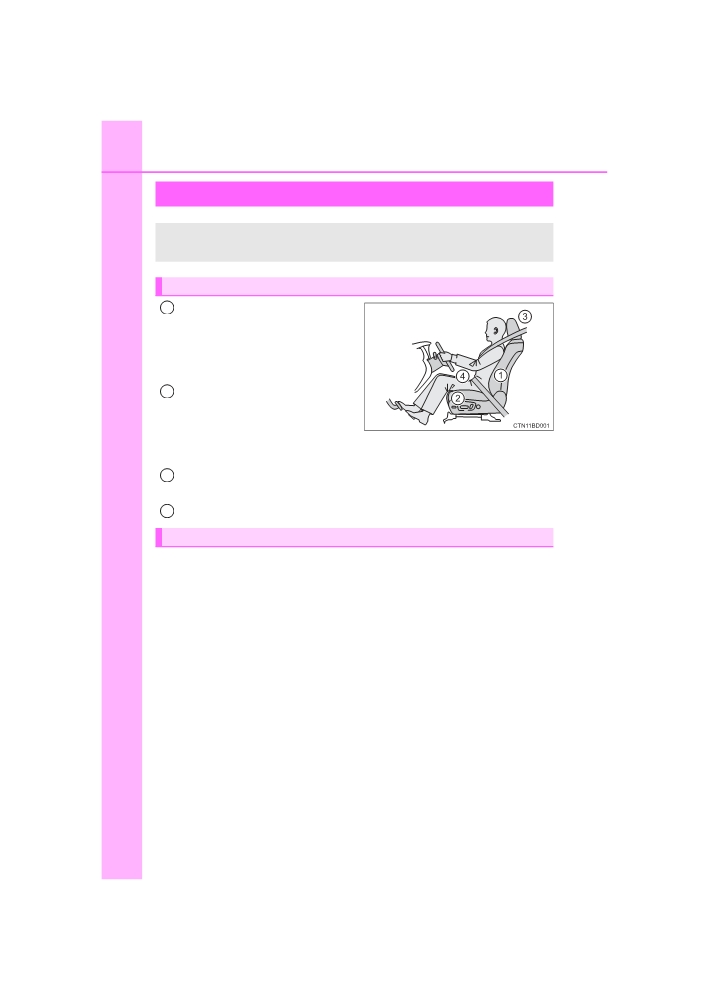

For safe driving, adjust the seat and mirror to an appropriate

position before driving.

Correct driving posture

Adjust the angle of the seat-

1

back so that you are sitting

straight up and so that you do

not have to lean forward to

steer. (→P. 154)

Adjust the seat so that you can

2

depress the pedals fully and so

that your arms bend slightly at

the elbow when gripping the

steering wheel. (→P. 154)

Lock the head restraint in place with the center of the head restraint

3

closest to the top of your ears. (→P. 167)

Wear the seat belt correctly. (→P. 32)

4

Correct use of the seat belts

Make sure that all occupants are wearing their seat belts before driv-

ing the vehicle. (→P. 32)

Use a child restraint system appropriate for the child until the child

becomes large enough to properly wear the vehicle’s seat belt.

(→P. 62)

HIGHLANDER_HV_U (OM0E032U)

32

1-1. For safe use

Seat belts

Make sure that all occupants are wearing their seat belts before

driving the vehicle.

Correct use of the seat belts

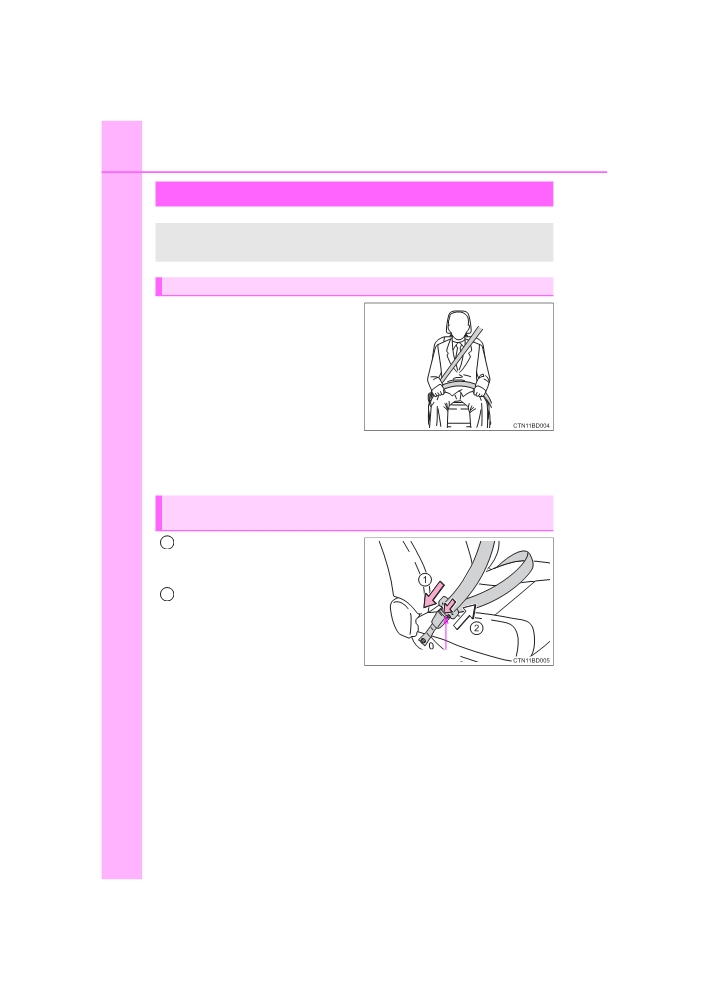

● Extend the shoulder belt so that

it comes fully over the shoulder,

but does not come into contact

with the neck or slide off the

shoulder.

● Position the lap belt as low as

possible over the hips.

● Adjust the position of the seat-

back. Sit up straight and well

back in the seat.

● Do not twist the seat belt.

Fastening and releasing the seat belt (except for the third center

seat)

To fasten the seat belt, push the

1

plate into the buckle until a click

sound is heard.

2

To release the seat belt, press

the release button.

Release button

HIGHLANDER_HV_U (OM0E032U)

1-1. For safe use

33

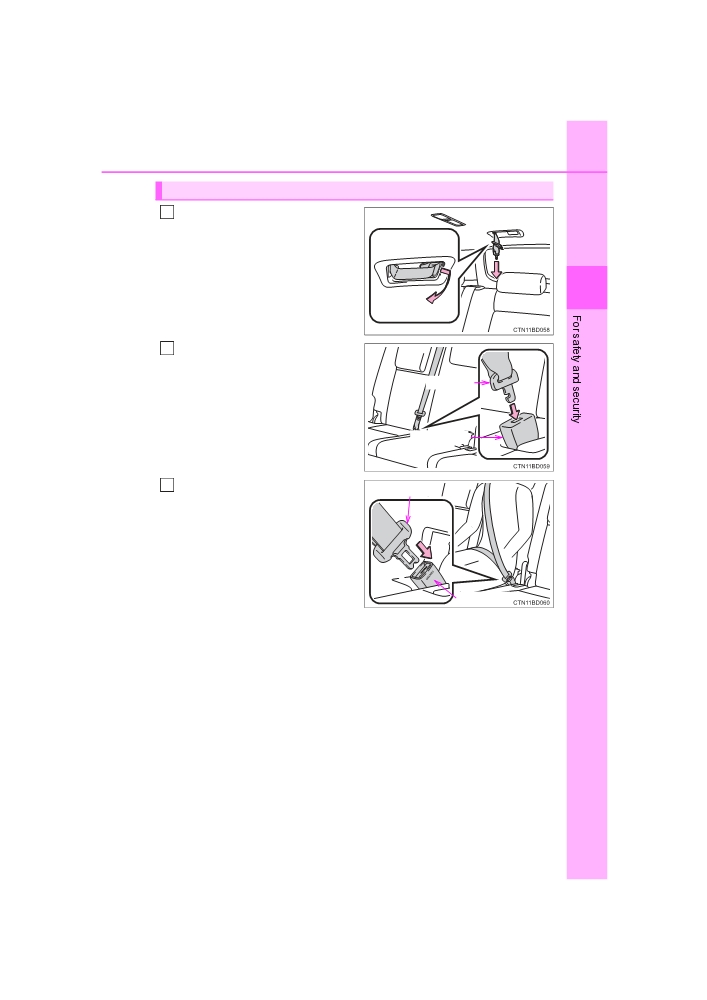

Fastening the seat belt (for the third center seat)

Take the plate out of the holder,

1

and then pull down the seat

belt.

1

Push plate “A” into buckle “A”

2

until a click sound is heard.

Plate “A”

Buckle “A”

3

Push plate “B” into buckle “B”

Plate “B”

until a click sound is heard.

Buckle “B”

HIGHLANDER_HV_U (OM0E032U)
