337

Mainten

WARNING

■

When working near the electric cooling fan or radiator grille
Vehicles without a smart key system: Be sure the engine switch is off. With
the engine switch in the “ON” position, the electric cooling fan may automat-
ically start to run if the air conditioning is on and/or the coolant temperature
is high. (

→P. 346)

Vehicles with a smart key system: Be sure the engine switch is off. With the
engine switch in IGNITION ON mode, the electric cooling fan may automat-
ically start to run if the air conditioning is on and/or the coolant temperature
is high. (

→P. 346)

■

Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc.,
from getting in your eyes.

NOTICE

■

If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.

338

6-3. Do-it-yourself maintenance

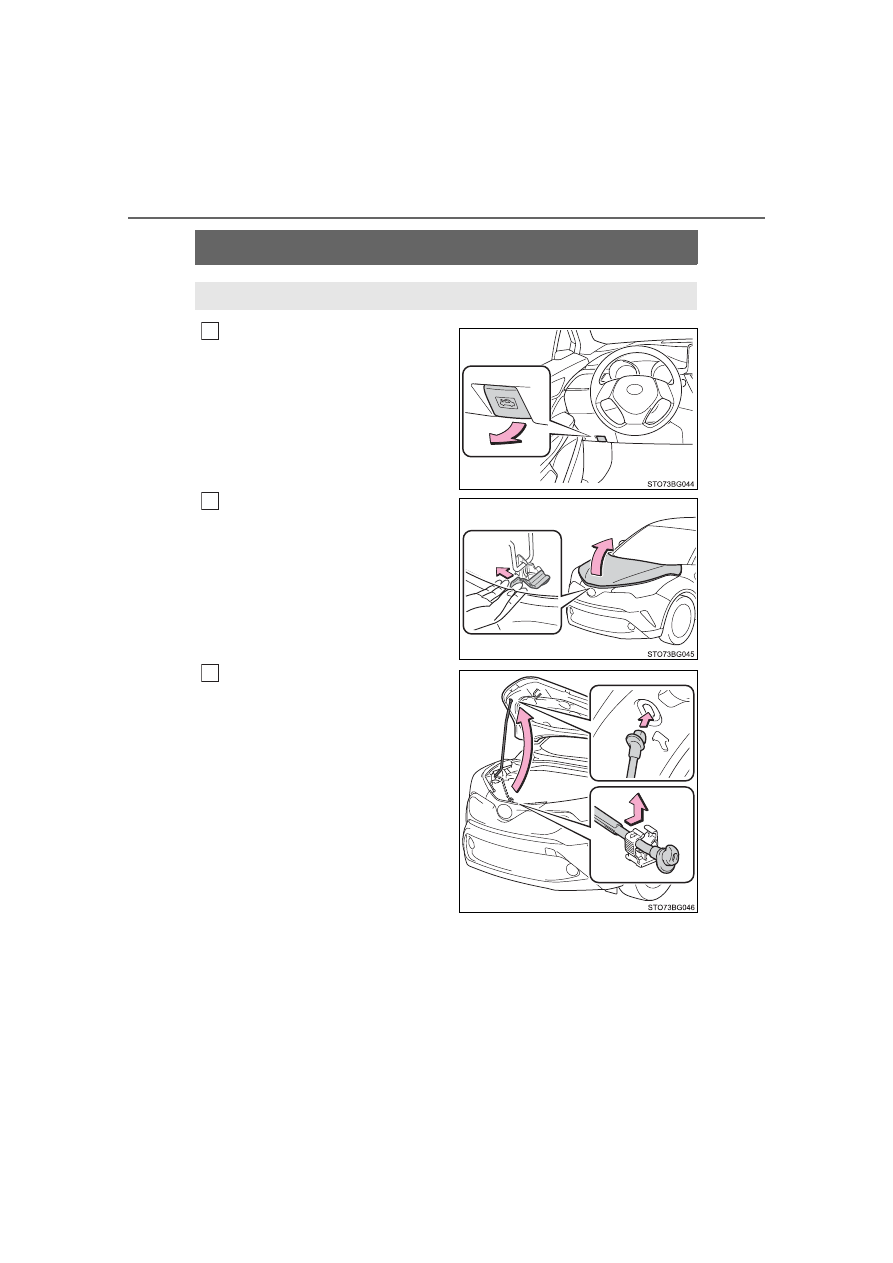

Hood

Pull the hood lock release lever.

The hood will pop up slightly.

Move the auxiliary catch lever
to side direction and lift the
hood.

Hold the hood open by inserting
the support rod into the slot.

Release the lock from the inside of the vehicle to open the hood.

339

6-3. Do-it-yourself maintenance

Mainten

ance an

d ca

WARNING

■

Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.

■

After installing the support rod into the slot
Make sure the rod supports the hood securely preventing it from falling
down onto your head or body.

NOTICE

■

When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood without returning the support rod properly could cause the hood to
bend.

340

6-3. Do-it-yourself maintenance

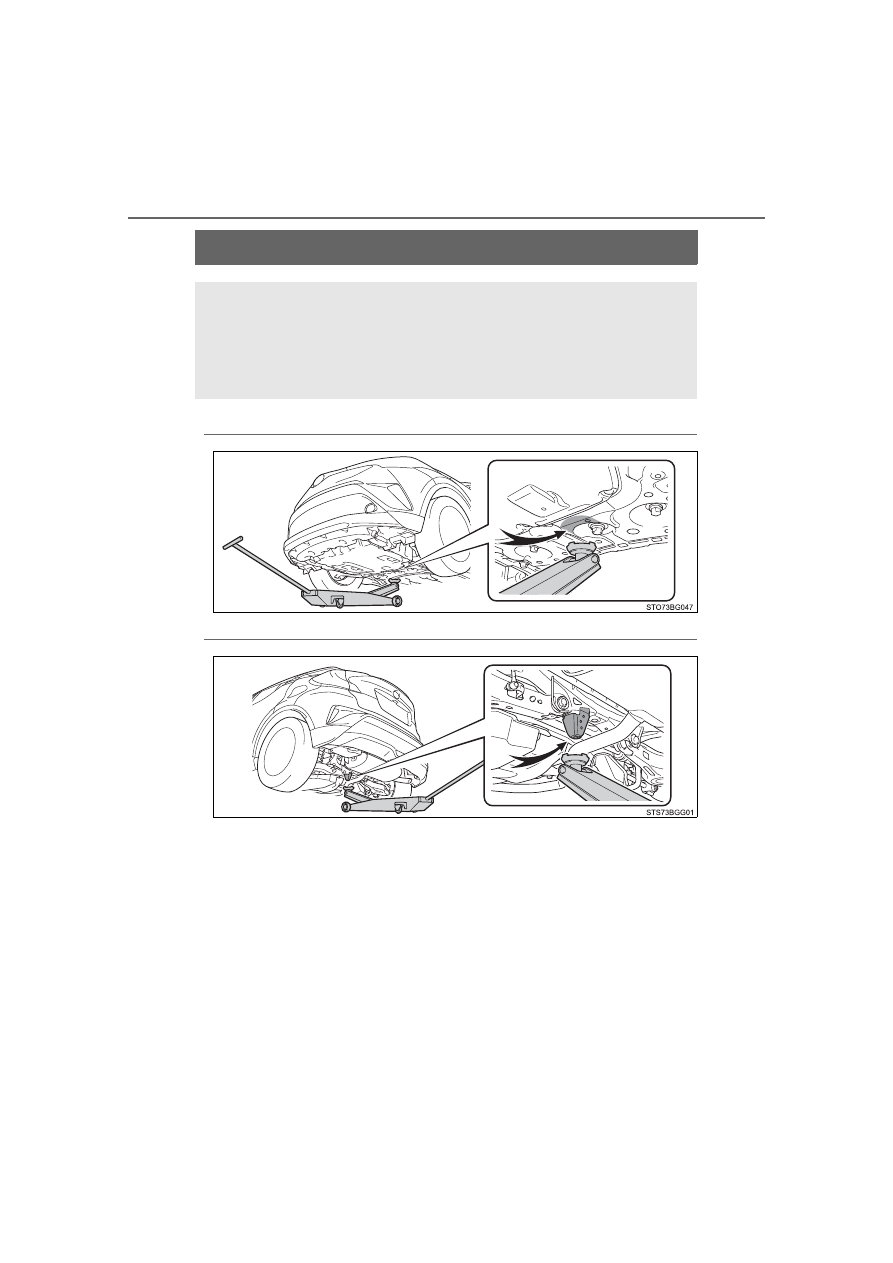

Positioning a floor jack

◆

Front

◆

Rear

When using a floor jack, follow the instructions in the manual
provided with the jack and perform the operation safely.

When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.

341

6-3. Do-it-yourself maintenance

Mainten

ance an

d ca

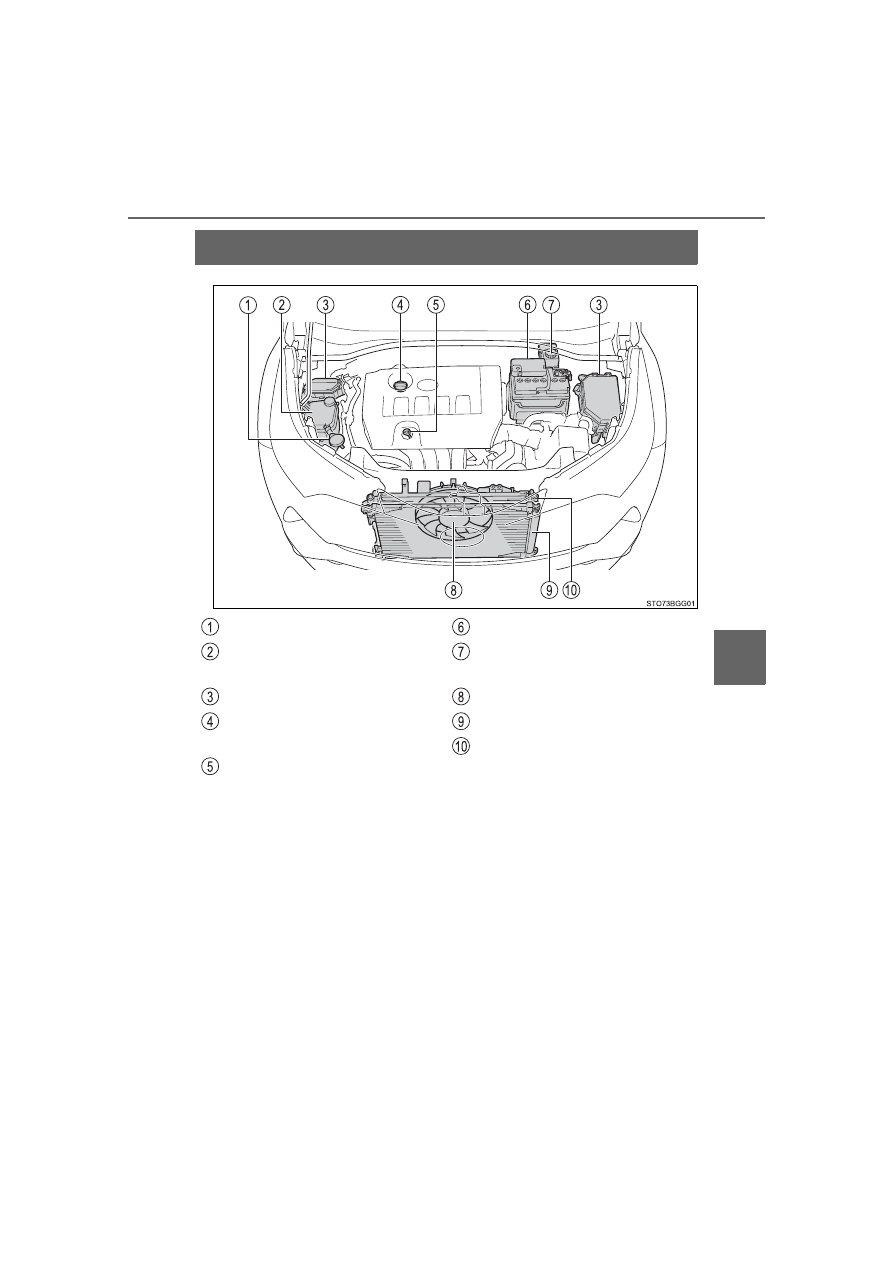

Engine compartment

Washer fluid tank (

→P. 352)

Engine coolant reservoir

(

→P. 345)

Fuse boxes

(

→P. 377)

Engine oil filler cap

(

→P. 343)

Engine oil level dipstick

(

→P. 342)

Battery

(

→P. 349)

Brake fluid reservoir

(

→P. 347)

Electric cooling fan
Condenser

(

→P. 346)

Radiator

(

→P. 346)

342

6-3. Do-it-yourself maintenance

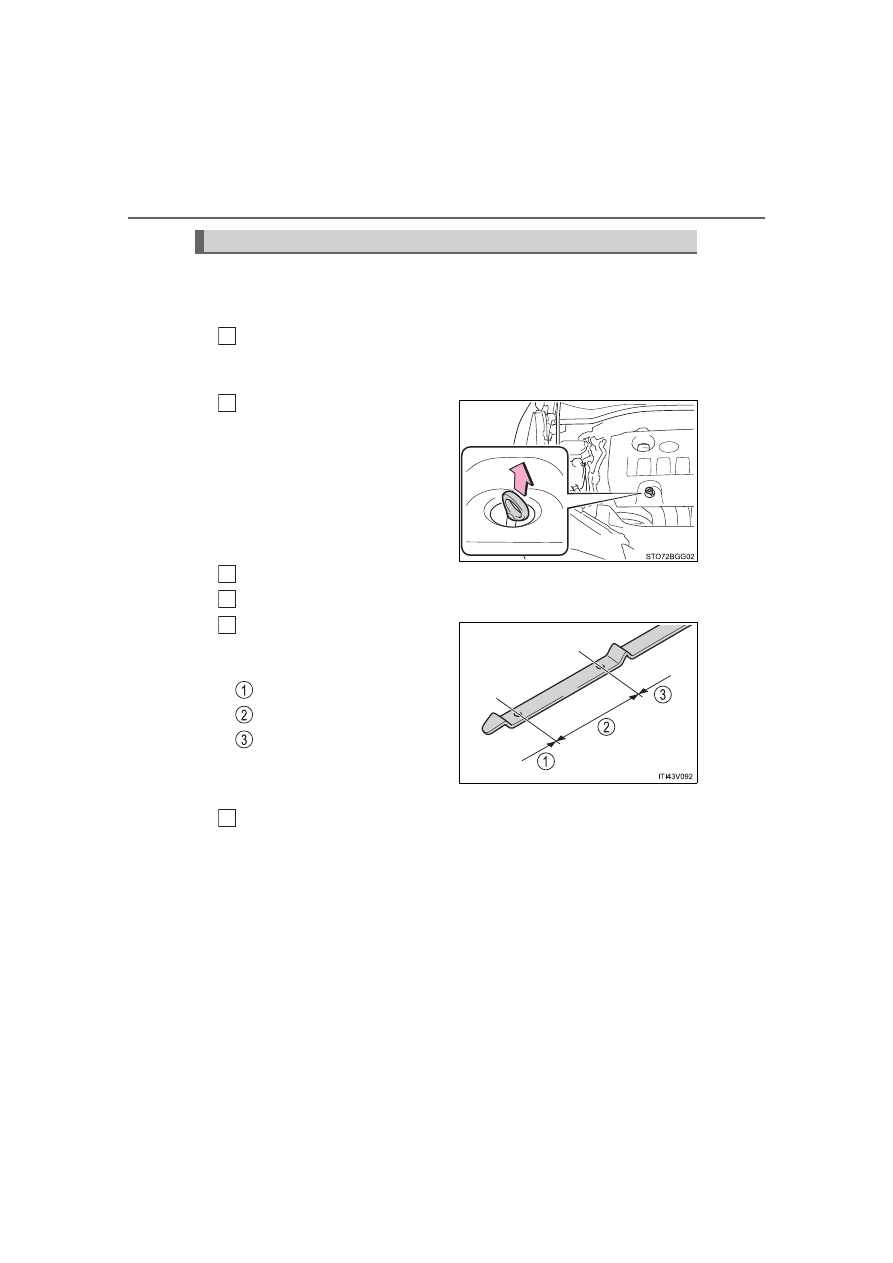

With the engine at operating temperature and turned off, check the oil
level on the dipstick.

■

Checking the engine oil

Park the vehicle on level ground. After warming up the engine
and turning it off, wait more than 5 minutes for the oil to drain
back into the bottom of the engine.
Holding a rag under the end,
pull the dipstick out.

Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end,
pull the dipstick out and
check the oil level.

Low
Normal
Excessive

The shape of the dipstick may
differ depending on the type
of vehicle or engine.

Wipe the dipstick and reinsert it fully.

Engine oil

3
4
5

343

6-3. Do-it-yourself maintenance

Mainten

ance an

d ca

■

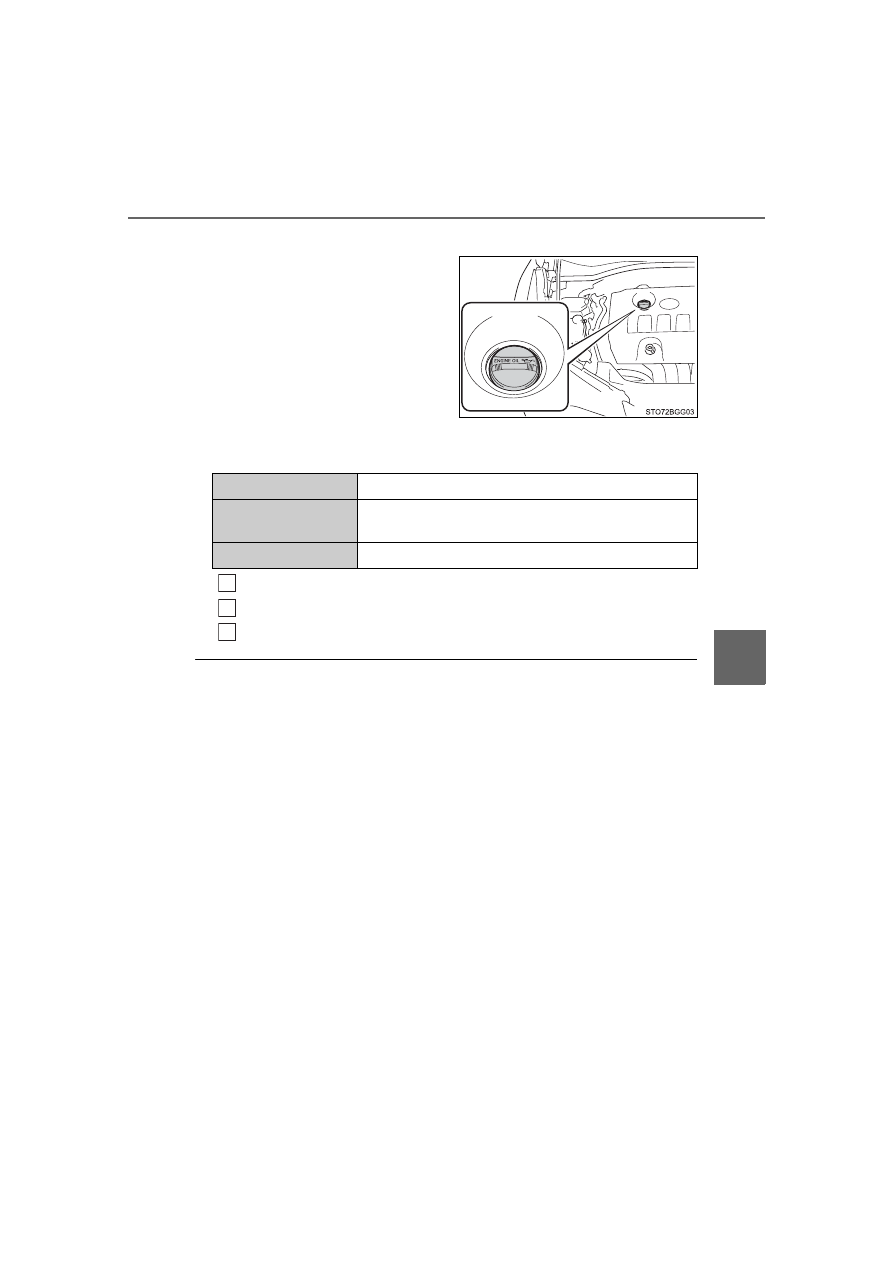

Adding engine oil

If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.

Make sure to check the oil type and prepare the items needed
before adding oil.

Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.

■

Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.

●

When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine

●

If low quality oil or oil of an inappropriate viscosity is used

●

When driving at high engine speeds or with a heavy load, or when driving
while accelerating or decelerating frequently

●

When leaving the engine idling for a long time, or when driving frequently
through heavy traffic

Engine oil selection

→P. 453

Oil quantity
(Low

→ Full)

1.6 qt. (1.5 L, 1.3 Imp.qt.)

Items

Clean funnel

1
2
3

344

6-3. Do-it-yourself maintenance

WARNING

■

Used engine oil

●

Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.

●

Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground.
Call your Toyota dealer, service station or auto parts store for information
concerning recycling or disposal.

●

Do not leave used engine oil within the reach of children.

NOTICE

■

To prevent serious engine damage
Check the oil level on a regular basis.

■

When replacing the engine oil

●

Be careful not to spill engine oil on the vehicle components.

●

Avoid overfilling, or the engine could be damaged.

●

Check the oil level on the dipstick every time you refill the vehicle.

●

Be sure the engine oil filler cap is properly tightened.

345

6-3. Do-it-yourself maintenance

Mainten

ance an

d ca

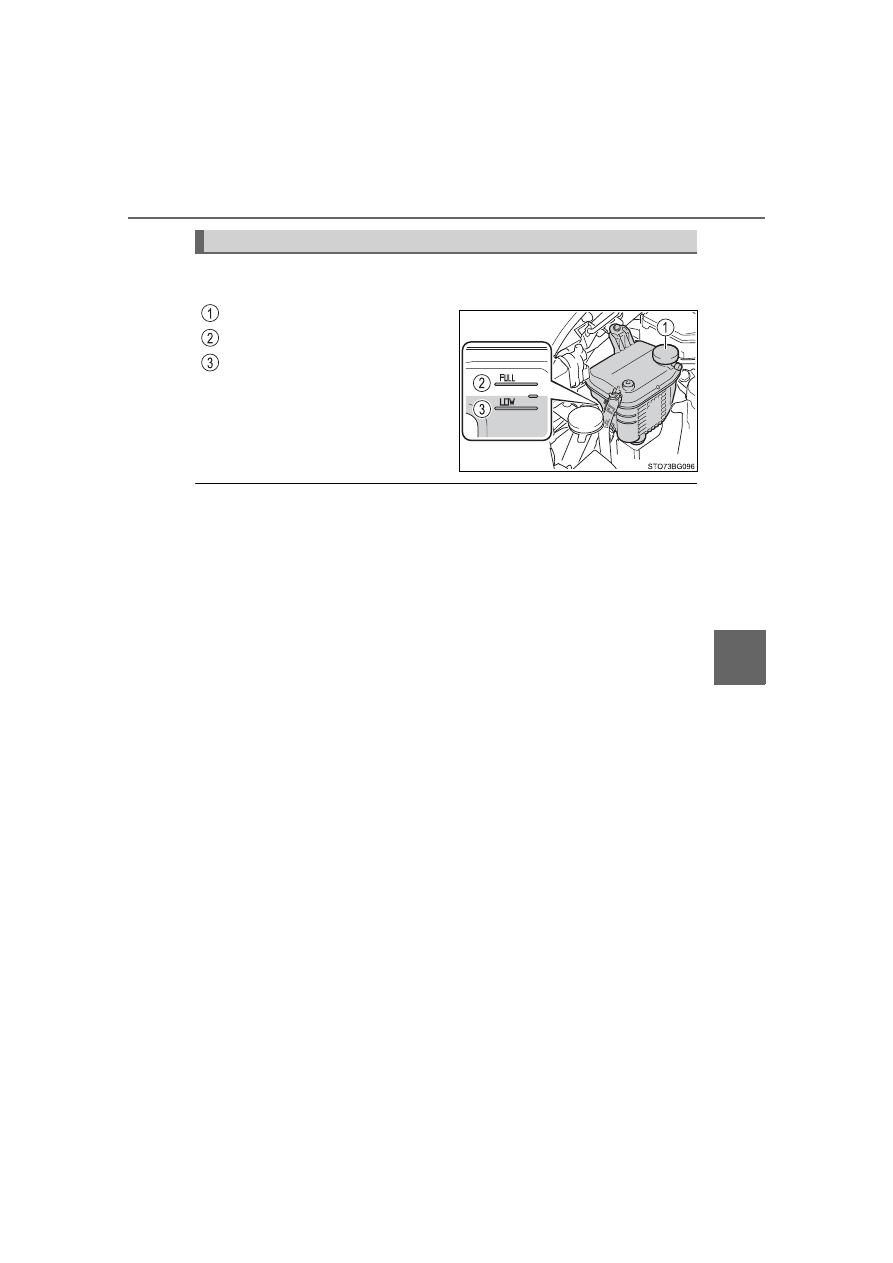

The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.

Reservoir cap
“FULL” line
“LOW” line

If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line.

■

Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
For the U.S.A.: “Toyota Super Long Life Coolant” is a mixture of 50% cool-

ant and 50% deionized water. (Minimum temperature: -31

°F

[-35

°C])

For Canada:

“Toyota Super Long Life Coolant” is a mixture of 55% cool-
ant and 45% deionized water. (Minimum temperature: -44

°F

[-42

°C])

For more details about engine coolant, contact your Toyota dealer.

■

If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock
and water pump.
If you cannot find a leak, have your Toyota dealer test the cap and check for
leaks in the cooling system.

Engine coolant

346

6-3. Do-it-yourself maintenance

Check the radiator and condenser and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of
their condition, have your vehicle inspected by your Toyota dealer.

WARNING

■

When the engine is hot
Do not remove the engine coolant reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.

NOTICE

■

When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.

■

If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.

Radiator and condenser

WARNING

■

When the engine is hot
Do not touch the radiator or condenser as they may be hot and cause seri-
ous injuries, such as burns.

347

6-3. Do-it-yourself maintenance

Mainten

ance an

d ca

■

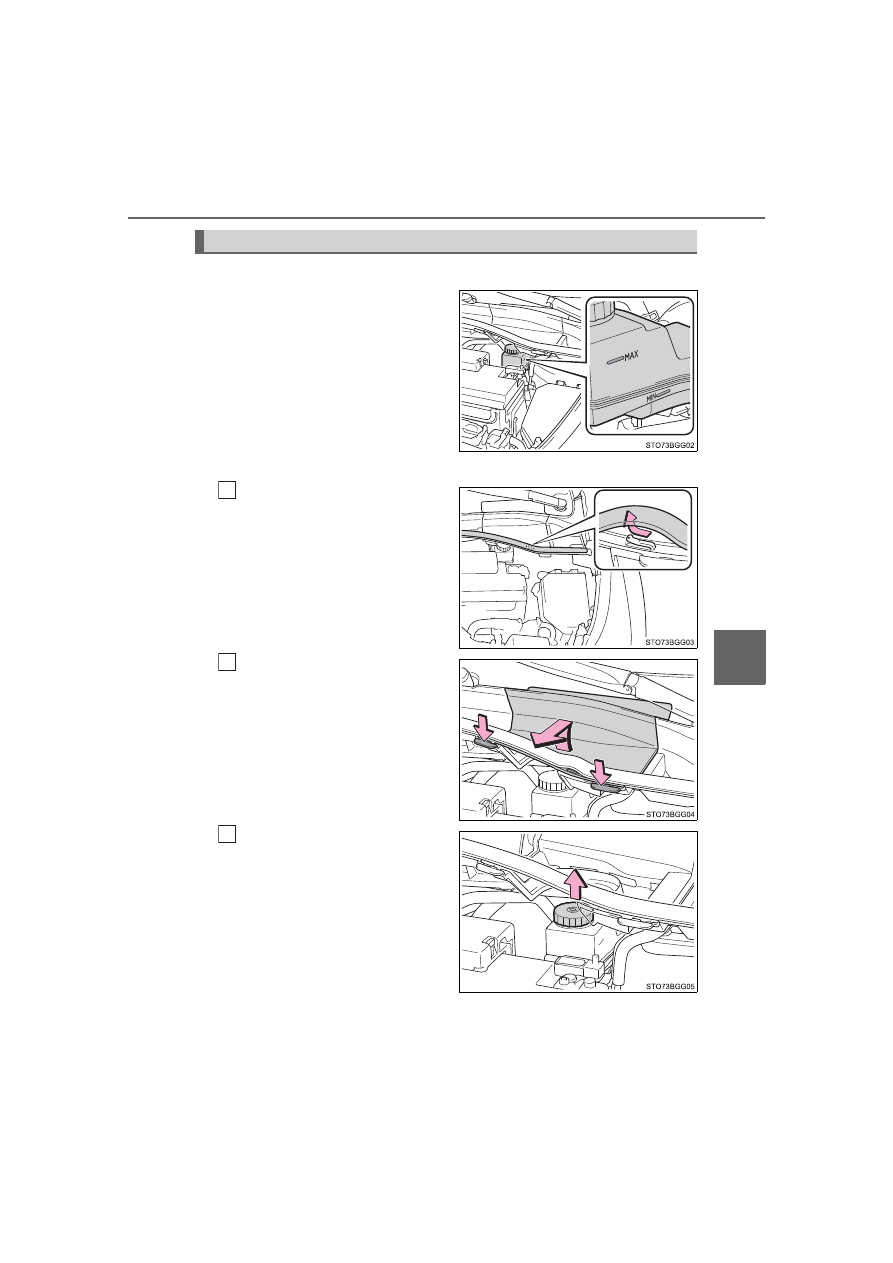

Checking fluid level

The brake fluid level should be
between the “MAX” and “MIN”
lines on the tank.

■

Adding fluid

Slide and lift up the rubber
strip to partly remove it as
shown.

Disconnect the claws and
remove the service cover.

Remove the reservoir cap.

Brake fluid

348

6-3. Do-it-yourself maintenance

Add brake fluid slowly while checking the fluid level.
Make sure to check the fluid type and prepare the necessary
item.

■

Brake fluid can absorb moisture from the air
Excess moisture in the brake fluid can cause a dangerous loss of braking effi-
ciency. Use only newly opened brake fluid.

Fluid type

FMVSS No.116 DOT 3 or SAE J1703;
FMVSS No.116 DOT 4 or SAE J1704 brake fluid

Item

Clean funnel

WARNING

■

When filling the reservoir
Take care as brake fluid can harm your hands and eyes and damage
painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean
water immediately.
If you still experience discomfort, see a doctor.

NOTICE

■

If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear out or when the fluid level in the accumulator is high.
However, if the reservoir needs frequent refilling, there may be a serious
problem. Have the vehicle inspected at your Toyota dealer as soon as pos-
sible.

349

6-3. Do-it-yourself maintenance

Mainten

ance an

d ca

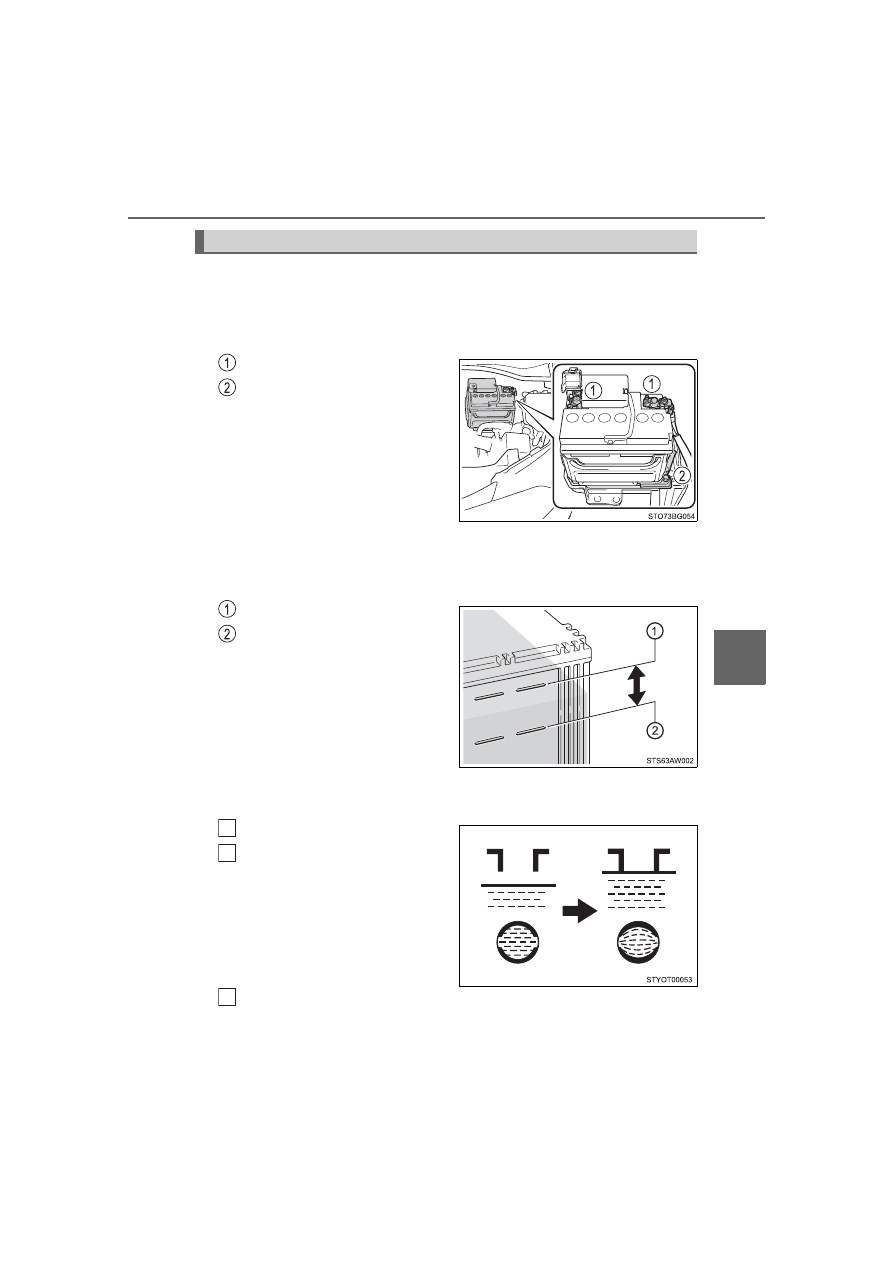

Check the battery as follows.

■

Battery exterior
Make sure that the battery terminals are not corroded and that
there are no loose connections, cracks, or loose clamps.

Terminals
Hold-down clamp

■

Checking battery fluid
If there are lines on the side of the battery:
Check that the level is between the upper and lower lines.

Upper line
Lower line

If the fluid level is at or below the
lower line, add distilled water.

If there are not lines on the side of the battery:
Check the fluid level as follows.

Remove the vent plug.
Check the fluid level by look-
ing directly at the cell.

If the fluid level is low, add dis-
tilled water.

Put the vent plug back on and close it securely.

Battery

Low

O.K.

1
2

350

6-3. Do-it-yourself maintenance

■

Adding distilled water

Remove the vent plug.
Add distilled water.
Put the vent plug back on and close it securely.

■

Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:

●

If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.

●

Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the battery.

■

After recharging/reconnecting the battery (vehicles with a smart key sys-
tem)

●

The engine may not start. Follow the procedure below to initialize the sys-
tem.

Shift the shift lever to P.
Open and close any of the doors.
Restart the engine.

●

Unlocking the doors using the smart key system may not be possible imme-
diately after reconnecting the battery. If this happens, use the wireless
remote control or the mechanical key to lock/unlock the doors.

●

Start the engine with the engine switch in ACCESSORY mode. The engine
may not start with the engine switch turned off. However, the engine will
operate normally from the second attempt.

●

The engine switch mode is recorded by the vehicle. If the battery is recon-
nected, the vehicle will return the engine switch mode to the status it was in
before the battery was disconnected. Make sure to turn off the engine
before disconnecting the battery. Take extra care when connecting the bat-
tery if the engine switch mode prior to discharge is unknown.

If the system will not start even after multiple attempts at all methods above,
contact your Toyota dealer.

1
2
3

351

6-3. Do-it-yourself maintenance

Mainten

ance an

d ca

WARNING

■

Chemicals in the battery
Batteries contain poisonous and corrosive sulfuric acid and may produce
hydrogen gas which is flammable and explosive. To reduce the risk of death
or serious injury, take the following precautions while working on or near the
battery:

●

Do not cause sparks by touching the battery terminals with tools.

●

Do not smoke or light a match near the battery.

●

Avoid contact with eyes, skin and clothes.

●

Never inhale or swallow electrolyte.

●

Wear protective safety glasses when working near the battery.

●

Keep children away from the battery.

■

Where to safely charge the battery
Always charge the battery in an open area. Do not charge the battery in a
garage or closed room where there is insufficient ventilation.

■

Emergency measures regarding electrolyte

●

If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.

●

If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.

●

If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.

●

If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.

■

When there is insufficient battery fluid
Do not use if there is insufficient fluid in the battery. There is a possible dan-
ger that the battery may explode.

NOTICE

■

When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all
accessories are turned off.

■

When adding distilled water
Avoid overfilling. Water spilled during battery recharging may cause corro-
sion.

352

6-3. Do-it-yourself maintenance

Add washer fluid in the following situations:
● A washer does not work.
● The warning message appears

on the multi-information display
(if equipped).

● The washer fluid level is

extremely low.

Raise the cap keeping your finger
pressed down on the hole in the
center and check the fluid level in
the tube.

Washer fluid

WARNING

■

When adding washer fluid
Do not add washer fluid when the engine is hot or running as washer fluid
contains alcohol and may catch fire if spilled on the engine, etc.

NOTICE

■

Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.

■

Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.

Content .. 20 21 22 23 ..
