Toyota Camry Hybrid (2018 year). Manual - part 30





465

6-3. Do-it-yourself maintenance

6

Mai

n

tenan

ce and care

■

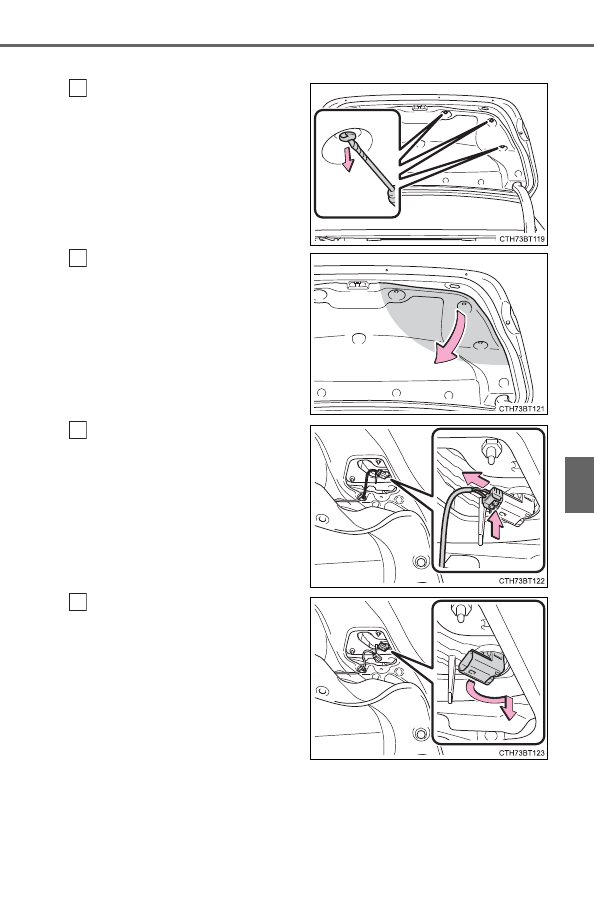

Back-up lights (bulb type)

Open the trunk lid and
remove the clips.

To prevent damaging the vehi-
cle, wrap the tip of the flathead
screwdriver with tape.

Partly remove the trunk lid
cover.

Disconnect the connector
while depressing the lock
release. (When replacing
right side bulb only.)

Turn the bulb base counter-
clockwise.

1

2

3

4

466

6-3. Do-it-yourself maintenance

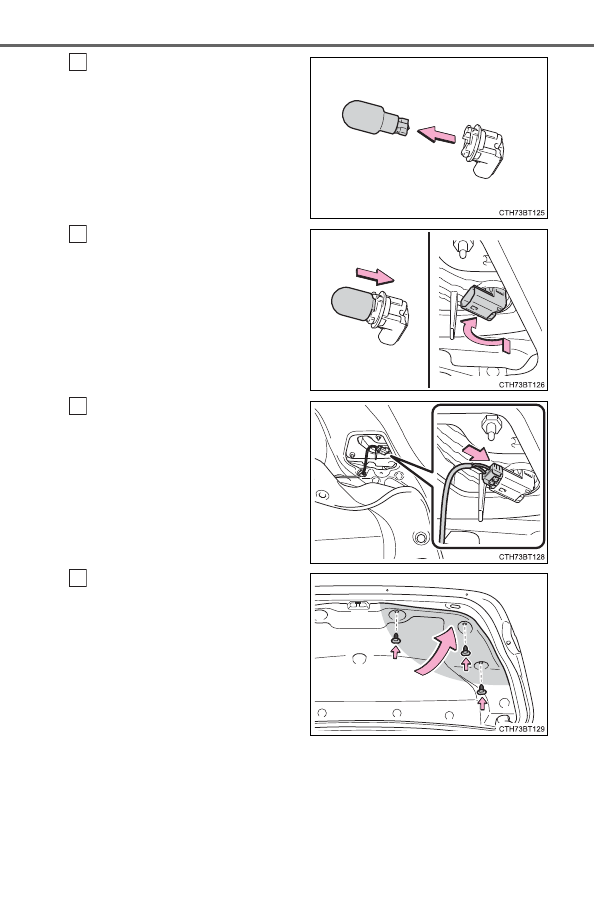

Remove the light bulb.

Install a new light bulb and
then install the bulb base to
the light unit by inserting it
and turning it clockwise.

Connect the connector.
(When replacing right side
bulb only.)

Reinstall the trunk lid cover
with the clips.

5

6

7

8

467

6-3. Do-it-yourself maintenance

6

Mai

n

tenan

ce and care

■

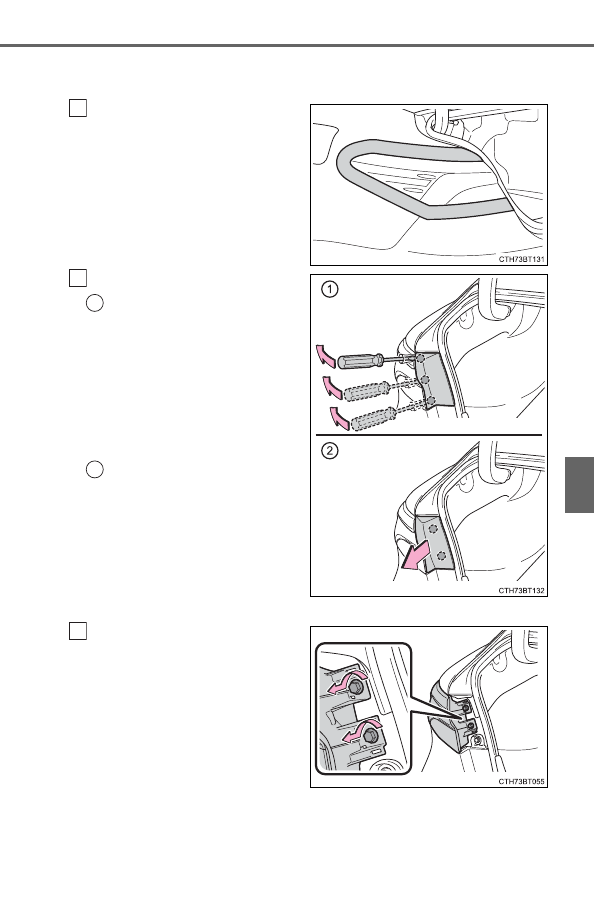

Rear turn signal lights (bulb type) and rear side marker lights
(bulb type)

Open the trunk and apply
protective tape to the vehicle
body around the light unit.

Use masking tape, etc. Do not
use duct tape, as it may leave
residue or damage the paint
when removed.

Remove the cover.

Insert a flathead screw-
driver between the cover
and the light unit and pry
up the cover in several
positions as shown in the
illustration  to disengage
the claws (indicated by a
dotted line).

Pull the cover toward the
rear of the vehicle to dis-
engage the claws (indi-
cated by a dotted line) and
remove the cover.

To prevent scratching the vehi-
cle, wrap the tip of the flathead
screwdriver with a cloth, etc.

Remove the 2 bolts.

1

2

1

2

3

468

6-3. Do-it-yourself maintenance

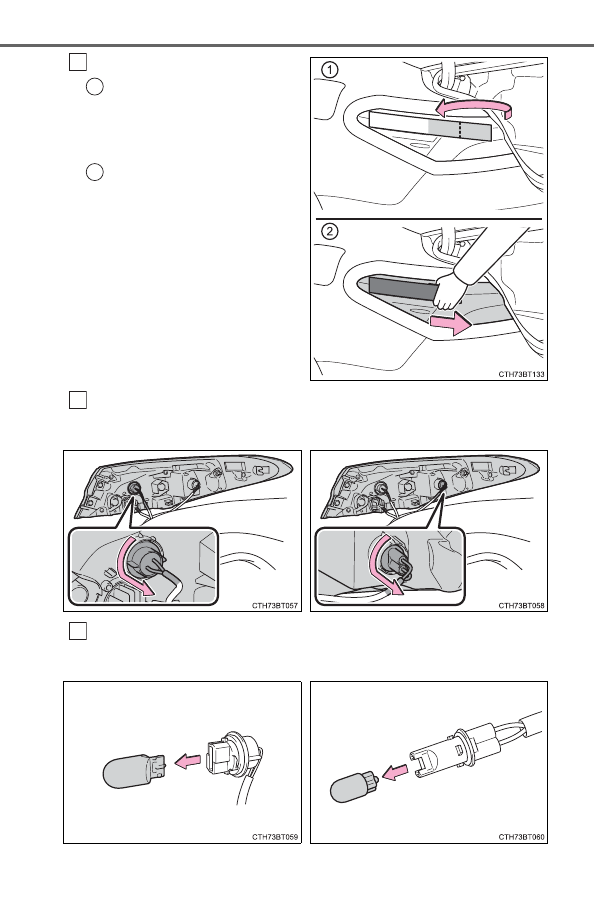

Remove the light unit.

Attach a long piece of
packing tape to the light
unit and fold the excess in
half.

Hold the folded portion
and pull it toward the rear
of the vehicle to remove
the light unit.

Turn the bulb base counterclockwise.

Remove the light bulb.

4

1

2

5

Rear turn signal lights

Rear side marker lights

6

Rear turn signal lights

Rear side marker lights

469

6-3. Do-it-yourself maintenance

6

Mai

n

tenan

ce and care

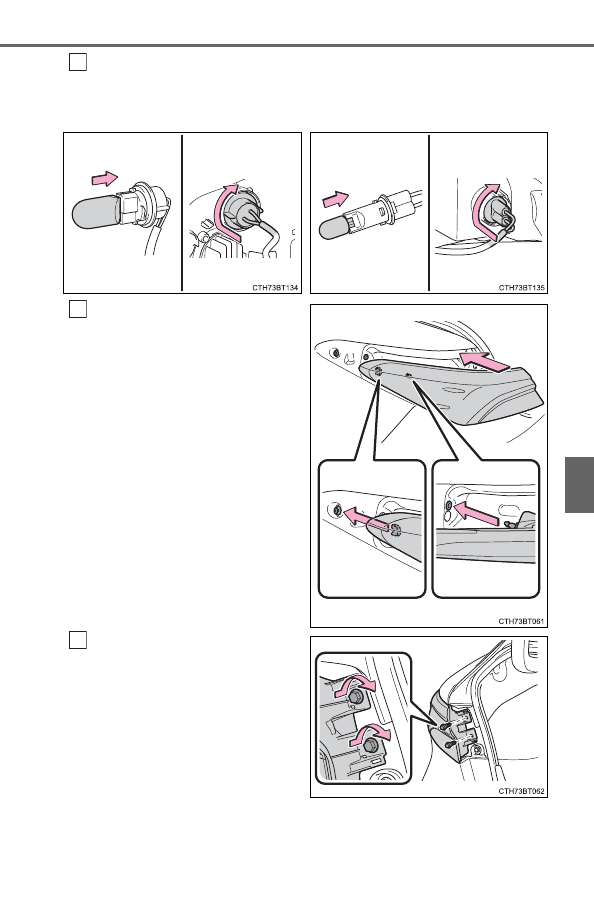

Install a new light bulb and then install the bulb base to the light
unit by inserting it and turning it clockwise.

Install the light unit.

Align the tabs and push the light
unit toward the front of the vehi-
cle to install it.

Install the 2 bolts.

7

Rear turn signal lights

Rear side marker lights

8

9

470

6-3. Do-it-yourself maintenance

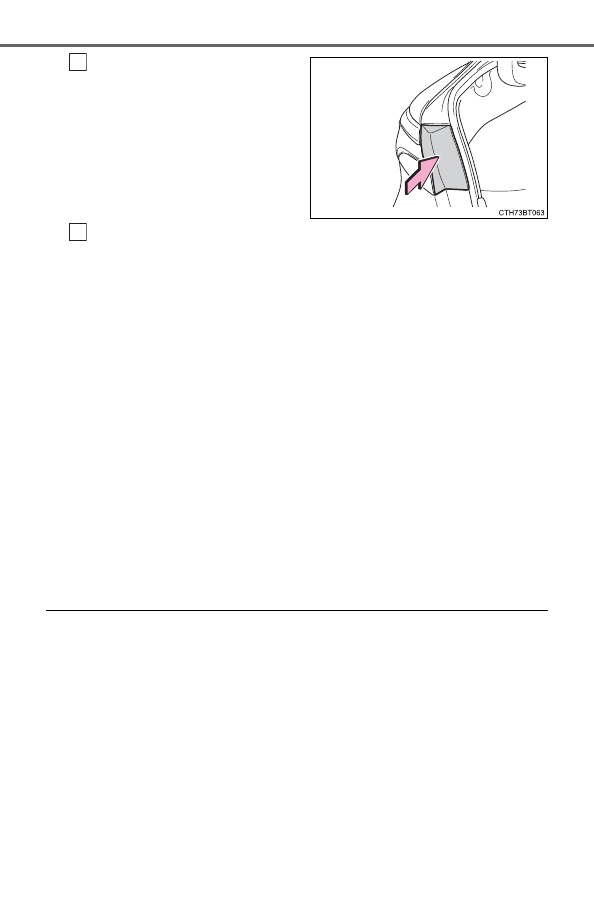

Install the cover.

Remove the protective tape.

■

Replacing the following bulbs

If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlights
● Daytime running lights
● Parking lights (LED type)
● Front turn signal lights (LED type)
● Front side marker lights (LED type)
● Side turn signal lights (if equipped)
● Tail lights
● Rear side marker lights (LED type)
● Stoplights
● Rear turn signal lights (LED type)
● Back-up lights (LED type)
● High mounted stoplight
● License plate lights

■

LED light bulbs
The lights other than the front turn signal/parking lights (bulb type), front side
marker lights (bulb type), back-up lights (bulb type), rear turn signal lights
(bulb type) and rear side marker lights (bulb type) consist of a number of
LEDs. If any of the LEDs burn out, take your vehicle to your Toyota dealer to
have the light replaced.

■

Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact your Toyota dealer for more information in the following situations:

●

Large drops of water have built up on the inside of the lens.

●

Water has built up inside the headlight.

10

11

471

6-3. Do-it-yourself maintenance

6

Mai

n

tenan

ce and care

WARNING

■

Replacing light bulbs

●

Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.

●

Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.

●

Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.

■

To prevent damage or fire
Make sure bulbs are fully seated and locked.

472

6-3. Do-it-yourself maintenance

474

7-1. Essential information

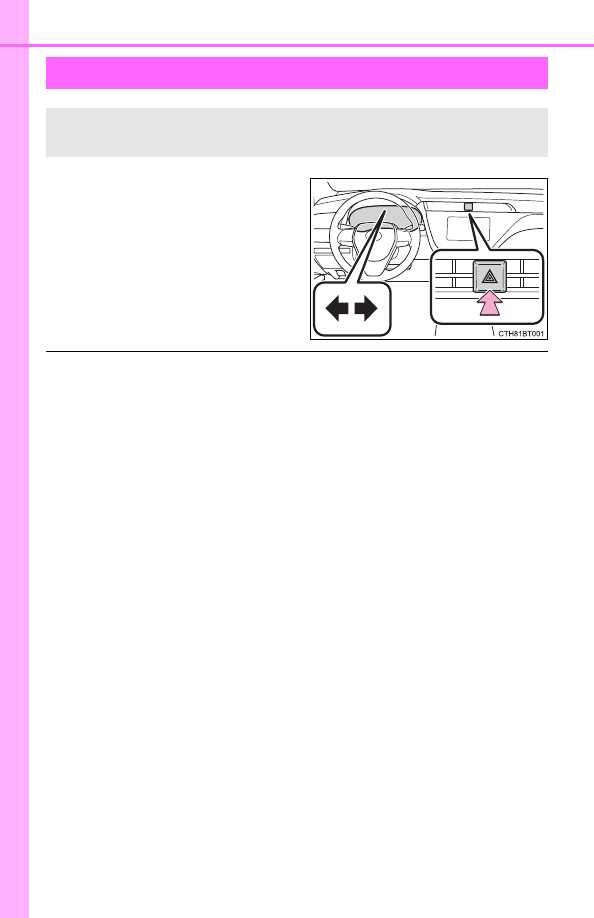

Press the switch.

All the turn signal lights will flash.
To turn them off, press the switch
once again.

■

Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indicator is not illuminated), the 12-volt bat-
tery may discharge.

Emergency flashers

The emergency flashers are used to warn other drivers when the
vehicle has to be stopped on the road due to a breakdown, etc.

475

7-1. Essential information

7

W
hen

 troub

le
arises

Steadily step on the brake pedal with both feet and firmly depress it.

Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.

Shift the shift lever to N.

If the shift lever is shifted to N

After slowing down, stop the vehicle in a safe place by the road.

Stop the hybrid system.

If the shift lever cannot be shifted to N

Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.

To stop the hybrid system,
press and hold the power
switch for 2 consecutive sec-
onds or more, or press it briefly
3 times or more in succession.

Stop the vehicle in a safe place by the road.

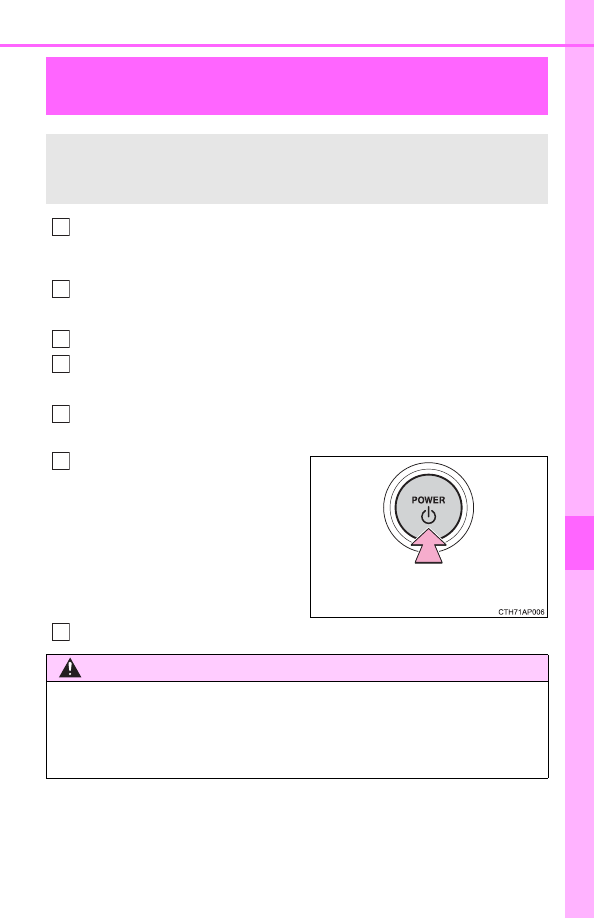

If your vehicle has to be stopped in an

emergency

Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:

1

2

3
4

3

Press and hold for 2 seconds or
more, or press briefly 3 times or more

4

WARNING

■

If the hybrid system has to be turned off while driving
Power assist for the steering wheel will be lost, making the steering wheel
heavier to turn. Decelerate as much as possible before turning off the hybrid
system.

5

476

7-2. Steps to take in an emergency

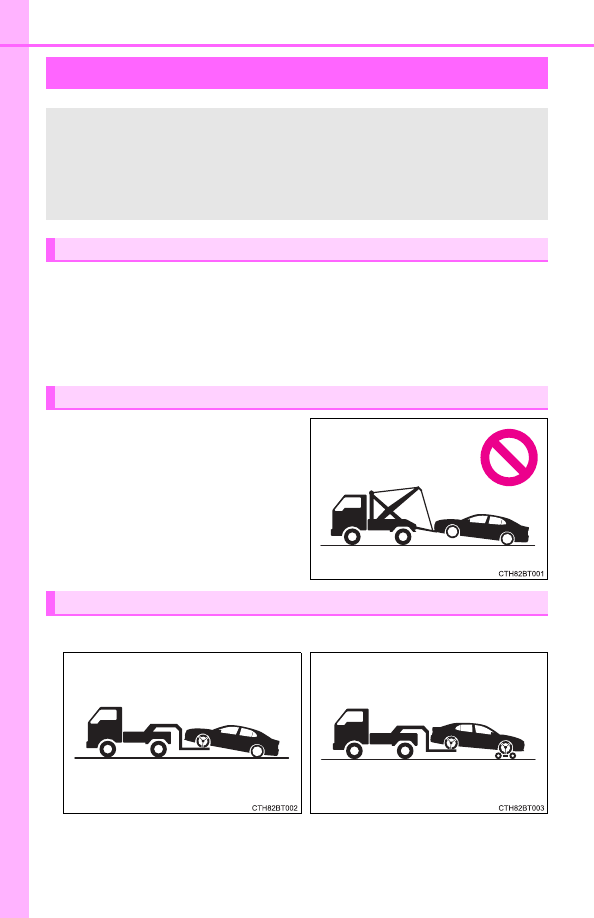

The following may indicate a problem with your transmission. Contact
your Toyota dealer or commercial towing service before towing.
● A warning message for the hybrid system is shown on the multi-

information display and the vehicle does not move.

● The vehicle makes an abnormal sound.

Do not tow with a sling-type truck
to prevent body damage.

If your vehicle needs to be towed

If towing is necessary, we recommend having your vehicle
towed by your Toyota dealer or a commercial towing service,
using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.

Situations when it is necessary to contact dealers before towing

Towing with a sling-type truck

Towing with a wheel-lift type truck

From the front

From the rear

Release the parking brake.

Use a towing dolly under the
front wheels.

477

7-2. Steps to take in an emergency

7

W
hen

 troub

le
arises

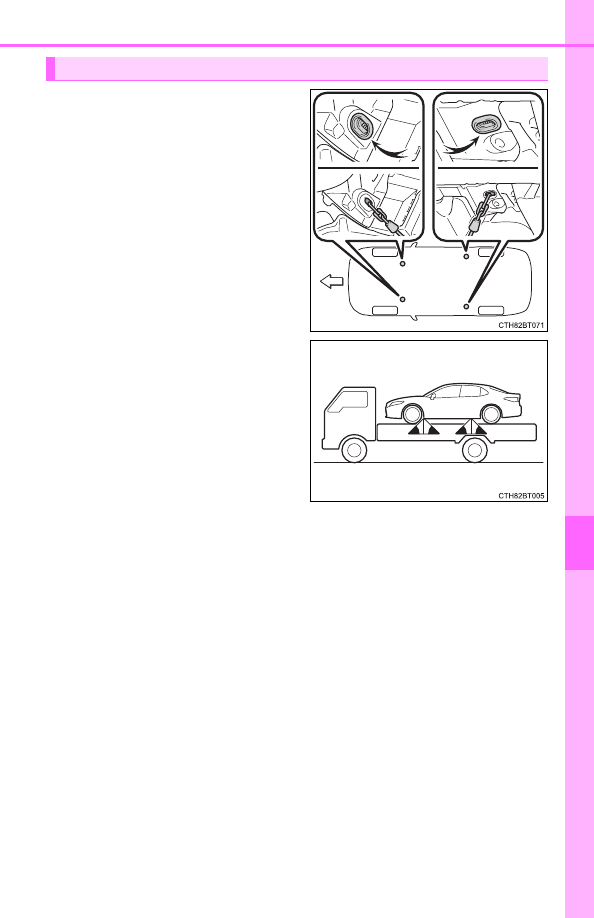

If your vehicle is transported by a
flatbed truck, it should be tied
down at the locations shown in the
illustration.

Covers are installed to the tie-down
holes.
After transporting the vehicle,
make sure to reinstall the covers to
the holes.

If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45

°.

Do not overly tighten the tie
downs or the vehicle may be dam-
aged.

Using a flatbed truck

Front

478

7-2. Steps to take in an emergency

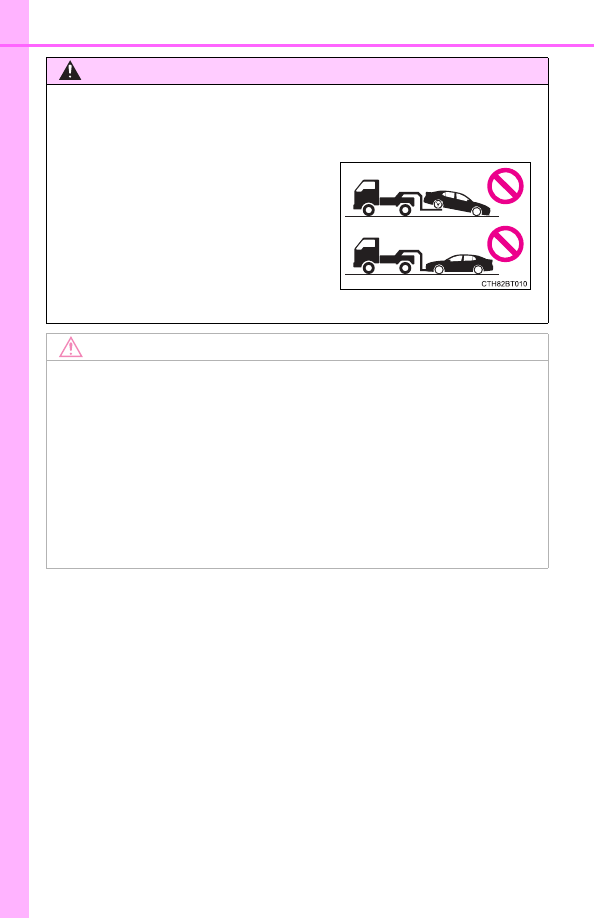

WARNING

Observe the following precautions.
Failure to do so may result in death or serious injury.

■

When towing the vehicle

NOTICE

■

To prevent damage to the vehicle when towing using a wheel-lift type
truck

●

Do not tow the vehicle from the rear when the power switch is off. The
steering lock mechanism is not strong enough to hold the front wheels
straight.

●

When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.

■

To prevent damage to the vehicle when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.

Be sure to transport the vehicle with the
front wheels raised or with all four wheels
raised off the ground. If the vehicle is
towed with the front wheels contacting
the ground, the drivetrain and related
parts may be damaged or electricity gen-
erated by the operation of the motor may
cause a fire to occur depending on the
nature of the damage or malfunction.

479

7-2. Steps to take in an emergency

7

W
hen

 troub

le
arises

● Fluid leaks under the vehicle.

(Water dripping from the air conditioning after use is normal.)

● Flat-looking tires or uneven tire wear
● Engine coolant temperature gauge needle continually points higher

than normal

● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the hybrid system

● Engine missing, stumbling or running roughly
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, spongy feeling, pedal almost touches

the floor

If you think something is wrong

If you notice any of the following symptoms, your vehicle proba-
bly needs adjustment or repair. Contact your Toyota dealer as
soon as possible.

Visible symptoms

Audible symptoms

Operational symptoms

480

7-2. Steps to take in an emergency

If a warning light turns on or a warning

buzzer sounds

Calmly perform the following actions if any of the warning lights
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in the
system. However, if this continues to occur, have the vehicle
inspected by your Toyota dealer.

Warning light and warning buzzer list

Warning light

Warning light/Details/Actions

(U.S.A.)

(Red)

(Canada)

Brake system warning light

Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning

→ Immediately stop the vehicle in a safe place and con-

tact your Toyota dealer. Continuing to drive the vehi-
cle may be dangerous.

(Yellow)

Brake system warning light

Indicates a malfunction in:
• The regenerative braking system;
• The electronically controlled brake system; or
• The electric parking brake

→ Have the vehicle inspected by your Toyota dealer

immediately.

(U.S.A.)

(Canada)

Malfunction indicator lamp

Indicates a malfunction in:
• The hybrid system;
• The electronic engine control system; or
• The electronic throttle control system

→ Have the vehicle inspected by your Toyota dealer

immediately.

SRS warning light

Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system

→ Have the vehicle inspected by your Toyota dealer

immediately.















Content   ..  28  29  30  31   ..
