Toyota Yaris Hybrid (2017 year). Manual - part 13

204

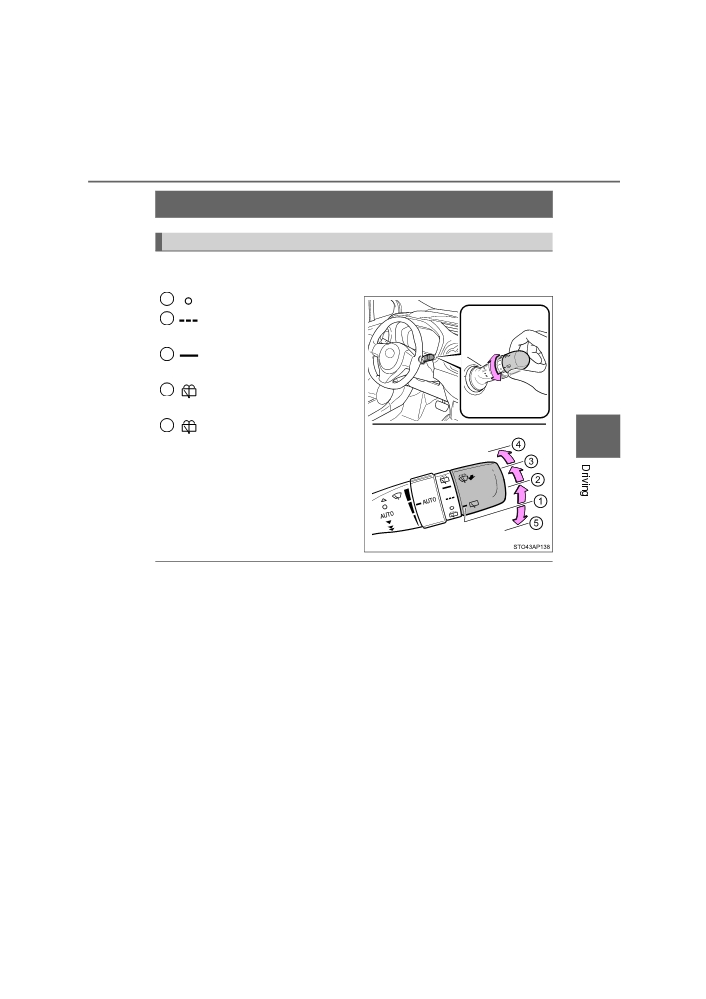

4-3. Operating the lights and wipers

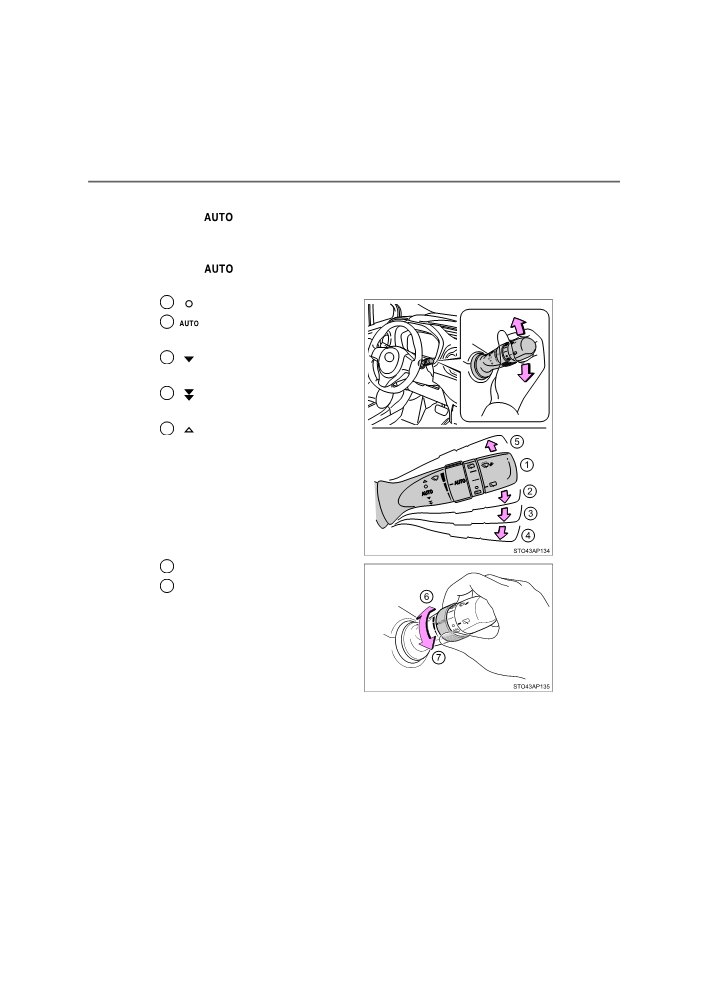

 Rain-sensing windshield wiper

When

is selected, the wiper will operate automatically when the

sensor detects falling rain. The system automatically adjusts wiper

timing in accordance with rain volume and vehicle speed.

When

is selected, the sensor sensitivity can be adjusted as fol-

lows by turning the switch ring:

1

Off

2

Rain-sensing windshield

wiper operation

3

Low speed windshield

wiper operation

4

High speed windshield

wiper operation

5

Temporary operation

6

Increases the sensitivity

7

Decreases the sensitivity

YARIS_HV_OM_Europe_OM52G76E

4-3. Operating the lights and wipers

205

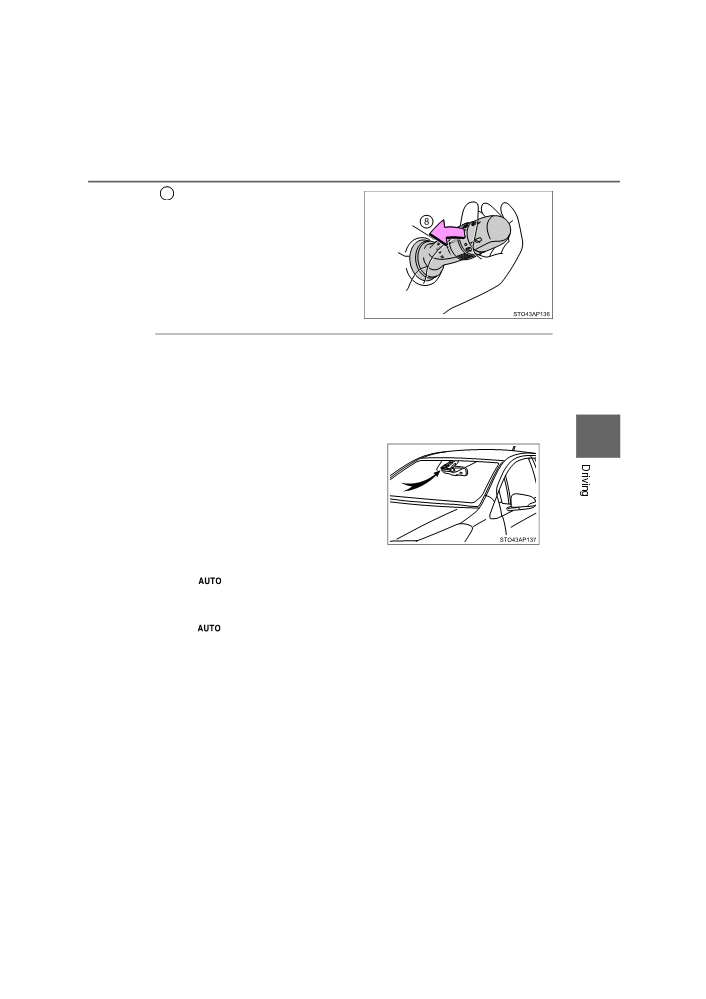

8

Washer/wiper dual operation

The wiper will automatically

operate a couple of times after

the washer squirts.

(After operating several times,

the wiper operate one more

time after a short delay to pre-

vent dripping.)

■ The windshield wiper and washer can be operated when

 Vehicles without a smart entry & start system

The power switch is in the “ON” position.

 Vehicles with a smart entry & start system

The power switch is in ON mode.

■ Raindrop sensor (vehicles with a rain-sensing windshield wiper)

4

● The raindrop sensor judges the amount

of raindrops.

An optical sensor is adopted. It may not

operate properly when sunlight from the

rising or setting of the sun intermittently

strikes the windshield, or if bugs etc. are

present on the windshield.

● Vehicles without a smart entry & start system: If the wiper switch is turned to

the

position while the power switch is in the “ON” position, the wiper

will operate once to show that “AUTO” mode is activated.

● Vehicles with a smart entry & start system: If the wiper switch is turned to

the

position while the power switch is in ON mode, the wiper will oper-

ate once to show that “AUTO” mode is activated.

● When the sensor sensitivity ring is turned toward high while in “AUTO”

mode, the wiper will operate once to indicate that the sensor sensitivity is

enhanced.

● If the temperature of the raindrop sensor is 90°C (194°F) or higher, or -15°C

(5°F) or lower, automatic operation may not occur. In this case, operate the

wiper in any mode other than “AUTO” mode.

YARIS_HV_OM_Europe_OM52G76E

4-3. Operating the lights and wipers

207

Rear window wiper and washer

Operation instructions

Turning the end of the lever turns on the rear window wiper and

washer.

1

Off

2

Intermittent window wiper

operation

3

Normal window wiper

operation

4

Washer/wiper dual opera-

tion

5

Washer/wiper dual opera-

4

tion

The wiper will automatically

operate a couple of times

after the washer squirts.

■ The rear window wiper and washer can be operated when

 Vehicles without a smart entry & start system

The power switch is in the “ON” position.

 Vehicles with a smart entry & start system

The power switch is in ON mode.

■ If no washer fluid sprays

Check that the washer nozzle is not blocked, if there is washer fluid in the

washer fluid reservoir.

: If equipped

YARIS_HV_OM_Europe_OM52G76E

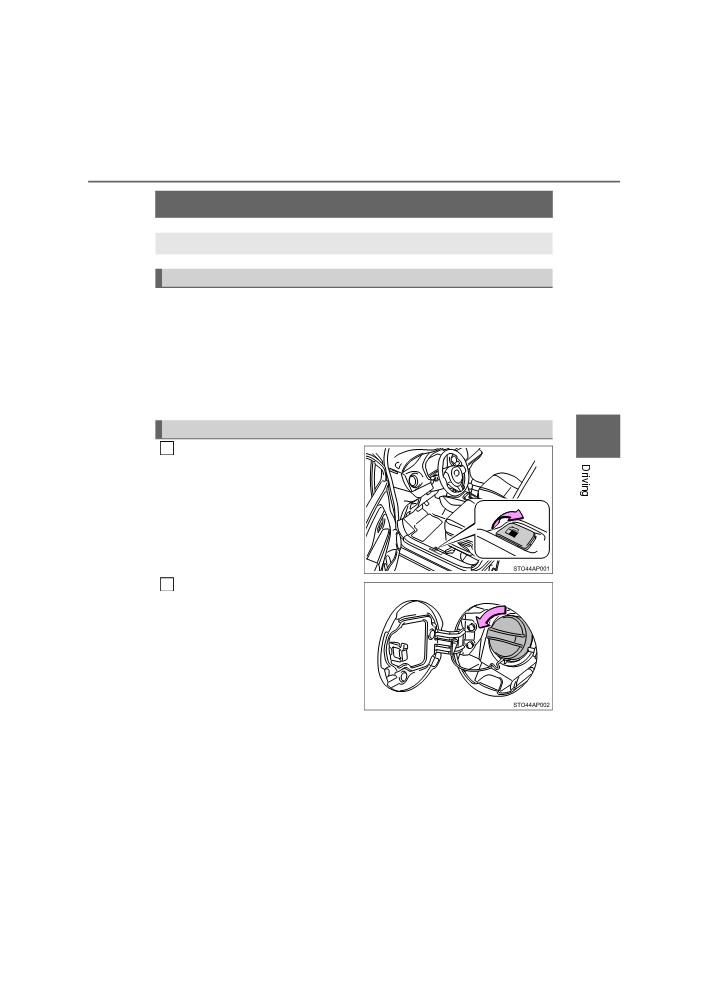

4-4. Refueling

209

Opening the fuel tank cap

Perform the following steps to open the fuel tank cap:

Before refueling the vehicle

● Vehicles without a smart entry & start system

Turn the power switch to the “LOCK” position and ensure that all

the doors and windows are closed.

● Vehicles with a smart entry & start system

Turn the power switch off and ensure that all the doors and win-

dows are closed.

● Confirm the type of fuel. (P. 474)

Opening the fuel tank cap

4

1

Pull up the opener to open the

fuel filler door.

2

Turn the fuel tank cap slowly to

open.

YARIS_HV_OM_Europe_OM52G76E

210

4-4. Refueling

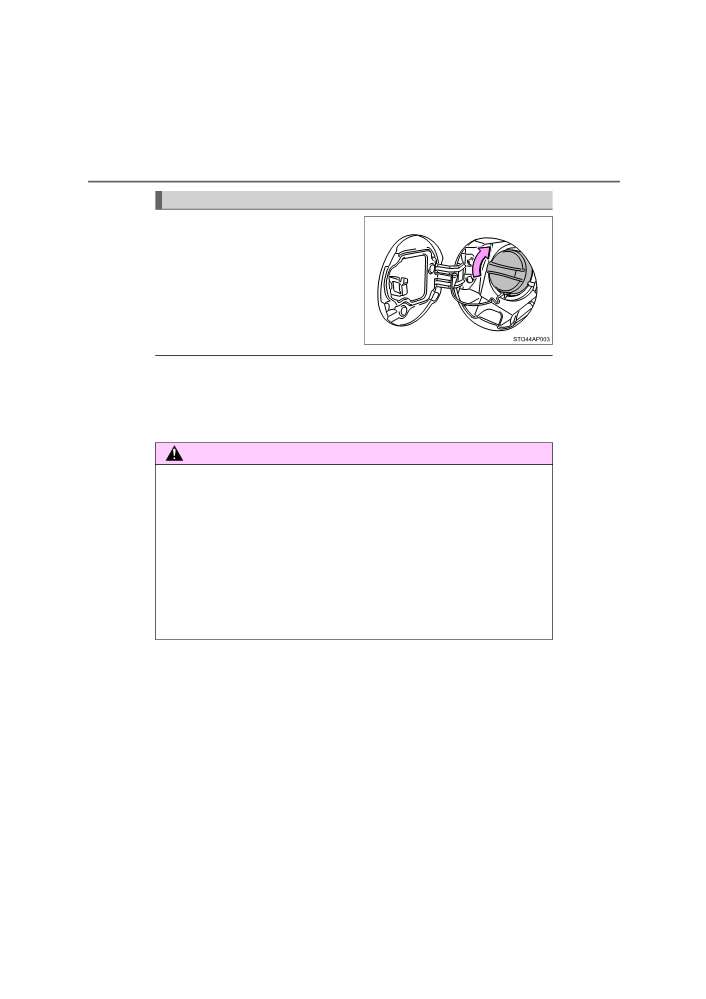

Closing the fuel tank cap

After refueling, turn the fuel tank

cap until you hear a click. Once

the cap is released, it will turn

slightly in the opposite direction.

■ Fuel types

P. 474

■ Fuel tank opening for unleaded gasoline

To help prevent incorrect fueling, your vehicle has a fuel tank opening that

only accommodates the special nozzle on unleaded fuel pumps.

WARNING

■ When refueling the vehicle

Observe the following precautions while refueling the vehicle. Failure to do

so may result in death or serious injury.

● After exiting the vehicle and before opening the fuel door, touch an

unpainted metal surface to discharge any static electricity. It is important to

discharge static electricity before refueling because sparks resulting from

static electricity can cause fuel vapors to ignite while refueling.

● Always hold the grips on the fuel tank cap and turn it slowly to remove it.

A whooshing sound may be heard when the fuel tank cap is loosened.

Wait until the sound cannot be heard before fully removing the cap. In hot

weather, pressurized fuel may spray out the filler neck and cause injury.

YARIS_HV_OM_Europe_OM52G76E

4-4. Refueling

211

WARNING

●Do not allow anyone that has not discharged static electricity from their

body to come close to an open fuel tank.

●Do not inhale vaporized fuel.

Fuel contains substances that are harmful if inhaled.

●Do not smoke while refueling the vehicle.

Doing so may cause the fuel to ignite and cause a fire.

●Do not return to the vehicle or touch any person or object that is statically

charged.

This may cause static electricity to build up, resulting in a possible ignition

hazard.

■ When refueling

Observe the following precautions to prevent fuel overflowing from the fuel

tank:

●Securely insert the fuel nozzle into the fuel filler neck.

● Stop filling the tank after the fuel nozzle automatically clicks off.

4

●Do not top off the fuel tank.

■ When replacing the fuel tank cap

Do not use anything but a genuine Toyota fuel tank cap designed for your

vehicle. Doing so may cause a fire or other incident which may result in

death or serious injury.

NOTICE

■ Refueling

Do not spill fuel during refueling.

Doing so may damage the vehicle, such as causing the emission control

system to operate abnormally or damaging fuel system components or the

vehicle’s painted surface.

YARIS_HV_OM_Europe_OM52G76E

212

4-5. Toyota Safety Sense

Toyota Safety Sense

The Toyota Safety Sense consists of the following drive assist

systems and contributes to a safe and comfortable driving expe-

rience:

◆ PCS (Pre-Crash Safety system)

P. 218

◆ LDA (Lane Departure Alert)

P. 231

◆ Automatic High Beam

P. 236

WARNING

■ Toyota Safety Sense

The Toyota Safety Sense is designed to operate under the assumption that

the driver will drive safely, and is designed to help reduce the impact to the

occupants and the vehicle in the case of a collision or assist the driver in

normal driving conditions.

As there is a limit to the degree of recognition accuracy and control perfor-

mance that this system can provide, do not overly rely on this system. The

driver is always responsible for paying attention to the vehicle’s surround-

ings and driving safely.

: If equipped

YARIS_HV_OM_Europe_OM52G76E

4-5. Toyota Safety Sense

213

Vehicle data recording

The pre-crash safety system is equipped with a sophisticated com-

puter that will record certain data, such as:

• Accelerator status

• Brake status

• Vehicle speed

• Operation status of the pre-crash safety system functions

• Information (such as the distance and relative speed between your

vehicle and the vehicle ahead or other objects)

● Data usage

Toyota may use the data recorded in this computer to diagnose

malfunctions, conduct research and development, and improve

quality.

Toyota will not disclose the recorded data to a third party except:

4

• With the consent of the vehicle owner or with the consent of the

lessee if the vehicle is leased

• In response to an official request by the police, a court of law or a

government agency

• For use by Toyota in a lawsuit

• For research purposes where the data is not tied to a specific

vehicle or vehicle owner

YARIS_HV_OM_Europe_OM52G76E

214

4-5. Toyota Safety Sense

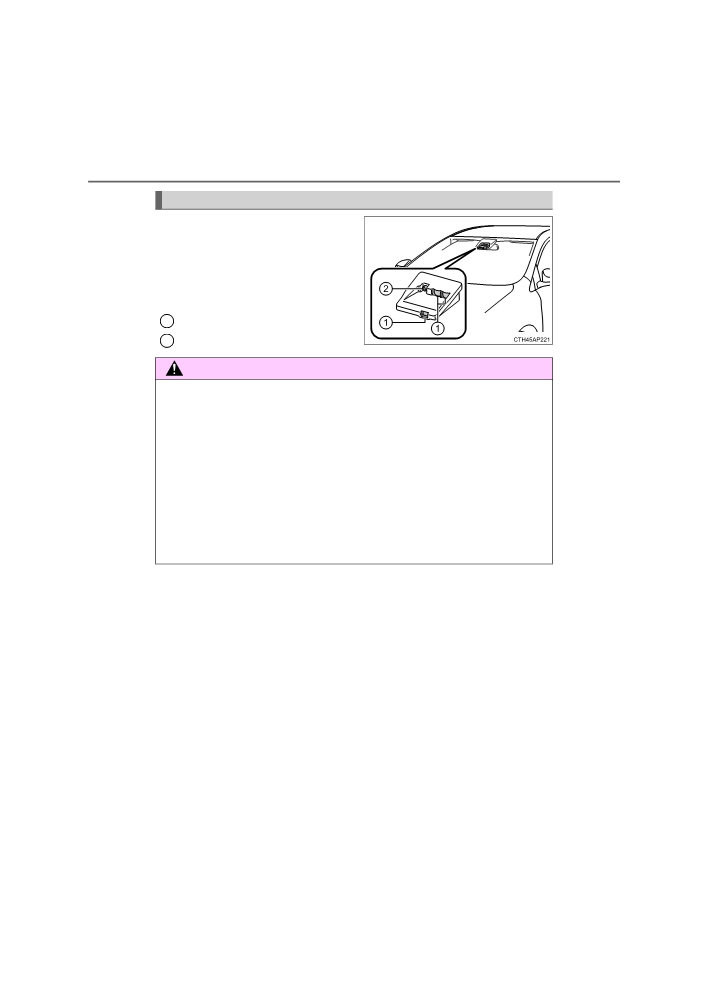

Front sensor

The front sensor is located on the

upper side of the windshield. It

consists of

2 types of sensors,

each of which detects information

necessary to operate the drive

assist systems.

1

Laser sensors

2

Monocular camera sensor

WARNING

■ Front sensor

The front sensor uses lasers to detect vehicles ahead of your vehicle. The

front sensor is classified as class 1M laser product according to the IEC

60825-1 standard. Under normal usage conditions, these lasers are not harm-

ful to the naked eye. However, it is necessary to observe the following precau-

tions.

Failure to do so may result in the loss of eyesight or severe visual impairment.

● To avoid hazardous laser radiation exposure, never attempt to disassem-

ble the front sensor (e.g. remove the lenses). When disassembled, the

front sensor is classified as a class 3B laser product according to the IEC

60825-1 standard. Class 3B lasers are hazardous and pose a risk of eye

injury under direct exposure.

YARIS_HV_OM_Europe_OM52G76E

4-5. Toyota Safety Sense

215

WARNING

●Do not attempt to look into the front sensor with a magnifying glass, micro-

scope or other optical instrument within a distance of less than 100 mm

(3.9 in.).

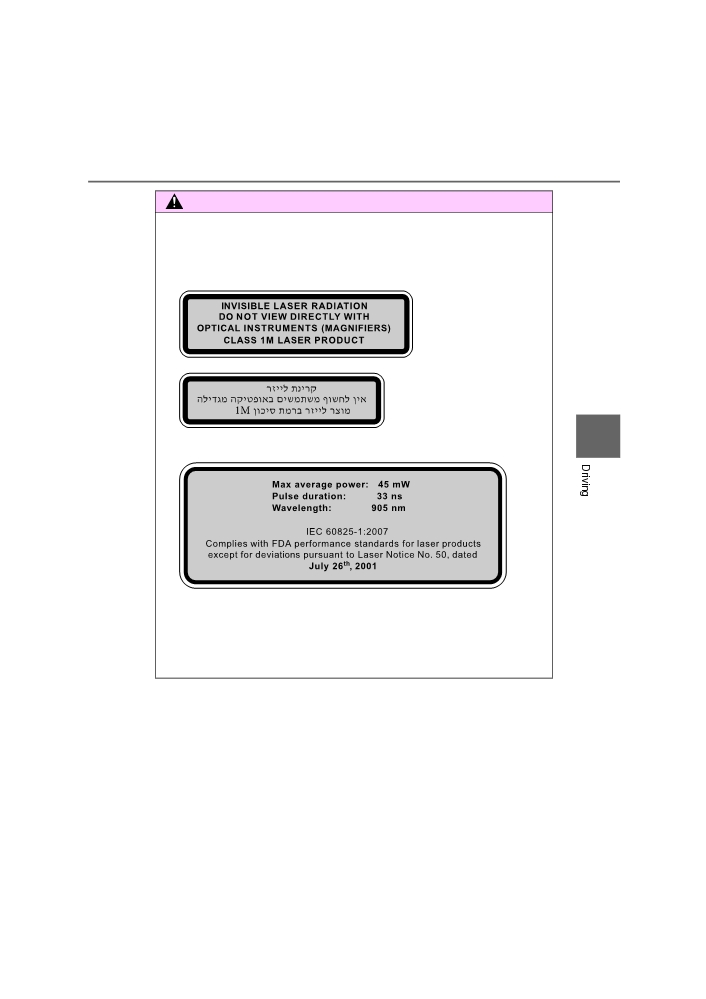

Laser classification label

4

Laser explanatory label

Laser emission data

Maximum average power: 45 mW

Pulse duration: 33 ns

Wave length: 905 nm

Divergence (horizontal  vertical): 28°  12°

YARIS_HV_OM_Europe_OM52G76E

216

4-5. Toyota Safety Sense

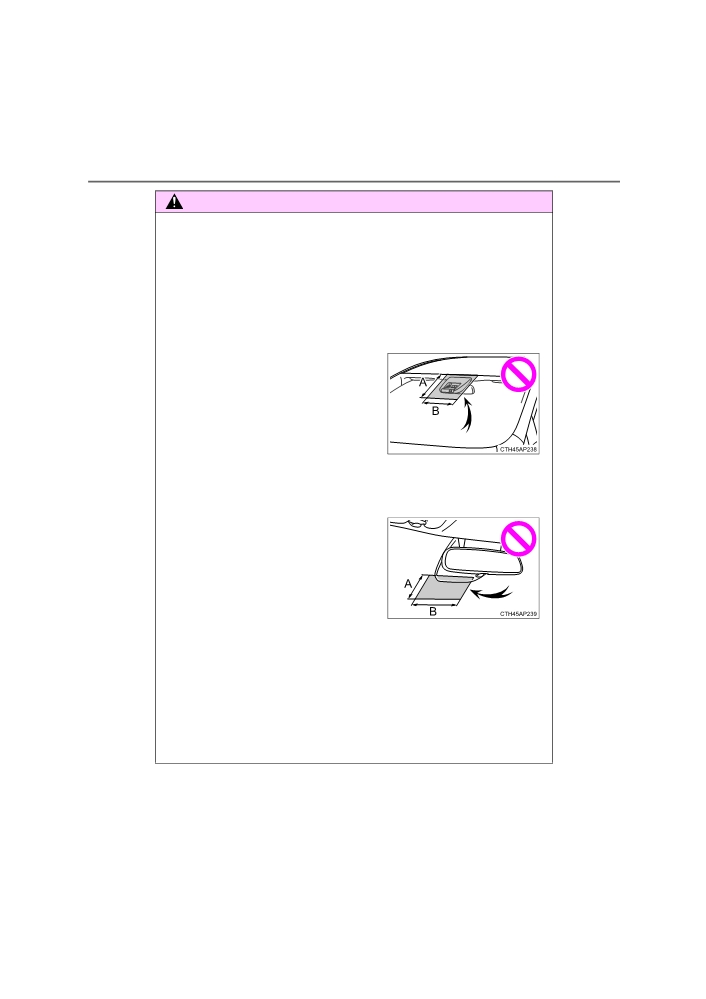

WARNING

■ To avoid malfunction of the front sensor

Observe the following precautions.

Otherwise, the front sensor may not operate properly, possibly leading to an

accident resulting in death or serious injury.

●Keep the windshield clean at all times. If the windshield is dirty or covered

with an oily film, water droplets, snow, etc., clear the windshield. If the

inner side of the windshield in front of the front sensor is dirty, contact any

authorized Toyota dealer or repairer, or another duly qualified and

equipped professional.

●Do not attach objects, such as stickers,

transparent stickers, etc., and so forth,

to the outer side of the windshield in

front of the front sensor (shaded area in

the illustration).

A: From the top of the windshield to

approximately 10 cm (4.0 in.) below

the bottom of the front sensor

B: Approximately

20 cm

(7.9 in.)

(Approximately 10 cm (4.0 in.) to the

right and left from the center of the

front sensor)

●Do not install or attach anything to the

inner side of the windshield under the

front sensor (shaded area in the illustra-

tion).

A: Approximately 10 cm (4.0 in.) (Start-

ing from the bottom of the front sen-

sor)

B: Approximately

20 cm

(7.9 in.)

(Approximately 10 cm (4.0 in.) to the

right and left from the center of the

front sensor)

● If there is a large difference in temperature between the inside and outside

of the vehicle, such as in winter, the windshield is likely to fog up easily. If

the part of the windshield in front of the front sensor is fogged up or cov-

ered with condensation or ice, the PCS warning light may flash or illumi-

nate and the system may be temporarily disabled. In this case, use the

windshield defogger to remove the fog, etc. (P. 295)

YARIS_HV_OM_Europe_OM52G76E

4-5. Toyota Safety Sense

217

WARNING

● If the area of the windshield in front of the front sensor is covered with

water droplets, use the windshield wipers to remove them.

If the water droplets are not sufficiently removed, the performance of the

front sensor may be reduced.

● If water droplets cannot be properly removed from the area of the wind-

shield in front of the front sensor by the windshield wipers, replace the

wiper insert or wiper blade.

If the wiper inserts or wiper blades need to be replaced, contact any autho-

rized Toyota dealer or repairer, or another duly qualified and equipped pro-

fessional.

●Do not attach window tinting to the windshield.

●Replace the windshield if it is damaged or cracked.

If the windshield needs to be replaced, contact any authorized Toyota

dealer or repairer, or another duly qualified and equipped professional.

●Do not install an antenna in front of the sensor.

4

●Do not get the front sensor wet.

●Do not allow bright lights to shine into the front sensor.

●Do not dirty or damage the front sensor.

When cleaning the inside of the windshield, do not allow glass cleaner to

contact the lens. Also, do not touch the lens.

If the lens is dirty or damaged, contact any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional.

●Do not subject the front sensor to a strong impact.

●Do not change the installation position or direction of the front sensor or

remove it.

●Do not disassemble the front sensor.

●Do not install an electronic device or device that emits strong electric

waves near the front sensor.

●Do not modify any components of the vehicle around the front sensor

(inside rear view mirror, sun visors, etc.) or ceiling.

●Do not attach any accessories that may obstruct the front sensor to the

hood, front grille or front bumper. Contact any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional for details.

● If a surfboard or other long object is to be mounted on the roof, make sure

that it will not obstruct the front sensor.

●Do not modify the headlights or other lights.

●Do not attach anything to or place anything on the dashboard.

YARIS_HV_OM_Europe_OM52G76E

218

4-5. Toyota Safety Sense

PCS (Pre-Crash Safety system)

The pre-crash safety system uses the front sensor to detect

vehicles in front of your vehicle. When the system determines

that the possibility of a frontal collision with a vehicle is high, a

warning operates to urge the driver to take evasive action and

the potential brake pressure is increased to help the driver avoid

the collision.

If the system determines that the possibility of a frontal collision

with a vehicle is extremely high, the brakes are automatically

applied to help avoid the collision or help reduce the impact of

the collision.

The pre-crash safety system can be disabled/enabled and the warn-

ing timing can be changed. (P. 221)

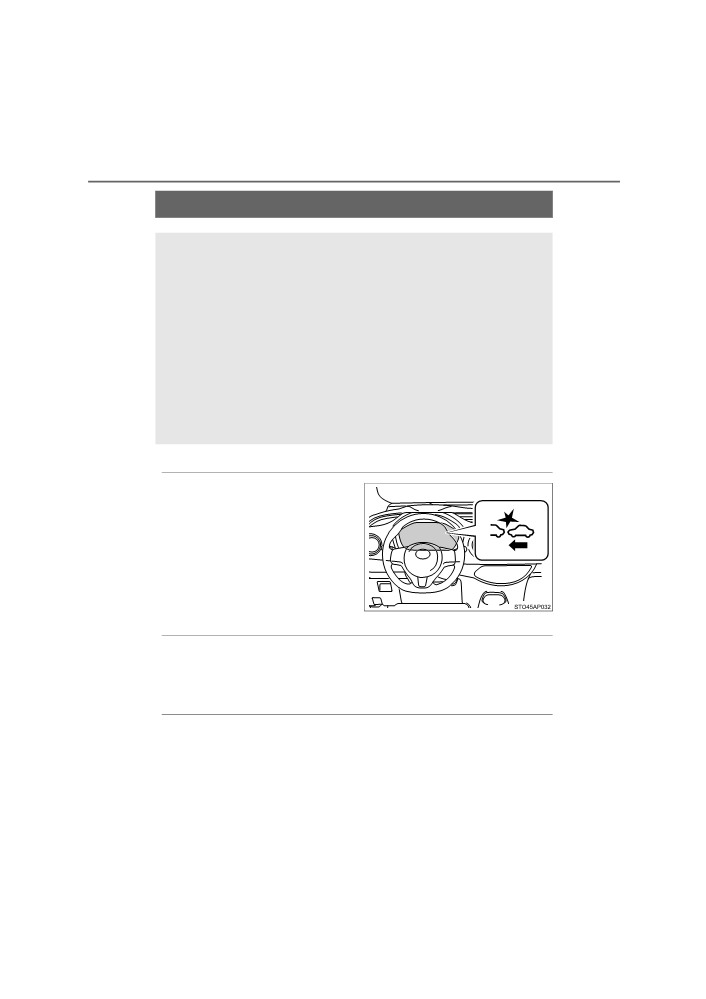

◆ Pre-crash warning

When the system determines

that the possibility of a frontal

collision is high, a buzzer will

sound and the PCS activation

indicator will flash to urge the

driver to take evasive action.

◆ Pre-crash brake assist

When the system determines that the possibility of a frontal colli-

sion with a vehicle is high, the system applies greater braking force

in relation to how strongly the brake pedal is depressed.

◆ Pre-crash braking

When the system determines that the possibility of a frontal colli-

sion with a vehicle is high, the system warns the driver. If the sys-

tem determines that the possibility of a collision is extremely high,

the brakes are automatically applied to help avoid the collision or

reduce the collision speed.

: If equipped

YARIS_HV_OM_Europe_OM52G76E

4-5. Toyota Safety Sense

219

WARNING

■ Limitations of the pre-crash safety system

●The driver is solely responsible for safe driving. Always drive safely, taking

care to observe your surroundings.

Do not use the pre-crash safety system instead of normal braking opera-

tions under any circumstances. This system will not prevent collisions or

lessen collision damage or injury in every situation. Do not overly rely on

this system. Failure to do so may lead to an accident, resulting in death or

serious injury.

●Although this system is designed to help avoid and reduce the impact of a

collision, its effectiveness may change according to various conditions,

therefore the system may not always be able to achieve the same level of

performance.

Read the following conditions carefully. Do not overly rely on this system

and always drive carefully.

• Conditions under which the system may operate even if there is no pos-

sibility of a collision: P. 223

4

• Conditions under which the system may not operate properly: P. 227

●Do not attempt to test the operation of the pre-crash safety system your-

self, as the system may not operate properly, possibly leading to an acci-

dent.

■ Pre-crash braking

●The pre-crash braking function may not operate if certain operations are

performed by the driver. If the accelerator pedal is being depressed

strongly or the steering wheel is being turned, the system may determine

that the driver is taking evasive action and possibly prevent the pre-crash

braking function from operating.

● In some situations, while the pre-crash braking function is operating, oper-

ation of the function may be canceled if the accelerator pedal is depressed

strongly or the steering wheel is turned and the system determines that

the driver is taking evasive action.

● A large amount of braking force is applied while the pre-crash braking

function is operating. Additionally, as the operation of the pre-crash brak-

ing function will be canceled after the vehicle has been stopped for

approximately 2 seconds if it is stopped by the operation of the pre-crash

braking function, the driver should depress the brake pedal as necessary.

● If the brake pedal is being depressed, the system may determine that the

driver is taking evasive action and possibly delay the operation timing of

the pre-crash braking function.

YARIS_HV_OM_Europe_OM52G76E

Content   ..  11  12  13  14   ..
