8-2. Steps to take in an emergency
595

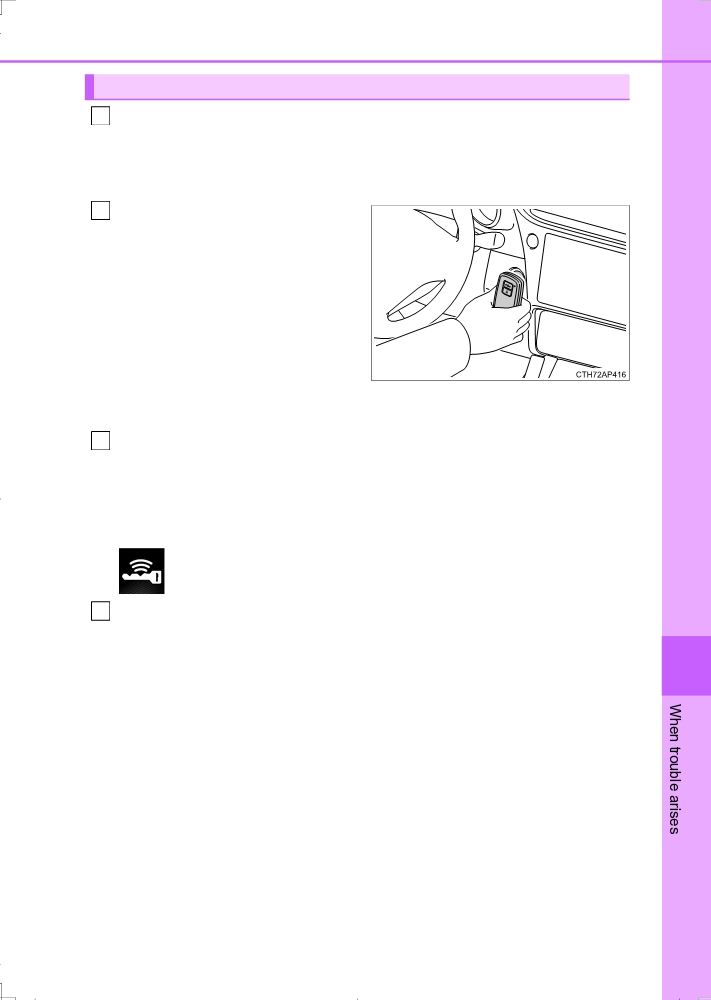

Starting the engine
1
Multidrive: Ensure that the shift lever is in P and depress the brake
pedal.
Manual transmission: Shift the shift lever to N and depress the
clutch pedal.
Touch the Toyota emblem side
2
of the electronic key to the
engine switch.
When the electronic key is
detected, a buzzer sounds and the
engine switch will turn to IGNITION
ON mode.
When the smart entry & start sys-
tem is deactivated in customization
setting, the engine switch will turn
to ACCESSORY mode.
Vehicles with a
3-ring meter: Firmly depress the brake pedal
3
(Multidrive) or clutch pedal (manual transmission) and check that
the smart entry & start system indicator light (green) turns on.
Vehicles with a
2-ring meter: Firmly depress the brake pedal
(Multidrive) or clutch pedal (manual transmission) and check that
is shown on the multi-information display.
4
Press the engine switch.
In the event that the engine still cannot be started, contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
8
professional.
596
8-2. Steps to take in an emergency
■Stopping the engine
Shift the shift lever to P (Multidrive) or N (manual transmission) and press the
engine switch as you normally do when stopping the engine.
■ Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(P. 511)
■ Alarm (if equipped)
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered.
■ Changing engine switch modes
Release the brake pedal (Multidrive) or clutch pedal (manual transmission)
and press the engine switch in step
3
above.
The engine does not start and modes will be changed each time the switch is
pressed. (P. 216)
■ When the electronic key does not work properly
● Make sure that the smart entry & start system has not been deactivated in
the customization setting. If it is off, turn the function on.
(Customizable features P. 635)
● Check if battery-saving mode is set. If it is set, cancel the function.
(P. 147)
8-2. Steps to take in an emergency
597
If the vehicle battery is discharged
The following procedures may be used to start the engine if the
vehicle’s battery is discharged.
You can also call any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional or a qualified
repair shop.
If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.

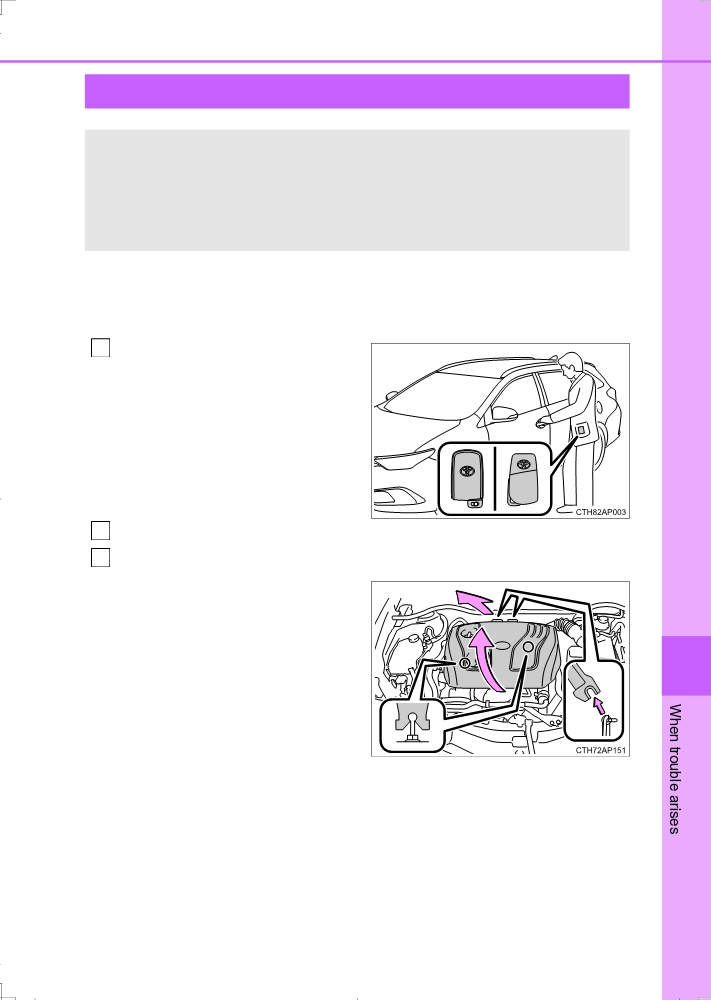

Vehicles with an alarm: Confirm
1
that the key is being carried.
When connecting the jumper (or
booster) cables, depending on the
situation, the alarm may activate
and doors locked. (P. 89)
2
Open the hood. (P. 465)
3
Vehicles with 1ND-TV engine, remove the engine cover.
Raise the front of the engine
cover to detach it from the clips
and then pull the cover to
detach it from the brackets on
8
the rear bar as shown in the
illustration.
598
8-2. Steps to take in an emergency
4

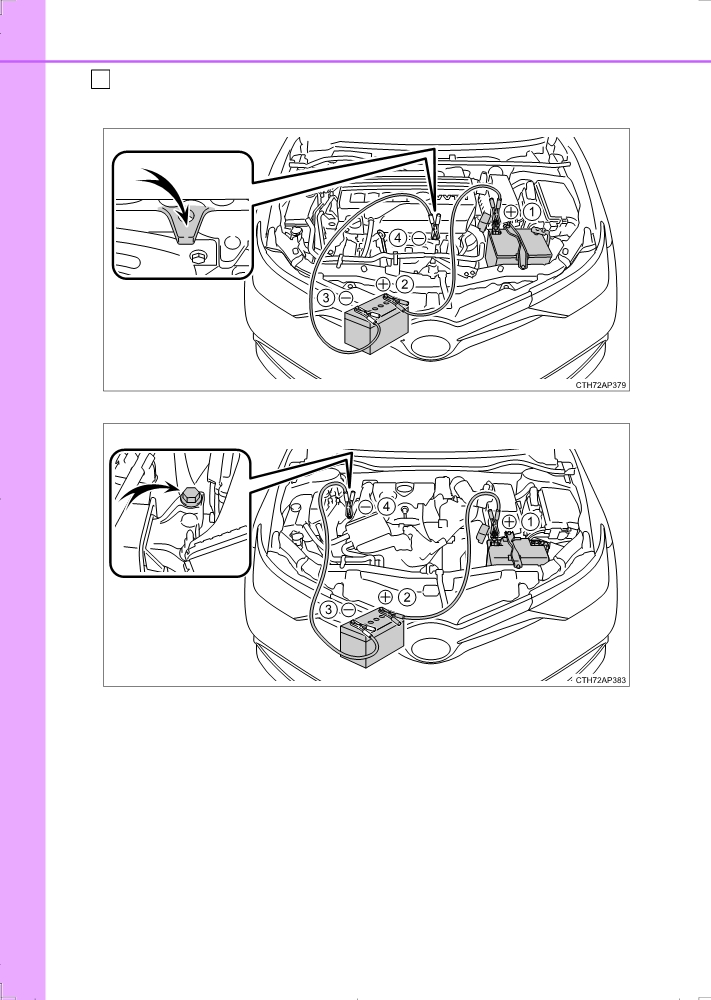

Connect the jumper cables according to the following procedure:
1NR-FE engine
8NR-FTS engine
8-2. Steps to take in an emergency
599

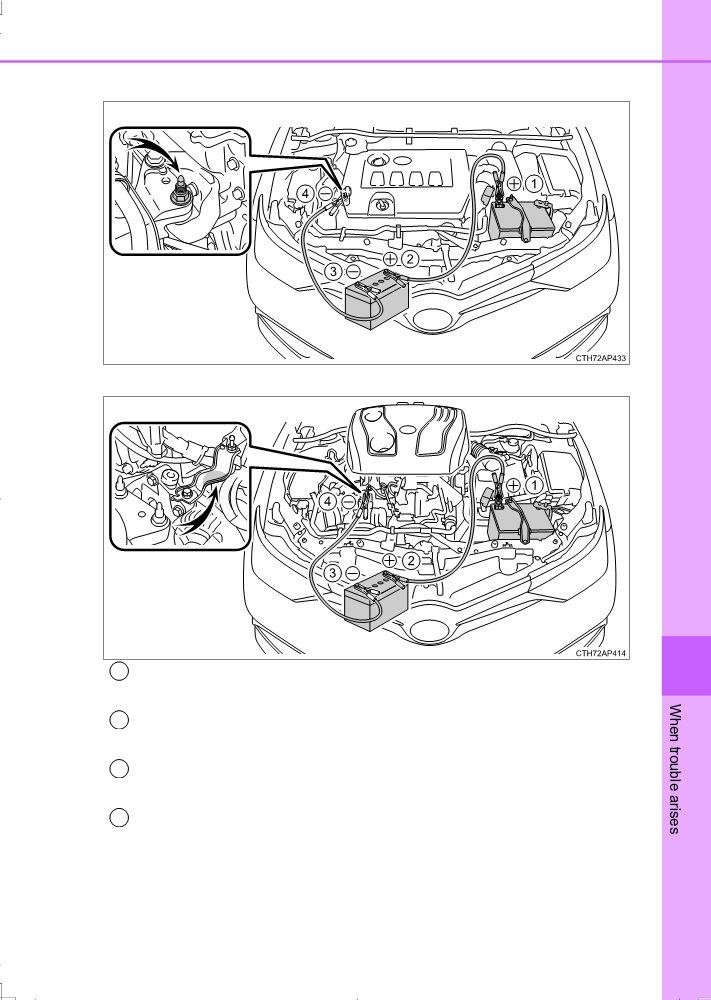

1ZR-FAE and 1WW engines
1ND-TV engine
8
1
Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the
2
positive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery termi-
3
nal on the second vehicle.
Connect the clamp at the other end of the negative cable to a
4
solid, stationary, unpainted metallic point away from the battery
and any moving parts, as shown in the illustration.
600
8-2. Steps to take in an emergency
5
Start the engine of the second vehicle. Increase the engine speed
slightly and maintain at that level for approximately 5 minutes to
recharge the battery of your vehicle.
6
Vehicles with a smart entry & start system: Open and close any of
the doors of your vehicle with the engine switch off.
7
Vehicles without a smart entry & start system:
Maintain the engine speed of the second vehicle and turn the
engine switch to the “ON” position, then start the vehicle's engine.
Vehicles with a smart entry & start system:
Maintain the engine speed of the second vehicle and turn the
engine switch to IGNITION ON mode, then start the vehicle's
engine.
Once the vehicle’s engine has started, remove the jumper cables in
8
the exact reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
■ Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■ To prevent battery discharge
● Turn off the headlights and audio system while the engine is stopped. (Vehi-
cles with a Stop & Start system: except when the engine is stopped by the
Stop & Start system.)
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■ Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
8-2. Steps to take in an emergency
601
■ When recharging or replacing the battery
● Vehicles with a smart entry & start system: In some cases, it may not be
possible to unlock the doors using the smart entry & start system when the
battery is discharged. Use the wireless remote control or the mechanical
key to lock or unlock the doors.
● Vehicles with a smart entry & start system: The engine may not start on the
first attempt after the battery has recharged but will start normally after the
second attempt. This is not a malfunction.
● Vehicles with a smart entry & start system: The engine switch mode is mem-
orized by the vehicle. When the battery is reconnected, the system will
return to the mode it was in before the battery was discharged. Before dis-
connecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.
● Vehicles with Stop & Start system: After charging the battery or reconnecting
the battery terminals, the Stop & Start system may not automatically stop
the engine for approximately 5 to 40 minutes.
■ When exchanging the battery (vehicles with Stop & Start system)
Use a battery specified for use with the Stop & Start system and equivalent to
a genuine battery. If an unsupported battery is used, Stop & Start system
functions may be restricted to protect the battery.
Also, battery performance may decrease and the engine may not be able to
restart. Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional for details.
WARNING
■ Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery:
● Make sure each jumper cable is connected to the correct terminal and that
8
it is not unintentionally in contact with any other than the intended terminal.
● Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.
● Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
● Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.
602
8-2. Steps to take in an emergency
WARNING
■ Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following pre-
cautions when handling the battery:
● When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.
● Do not lean over the battery.
● In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
● Always wash your hands after handling the battery support, terminals, and
other battery-related parts.
● Do not allow children near the battery.
NOTICE
■ When handling jumper cables
When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fans or engine drive belt.
8-2. Steps to take in an emergency
603
If your vehicle overheats
The following may indicate that your vehicle is overheating.
● Vehicles with a 3-ring meter: The high engine coolant temperature
warning light (P. 545) comes on or a loss of engine power is
experienced (for example, the vehicle speed does not increase).
Vehicles with a
2-ring meter: The engine coolant temperature
gauge (P. 98) enters the red zone or a loss of engine power is
experienced (for example, the vehicle speed does not increase).
● Steam comes out from under the hood.
Correction procedures
1
Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the engine.
2
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.

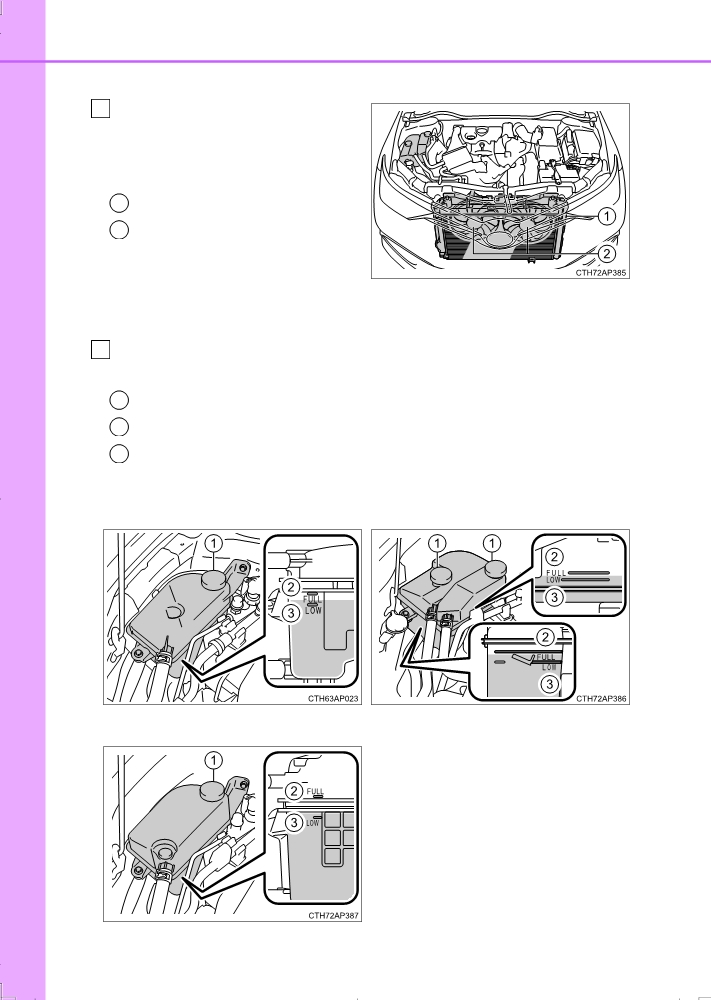

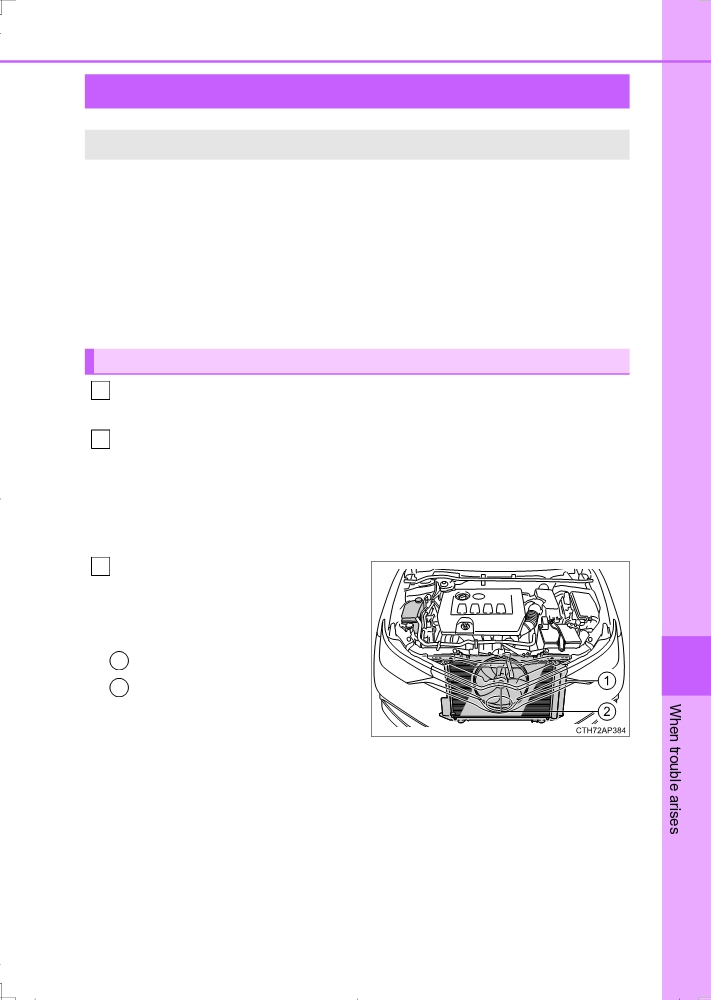

Except 8NR-FTS and 1WW engines
3
After the engine has cooled
down sufficiently, inspect the
hoses and radiator core (radia-
tor) for any leaks.
1
Radiator
8
2
Cooling fan
If a large amount of coolant
leaks, immediately contact any
authorized Toyota dealer or
repairer, or another duly quali-
fied and equipped professional.
604
8-2. Steps to take in an emergency
8NR-FTS and 1WW engines
3
After the engine has cooled
down sufficiently, inspect the
hoses and radiator core (radia-
tor) for any leaks.
1
Radiator
2
Cooling fans
If a large amount of coolant
leaks, immediately contact any
authorized Toyota dealer or
repairer, or another duly quali-
fied and equipped professional.
4
The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir.
1
Reservoir
2
“FULL”
3
“LOW”
Except
8NR-FTS and
1WW
8NR-FTS engine
engines
1WW engine

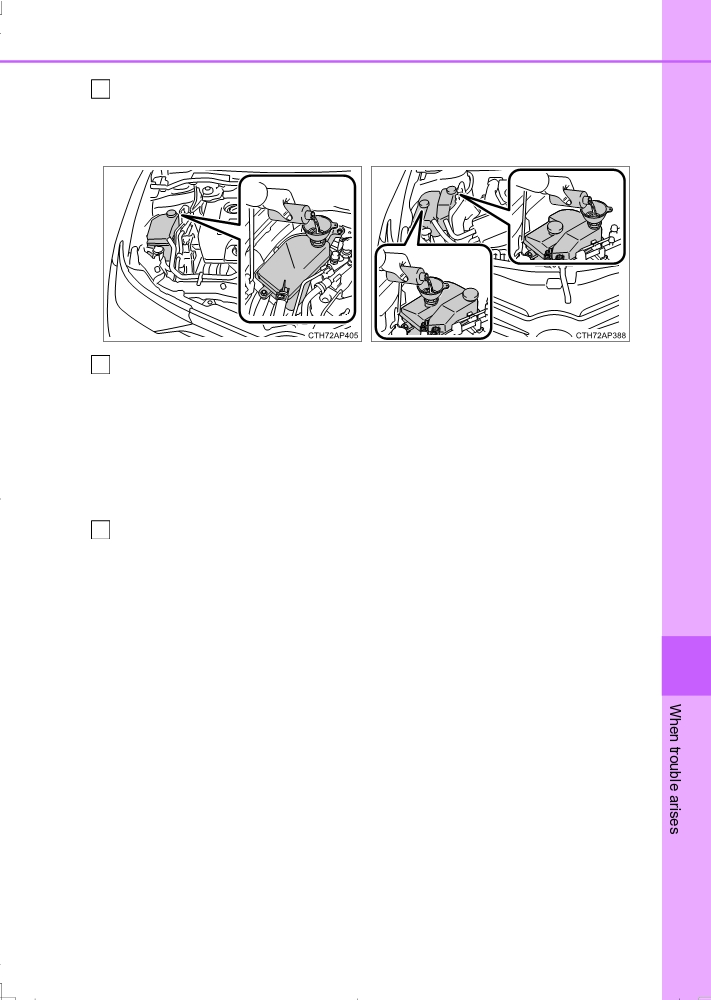

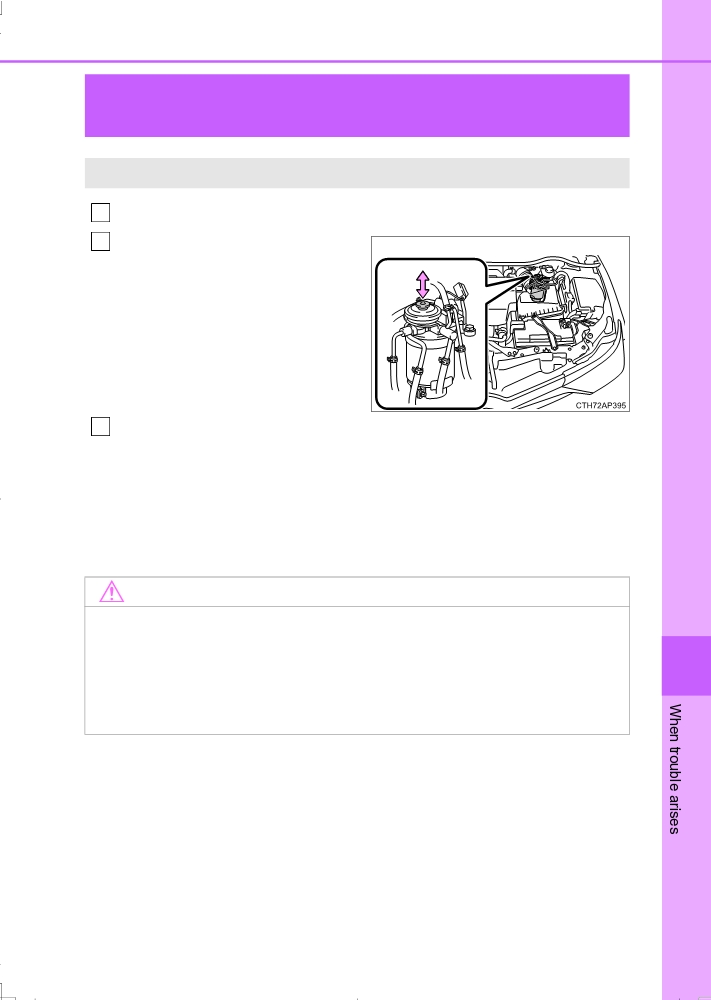

8-2. Steps to take in an emergency
605
5
Add coolant if necessary.
Water can be used in an emergency if coolant is unavailable.
Except 8NR-FTS engine
8NR-FTS engine
Start the engine and turn the air conditioning system on to check
6
that the radiator cooling fan operates and to check for coolant leaks
from the radiator or hoses.
The fan operates when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fan is operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning
system on and off repeatedly. (The fan may not operate in freezing tem-
peratures.)
If the fan is not operating:
7
Stop the engine immediately and contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
If the fan is operating:
Have the vehicle inspected at the nearest authorized Toyota dealer
8
or repairer, or another duly qualified and equipped professional.
606
8-2. Steps to take in an emergency
WARNING
■ When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
● Do not loosen the coolant reservoir cap while the engine and radiator are
hot.
High temperature steam or coolant could spray out.
NOTICE
■When adding coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additive.
8-2. Steps to take in an emergency
607
If you run out of fuel and the engine stalls
(1ND-TV engine only)
If you run out of fuel and the engine dies:
1
Refuel your vehicle.
2
Operate the priming pump until
you feel more resistance to
bleed the fuel system.
Start the engine. (P. 209, 213)
3
If the engine does not start after the above steps have been performed,
wait for 10 seconds and try step 2 and 3 again. If the engine still does not
start, contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
After starting the engine, depress the accelerator pedal lightly until the
engine runs smoothly.
NOTICE
■When restarting the engine
● Do not crank the engine before refueling and operating the priming pump.
8
This may damage the engine and fuel system.
● Vehicles without a smart entry & start system: Do not crank for more than
30 seconds at a time. This may overheat the starter and wiring system.
608
8-2. Steps to take in an emergency
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Stop the engine. Shift the shift lever to P (Multidrive) or N (manual
1
transmission), and set the parking brake.
2
Remove the mud, snow or sand from around the front wheels.
3
Place wood, stones or some other material under the front wheels
to help provide traction.
4
Restart the engine.
Shift the shift lever to D or R (Multidrive) or 1 or R (manual trans-
5
mission) and release the parking brake. Then, while exercising cau-
tion, depress the accelerator pedal.

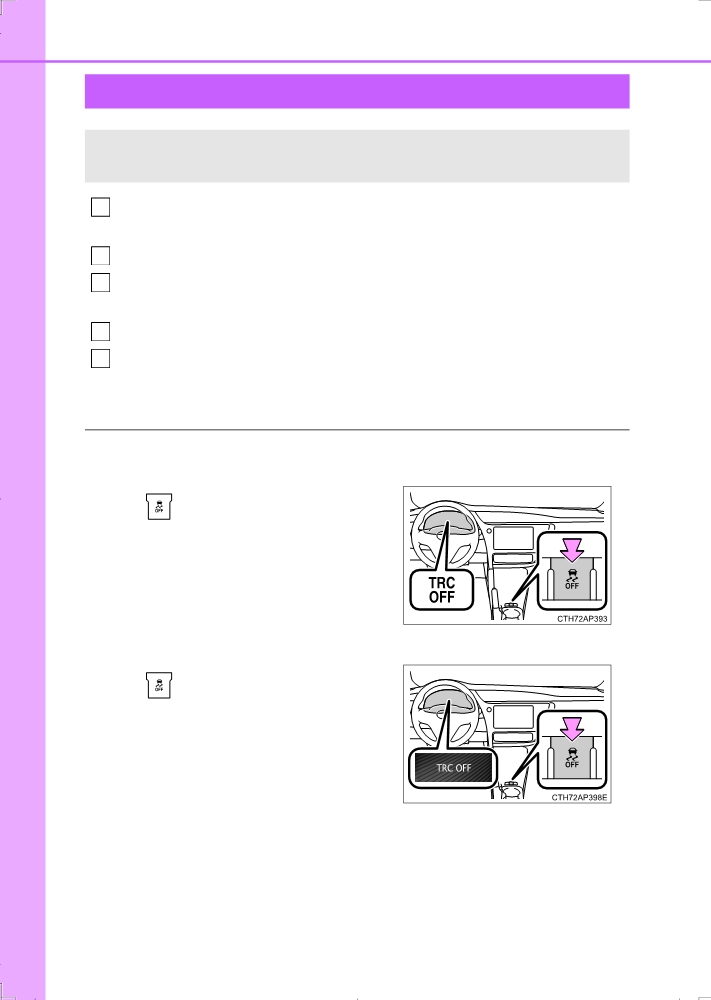

■ When it is difficult to free the vehicle
Vehicles with a 3-ring meter
Press
to turn off TRC.
Vehicles with a 2-ring meter
Press
to turn off TRC.
8-2. Steps to take in an emergency
609
WARNING
■ When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damaging the transmission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
8
610
8-2. Steps to take in an emergency
611
Vehicle specifications
9
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)
612
Fuel information
633
9-2. Customization
Customizable features
635
9-3. Initialization
Items to initialize
642
