1GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM

ES–3

ES

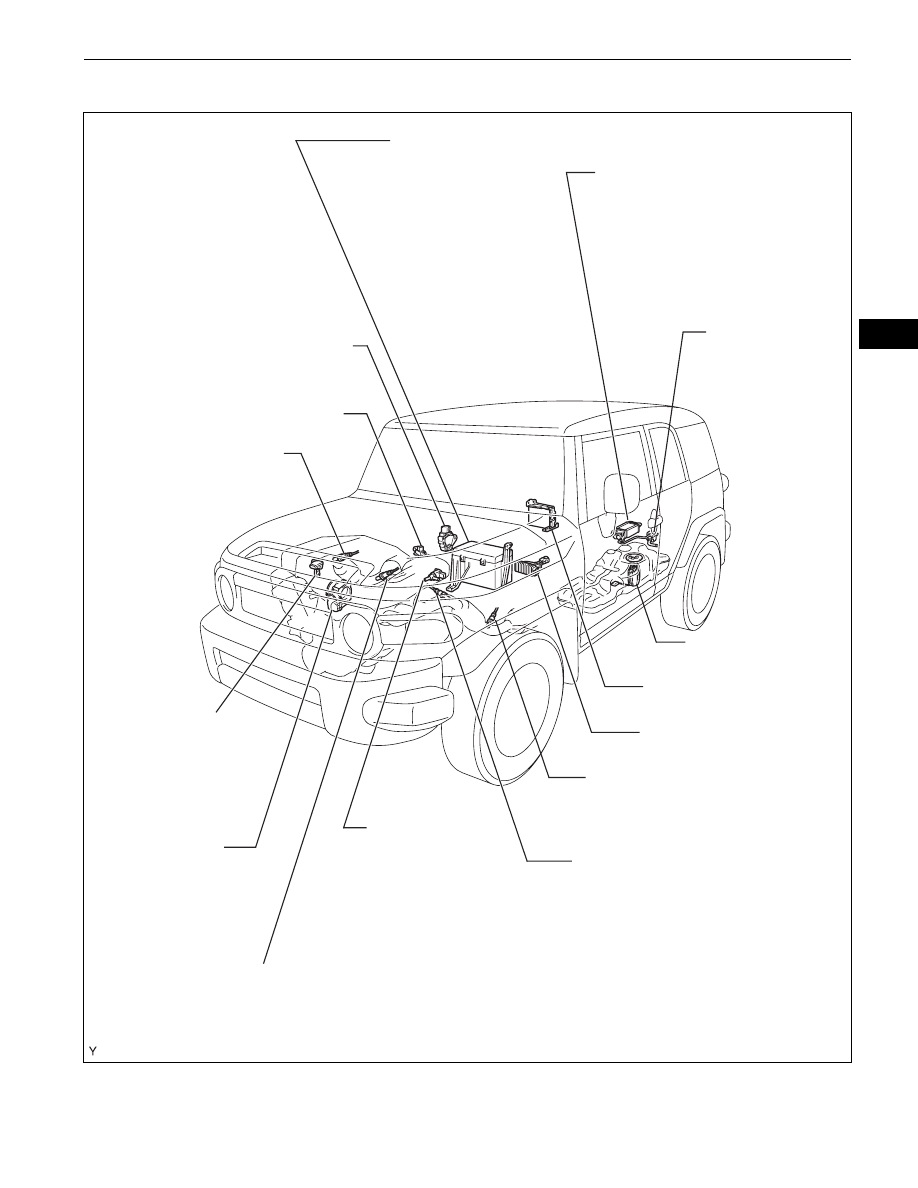

PARTS LOCATION

- EFI RELAY

- FUEL PUMP RELAY

MASS AIR FLOW METER

THROTTLE BODY

FUEL PUMP

FUEL PUMP RESISTOR

AIR FUEL RATIO SENSOR
(BANK 1 SENSOR 1)

CHARCOAL CANISTER

HEATED OXYGEN SENSOR
(BANK 2 SENSOR 2)

PARK / NEUTRAL POSITION SWITCH

HEATED OXYGEN SENSOR (BANK 1 SENSOR 2)

AIR FUEL RATIO SENSOR
(BANK 2 SENSOR 1)

PURGE VSV

ACIS VSV

- STARTER RELAY

ENGINE ROOM RELAY BLOCK

- EFI FUSE

- ETCS FUSE

- STARTER NO. 2 FUSE

(FOR AUTOMATIC TRANSMISSION)

- CANISTER PUMP MODULE

CANISTER FILTER

VOLTAGE INVERTER

A133445E01

ES–4

1GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM

ES

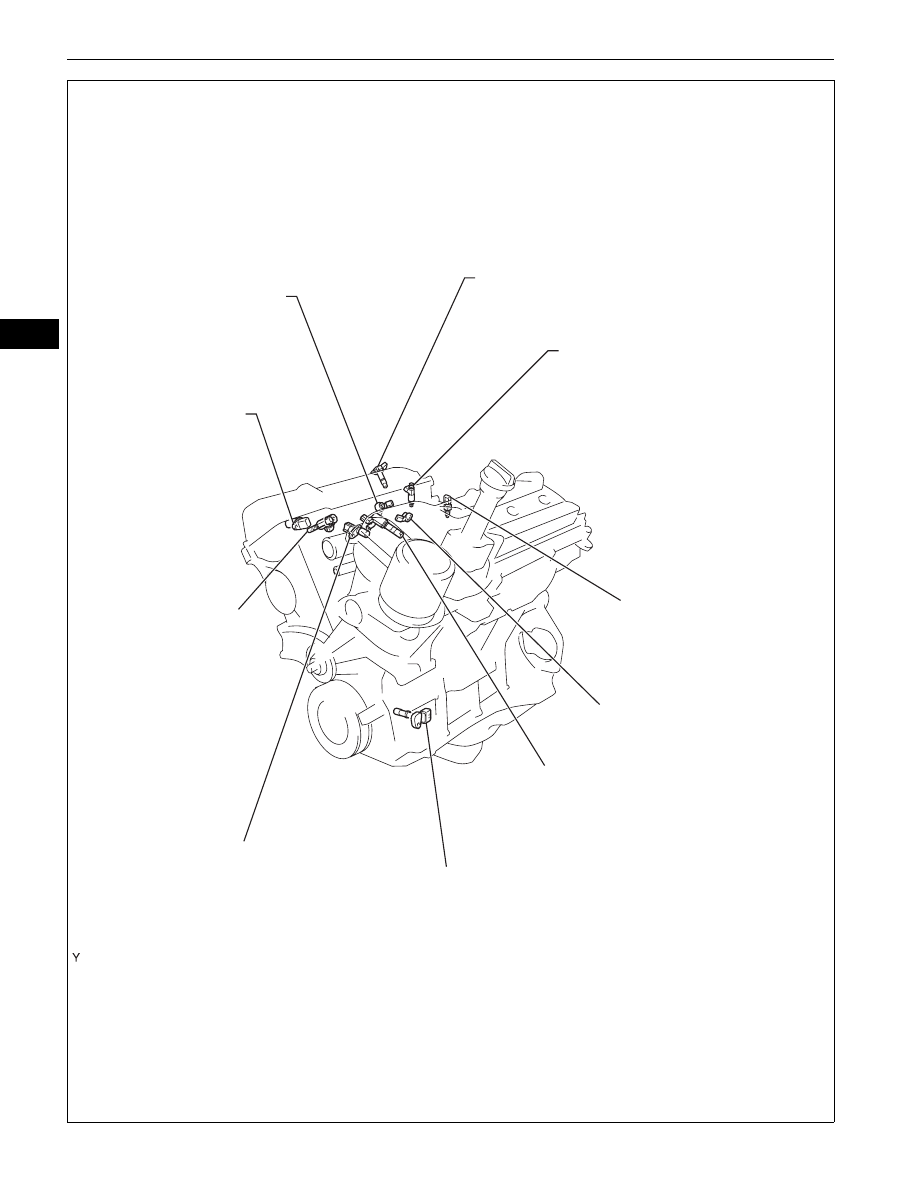

IGNITION COIL

VVT SENSOR (BANK 1)

VVT SENSOR (BANK 2)

CAMSHAFT TIMING OIL CONTROL
VALVE (BANK 2)

CRANKSHAFT POSITION SENSOR

KNOCK SENSOR (BANK 2)

CAMSHAFT TIMING
OIL CONTROL VALVE
(BANK 1)

KNOCK SENSOR (BANK 1)

ENGINE COOLANT
TEMPERATURE SENSOR

FUEL INJECTOR

A115960E02

1GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM

ES–5

ES

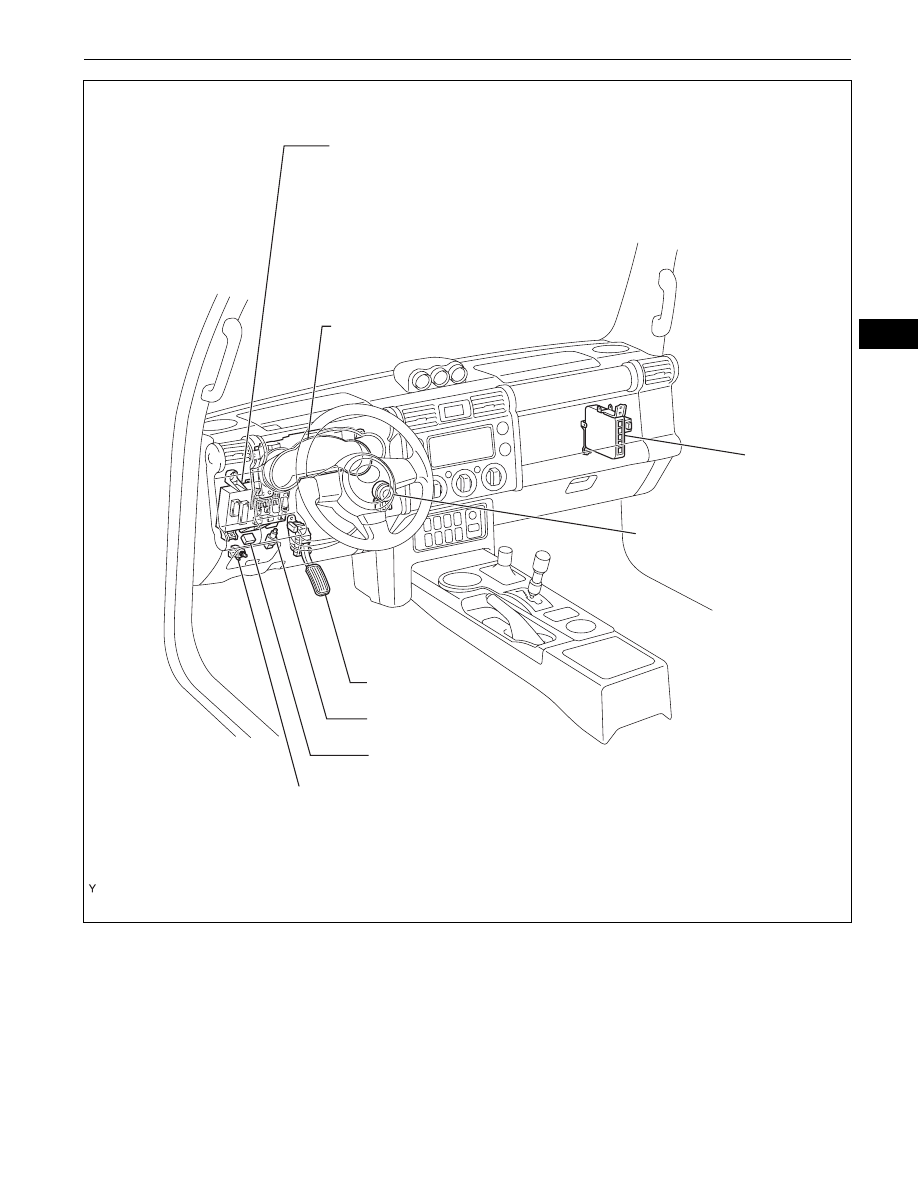

ACCELERATOR PEDAL

STOP LIGHT SWITCH

IGNITION SWITCH

CLUTCH START SWITCH

ECM

COMBINATION METER

DLC3

MAIN BODY ECU:
(DRIVER SIDE JUNCTION BLOCK)

- IGN FUSE

(FOR MANUAL TRANSMISSION)

A133444E02

ES–6

1GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM

ES

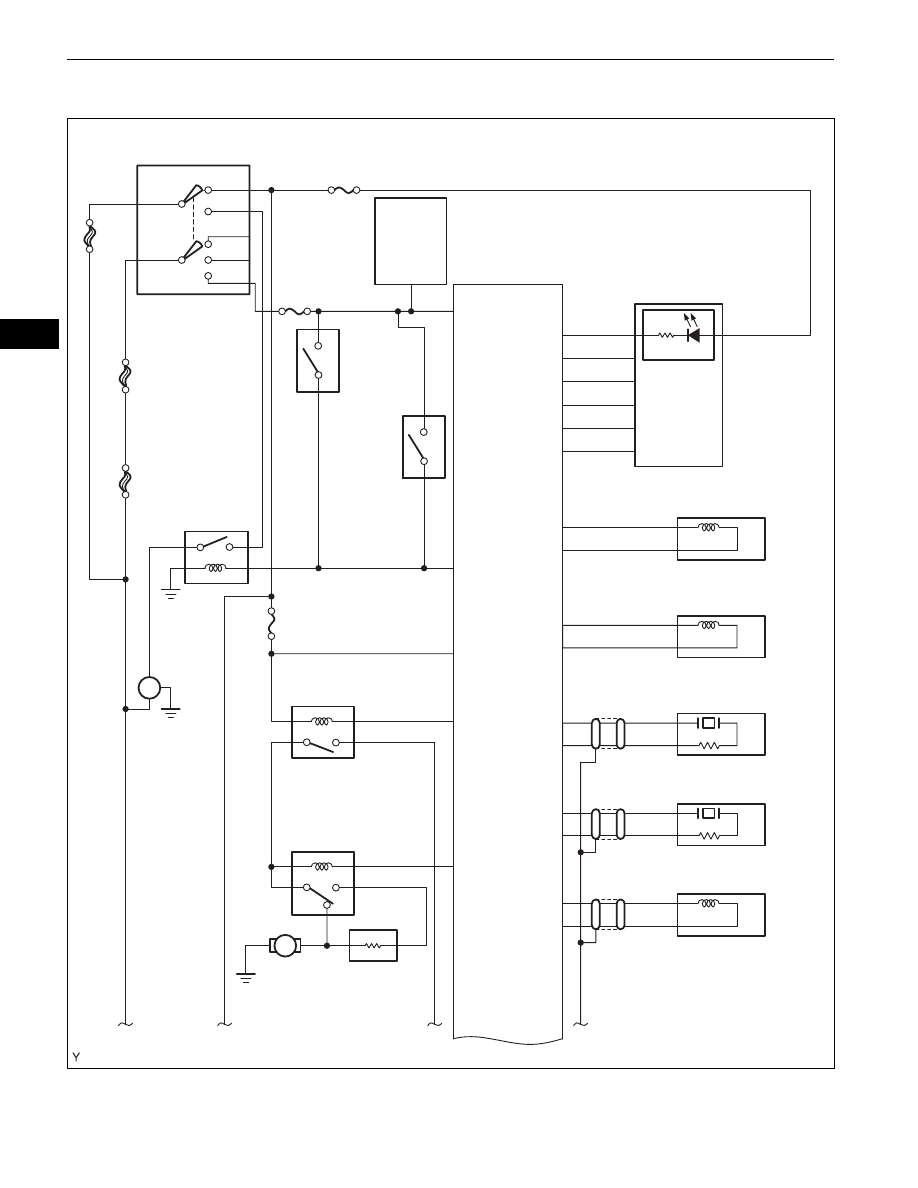

SYSTEM DIAGRAM

M

M

Ignition Switch

AM2

AM1

ALT

AM2

AM1

IG2
ST2
ACC
IG1
ST1

STA

GAUGE

Voltage
Inverter

ECM

NSW

W

TACH

SPD

THWO

PI

OILW

(*3)

OC1+

OC1-

OC2+

OC2-

STA

IGSW

KNK1

EKNK

FC

EKN2

KNK2

FPR

NE+
NE-

D

C

B

A

Fuel Pump Fuel Pump

Resistor

FUEL PUMP

C/OPN

IGN

Starter

STA

(*1)

Combination Meter

MIL

VVT OCV (Bank 1)

VVT OCV (Bank 2)

Knock Sensor (Bank 1)

Knock Sensor (Bank 2)

CKP Sensor

*1: For Automatic Transmission

*2: For Manual Transmission

*3: w/ Cruise Control

Park / Neutral
Position Switch

Clutch Start
Switch (*2)

(*1)

A133449E01
