Suzuki SX4 (2010 year). Instruction - part 12





-------------------------------------------------------------------------------------------------------------------------------------------------------------

OTHER CONTROLS AND EQUIPMENT

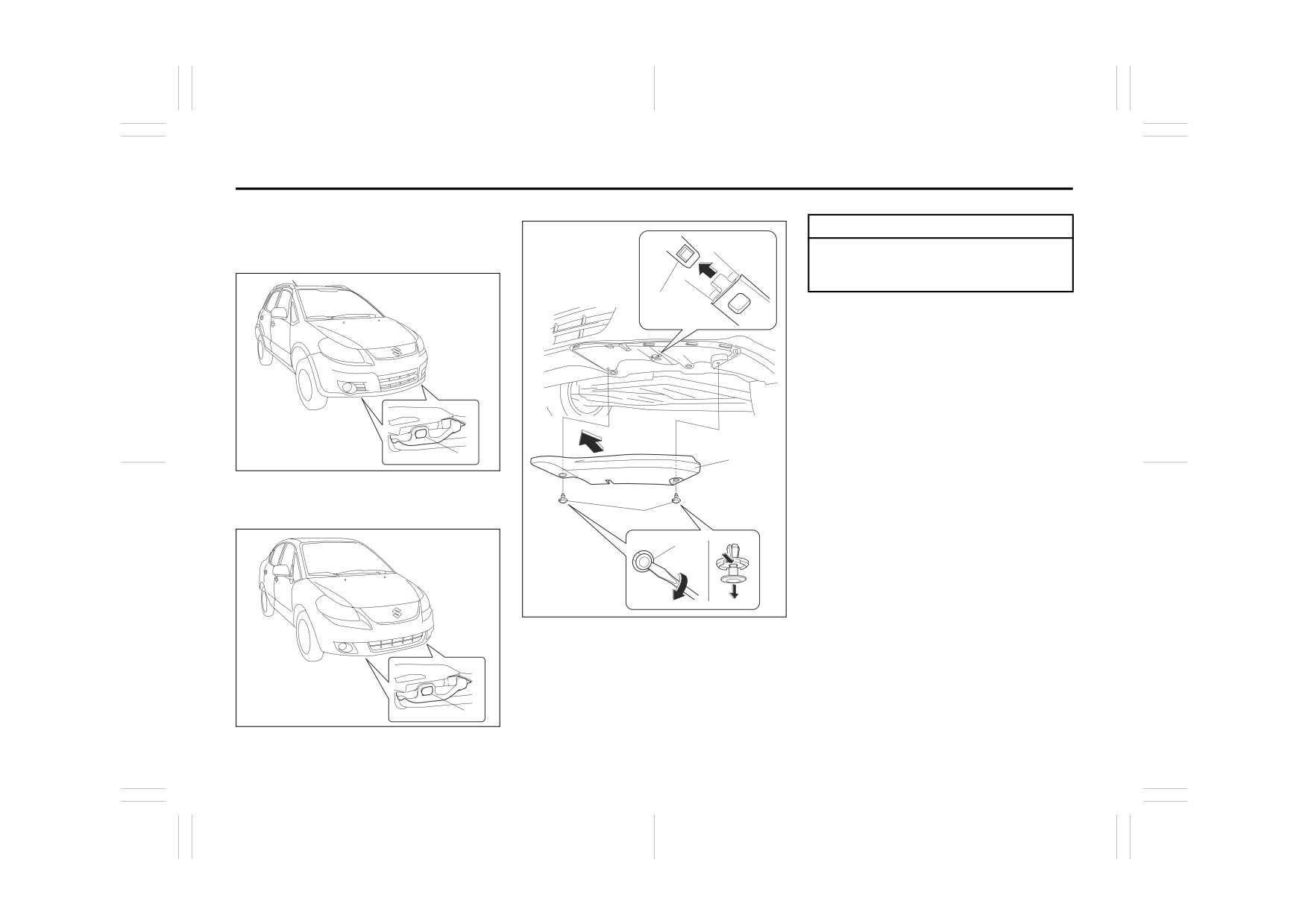

Frame Hooks
Front bumper cover (if equipped)
CAUTION
SX4
If towing your vehicle, use the frame
Front (1)
hook of removed bumper cover side
to prevent damage to the vehicle.
(d)
NOTE:
When return the cover, make sure the
ungual (d) of the cover securely fit to the
slit on under the front bumper of vehicle.
EXAMPLE
(1)
(c)
80J2049
SX4 SEDAN
Front (1)
(a)
(b)
EXAMPLE
80JM111
To use the frame hook:
1) Insert a flat blade screwdriver into the
hole (b) and remove the clips (a) by
twist the driver as shown in the illustra-
tion.
EXAMPLE
(1)
2) Remove the bumper cover (c).
80J2050
5-56
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OTHER CONTROLS AND EQUIPMENT
SX4

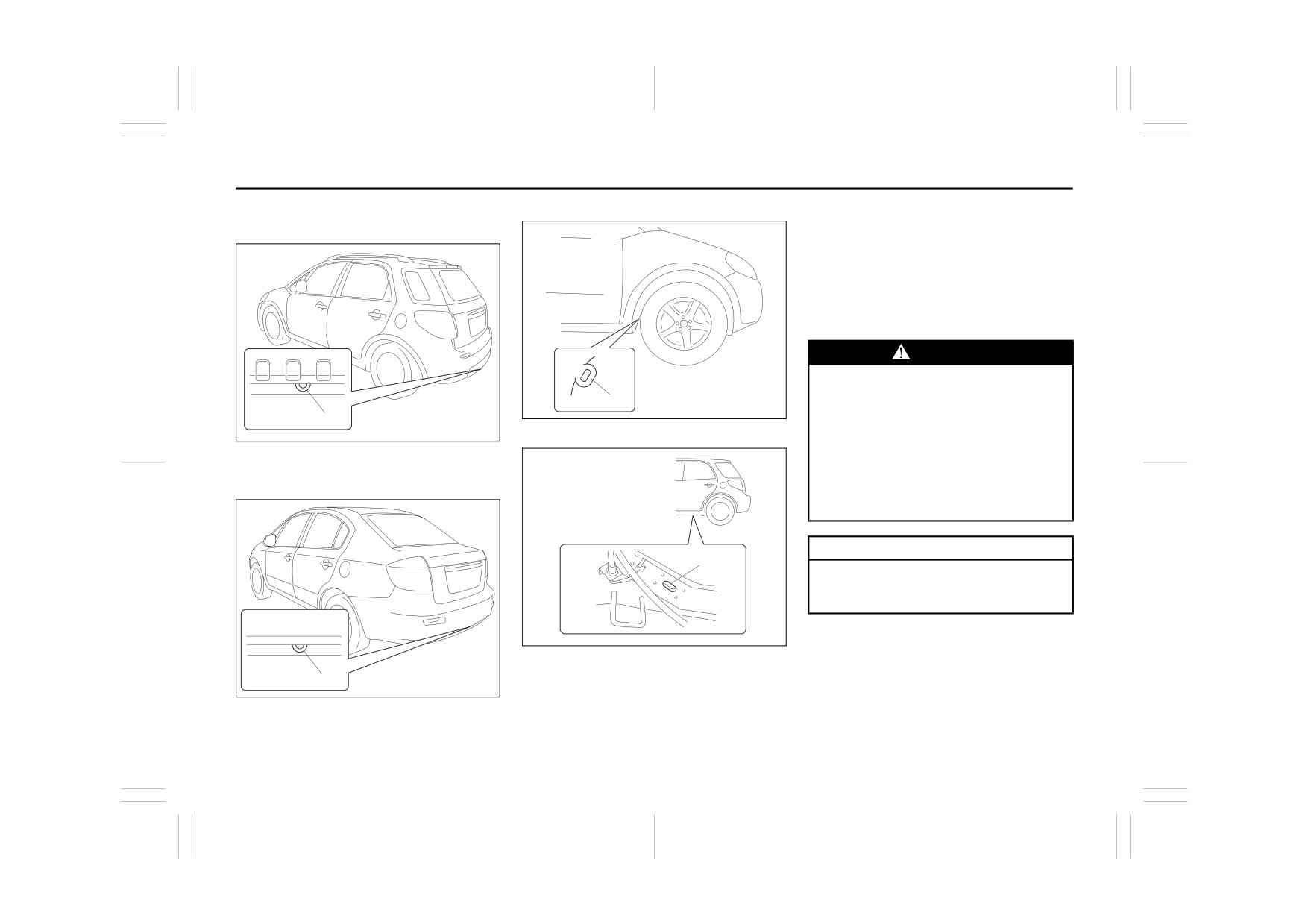

Side (3)
Frame hooks are provided on the front (1),
rear (2) and side (3) of the vehicle. The
Rear (2)
hooks (1) and (2) are used for emergency
situations. The hooks
(3) are used for
trailer/train shipping purposes.
To tow your vehicle on the road or highway,
follow the instruction of “Towing” in “EMER-
GENCY SERVICE” section.
WARNING
Do not use the frame hooks to tow
another vehicle or to have your vehi-
(3)
EXAMPLE
cle towed on the road or highway.
(2)
The hooks (1) and (2) are designed
EXAMPLE
80JC062
for use in emergency situations only,
80JC061
such as if your vehicle or another
EXAMPLE
vehicle gets stuck in deep mud or
SX4 SEDAN
snow.
Rear (2)
The hooks (3) are provided for trailer/
train shipping purposes.
CAUTION
(3)
Never use the hooks (1) and (2) for
trailer/train shipping purposes to pre-
vent damage to the vehicle.
79J132
(2)
EXAMPLE
56KN033
5-57
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Exhaust Gas Warning: NO
Daily Inspection Checklist: NO
VEHICLE LOADING AND TOWING

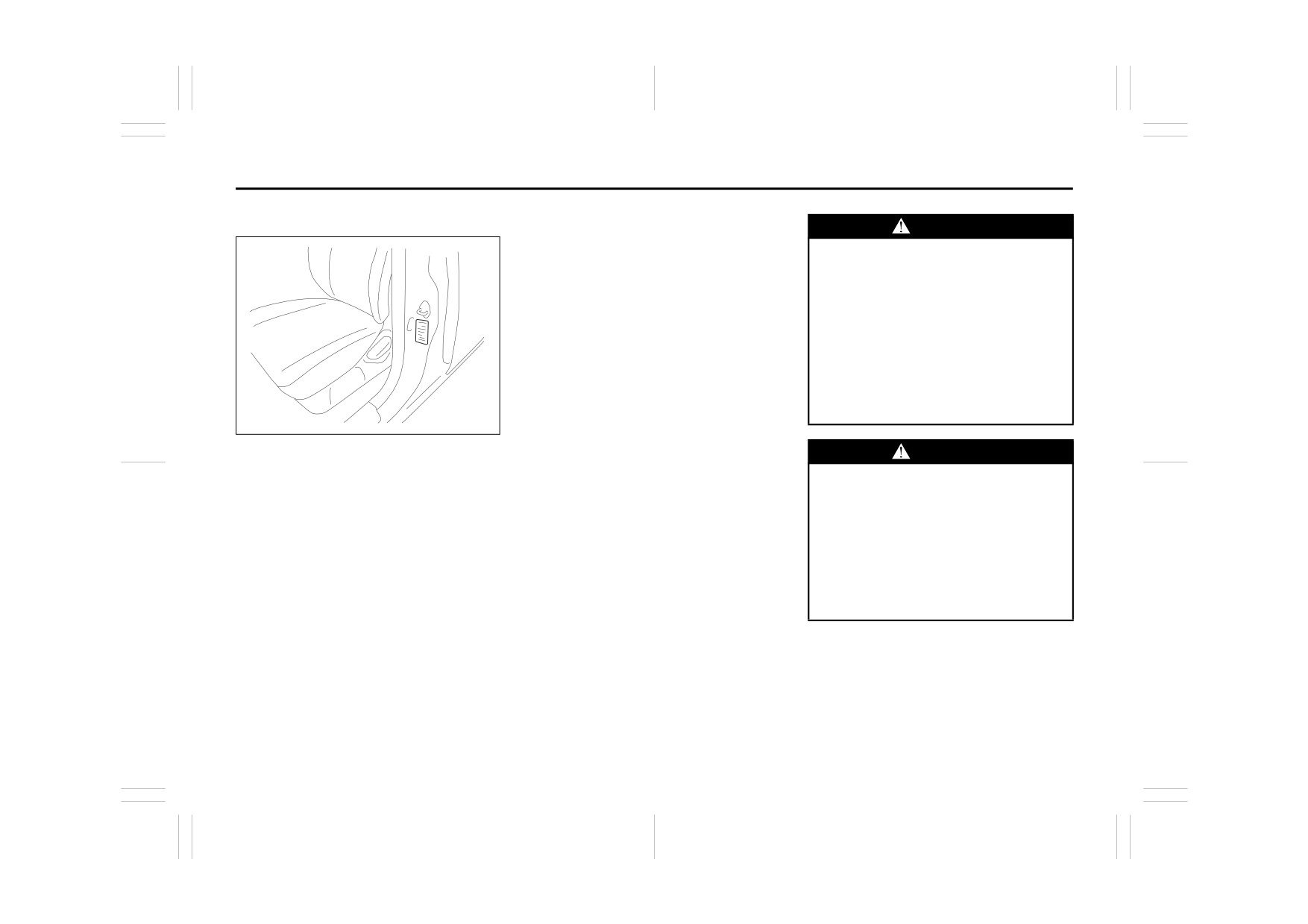

Vehicle Loading
Vehicle Capacity Weight - Maximum per-
missible load weight a vehicle can carry
WARNING
including the weight of all the occupants,
Never overload your vehicle. The
accessories and cargo.
gross vehicle weight
(sum of the
weights of the loaded vehicle, driver
The weight of any accessories already
and passengers) must never exceed
installed on your vehicle at the time of pur-
the Gross Vehicle Weight Rating
chase, or that you or the dealer install after
(GVWR) listed on the Safety Certifica-
purchase, must be subtracted from the
tion Label. In addition, never distrib-
Vehicle Capacity Weight to determine how
ute a load so that the weight on either
much capacity remains available for occu-
the front or rear axle exceeds the
pants and cargo. Contact your dealer for
Gross Axle Weight Rating (GAWR)
further information.
listed on the Safety Certification
Label.
Actual weight of the loaded vehicle and
actual loads at the front and rear axles can
80JS025
only be determined by weighing the vehicle
WARNING
Your vehicle was designed for specific
using a vehicle scale. To measure the
weight capacities. The weight capacities of
weight and load, try taking your vehicle to
• Always distribute cargo evenly.
your vehicle are indicated by the Gross
a highway weighing station, shipping com-
• To avoid personal injury or damage
Vehicle Weight Rating (GVWR), the Gross
pany or inspection station for trucks, etc.
to your vehicle, always secure
Axle Weight Rating (GAWR, front and rear)
Compare these weights to the GVWR and
cargo to prevent it from shifting if
and the Vehicle Capacity Weight. The
GAWR (front and rear) listed on the Safety
the vehicle moves suddenly.
GVWR and GAWR (front and rear) are
Certification Label. If the gross vehicle
• Place heavier objects on the floor
listed on the Safety Certification Label
weight or the load on either axle exceeds
and as far forward in the trunk or in
which is located below the driver’s side
these ratings, you must remove enough
the cargo area as possible.
door latch striker. The Vehicle Capacity
weight to bring the load down to the rated
• Never pile cargo higher than the
Weight is listed on the Tire Information
capacity.
top of the seat backs.
Label which is located below the Safety
Certification Label.
GVWR - Maximum permissible overall
weight of the fully loaded vehicle (including
all the occupants, accessories and cargo).
GAWR - (Front and Rear) Maximum per-
missible weight on an individual axle.
6-1
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Daily Inspection Checklist: NO
Starting the Engine: 1
VEHICLE LOADING AND TOWING

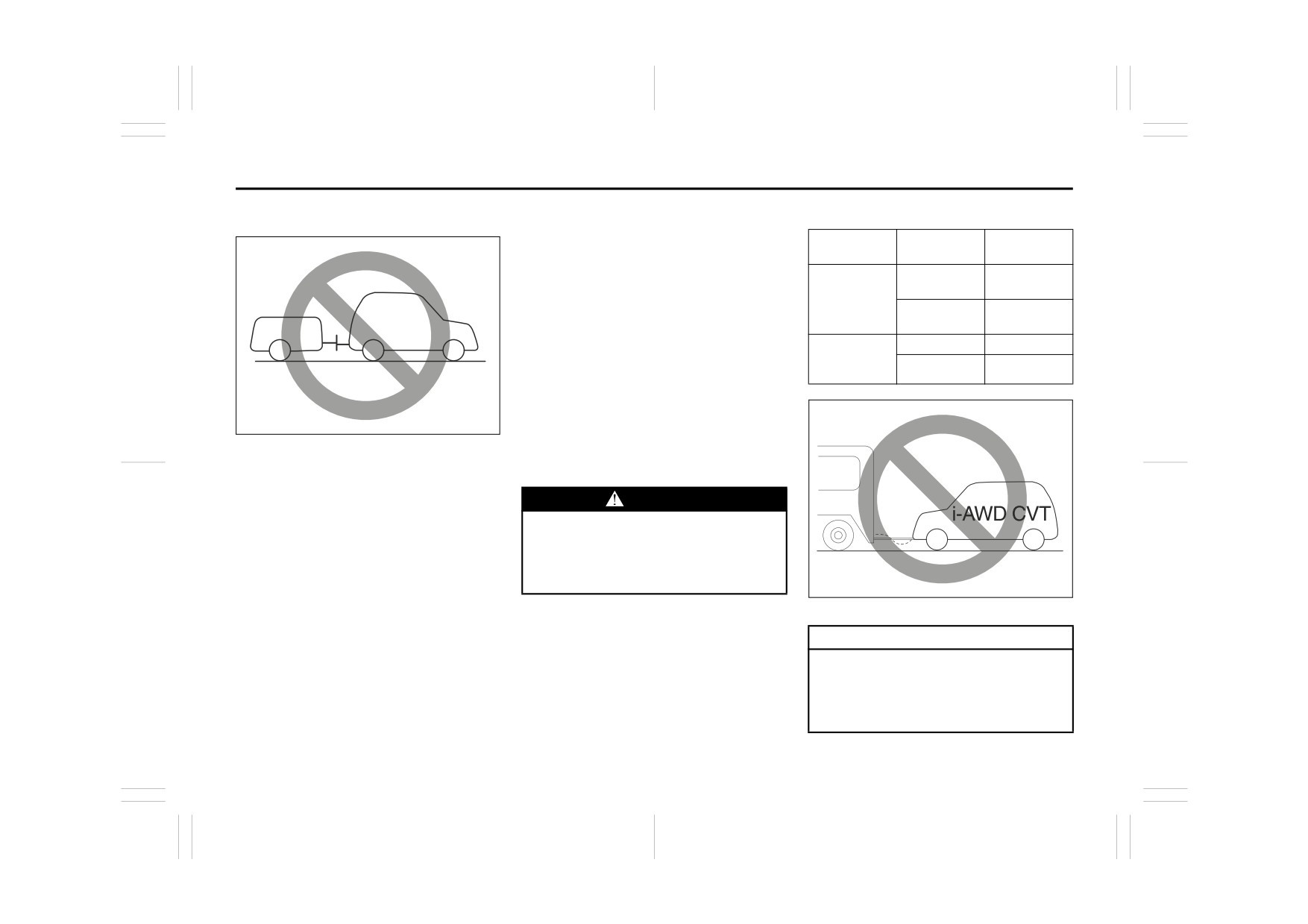

Trailer Towing
Towing Your Vehicle
TOWING INSTRUCTION TABLE
(recreational towing)
DRIVE
TRANS-
TOWING
Your vehicle may be towed behind another
TRAIN
AXLE
METHOD
vehicle (such as a motorhome), provided
CVT
you use the proper towing method speci-
A
(AUTO)
fied for your vehicle. The towing method
2WD
M/T
you must use depends on the specifica-
A B
(MANUAL)
tions of your vehicle: whether it is a
2-
wheel drive (2WD) or intelligent All Wheel
i-AWD
CVT
none
Drive (i-AWD) vehicle.
including
M/T
B
2WD mode
Use the towing instruction table to select
the proper towing method for your vehicle,
and carefully follow the corresponding
instructions. Be sure to use proper towing
54G639
equipment designed for recreational tow-
ing and make sure that towing speed does
Do not use your vehicle to tow a trailer. The
not exceed 90 km/h (55 mph).
vehicle is not designed or intended for
such use. Towing a trailer can adversely
WARNING
affect handling, durability and fuel econ-
omy.
Always use a safety chain when tow-
ing your vehicle and be sure to
observe federal, state, and local
requirements for trailer hitches, tow
bars, lights, etc.
80J2051
CAUTION
For the CVT of intelligent All Wheel
Drive (i-AWD) models, don’t tow your
vehicle behind another vehicle such
as a motorhome, or the drive train
may be seriously damaged.
6-2
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Engine Block Heater: 1
VEHICLE LOADING AND TOWING
A: 2WD (except 2WD mode of i-AWD)

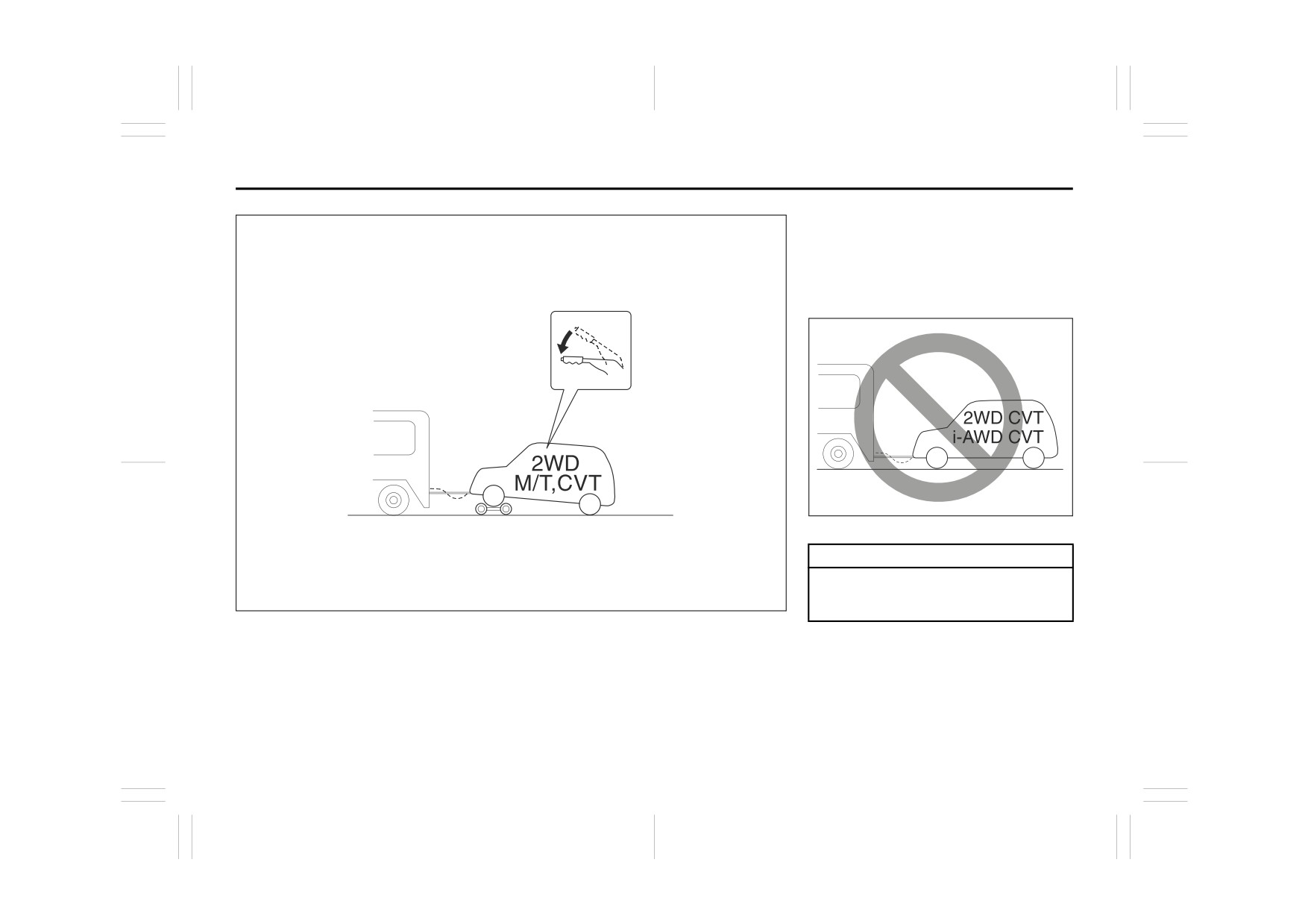

TOWING METHOD A
VEHICLES WITH MANUAL TRANS-
AXLE OR CVT
FROM THE FRONT:
1) Secure the front wheels on a towing
FRONT WHEELS ON A DOLLY
dolly according to the instructions pro-
AND REAR WHEELS ON THE GROUND
vided by the dolly manufacturer.
2) Release the parking brake.
80J2053
CAUTION
Towing the 2WD or i-AWD CVT vehi-
cles with four wheels on the ground
can result in damage to the CVT.
80J2052
6-3
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Using the Transaxle: 10
VEHICLE LOADING AND TOWING
B: 2WD or i-AWD (including 2WD mode)

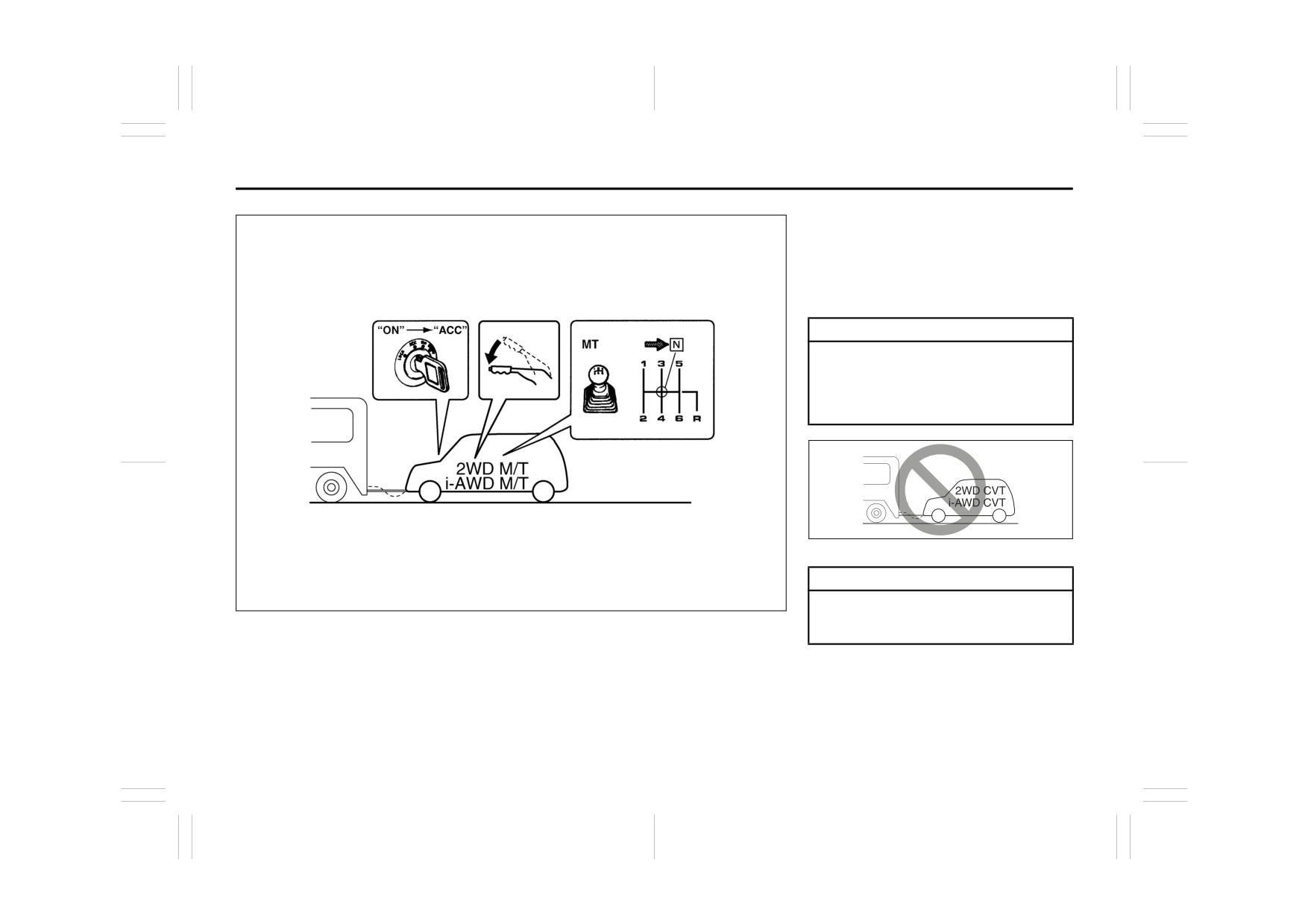

TOWING METHOD B
VEHICLES WITH MANUAL TRANSAXLE
1) Shift the instruction transaxle lever into
FROM THE FRONT:
neutral.
FOUR WHEELS ON THE GROUND
2) Turn the ignition key to the “ACC” posi-
tion to unlock the steering wheel.
3) Release the parking brake.
CAUTION
The steering column is not strong
enough to withstand shocks trans-
mitted from the front wheels during
towing. Always unlock the steering
wheel before towing.
80J2054
CAUTION
Towing the 2WD or i-AWD CVT vehi-
80J2079
cles with four wheels on the ground
can result in damage to the CVT.
6-4
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE
INSPECTION AND MAINTENANCE
Maintenance Schedule
7-2
Periodic Maintenance Schedule
7-3
Maintenance Recommended under Severe Driving
Conditions
7-7
Drive Belt
7-11
Engine Oil and Filter
7-11
Engine Coolant
7-14
Air Cleaner
7-16
Spark Plugs
7-16
Gear Oil
7-18
Clutch Pedal
7-19
7
Continuously Variable Transaxle (CVT) Fluid
7-20
Brakes
7-21
Steering Wheel
7-23
60G410
Tires
7-24
Battery
7-35
Fuses
7-36
Headlight Aiming
7-39
Bulb Replacement
7-40
Wiper Blades
7-46
Windshield Washer Fluid
7-50
Air Conditioning System
7-50
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Highway Driving: NO
Driving on Hills: NO
INSPECTION AND MAINTENANCE
WARNING
WARNING
(Continued)
(Continued)
Do not leave the engine running in
Be careful not to cause accidental
garages or other confined areas.
short circuits between the positive
When the engine is running, keep
and negative battery terminals.
hands, clothing, tools and other
Keep used oil, engine coolant and
objects away from the moving fan
other fluids away from children and
and drive belt.
pets. Dispose of used fluids prop-
When it is necessary to do service
erly; never pour them
on
the
work with the engine running, make
ground, into sewers, etc.
sure that the parking brake is set
fully and the transaxle is in Neutral
(for instruction transaxle vehicles) or
60A187S
Park (for CVT vehicles).
Do not touch ignition wires or other
WARNING
ignition system parts when starting
the engine or when the engine is
You should take extreme care when
running, or you could receive an
working on your vehicle to prevent
electric shock.
accidental injury. Here are a few pre-
Be careful not to touch a hot
cautions that you should be espe-
engine, exhaust manifold and
cially careful to observe:
pipes, muffler, radiator and water
• To prevent damage or unintended
hoses.
inflation of the air bag system, be
Do not allow smoking, sparks or
sure the battery is disconnected
flames around fuel or the battery.
and the ignition switch has been in
Flammable fumes are present.
the “LOCK” position for at least 90
Do not get under your vehicle if it is
seconds before performing any
supported only with the portable
electrical service work on your
jack provided in your vehicle.
SUZUKI. Do not touch air bag sys-
(Continued)
tem components or wires. The
wires are wrapped with yellow tape
or yellow tubing, and the couplers
are yellow for easy identification.
(Continued)
7-1
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving on Hills: NO
Driving on Slippery Roads: NO
INSPECTION AND MAINTENANCE
NOTICE (for U.S.A.)
Maintenance Schedule
Maintenance, replacement or repair of
WARNING
The following table shows the times when
the emission control devices and sys-
you should perform regular maintenance
The shock absorbers are filled with
tems may be performed by any automo-
on your vehicle. This table shows in miles,
high pressure gas. Never attempt to
bile repair establishment or individual
kilometers and months when you should
disassemble them or throw them into
using any part which has been certified
perform inspections, adjustments, lubrica-
a fire. Avoid storing them near a
under the provisions in the Clean Air
tion and other services. These intervals
heater or heating device. When
Act sec. 207. (a) (2).
should be shortened if driving is usually
scrapping the absorber, the gas must
done under severe conditions
(refer to
be released from the absorber safely.
“Maintenance Recommended Under
Ask your dealer for assistance.
Severe Driving Conditions”).
WARNING
SUZUKI recommends that mainte-
nance on items marked with an aster-
isk
(*) be performed by your
authorized SUZUKI dealer or a quali-
fied service technician. If you are
qualified, you may perform mainte-
nance on the unmarked items by
referring to the instructions in this
section. If you are not sure whether
you can successfully complete any of
the unmarked maintenance jobs, ask
your authorized SUZUKI dealer to do
the maintenance for you.
CAUTION
Whenever it becomes necessary to
replace parts on your vehicle, it is
recommended that you use genuine
SUZUKI replacement parts or their
equivalent.
7-2
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving on Slippery Roads: NO
INSPECTION AND MAINTENANCE
Periodic Maintenance Schedule
R: Replace or change
I : Inspect, clean, adjust, lubricate or replace as necessary
Interval: This interval should be judged by
miles (x 1000)
7.5
15
22.5
30
37.5
45
52.5
60
67.5
75
odometer reading or months, whichever comes
km (x 1000)
12.5
25
37.5
50
62.5
75
87.5
100
112.5
125
first.
months
7.5
15
22.5
30
37.5
45
52.5
60
67.5
75
ENGINE & EMISSION CONTROL
1. Drive belt
Inspect for damage
-
-
-
I
-
-
-
I
-
-
*2. Valve lash (clearance)
-
-
-
-
-
-
-
I
-
-
3. Engine oil and oil filter
R
R
R
R
R
R
R
R
R
R
*4. Cooling system hoses and connections
-
-
-
I
-
-
-
I
-
-
5. Engine coolant
SUZUKI LLC: Standard (Green)
-
-
-
R
-
-
-
R
-
-
SUZUKI LLC: Super (Blue) (#1)
First time only: Replace at 150000 km (90000 miles) or 90 months
Second time and after: Replace every 75000 km (45000 miles) or 45 months
*6. Exhaust pipes and mountings
-
-
-
I
-
-
-
I
-
-
*7. EVAP canister
Replace every 250000 km (150000 miles) or 180 months
*8. Emission-related hoses & tubes
-
-
-
-
-
-
-
I
-
-
9. Spark plugs
-
-
-
-
-
-
-
R
-
-
*10. Ignition coil (plug cap)
-
-
-
I
-
-
-
I
-
-
*11. Fuel tank & cap
-
I
-
I
-
I
-
I
-
I
12. Air cleaner filter element (paved road)
-
-
-
R
-
-
-
R
-
-
*13. Fuel filter
-
-
-
-
-
-
-
-
-
-
*14. Fuel lines and connections
-
-
-
I
-
-
-
I
-
-
*15. Canister air suction filter
Replace every 250000 km (150000 miles) or 180 months
#1: Be sure to perform the engine coolant level check under the daily inspection in “OPERATING YOUR VEHICLE” section.
If you replace the engine coolant other than the SUZUKI LLC: Super (Blue), follow the schedule of SUZUKI LLC: Standard (Green).
7-3
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving on Slippery Roads: NO
INSPECTION AND MAINTENANCE
R: Replace or change
I : Inspect, clean, adjust, lubricate or replace as necessary
Interval: This interval should be judged by
miles (x 1000)
82.5
90
97.5
105
112.5
120
127.5
135
142.5
150
odometer reading or months, whichever comes
km (x 1000)
137.5
150
162.5
175
187.5
200
212.5
225
237.5
250
first.
months
82.5
90
97.5
105
112.5
120
127.5
135
142.5
150
ENGINE & EMISSION CONTROL
1. Drive belt
Inspect for damage
-
I
-
-
-
I
-
-
-
I
*2. Valve lash (clearance)
-
-
-
-
-
I
-
-
-
-
3. Engine oil and oil filter
R
R
R
R
R
R
R
R
R
R
*4. Cooling system hoses and connections
-
I
-
-
-
I
-
-
-
I
5. Engine coolant
SUZUKI LLC: Standard (Green)
-
R
-
-
-
R
-
-
-
R
SUZUKI LLC: Super (Blue) (#1)
First time only: Replace at 150000 km (90000 miles) or 90 months
Second time and after: Replace every 75000 km (45000 miles) or 45 months
*6. Exhaust pipes and mountings
-
I
-
-
-
I
-
-
-
I
*7. EVAP canister
Replace every 250000 km (150000 miles) or 180 months
*8. Emission-related hoses & tubes
-
-
-
-
-
I
-
-
-
I
9. Spark plugs
-
-
-
-
-
R
-
-
-
-
*10. Ignition coil (plug cap)
-
I
-
-
-
I
-
-
-
I
*11. Fuel tank & cap
-
I
-
I
-
I
-
I
-
I (#2)
12. Air cleaner filter element (paved road)
-
R
-
-
-
R
-
-
-
R
*13. Fuel filter
-
-
-
-
-
-
-
-
-
R
*14. Fuel lines and connections
-
I
-
-
-
I
-
-
-
I (#2)
*15. Canister air suction filter
Replace every 250000 km (150000 miles) or 180 months
#1: Be sure to perform the engine coolant level check under the daily inspection in “OPERATING YOUR VEHICLE” section.
If you replace the engine coolant other than the SUZUKI LLC: Super (Blue), follow the schedule of SUZUKI LLC: Standard (Green).
#2: Inspect at 250000 km (150000 miles) or 180 months.
NOTE:
The maintenance services enclosed with rectangle are recommended maintenance items.
The U.S. Environmental Protection Agency or the California Air Resources Board has determined that the failure to perform recom-
mended maintenance items enclosed with a rectangle will not nullify the emission warranty or limit recall liability prior to the completion
of the vehicle’s useful life. SUZUKI, however, urges that all recommended maintenance services be performed at the indicated inter-
vals and the maintenance recorded.
7-4
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE
R: Replace or change
I : Inspect, clean, adjust, lubricate or replace as necessary
miles (x 1000)
7.5
15
22.5
30
37.5
45
52.5
60
67.5
75
Interval: This interval should be judged by odometer
km (x 1000)
12.5
25
37.5
50
62.5
75
87.5
100
112.5
125
reading or months, whichever comes first.
months
7.5
15
22.5
30
37.5
45
52.5
60
67.5
75
CHASSIS AND BODY
1. Clutch (for manual transaxle)
Pedal and fluid level
-
I
-
I
-
I
-
I
-
I
*2. Brake discs and pads
(front, rear)
I
-
I
-
I
-
I
-
I
-
Brake drums and shoes
(rear)
I
-
I
-
I
-
I
-
I
-
*3. Brake hoses and pipes
I
-
I
-
I
-
I
-
I
-
4. Brake fluid level check, *replacement
-
I
-
I
-
I
-
R
-
I
5. Brake pedal stroke check, *adjustment
-
I
-
I
-
I
-
I
-
I
6. Parking brake lever and *cable
Lever movement check, *adjustment
I
-
I
-
I
-
I
-
I
-
7. Tires (including tire rotation)
I
I
I
I
I
I
I
I
I
I
8. Wheel discs
I
I
I
I
I
I
I
I
I
I
*9. Suspension system
I
I
I
I
I
I
I
I
I
I
*10. Propeller shafts (i-AWD)/Drive axle boots
I
I
I
I
I
I
I
I
I
I
*11. Manual transaxle oil
Level check, *replacement
I
-
-
I
-
I
-
I
-
I
12. Continuously variable transaxle (CVT)
Fluid level
-
I
-
I
-
I
-
I
-
I
*Fluid hose
-
-
-
-
-
I
-
-
-
-
*13. Transfer oil (i-AWD)
I
-
-
I
-
I
-
R
-
I
*14. Rear differential oil (i-AWD)
R
-
-
I
-
I
-
I
-
I
15. Steering system
Steering wheel movement,
*linkage
I
I
I
I
I
I
I
I
I
I
16. Power steering (if equipped)
I
I
I
I
I
I
I
I
I
I
17. All latches, hinges and locks
I
I
I
I
I
I
I
I
I
I
18. Air conditioner filter element (if equipped)
-
I
-
R
-
I
-
R
-
I
7-5
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE
R: Replace or change
I : Inspect, clean, adjust, lubricate or replace as necessary
miles (x 1000)
82.5
90
97.5
105
112.5
120
127.5
135
142.5
150
Interval: This interval should be judged by odometer
km (x 1000)
137.5
150
162.5
175
187.5
200
212.5
225
237.5
250
reading or months, whichever comes first.
months
82.5
90
97.5
105
112.5
120
127.5
135
142.5
150
CHASSIS AND BODY
1. Clutch (for manual transaxle)
Pedal and fluid level
-
I
-
I
-
I
-
I
-
I
*2. Brake discs and pads
(front, rear)
I
-
I
-
I
-
I
-
I
-
Brake drums and shoes
(rear)
I
-
I
-
I
-
I
-
I
-
*3. Brake hoses and pipes
I
-
I
-
I
-
I
-
I
-
4. Brake fluid level check, *replacement
-
I
-
I
-
R
-
I
-
I
5. Brake pedal stroke check, *adjustment
-
I
-
I
-
I
-
I
-
I
6. Parking brake lever and *cable
Lever movement check, *adjustment
I
-
I
-
I
-
I
-
I
-
7. Tires (including tire rotation)
I
I
I
I
I
I
I
I
I
I
8. Wheel discs
I
I
I
I
I
I
I
I
I
I
*9. Suspension system
I
I
I
I
I
I
I
I
I
I
*10. Propeller shafts (i-AWD)/Drive axle boots
I
I
I
I
I
I
I
I
I
I
*11. Manual transaxle oil
Level check, *replacement
-
R
-
I
-
I
-
I
-
I
12. Continuously variable transaxle (CVT)
Fluid level
-
I
-
I
-
I
-
I
-
I
*Fluid hose
-
I
-
-
-
-
-
I
-
-
*13. Transfer oil (i-AWD)
-
I
-
I
-
R
-
I
-
I
*14. Rear differential oil (i-AWD)
-
I
-
I
-
I
-
I
-
I
15. Steering system
Steering wheel movement,
*linkage
I
I
I
I
I
I
I
I
I
I
16. Power steering (if equipped)
I
I
I
I
I
I
I
I
I
I
17. All latches, hinges and locks
I
I
I
I
I
I
I
I
I
I
18. Air conditioner filter element (if equipped)
-
R
-
I
-
R
-
I
-
R
NOTE:
This table shows the service schedule up to 250000 km (150000 miles).
Beyond 250000 km (150000 miles), perform the same services at the same intervals shown in the chart.
Beyond 250000 km (150000 miles), the maintenance services enclosed with a rectangle are required.
7-6
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE
Maintenance Recommended under Severe Driving Conditions
Follow this schedule if your car is mainly operated under one or more of the following conditions:
• When most trips are less than 6 kilometers (4 miles)
• When most trips are less than 16 kilometers (10 miles) and outside temperature remain below freezing.
• Idling and/or low-speed operation in stop-and-go traffic.
• Operating in dusty areas.
Schedule should also be followed if the car is used for delivery service, police, taxi or other commercial applications.
R: Replace or change
I : Inspect, clean, adjust, lubricate or replace as necessary
Interval: This interval should be judged by
miles (x 1000)
3
6
9
12
15
18
21
24
27
30
33
36
39
odometer reading or months, whichever
km (x 1000)
5
10
15
20
25
30
35
40
45
50
55
60
65
comes first.
months
3
6
9
12
15
18
21
24
27
30
33
36
39
ENGINE & EMISSION CONTROL
1. Drive belt
Inspect for damage
-
-
-
-
-
-
-
-
-
I
-
-
-
*2. Valve lash (clearance)
-
-
-
-
-
-
-
-
-
-
-
-
-
3. Engine oil and oil filter
R
R
R
R
R
R
R
R
R
R
R
R
R
*4. Cooling system hoses and connections
-
-
-
-
I
-
-
-
-
I
-
-
-
5. Engine coolant
SUZUKI LLC: Standard (Green)
-
-
-
-
-
-
-
-
-
R
-
-
-
SUZUKI LLC: Super (Blue) (#1) First time only: Replace at 150000 km (90000 miles) or 90 months
Second time and after: Replace every 75000 km (45000 miles) or 45 months
*6. Exhaust pipes and mountings
-
-
-
-
I
-
-
-
-
I
-
-
-
*7. EVAP canister
Replace every 250000 km (150000 miles) or 180 months
*8. Emission-related hoses & tubes
-
-
-
-
-
-
-
-
-
-
-
-
-
9. Spark plugs
-
-
-
-
-
-
-
-
-
-
-
-
-
*10. Ignition coil (plug cap)
-
-
-
-
-
-
-
-
-
I
-
-
-
*11. Fuel tank & cap
-
-
-
-
I
-
-
-
-
I
-
-
-
12. Air cleaner filter element (paved road)
I
I
I
I
I
I
I
I
I
R
I
I
I
*13. Fuel filter
Replace every 250000 km (150000 miles) or 150 months
*14. Fuel lines and connections
-
-
-
-
I
-
-
-
-
I
-
-
-
*15. Canister air suction filter
-
-
-
-
-
-
-
-
-
-
-
-
-
#1: Be sure to perform the engine coolant level check under the daily inspection in “OPERATING YOUR VEHICLE” section.
If you replace the engine coolant other than the SUZUKI LLC: Super (Blue), follow the schedule of SUZUKI LLC: Standard (Green).
7-7
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE
R: Replace or change
I : Inspect, clean, adjust, lubricate or replace as necessary
Interval: This interval should be judged by
miles (x 1000)
42
45
48
51
54
57
60
63
66
69
72
75
odometer reading or months, whichever
km (x 1000)
70
75
80
85
90
95
100
105
110
115
120
125
comes first.
months
42
45
48
51
54
57
60
63
66
69
72
75
ENGINE & EMISSION CONTROL
1. Drive belt
Inspect for damage
-
-
-
-
-
-
I
-
-
-
-
-
*2. Valve lash (clearance)
-
-
-
-
-
-
I
-
-
-
-
-
3. Engine oil and oil filter
R
R
R
R
R
R
R
R
R
R
R
R
*4. Cooling system hoses and connections
-
I
-
-
-
-
I
-
-
-
-
I
5. Engine coolant
SUZUKI LLC: Standard (Green)
-
-
-
-
-
-
R
-
-
-
-
-
SUZUKI LLC: Super (Blue) (#1) First time only: Replace at 150000 km (90000 miles) or 90 months
Second time and after: Replace every 75000 km (45000 miles) or 45 months
*6. Exhaust pipes and mountings
-
I
-
-
-
-
I
-
-
-
-
I
*7. EVAP canister
Replace every 250000 km (150000 miles) or 180 months
*8. Emission-related hoses & tubes
-
-
-
-
-
-
I
-
-
-
-
-
9. Spark plugs
-
-
-
-
-
-
R
-
-
-
-
-
*10. Ignition coil (plug cap)
-
-
-
-
-
-
I
-
-
-
-
-
*11. Fuel tank & cap
-
I
-
-
-
-
I
-
-
-
-
I
12. Air cleaner filter element (paved road)
I
I
I
I
I
I
R
I
I
I
I
I
*13. Fuel filter
Replace every 250000 km (150000 miles) or 150 months
*14. Fuel lines and connections
-
I
-
-
-
-
I
-
-
-
-
I
*15. Canister air suction filter
-
-
-
-
-
-
-
-
-
-
-
R
#1: Be sure to perform the engine coolant level check under the daily inspection in “OPERATING YOUR VEHICLE” section.
If you replace the engine coolant other than the SUZUKI LLC: Super (Blue), follow the schedule of SUZUKI LLC: Standard (Green).
7-8
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE
R: Replace or change
I : Inspect, clean, adjust, lubricate or replace as necessary
miles (x 1000)
3
6
9
12
15
18
21
24
27
30
33
36
39
Interval: This interval should be judged by odometer
km (x 1000)
5
10
15
20
25
30
35
40
45
50
55
60
65
reading or months, whichever comes first.
months
3
6
9
12
15
18
21
24
27
30
33
36
39
CHASSIS AND BODY
1. Clutch (for manual transaxle)
Pedal and fluid level
-
-
-
-
I
-
-
-
-
I
-
-
-
*2. Brake discs and pads
(front, rear)
-
I
-
I
-
-
-
I
-
-
-
I
-
Brake drums and shoes
(rear)
-
I
-
I
-
-
-
I
-
-
-
I
-
*3. Brake hoses and pipes
-
I
-
I
-
-
-
I
-
-
-
I
-
4. Brake fluid level check, *replacement
-
-
-
-
I
-
-
-
-
I
-
-
-
5. Brake pedal stroke check, *adjustment
-
-
-
-
I
-
-
-
-
I
-
-
-
6. Parking brake lever and *cable
Lever movement check, *adjustment
-
I
-
-
I
-
-
-
-
I
-
-
-
7. Tires (including tire rotation)
-
I
-
I
-
I
-
I
-
I
-
I
-
8. Wheel discs
-
I
-
I
-
I
-
I
-
I
-
I
-
*9. Wheel bearings
-
-
-
I
-
-
-
I
-
-
-
I
-
*10. Suspension system
-
I
-
I
-
I
-
I
-
I
-
I
-
*11. Propeller shafts (i-AWD)/Drive axle boots
-
I
-
I
-
I
-
I
-
I
-
I
-
*12. Manual transaxle oil
Level check, *replacement
-
-
-
-
I
-
-
-
-
I
-
-
-
13. Continuously variable transaxle (CVT)
Fluid level
-
-
-
-
I
-
-
-
-
I
-
-
-
*Fluid deterioration check*2
-
-
-
-
I
-
-
-
-
I
-
-
-
*Fluid hose
-
-
-
-
-
-
-
-
-
-
-
-
-
*14. Transfer oil (i-AWD)
-
-
-
-
R
-
-
-
-
R
-
-
-
*15. Rear differential oil (i-AWD)
-
-
-
-
R
-
-
-
-
R
-
-
-
16. Steering system
Steering wheel movement,
*linkage
-
I
-
I
-
I
-
I
-
I
-
I
-
17. Power steering (if equipped)
-
I
-
I
-
I
-
I
-
I
-
I
-
18. All latches, hinges and locks
-
I
-
I
-
I
-
I
-
I
-
I
-
19. Air conditioner filter element (if equipped)*
1
-
I
-
I
-
I
-
I
-
R
-
I
-
7-9
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE
R: Replace or change
I : Inspect, clean, adjust, lubricate or replace as necessary
miles (x 1000)
42
45
48
51
54
57
60
63
66
69
72
75
Interval: This interval should be judged by odometer
km (x 1000)
70
75
80
85
90
95
100
105
110
115
120
125
reading or months, whichever comes first.
months
42
45
48
51
54
57
60
63
66
69
72
75
CHASSIS AND BODY
1. Clutch (for manual transaxle)
Pedal and fluid level
-
I
-
-
-
-
I
-
-
-
-
I
*2. Brake discs and pads
(front, rear)
-
-
I
-
-
-
I
-
-
-
I
-
Brake drums and shoes
(rear)
-
-
I
-
-
-
I
-
-
-
I
-
*3. Brake hoses and pipes
-
-
I
-
-
-
I
-
-
-
I
-
4. Brake fluid level check, *replacement
-
I
-
-
-
-
R
-
-
-
-
I
5. Brake pedal stroke check, *adjustment
-
I
-
-
-
-
I
-
-
-
-
I
6. Parking brake lever and *cable
Lever movement check, *adjustment
-
I
-
-
-
-
I
-
-
-
-
I
7. Tires (including tire rotation)
I
-
I
-
I
-
I
-
I
-
I
-
8. Wheel discs
I
-
I
-
I
-
I
-
I
-
I
-
*9. Wheel bearings
-
-
I
-
-
-
I
-
-
-
I
-
*10. Suspension system
I
-
I
-
I
-
I
-
I
-
I
-
*11. Propeller shafts (i-AWD)/Drive axle boots
I
-
I
-
I
-
I
-
I
-
I
-
*12. Manual transaxle oil
Level check, *replacement
-
R
-
-
-
-
I
-
-
-
-
I
13. Continuously variable transaxle (CVT)
Fluid level
-
I
-
-
-
-
I
-
-
-
-
I
*Fluid deterioration check*2
-
I
-
-
-
-
I
-
-
-
-
I
*Fluid hose
-
I
-
-
-
-
-
-
-
-
-
-
*14. Transfer oil (i-AWD)
-
R
-
-
-
-
R
-
-
-
-
R
*15. Rear differential oil (i-AWD)
-
R
-
-
-
-
R
-
-
-
-
R
16. Steering system
Steering wheel movement,
*linkage
I
-
I
-
I
-
I
-
I
-
I
-
17. Power steering (if equipped)
I
-
I
-
I
-
I
-
I
-
I
-
18. All latches, hinges and locks
I
-
I
-
I
-
I
-
I
-
I
-
19. Air conditioner filter element (if equipped)*
1
I
-
I
-
I
-
R
-
I
-
I
-
NOTE:
This table shows the service schedule up to 125000 km (75000 miles).
Beyond 125000 km (75000 miles), perform the same services at the same intervals shown in the chart.
*1 Clean more frequently if the air flow from the air conditioner decreases.
*2 Check or replace as necessary if you usually drive with high speed or high engine revolutions.
7-10
80J23-03E















Content      ..     10      11      12      13     ..
