Suzuki SX4 (2010 year). Instruction - part 9





-------------------------------------------------------------------------------------------------------------------------------------------------------------

Folding Rear Seats: 3
OTHER CONTROLS AND EQUIPMENT
Instruction Heating and Air
Air flow selector (3)
Ventilation (a)
Conditioning System
(c)
Description of Controls
(4)
(b)
(d)
79J065
Temperature-controlled air comes out of
the center and side air outlets.
(a)
(e)
Bi-level (b)
80JC043
This is used to select one of the functions
described below.
(1)
(5)
(2)
(3)
80JC042
79J066
Temperature selector (1)
This is used to select the temperature by
Temperature-controlled air comes out of
turning the selector.
the floor outlets and cooler air comes out
of the center and side outlets. When the
Blower speed selector (2)
temperature selector
(1) is in the fully
This is used to turn on the blower and to
COLD position or fully HOT position, how-
select blower speed by turning the selec-
ever, the air from the floor outlets and the
tor.
air from the center and side outlets will be
the same temperature.
5-5
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Folding Rear Seats: 3
OTHER CONTROLS AND EQUIPMENT
Heat (c)
Defrost (e)
Air intake selector (4)
(f)
(g)
79J067
79J069
63J047
Temperature-controlled air comes out of
Temperature-controlled air comes out of
This selector is used to select the following
the floor outlets and the side outlets, also
the windshield defroster outlets, the side
modes.
comes out of the windshield defroster out-
defroster outlets and the side outlets.
lets and also comes slightly out of the side
Fresh Air (f)
defroster outlets.
NOTE:
When this mode is selected, the indicator
When the air flow selector (3) is turned
light will go off and outside air is used.
Heat & defrost (d)
either to “Heat & defrost (d)” or “Defrost
Recirculated Air (g)
(e)”, the air conditioning system will come
When this mode is selected, the indicator
on and the “FRESH AIR” mode will be
light will come on, outside air is shut out
selected automatically.
and inside air is recirculated. This mode is
suitable when driving through dusty or pol-
luted air such as in a tunnel, or when
attempting to quickly cool down the inte-
79J068
rior.
Temperature-controlled air comes out of
the floor outlets, the windshield defroster
“FRESH AIR” and “RECIRCULATED AIR”
outlets, the side defroster outlets and the
are switched alternately each time the air
side outlets.
intake selector is pushed.
NOTE:
If you select “RECIRCULATED AIR” for an
extended period of time, the air in the vehi-
cle can become contaminated. Therefore,
you should occasionally select
“FRESH
AIR”.
5-6
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Folding Rear Seats: 3
OTHER CONTROLS AND EQUIPMENT
Air conditioning switch (5)
System Operating Instructions
Head cooled/Feet warmed heating
To turn on the air conditioning system,
Select “BI-LEVEL” and “FRESH AIR”, the
Natural ventilation
push in the “A/C” switch and set the blower
temperature selector to the desired tem-
Select “VENTILATION” and “FRESH AIR”,
speed selector to a position other than
perature position, and the blower speed
the temperature selector to the desired
“OFF”. With this “A/C” switch operation, a
selector to the desired blower speed posi-
temperature position, and the blower
indicator light will come on when the air
tion. Unless the temperature selector is in
speed selector to “OFF”. Fresh air will flow
conditioning system is on. To turn off the
the fully COLD position or fully HOT posi-
through the vehicle during driving.
air conditioning system, push the
“A/C”
tion, the air that comes out of the center
switch again.
Forced ventilation
and side outlets will be cooler than the air
The control settings are the same as for
that comes out of the floor outlets.
During operation of the air conditioner, you
natural ventilation except you set the
may notice slight changes in engine
Normal cooling
blower speed selector to a position other
speed. These changes are normal, the
Turn on the “A/C” switch, set the air flow
than “OFF”.
system is designed so that the compressor
selector to “VENTILATION”, the tempera-
turns on or off to maintain the desired tem-
Normal heating (using outside air)
ture selector to the desired temperature
perature.
Select “HEAT” and “FRESH AIR”, the tem-
position and the blower speed selector to
perature selector to the desired tempera-
the desired blower speed position. Setting
Less operation of the compressor results
ture position and the blower speed selector
the blower speed selector to a higher
in better fuel economy.
to the desired blower speed position. Set-
blower speed position increases cooling
ting the blower speed selector to a higher
efficiency.
blower speed position increases heating
You can switch the air intake selector to
efficiency.
either “FRESH AIR” or “RECIRCULATED
Quick heating (using recirculated air)
AIR” as you desire. Choosing “RECIRCU-
The control settings are the same as for
LATED AIR” increases cooling efficiency.
normal heating except you select “RECIR-
CULATED AIR”. If you use this heating
method for an extended period of time, the
air in the vehicle can become contami-
nated and the windows can become misty.
Therefore, use this method only for quick
heating and change to the normal heating
method as soon as possible.
5-7
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Folding Rear Seats: 3
OTHER CONTROLS AND EQUIPMENT
Quick cooling (using recirculated air)
Maintenance
The control settings are the same as for
EXAMPLE
If you do not use the air conditioner for a
normal cooling except you select “RECIR-
long period, such as during winter, it may
CULATED AIR” and the highest blower
not give the best performance when you
speed.
start using it again. To help maintain opti-
mum performance and durability of your air
NOTE:
conditioner, it needs to be run periodically.
• If you select “RECIRCULATED AIR” for
Operate the air conditioner at least once a
an extended period of time, the air in the
month for one minute with the engine
vehicle can become contaminated.
idling. This circulates the refrigerant and oil
Therefore, you should occasionally
and helps protect the internal components.
select “FRESH AIR”.
Your air conditioner is equipped with air fil-
• If your vehicle has been left in the sun
ters. Clean or replace them as specified in
with the windows closed, it will cool
the
“Maintenance Schedule” in the
faster if you open the windows briefly
79J070
“INSPECTION AND MAINTENANCE” sec-
while you operate the air conditioner with
NOTE:
tion. Have this job done by your SUZUKI
the air intake selector at “FRESH AIR”
If you need maximum defrosting:
dealer as the lower glove box must be low-
and the blower at high speed.
• select “DEFROST” and “FRESH AIR”,
ered for this job.
• turn on the “A/C” switch,
Dehumidifying
• set the blower speed selector to HIGH,
NOTE:
Turn on the “A/C” switch, set the air flow
• adjust the temperature selector to the
Your vehicle uses the air conditioning
selector to a desired air flow selector posi-
HOT end, and
refrigerant HFC-134a, commonly called
tion, and select “FRESH AIR”, the temper-
• adjust the side outlets so the air blows
“R-134a”. R-134a replaced R-12 around
ature selector to the desired temperature
on the side windows.
1993 for automotive applications. Other
position, and the blower speed selector to
refrigerants are available, including recy-
the desired blower speed position.
cled R-12, but only R-134a should be used
in your vehicle.
NOTE:
Because the air conditioner dehumidifies
CAUTION
the air, turning it on will help keep the win-
dows clear, even when blowing heated air
Using the wrong refrigerant may
using the
“DEFROST” or
“HEAT &
damage your air conditioning sys-
DEFROST” functions.
tem. Use R-134a only. Do not mix or
replace the R-134a with other refrig-
erants.
5-8
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Folding Rear Seats: 3
Armrest: 3
OTHER CONTROLS AND EQUIPMENT
Automatic Heating and Air Conditioning System
(1) Temperature selector
(2) Blower speed selector
(Climate Control)
(3) Air intake selector
(4) Air flow selector
Description of Controls
(5) Defrost switch
(6) “OFF” switch
(7) Air conditioning switch
(8) “AUTO” switch
(1)
(9)
(2)
(9) Display
(7)
(8)
(6)
(4)
(5)
(3)
80J2042
5-9
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Sun Visor: 5
Interior Light Switch: 7
OTHER CONTROLS AND EQUIPMENT

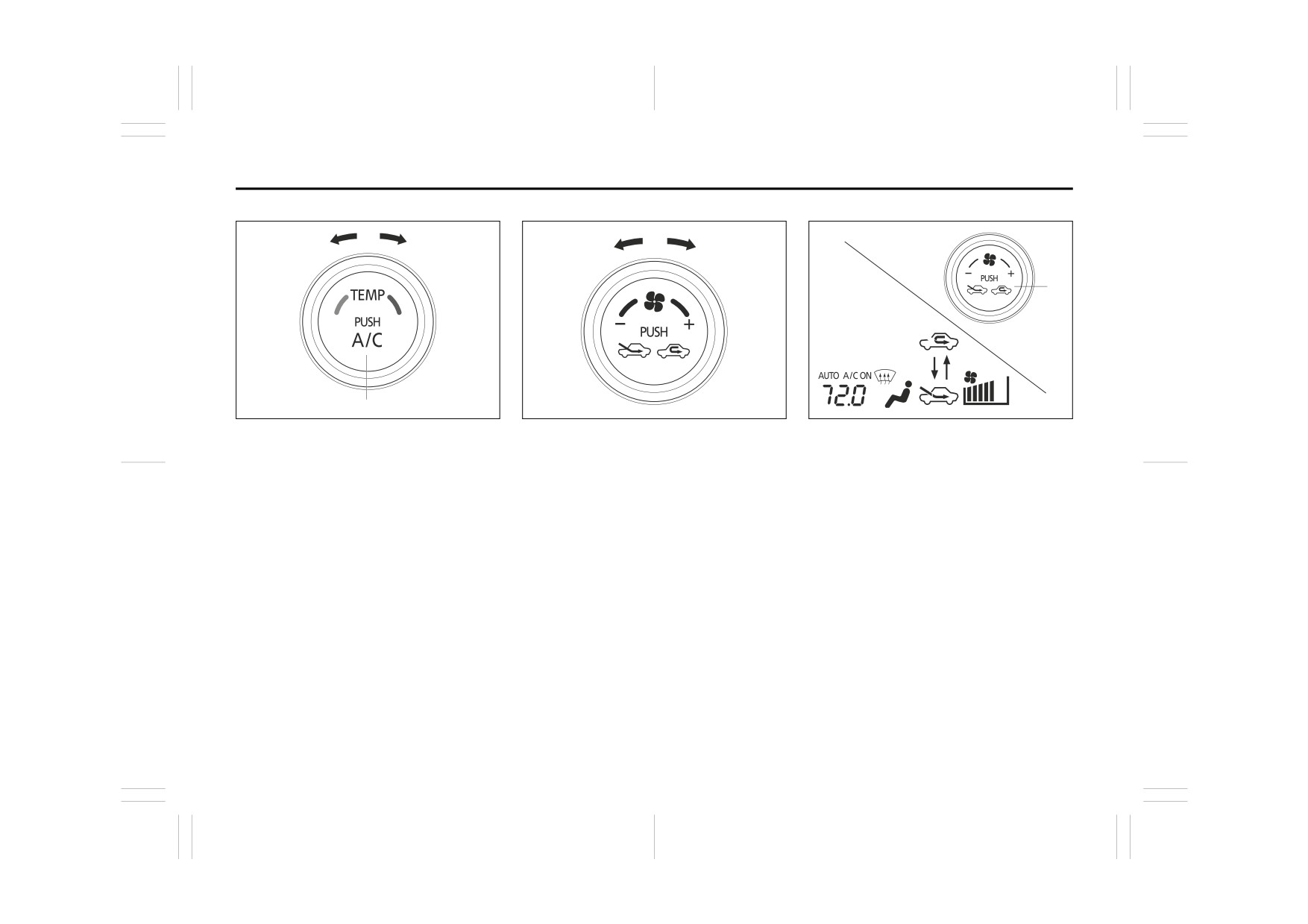

Temperature selector (1)
Blower speed selector (2)
Air intake selector (3)
(1)
(2)
(3)
(a)
(b)
(7)
80J2043
80JM047
80J2044
Turn the temperature selector (1) to adjust
The blower speed selector (2) is used to
Push the air intake selector (3) to change
the temperature.
turn on the blower and to select blower
between the following modes.
speed.
If the “AUTO” switch (8) is pushed, the air
Air conditioning switch (7)
If the
“AUTO” switch (8) is pushed, the
intake will vary automatically as the climate
The air conditioning switch (7) is used to
blower speed will vary automatically as the
control system maintains the selected tem-
turn on and off the air conditioning system.
climate control system maintains the
perature.
To turn on the air conditioning system,
selected temperature.
push in the switch and
“A/C ON” will
RECIRCULATED AIR (a)
appear on the display. To turn off the air
When this mode is selected, outside air is
conditioning system, push in the switch
shut off and inside air is recirculated. This
again and “A/C ON” will go off.
mode is suitable when driving through an
area with polluted air such as a tunnel, or
when attempting to quickly cool down the
vehicle.
FRESH AIR (b)
When this mode is selected, outside air is
introduced.
5-10
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Spot Light: 7
Assist Grips: 3
Coat Hooks:
OTHER CONTROLS AND EQUIPMENT
“FRESH AIR” and “RECIRCULATED AIR”

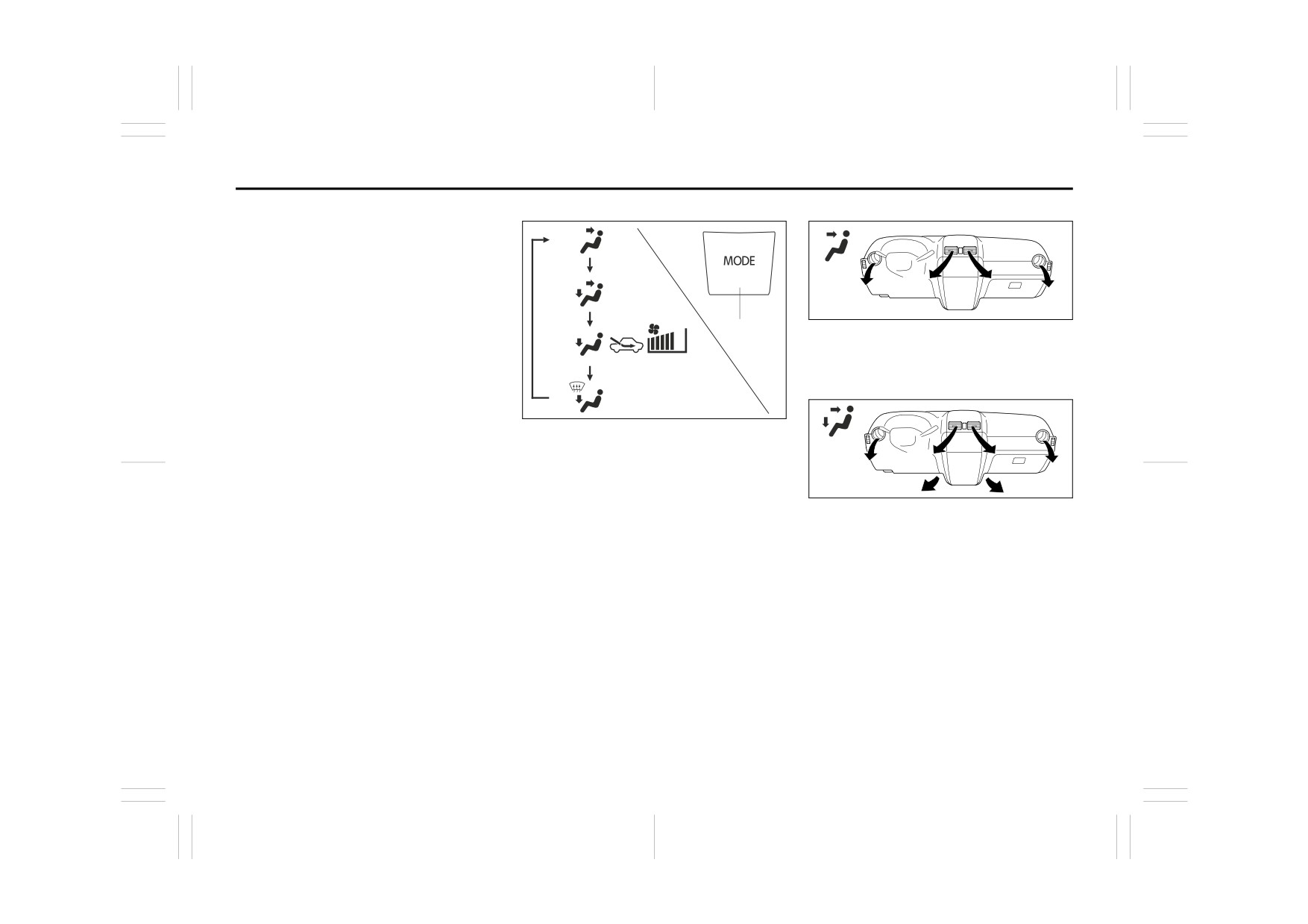

Air flow selector (4)
Ventilation (c)
are selected alternately each time the air
intake selector is pushed.
(c)
NOTE:
If you select “RECIRCULATED AIR” for an
(d)
extended period of time, the air in the vehi-
cle can become contaminated. Therefore,
(4)
79J065
you should occasionally select
“FRESH
AIR”.
(e)
Temperature-controlled air comes out of
the center and side air outlets.
Bi-level (d)
(f)
80JM049
Push the air flow selector (4) to change
among the following functions. The indica-
tion of the selected mode appears on the
display.
79J066
If the “AUTO” switch (8) is pushed, the air
flow will vary automatically as the climate
Temperature-controlled air comes out of
control system maintains the selected tem-
the floor outlets and cooler air comes out
perature.
of the center and side outlets. When the
temperature selector
(1) is in the fully
COLD position or fully HOT position, how-
ever, the air from the floor outlets and the
air from the center and side outlets will be
the same temperature.
5-11
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Eyeglasses Holder:
Engine Hood: 5
OTHER CONTROLS AND EQUIPMENT
Heat (e)
Heat & defrost (f)
Defrost switch (5)
79J067
79J068
(5)
Temperature-controlled air comes out of
Temperature-controlled air comes out of
the floor outlets and the side outlets, a
the floor outlets, the windshield defroster
small amount of air comes out of the wind-
outlets, the side defroster outlets and the
shield defroster outlets and also comes
side outlets.
slightly out of the side defroster outlets.
NOTE:
80JM050
When the heat & defrost (f) is selected, the
air conditioning system will come on and
Push the defrost switch (5) to turn on the
defroster.
the “FRESH AIR” mode will be selected
automatically. The “RECIRCULATED AIR”
mode cannot be selected. In very cold
weather, however, the air conditioning sys-
tem will not turn on.
5-12
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Cup Holder and Storage Area: 3
OTHER CONTROLS AND EQUIPMENT
Defrost
System Operating Instructions
To turn the climate control system off, push
the “OFF” switch (6).
Automatic operation
NOTE:
(1)
(8)
If the “AUTO” on the display blinks, there is
a problem in the heating system and/or air
conditioning system. You should have the
system inspected by an authorized
80JM051
SUZUKI dealer.
Temperature-controlled air comes out of
the windshield defroster outlets, the side
NOTE:
defroster outlets and the side outlets.
To find the temperature at which you are
most comfortable, start with the
72°F
NOTE:
(22°C) setting.
When the defrost switch (5) is pushed to
If you turn the temperature selector (1)
(7)
(6)
turn on the defroster, the air conditioning
until “HI” or “LO” appears on the display,
system will come on and the “FRESH AIR”
80JM126
the climate control system will operate at
mode will be selected automatically. In
the maximum cooling or heating and the
You can let the climate control system work
very cold weather, however, the air condi-
blower will run at full speed.
automatically. To set the system for fully-auto-
tioning system will not turn on.
To avoid blowing cold air in cold weather
matic operation, follow the procedure below.
or hot air in hot weather, the system will
1) Start the engine.
delay turning on the blower until warmed
2) Push the “AUTO” switch (8).
or chilled air is available.
3) Set the desired temperature by turning
If your vehicle has been left in the sun
the temperature selector (1).
with the windows closed, it will cool
faster if you open the windows briefly.
The blower speed, air intake and air flow
Even under the automatic operation, you
are controlled automatically to maintain the
can set individual selectors to the man-
set temperature.
ual mode. The instructionly selected func-
You can use the air conditioning switch (7)
tions are maintained, and the other
to instructionly turn the air conditioner on or off
functions remain under automatic opera-
according to your preference. When you
tion.
turn the air conditioning switch off, the cli-
To return the blower speed selector (2),
mate control system cannot lower the inside
air intake selector (3), and air flow selec-
temperature below outside temperature.
tor (4) to automatic operation, push the
“AUTO” switch (8).
5-13
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Accessory Socket: 8
Frame Hooks: 5, 6
OTHER CONTROLS AND EQUIPMENT
Instruction operation
Maintenance
EXAMPLE
You can instructionly control the climate con-
If you do not use the air conditioner for a
trol system. Set the selectors to the
long period, such as during winter, it may
desired positions.
not give the best performance when you
start using it again. To help maintain opti-
(11)
EXAMPLE
mum performance and durability of your air
conditioner, it needs to be run periodically.
Operate the air conditioner at least once a
month for one minute with the engineidling.
(10)
This circulates the refrigerant and oil and
helps protect the internal components.
Your air conditioner is equipped with air fil-
ters. Clean or replace them as specified in
the
“Maintenance Schedule” in the
80JM127
“INSPECTION AND MAINTENANCE” sec-
Be careful not to cover the interior temper-
tion. Have this job done by your SUZUKI
ature sensor
(10) located between the
dealer as the lower glove box must be low-
steering wheel and the climate control
ered for this job.
79J070
panel, or the solar sensor (11) located at
the top of the driver’s side dashboard.
NOTE:
NOTE:
These sensors are used by the automatic
If you need maximum defrosting:
Your vehicle uses the air conditioning
system to regulate temperature.
• push the defrost switch (5) to turn on the
refrigerant HFC-134a, commonly called
defroster (the air conditioning system will
“R-134a”. R-134a replaced R-12 around
come on and the “FRESH AIR” mode will
1993 for automotive applications. Other
be selected automatically),
refrigerants are available, including recy-
• set the blower speed selector to HIGH,
cled R-12, but only R-134a should be used
• adjust the temperature selector to the
in your vehicle.
“HI” indication on the display, and
• adjust the side outlets so the air blows
CAUTION
on the side windows.
Using the wrong refrigerant may
damage your air conditioning sys-
tem. Use R-134a only. Do not mix or
replace the R-134a with other refrig-
erants.
5-14
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Frame Hooks: 5, 6
OTHER CONTROLS AND EQUIPMENT
Radio Antenna
SX4 SEDAN
Audio Systems
The radio antenna wire is printed inside
There are two types of audio system as
SX4
the rear window.
shown below:
EXAMPLE
CAUTION
Type 1
Do not attach any metal objects to
the rear window glass, or place
metallic film near it. Either of these
conditions may cause poor recep-
tion or noise.
When cleaning the inside of the
rear window, be careful not to
scratch or damage the rear window
antenna. Wipe the rear window
lightly along the antenna with a
dampened soft cloth.
63J055
The radio antenna on the roof is remov-
able. To remove the antenna, turn it coun-
80J059
terclockwise. To reinstall the antenna, turn
AM/FM/XM CD PLAYER
it clockwise firmly by hand.
WITH CD CHANGER CONTROL
CAUTION
To avoid damage to the radio
antenna:
• Remove the antenna before using
an automatic car wash.
• Remove the antenna when it is pos-
sible for the antenna to hit some-
thing such as a low ceiling in a
parking garage or putting a car
cover over your car.
• Remove the antenna before put-
ting a car cover over your vehicle.
5-15
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OTHER CONTROLS AND EQUIPMENT

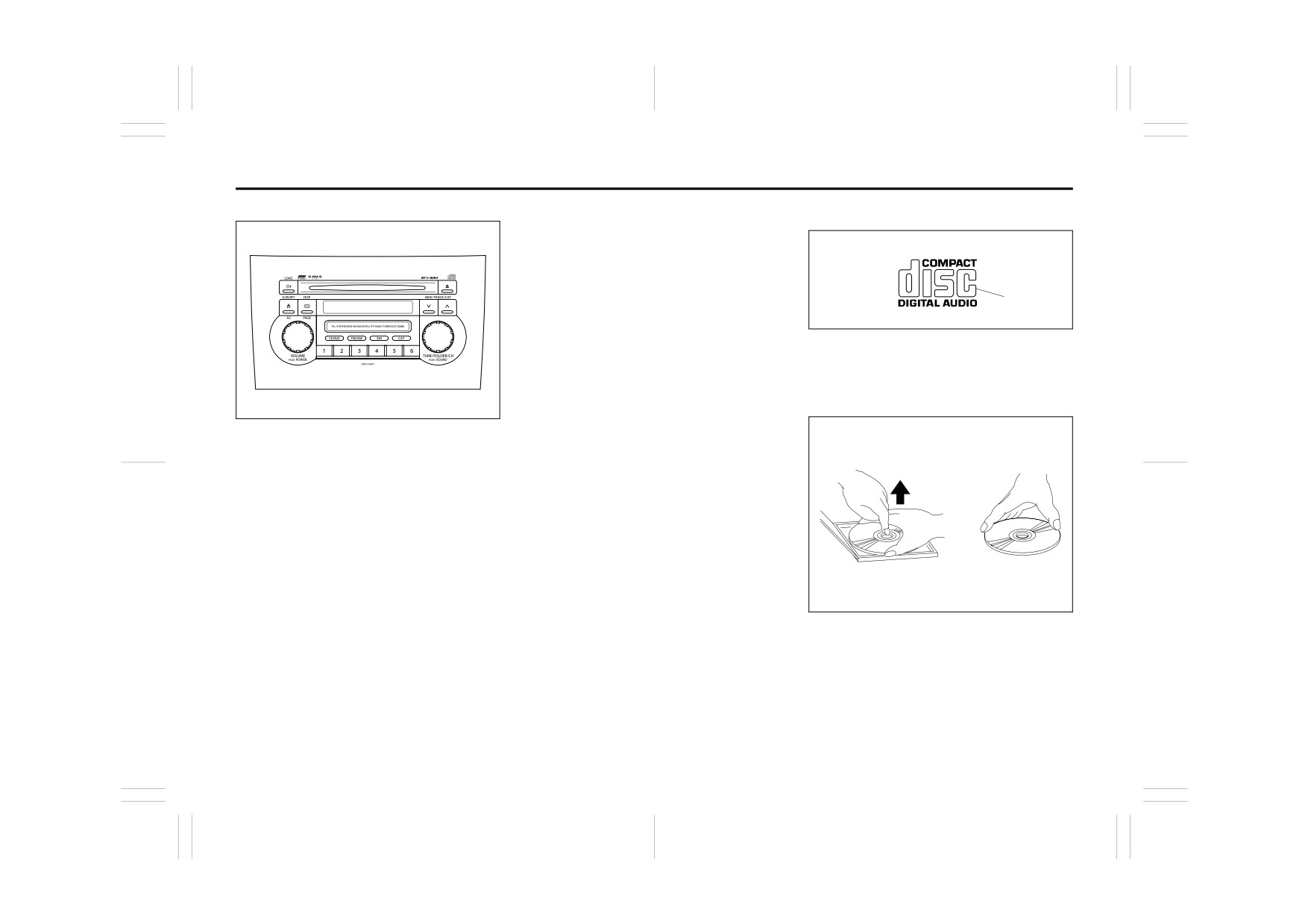

Type 2
Precautions
Cautions on Handling
• When the inside of the car is very cold
and the player is used soon after switch-
ing on the heater, moisture may form on
the disc or the optical parts of the player
and proper playback may not be possi-
ble. If moisture forms on the disc, wipe it
(A)
off with a soft cloth. If moisture forms on
the optical parts of the player, do not use
52D274
the player for about one hour. This will
This unit has been designed specifically for
allow the condensation to disappear nor-
playback of compact discs bearing the
mally.
mark (A).
• Driving on extremely bumpy roads which
No other discs can be played.
cause severe vibrations may cause
sound to skip.
80J060
• This unit uses a precision mechanism.
Removing the disc
Proper way to hold
AM/FM/XM 6-CD PLAYER
Even in the event that trouble arises,
the compact disc
WITH CD CHANGER CONTROL
never open the case, disassemble the
unit, or lubricate the rotating parts.
Please bring the unit to an authorized
SUZUKI dealer or a Clarion service
Department.
52D275
To remove the compact disc from its stor-
age case, press down on the center of the
case and lift the disc out, holding it care-
fully by the edges.
Always handle the compact disc by the
edges.
Never touch the surface.
5-16
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OTHER CONTROLS AND EQUIPMENT
prevent the system from operating prop-
erly.

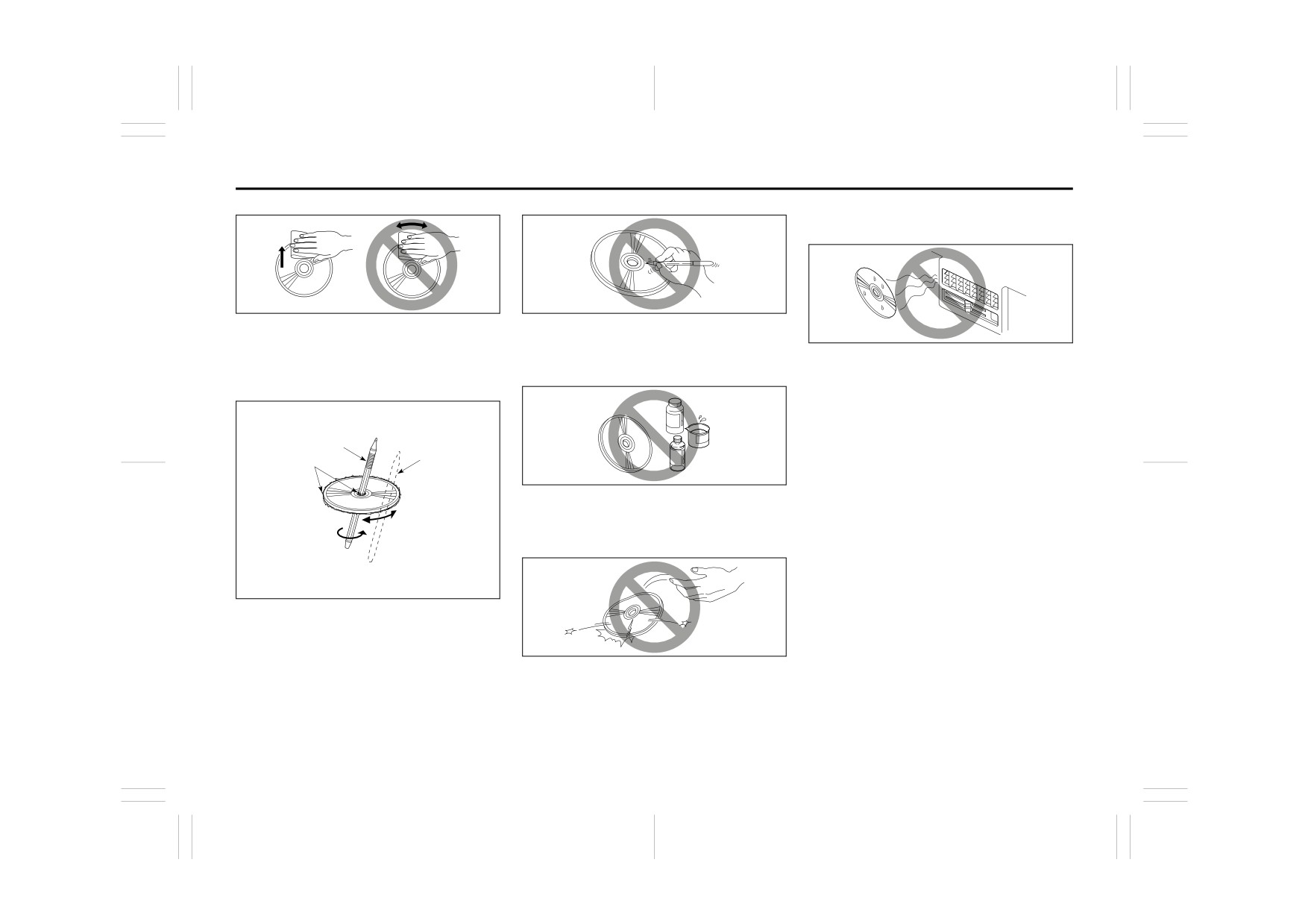

52D347
52D348
To remove fingermarks and dust, use a
Never stick labels on the surface of the
52D351
soft cloth, and wipe in a straight line from
compact disc or mark the surface with a
the center of the compact disc to the cir-
pencil or pen.
Do not expose compact discs to direct sun-
cumference.
light or any heat source.
NOTE:
• Do not use commercially available CD
(B)
protection sheets or discs equipped with
(C)
(B)
stabilizers, etc.
These may get caught in the internal
mechanism and damage the disc.
52D349
• CD-R discs may not be able to playback
Do not use any solvents such as commer-
in this unit due to the recording condi-
cially available cleaners, anti-static spray,
tions.
or thinner to clean compact discs.
• CD-RW discs cannot playback in this
unit.
52D277
New discs may have some roughness
around the edges. The unit may not work
or the sound may skip if such discs are
52D350
used. Use a ball-point pen
(B), etc. to
remove the roughness (C) from edges of
Do not use compact discs that have large
the disc before insertion inside the unit.
scratches, are misshaped, or cracked, etc.
Use of such discs will cause damage or
5-17
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OTHER CONTROLS AND EQUIPMENT
Basic Operations
(1) Power on/off knob
Volume control knob
(2) Tone/balance/fader control knob
Type 1 AM/FM/XM CD PLAYER WITH CD CHANGER CONTROL
(3) Preset button 5
(4) Preset button 6
(1)
(2)
(3)
(4)
Type 2 AM/FM/XM 6-CD PLAYER WITH CD CHANGER CONTROL
(1)
(2)
(3)
(4)
80J061
5-18
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OTHER CONTROLS AND EQUIPMENT
Turning power on/off
Adjusting bass/treble/balance/fader
Adjusting the AVC (Auto volume con-
Press the power on/off knob (1).
1)
Press the tone/balance/fader control
trol)
The unit starts in the function mode it was
knob (2).
The Automatic Volume Control (AVC) func-
in when the power was turned off last.
Each time it is pressed, sound adjust-
tion automatically adjusts
(increases/
ment is changed as follows:
decreases) the sound volume in accor-
Adjusting the volume
dance with vehicle speed. The AVC control
Turn the volume control knob (1).
is provided with three selectable levels
Turning it clockwise increases the volume;
(LEVEL OFF, 1, 2, 3). The range of volume
Bass adjustment (BASS 0)
turning it counterclockwise decreases the
adjustment increases together with the
volume.
LEVEL number,
Treble adjustment (TREBLE 0)
1) Press the tone/balance/fader control
NOTE:
knob (2) until the AVC adjustment mode
While driving, adjust the volume to an
Balance adjustment (BALANCE 0)
is selected.
extent that sound and/or noise coming
2) Turn the tone/balance/fader control
from outside the car can be heard.
Fader adjustment (FADER 0)
knob (2) to select the desired AVC
adjustment level. (Initial setting: LEVEL
2)
AVC adjustment (AVC LEVEL 2)
Adjusting the contrast of the display
Original mode
1) Press the tone/balance/fader/control
knob (2) and preset button 5 (3), preset
button 6 (4) simultaneously.
66J224
2) To adjust the contrast of the display,
2)
Turn the tone/balance/fader control
turn the power on/off knob (1).
knob (2) to adjust the sound.
Cancel the dimmer condition
Each time you press the power on/off knob
(1) for two seconds with the lighting switch
on, the background brightness of the audio
display will switch between normal and
dimmed.
5-19
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OTHER CONTROLS AND EQUIPMENT
Listening to the Radio
Display
(C)
Type 1 AM/FM/XM CD PLAYER WITH CD CHANGER CONTROL
(A)
(B)
(D)
(6)
(2)
66J097
(1)
(3)
(1) Band switch button (FM/AM)
(4)
(2) Seek up button
(3) Seek down button
(4) Manual tuning knob
(5) Preset buttons (1 to 6)
(6) Auto store button (AS)/
Scan button (SCAN)
(5)
(A) Band
(B) Preset channel number
Type 2 AM/FM/XM 6-CD PLAYER WITH CD CHANGER CONTROL
(C) Stereo indicator
(D) Frequency
(6)
(2)
(1)
(3)
(4)
(5)
80J062
5-20
80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OTHER CONTROLS AND EQUIPMENT
Selecting the reception band
Auto store
Radio Reception
Press the band switch button (1).
Press and hold the auto store button (6) for
Radio reception can be affected by envi-

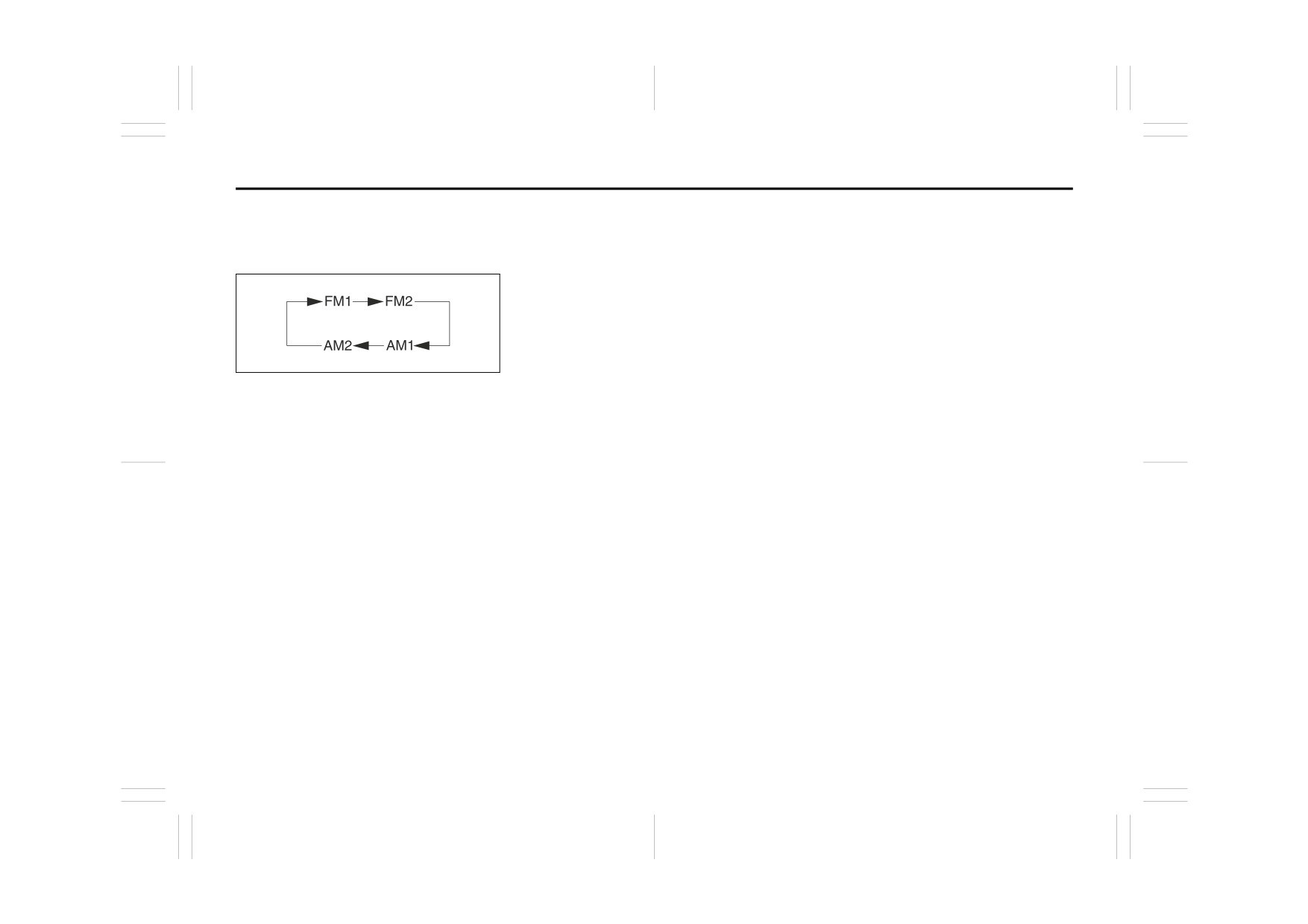

Each time the button is pressed, the recep-
2 seconds or longer.
ronment, atmospheric conditions, or radio
tion band is switched as follows:
Six stations in total are automatically
signal’s power and distance from the sta-
stored to the preset buttons (5) in sequen-
tion. Nearby mountains and buildings may
tial order, starting from the lower frequen-
interfere or deflect radio reception, causing
cies.
poor reception. Poor reception or radio
static can also be caused by electric cur-
NOTE:
rent from overhead wires or high voltage
• When the auto store is performed, the
power lines.
station previously stored in the memory
66J098
at the position is overwritten.
• When there are fewer than 6 stations
Seek tuning
that can be stored even if 2 rounds of
Press the seek up button (2) or the seek
auto store operation are performed, the
down button (3).
stations previously stored at the remain-
The unit stops searching for a station at a
ing preset buttons (5) are not overwrit-
frequency where a broadcast station is
ten.
available.
Scan tuning
Manual tuning
1) Press the scan button (6).
Turn the manual tuning knob (4).
Stations are automatically sought for in
The frequency being received is displayed.
a sequential order, starting from a sta-
tion being currently received, and scan
Preset memory
stops for
5 seconds at a frequency
1) Select the desired station.
where there is a station available.
2) Select the preset button (5) to which
2) Press the scan button (6) again to stop
you want to store the station and press
scanning at the frequency being cur-
and hold the button for 2 seconds or
rently received.
longer.
Receiving a stereo broadcast station
If a stereo broadcast station is received,
the stereo indicator will light.
5-21
80J23-03E















Content      ..     7      8      9      10     ..
