GENERAL INFORMATION
GENERAL INFORMATION
Identification Numbers
7-1
Safety Certification Label
7-2
Emission Compliance Label (for U.S.A.)
7-2
Warranties
7-2
On-Board Vehicle Computers and Event Data
Recorders
7-3
Reporting Safety Defects
7-4
7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GENERAL INFORMATION
Identification Numbers
The Vehicle Identification Number
(VIN)
Engine Serial Number
may be found in the location shown in the
Vehicle Identification Number
above illustrations. This number is used to
register the vehicle. It is also used to assist
your SUZUKI dealer when ordering parts
EXAMPLE (for some vehicles)
or referring to special service information.
60G128
The engine serial number is stamped on
60G152
the cylinder block as shown in the above
illustration.
54G081
7-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GENERAL INFORMATION
Safety Certification Label
Emission Compliance Label
Warranties
(for U.S.A.)
The warranties covering your vehicle are
explained in a separate New Vehicle War-
ranty Information booklet given to you at
the time of sale. Please read this booklet
carefully so you can understand your rights
and responsibilities.
For U.S.A.
The following warranties are provided with
your vehicle:
• New Vehicle Limited Warranty
• Limited Warranty For SUZUKI Parts or
Accessories
• Emission Components Defect Warranty
52D059
• Emission Performance Warranty

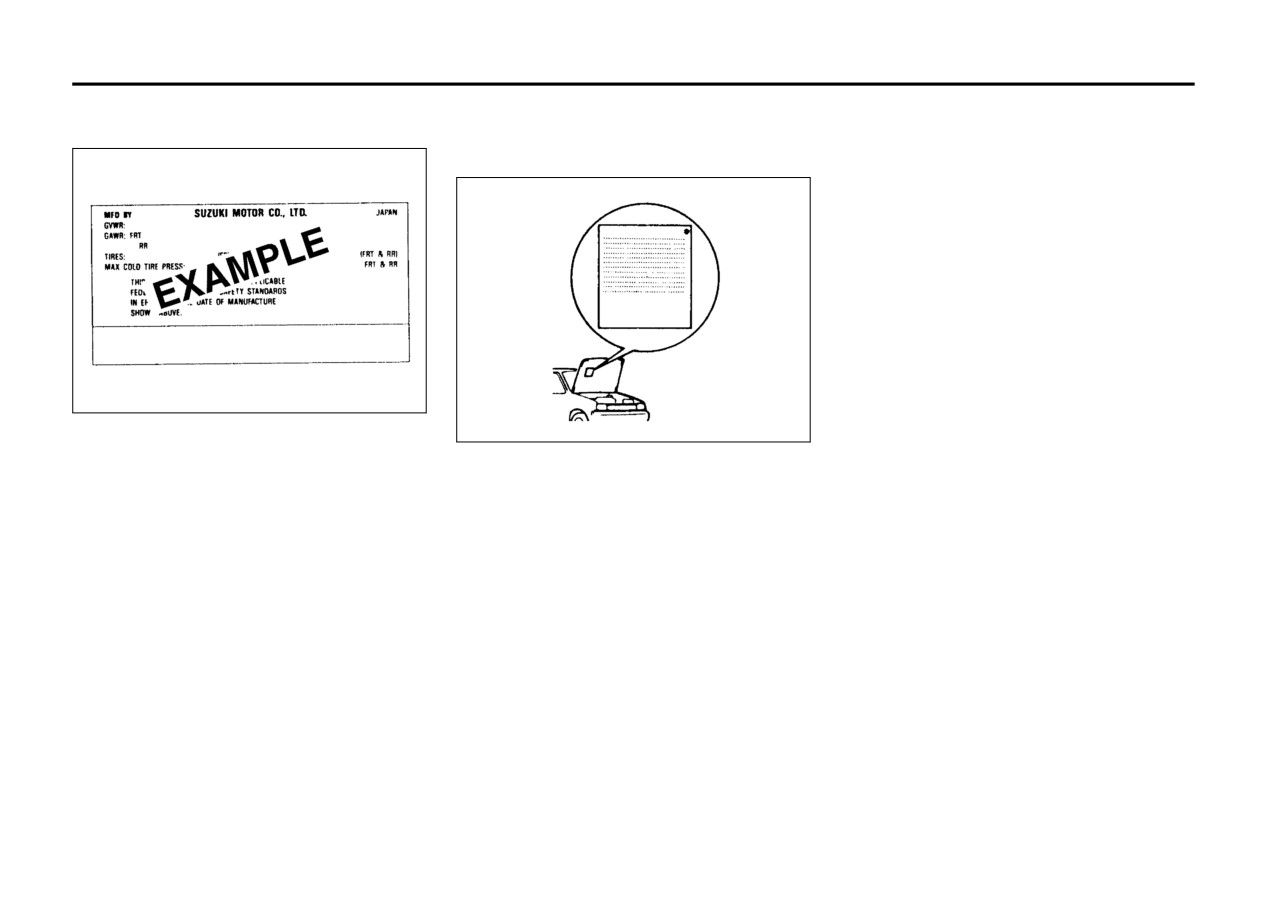

This label contains important safety-
60A412
related information about your vehicle. The
The EPA emission compliance label is
label is located on the driver’s door lock pil-
located under the hood. It provides much
lar.
of the information needed to perform an
engine tune-up on your vehicle.
7-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GENERAL INFORMATION
On-Board Vehicle Computers
operation of the vehicle. This stored
In addition, once SUZUKI collects or
information can assist technicians in
receives data, SUZUKI may use the
and Event Data Recorders
repairing the vehicle when malfunc-
data for research conducted by
Your vehicle is equipped with on-board
tions occur. Other information is stored
SUZUKI, make the data available for
computer systems which monitor and
only in the event of crash, by computer
outside research if need is shown and
control several aspects of vehicle per-
systems that are commonly called
confidentiality is assured, or make
formance, including the following:
Event Data Recorders (EDRs).
summary data which does not identify
Emission-related components and
specific vehicles available for outside
In a crash event, EDRs such as the
engine parameters such as engine
research.
Airbag Sensing and Diagnostic Mod-
speed and throttle position are moni-
ule (SDM) in your vehicle may record
Others, such as law enforcement per-
tored to provide emissions control
information about the condition of the
sonnel, may have access to the spe-
and to provide optimum fuel econ-
vehicle and how it was operated, such
cial equipment that can read the
omy. Your vehicle also has an on-
as data related to airbag readiness,
information if they have access to the
board diagnostic system which mon-
airbag performance, safety belt usage,
vehicle or storage device.
itors and records information about
and the severity of the collision. These
emission-related malfunctions.
data can help provide a better under-
Signals from various sensors are
standing of the circumstances in which
monitored to provide air bag deploy-
crashes and injuries occur and lead to
ment.
the designing of safer vehicles. The
If your vehicle is equipped with
SDM in your vehicle does not collect
antilock brakes, conditions such as
or store personal information.
vehicle speed and brake perfor-
mance are monitored, so that the
To read the stored information, special
ABS system can provide effective
equipment is needed and access to
antilock braking. If your vehicle has
the vehicle or storage device is
an Electronic Stability Program
required. SUZUKI will not access infor-
(ESP®) system, conditions such as
mation about a crash event or share it
yaw rate, lateral acceleration, and
with others other than with the consent
brake fluid pressure are monitored,
of the vehicle owner or lessee, in
so that the ESP® system can help
response to an official request from
the driver control the vehicle in diffi-
the police or similar government office,
cult driving situations.
as part of SUZUKI’s defense of litiga-
tion through the discovery process, or
Some information may be stored by
as required by law.
the on-board computers during normal
7-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GENERAL INFORMATION
Reporting Safety Defects
To contact American Suzuki, owners
in the continental United States can
If you believe that your vehicle has a
call toll-free 1-800-934-0934, or write
defect which could cause a crash or
to:
could cause injury or death, you
should immediately inform the
American Suzuki Motor Corporation
National Highway Traffic Safety
Automotive Customer Relations
Administration (NHTSA) in addition to
3251 East Imperial Highway
notifying American Suzuki Motor Corp.
Brea, CA 92821-6795
If NHTSA receives similar complaints,
For owners outside the continental
it may open an investigation, and if it
United States, please refer to the dis-
finds that a safety defect exists in a
tributor’s address listed in your War-
group of vehicles, it may order a recall
ranty Information booklet.
and remedy campaign. However,
For vehicles registered for use and
NHTSA cannot become involved in
principally operated in Canada please
individual problems between you, your
contact Suzuki Canada Inc. at 1-905-
SUZUKI dealer, or American Suzuki
889-2677 extension 2254 or write to:
Motor Corp.
Suzuki Canada Inc.
To contact NHTSA, you may call the
Customer Relations
Vehicle Safety Hotline toll-free at
1-
100 East Beaver Creek Road
888-327-4236 (TTY: 1-800-424-9153);
Richmond Hill, On
L4B 1J6
to: Administrator, NHTSA,
400 Sev-
enth Street, SW., Washington, D.C.
20590. You can also obtain other infor-
mation about motor vehicle safety
7-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------
