Suzuki XL7 (2007 year). Instruction - part 1





-------------------------------------------------------------------------------------------------------------------------------------------------------------

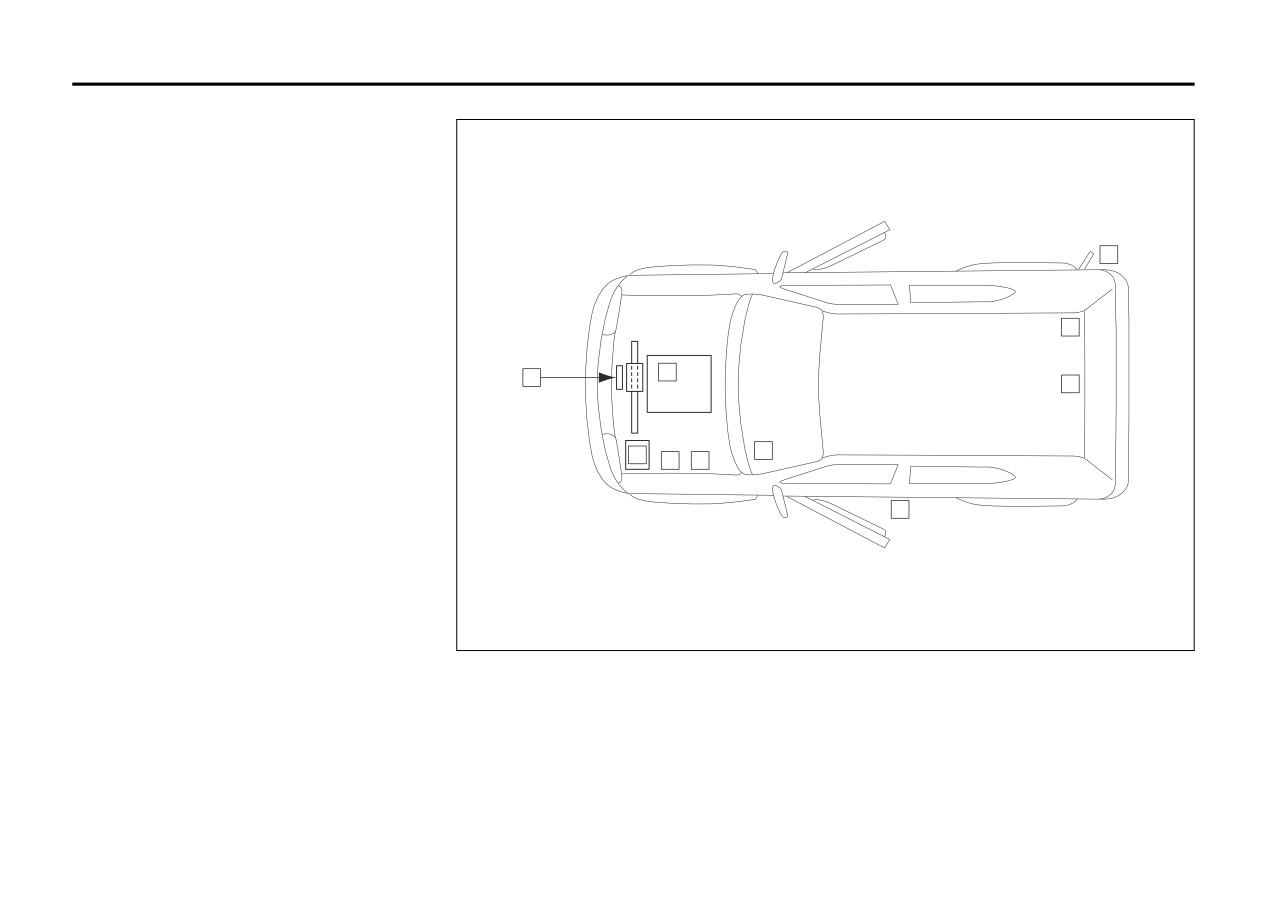

SERVICE STATION GUIDE
1. Fuel (see section 5)
2. Engine hood (see section 5)
3. Tire changing tools (see section 5)
4. Engine oil dipstick <Yellow>
(see section 5)
5. Engine coolant (see section 5)
1
6. Windshield washer fluid
(see section 5)
7. Battery (see section 5)
3
8. Tire pressure
(see tire information
label on driver’s door lock pillar)
9. Spare tire (see section 5)
4
2
9
7
2
6
5
8
Litho in U.S.A.
Part NO. 15900142 A First Printing

-------------------------------------------------------------------------------------------------------------------------------------------------------------

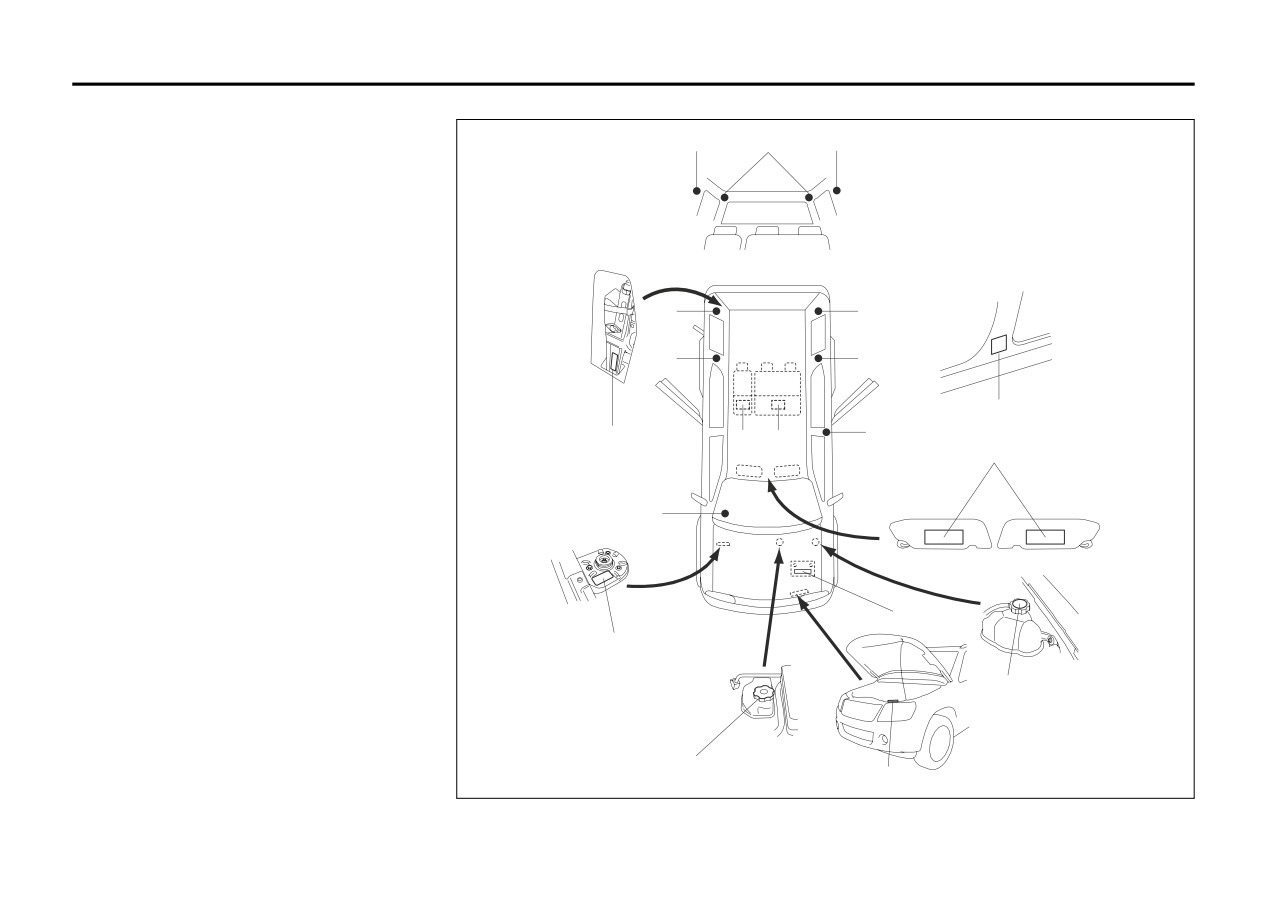

LOCATION OF WARNING
9
10
9
MESSAGES
Read and follow all of the warnings (labels
etc.) on your vehicle. Make sure you
understand all of them. Keep them on the
vehicle. Do not remove the messages for
any reason. If a label comes off or the
messages become difficult to read, have it
corrected by your SUZUKI dealer.
10
10
1. Airbag warning labels
9
9
(on both sunvisors)
2. Jacking warning label
3. Brake fluid cap message
11
4. Surge tank cap message
2
11
12
12
5. Dynamo meter warning label
1
6. Air conditioner warning label
Driver
Passenger
7. Battery label
8. Air bag warning tag
8
9. Side air bag warning label
10. Side air bag warning label
(3 seats model only)
11. Pretensioner warning label
12. Second seat folding warning label
7
5
4
3
6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IF YOU HAVE ANY PROBLEMS WITH
If you purchased your SUZUKI in Canada
FOREWORD
YOUR SUZUKI:
please contact the Suzuki Canada Cus-
tomer Relations Department by telephone
Please review the New Vehicle Warranty
at
1-905-889-2677 extension 2254 or in
All information in this instruction is based
Information booklet supplied with your
writing at:
on the latest product information avail-
SUZUKI. Should you have a question or
Suzuki Canada Inc.
able at the time of publication. Due to
problem regarding the warranty or service
improvements or other changes, there
Customer Relations
of your vehicle, please take the following
100 East Beaver Creek Road
may be discrepancies between informa-
action:
tion in this instruction and your vehicle.
Richmond Hill, On
Consult the Service Manager and the
L4B 1J6
SUZUKI MOTOR CORPORATION
reserves the right to make production
Owner of the Suzuki Automotive Dealer-
In the event you require assistance related
ship. Explain your problem and ask for
changes at any time, without notice and
to your SUZUKI, while temporarily travel-
without incurring any obligation to
their assistance in resolving your problem.
ling in either the United States or Canada,
The Owner of the dealership is in the very
make the same or similar changes to
you may wish to contact the Suzuki Cus-
vehicles previously built or sold.
best position to assist you as he or she is
tomer Relations Department directly of the
vitally concerned with your continued satis-
country in which you are temporarily oper-
faction.
ating your vehicle.
If you are still in need of additional informa-
SUZUKI MOTOR CORPORATION
Please be certain to provide us with the fol-
tion, or if you are dissatisfied, request that
believes in conservation and protection of
lowing information: the model, Vehicle
your dealer arrange a meeting with your
Earth’s natural resources.
Identification Number, mileage, accesso-
District Service Manager.
ries involved, event dates, your concern,
To that end, we encourage every vehicle
If, after doing so, you still require further
and any other comments which you may
owner to recycle, trade in, or properly dis-
assistance, and you purchased your
have. When we receive your correspon-
pose of, as appropriate, used motor oil,
SUZUKI in the continental United States,
dence, we will be pleased to contact the
coolant, and other fluids, batteries and
please contact the American Suzuki Cus-
Owner of your dealership and assist in
tires.
tomer Relations Department by telephone
resolving your concern.
at 1-800-934-0934 or in writing at:
For owners outside the continental United
American Suzuki Motor Corporation
States, please refer to the distributor’s
Automotive Customer Relations
address listed in your Warranty Information
3251 East Imperial Highway
booklet.
Brea, CA 92821-6795
0-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IMPORTANT
MODIFICATION WARNING
WARNING/CAUTION/NOTE
Please read this instruction and follow its
WARNING
instructions carefully. To emphasize spe-
Do not modify this vehicle. Modifica-
cial information, the symbol
and the
tion could adversely affect safety,
words WARNING, CAUTION and NOTE
handling, performance or durability
have special meanings. Pay special atten-
and may violate governmental regu-
tion to the messages highlighted by these
lations. In addition, damage or perfor-
signal words:
mance problems resulting from
modification may not be covered
WARNING
under warranty.
Indicates a potential hazard that
could result in death or injury.
75F135
CAUTION
The circle with a slash in this instruction
Improper installation of mobile com-
CAUTION
means “Don’t do this” or “Don’t let this hap-
munication equipment such as cellu-
pen”.
Indicates a potential hazard that
lar telephones or CB (Citizen’s Band)
could result in vehicle damage.
radios may cause electronic interfer-
ence with your vehicle’s ignition sys-
NOTE:
tem, resulting in vehicle performance
Indicates special information to make
problems. Consult your SUZUKI
maintenance easier or instructions clearer.
dealer or qualified service technician
for advice on installing such mobile
communication equipment.
0-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle Symbols
Your vehicle has components and labels that use symbols instead of text. Symbols, used on your vehicle, are shown along with the text
describing the operation or information relating to a specific component, control, message, gauge or indicator.
If you need help figuring out a specific name of a component, gauge or indicator, reference the following topics:
• Seats and Restraint Systems in Section
• Climate Controls in Section 3
• Engine Compartment Overview in Sec-
1
• Warning Lights, gauges and Indicators
tion 5
• Features and Controls in Section 2
in Section 3
• Instrument Panel Overview in Section 3
• Audio System(s) in Section 3

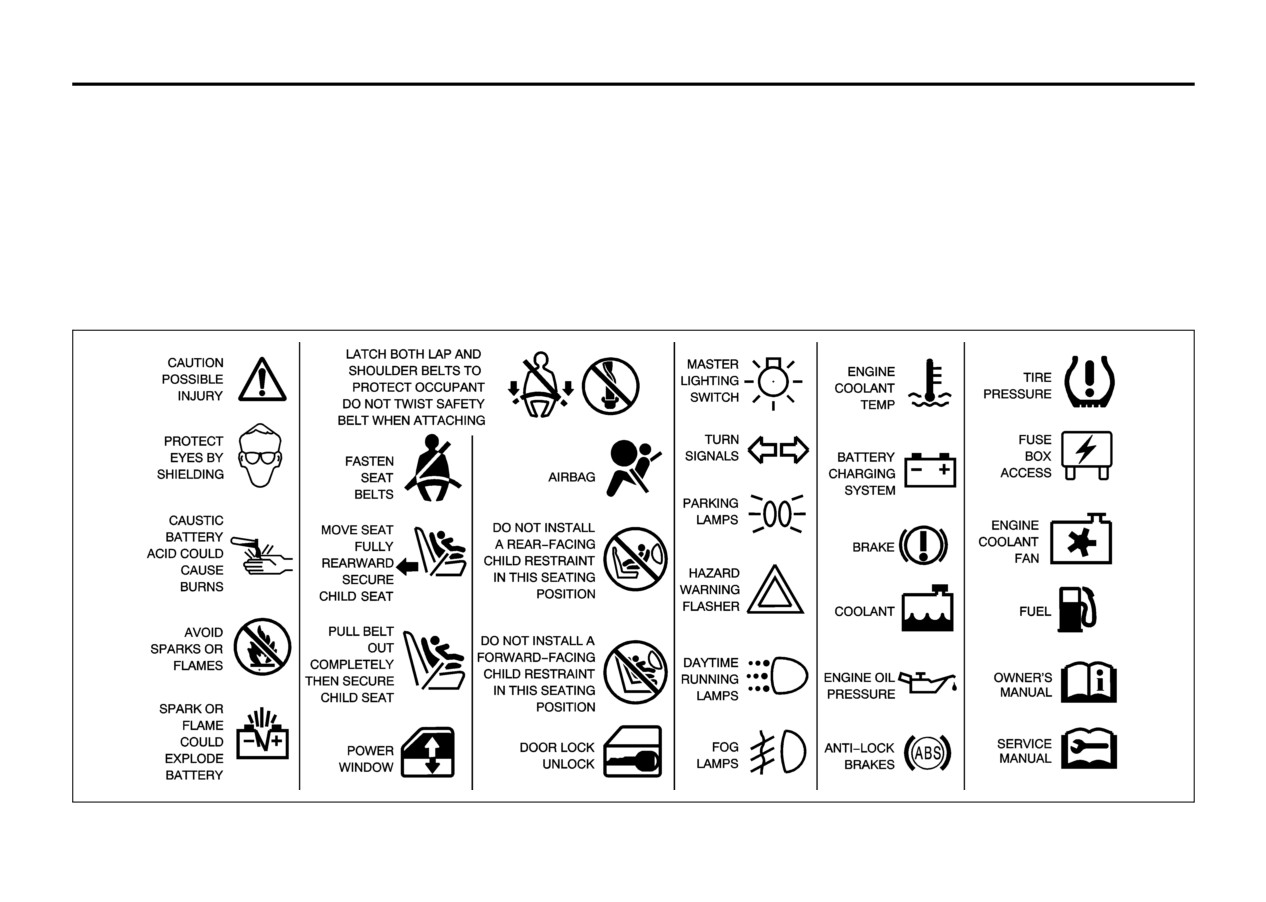

These are some examples of vehicle symbols you may find on your vehicle:
809119
0-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATS AND RESTRAINT SYSTEMS
SEATS AND RESTRAINT SYSTEMS
1
Front Seats
1-1
Rear Seats
1-6
Safety Belts
1-9
Child Restraints
1-18
Airbag System
1-33
Restraint System Check
1-42

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATS AND RESTRAINT SYSTEMS
Front Seats

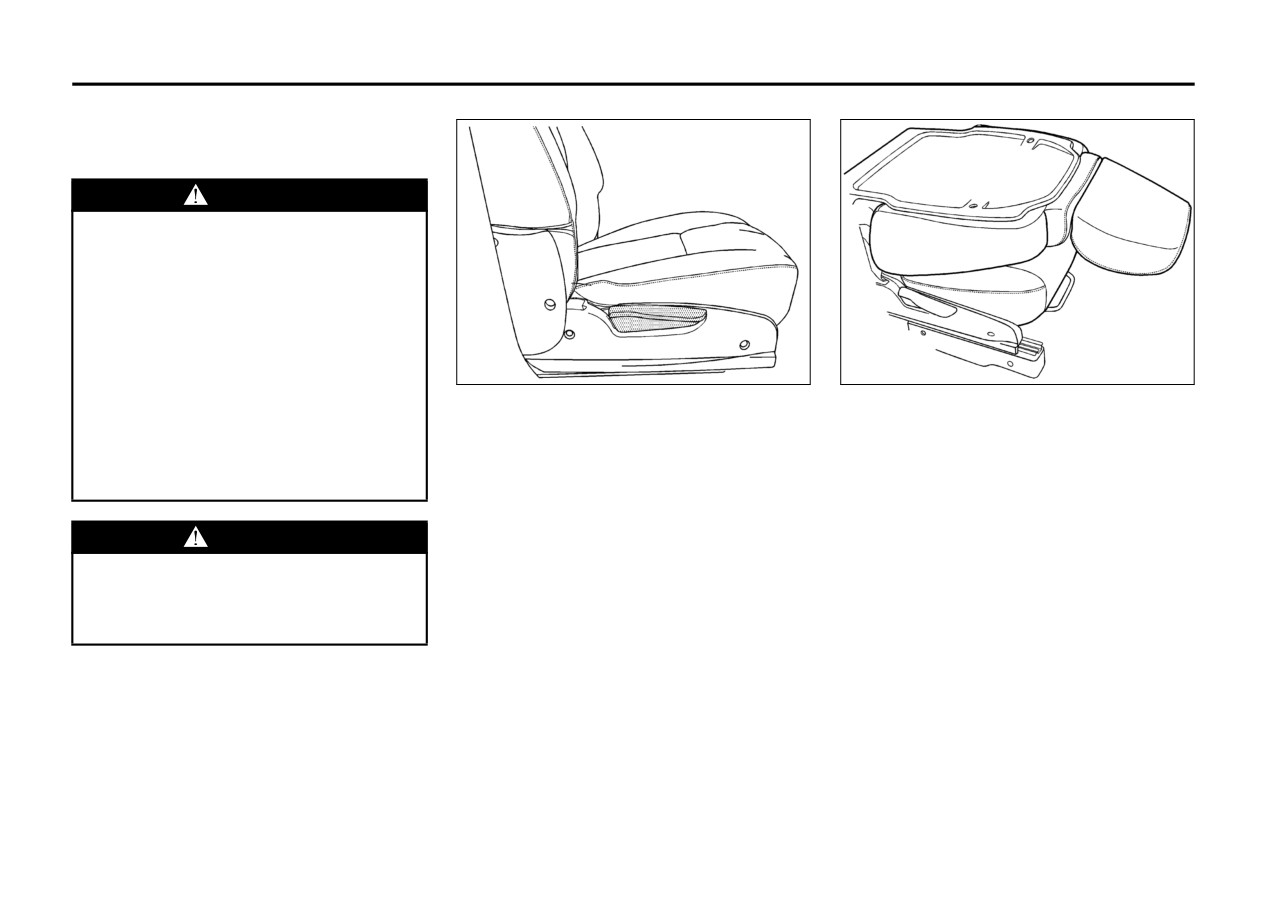

Driver Seat Height Adjuster
Power Seat
Instruction Seats
WARNING
You can lose control of the vehicle if
you try to adjust a instruction driver’s
seat while the vehicle is moving. The
sudden movement could startle and
confuse you, or make you push a
pedal when you do not want to.
Adjust the driver’s seat only when the
vehicle is not moving.
1618867
1407195

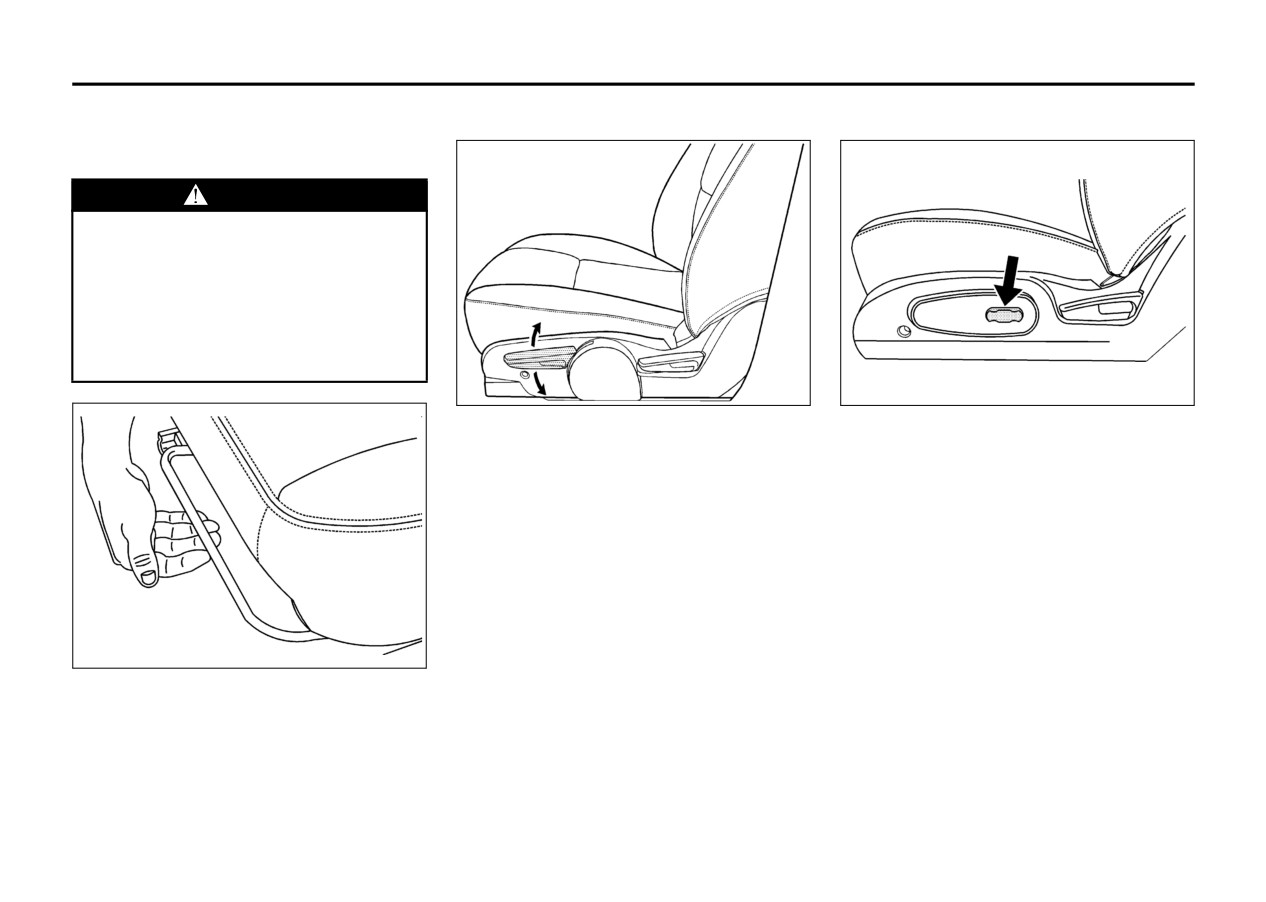

If your vehicle has a instruction driver seat
If the vehicle has a power seat, the control
height adjuster, it is located on the out-
used to operate it is located on the out-
board side of the seat near the front of the
board side of the driver’s seat. To adjust
seat cushion. To raise the seat, move the
the seat do any of the following:
lever upward repeatedly until the seat is at
• Move the seat forward or rearward by
the desired height. To lower the seat, move
sliding the control forward or rearward.
the lever downward repeatedly until the
• Raise or lower the front part of the seat
seat is at the desired height.
cushion by moving the front of the con-
trol up or down.
• Raise or lower the rear part of the seat
cushion by moving the rear of the control
up or down.
808318
Lift the bar located under the front of the
seat to unlock it. Slide the seat to where
you want it and release the bar. Try to
move the seat with your body to be sure
the seat is locked in place.
1-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATS AND RESTRAINT SYSTEMS

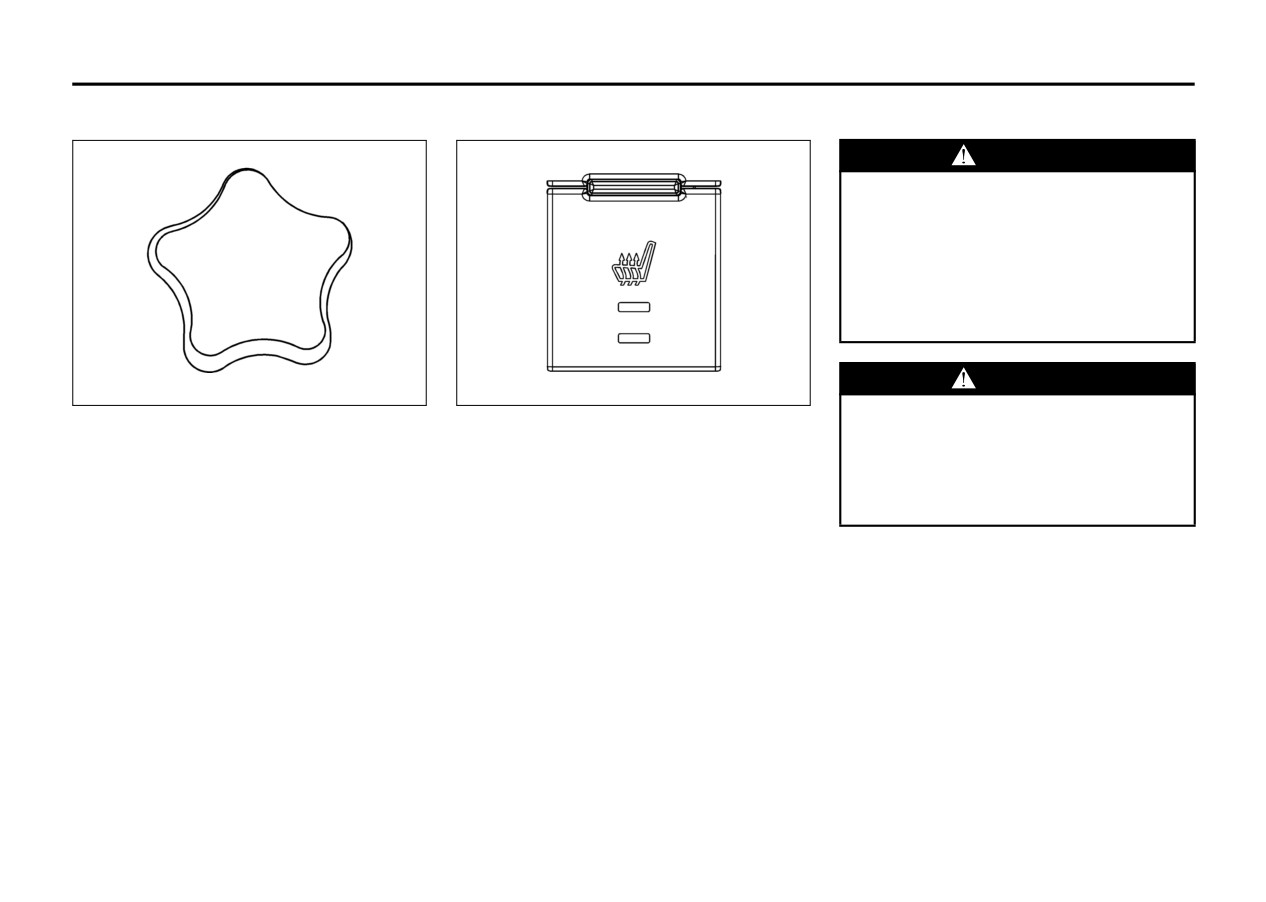

Instruction Lumbar
Heated Seats
Instruction Reclining Seatbacks
WARNING
You can lose control of the vehicle if
you try to adjust a instruction driver’s
seat while the vehicle is moving. The
sudden movement could startle and
confuse you, or make you push a
pedal when you do not want to.
Adjust the driver’s seat only when the
vehicle is not moving.
WARNING
1211985
1761660

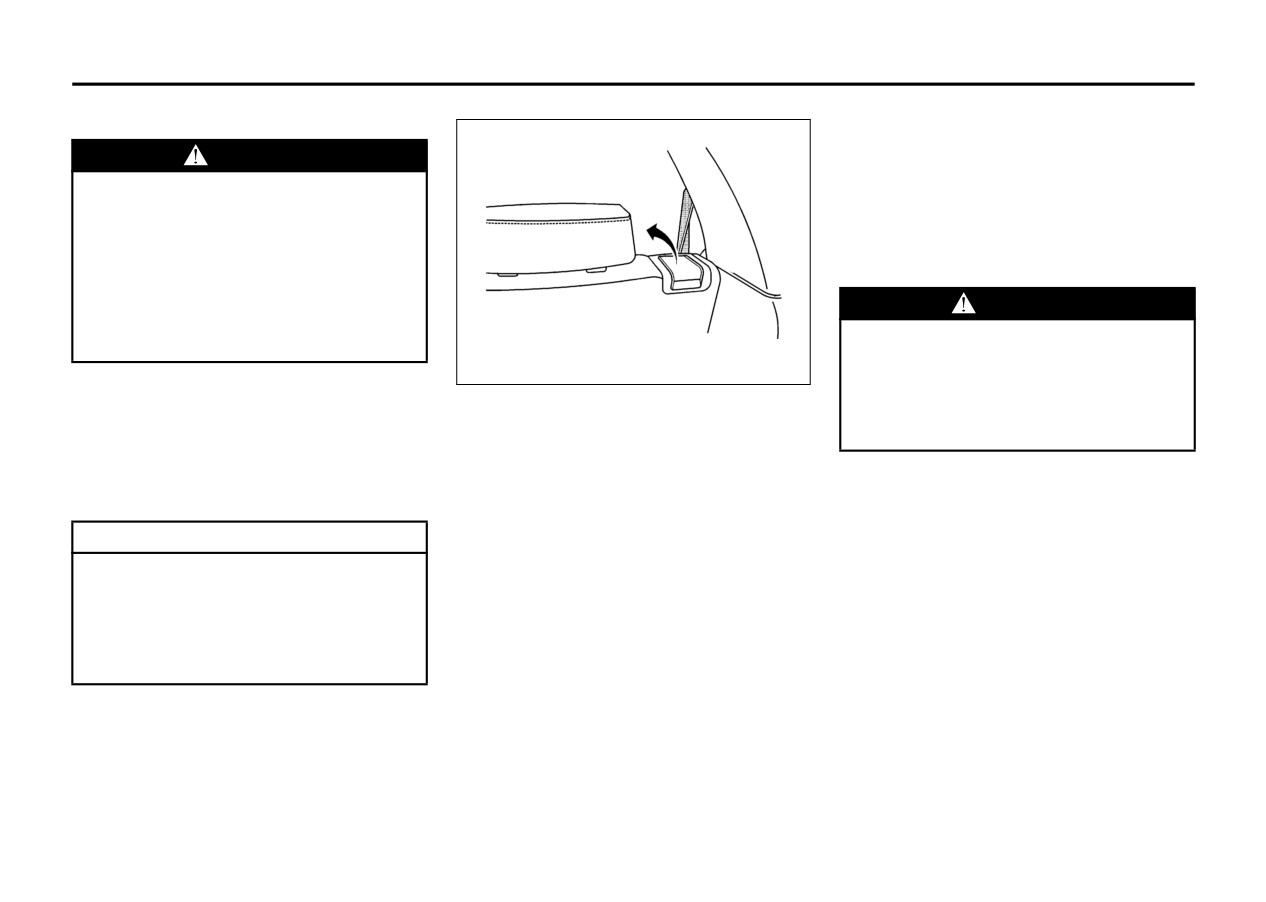

If the seatback is not locked, it could
move forward in a sudden stop or
If your vehicle has this feature, the knob is
If your vehicle has heated seats, the
crash. That could cause injury to the
located on the front of the driver seat lower
switches are located on the instrument
person sitting there. Always push
cushion on the inboard side.
panel near the climate controls.
and pull on the seatback to be sure it
Turn the knob clockwise or counterclock-
The ignition must be on for the heated
is locked.
wise to increase or decrease the lumbar
seats to operate.
support.
Press the switch, nearest to the seat, once
to turn the heated seat on to the high set-
ting. Both indicator lights will be lit. Press
the switch a second time to turn the heated
seat to the low setting. One indicator light
will be lit. Press the switch a third time to
turn the heated seat off.
1-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATS AND RESTRAINT SYSTEMS

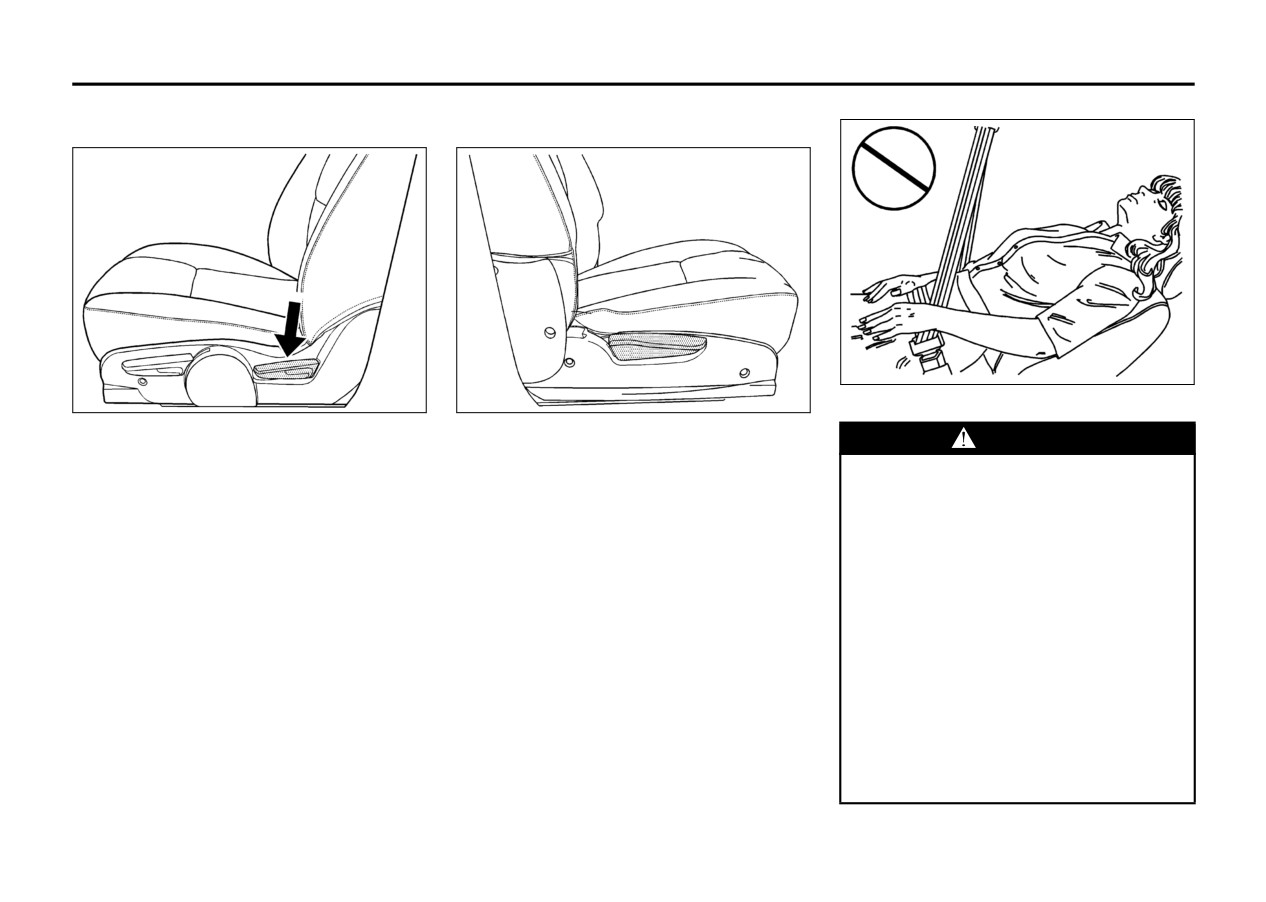

Driver’s seat with instruction recline and
Passenger seat with folding seatback
instruction height adjuster shown
option shown
806881
1618868
1618866
WARNING
To adjust the seatback on the driver’s seat,
To adjust the seatback on the front passen-
lift the lever on the rear outboard side of
ger’s seat, lift the lever on the outboard
Sitting in a reclined position when
the seat and move the seatback to the
side of the seat and move the seatback to
your vehicle is in motion can be dan-
desired position. Then release the lever to
the desired position. Then release the
gerous. Even if you buckle up, your
lock the seatback in place.
lever to lock the seatback in place. If your
safety belts cannot do their job when
front passenger’s seat is a flat folding seat,
you are reclined like this.
you must fully raise the lever to disengage
The shoulder belt cannot do its job
the seatback.
because it will not be against your
body. Instead, it will be in front of
you. In a crash, you could go into it,
receiving neck or other injuries.
The lap belt cannot do its job either.
In a crash, the belt could go up over
your abdomen. The belt forces would
be there, not at your pelvic bones.
This could cause serious internal
injuries.
(Continued)
1-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATS AND RESTRAINT SYSTEMS
WARNING
(Continued)
For proper protection when the vehi-
cle is in motion, have the seatback
upright. Then sit well back in the seat
and wear your safety belt properly.
Do not have a seatback reclined if your
vehicle is moving.

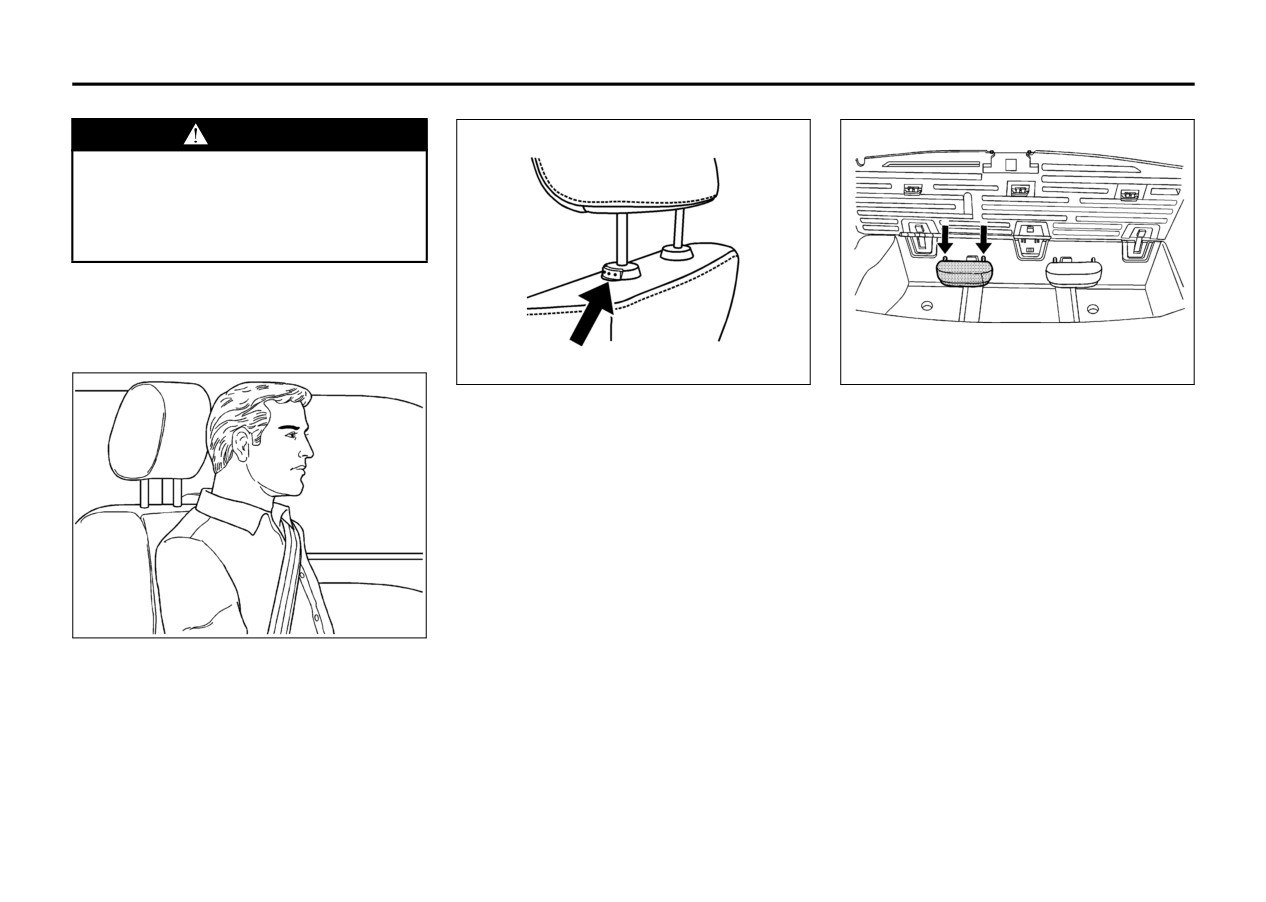

Head Restraints
1525254
1811484
Pull the head restraint up to raise it. To
The third row seat head rests can be
lower the head restraint, press the button,
removed from the seatback. To do this,
located on the top of the seatback, and
press the button, located on the top of the
push the restraint down.
seatback, and pull them out from the seat-
back. Store the head rest, front side facing
The third row head rests adjust like the
up, in the compartment behind the third
front seat head restraints.
row, by inserting the head rest posts into
the slots in the storage area.
805677
Adjust the head restraint so that the top of
the restraint is at the same height as the
top of the occupant’s head. This position
reduces the chance of a neck injury in a
crash.
1-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATS AND RESTRAINT SYSTEMS
Passenger Folding Seatback
The front passenger’s seatback may fold
flat.
WARNING
If you fold the seatback forward to
carry longer objects, such as skis, be
sure any such cargo is not near an
airbag. In a crash, an inflating airbag
might force that object toward a per-
son. This could cause severe injury
or even death. Secure objects away
from the area in which an airbag
would inflate. For more information,
1618866
1618864
refer to “Where Are the Airbags?” in
3)
Lift the recliner lever, located on the
4)
Continue to fold the seat forward until it
this section and refer to
“Loading
outboard side of the seat, up fully and
locks in the folded position.
Your Vehicle” in “Your Driving, the
fold the seatback forward until it disen-
5)
Pull up on the seatback to be sure it is
Road, and Your Vehicle” in the “Driv-
gages.
locked.
ing Your Vehicle” section.
WARNING
Things you put on this seatback can
strike and injure people in a sudden
stop or turn, or in a crash. Remove or
secure all items before driving.
To fold the seatback, do the following:
1) Lower the head restraint all the way.
2) Lift the bar under the front of the seat to
unlock it. Slide the seat as far back as it
will go and release the bar. Try to move
the seat back and forth to make sure it
is locked into place.
1-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATS AND RESTRAINT SYSTEMS
To raise the seatback, do the following:
Rear Seats
To fold the seatback down, do the follow-
ing:
1) Lift the recliner lever, located on the
Split Folding the Second Row Seat
outboard side of the seat, up fully and
The second row split bench seatbacks
CAUTION
push up on the seatback.
have four available positions - folded for-
2) Continue raising the seatback until the
Folding a rear seat with the safety
ward, upright, partially reclined, or fully
seatback re-engages.
belts still fastened may cause dam-
reclined. Both of the seatbacks can be
age to the seat or the safety belts.
moved to any of the four positions indepen-
WARNING
Always unbuckle the safety belts and
dent of the other seatback position.
return them to their normal stowed
If the seatback is not locked, it could
position before folding a rear seat.
move forward in a sudden stop or
WARNING
crash. That could cause injury to the
If the seatback is not locked, it could
1)
Ensure all three of the safety belts are
person sitting there. Always push
move forward in a sudden stop or
unbuckled and removed from the child
and pull on the seatback to be sure it
crash. That could cause injury to the
comfort guide, and the front seatbacks
is locked.
person sitting there. Always push
are not reclined.
and pull on the seatback to be sure it
2)
Lower the headrest.
3) Push and pull on the seatback to make
is locked.
sure it is locked in place.
The recliner lever is also used to recline
WARNING
the seatback while a passenger is seated.
A safety belt that is improperly
Refer to “Instruction Reclining Seatbacks” in
routed, not properly attached, or
this section.
twisted will not provide the protection
needed in a crash. The person wear-
ing the belt could be seriously
injured. After raising the rear seat-
back, always check to be sure that
the safety belts are properly routed
and attached, and are not twisted.
1406907
3)

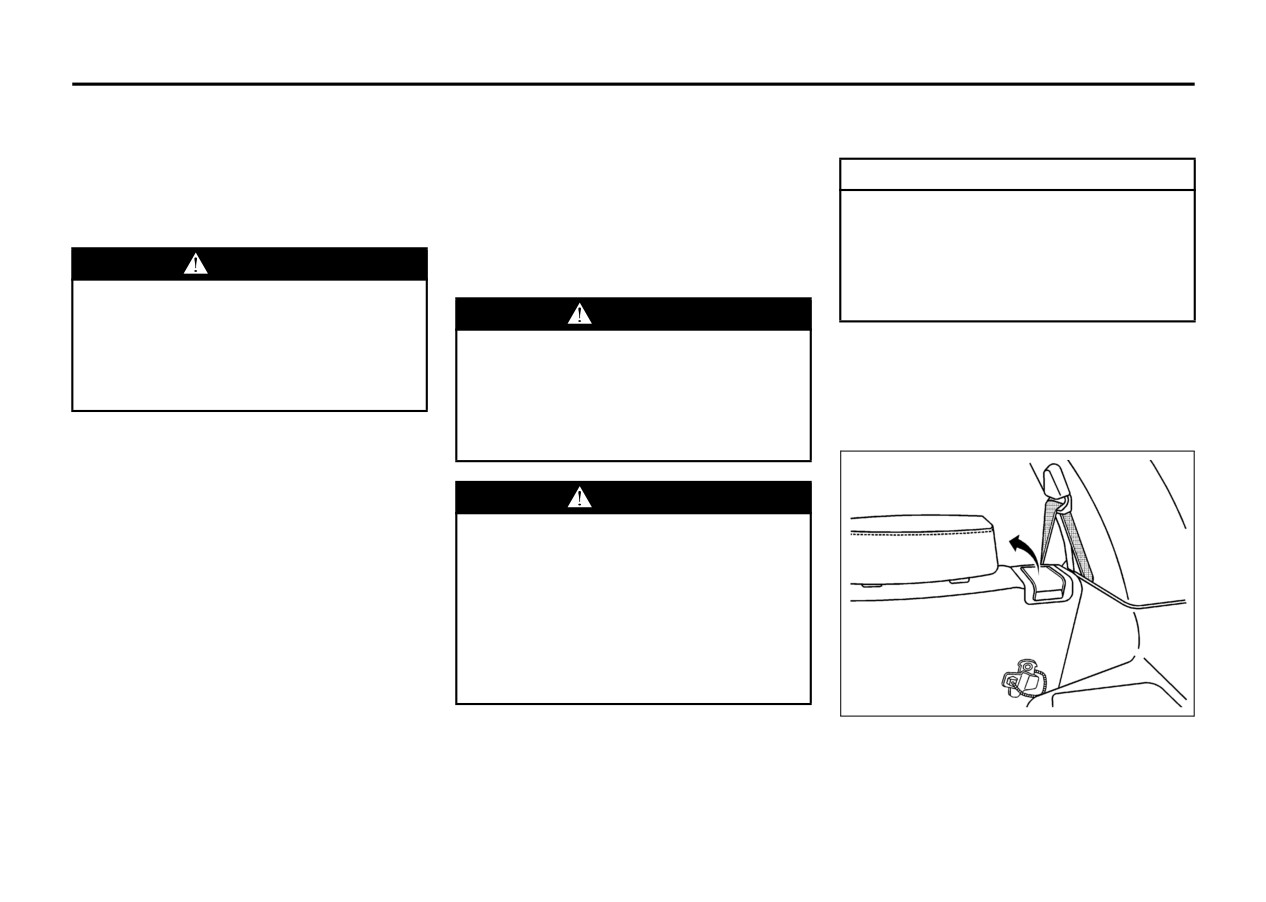

Lift the lever located on the top of the
seatback to release the seatback.
4)
Fold the seatback forward.
1-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATS AND RESTRAINT SYSTEMS
5) Push and pull on the seatback to make
Returning the Seat(s) to the Sitting
sure it is locked.
CAUTION
Position
To return the seat to the sitting position, do
Folding a rear seat with the safety
To recline the seatback, do the following:
the following:
belts still fastened may cause dam-
1) Lift and hold the lever located on top of
age to the seat or the safety belts.
1) Pull the seat down until it latches to the
the seatback.
Always unbuckle the safety belts and
floor. Push and pull on the seat cushion
2) Tilt the seatback rearward, then release
return them to their normal stowed
to make sure it is locked.
the lever when the seatback is in the
position before folding a rear seat.
desired position.
WARNING
3) Push and pull on the seatback to make
2)
Fold the seatback forward.
If the seatback is not locked, it could
sure it is locked.
Leaving the seatback in this position
move forward in a sudden stop or
creates a flat load floor.
crash. That could cause injury to the
Folding and Tumbling the Seat(s)
If the seatback cannot fold flat, try mov-
person sitting there. Always push
ing the front seat forward and/or put the
and pull on the seatback to be sure it
WARNING
front seatback in the upright position.
is locked.
Be sure to return the seat to the pas-
Do not hit or entrap any part of a third
senger seating position when fin-
row seat occupant’s body when
ished. Push and pull on the seat to
returning the folded or tumbled sec-
make sure it is locked into place.
ond row seat to the floor.
Never use the third row seating posi-
tion while the second row is folded,
2) Lift the seatback and push it rearward.
or folded and tumbled. This could
Push and pull on the seatback to make
cause injury in a sudden stop or
sure it is locked.
crash.
To fold and tumble the seat, do the follow-
ing:
1) Make sure that there is nothing under,
in front of, or on the seat.
1831564
3)

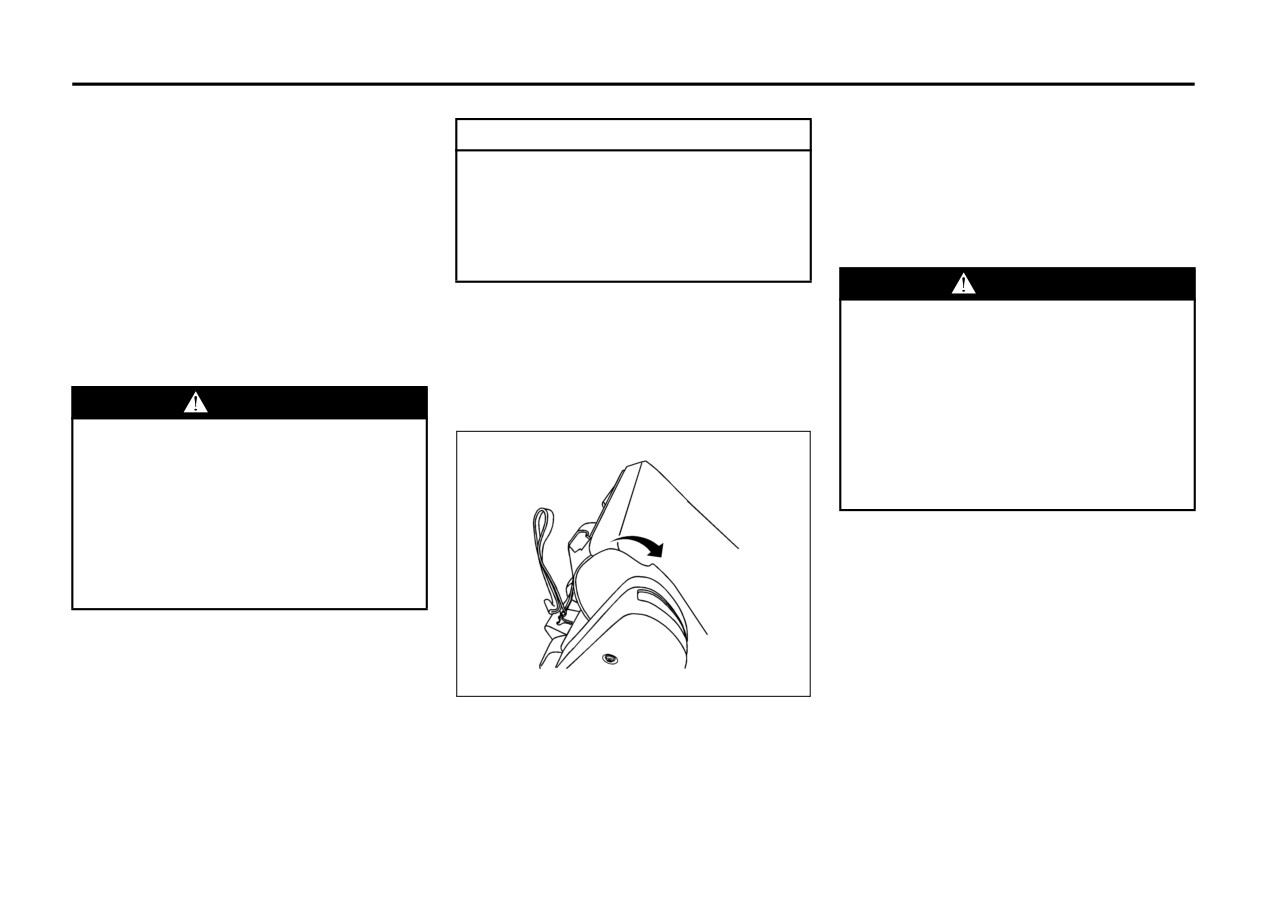

Use the pullstrap to release the rear of
the seat from the floor. As you use the
pullstrap, pull forward on the seat to lift
it into its tumbled position.
1-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATS AND RESTRAINT SYSTEMS
Third Row Seat
Unfolding the Seatback(s)
To return the seatback to the upright posi-
WARNING
tion, do the following:
Be sure to return the seat to the pas-
1) Open the liftgate to access the pullstrap
senger seating position when fin-
for the seat.
ished. Push and pull on the seat to
2) Use the pullstrap on the seatback to
make sure it is locked into place.
pull the seatback up until it locks into
Never use the third row seating posi-
the upright position.
tion while the second row is folded,
or folded and tumbled. This could
WARNING
cause injury in a sudden stop or
If the seatback is not locked, it could
crash.
move forward in a sudden stop or
crash. That could cause injury to the
If the vehicle has a third row seat, the seat-
1811392
person sitting there. Always push
back(s) can be folded.
2)
Lift the lever, located on the top of the
and pull on the seatback to be sure it
seatback on the outboard side of the
is locked.
Folding the Seatback(s)
seat and fold the seatback forward.
To fold the seatback, do the following:
3) Push and pull on the seatback to make
1) Remove all items on the seat cushion.
sure it is locked.
CAUTION
Folding a rear seat with the safety
belts still fastened may cause dam-
age to the seat or the safety belts.
Always unbuckle the safety belts and
return them to their normal stowed
position before folding a rear seat.
1-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATS AND RESTRAINT SYSTEMS
Safety Belts
Your vehicle has indicators to remind you
and your passengers to buckle your safety
Safety Belts: They Are for Everyone
belts. Refer to “Safety Belt Reminder Light”
This part of the instruction tells you how to
and
“Passenger Safety Belt Reminder
use safety belts properly. It also tells you
Light” in “Warning Lights, Gages, and Indi-
some things you should not do with safety
cators” in the “Instrument Panel” section.
belts.
In most states and in all Canadian prov-
inces, the law says to wear safety belts.
WARNING
Here is why: They work.
Do not let anyone ride where he or
You never know if you will be in a crash. If
she cannot wear a safety belt prop-
you do have a crash, you do not know if it
erly. If you are in a crash and you are
will be a bad one.
not wearing a safety belt, your inju-
ries can be much worse. You can hit
A few crashes are mild, and some crashes
806079
things inside the vehicle or be
can be so serious that even buckled up, a
Take the simplest vehicle. Suppose it is
ejected from it. You can be seriously
person would not survive. But most
injured or killed. In the same crash,
crashes are in between. In many of them,
just a seat on wheels.
you might not be, if you are buckled
people who buckle up can survive and
up. Always fasten your safety belt,
sometimes walk away. Without belts they
and check that your passengers’
could have been badly hurt or killed.
belts are fastened properly too.
After more than 40 years of safety belts in
vehicles, the facts are clear. In most
crashes buckling up does matter ... a lot!
WARNING
It is extremely dangerous to ride in a
Why Safety Belts Work
cargo area, inside or outside of a
When you ride in or on anything, you go as
vehicle. In a collision, people riding
fast as it goes.
in these areas are more likely to be
seriously injured or killed. Do not
allow people to ride in any area of
your vehicle that is not equipped with
805926
seats and safety belts. Be sure every-
one in your vehicle is in a seat and
Put someone on it.
using a safety belt properly.
1-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATS AND RESTRAINT SYSTEMS
strongest bones take the forces. That is
why safety belts make such good sense.
Questions and Answers About
Safety Belts
Question:
Will I be trapped in the vehicle after an
accident if I am wearing a safety belt?
Answer:
You could be - whether you are wearing a
safety belt or not. But you can unbuckle a
safety belt, even if you are upside down.
And your chance of being conscious dur-
805928
809245
ing and after an accident, so you can
Get it up to speed. Then stop the vehicle.
or the instrument panel...
unbuckle and get out, is much greater if
The rider does not stop.
you are belted.
Question:
If my vehicle has airbags, why should I
have to wear safety belts?
Answer:
Airbags are supplemental systems only; so
they work with safety belts - not instead of
them. Every airbag system ever offered for
sale has required the use of safety belts.
Even if you are in a vehicle that has air-
bags, you still have to buckle up to get the
most protection. That is true not only in
frontal collisions, but especially in side and
805935
other collisions.
805931
or the safety belts!
The person keeps going until stopped by
With safety belts, you slow down as the
something. In a real vehicle, it could be the
vehicle does. You get more time to stop.
windshield...
You stop over more distance, and your
1-10















Content      ..       1      2     ..
