Suzuki Grand Vitara JB419. Service manual - part 135





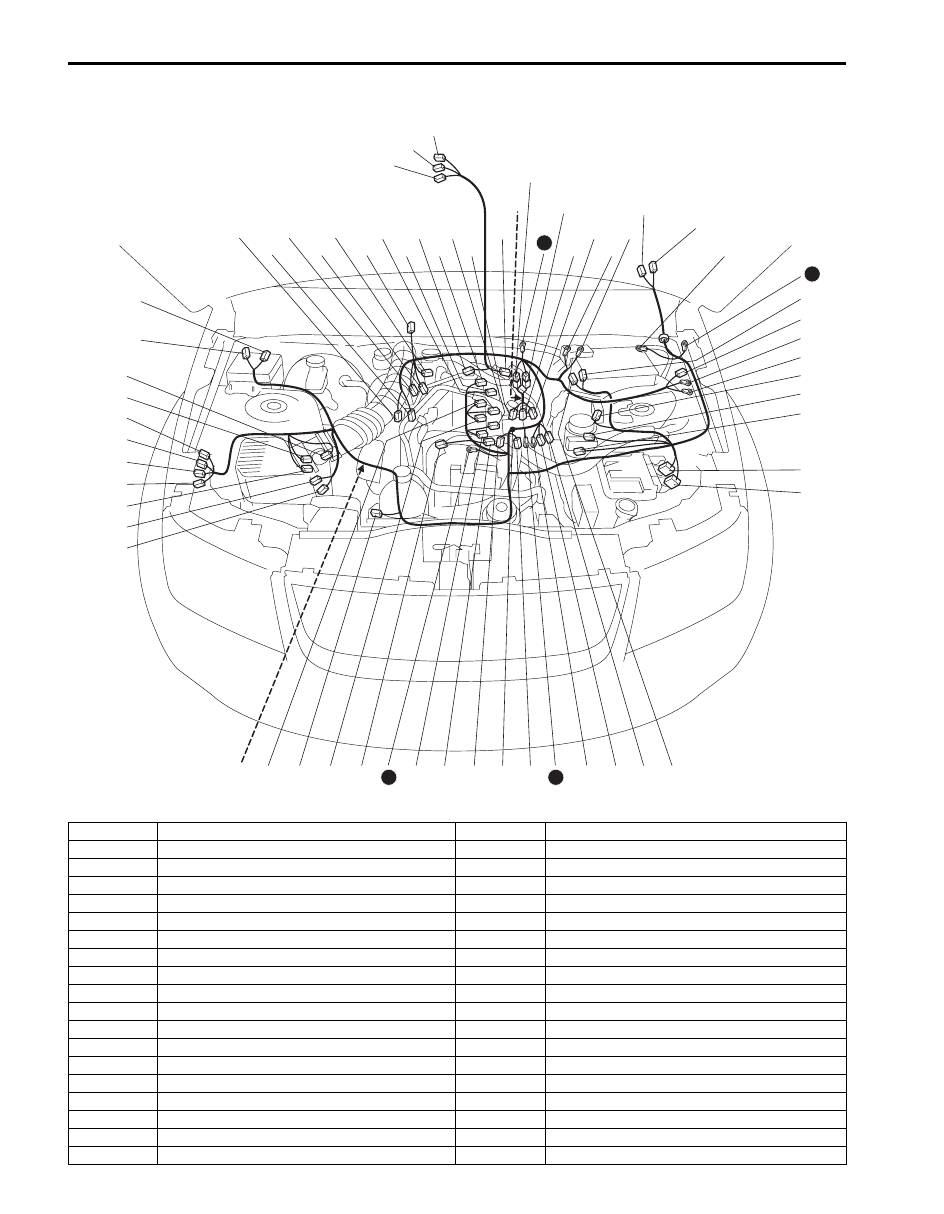

Wiring Systems:  9A-10

C: Engine harness

D: Injector harness

No./Color

Connective position

No./Color

Connective position

C01/-

Battery (–)

C34/N

Main harness (To E54)

C02/-

Battery fuse box

C35/BLU

Main harness (To E55)

C03/-

Fuse box No.1

C36/GRY A/F sensor #1

C08/GRY CMP sensor

C37/N

ECM

C09/BLK

ECT sensor

C39/GRY Fuse box No.1

C10/GRY EGR stepper motor

C40/GRY IG coil #1

C11/BLK

Throttle position sensor

C41/GRY IG coil #2

C12/BLK

MAP sensor

C42/GRY IG coil #3

C13/BLK

MAF sensor

C43/GRY IG coil #4

C14/BLU EVAP canister purge valve

C44/GRY IG coil #5

C15/GRN Heated oxygen sensor #1

C45/GRY IG coil #6

C16/GRN Heated oxygen sensor #2

C46/BRN Intake control valve

C17/BLK

A/C compressor

C47/BLK

Noise filter

C18/N

Oil pressure sensor

C48/N

Main harness (To E87)

C20/GRY CKP sensor

C49/N

Main harness (To E88)

C21/GRN Generator #1

C50/N

Main harness (To E89)

C22/-

Generator #2

C51/N

J/C

C23/BLK

Starting motor #1

C52/BLK

T/F 4L switch

C24/-

Starting motor #2

C53/N

T/F position switch

C25/BLU (A/

T)

Output shaft speed sensor

C54/GRY T/F actuator

C26/GRY Knock sensor

C55/-

Weld splice

C27/BLU (A/

T)

Input shaft speed sensor

C56/-

Weld splice

C28/GRY

(A/T)

Transmission range sensor

C57/-

Weld splice

C29/GRY

(A/T)

Shift solenoid

C58/-

Weld splice

C30/BLK

(M/T)

Back-up light switch

C59/-

Weld splice

C31/-

Battery fuse box

C60/GRY Injector harness (To D07)

C32/-

Fuse box No.1

C61/GRY A/F sensor #2

C33/N

P/S pump pressure switch

No./Color

Connective position

No./Color

Connective position

D01/GRY Injector #1

D05/GRY Injector #5

D02/GRY Injector #2

D06/GRY Injector #6

D03/GRY Injector #3

D07/GRY Engine harness (To C60)

D04/GRY Injector #4

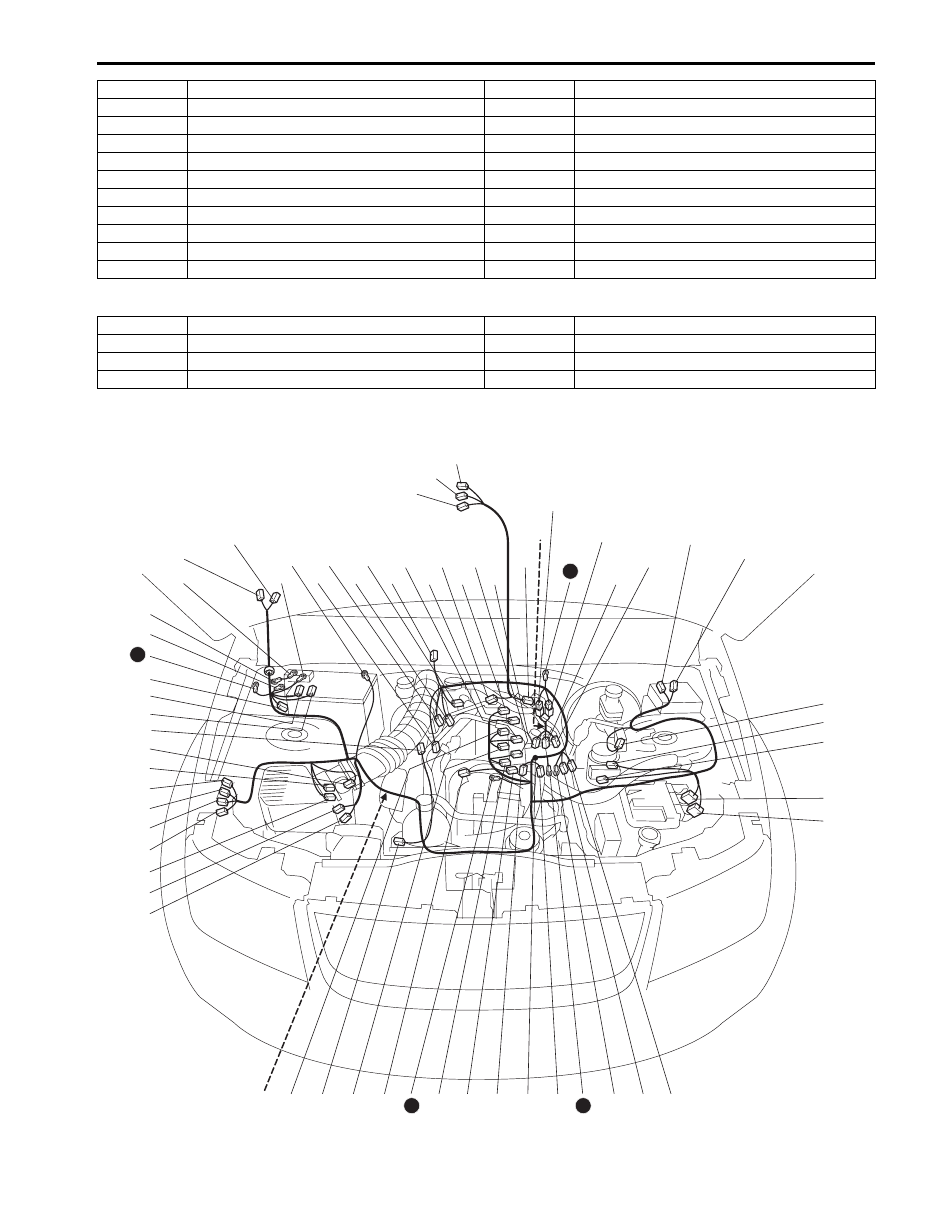

9A-11 Wiring Systems:

C: Engine harness / D: Injector harness (DSL RHD)

C: Engine harness

1

3

2

C53

C52

C54

C94

C95

C96

C87

C13

C34

(TO E54)

C35

(TO E55)

C93

C88

C89

C90

C18 C91

C21

5

C22

C83

C84 C59

C80

C07

C08

C73

C30

C17

C05

C06

C23

C24

C10

C09

C85

C86

C82

C81

C74

C03

C32

C39

C92

C50

(TO E89)

C49

(TO E88)

C01

C31

D09

D10

C04

C77

C02

D08

C75

C79

C76

C78

C

D

{

C71
D11

{

C72
D12

I5JB0B910904-02

No./Color

Connective position

No./Color

Connective position

C01/-

Battery (–)

C59/-

Weld splice

C02/-

Battery fuse box

C70/BLK

Turbo cooling pump

C03/-

Fuse box No.1

C71/BLK

Injector harness (To D11)

C04/BLK

Injector #1

C72/BLK

Injector harness (To D12)

C05/BLK

Injector #2

C73/YEL

Up stream turbine temperature sensor

C06/BLK

Injector #3

C74/BLK

Glow plug relay

C07/BLK

Injector #4

C75/BLK

Inlet throttle valve

C08/BLK

CMP sensor

C76/BLK

Boost pressure sensor

C09/BLK

ECT sensor

C77/BLK

Glow plug #1

C10/GRY EGR stepper motor

C78/BLK

Glow plug #2

C13/BLK

MAF sensor

C79/BLK

Glow plug #3

C17/BLK

Oil pressure sensor

C80/BLK

Glow plug #4

C20/BLK

CKP sensor

C81/BLK

Fuel heater

C21/GRY Generator #1

C82/BLK

Water in fuel sensor

C22/-

Generator #2

C83/BLK

Flow governor

C23/-

Starting motor #1

C84/BLK

Rail pressure sensor

C24/-

Starting motor #2

C85/GRY ECM

C30/N

Back-up light switch

C86/BRN ECM

Wiring Systems:  9A-12

D: Injector harness

C: Engine harness / D: Injector harness (DSL LHD)

C31/-

Battery fuse box

C87/GRY Up stream temperature sensor

C32/-

Fuse box No.1

C88/GRY Down stream temperature sensor

C34/N

Main harness (To E54)

C89/BLK

Differential temperature sensor

C35/N

Main harness (To E55)

C90/BLK

Turbo cooling control valve

C39/GRY Fuse box No.1

C91/GRY Battery fuse box

C49/N

Main harness (To E88)

C92/BRN Battery fuse box

C50/N

Main harness (To E89)

C93/N

Thermo plug relay #1

C52/BLK

T/F 4L switch

C94/N

Thermo plug relay #2

C53/N

T/F position switch

C95/N

Thermo plug relay #3

C54/GRY T/F actuator

No./Color

Connective position

No./Color

Connective position

No./Color

Connective position

No./Color

Connective position

D08/-

Thermo plug #1

D11/BLK

Engine harness (To C71)

D09/-

Thermo plug #2

D12/BLK

Engine harness (To C72)

D10/-

Thermo plug #3

3

2

C53

C52

C54

C50

(TO E89)

C49

(TO E88)

C35

(TO E55)

C34

(TO E54)

C94

C95

C96

C87

C13

C93

C88

C89

C90

C18

C21

5

1

C22

C83

C84 C59

C80

C07

C08

C73

C30

C17

C05

C06

C23

C31

C02

C24

C92

C91

C39

C32

C03

C10

C01

C09

C85

C86

C82

C81

C74

D09

D10

C04

C77

D08

C75

C79

C76

C78

C

{

C71
D11

{

C72
D12

D

I5JB0B910905-03

9A-13 Wiring Systems:

C: Engine harness

D: Injector harness

No./Color

Connective position

No./Color

Connective position

C01/-

Battery (–)

C59/-

Weld splice

C02/-

Battery fuse box

C70/BLK

Turbo cooling pump

C03/-

Fuse box No.1

C71/BLK

Injector harness (To D11)

C04/BLK

Injector #1

C72/BLK

Injector harness (To D12)

C05/BLK

Injector #2

C73/YEL

Up stream turbine temperature sensor

C06/BLK

Injector #3

C74/BLK

Glow plug relay

C07/BLK

Injector #4

C75/BLK

Inlet throttle valve

C08/BLK

CMP sensor

C76/BLK

Boost pressure sensor

C09/BLK

ECT sensor

C77/BLK

Glow plug #1

C10/GRY EGR stepper motor

C78/BLK

Glow plug #2

C13/BLK

MAF sensor

C79/BLK

Glow plug #3

C17/BLK

Oil pressure sensor

C80/BLK

Glow plug #4

C20/BLK

CKP sensor

C81/BLK

Fuel heater

C21/GRY Generator #1

C82/BLK

Water in fuel sensor

C22/-

Generator #2

C83/BLK

Flow governor

C23/-

Starting motor #1

C84/BLK

Rail pressure sensor

C24/-

Starting motor #2

C85/GRY ECM

C30/N

Back-up light switch

C86/BRN ECM

C31/-

Battery fuse box

C87/GRY Up stream temperature sensor

C32/-

Fuse box No.1

C88/GRY Down stream temperature sensor

C34/N

Main harness (To E54)

C89/BLK

Differential temperature sensor

C35/N

Main harness (To E55)

C90/BLK

Turbo cooling control valve

C39/GRY Fuse box No.1

C91/GRY Battery fuse box

C49/N

Main harness (To E88)

C92/BRN Battery fuse box

C50/N

Main harness (To E89)

C93/N

Thermo plug relay #1

C52/BLK

T/F 4L switch

C94/N

Thermo plug relay #2

C53/N

T/F position switch

C95/N

Thermo plug relay #3

C54/GRY T/F actuator

No./Color

Connective position

No./Color

Connective position

D08/-

Thermo plug #1

D11/BLK

Engine harness (To C71)

D09/-

Thermo plug #2

D12/BLK

Engine harness (To C72)

D10/-

Thermo plug #3
