Suzuki Grand Vitara JB419. Service manual - part 101





Electronic Stability Program:  4F-37

DTC Troubleshooting

DTC C1057: ESP

® (ABS) control module power supply circuit failure

S5JB0B4604073

Refer to “DTC C1057: ABS (EPS

®) Control Module Power Supply Circuit Failure in Section 4E”.

DTC C1061: Pump Motor and/or Motor Driver Circuit Failure

S5JB0B4604074

Refer to “DTC C1061: Pump Motor and/or Motor Driver Circuit Failure in Section 4E”.

DTC C1063: Solenoid Valve Power Supply Driver Circuit Failure

S5JB0B4604075

Refer to “DTC C1063: Solenoid Valve Power Supply Driver Circuit Failure in Section 4E”.

DTC C1071: ESP

® (ABS) Control Module Internal Defect

S5JB0B4604076

Refer to “DTC C1071: ABS (ESP

®) Control Module Internal Defect in Section 4E”.

Step

Action

Yes

No

1

Was “Electronic Stability Program Check” performed?

Go to Step 2.

Go to “Electronic
Stability Program
Check”
.

2

Check back up light switch and its circuit
1) Turn ignition switch to ON position.
2) Check back-up lights, back up light switch and their

circuit check referring to “Back-Up Light Symptom
Diagnosis in Section 9B in related manual”.

Are they in good condition?

Go to Step 3.

Repair or replace.

3

Check back up light switch circuit
1) Turn ignition switch to OFF position.
2) Disconnect ESP

® control module connector.

3) Check for proper connection to ESP

® control module

connector terminal at “E53-10”.

4) If OK, then measure voltage between connector terminal

“G53-10” and vehicle body ground.

Is it 0 V?

Go to Step 4.

“RED” wire circuit
shorted to power circuit.

4

Check back up light switch circuit
1) Turn ignition switch to ON position.
2) Measure voltage between connector terminal “G53-10”

and vehicle body ground with the shift lever in “Reverse”
position.

Is it 10 – 14 V?

Substitute a known-
good ESP

® hydraulic

unit / control module
assembly and recheck.

“RED” wire circuit open.

4F-38 Electronic Stability Program:

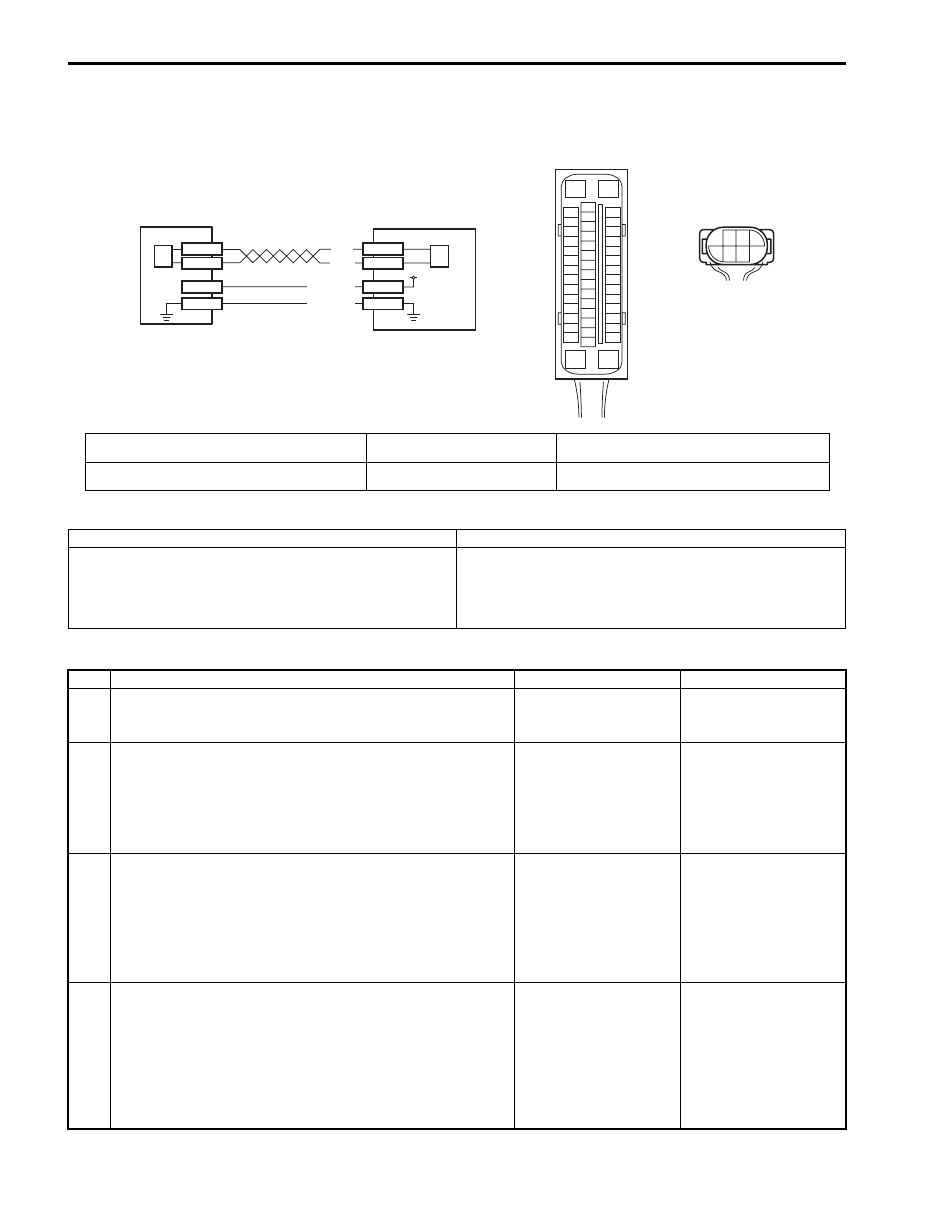

DTC C1073: Lost Communication With Yaw Rate / G Sensor Assembly

S5JB0B4604077

Wiring Diagram

DTC Detecting Condition and Trouble Area

DTC Troubleshooting

[A]

E53

16

1

15

2

3

4

5

6

7

8

9

10

11

12

13

14

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

E53-29
E53-25

E53-37

E53-31

L39-3

L39-5

BLK

WHT

L39-2
L39-1

12V

PNK/GRN

PNK/WHT

[B]

L39

3

5

2 1

4

6

1

2

3

2

I6JB01460022-03

[A]: ESP

® control module connector (viewed from

terminal side)

1. Yaw rate / G sensor assembly

3. ESP

® hydraulic unit control module assembly

[B]: Yaw rate / G sensor assembly connector (viewed

from harness side)

2. CAN driver (for yaw rate / G

sensor assembly)

DTC Detecting Condition

Trouble Area

CAN line communication error in ESP

® control module

and yaw rate / G sensor assembly is detected.

• CAN communication circuit (for yaw rate / G sensor

assembly)

• Yaw rate / G sensor assembly
• ESP

® control module

Step

Action

Yes

No

1

Was “Electronic Stability Program Check” performed?

Go to Step 2.

Go to “Electronic
Stability Program
Check”.

2

DTC check
1) Connect scan tool to DLC with ignition switch turned

OFF.

2) Turn ignition switch ON and check DTC.

Is DTC C1057 detected?

Go to “DTC C1057:
ABS (EPS

®) Control

Module Power Supply
Circuit Failure in Section
4E”.

Go to Step 3.

3

Check each control module connectors
1) Check connection of connectors of all control modules

communicating by means of CAN (for yaw rate / G
sensor assembly).

2) Check DTC for ESP

®.

Is DTC C1073 detected?

Go to Step 4.

Check for intermittent
trouble. Check for
intermittent referring to
“Intermittent and Poor
Connection Inspection
in Section 00 in related
manual”.

4

CAN communication circuit check
1) Turn ignition switch to OFF position.
2) Disconnect connectors of ESP

® control module and yaw

rate / G sensor assembly.

Is each CAN communication circuit between ESP

®

 control

module and yaw rate / G sensor assembly opened, shorted
or high resistance?

Repair or replace the
CAN communication
line.

Go to Step 5.

Electronic Stability Program:  4F-39

DTC C1075 / 1076 / 1077 / 1078: Steering Angle Sensor / Master Cylinder Pressure Sensor /
Longitudinal G Sensor / Lateral G Sensor in Yaw Rate / G Sensor Assembly Calibration Incomplete

S5JB0B4604078

DTC Detecting Condition and Trouble Area

DTC Troubleshooting

5

Check yaw rate / G sensor assembly
1) Substitute a known-good yaw rate / G sensor assembly.
2) Connect connectors to ESP

® control module and yaw

rate / G sensor assembly.

3) Clear all DTC(s) and check DTC for ESP

®.

Is DTC C1073 still detected?

Substitute a known-
good ESP

® hydraulic

unit / control module
assembly and recheck.

Yaw rate / G sensor
assembly malfunction.

Step

Action

Yes

No

DTC Detecting Condition

Trouble Area

C1075:
Missing steering angle sensor calibration point data is
detected.

• Steering angle sensor
• Steering angle sensor calibration is incompleted
• ESP

® control module

C1076:
Master cylinder pressure sensor calibration is
incompleted.

• Master cylinder pressure sensor
• Master cylinder pressure sensor calibration is

incompleted

• ESP

® control module

C1077:
Longitudinal G sensor in yaw rate / G sensor assembly
calibration is incompleted. (for 4WD vehicle)

• Yaw rate / G sensor assembly
• Longitudinal G sensor calibration is incompleted
• ESP

® control module

C1078:
Lateral G sensor in yaw rate / G sensor assembly
calibration is incompleted.

• Yaw rate / G sensor assembly
• Lateral G sensor calibration is incompleted
• ESP

® control module

Step

Action

Yes

No

1

Was “Electronic Stability Program Check” performed?

Go to Step 2.

Go to “Electronic
Stability Program
Check”
.

2

DTC check for ESP

®

1) Connect scan tool to DLC with ignition switch turned

OFF.

2) Turn ignition switch ON and check DTC for ESP

®.

Is there any DTC(s) other than C1075, C1076, C1077 and
C1078?

Go to applicable DTC
diag. flow.

Go to Step 3.

3

Check sensor calibration
1) Calibrate all sensors referring to “Sensor Calibration”.
2) Clear all DTC(s) and recheck DTC for ESP

®.

Is DTC C1075, C1076, C1077 and/or C1078 still detected?

DTC C1075: Replace
steering angle sensor.
DTC C1076: Replace
ESP

® hydraulic unit /

control module
assembly.
DTC C1077 / 1078:
Replace yaw rate / G
sensor assembly.

Calibration is
incompleted.

4F-40 Electronic Stability Program:

DTC C1090: ECM Detect Rolling Counter Failure with ESP

® Control Module

S5JB0B4604079

DTC Detecting Condition and Trouble Area

DTC Troubleshooting

DTC C1091 / 1093: ECM / 4WD Control Module Data in CAN Line Failure

S5JB0B4604089

DTC Detecting Condition and Trouble Area

DTC Troubleshooting

DTC U1073: Control Module Communication Bus Off

S5JB0B4604081

Refer to “DTC U1073: Control Module Communication Bus Off in Section 4E”.

DTC U1100: Lost Communication with ECM (Reception Error)

S5JB0B4604082

Refer to “DTC U1100: Lost Communication with ECM (Reception Error) in Section 4E”.

DTC Detecting Condition

Trouble Area

ESP

® control module rolling counter failure is detected by

ECM.

• CAN communication circuit
• ECM
• ESP

® control module

Step

Action

Yes

No

1

Was “Electronic Stability Program Check” performed?

Go to Step 2.

Go to “Electronic
Stability Program
Check”.

2

DTC check for ESP

®

1) Connect scan tool to DLC with ignition switch turned

OFF.

2) Turn ignition switch ON and check DTC for ESP

®.

Is there any DTC(s) other than C1038 and C1090?

Go to applicable DTC
diag. flow.

Go to Step 3.

3

DTC check for ECM
1) Check DTC for ECM.

Is DTC U0073 and/or DTC U0121 detected?

Go to applicable DTC
diag. flow.

Substitute a known-
good ESP

® hydraulic

unit / control module
assembly and recheck.

DTC Detecting Condition

Trouble Area

C1091:
ECM sent invalid signal to ESP

® control module.

• Engine control system
• ECM
• ESP

® control module

C1093:
4WD control module sent invalid signal to ESP

®

control module. (if equipped 4WD control module)

• 4WD control system
• 4WD control module
• ESP

® control module

Step

Action

Yes

No

1

Was “Electronic Stability Program Check” performed?

Go to Step 2.

Go to “Electronic
Stability Program
Check”.

2

DTC check other control module than ESP

®

1) Check DTC for ECM and/or 4WD control module.

Is there any DTC(s)?

Go to applicable DTC
diag. flow.

Substitute a known-
good ESP

® hydraulic

unit / control module
assembly and recheck.
