Engine Lubrication System:  1E-12

Special Tools and Equipment

Recommended Service Material

S5JB0B1508001

NOTE
Required service material is also described in the following.
“Oil Pan and Oil Pump Strainer Components”
“Oil Pump, Oil Pump Chain and Gasket Holder Plate Component”



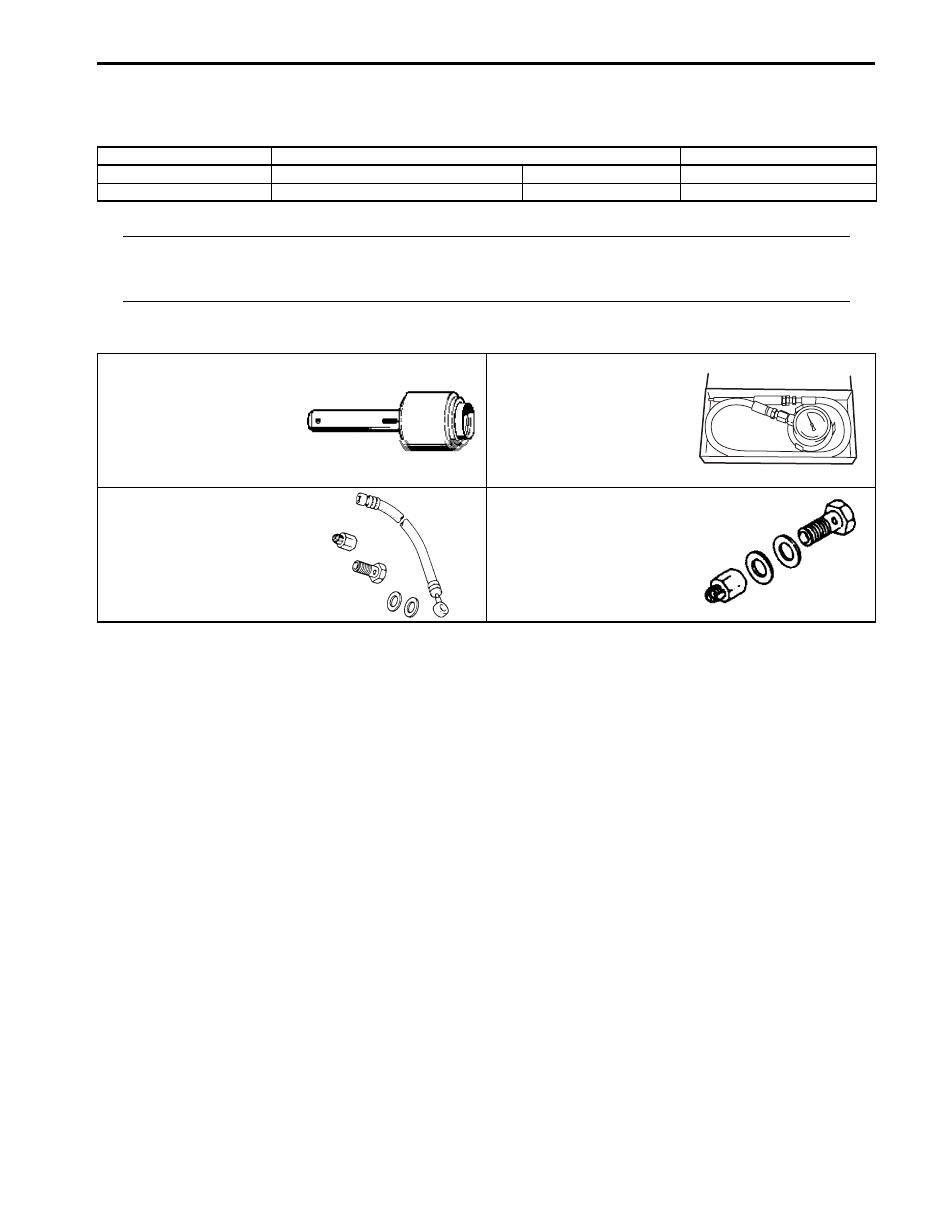

Special Tool

S5JB0B1508002

Material

SUZUKI recommended product or Specification

Note

Loctite rhodorseal 5661

® Loctite rhodorseal 5661®

)

Thread lock cement

Thread Lock Cement Super 1303B

P/No.: 99000–32030

)

09911–96520

09915–77311

Crankshaft oil seal fitting

Oil pressure gauge

Mot. 990-03)

)

09915–77420

09915–77430

Oil pressure gauge
attachment and hose set

Oil pressure gauge
attachment

)

)

1F-1 Engine Cooling System:

Engine

Engine Cooling System

General Description

Cooling System Description

S5JB0B1601001

The cooling system consists of a degassing tank, a
radiator, radiator cooling fan, hoses, pipes, a water
pump, an additional heater, a turbocharger electric water
pump and a thermostat assembly.

Coolant Description

S5JB0B1601002

WARNING

!



• Do not remove degassing tank cap to

check engine coolant level; check coolant
visually at the see-through degassing tank.
Coolant should be added only to
degassing tank as necessary.

• As long as there is pressure in the cooling

system, the temperature can be
considerably higher than the boiling
temperature of the solution in the radiator
and degassing tank without causing the
solution to boil. Removal of the degassing
tank cap while engine is hot and pressure
is high will cause the solution to boil
instantaneously and possibly with
explosive force, spewing the solution over
engine, fenders and person removing cap.
If the solution contains flammable anti-
freeze such as alcohol (not recommended
for use at any time), there is also the
possibility of causing a serious fire.

• Check to make sure that engine coolant

temperature is cold before removing any
part of cooling system.

• Also be sure to disconnect negative cable

from battery terminal before removing any
part.



The coolant recovery system is standard. The coolant in
the radiator expands with heat, and the coolant is
overflowed to the reservoir.
When the system cools down, the coolant is drawn back
into the radiator.
The cooling system has been filled with a quality coolant
that is a 50/50 mixture of water and ethylene glycol
antifreeze.
This 50/50 mixture coolant solution provides freezing
protection to –36

°C (–33 °F).

• Maintain cooling system freeze protection at –36

°C (–

33

°F) to ensure protection against corrosion and loss

of coolant from boiling. This should be done even if
freezing temperatures are not expected.

• Add ethylene glycol base coolant when coolant has to

be added because of coolant loss or to provide added
protection against freezing at temperature lower than
–36

°C (–33 °F).

NOTE

• Alcohol or methanol base coolant or plain

water alone should not be used in cooling
system at any time as damage to cooling
system could occur.

• Coolant must be mixed with deminelized

water or distilled water.



Anti-freeze proportioning table

Coolant capacity
: 7.5 liters (15.85/13.2 US/lmp pt.)

Freezing temperature

°C

–36

°F

–33

Anti-freeze / Anti-
corrosion coolant
concentration

%

50

Ratio of compound to
cooling water

ltr.

3.75/3.75

US pt.

7.92/7.92

Imp pt.

6.60/6.60

Engine Cooling System:  1F-2

Schematic and Routing Diagram

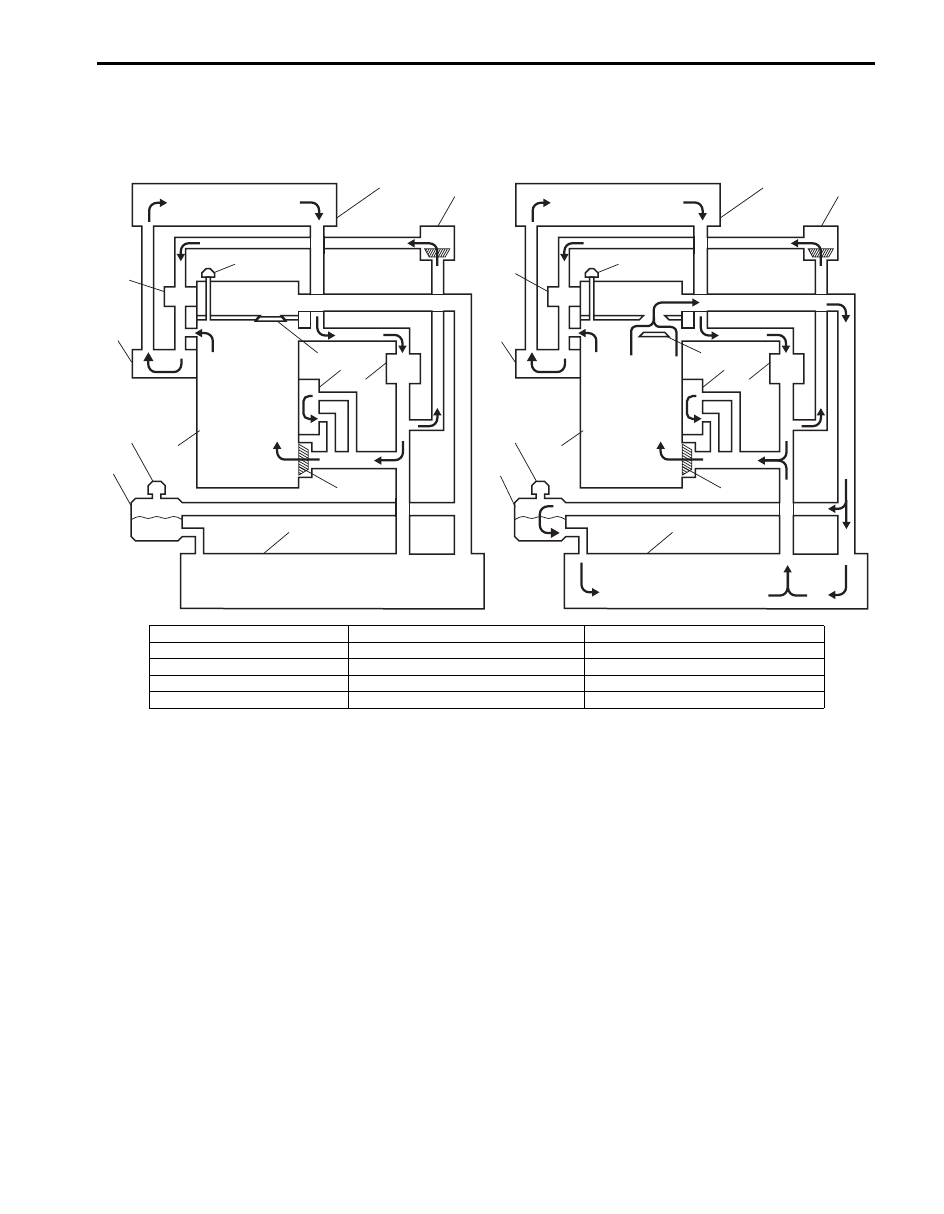

Coolant Circulation

S5JB0B1602001

[B]

1

2

3

4

5

6

7

8

9

10

11

13

12

[A]

1

2

3

4

5

6

7

8

9

10

11

13

12

I5JB0B160001-03

[A]: When thermostat is close

4. Cylinder block and cylinder head

9. Water pump

[B]: When thermostat is open

5. Radiator

10. Turbo charger electric water pump

1. Heater core

6. Degassing tank cap

11. Turbo charger

2. Additional heater

7. Degassing tank

12. Ventilation plug

3. Thermostat

8. Heat exchanger

13. EGR cooler

1F-3 Engine Cooling System:

Diagnostic Information and Procedures

Engine Cooling Symptom Diagnosis

S5JB0B1604001

Condition

Possible cause

Correction / Reference Item

Engine overheats
(Radiator fan operates)

Loose or timing belt

Adjust.

Not enough coolant

Check coolant level and add as necessary.

Faulty thermostat

Replace.

Faulty water pump

Replace.

Dirty or bent radiator fins

Clean or remedy.

Coolant leakage on cooling system

Repair.

Clogged radiator

Check and replace radiator as necessary.

Faulty degassing tank cap

Replace.

Dragging brakes

Adjust brake.

Slipping clutch

Adjust or replace.

Poor charge battery

Check and replace as necessary.

Poor generation generator

Check and repair.

ECT sensor faulty

Check and replace as necessary.

Radiator cooling fan relay No.2 and/or
No.3 faulty

Check and replace as necessary.

Radiator fan motor faulty

Check and replace as necessary.

ECM faulty

Check and replace as necessary.

Wiring or grounding faulty

Repair as necessary.

Equipped with too much electric load
part(s)

Dismount.

Engine overheats
(Radiator fan does not
operate)

Fuse blown

Check 30 A fuse of relay/fuse box and check
for short circuit to ground.

Radiator cooling fan relay No.1 faulty

Check and replace as necessary.

ECT sensor faulty

Check and replace as necessary.

Radiator cooling fan motor faulty

Check and replace as necessary.

Wiring or grounding faulty

Repair as necessary.

ECM faulty

Check and replace as necessary.
