Suzuki Grand Vitara JB419. Service manual - part 45





Engine Mechanical:  1D-26

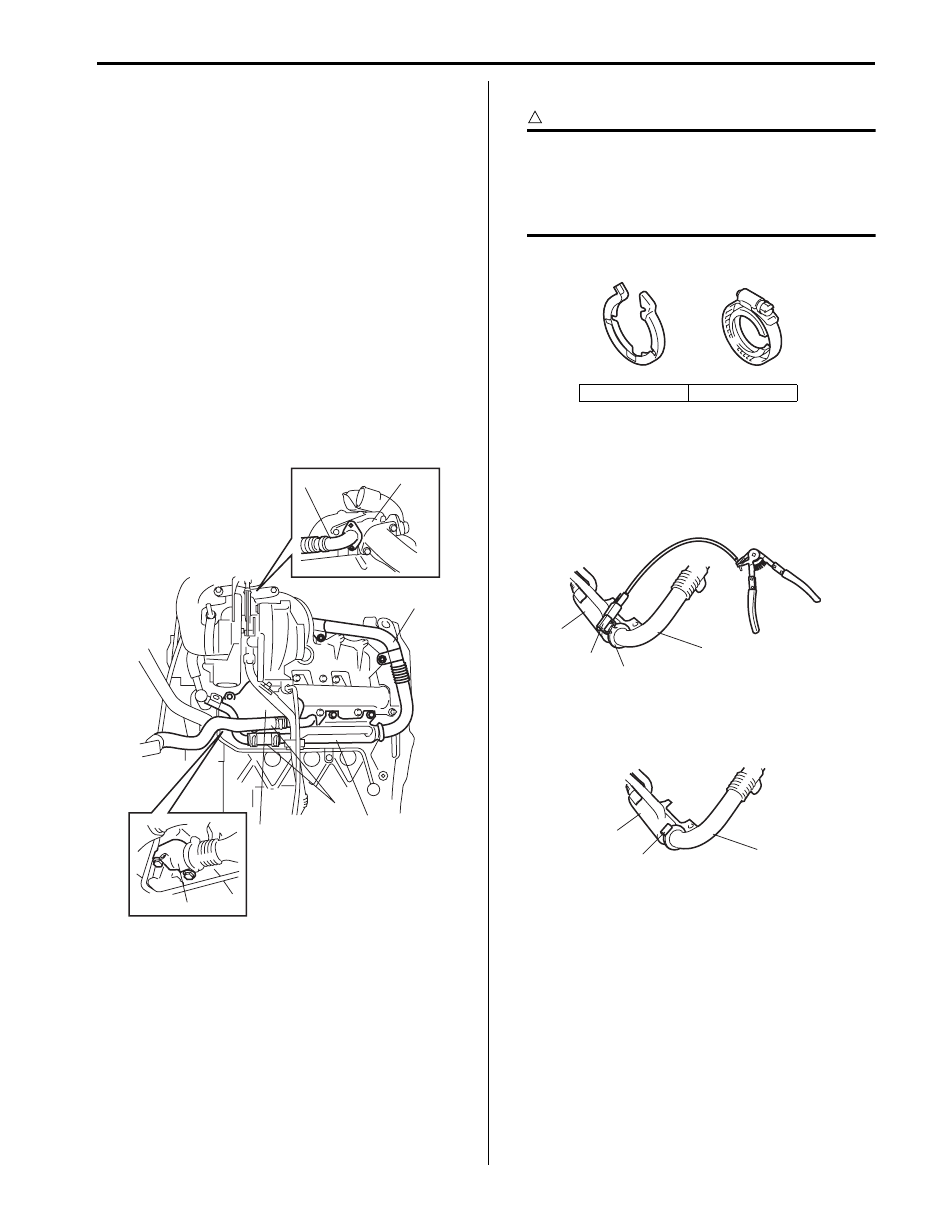

EGR Pipe and EGR Cooler Removal and
Installation

S5JB0B1406055

Removal

1) Remove engine assembly referring to “Engine

Assembly Removal and Installation”.

2) Remove catalytic converter referring to “Exhaust

System Components in Section 1K”.

3) Remove thermostat assembly referring to

“Thermostat Assembly Removal and Installation in
Section 1F”.

4) Disconnect water hoses (1) from EGR cooler (2).
5) Remove exhaust manifold heat shield (3) from

exhaust manifold.

6) Disconnect EGR joint (4) from exhaust manifold.
7) Disconnect EGR pipe (5) from EGR valve (6).
8) Remove EGR cooler (2) with EGR pipe (5) and EGR

joint (4) from cylinder block.

9) Remove EGR pipe as follows, if necessary.

CAUTION

!



EGR pipe clamp has two types as shown in
figure. And, Type A is disposable one and it
has not already been supplied.
Be sure to use Type B EGR pipe clamp after
removing Type A EGR pipe clamp.



• For  Type  A

Remove EGR pipe (1) from EGR cooler (2) after
removing EGR pipe clamp (3) with special tool.

Special tool
(A):  09910–68110

• For  Type  B

Remove EGR pipe (1) from EGR cooler (2) after
loosening EGR pipe clamp bolt (3).

5

1

3

5

6

2

4

I5JB0B140048-01

[A]: Type A

[B]: Type B

[A]

[B]

I5JB0B140146-01

(A)

1

3

2

I5JB0B140049-04

1

2

3

I5JB0B140148-01

1D-27 Engine Mechanical:

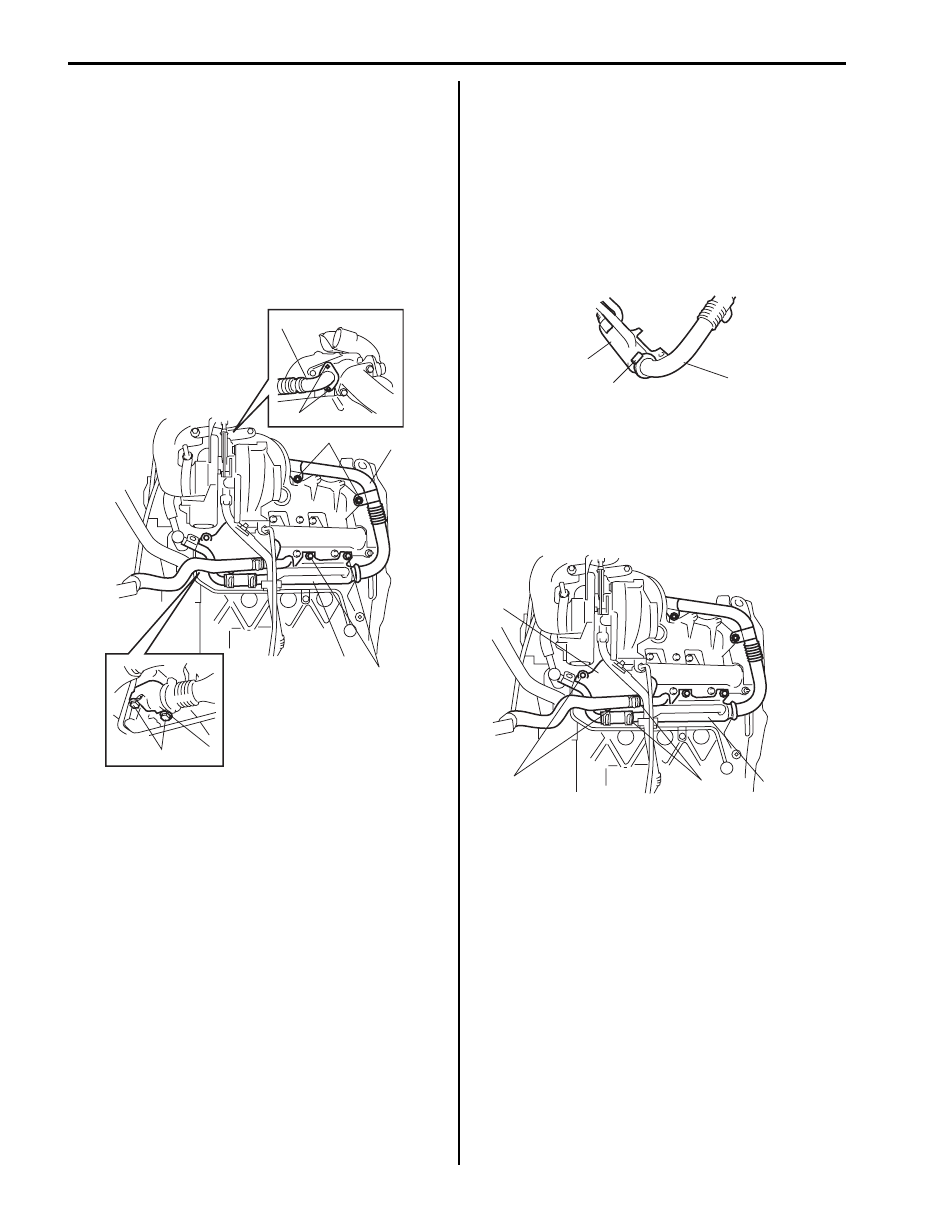

Installation

1) Install EGR cooler (1), EGR pipe (2) and EGR joint

(3) with new gaskets.

Tightening torque
EGR cooler bolt (a):  25 N·m (2.5 kgf-m, 18.5 lb-ft)
EGR pipe bolt (b):  18 N·m (1.8 kgf-m, 13.0 lb-ft)
EGR pipe stiffener bolt (with washer) (c):  11 N·m
(1.1 kgf-m, 8.0 lb-ft)
EGR pipe stiffener bolt (without washer) (c):  9
N·m (0.9 kgf-m, 7.0 lb-ft)
EGR joint bolt (d):  25 N·m (2.5 kgf-m, 18.5 lb-ft)

2) Install EGR pipe as follows, if necessary.

• For  Type  A

Type A EGR pipe clamp is disposable one, install
new Type B EGR pipe clamp as below-mentioned.

• For  Type  B

Install EGR pipe (1) to EGR cooler (2) by
tightening EGR pipe clamp bolt as specified
torque.

Tightening torque
Clamp bolt (a):  5 N·m (0.5 kgf-m, 4.0 lb-ft)

3) Install exhaust manifold heat shield (1) to exhaust

manifold.

Tightening torque
Exhaust manifold heat shield bolt (a):  11 N·m (
1.1 kgf-m, 8.0 lb-ft)

4) Connect water hoses (2) to EGR cooler (3).

5) Install thermostat assembly referring to “Thermostat

Assembly Removal and Installation in Section 1F”.

6) Install catalytic converter referring to “Exhaust

System Components in Section 1K”.

7) Install engine assembly referring to “Engine

Assembly Removal and Installation”.

(a)

2

2

1

3

(c)

(d)

(b)

I5JB0B140050-02

1

2

(a)

I5JB0B140147-01

(a)

1

2

3

I5JB0B140051-01

Engine Mechanical:  1D-28

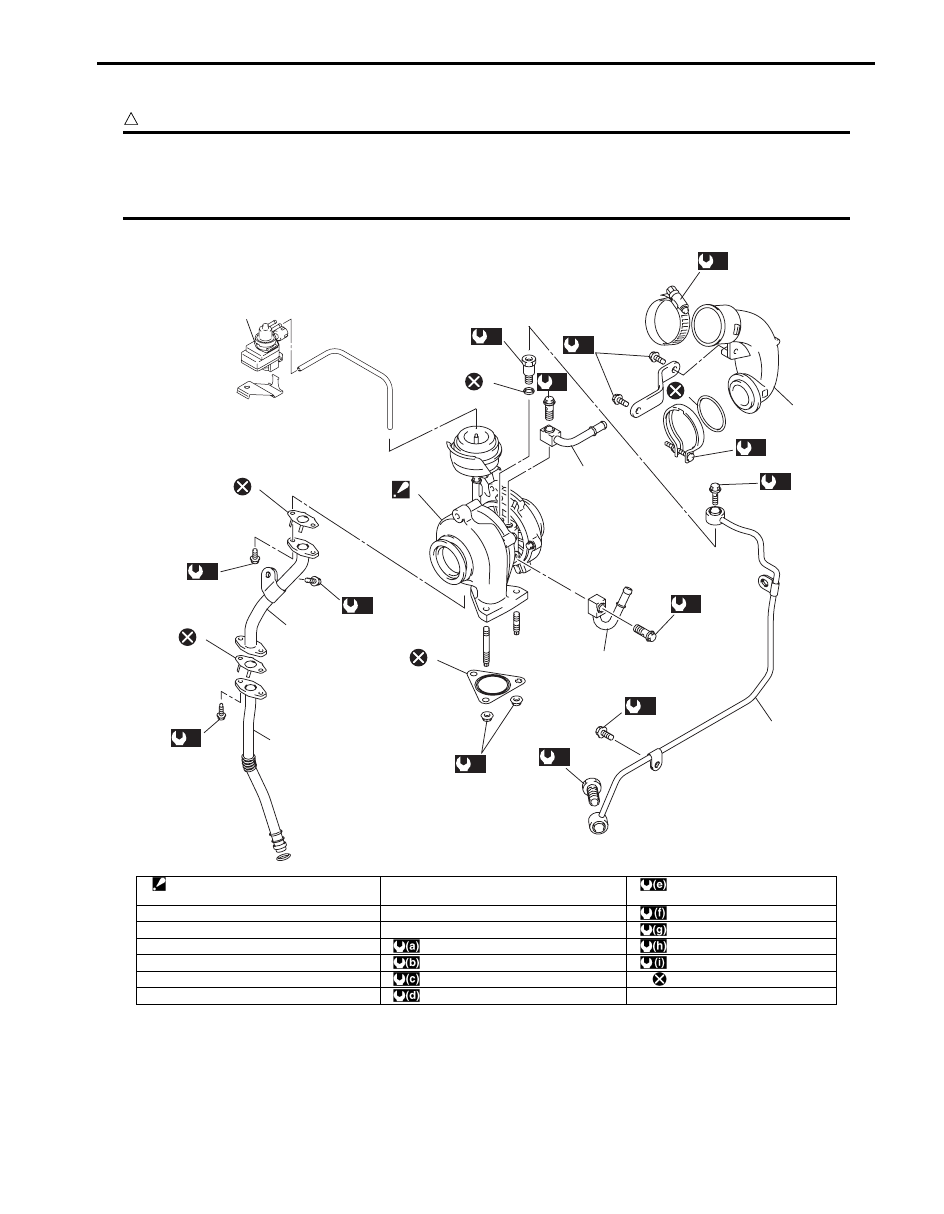

Turbocharger Components

S5JB0B1406056

CAUTION

!



Before starting engine (including when performing oil level check and air bleeding process of cooling
system) for the first time after installing turbocharger, be sure to lubricate turbocharger, referring to
“CAUTION” in “Installation” under “Turbocharger Assembly Removal and Installation”. Otherwise,
lack of lubrication will cause turbocharger damage.



4

3

5

8

10

2

6

(a)

(c)

(d)

(e)

(b)

(f)

(g)

(h)

(i)

1

7

9

(h)

(h)

7

(c)

(a)

7

7

I5JB0B140052-05

1. Turbocharger assembly

: Do not disassemble.

8. Turbocharger inlet pipe

: 21 N

⋅m (2.1 kgf-m, 15.5 lb-ft)

2. Turbocharger lubrication pipe

9. Copper ring

: 44 N

⋅m (4.4 kgf-m, 32.0 lb-ft)

3. Oil return pipe No.1

10. Boost presser control solenoid valve

: 25 N

⋅m (2.5 kgf-m, 18.0 lb-ft)

4. Oil return pipe No.2

: 16 N

⋅m (1.6 kgf-m, 12.0 lb-ft)

: 12 N

⋅m (1.2 kgf-m, 9.0 lb-ft)

5. Turbocharger water inlet pipe

: 36 N

⋅m (3.6 kgf-m, 26.5 lb-ft)

: 4.5 N

⋅m (0.45 kgf-m, 3.5 lb-ft)

6. Turbocharger water outlet pipe

: 29 N

⋅m (2.9 kgf-m, 21.0 lb-ft)

: Do not reuse.

7. Gasket

: 37 N

⋅m (3.7 kgf-m, 27.0 lb-ft)

1D-29 Engine Mechanical:

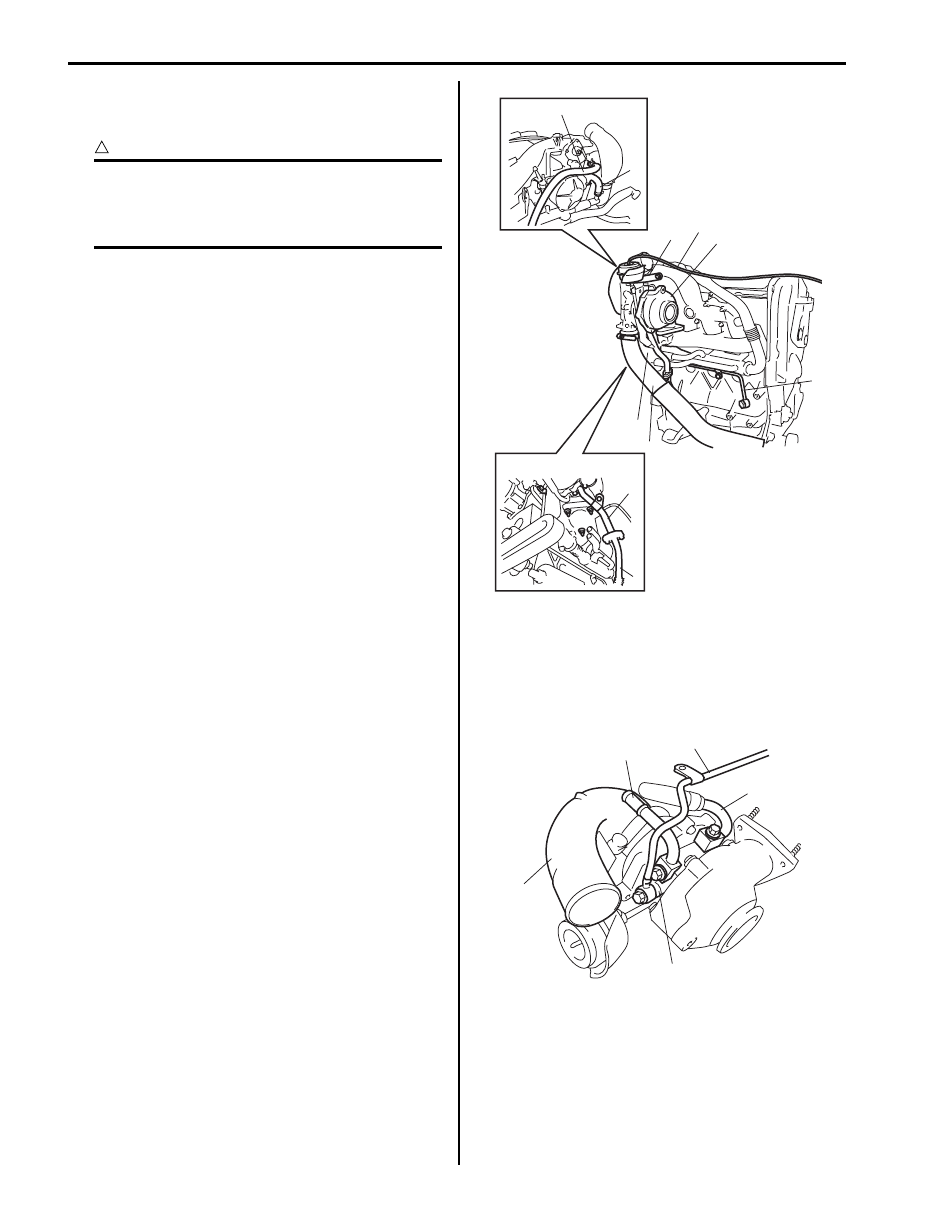

Turbocharger Assembly Removal and
Installation

S5JB0B1406057

CAUTION

!



Never disassemble turbocharger assembly.
Disassembly will spoil its original function. If
faulty condition is found, replace it with new
one.



Removal

1) Remove engine assembly referring to “Engine

Assembly Removal and Installation”.

2) Remove thermostat assembly referring to

“Thermostat Assembly Removal and Installation in
Section 1F”
.

3) Remove catalytic converter referring to “Exhaust

System Components in Section 1K”.

4) Disconnect turbocharger outlet hose (1) from

turbochanger (10).

5) Disconnect turbocharger water inlet hose (2) and

outlet hose (3).

6) Remove exhaust manifold heat shield (4) from

exhaust manifold.

7) Remove oil return pipe No.1 (5) and No.2 (6).
8) Disconnect turbocharger lubrication pipe (7) and

lubrication pipe stiffeners from cylinder block.

9) Disconnect boost pressure control actuator hose (8)

from boost pressure control actuator.

10) Remove turbocharger stiffener (9).

11) Remove turbocharger (10) from exhaust manifold.

12) Remove turbocharger inlet pipe (5) from

turbocharger.

13) Remove turbocharger lubrication pipe (1),

turbocharger lubrication pipe union nut (2),
turbocharger water inlet pipe (3) and turbochanger
water outlet pipe (4) from turbocharger, if necessary.

2

3

4

5

6

7

8

9

10

1

I5JB0B140053-01

1

2

3

4

5

I5JB0B140054-01
