9C-6 Instrumentation / Driver Info. / Horn:

Seat Belt Reminder Light Symptom Diagnosis (If Equipped)

S5JB0E9304008

Warning Buzzer Circuit Symptom Diagnosis

S5JB0E9304015

NOTE

• Use of SUZUKI scan tool makes it easy to check whether a faulty condition is on the input side or

output side of BCM. For checking procedure, refer to “Diagnosis Using Output Test Function of
SUZUKI Scan Tool” under “Scan Tool Data in Section 10B”.

• Check each part in the order from the top of the following list.



Condition

Possible cause

Correction / Reference Item

Seat belt reminder light
does not light up

Circuit fuse blown

Replace fuse and check for short circuit.

Data (information) can not be received
by CAN communication

Check BCM for DTC referring to “DTC Check
in Section 10B in related manual”.

Seat belt switch faulty

Check seat belt switch referring to “Front Seat
Belt Inspection in Section 8A in related
manual”.

Wiring or ground faulty

Repair circuit.

Combination meter faulty

Replace combination meter.

BCM faulty

Replace after making sure that none of above
parts is faulty.

Seat belt reminder light
stays ON

Data (information) can not be received
by CAN communication

Check BCM for DTC referring to “DTC Check
in Section 10B in related manual”.

Seat belt switch faulty

Check seat belt switch referring to “Front Seat
Belt Inspection in Section 8A in related
manual”.

Wiring or ground faulty

Repair circuit.

Combination meter faulty

Replace combination meter.

BCM faulty

Replace after making sure that none of above
parts is faulty.

Condition

Possible cause

Correction / Reference Item

Warning buzzer shows no
sounding

Circuit fuse blown

Replace fuse and check for short circuit.

Driver side door switch faulty

Check driver side door switch referring to
“Door Switch (Front / Rear / Rear End Door)
Inspection in related manual”.

Lighting switch faulty

Check lighting switch referring to “Headlight
Switch (in Lighting Switch) Inspection in
Section 9B”
.

Key reminder switch faulty

Check key reminder switch referring to
“Ignition Switch Inspection”.

Wiring or ground faulty

Repair circuit.

BCM faulty

Replace after making sure that none of above
parts is faulty.

Instrumentation / Driver Info. / Horn:  9C-7

Information Display Symptom Diagnosis (If Equipped)

S5JB0E9304018

NOTE
This thermometer indicates the ambient temperature in back of front bumper member. Under any one
of the following listed conditions, however, even when the ambient temperature goes up, the
thermometer display does not rise so as to correct the rise of the ambient temperature caused by the
radiant heat of the engine. When the ambient temperature drops, the thermometer reading follows the
change in the temperature.
Be sure to bear this in mind when diagnosing trouble.
• The vehicle speed is 30 km/h (18 mph) or lower.
• VSS signal is faulty.
• The ignition switch is turned on again within 2 hours.



Condition

Possible cause

Correction / Reference Item

No displaying of
information display

Circuit fuse Blown

Replace fuse and check for short circuit.

Wiring or grounding faulty

Repair as necessary.

Information display unit faulty

Replace unit.

Incorrect thermometer
display

Outside air temperature sensor faulty

Check outside air temperature sensor referring
to “Outside Air Temperature Sensor Inspection
(If Equipped) in related manual”.

Vehicle speed signal faulty

Check ECM for DTC referring to “DTC Check
in Section 1A in related manual”.

Wiring or grounding faulty

Repair as necessary.

BCM faulty

Replace after making sure that none of above
parts is faulty.

Display does not change
at –30

°

C

Outside air temperature is –30

°C (–22

°F) or less

Outside air temperature sensor faulty

Check outside air temperature sensor referring
to “Outside Air Temperature Sensor Inspection
(If Equipped) in related manual”.

BCM faulty

Replace after making sure that none of above
parts is faulty.

Display does not change
at 50

°

C

Outside air temperature is 50

°C (122

°F) or more

Outside air temperature sensor faulty

Check outside air temperature sensor referring
to “Outside Air Temperature Sensor Inspection
(If Equipped) in related manual”.

BCM faulty

Replace after making sure that none of above
parts is faulty.

Display of thermometer
does not change at “- - -

°

C”

Outside air temperature sensor faulty

Check outside air temperature sensor referring
to “Outside Air Temperature Sensor Inspection
(If Equipped) in related manual”.

Outside air temperature sensor circuit is
open or short

Repair circuit.

Wiring or grounding faulty

Repair circuit.

BCM faulty

Replace after making sure that none of above
parts is faulty.

Display of fuel
consumption does not
change at “- - - l / 100 km
(km/l, MPG)”

Vehicle is not running (instantaneous
fuel consumption mode)

Fuel consumption was reset (average
fuel consumption mode, if equipped)

Vehicle runs for a while.

Vehicle speed signal faulty

Check ECM for DTC referring to “DTC Check
in Section 1A in related manual”

Wiring or grounding faulty

Repair circuit.

ECM faulty

Check input and output signal of ECM referring
to “Inspection of ECM and Its Circuits in
Section 1A”

BCM faulty

Replace after making sure that none of above
parts is faulty.

9C-8 Instrumentation / Driver Info. / Horn:

Repair Instructions

Ignition Switch Inspection

S5JB0E9306002

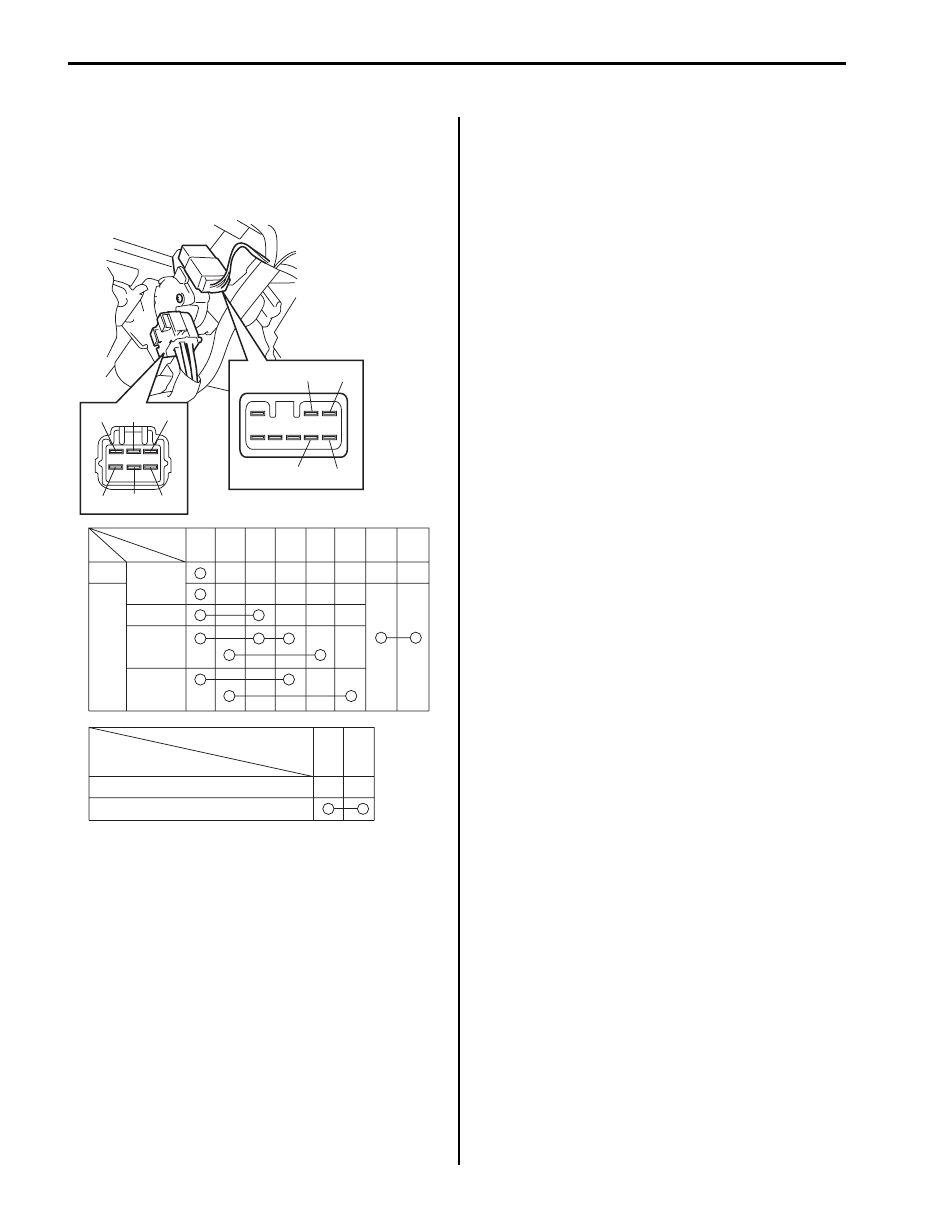

• Check for continuity between terminals at each switch

position. If check result is not as specified, replace
switch.

Fuel Level Sensor Removal and Installation

S5JB0E9306004

Main Fuel Level Sensor
For removal and installation, refer to “Fuel Pump
Assembly Removal and Installation in Section 1G in
related manual”.

Sub Fuel Level Sensor
For removal and installation, refer to “Sub Fuel Level
Sensor Removal and Installation in Section 1G in related
manual”.

Fuel Level Sensor Inspection

S5JB0E9306005

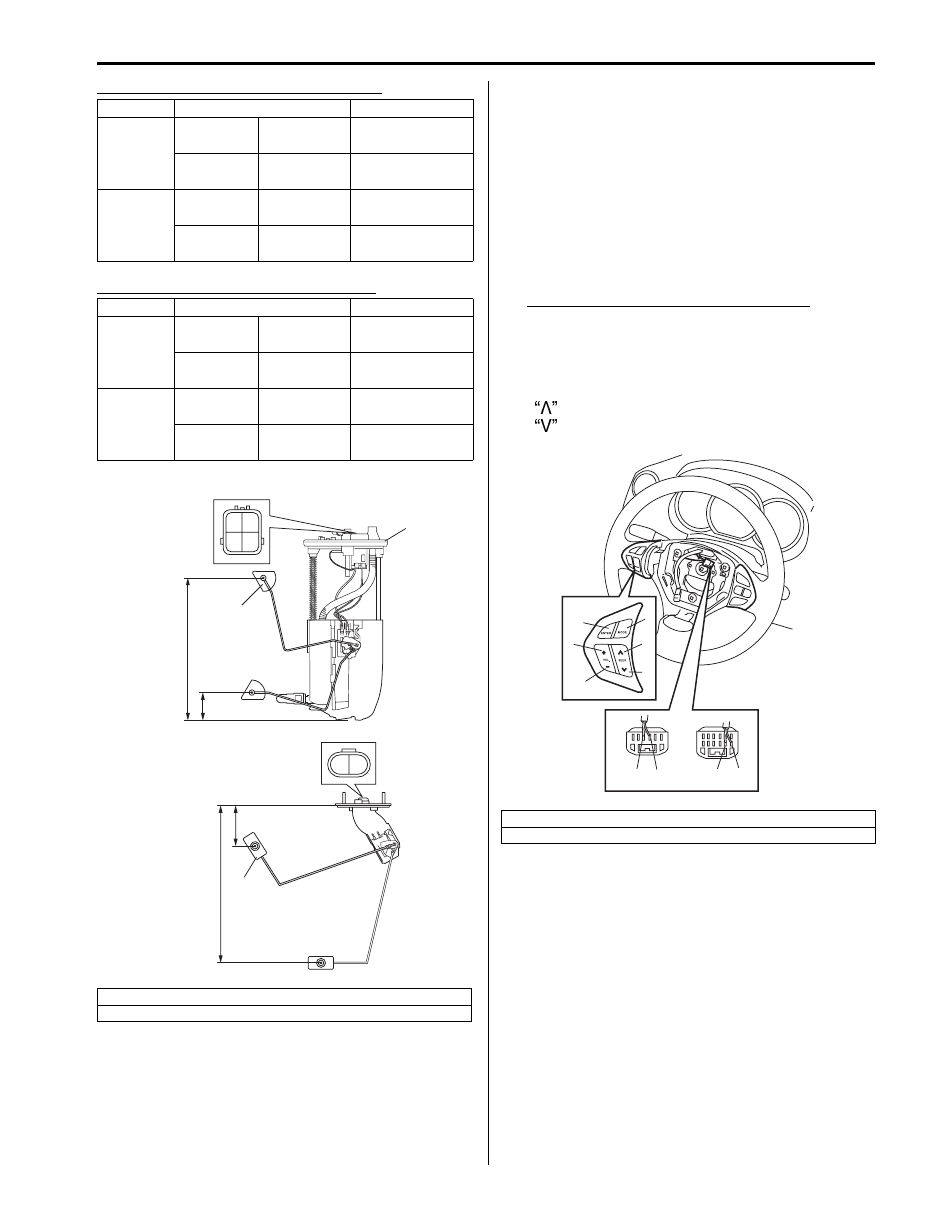

• Check that resistance between terminals “a” and “b”

of fuel level sensor changes with change of float
position.

• Check resistance between terminals “a” and “b” at

each float position in the following.
If the measured value is out of specification, replace
fuel pump and/or sub fuel level sensor.

Position

Terminal

LOCK

ACC

ON

START

OUT

IN

K2

K1

ST

IG2

IG1

ACC

B1

B2

Ignition knob switch
(with keyless start system only)

ACC

IG1

IG2

ST

B2

B1

K2

K1

P2

P1

Terminal

OFF (ignition knob switch released)

ON  (ignition knob switch pushsed)

P1

P2

Key

I5RS0D930003-02

Instrumentation / Driver Info. / Horn:  9C-9

Main fuel level sensor [A] specifications

Sub fuel level sensor [B] specifications

Remote Audio Control Switch Inspection

S5JB0E9306026

1) Remove driver air bag (inflator) module referring to

“Driver Air Bag (Inflator) Module Removal and
Installation in Section 8B in related manual”.

2) Disconnect remote audio control switch connector

from contact coil.

3) Check switch for resistance between “a” and “b”

terminals under each condition below.
If check result is not satisfactory, replace remote
audio control switch.

Remote audio control switch resistance
All switches released (OFF): 4700 – 5600

“ENTER” switch (1) pushing on (ON): 50 – 60

“+” switch (2) pushing on (ON): 120 – 140

“–” switch (3) pushing on (ON): 220 – 260

“MODE” switch (4) pushing on (ON): 370 – 460



 witch (5) pushing on (ON): 680 – 820



 switch (6) pushing on (ON): 1400 – 1700

Float position

Resistance (

)

3 door

model

Full Upper

“C”

193.7 mm

(7.626 in.)

19.0 – 21.0

Full Lower

“D”

42.2 mm

(1.661 in.)

111.9 – 115.3

5 door

model

Full Upper

“C”

196.8 mm

(7.748 in.)

19.0 – 21.0

Full Lower

“D”

34.9 mm

(1.374 in.)

129.0 – 132.4

Float position

Resistance (

)

3 door

model

Full Upper

“C”

48.1 mm

(1.894 in.)

19.0 – 21.0

Full Lower

“D”

252.8 mm

(9.953 in.)

164.7 – 168.1

5 door

model

Full Upper

“C”

64.1 mm

(2.524 in.)

19.0 – 21.0

Full Lower

“D”

244.8 mm

(9.638 in.)

147.6 – 151.0

1. Fuel pump
2. Float

“c”

“d”

“d”

[A]

[B]

“b”

“a”

“b”

“a”

1

2

“c”

2

I5JB0A930030-02

[A]: Without cruise control system
[B]: With cruise control system

5

6

4

1

2

3

[A]

[B]

“b”

“a”

“b”

“a”

I6JB01930012-02
