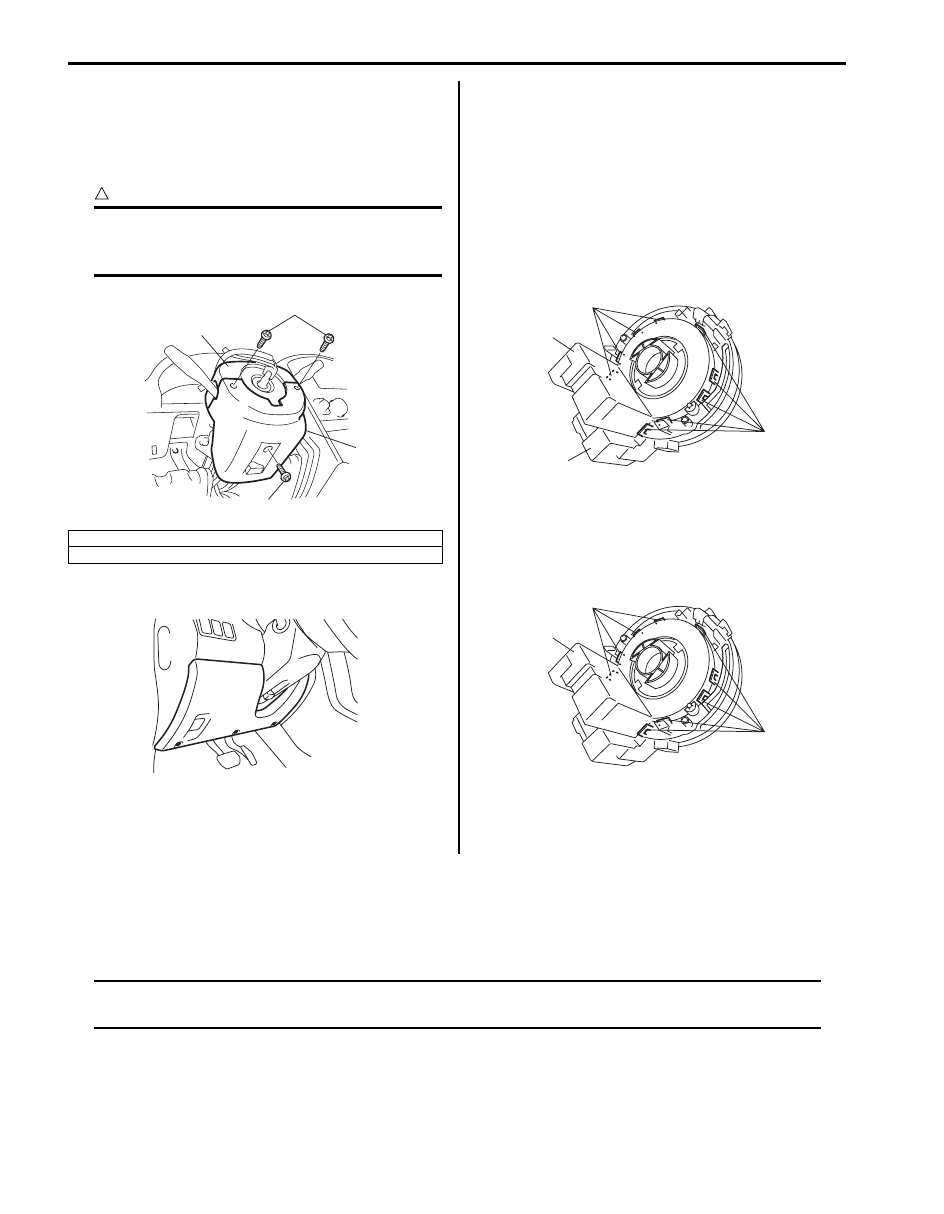

6B-4 Steering Wheel and Column:

3) Connect all connectors that have been removed in

“Removal”.

4) Install steering column upper cover (2) and lower

cover (3), and then tighten steering column cover
screws (1).

CAUTION

!



When installing lower cover (3) and upper
cover (2), be careful so that each lead wire is
not caught between covers.



5) Install steering column hole cover (1).

6) Install steering wheel to steering column. Refer to

“Steering Wheel Removal and Installation in related
manual”.

Steering Angle Sensor Removal and Installation

S5JB0E6206014

Removal

1) Remove steering wheel and contact coil cable

assembly. Refer to “Steering Wheel Removal and
Installation in related manual” and “Contact Coil
Cable Assembly Removal and Installation”.

2) Remove steering angle sensor (2) from contact coil

cable assembly (3) while opening fitting parts (1) of
contact coil cable assembly.

Installation

1) Install steering angle sensor (2) by fitting

engagement parts (1) of contact coil cable assembly
to claws of steering angle sensor as shown in figure.

2) Install contact coil cable assembly and steering

wheel. Refer to “Contact Coil Cable Assembly
Removal and Installation”
 and “Steering Wheel
Removal and Installation in related manual”.

Specifications

Tightening Torque Specifications

S5JB0E6207001

NOTE
The specified tightening torque is also described in the following.
“Steering Wheel and Column Construction”



Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A in related
manual”.

*: Standard screw

**: Tapping screw

1*

3

1**

2

I5JB0A620015-01

1

I5JB0A620011-01

1

1

2

3

I6JB01620003-01

1

1

2

I6JB01620004-01
