Suzuki Grand Vitara JB416 / JB420 (ESP model). Service manual - part 55





4E-14 ABS:

Troubleshooting

Step

Action

Yes

No

1

1) Turn ignition switch to ON position.

Do other warning lamps come ON?

Go to Step 2.

Go to Step 3.

2

1) Connect scan tool to DLC with ignition switch turned

OFF.

2)  Turn ignition switch to ON position and check DTC.

Is there DTC U1073?

Go to “DTC U1073:
Control Module
Communication Bus
Off”
.

Substitute a known-
good combination meter
and recheck. If ABS
warning lamp remains
OFF, substitute a
known-good ABS
(ESP

®) hydraulic unit /

control module
assembly and recheck.

3

Is Circuit fuse for combination meter in good condition?

Go to Step 4.

Replace fuse and check
for short circuit to
ground.

4

Check CAN communication circuit between combination
meter and ABS (ESP

®) control module referring to “DTC

U1073: Control Module Communication Bus Off”.

Is CAN communication circuit in good condition?

Go to Step 5.

Repair or replace.

5

1) Remove combination meter with ignition switch turned

OFF.

2) Check for proper connection to “PPL/RED” and “BLK”

wire of combination meter connector.

3) If OK, turn ON ignition switch and measure voltage at

“PPL/RED” wire of combination meter connector and
vehicle body ground.

Is it 10 – 14 V?

Go to Step 6.

Repair power supply
circuit for combination
meter.

6

1) Measure resistance between “BLK” wire of combination

meter connector and vehicle body ground.

Is resistance less than 2

?

Replace combination
meter.

“BLK” circuit open or
high resistance.

ABS: 4E-15

ABS Warning Lamp Comes ON Steady

S5JB0E4504009

Wiring Diagram
Refer to “ABS Warning Lamp Does Not Come ON at Ignition Switch ON”.

Circuit Description
Operation (ON/OFF) of ABS warning lamp is controlled by ABS (ESP

®) control module through lamp driver module in

combination meter.
If the Antilock brake system is in good condition, ABS (ESP

®) control module turns ABS warning lamp ON at the

ignition switch ON, keeps it ON for 2 seconds and then turns it OFF. If an abnormality in the system is detected, ABS
warning lamp is turned ON continuously by ABS (ESP

®) control module. Also, it is turned ON continuously by lamp

driver module when the connector of ABS (ESP

®) control module is disconnected.

Troubleshooting

Step

Action

Yes

No

1

1) Perform diagnostic trouble code check.

Is there any DTC(s)?

Go to applicable DTC
diag. flow.

Go to Step 2.

2

Are main fuses for ABS pump motor and ABS solenoid in
good condition?

Go to Step 3.

Replace fuse and check
circuit for short to
ground.

3

1) Turn ignition switch to OFF.
2) Disconnect ABS (ESP

®) control module connector.

3) Check for proper connection to ABS (ESP

®) control

module connector at terminals “E03-7”, “E03-13” and
“E03-26” (or “E53-16”, “E53-35” and “E53-47”).

4) If OK then turn ignition switch to ON position and

measure voltage between terminal “E03-7” (or “E53-35”)
and vehicle body ground.

Is it 10 – 14 V?

Go to Step 4.

“GRN/ORN” circuit
open.

4

1) Turn ignition switch to OFF position.
2) Check for proper connection to ABS (ESP

®) control

module connector at terminals “E03-1” and “E03-14” (or
“E53-1” and “E53-32”).

3) If OK then turn ignition switch to ON position and

measure voltage between each terminal of “E03-1”,
“E03-14” (or “E53-1”, “E53-32”) and vehicle body
ground.

Are they 10 – 14 V?

Go to Step 5.

“WHT/RED” and/or
“WHT/BLU” circuit
open.

5

1) Turn ignition switch to OFF and measure resistance

between each terminal of “E03-13”, “E03-26” (or “E-53-
1”, “E53-32”) and vehicle body ground.

Is resistance less than 2

?

Go to Step 6.

Ground circuit for ABS
(ESP

®) hydraulic unit /

control module open or
high resistance.

6

Check CAN communication circuit between combination
meter and ABS (ESP

®) control module referring to “DTC

U1073: Control Module Communication Bus Off”.

Is CAN communication circuit in good condition?

Substitute a known-
good combination meter
and recheck. If ABS
warning lamp remains
ON, substitute a known-
good ABS (ESP

®)

hydraulic unit / control
module assembly and
recheck.

Repair or replace.

4E-16 ABS:

EBD Warning Lamp (Brake Warning Lamp) Comes ON Steady

S5JB0E4504011

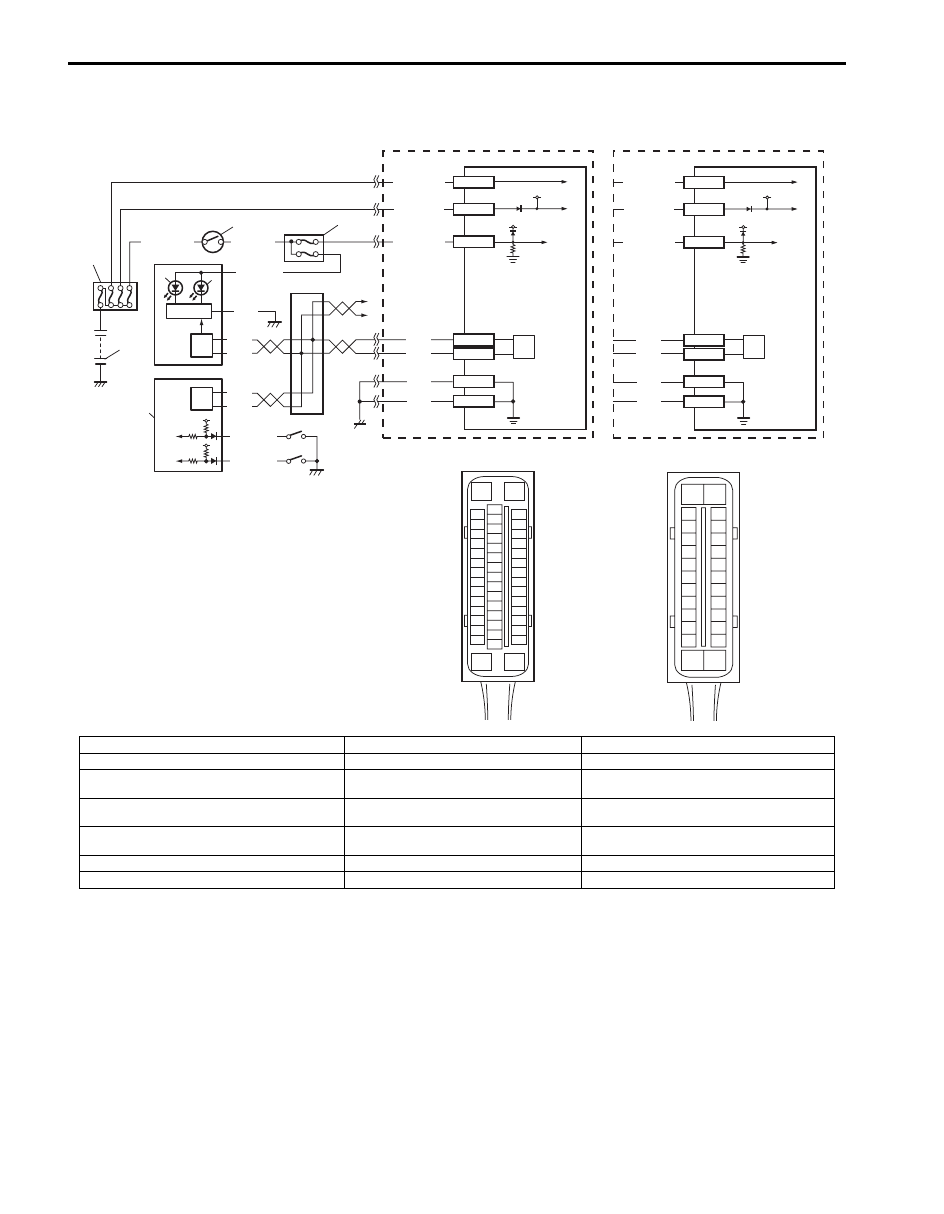

Wiring Diagram

Circuit Description
EBD warning lamp (brake warning lamp) is controlled by parking brake switch, brake fluid level switch and ABS
(ESP

®) control module assembly through lamp driver module in combination meter.

EBD warning lamp turns ON when parking brake switch is ON and/or brake fluid level is lower than minimum level.
The information of parking brake switch and brake fluid level are transmitted from BCM to lamp driver module in
combination meter through CAN communication line.

3

4

2

1

[C]

E53-16

E53-47

12V

12V

E53-32

E53-1

E53-35

GRN/ORN

PPL/RED

BLK/YEL

WHT/GRN

WHT/RED

WHT/BLU

BLK

BLK

BLK

RED

WHT

RED

WHT

E53-13
E53-44

15

16

10

5

7

8

6

9

E53

16

1

15

2

3

4

5

6

7

8

9

10

11

12

13

14

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

E03-13

E03-26

12V

12V

E03-1

E03-14

E03-7

GRN/ORN

WHT/RED

WHT/BLU

BLK

BLK

RED

WHT

E03-12
E03-6

13

9

[D]

E03

15
16
17
18
19
20
21
22
23
24
25

2
3
4
5
6
7
8
9

10
11
12

1

13

14

26

9

RED

WHT

9

12

11

[A]

[B]

RED/BLK

12V

12V

RED/BLK

14

I6JB01450006-02

[A]: With ESP

®

4. Junction block assembly

11. Parking brake switch

[B]: Without ESP

®

5. Combination meter

12. Brake fluid level switch

[C]: ESP

® control module connector (viewed from

terminal side)

6. ABS warning lamp

13. Junction connector

[D]: ABS control module connector (viewed from

terminal side)

7. EBD warning lamp (Brake warning lamp)

14. To TCM, 4WD control module, keyless start

control module and steering angle sensor

1. Battery

8. Lamp driver module

15. ESP

® hydraulic unit / control module

assembly

2. Main fuse box

9. CAN driver

16. ABS hydraulic unit / control module assembly

3. Ignition switch

10. BCM

ABS: 4E-17

Troubleshooting

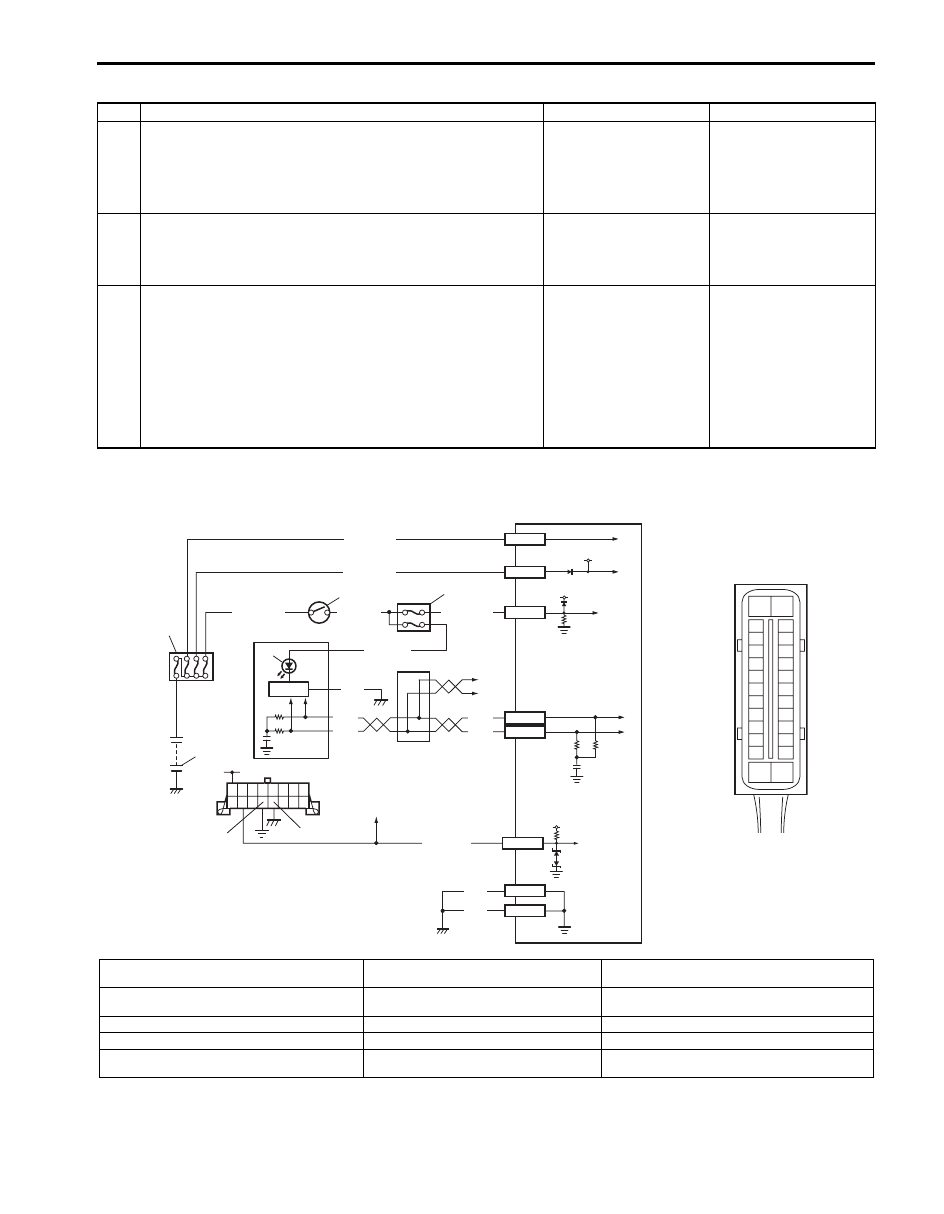

Serial Data Link Circuit Check

S5JB0E4504012

Step

Action

Yes

No

1

1) Make sure that:

• Parking brake is completely released.
• Brake fluid level is upper than the minimum level.

Are the check results OK?

Go to Step 2.

Release parking brake
completely and/or
replenish brake fluid.

2

1) Turn ignition switch to ON position.

Does “ABS” warning lamp come on steady?

Perform “ABS Warning
Lamp Comes ON
Steady” p
reviously
outlined.

Go to Step 3.

3

1) CAN communication circuit between combination meter,

ABS (ESP

®) control module and BCM referring to “DTC

U1073: Control Module Communication Bus Off”.

Is CAN communication circuit in good condition?

Substitute a known-
good combination meter
and recheck. If ABS
warning lamp remains
ON, substitute a known-
good ABS (ESP

®)

hydraulic unit / control
module assembly and
recheck.

Repair or replace.

3

4

2

1

12V

12V

E03-1

E03-14

E03-7

GRN/ORN

PPL/RED

BLK/YEL

WHT/GRN

WHT/RED

WHT/BLU

E03-13

E03-26

BLK

BLK

BLK

RED

WHT

RED

WHT

E03-12
E03-6

PPL/WHT

12V

+BB

E03-5

[A]

E03

10

11

9

8

G

G1

5

7

6

12

15
16
17
18
19
20
21
22
23
24
25

2
3
4
5
6
7
8
9

10
11
12

1

13

14

26

I5JB0A450012-02

[A]:

ABS hydraulic unit / control module connector
(viewed from terminal side)

5. Combination meter

10. Junction connector

1. Battery

6. ABS warning lamp

11. To TCM, BCM, 4WD control module and keyless

start control module

2. Main fuse box

7. Lamp driver module

12. ABS hydraulic unit / control module assembly

3. Ignition switch

8. Data link connector (DLC)

4. Junction block assembly

9. To ECM, TCM, BCM, SDM and 4WD

control module
