Suzuki Grand Vitara JB416 / JB420 (ESP model). Service manual - part 35





3C-35 Transfer: Motor-Shift Type (Transfer with Shift Actuator)

DTC C1227: 4L/N Switch Circuit Open

S5JB0E3314018

Wiring Diagram

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

1) Clear DTC using scan tool.
2) Select transfer switch to “4L-lock” position and keep its position for 1 min.
3) Check DTC.

Troubleshooting

IG

E91-13

E91-14

RED/GRN

PNK/WHT

2

3

4

12V

1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

[A]

I5JB0A332018-01

[A]: 4WD control module connector “E91” (viewed from harness side)

3. 4L/N switch

1. 4WD control module

4. Center differential lock switch

2. TCM

DTC detecting condition

Trouble area

Though transfer shift actuator motor position switch is “4L-lock”
position, the ON signal is not input from the 4L/N switch.

• 4L/N switch
• 4L/N switch circuit
• 4WD control module

Step

Action

Yes

No

1

Was “4WD control system check” performed?

Go to Step 2.

Go to “4WD Control
System Check: Motor-
Shift Type (Transfer with
Shift Actuator)”.

2

4L/N switch circuit check
1) Disconnect 4L/N switch connector with ignition switch

OFF.

2) Check for proper connection to terminal of 4L/N switch

connector.

3) If connection is OK, measure voltage between “PNK/

WHT” terminal of 4L/N switch connector and vehicle
body ground with ignition switch ON.

Is it 10 – 14 V?

Go to Step 3.

Go to Step 4.

Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-36

DTC C1228: 4L/N Switch Circuit Short

S5JB0E3314019

Wiring Diagram

3

4L/N switch check
1) Check 4L/N switch referring to “Transfer Assembly

Inspection: Motor-Shift Type (Transfer with Shift
Actuator)”.

Is switch in good condition?

Substitute a known-
good 4WD control
module and recheck.

Replace 4L/N switch.

4

Wire harness check
1) Disconnect connector from 4WD control module

connector “E91” with ignition switch OFF.

2) Check for proper connection to “E91-13” terminal of

4WD control module connector.

3) If OK, measure resistance between “PNK/WHT” terminal

of 4L/N switch connector and “E91-13” terminal of 4WD
control module connector.

Is it 1

 or less?

Substitute a known-
good 4WD control
module and recheck.

“PNK/WHT” wire is
open or high resistance.

Step

Action

Yes

No

IG

E91-13

E91-14

RED/GRN

PNK/WHT

2

3

4

12V

1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

[A]

I5JB0A332018-01

[A]: 4WD control module connector “E91” (viewed from harness side)

3. 4L/N switch

1. 4WD control module

4. Center differential lock switch

2. TCM

3C-37 Transfer: Motor-Shift Type (Transfer with Shift Actuator)

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

1) Clear DTC using scan tool.
2) Select transfer switch to “4L-lock” position and keep its position for 1 min.
3) Check DTC.

Troubleshooting

DTC detecting condition

Trouble area

Though transfer shift actuator motor position switch is “4L-lock”
position, the OFF signal is not input from the 4L/N switch.

• 4L/N switch
• 4L/N switch circuit
• 4WD control module

Step

Action

Yes

No

1

Was “4WD control system check” performed?

Go to Step 2.

Go to “4WD Control
System Check: Motor-
Shift Type (Transfer with
Shift Actuator)”.

2

4L/N switch circuit check
1) Disconnect 4L/N switch connector with ignition switch

OFF.

2) Check for proper connection to terminal of 4L/N switch

connector.

3) If connection is OK, measure voltage between “PNK/

WHT” terminal of 4L/N switch connector and vehicle
body ground with ignition switch ON.

Is it 10 – 14 V?

Go to Step 3.

Go to Step 4.

3

4L/N switch check
1) Check 4L/N switch referring to “Transfer Assembly

Inspection: Motor-Shift Type (Transfer with Shift
Actuator)”.

Is switch in good condition?

Substitute a known-
good 4WD control
module and recheck.

Replace 4L/N switch.

4

Wire harness check
1) Disconnect connector from 4WD control module

connector “E91” with ignition switch OFF.

2) Check for proper connection to “E91-13” terminal of

4WD control module connector.

3) If OK, measure resistance between “PNK/WHT” terminal

of 4L/N switch connector and “E91-13” terminal of 4WD
control module connector.

Is it 1 M

 or more?

Substitute a known-
good 4WD control
module and recheck.

“PNK/WHT” wire is
shorted to ground
circuit.

Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-38

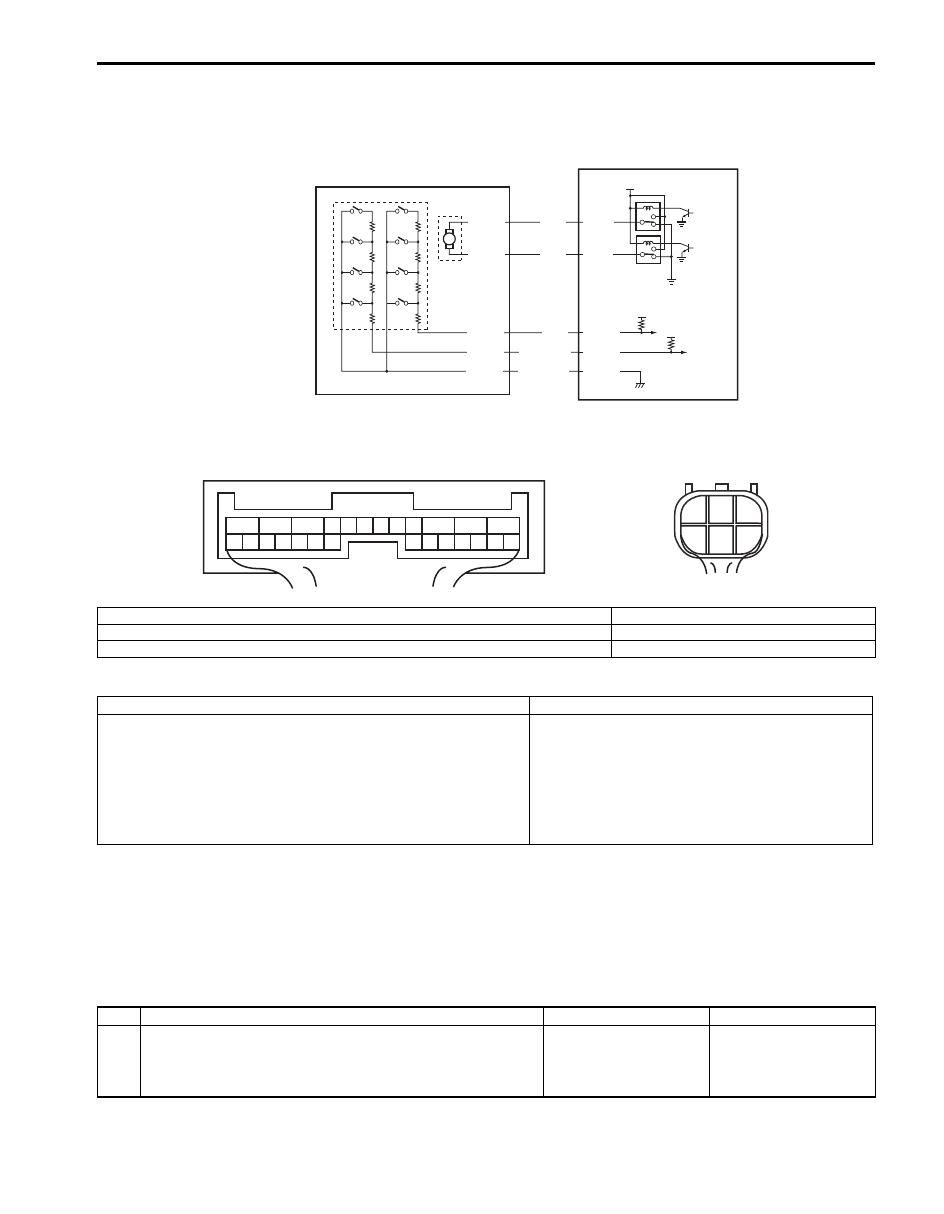

DTC C1230: Transfer Actuator Circuit Malfunction

S5JB0E3314020

Wiring Diagram

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

1) Clear DTC using scan tool.
2) Select transfer switch to “4H” position and keep its position for 10 seconds. Similarly select transfer switch to “4H-

lock”, “N” and “4L-lock” position.

3) Check DTC.

Troubleshooting

5V

12V

E91-2

5V

YEL

RED/BLK

BLU

M

E91-3

E91-25

E91-26

RED

E91-24

BLK/YEL

1

2

3

C54-1

C54-4

C54-2

C54-3

C54-5

4

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

[A]

1

2

3

4

5

6

[B]

I5JB0A332017-01

[A]: 4WD control module connector “E91” (viewed from harness side)

2. Transfer shift actuator motor position switch

[B]: Transfer shift actuator connector “C54” (engine harness side) (viewed from harness side)

3.  Transfer shift actuator motor

1. Transfer shift actuator

4. 4WD control module

DTC detecting condition

Trouble area

• Position switch in transfer shift actuator is not changed for 3

seconds even if command signal of motor relay for transfer
shift actuator (included in 4WD control module) is turned on.

or
• Monitor signal from motor relay of transfer shift actuator

(included in 4WD control module) is inconsistent with
command signal to motor relay of transfer shift actuator.

• Transfer shift actuator
• Transfer shift actuator circuit
• 4WD control module

Step

Action

Yes

No

1

Was “4WD control system check” performed?

Go to Step 2.

Go to “4WD Control
System Check: Motor-
Shift Type (Transfer with
Shift Actuator)”.
