3C-23 Transfer: Motor-Shift Type (Transfer with Shift Actuator)

Fail-Safe Table

S5JB0E3314008

This function is provided by the safe mechanism that assures safe drive ability even when the actuator, switch, sensor
or its circuit fails. The following table shows the fail safe function for each fail condition of sensor, actuator, switch,
4WD control module or its circuit.

Scan Tool Data Definitions

S5JB0E3314010

Vehicle Speed (KM/H, MPH):

This parameter indicates vehicle speed calculated
by 4WD control module.

Actuator Pos Sen (Transfer shift actuator motor

position switch) (4H / 4H-lock / 4L-lock / N / 4H-
lock-4H / 4H-N / N-4L-lock):
This parameter indicates transfer shift actuator
motor position switch status detected by 4WD
control module.

Actuator motor Pos (Transfer shift actuator motor

position) (4H / 4H-lock / 4L-lock / N):
This parameter indicates transfer shift actuator
motor position detected by 4WD control module
using transfer shift actuator motor position.

Battery voltage (V):

This parameter indicates battery voltage detected by
4WD control module.

4L / N switch (ON / OFF):

This parameter indicates 4L / N switch status
detected by 4WD control module.

Center diff lock Sw (ON / OFF):

This parameter indicates center differential lock
switch status detected by 4WD control module.

N range signal (AT) (ON / OFF):

This parameter indicates A/T shift position (“N” range
or not) detected by 4WD control module.

CPP switch (Clutch pedal position switch) (MT) (ON /

OFF):
This parameter indicates clutch pedal position switch
status detected by 4WD control module using CPP
switch.

Mode switch 1 (Transfer switch) (ON / OFF):

ON: Transfer switch to N position.
OFF: Transfer switch to other than N position.

Mode switch 2 (Transfer switch) (ON / OFF):

ON: Transfer switch to other than 4L-lock position.
OFF: Transfer switch to 4L-lock position.

Mode switch 3 (Transfer switch) (ON / OFF):

ON: Transfer switch to 4H-lock or 4L-lock position.
OFF: Transfer switch to 4H or N position.

Warning buzzer (OFF / N Pos / Error):

This parameter indicates if buzzer is being
commanded by 4WD control module.

ABS active (ON / OFF):

This parameter indicates ABS status detected by
4WD control module.

ESP

® active (ON / OFF):

This parameter indicates ESP

® status detected by

4WD control module.

DTC No.

Trouble Area

Fail-Safe Operation

)

 C1223

Transfer actuator switch 1 circuit open

4WD control module stops outputting of control
signal to transfer actuator (When shifting, it stops
outputting after shifting is completed).

)

 C1224

Transfer actuator switch 1 circuit short

)

 C1235

Transfer actuator switch 2 circuit open

)

 C1236

Transfer actuator switch 2 circuit short

)

 C1230

Transfer actuator circuit malfunction

4WD control module stops outputting of control
signal to transfer actuator.

)

 C1240

4WD control module power supply circuit
malfunction

)

 C1246

Clutch switch circuit short

Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-24

4WD Control Symptom Diagnosis

S5JB0E3314011

Diagnose transfer assembly after performing the following inspections.

1) Perform 4WD control system check referring to “4WD Control System Check: Motor-Shift Type (Transfer with Shift

Actuator)”.

2) Confirm 4WD control system operation referring to “4WD Control System Operation: Motor-Shift Type (Transfer

with Shift Actuator)”

Condition

Possible cause

Correction / Reference Item

Transfer does not operate
(Transfer position
indicator does not
operate)

Transfer switch faulty

Check switch referring to “Transfer Switch
Inspection: Motor-Shift Type (Transfer with
Shift Actuator)”.

Transfer shift actuator faulty

Check transfer shift actuator referring to
“Transfer Assembly Inspection: Motor-Shift
Type (Transfer with Shift Actuator)”.

4L/N switch and/or switch center
differential lock switch faulty

Check switch referring to “Transfer Assembly
Inspection: Motor-Shift Type (Transfer with
Shift Actuator)”.

Transmission range sensor (“N” range)
faulty (for A/T model)

Adjust or check transmission range sensor
referring to “Transmission Range Sensor
Inspection and Adjustment in Section 5A in
related manual”.

CPP switch faulty (for M/T model)

Check CPP switch referring to “Clutch Pedal
Position (CPP) Switch Inspection and
Adjustment in Section 5C in related manual”.

Wiring or grounding faulty

Repair as necessary.

4WD control module faulty

Check 4WD control module referring to
“Inspection of 4WD Control Module and Its
Circuits: Motor-Shift Type (Transfer with Shift
Actuator)”.

Transfer refuses to
operate (Transfer position
indicator flashes, and
then transfer does not
shift)

Transfer shift actuator faulty

Check transfer shift actuator referring to
“Transfer Assembly Inspection: Motor-Shift
Type (Transfer with Shift Actuator)”.

4L/N switch and/or center differential
lock switch faulty

Check switch referring to “Transfer Assembly
Inspection: Motor-Shift Type (Transfer with
Shift Actuator)”.

Distorted control cover shift shaft or shift
fork

Check shift fork referring to “Transfer Assembly
Inspection: Motor-Shift Type (Transfer with
Shift Actuator)”.

Weakened control cover shift shaft
spring

Check spring referring to “Transfer Assembly
Inspection: Motor-Shift Type (Transfer with
Shift Actuator)”.

Distorted or dispositioned control cover
shift shaft snap ring and washer

Check snap ring and washer referring to
“Transfer Assembly Inspection: Motor-Shift
Type (Transfer with Shift Actuator)”.

Worn chamfered tooth on sleeve or gear Check chamfered tooth and gear referring to

“Transfer Assembly Inspection: Motor-Shift
Type (Transfer with Shift Actuator)”.

Wiring or grounding faulty

Repair as necessary.

4WD control module faulty

Check 4WD control module referring to
“Inspection of 4WD Control Module and Its
Circuits: Motor-Shift Type (Transfer with Shift
Actuator)”.

3C-25 Transfer: Motor-Shift Type (Transfer with Shift Actuator)

Transfer Position Indicator Does Not Come ON at Ignition Switch ON but Engine Stops

S5JB0E3314012

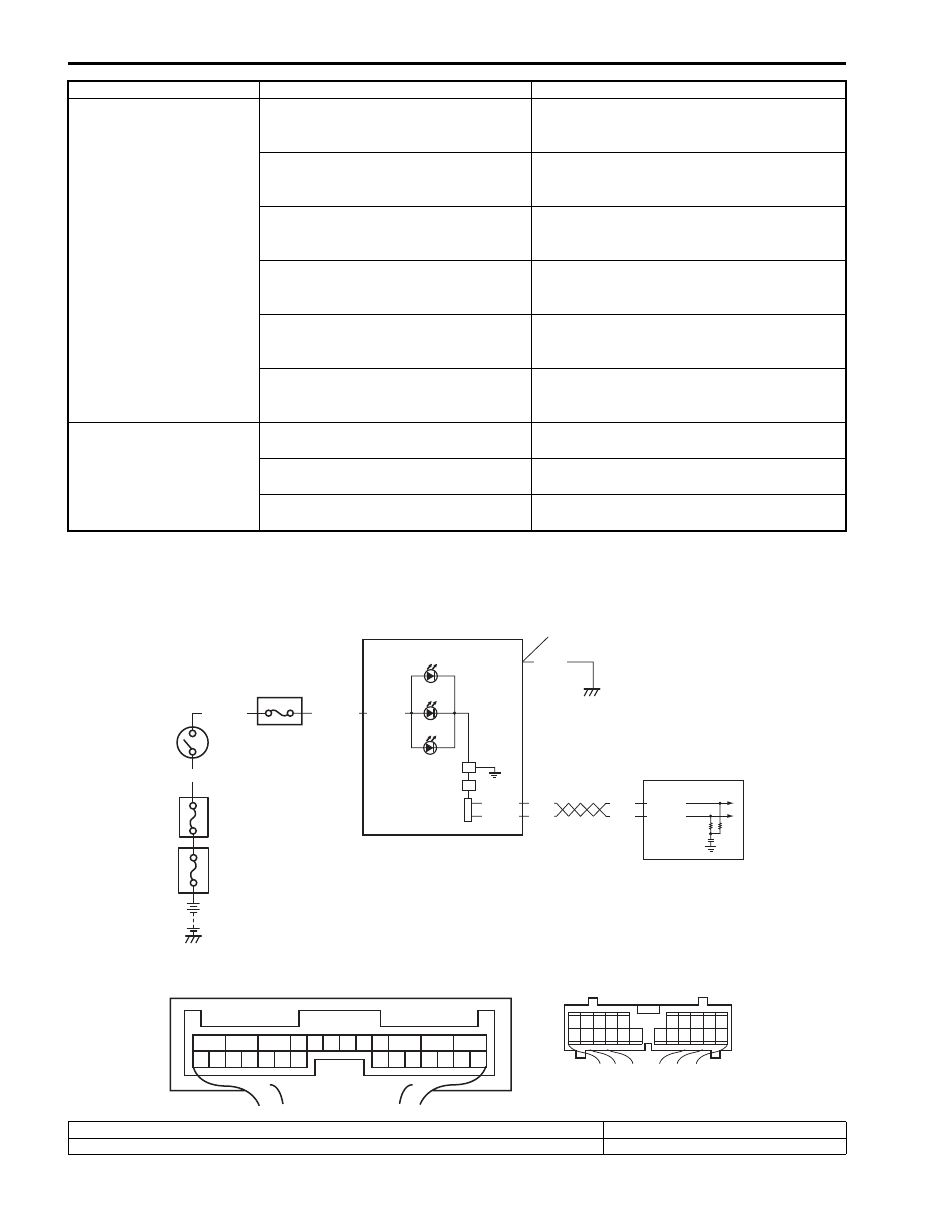

Wiring Diagram

Gear slipping out of mesh Worn control cover shift shaft

Check control cover shift shaft referring to
“Transfer Assembly Inspection: Motor-Shift
Type (Transfer with Shift Actuator)”
.

Worn shift fork or sleeve

Check shift fork or sleeve referring to “Transfer
Assembly Inspection: Motor-Shift Type
(Transfer with Shift Actuator)”.

Weak or damaged control cover shift
shaft spring

Check spring referring to “Transfer Assembly
Inspection: Motor-Shift Type (Transfer with
Shift Actuator)”.

Worn bearings on input gear or counter
gear

Check bearing referring to “Transfer Assembly
Inspection: Motor-Shift Type (Transfer with
Shift Actuator)”.

Worn chamfered tooth on sleeve or gear Check sleeve and gear referring to “Transfer

Assembly Inspection: Motor-Shift Type
(Transfer with Shift Actuator)”.

Missing or disengagement of circlip(s)

Check circlip(s) referring to “Transfer Assembly
Inspection: Motor-Shift Type (Transfer with
Shift Actuator)”.

Noise

Damaged or worn bearing(s)

Refer to “Transfer Assembly Inspection: Motor-
Shift Type (Transfer with Shift Actuator)”
.

Damaged or worn gear(s)

Refer to “Transfer Assembly Inspection: Motor-
Shift Type (Transfer with Shift Actuator)”
.

Damaged or worn chamfered tooth on
sleeve or gear

Refer to “Transfer Assembly Inspection: Motor-
Shift Type (Transfer with Shift Actuator)”
.

Condition

Possible cause

Correction / Reference Item

E91-22
E91-23

RED

WHT

RED

WHT

G28-10

G28-8

1

2

G28-13

PPL/RED

BLK

WHT/GRN

BLK/YEL

8

G28-15

4

6

7

5

3

1

2

3

4

5

6

7

8

9

10

11

17

1615141312

2221201918

[B]

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

[A]

I5JB0A332015-03

[A]: 4WD control module connector “E91” (viewed from harness side)

4. 4L indicator

[B]: Combination meter connector (viewed from harness side)

5. N indicator

Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-26

Circuit Description
Transfer position indicator operates according to the signal from 4WD control module. If the transfer control system is
in good condition, transfer position indicator light up for 2 seconds when ignition switch is turned to ON position, and
then turned to OFF position. If an abnormality is detected in the system, transfer position indicator remains lighting.

Troubleshooting

1. 4WD control module

6. Junction block assembly

2. Combination meter

7. “METER” fuse

3. Differential lock indicator

8. Ignition switch

Step

Action

Yes

No

1

Transfer position indicator power supply check
1) Turn ignition switch to ON position.

Do other indicators come ON?

Go to Step 2.

Go to Step 3.

2

Check DTC
1) Connect scan tool to DLC with ignition switch OFF.
2) Turn ignition switch to ON position and check DTC.

Is there DTC(s) U1073, U1100, U1101 and/or U1121?

Go to applicable DTC
diag. flow.

Substitute a known-
good combination meter
and recheck. If transfer
position indicator still
remains off, substitute a
known-good 4WD
control module and
recheck.

3

CAN communication circuit check
1) Check CAN communication circuit between combination

meter and 4WD control module referring to “DTC U1073:
Control Module Communication Bus Off: Motor-Shift
Type (Transfer with Shift Actuator)”.

Is CAN communication circuit in good condition?

Go to Step 4.

Repair or replace.

4

“METER” fuse check
1) Turn ignition switch to OFF position.
2) Check for fuse blown to “METER” fuse in junction block

assembly.

Is “METER” fuse in good condition?

Go to Step 5.

Replace “METER” fuse
and check for short.

5

Combination meter power supply check
1) Remove combination meter referring to “Combination

Meter Removal and Installation in Section 9C in related
manual”.

2) Check proper connection to combination meter

connector at “G28-13” and “G28-15” terminals.

3) If OK, then turn ignition switch to ON position and

measure voltage between combination meter connector
at “G28-13” terminal and vehicle body ground.

Is it 10 – 14 V?

Go to Step 6.

“PPL/RED” wire is open
circuit.

6

Combination meter ground circuit check
1) Turn ignition switch to OFF position.
2) Measure resistance between combination meter

connector at “G28-15” terminal and vehicle body ground.

Is resistance 1

 or less?

Substitute a known-
good combination meter
and recheck. If transfer
position indicator still
remains OFF, substitute
a known-good 4WD
control module and
recheck.

“BLK” wire is open or
high resistance circuit.
