2B-8 Front Suspension:

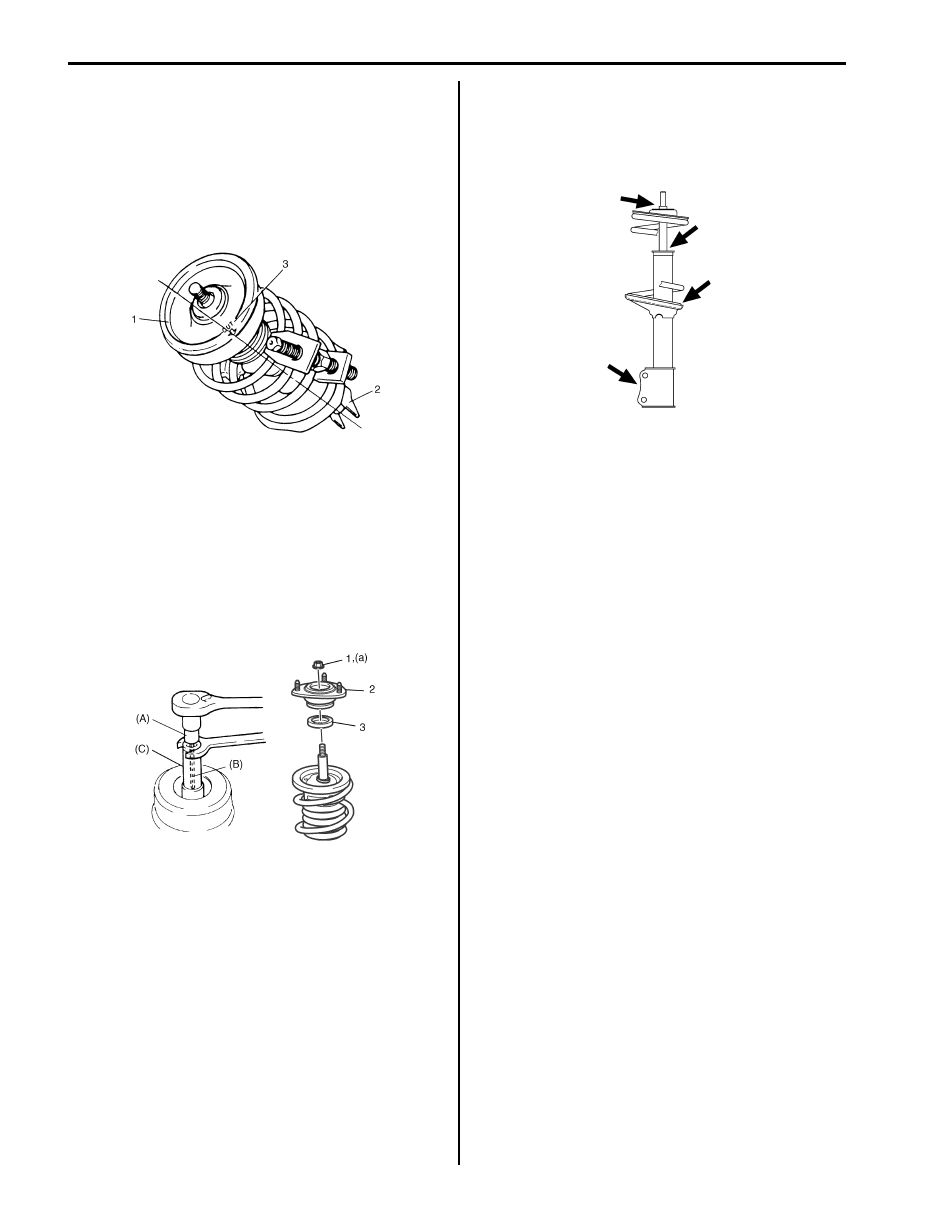

4) Pull strut rod as far up as possible and use care not

to allow it to retract into strut.

5) Attach coil spring seat to coil spring upper seat and

then install strut dust cover firmly.

6) Install coil spring upper seat with strut dust cover on

coil spring and then spring upper seat (1) aligning
“OUT” mark (3) on spring upper seat and center of
strut bracket (2).

7) Install bearing (3), strut support (2) and strut nut (1)

in this sequence.
Tighten strut nut (1) holding stud with special tools.

Special tool
(A):  09900–00411
(B):  09900–00414
(C):  09941–56510

Tightening torque
Strut nut (a):  90 N·m (9.0 kgf-m, 65.0 lb-ft)

Front Strut Assembly Check

S5JB0E2206005

• Inspect strut for oil leakage, damage or deformation.

If defect is found, replace strut as an assembly unit,
because it can not be disassembled.

• Inspect strut function referring to the following

procedures:

1) Check and adjust tire pressures as specified.
2) Bounce vehicle body up and down 3 or 4 times

continuously by pushing front end of the vehicle side
body to check strut.
Also, note how many times vehicle body rebounds to
stop after force application.

3) Repeat the same procedure to the other strut to

confirm that the both side struts equally respond.

If conditions of struts are in doubt, compare them with
known-good vehicle or strut.
• Inspect bearing for wear, abnormal noise or gripping.

If defective, replace.

• Inspect coil spring seat for cracks or deformation.

If defective, replace.

• Inspect bump stopper for deterioration.

If defective, replace.

• Inspect rebound stopper and strut mount for wear,

cracks or deformation.
If defective, replace.

I2RH01220019-01

I5JB0A220011-03

I4RS0A220014-01

Front Suspension:  2B-9

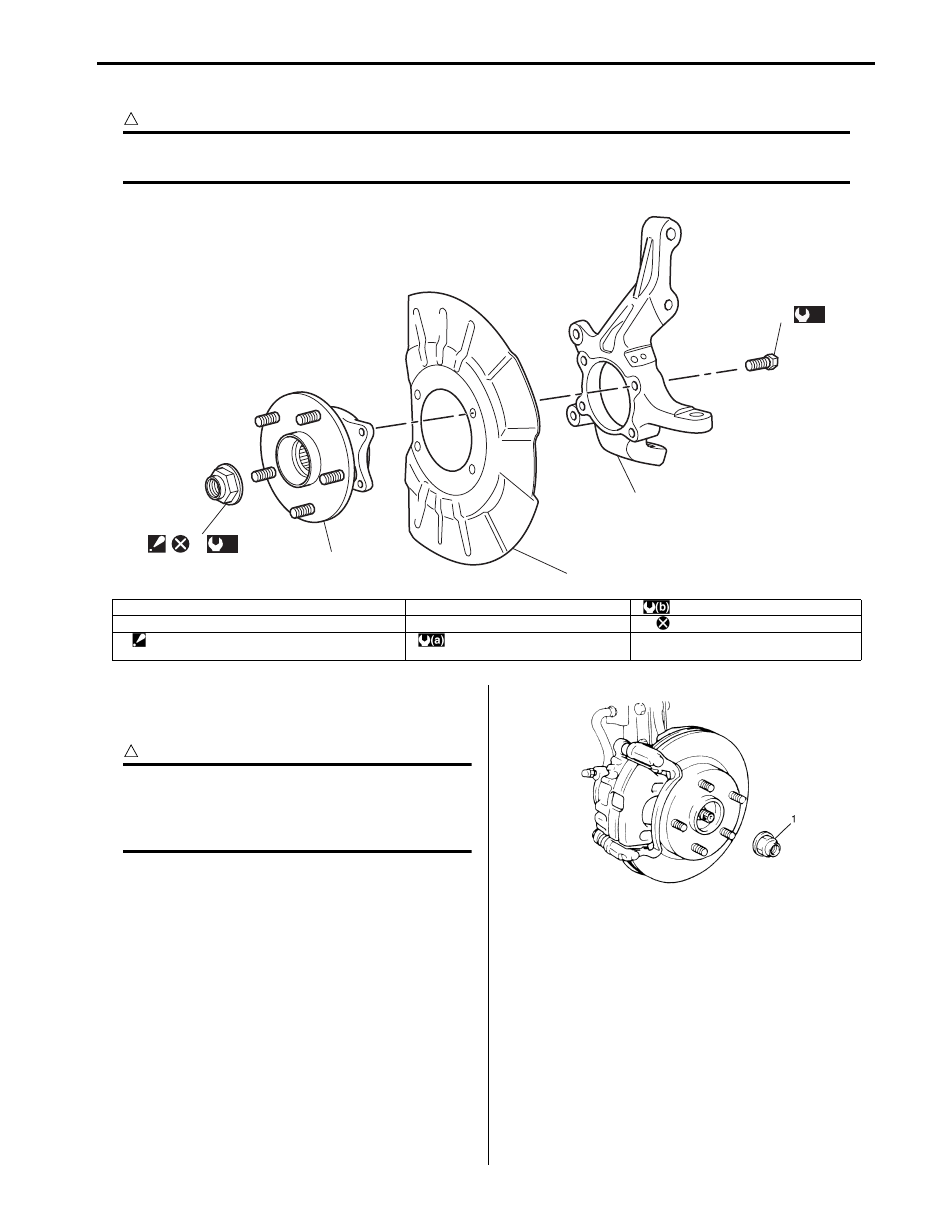

Front Wheel Hub Assembly and Steering Knuckle Components

S5JB0E2206006

CAUTION

!



Never disassemble front wheel hub assembly. Disassembly will spoil its original function. If faulty
condition is found, replace it with new one.



Front Wheel Hub Assembly Removal and
Installation

S5JB0E2206007

CAUTION

!



Never disassemble front wheel hub
assembly. Disassembly will spoil its original
function. If faulty condition is found, replace
it with new one.



Removal

1) Hoist vehicle and remove wheel.
2) Uncaulk drive shaft nut (1).
3) Depress foot brake pedal and hold it. Remove drive

haft nut (1).

1

4

2

5

3

(b)

(a)

I5JB0A220012-01

1. Front wheel hub assembly

4. Dust cover

: 50 N

⋅m (5.0 kgf-m, 36.0 lb-ft)

2. Steering knuckle

5. Wheel hub housing bolt

: Do not reuse.

3. Drive shaft nut

: Calk, after tightening.

: 220 N

⋅m (22.0 kgf-m, 159.5 lb-ft)

I5JB0A220013-01

2B-10 Front Suspension:

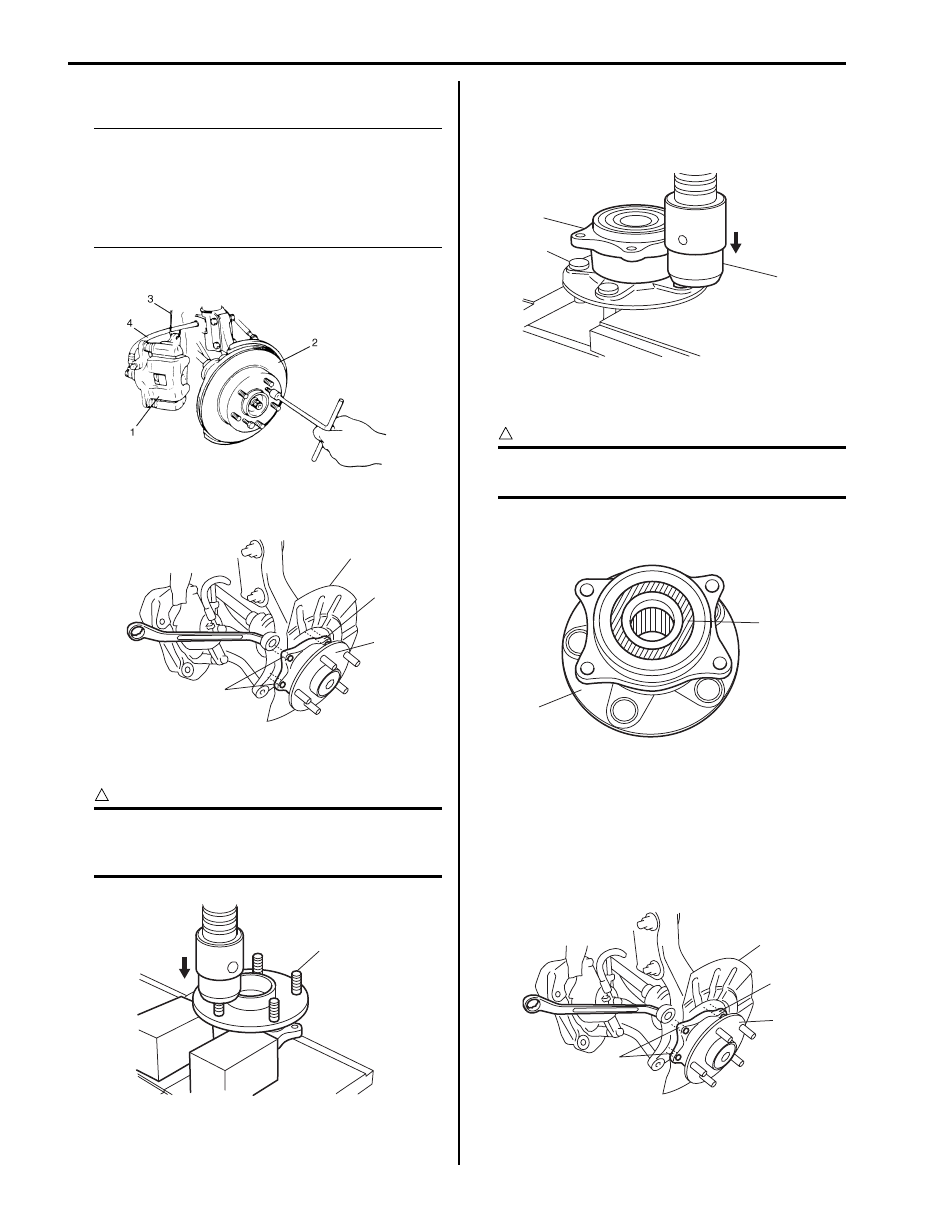

4) Remove caliper (1) with carrier.

NOTE
Hang removed caliper with a wire hook or the
like (3) so as to prevent brake hose (4) from
bending, twisting or tension.Do not depress
brake pedal during pads removal.
Do not operate brake pedal with pads
removed.



5) Pull brake disc (2) off by using two 8 mm bolts.

6) Remove wheel hub housing bolts (3), and then

remove wheel hub assembly (1) and dust cover (2).

7) Remove hub bolts (1) with copper hammer or

hydraulic press.

CAUTION

!



Never remove bolt unless replacement is
necessary.
Be sure to use a new bolt for replacement.



Installation

1) Insert new hub bolt (1) in hub hole. Rotate hub bolt

slowly to assure that serrations are aligned with
those made by original bolt.

2) Apply grease to end face of inner ring (2) before front

wheel nub (1) installation.

CAUTION

!



Do not apply the grease to the encoder
section to avoid the encoder malfunction.



“A”:  Grease 99000–25010 (SUZUKI Super
Grease A)

3) Install wheel hub (1) and dust cover (2) to steering

knuckle.

4) Tighten wheel hub housing bolts (3) to specified

torque

Tightening torque
Wheel hub housing bolt (a):  50 N·m (5.0 kgf-m,
36.5 lb-ft)

I5JB0A220014-01

1

2

3

3

I5JB0A220015-01

1

I5JB0A220016-01

1

I5JB0A220017-01

1

2, "A"

I5JB0A220018-01

3,(a)

3,(a)

2

1

I5JB0A220019-01

Front Suspension:  2B-11

5) Install brake disk and brake caliper.
6) Tighten caliper carrier bolt to specified torque.

Tightening torque
Caliper carrier bolt:  85 N·m (8.5 kgf-m, 61.5 lb-ft)

7) Depress foot brake pedal and hold it there. Tighten

new drive shaft nut (1) to specified torque.

Tightening torque
Drive shaft nut (a):  220 N·m (22.0 kgf-m, 159.5
lb-ft)

CAUTION

!



Never reuse drive shaft nut (1).



8) Caulk drive shaft nut (1) as shown.

9) Tightening wheel nuts to specified torque.

Tightening torque
Wheel nut:  100 N·m (10.0 kgf-m, 72.5 lb-ft)

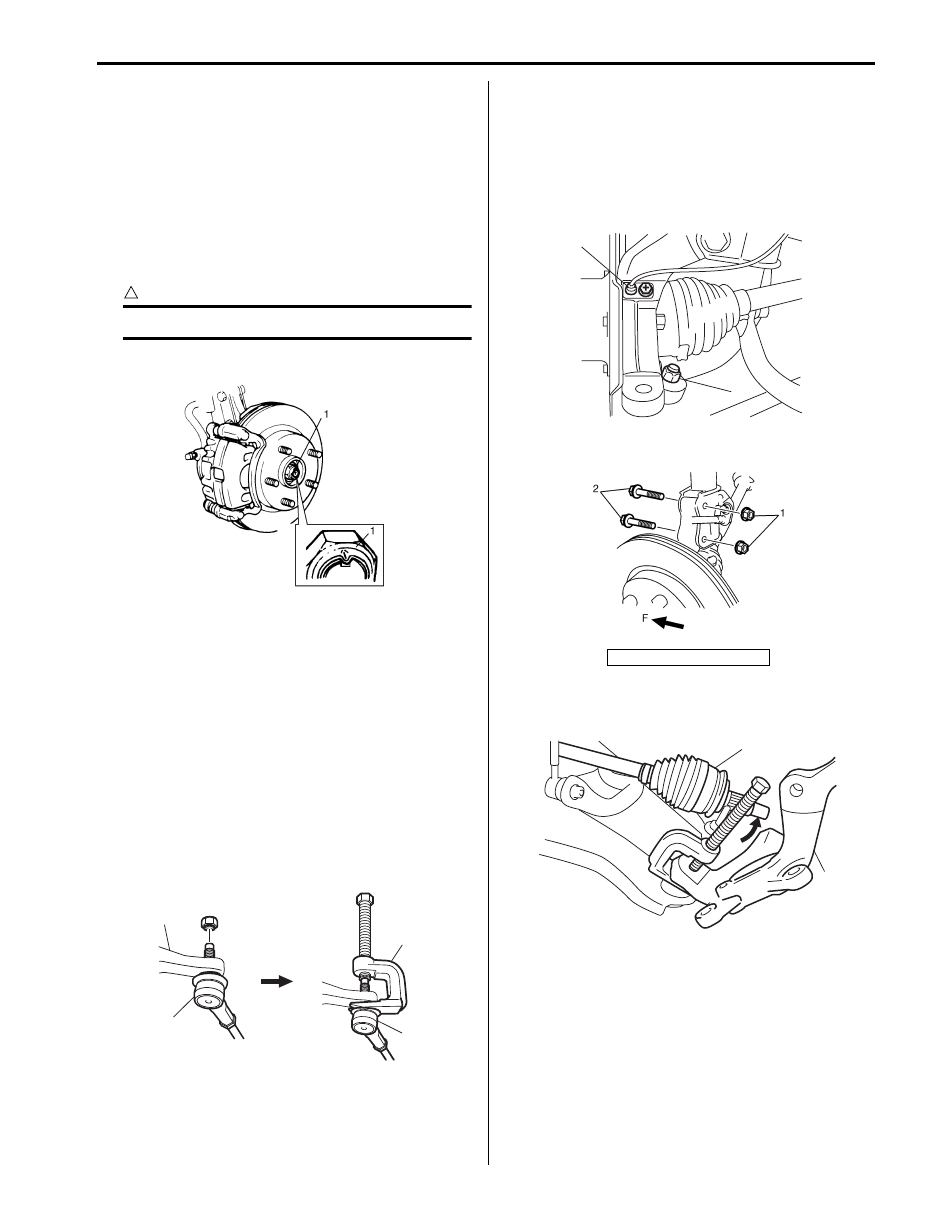

Steering Knuckle Removal and Installation

S5JB0E2206008

Removal

1) Hoist vehicle and remove wheel.
2) Remove Front wheel hub assembly referring to

“Front Wheel Hub Assembly Removal and
Installation”.

3) Disconnect tie-rod end (1) from steering knuckle (2)

with puller (3).

4) Disconnect front height sensor (if equipped) from

suspension control arm for left side referring to
“Height Sensor Removal and Installation (If
Equipped) in Section 9B in related manual”.

5) Remove front wheel speed sensor (1) from knuckle

(if ABS equipped).

6) Loosen ball joint nut (2).

7) Remove strut bracket bolts (2) and nuts (1).

8) Disconnect ball joint from steering knuckle (2) with

puller and then remove steering knuckle (2).

I5JB0A220021-01

2

1

3

1

I5JB0A220020-01

F: Forward

2

1

I5JB0A220022-01

I5JB0A220023-01

1

2

I5JB0A220024-01
