Subaru XV Crosstrek (2016 year). Instruction

less equipment is used), or while talking
on a cell phone, the operating ranges may
be reduced, or the keyless access func-
tion may not operate.
In such a case, perform the procedure
described in

“Locking and unlocking” F9-

18.
. When an access key is in the operating
range, if the door handle becomes wet
due to exposure to a significant amount of
water when the vehicle is washed or
during heavy rain, the doors may be
locked or unlocked.
. The keyless access function may not
operate properly depending on the status
of the access key and the radio wave
conditions around the vehicle. In such a
case, perform the procedure described in

“Locking and unlocking” F9-18.
! How to use keyless access func-

tions

! Keyless access function tips

. When you lock the doors and rear gate
(5-door) using the keyless access func-
tion, turn the push-button ignition switch
off. It is not possible to lock the doors and
rear gate using the keyless access func-
tion when the push-button ignition switch
is on the

“ACC” or “ON” position. Refer to

“Switching power” F3-7.

. If the door handle is gripped with a

gloved hand, the door lock may not be
released.
. If the door lock sensor is touched three
times or more repeatedly, the system will
ignore the sensor operation.
. When performing the locking proce-
dure too quickly, locking may not have
been completed. After performing the
locking procedure, it is recommended to
pull the REAR door handle to confirm that
the doors have been locked.
. It is possible to lock the doors even
when one of the doors is open. After
performing the locking procedure, close
the opened door or rear gate to lock it.
. Within 3 seconds after locking the
doors and the rear gate by using the
keyless access function, it is not possible
to unlock doors and/or the rear gate by
using the keyless access function.
. When locking, be sure to carry the
access key to prevent locking the access
key in the vehicle.
. The setting of the hazard warning
flasher operation and the volume of the
audible signal can be changed by your
SUBARU dealer. We recommend that you
contact your SUBARU dealer for details.
. For models with the multi function
display, the setting of the hazard warning
flasher operation can be changed by
operating the multi function display. For

details, refer to

“Hazard warning flasher

setting

” F3-79.

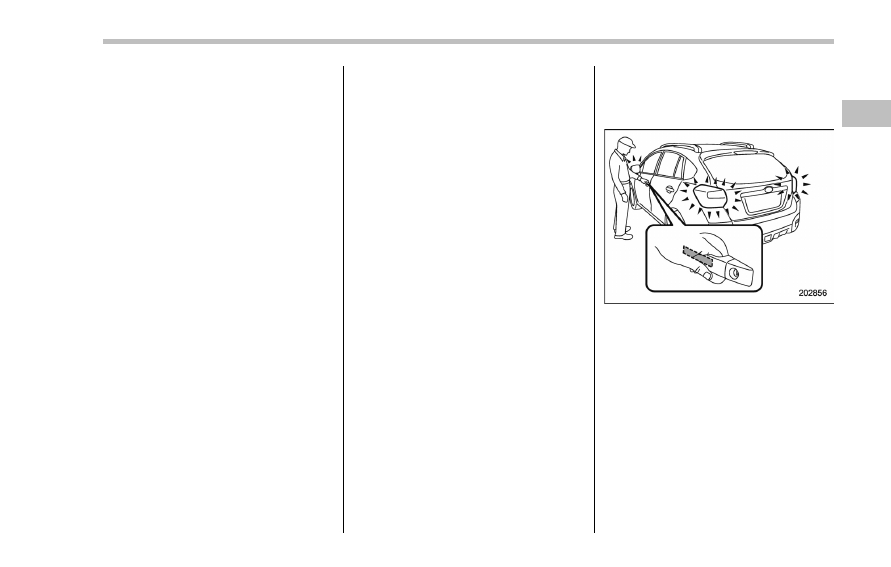

! Unlocking

Carry the access key, and grip the door
handle.
. When the driver’s door handle is
gripped, only the driver

’s door will be

unlocked.
. When the front passenger’s door han-
dle is gripped, all doors (for 5-door
models, including the rear gate) will be
unlocked.

Also, an electronic chirp will sound twice
and the hazard warning flashers will flash
twice.

Keys and doors/Keyless access with push

–button start system

– CONTINUED –

2-15

Keys and doors/Keyless access with push

–button start system

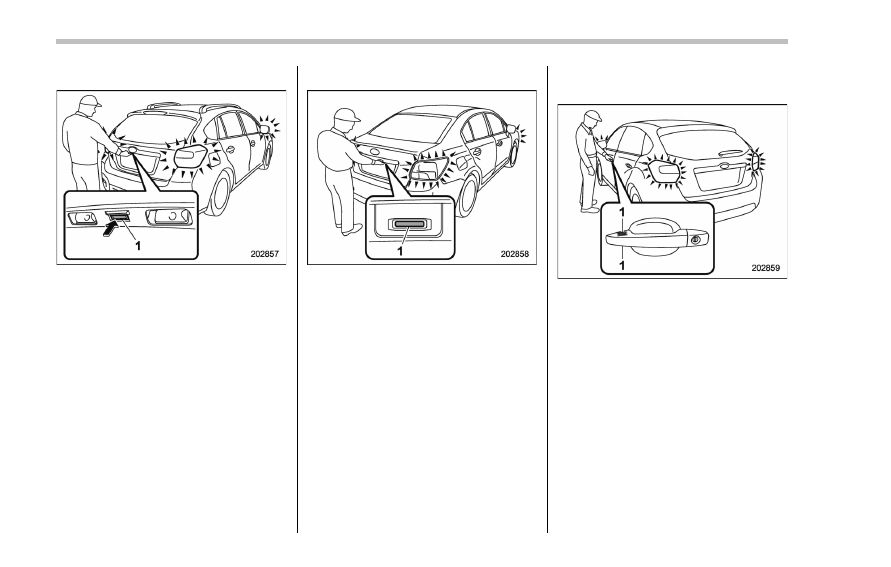

! Opening rear gate (5-door)

Rear gate opener button

Carry the access key, and press the rear
gate opener button. Only the rear gate will
be unlocked and opened. Also, an elec-
tronic chirp will sound twice and the
hazard warning flashers will flash twice.

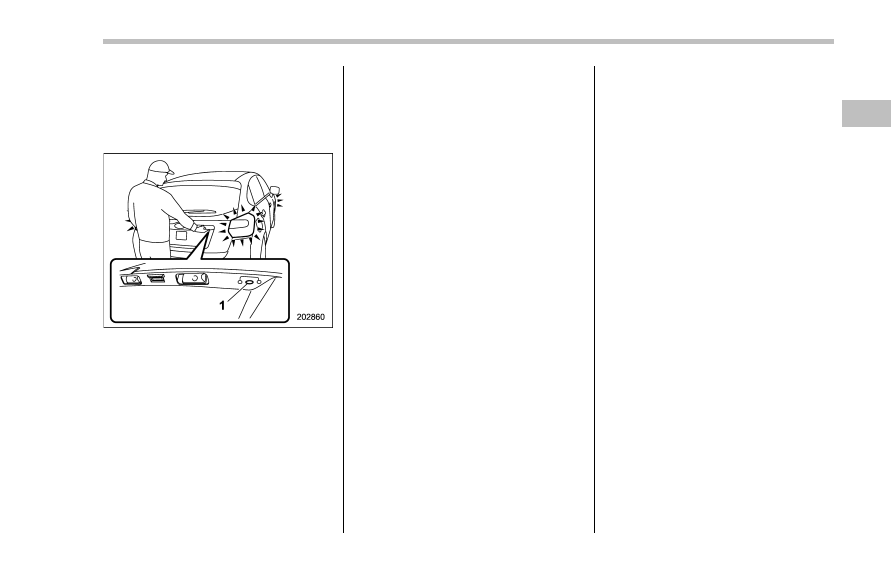

! Opening trunk (4-door)

Trunk opener button

Carry the access key, and press the trunk
opener button. The trunk will open.
An electronic chirp will sound twice and
the hazard warning flashers will flash
twice.

! Locking with the door lock

sensor

Door lock sensor

Carry the access key, close all doors (for
5-door, including the rear gate) and touch
the door lock sensor on the door handle.
All doors including the rear gate will be
locked. Also, an electronic chirp will sound
once and the hazard warning flashers will
flash once.

NOTE

After touching the door lock sensor to
lock all of the doors (including the rear
gate), if you touch the door lock sensor
once more to attempt the lock opera-
tion without first unlocking the doors,
nothing will happen, even if the door
lock sensor is touched. In this case,

2-16

perform the unlocking operation once
first. You can then touch the door lock
sensor to lock the doors.

! Locking with the rear lock button

(5-door)

Rear lock button

Carry the access key, close all doors
including the rear gate and press the rear
lock button. The rear gate and all doors
will be locked. Also, an electronic chirp will
sound once and the hazard warning
flashers will flash once.
! Power saving function
The keyless access function will be
disabled in the following cases to protect
the access key battery and the vehicle
battery.

. Case 1: When the keyless access
function and the remote keyless entry
system have not been used for 2 weeks
or longer while all doors are locked

To recover the keyless access func-
tion:
Operate one of the following items.

– Unlock the doors by operating any
procedure other than gripping the front
passenger

’s door handle

– Lock the doors

– Open a door and then close it

. Case 2: When the access key has
been left in the operating range for 10
minutes or longer while all doors are
locked

To recover the keyless access func-
tion:
Operate one of the following items.

– Unlock the doors by gripping the
door handle
– Unlock the doors by pressing the
rear gate opener button
– Lock the doors by touching the door
lock sensor
– Lock or unlock the doors by using
the remote keyless entry system
– Lock or unlock the doors by using
the power door locking switch
– Open either of the front doors

! Door unlock selection function
The door unlock selection function makes
the following operations possible.
. Unlocking the driver’s door without
unlocking any other doors (including the
rear gate) when gripping the driver

’s door

handle
. Opening the rear gate without unlock-
ing any doors when pressing the rear gate
opener button (5-door)

The operational/non-operational setting
for this function can be changed by a
SUBARU dealer.

Operational:
. Only the driver’s door will be unlocked
when the driver

’s door handle is gripped.

. The rear gate will open, but the other
doors will remain locked when the rear
gate opener button is pressed. (5-door)

Non-operational:
. All doors and the rear gate will be
unlocked when the driver

’s door handle is

gripped.
. The rear gate will open and all doors
will be unlocked when the rear gate
opener button is pressed. (5-door)

The factory setting (default setting) is set
as

“operational”.

For further details, consult a SUBARU

Keys and doors/Keyless access with push

–button start system

– CONTINUED –

2-17

Keys and doors/Keyless access with push

–button start system

dealer.

NOTE

The setting can be changed by your
SUBARU dealer. Contact your SUBARU
dealer for details. Also, for models with
the multi function display, the setting
can be changed by operating the multi
function display. For details, refer to

“Keyless access setting (models with

“keyless access with push-button start
system

”)” F3-84.

& Selecting audible signal op-

eration

Using an electronic chirp, the system will
give you an audible signal when the doors
lock and unlock. If desired, you may turn
the audible signal off. For more details,
contact a SUBARU dealer.

NOTE

For models with the multi function
display, the setting can be changed by
operating the multi function display.
For details, refer to

“Keyless buzzer

volume setting

” F3-79.

& Warning chimes and warning

indicator

The keyless access with push-button start
system sounds a warning chime and
flashes the access key warning indicator
on the combination meter in order to
minimize improper operations and help
protect your vehicle from theft.
For details, refer to

“Warning chimes and

warning indicator of the keyless access
with push-button start system

” F3-25.

& Disabling keyless access

function

WARNING

If you wear an implanted pacemaker
or an implanted defibrillator, per-
form the procedure described in

“By operating the driver’s door”

F2-19 to disable the keyless access
function. If you perform the proce-
dure described in

“By operating the

access key

” F2-18, the operation of

an implanted pacemaker or im-
planted defibrillator may be affected
by the radio waves from the trans-
mitter antenna.

When the vehicle is not going to be used
for a long time, or when you choose not to

use the keyless access function, the
keyless access function can be disabled.

NOTE

. The locking and unlocking function
by the remote keyless entry system is
not disabled.

. The setting can also be changed at
SUBARU dealers. For more details,
contact a SUBARU dealer.

. To start the engine while the func-
tions are disabled, perform the proce-
dure described in

“Starting engine”

F9-19.

. We recommend that you disable the
keyless access functions under the
following conditions.

– When the vehicle is not going to
be used for an extended period of
time
– When the keyless access func-
tions are not going to be used

! Disabling functions

! By operating the access key

If you have registered a PIN code for PIN
Code Access, you can disable the keyless
access function by operating the access
key. For details about registering a PIN
code, refer to

“Registering a PIN code”

F2-22.

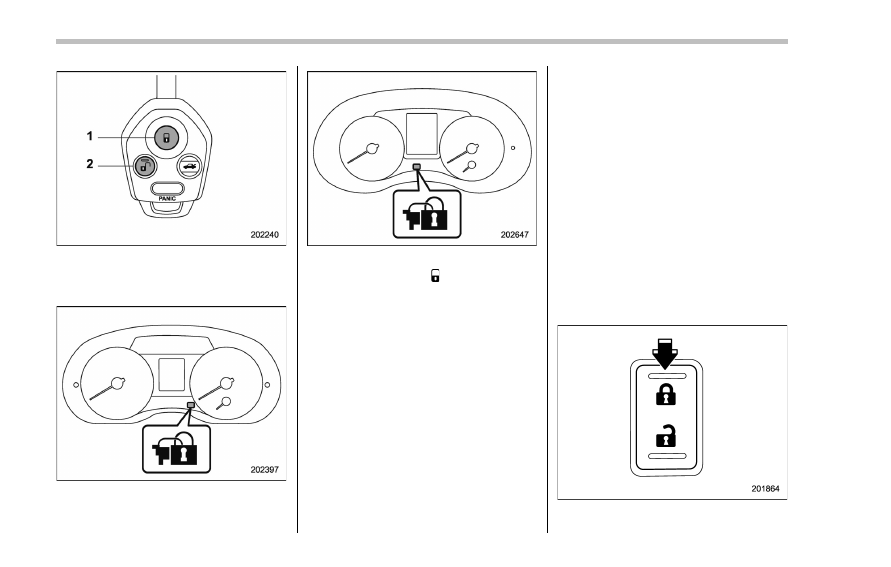

1. Open the driver

’s door.

2-18

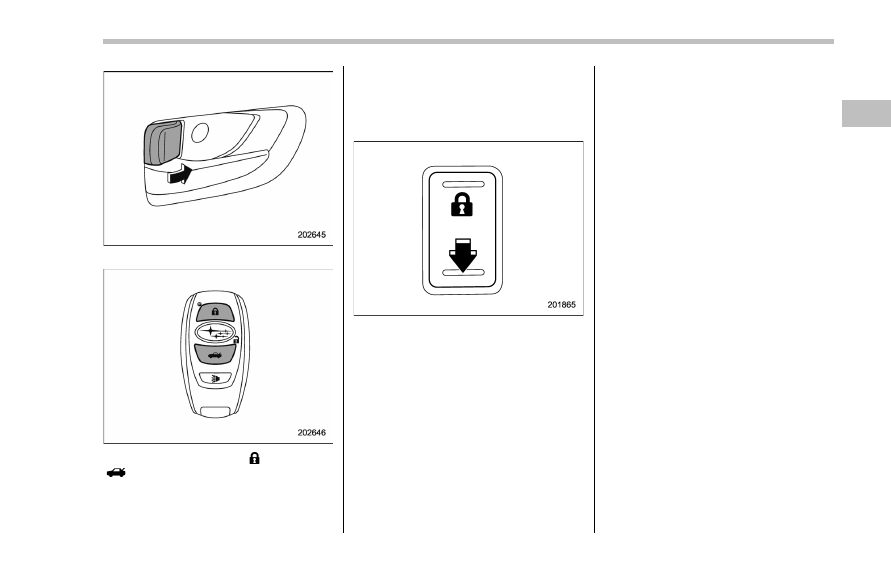

2. Rotate the lock lever forward.

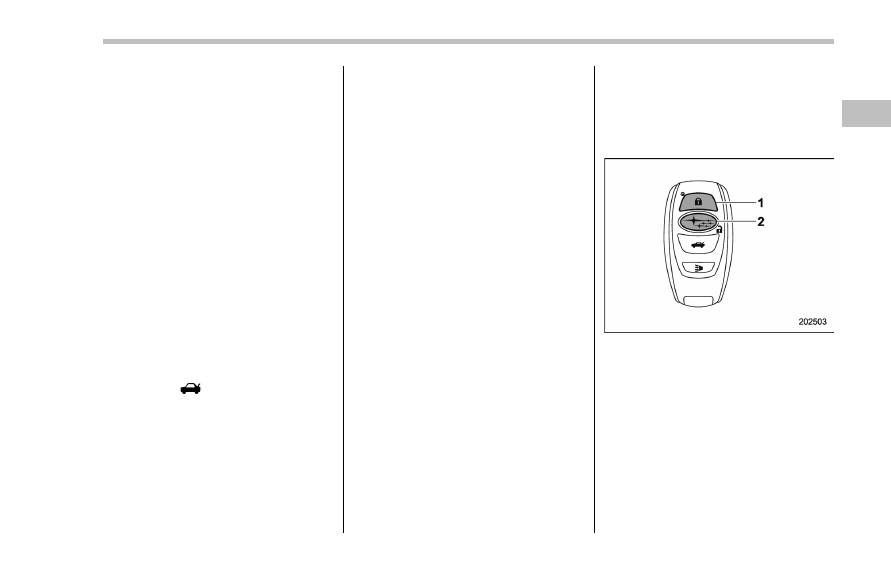

3. Press and hold the

“ ” button and

“

” button on the access key simulta-

neously for more than 5 seconds.

A chirp sound will be heard, and the

function will be disabled.

! By operating the driver’s door

1. Sit in the driver

’s seat, and close the

door.

2. Push the rear side (unlock side) of the
power door locking switch.
3. Within 5 seconds after step 2 is
performed, open the driver

’s door.

4. Within 5 seconds after step 3 is
performed, push the rear side (unlock
side) of the power door locking switch
twice while the door is open.
5. Within 10 seconds after step 4 is
performed, close and open the driver

’s

door twice.
6. Within 10 seconds after step 5 is
performed, push the rear side (unlock
side) of the power door locking switch

twice while the door is open.
7. Within 10 seconds after step 6 is
performed, close and open the driver

’s

door once.
8. Within 5 seconds after step 7 is
performed, close the door.

A chirp sound will be heard, and the
functions will be disabled.

NOTE

In steps 4 and 6, press the power door
locking switch slowly. If the switch is
pressed quickly, the functions may not
be disabled.

! Enabling functions
When the procedure to disable the func-
tions is performed again, a chirp sound will
be heard, and the functions are enabled.

NOTE

. The keyless access function will be
enabled only if you perform the proce-
dure in the same manner you disabled
the function (for example, when dis-
abling by operating the driver

’s door,

the function will not be enabled even if
you operate the access key).

. Press the push-button ignition
switch if you do not know the proce-
dure in which the keyless access
function was disabled.

Keys and doors/Keyless access with push

–button start system

– CONTINUED –

2-19

Keys and doors/Keyless access with push

–button start system

– When disabling by operating the
driver

’s door: a chirp will not be

heard
– When disabling by operating the
access key: a chirp will be heard

& When access key does not

operate properly

Refer to

“Access key – if access key does

not operate properly

” F9-18.

& Replacing battery of access

key

Refer to

“Replacing battery of access key”

F11-44.

& Replacing access key

Access keys can be replaced at SUBARU
dealers. For more details, contact a
SUBARU dealer.

& Certification for keyless ac-

cess with push-button start
system

. U.S.-spec. models

FCC ID: HYQ14AHC
FCC ID: HYQ13CZZ
FCC ID: Y8PSSPIMB02
FCC ID: Y8PSSPLF02

CAUTION

FCC WARNING

Changes or modifications not ex-
pressly approved by the party re-
sponsible for compliance could void
the user

’s authority to operate the

equipment.

NOTE

This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This de-
vice may not cause harmful interfer-
ence, and (2) this device must accept
any interference received, including
interference that may cause undesired
operation.

. Canada-spec. models

2-20

. Mexico-spec. models

IFT
RLVDE1413-2269
14AHC
DENSO

PIN Code Access (models
with

“keyless access with

push-button start system

”)

Trunk opener button (4-door)

Rear lock button (5-door)

While all doors (for 5-door, including the
rear gate) are locked, you can unlock the
doors (including rear gate) without a key
by performing the following procedure.
. 4-door: press the trunk opener button

. 5-door: press the rear lock button

NOTE

PIN Code Access will be helpful if the
key is accidentally left in the vehicle. It
is recommended that a 5-digit security
code (PIN code) is registered.

Keys and doors/PIN Code Access (models with

“keyless access with push–button start system”)

– CONTINUED –

2-21

Keys and doors/PIN Code Access (models with

“keyless access with push–button start system”)

& Registering a PIN code

! Preparation
1. Turn off the ignition switch.
2. Close all doors (including trunk/rear
gate).
3. Press and hold the

“ ” button on the

access key. Then all doors (including rear
gate) will be locked.
4. Keep the

“ ” button pressed, and

press the following button within 5 sec-
onds after step 3.

. 4-door: the trunk opener button

. 5-door: the rear lock button

5. Press and hold the above button for
more than 5 seconds. Then a chirp will
sound.
6. Release the

“ ” button and trunk

opener button/rear lock button.
7. Press the

“ ” button on the access key

while the chirp sounds.
Then the chirp will stop and the prepara-
tion is complete.

NOTE

If you do not press the

“ ” button on

the access key, the chirp will sound for
30 seconds. In this case, the prepara-
tion for registering a PIN code does not
complete even if the chirp stops.

! Registration
For example, to register

“32468” as the

PIN code, perform the following proce-
dure.

4-door:
1. Press the trunk opener button three
times.
2. After a buzzer (ding) sounds once,
press the trunk opener button twice.
3. After a buzzer (ding) sounds once,
press the trunk opener button four times.
4. After a buzzer (ding) sounds once,
press the trunk opener button six times.
5. After a buzzer (ding) sounds once,
press the trunk opener button eight times.
6. Perform steps 1 to 5 again within
approximately 30 seconds after the buz-
zer starts sounding intermittently.
7. All doors will be unlocked and locked.
Then the PIN code will be registered.

5-door:
1. Press the rear lock button three times.
2. After a buzzer (ding) sounds once,
press the rear lock button twice.
3. After a buzzer (ding) sounds once,
press the rear lock button four times.
4. After a buzzer (ding) sounds once,
press the rear lock button six times.
5. After a buzzer (ding) sounds once,
press the rear lock button eight times.

6. Perform steps 1 to 5 again within
approximately 30 seconds after the buz-
zer starts sounding intermittently.
7. All doors (including rear gate) will be
unlocked and locked. Then the PIN code
will be registered.

NOTE

. Press the trunk opener button/rear
lock button ten times to enter

“0”.

. Change the PIN code frequently to
protect your vehicle from theft.

. If you have lent your vehicle to
another person, confirm that the PIN
code has not been changed or deleted.
If the PIN code has been changed or
deleted, reregister a new PIN code.

. If you make an error during the
registration procedure, press the

“ ”

“

” button on the access key.

Then, start over from the procedure
described in

“Preparation”.

. To protect your vehicle from theft,
you cannot register a string of the
same five numbers together, such as

“00000”, nor “12345” as a PIN code.

. Do not register your vehicle license
plate number or simple numbers such
as

“11122” or “12121” as a PIN code.

Doing so will increase the risk of
vehicle theft.

. When you try to register “22222”,

2-22

the registered PIN code will be deleted.
You cannot unlock the doors by PIN
Code Access until a new code is
registered.

. After registering a new PIN code,
make sure that you can unlock the
doors using the PIN code.

. The PIN code cannot be deleted
while the keyless access function is
disabled by operating the access key.

. Reregister the PIN code in the
following case.

– when you forget the PIN code

– when you want to change the PIN
code

& Unlocking

Perform steps 1 to 5 described in

“Regis-

tration

”.

NOTE

. You cannot unlock by PIN Code
Access in the following cases.

– when the access key is within the
operating ranges
– when the ignition switch is in the

“ACC” or “ON” position

. If you make an operation error
during the unlocking procedure, start
over with the unlocking procedure after
waiting for 5 seconds or longer.

. To protect your vehicle from theft, a

buzzer will sound if incorrect PIN codes
are entered five times continuously. If
this occurs, you cannot unlock the
doors by PIN Code Access for 5
minutes.

Remote keyless entry system

CAUTION

. Do not expose the remote trans-

mitter to severe shocks, such as
those experienced as a result of
dropping or throwing.

. Do not take the remote transmit-

ter apart except when replacing
the battery.

. Do not get the remote transmitter

wet. If it gets wet, wipe it dry with
a cloth immediately.

. When you carry the remote trans-

mitter on an airplane, do not
press the button of the remote
transmitter while in the airplane.
When any button of the remote
transmitter is pressed, radio
waves are sent and may affect
the operation of the airplane.
When you carry the remote trans-
mitter in a bag on an airplane,
take measures to prevent the
buttons of the remote transmitter
from being pressed.

For models with

“keyless access with

push-button start system

”, the access

Keys and doors/Remote keyless entry system

– CONTINUED –

2-23

Keys and doors/Remote keyless entry system

key is used as the transmitter for the
remote keyless entry system. For models
without

“keyless access with push-button

start system

”, the transmitter for the

remote keyless entry system is located
inside the key head.

The remote keyless entry system has the
following functions.
. Locking and unlocking the doors (and
rear gate for 5-door) without a key
. Opening the trunk lid for 4-door without
key
. Sounding a panic alarm

. Arming and disarming the alarm sys-
tem. For detailed information, refer to

“Alarm system” F2-27.

The operable distance of the remote
keyless entry system is approximately 30
feet (10 meters). However, this distance
will vary depending on environmental
conditions. The system

’s operable dis-

tance will be shorter in areas near a
facility or electronic equipment emitting
strong radio waves such as a power plant,
broadcast station, TV tower, or remote
controller of home electronic appliances.

NOTE

. For models with “keyless access
with push-button start system

”, the

remote keyless entry system will not

be activated when the push-button
ignition switch is in any position other
than the

“OFF” position.

. For models without “keyless access
with push-button start system

”, the

remote keyless entry system will not
be activated when the key is inserted in
the ignition switch.

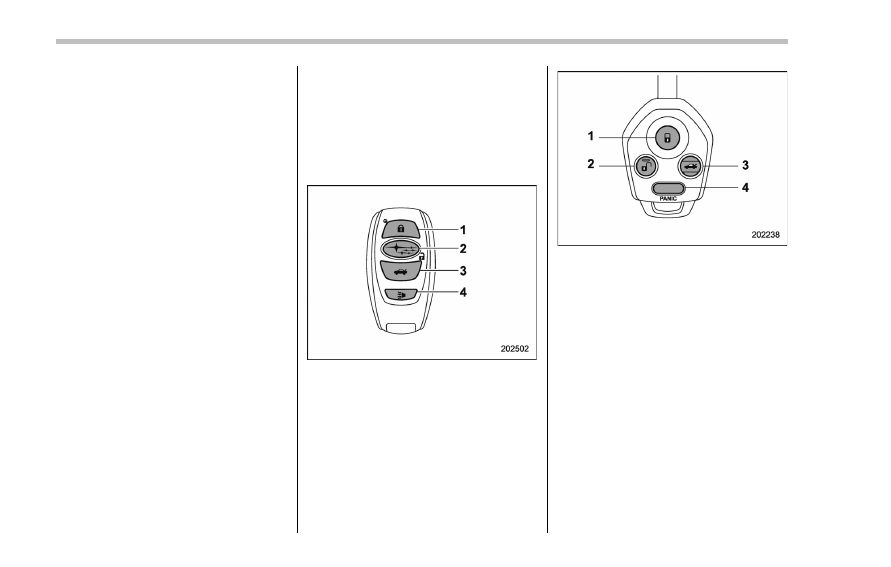

Access key
1)

Lock/arm button

Unlock/disarm button

Trunk lid opener/rear gate unlock button

PANIC button

Transmitter
1)

Lock/arm button

Unlock/disarm button

Trunk lid opener/rear gate unlock button

PANIC button

NOTE

The hazard warning flashers will flash
once or twice when the access key/
transmitter button is pressed in the
following cases.
– When locking the doors

– When unlocking the doors

– When opening the trunk lid (4-door
models)

– When unlocking the rear gate (5-
door models)

Operation of the hazard warning

2-24

flashers in the above cases can be set
to

“On” or “Off” by a SUBARU dealer.

Consult your SUBARU dealer for de-
tails. Also, for models with a multi
function display, the setting can be
changed using the display. For details,
refer to

“Hazard warning flasher

setting

” F3-79.

& Locking the doors

Press the lock/arm button to lock all doors
and rear gate (5-door). An electronic chirp
will sound once and the hazard warning
flashers will flash once.

If any of the doors (or the rear gate/trunk
lid) is not fully closed, the following will
occur to alert you that the doors (or the
rear gate/trunk lid) are not properly closed.
. an electronic chirp sounds five times.

. the hazard warning flashers flash five
times.

When you close the door, it will automa-
tically lock and then the following will
occur.
. an electronic chirp sounds once.

. the hazard warning flashers flash once.

& Unlocking the doors

Press the unlock/disarm button to unlock
the driver

’s door. An electronic chirp will

sound twice and the hazard warning
flashers will flash twice. To unlock all
doors and the rear gate (5-door), briefly
press the unlock/disarm button a second
time within 5 seconds.

NOTE

If the interval between the first and
second presses of the unlock/disarm
button (for unlocking of all of the doors
and the rear gate) is extremely short,
the system may not respond.

& Opening the trunk lid

(4-door)

Press and hold the trunk lid opener button
to open the trunk lid. An electronic chirp
will sound twice and the hazard warning
flashers will flash twice.

& Unlocking the rear gate

(5-door)

Press the rear gate unlock button to
unlock the rear gate.
An electronic chirp will sound twice and
the hazard warning flashers will flash
twice.

& Vehicle finder function

Use this function to find your vehicle
parked among many vehicles in a large
parking lot. Provided you are within 30 feet
(10 meters) of the vehicle, pressing the
lock/arm button three times in a 5-second
period will cause your vehicle

’s horn to

sound once and its hazard warning
flashers to flash three times.

NOTE

If the interval between presses is too
short when you press the lock/arm
button three times, the system may
not respond to the signals from the
remote transmitter.

& Sounding a panic alarm

To activate the alarm, press the

“PANIC”

button once.
The horn will sound and the hazard
warning flashers will flash.
To deactivate the panic alarm, press any
button on the remote transmitter. Unless a
button on the remote transmitter is
pressed, the alarm will be deactivated
after approximately 30 seconds.

Keys and doors/Remote keyless entry system

– CONTINUED –

2-25

Keys and doors/Remote keyless entry system

& Selecting audible signal op-

eration (models without

“keyless access with push-

button start system

”)

Using an electronic chirp, the system will
give you an audible signal when the doors
lock and unlock. If desired, you may turn
the audible signal off.

Perform the following steps to deactivate
the audible signal. You can also use the
same steps to restore the function.
1. Sit in the driver

’s seat and shut all

doors and the rear gate.

2. Hold down the REAR (UNLOCK) side
of the power door locking switch.
3. While holding down the REAR (UN-
LOCK) side of the power door locking
switch, pull the key out and re-insert it into

the ignition switch at least 6 times within
10 seconds after Step 2.
4. Open and close the driver

’s door once

within 10 seconds after Step 3.
5. The hazard warning flashers flash 3
times to indicate completion of the setting.

You may have the above settings done by
your SUBARU dealer. Also, for models
with a multi function display, the setting
can be changed using the display. For
details, refer to

“Keyless buzzer volume

setting

” F3-79.

& Replacing the battery

Refer to

“Replacing key battery” F11-43.

& Replacing lost transmitters

If you lose a transmitter or want to
purchase additional transmitters (up to
four can be programmed), your transmit-
ters should be reprogrammed for security
reasons. For details, contact your
SUBARU dealer and have the transmitters
programmed into the remote keyless entry
system.

& Certification for remote key-

less entry system

! U.S.-spec. models
FCC ID: CWTWB1U811
FCC ID: CWTWD1U781

CAUTION

FCC WARNING

Changes or modifications not ex-
pressly approved by the party re-
sponsible for compliance could void
the user

’s authority to operate the

equipment.

NOTE

2-26

! Canada-spec. models

! Mexico-spec. models

COFETEL RCPSUTW13-2221
COFETEL RLVSU8813-2140

Alarm system

The alarm system helps to protect your
vehicle and valuables from theft. The horn
sounds and the hazard warning flashers
flash if someone attempts to break into
your vehicle.

For models with

“keyless access with

push-button start system

”:

The system can be armed or disarmed
with the keyless access function or access
key.
The system will not be activated when the
push-button ignition switch is in the

“ACC”

“ON” position.

For models without

“keyless access

with push-button start system

”:

The system can be armed or disarmed
with the remote transmitter.
The system will not be activated when the
key is inserted into the ignition switch.

Your vehicle

’s alarm system has been set

for activation at the time of shipment from
the factory. You can set the system for
deactivation yourself or have it done by
your SUBARU dealer.

Keys and doors/Alarm system

– CONTINUED –

2-27

Keys and doors/Alarm system

& System operation

The alarm system will sound the following
alarms when triggered.
. The vehicle’s horn will sound for 30
seconds.
. The hazard warning flashers will flash
for 30 seconds.

If any of the doors or the rear gate/trunk lid
remains open after the 30-second period,
the horn will continue to sound for a
maximum of 3 minutes. If the door or the
rear gate/trunk lid is closed while the horn
is sounding, the horn will stop sounding
with a delay of up to 30 seconds.

The alarm is triggered by:
. Opening any of the doors, the rear gate
or trunk lid
. Physical impact to the vehicle, such as
forced entry (only models with shock
sensors (dealer option))

NOTE

The alarm system can be set to trigger
the illumination of the following interior
lights.
. Map lights (models with moonroof)

. Dome light (illuminates only when
the dome light switch is in the

“DOOR”

position)

. Cargo area light (illuminates only

when the cargo area light switch is in
the

“DOOR” position)

The notifications regarding the map
lights, dome light and cargo area light
are deactivated as the factory setting. A
SUBARU dealer can activate the sys-
tem. Contact your SUBARU dealer for
details.

& Activating and deactivating

the alarm system

To change the setting of your vehicle

’s

alarm system for activation or deactiva-
tion, do the following.
1. Disarm the alarm system. Refer to

“Disarming the system” F2-32.
2. Sit in the driver

’s seat and shut all

doors (and the rear gate if your vehicle is a
5-door).
3. Turn the ignition switch to the

“ON”

position.
4. Hold down the REAR (UNLOCK) side
of the driver

’s power door locking switch,

open the driver

’s door within the following

1 second, and wait 10 seconds without
releasing the switch. The setting will then
be changed as follows.

If the system was previously activated:
The odometer/trip meter screen displays
as follows and the horn sounds twice,

indicating that the system is now deacti-
vated.
. “AL oF” (models with type A combina-
tion meter)
. “ALOF” (models with type B combina-
tion meter)

If the system was previously deacti-
vated:
The odometer/trip meter screen displays
as follows and the horn sounds once,
indicating that the system is now acti-
vated.
. “AL on” (models with type A combina-
tion meter)
. “ALON” (models with type B combina-
tion meter)

NOTE

You may have the above setting
change done by your SUBARU dealer.

& If you have accidentally trig-

gered the alarm system

! To stop the alarm
Do any of the following operations:
. Press any button on the access key/
remote transmitter.
. Turn the ignition switch to the “ON”
position (models without

“keyless access

with push-button start system

”).

2-28

. Turn the push-button ignition to the

“ACC” position (models with “keyless
access with push-button start system

”).

NOTE

Only registered keys will stop the
alarm. If the immobilizer transponder
is not registered, the alarm will not
stop.

& Arming the system

! Tips
. The system can be armed even if the
engine hood, windows and/or moonroof
are open. Always make sure that they are
fully closed before arming the system.
. The 30-second standby time can be
eliminated if you prefer. Have it performed
by your SUBARU dealer.
. If your vehicle is a 4-door and you open
the trunk using the access key/remote
transmitter

’s “

” button with the alarm

system armed, the system will be tem-
porarily placed in a standby state. The
system will go back to the surveillance
state upon locking the trunk.
. The system is in the standby mode for
a 30-second period after locking the doors
with the remote transmitter. The security
indicator light will flash at short intervals
during this period.

. If any of the following actions are done
during the standby period, the system will
not switch to the surveillance state.

– Doors (including the rear gate/trunk
lid) are unlocked using the access key/
remote transmitter.
– Doors (including the rear gate/trunk
lid) are unlocked using the keyless
access function (models with

“keyless

access with push-button start sys-
tem

”).

– Any door (including the rear gate/
trunk lid) is opened.
– The ignition switch is turned to the

“ON” position (models without “keyless
access with push-button start sys-
tem

”).

– Push-button ignition switch is
turned to the

“ACC” position (models

with

“keyless access with push-button

start system

”).

! To arm the system using access

key/remote transmitter

1. Close all windows and the moonroof (if
equipped).
2. Remove the key from the ignition
switch (models without

“keyless access

with push-button start system

”)/turn the

push-button ignition switch to the

“OFF”

position (models with

“keyless access with

push-button start system

”).

3. Open the doors and get out of the
vehicle.
4. Make sure that the engine hood (and
the trunk lid on the 4-door) are locked.
5. Close all doors (and the rear gate on
the 5-door).

Access key
1)

Arm button: Press to arm the system

Disarm button: Press to disarm the
system

Keys and doors/Alarm system

– CONTINUED –

2-29

Keys and doors/Alarm system

Transmitter
1)

Arm button: Press to arm the system

Disarm button: Press to disarm the
system

Security indicator light (type A)

Security indicator light (type B)

6. Briefly press the

“ ” button (for less

than 2 seconds). All doors (and the rear
gate on the 5-door) will lock, an electronic
chirp will sound once, the hazard warning
flashers will flash once, and the security
indicator light will start flashing rapidly.
After rapid flashing for 30 seconds (stand-
by time), the indicator lights will then flash
slowly (twice approximately every 2 sec-
onds), indicating that the system has been
armed for surveillance.

If any of the doors, (rear gate or trunk lid)
is not fully closed, an electronic chirp
sounds five times, the hazard warning
flashers flash five times to alert you that
the doors (or the rear gate) are not
properly closed. When you close the door,
the system will automatically arm and

doors will automatically lock.
! To arm the system using power

door locking switches

1. Close all windows.
2. Remove the key from the ignition
switch (models without

“keyless access

with push-button start system

”)/turn the

push-button ignition switch to the

“OFF”

position (models with

“keyless access with

push-button start system

”).

3. Open the doors and get out of the
vehicle.
4. Make sure that the engine hood is
locked.
5. Close the doors (and the rear gate on
the 5-door) but leave only the driver

’s door

or the front passenger

’s door open.

6. Press the front side (

“LOCK” side) of

2-30

Subaru XV Crosstrek (2016 year). Instruction - part 8
