“OPEN” side or “CLOSE” side.

After washing the vehicle or after it rains,
wipe away water on the roof prior to
opening the moonroof to prevent drops of
water from falling into the passenger
compartment.

NOTE

Driving with the moonroof fully open

can cause an annoying sound to be
generated at high speeds. If this oc-
curs, use the moonroof at the initial
stop position of 6 in (15 cm) away from
the fully opened position.
.

The moonroof cannot be operated

while the remote engine starter system
is operating.

Anti-entrapment function

When the moonroof senses a substantial
enough object trapped between its glass
and the vehicle’s roof during closure, it
automatically moves back to the fully open
position and stops there. The anti-entrap-
ment function may also be activated by a
strong shock on the moonroof even when
there is nothing trapped.

CAUTION

Never attempt to test this function
using fingers, hands or other parts
of your body.

NOTE

For the sake of safety, it is recom-
mended that you avoid driving with the
moonroof fully opened.

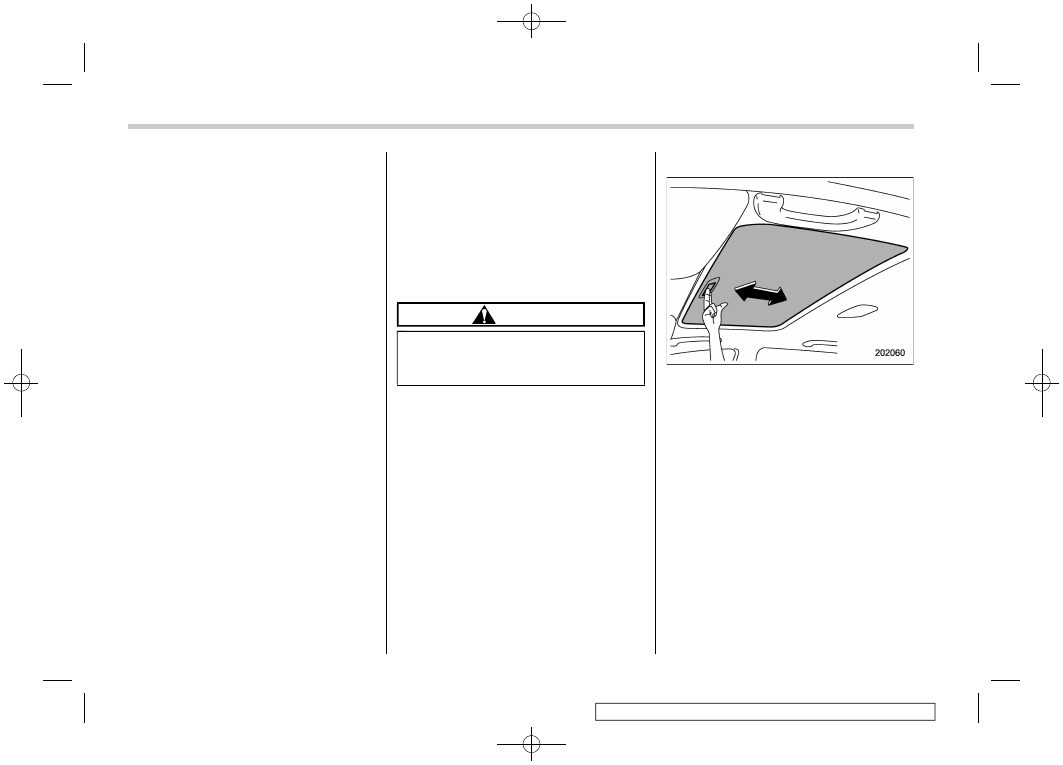

Sun shade

The sun shade can be slid forward or
backward by hand while the moonroof is
closed.
If the moonroof is opened, the sun shade
also moves back.

Moonroof

150

(155,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

3-1. Ignition switch (models without “keyless

access with push-button start system”) ..... 156

Key positions ..................................................... 156
Key reminder chime............................................ 157
Ignition switch light (if equipped) ........................ 157

3-2. Push-button ignition switch (models with

“keyless access with push-button start
system”) ........................................................ 158

Safety precautions.............................................. 158
Operating range for push-button start system ..... 158
Switching power status....................................... 159
When access key fob does not operate

properly............................................................ 160

3-3. Hazard warning flasher .................................. 160
3-4. Meters and gauges ......................................... 160

Speedometer ...................................................... 160
Tachometer......................................................... 160
Odometer ........................................................... 161
Double trip meter................................................ 161
Fuel gauge ......................................................... 162
ECO gauge (if equipped)..................................... 162
Combination meter settings ................................ 163

3-5. Illumination brightness control ..................... 164

Auto dimmer cancel function .............................. 164

3-6. Warning and indicator .................................... 164

Initial illumination for system check .................... 164
Seatbelt warning light and chime ........................ 165
SRS airbag system warning light ........................ 167
Front passenger’s frontal airbag ON and OFF

indicators ......................................................... 167

CHECK ENGINE warning light/Malfunction

indicator light................................................... 168

Coolant temperature low indicator light/

Coolant temperature high warning light ............ 168

Charge warning light .......................................... 169
Oil pressure warning light .................................. 169
Engine low oil level warning light ....................... 170
Windshield washer fluid warning light ................ 170
AT OIL TEMP warning light ................................. 170
Low tire pressure warning light (U.S.-spec.

models)............................................................ 171

ABS warning light .............................................. 172
Brake system warning light (red) ........................ 173
Electronic parking brake light............................. 173
Auto Vehicle Hold ON indicator light .................. 175
Auto Vehicle Hold operation indicator light ......... 175
Depress brake indicator light (if equipped) ......... 175
Low fuel warning light........................................ 175
Door open warning light..................................... 175
Engine hood open warning light ......................... 175
All-Wheel Drive warning light ............................. 175
Power steering warning light .............................. 176
Vehicle Dynamics Control warning light/Vehicle

Dynamics Control operation indicator light ....... 176

Vehicle Dynamics Control OFF indicator light ..... 178
Warning chimes and warning indicator of the

keyless access with push-button start system
(if equipped)..................................................... 178

Security indicator light ....................................... 183
SI-DRIVE indicator light ...................................... 184
Select lever/gear position indicator..................... 184

Instruments and controls

(156,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

Turn signal indicator lights ................................. 185
High beam indicator light.................................... 185
High beam assist indicator light (if equipped) ..... 185
Cruise control indicator light (if equipped) .......... 185
Cruise control set indicator light (if equipped)..... 186
Automatic headlight beam leveler warning light

(if equipped) ..................................................... 186

LED headlight warning light (if equipped)............ 186
Steering Responsive Headlight warning light/

Steering Responsive Headlight OFF indicator
light (if equipped) ............................................. 186

Front fog light indicator light (if equipped) .......... 186
Headlight indicator light...................................... 186
Auto Start Stop warning light/Auto Start Stop

OFF indicator light (yellow) ............................... 186

Auto Start Stop indicator light (green)................. 187
Auto Start Stop No Activity Detected indicator

light.................................................................. 187

X-MODE indicator light (if equipped) ................... 187
Hill descent control indicator light

(if equipped) ..................................................... 187

BSD/RCTA warning light (if equipped) ................. 188
BSD/RCTA OFF indicator light (if equipped) ........ 188
RAB warning light (if equipped) .......................... 188
RAB OFF indicator light (if equipped).................. 188
Driver Monitoring System operation indicator

light (green)/Driver Monitoring System warning
light (yellow) (if equipped) ................................ 188

Driver Monitoring System OFF indicator light

(if equipped) ..................................................... 188

Driver Monitoring System temporary stop

indicator light (if equipped) ............................... 188

Icy road surface warning light (if equipped) ........ 189

3-7. Combination meter display (color LCD)

(if equipped) ..................................................189

Basic operation.................................................. 190
Welcome screen (opening animation) and

Good-bye (ending animation) screen ................ 190

Warning screen .................................................. 191
Telltale screen.................................................... 191
Basic screens .................................................... 193
Menu screens .................................................... 195

3-8. Multi-function display (black and white) .......197

Driving information display ................................ 197
Outside temperature indicator ............................ 202
X-MODE indicator (if equipped) .......................... 202
Clock ................................................................. 202

3-9. Multi-function display (color LCD) .................203

Features ............................................................ 203
Welcome screen................................................. 203
Self-check screen............................................... 204
Interruption screen............................................. 204
Basic operation.................................................. 205
Basic screens .................................................... 205
Setting screen.................................................... 212
How to get the source code using the open

source ............................................................. 224

3-10. Clock ..............................................................225

Setting the clock instructionly ................................. 225
Setting the clock automatically........................... 228
Regulatory information....................................... 228

Instruments and controls

(157,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

3-11. Light control switch...................................... 229

Precautions and tips........................................... 229
Headlights .......................................................... 229
High/low beam change (dimmer) ......................... 231
Headlight flasher ................................................ 231
High beam assist function (if equipped) .............. 231
Daytime running light system ............................. 234

3-12. Steering Responsive Headlight (SRH)

(if equipped) .................................................. 235

3-13. Headlight beam leveler (if equipped) .......... 236
3-14. Fog light switch (if equipped)...................... 236
3-15. Turn signal lever ........................................... 237

One-touch lane changer...................................... 237

3-16. Wiper and washer..........................................237

Windshield wiper and washer switches .............. 239
Rear window wiper and washer switch ............... 240

3-17. Mirrors ............................................................241

Inside mirror ...................................................... 241
Auto-dimming mirror/compass with HomeLink

(if equipped)..................................................... 241

Outside mirrors.................................................. 248

3-18. Defogger and deicer (if equipped) ...............250
3-19. Tilt/telescopic steering wheel.......................251

Heated Steering Wheel system (if equipped) ....... 252

3-20. Horn................................................................253

Instruments and controls

Instruments

and

controls

(158,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

3-1. Ignition switch (models
without “keyless access with
push-button start system”)

WARNING

Never turn the ignition switch to

the “LOCK” position while the
vehicle is being driven or towed
because that will lock the steer-
ing wheel, preventing steering
control. And when the engine is
turned off, it takes a much greater
effort than usual to steer.

Before leaving the vehicle, al-

ways remove the key from the
ignition switch for safety and
never allow an unattended child
to remain in the vehicle. Failure to
follow this procedure could re-
sult in injury to a child or others.
Children could operate the power
windows, the moonroof or other
controls or even make the vehicle
move.

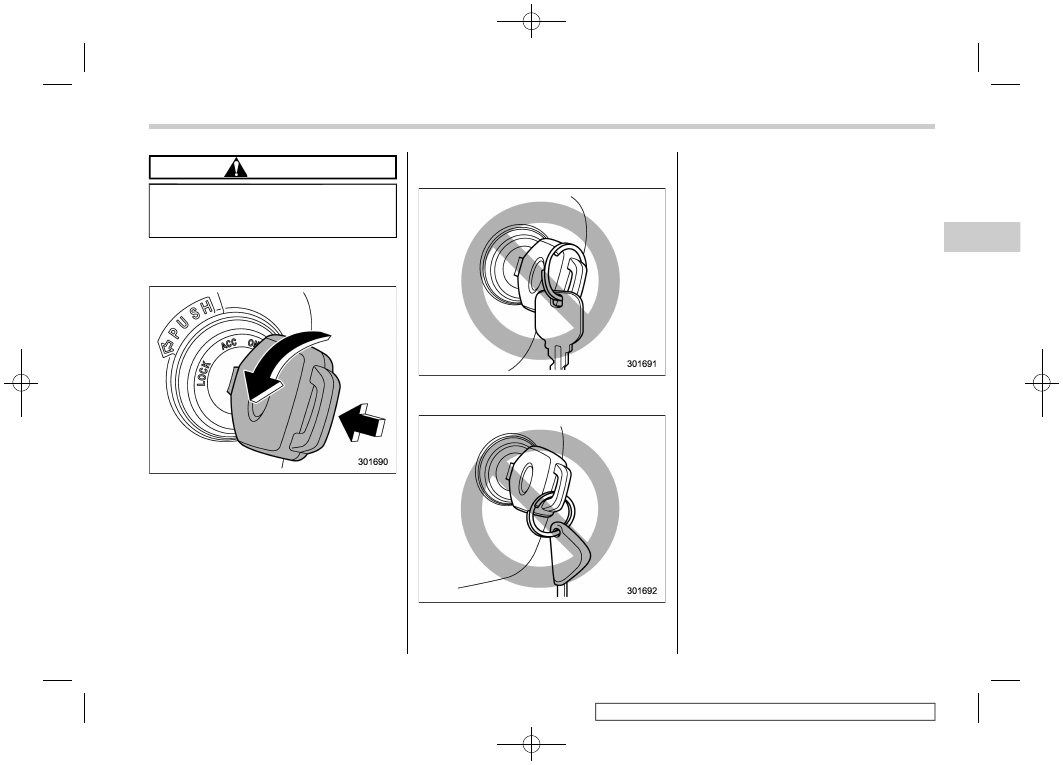

CAUTION

Do not attach a large key holder or
key case to either key. If it banged
against your knees or hands while
you are driving, it could turn the
ignition switch from the “ON” posi-
tion to the “ACC” or “LOCK” posi-
tion, thereby stopping the engine.
Also, if the key is attached to a key
holder or to a large bunch of other
keys, centrifugal force may act on it
as the vehicle moves, resulting in
unwanted turning of the ignition
switch.

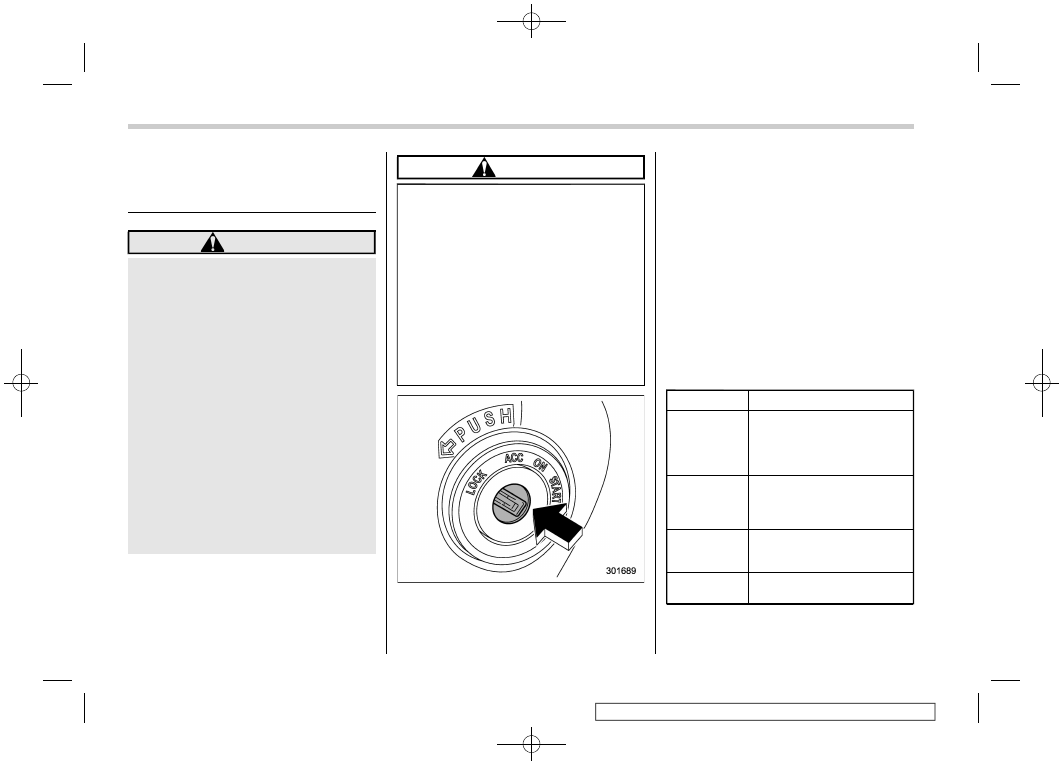

The ignition switch has four positions:
LOCK, ACC, ON and START.

NOTE

Keep the ignition switch in the

“LOCK” position when the engine is
not running.
.

Using electrical accessories for a

long time with the ignition switch in the
“ON” or “ACC” position can cause the
battery to go dead.
.

If the ignition switch will not move

from the “LOCK” position to the “ACC”
position, turn the steering wheel
slightly to the left and right as you turn
the ignition switch.

Key positions

Position

Description

LOCK

The key can only be inserted
or removed in this position.
The ignition switch will lock
the steering wheel when you
remove the key.

ACC

In this position the electrical
accessories (audio, acces-
sory power outlet, etc.) can be
used.

This is the normal operating
position after starting the en-
gine.

START

The engine is started in this
position.

Ignition switch (models without “keyless access with push-button start system”)

156

(159,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

CAUTION

Do not turn the ignition switch to the
“START” position while the engine
is running.

NOTE

To turn the key from the “ACC” to

“LOCK” position, the select lever must
be in the “P” position and the key must
be pushed in and turned.
.

If your registered key fails to start

the engine, pull out the key once (the
security indicator light will blink), and
then insert the key again and turn it to
the “START” position again to restart
the engine.

The engine may not start in the

following cases:

– The key grip is touching another
key or a metallic key holder.

– The key is near another key that
contains an immobilizer transpon-

der.
– The key is near or touching
another transmitter.

Key reminder chime

The reminder chime sounds when the
driver’s door is opened and the ignition
switch is in the “LOCK” or “ACC” position.

The chime stops under the following
conditions.
.

When the ignition switch is turned to the

“ON” position.
.

When the key is removed from the

ignition switch.
.

When the driver’s door is closed.

Ignition switch light (if
equipped)

For easy access to the ignition switch in
the dark, the ignition switch light illumi-
nates when the driver’s door is opened or
when the driver’s door is unlocked using
the remote keyless entry transmitter.

The light remains illuminated for several
tens of seconds and then gradually turns
off under the following conditions.
.

When the driver’s door is closed.

When the doors are unlocked using the

remote keyless entry transmitter.

– CONTINUED –

Ignition switch (models without “keyless access with push-button start system”)

157

Instruments

and

controls

(160,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

The light turns off immediately under the
following conditions.
.

When the ignition switch is turned to the

“ON” position.
.

When all doors and the rear gate are

locked using the remote keyless entry
transmitter.

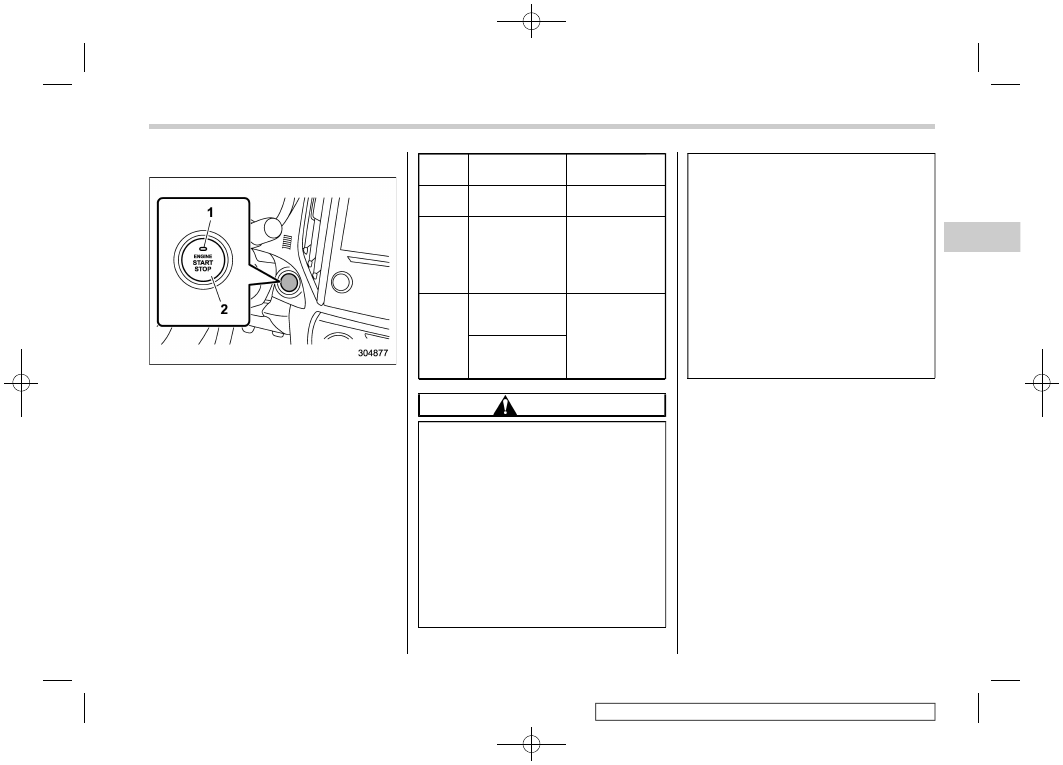

3-2. Push-button ignition
switch (models with “keyless
access with push-button start
system”)

Safety precautions

Refer to “Safety precautions” FP111.

Operating range for push-
button start system

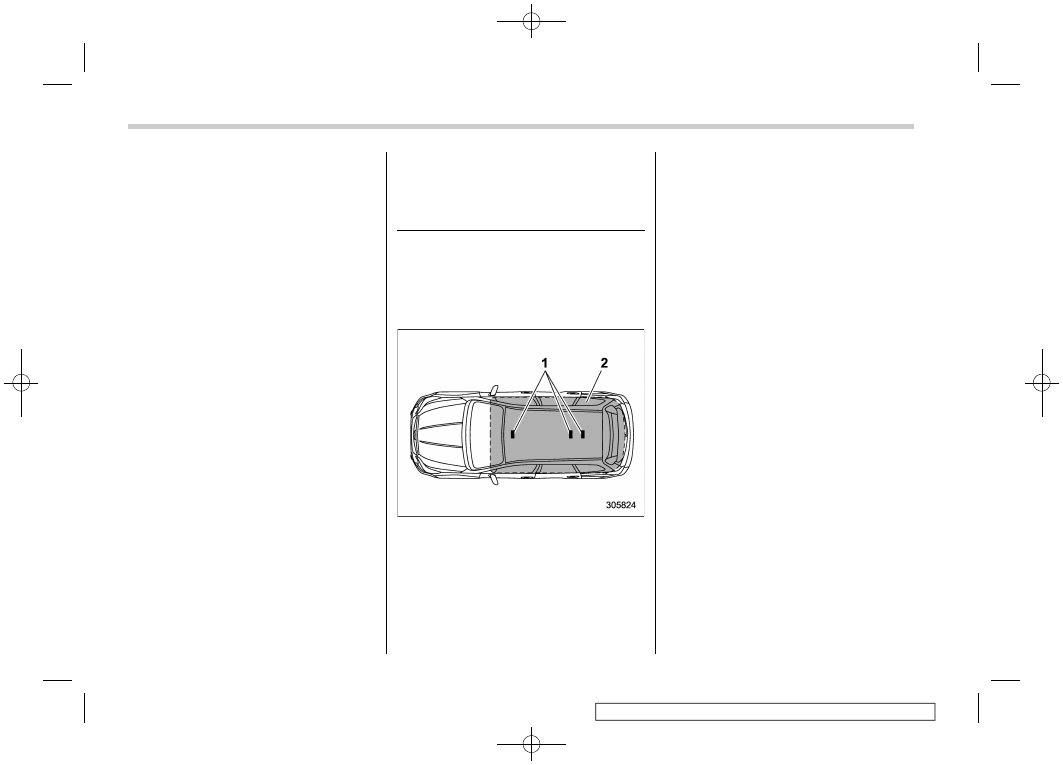

Antenna

Operating range

NOTE

If the access key fob is not detected

within the operating range of the anten-
nas inside the vehicle, the push-button
ignition switch and the engine start

cannot be operated.
.

Even when the access key fob is

outside the vehicle, if it is placed too
close to the glass, it may be possible to
switch the power or to start the engine.
.

Do not leave the access key fob in

the following places. It may become
impossible to operate the push-button
ignition switch and the engine start. It
may also cause a false warning to issue
although no malfunction actually oc-
curs, or not to issue a warning when
any malfunction occurs.

– On the instrument panel
– On the floor
– Inside the glove box
– Inside the door trim pocket
– On the rear seat
– In the cargo area

When operating the push-button

ignition switch or starting the engine,
if the access key fob battery is dis-
charged, perform the procedure de-
scribed in “Access key fob – if access
key fob does not operate properly”
FP427. In such a case, replace the
battery immediately. Refer to “Repla-
cing battery of access key fob” FP484.

Push-button ignition switch (models with “keyless access with push-button start system”)

158

(161,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

Switching power status

Operation indicator

Push-button ignition switch

The power is switched every time the
push-button ignition switch is pressed.
1. Carry the access key fob, and sit in the
driver’s seat.
2. Shift the select lever into the “P”/“N”
position.
3. Press the push-button ignition switch
without depressing the brake pedal. Every
time the button is pressed, the power is
switched in the sequence of “OFF”, “ACC”,
“ON” and “OFF”. When the engine is
stopped and the push-button ignition
switch is in “ACC” or “ON”, the operation
indicator on the push-button ignition switch
illuminates in orange.

Power

status

Indicator color

Operation

OFF

Turned off

Power is turned

off.

ACC

Orange

The following

systems can be

used:

audio and ac-

cessory power

outlet.

Orange

(while engine is

stopped)

All electrical

systems can be

used.

Turned off

(while engine is

running)

CAUTION

When the push-button ignition

switch is left in “ON” (while the
engine is not running) or “ACC”
for a long time, it may result in
vehicle battery discharge.

Do not spill drinks or other liquids

on the push-button ignition
switch. It may cause a malfunc-
tion.

Do not touch the push-button

ignition switch with a hand soiled
with oil or other contaminants. It
may cause a malfunction.

If the push-button ignition switch

does not operate smoothly, stop
the operation. Contact a SUBARU
dealer immediately.

If the push-button ignition switch

does not illuminate even when
the instrument panel illumination
is turned on, have the vehicle
inspected at a SUBARU dealer.

If the vehicle was left in the hot

sun for a long time, the surface of
the push-button ignition switch
may get hot. Be careful not to
burn yourself.

NOTE

When operating the push-button

ignition switch, firmly press it all the
way.
.

If the push-button ignition switch is

pressed quickly, the power may not
turn on or off.

– CONTINUED –

Push-button ignition switch (models with “keyless access with push-button start system”)

159

Instruments

and

controls

(162,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

If the indicator light on the push-

button ignition switch flashes in green
when the push-button ignition switch is
pressed, steering is locked. When this
occurs, press the push-button ignition
switch while turning the steering wheel
left and right.

Battery drainage prevention func-
tion

When the push-button ignition switch is left
in the “ACC” or “ON” position for approxi-
mately 1 hour, the push-button ignition
switch will be automatically switched to
“OFF” to prevent the battery from going
dead.

When access key fob does
not operate properly

Refer to “Access key fob – if access key
fob does not operate properly” FP427.

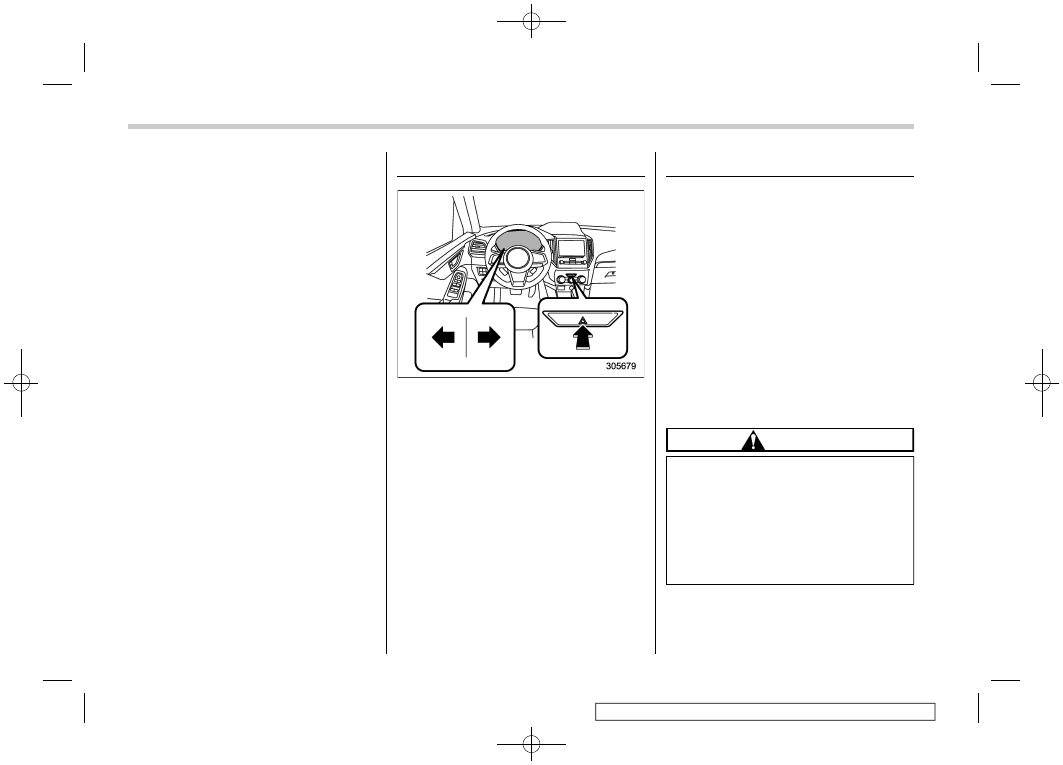

3-3. Hazard warning flasher

The hazard warning flasher is used to warn
other drivers when you have to park your
vehicle under emergency conditions. The
hazard warning flasher works regardless
of the position of the ignition switch.

To turn on the hazard warning flasher,
push the hazard warning button on the
instrument panel. All the turn signal lights
and the turn signal indicator lights will
flash. To turn off the flasher, push the
button again.

NOTE

When the hazard warning flasher is on,
the turn signals do not work.

3-4. Meters and gauges

NOTE

Some of the meters and gauges on the
combination meter use liquid-crystal
displays. You will find their indications
hard to see if you wear polarized
glasses.

Speedometer

The speedometer shows the vehicle
speed.

Tachometer

The tachometer shows the engine speed
in thousands of revolutions per minute.

CAUTION

Do not operate the engine with the
pointer of the tachometer in the red
zone. In this range, fuel injection will
be cut by the engine control module
to protect the engine from overrev-
ving. The engine will resume run-
ning normally after the engine speed
is reduced below the red zone.

Hazard warning flasher

160

(163,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

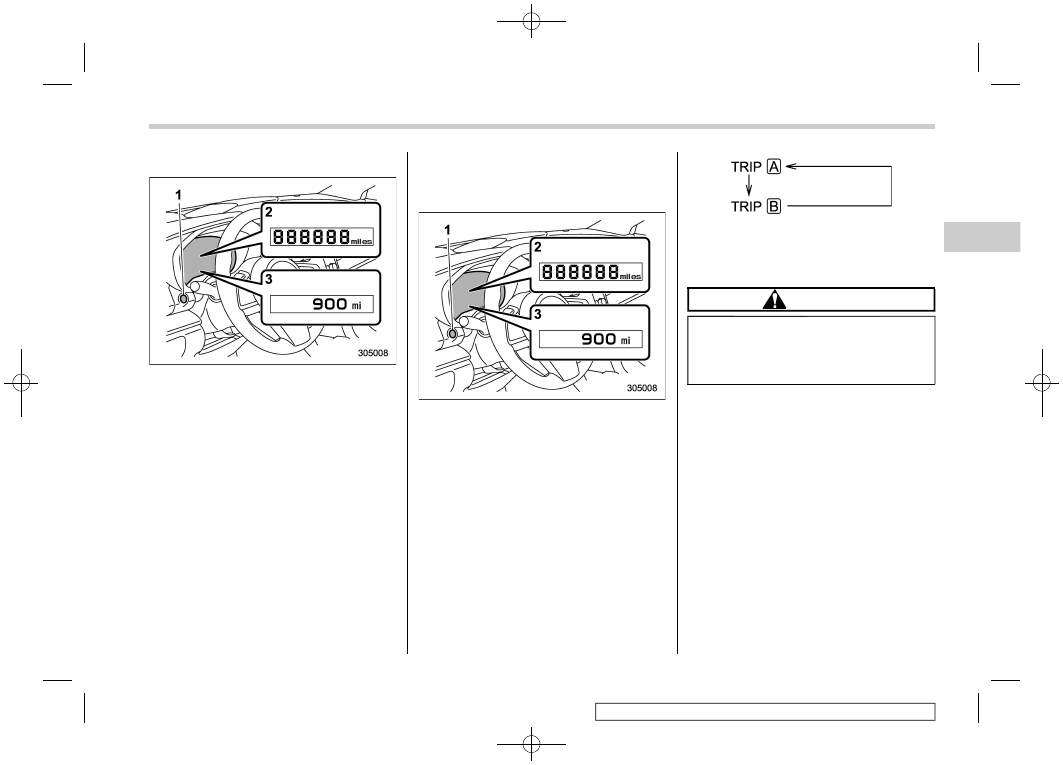

Odometer

TRIP RESET switch

Type A combination meter

Type B combination meter

This meter displays the odometer when
the ignition switch is in the “ON” position.
The odometer shows the total distance
that the vehicle has been driven.

NOTE

If you press the TRIP RESET switch
when the ignition switch is in the
“LOCK”/“OFF” or “ACC” position, the
odometer/trip meter will light up.
The indicators will turn off when:
.

The TRIP RESET switch is not oper-

ated for approximately 10 seconds.
.

The driver’s door is opened and then

closed.

Double trip meter

TRIP RESET switch

Type A combination meter

Type B combination meter

This meter displays the two trip meters
when the ignition switch is in the “ON”
position.
The trip meter shows the distance that the
vehicle has been driven since you last set
it to zero.

The display can be switched as shown in
the following sequence by pressing the
TRIP RESET switch.

To set the trip meter to zero, select the A
trip or B trip meter by pressing the TRIP
RESET switch and keep the knob pressed
for more than 2 seconds.

CAUTION

To ensure safety, do not attempt to
change the function of the indicator
during driving, as an accident could
result.

NOTE

If the connection between the com-

bination meter and battery is broken for
any reason such as vehicle mainte-
nance or fuse replacement, the data
recorded on the trip meter will be lost.
.

If you press the TRIP RESET switch

when the ignition switch is in the
“LOCK”/“OFF” or “ACC” position, the
odometer/trip meter will light up. It is
possible to switch between the A trip
meter and B trip meter indications while
the odometer/trip meter is lit up.
In addition, it is possible to reset the trip
meter by pressing and holding the TRIP

– CONTINUED –

Meters and gauges

161

Instruments

and

controls

(164,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

RESET switch.
The indicators will turn off when:

– The TRIP RESET switch is not
operated for approximately 10 sec-
onds.
– The driver’s door is opened and
then closed.

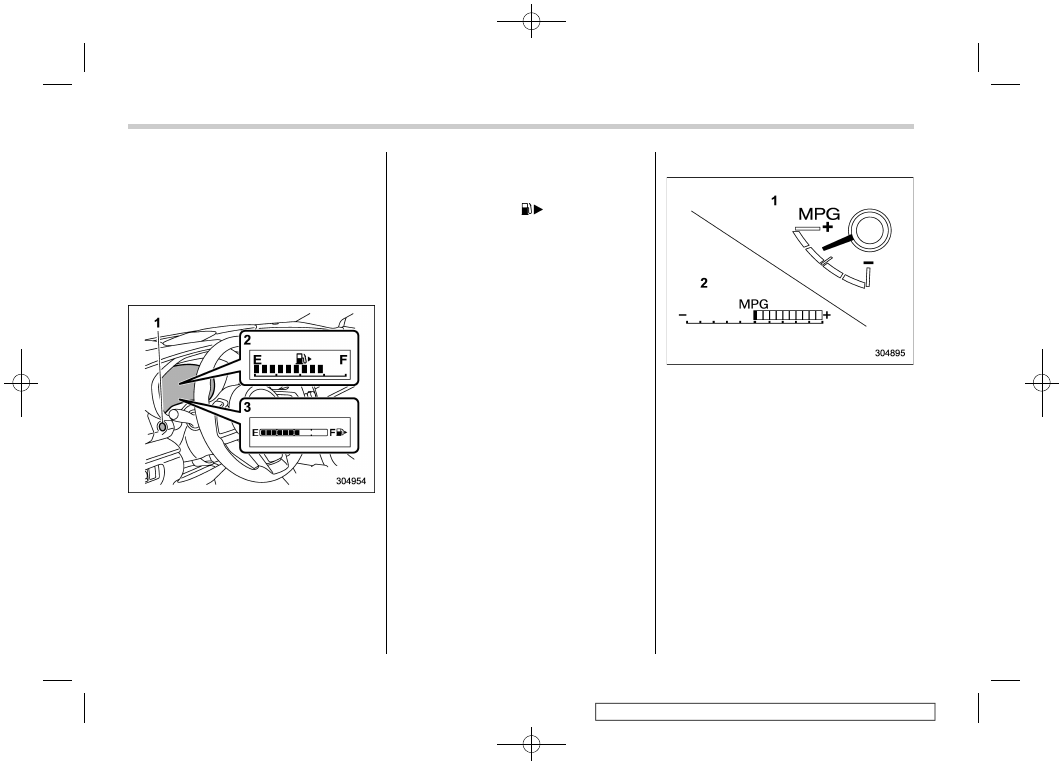

Fuel gauge

TRIP RESET switch

Type A combination meter

Type B combination meter

The fuel gauge is displayed when the
ignition is in the “ON” position, and it shows
the approximate amount of fuel remaining
in the tank.

The gauge indication may change slightly
during braking, turning or acceleration due

to fuel level movement in the tank.

NOTE

You will see the “

” sign in the fuel

gauge. This indicates that the fuel filler
door (lid) is located on the right side of
the vehicle.
.

If you press the TRIP RESET switch

while the ignition switch is in the
“LOCK”/“OFF” or “ACC” position, the
fuel gauge will light up and indicate the
amount of fuel remaining in the tank.
The indicators will turn off when:

– The TRIP RESET switch is not
operated for approximately 10 sec-
onds.
– The driver’s door is opened and
then closed.

ECO gauge (if equipped)

Type A combination meter

Type B combination meter

The ECO gauge shows the difference
between the current rate of fuel consump-
tion and the average rate of fuel consump-
tion since the trip meter was last reset.

If the ECO gauge moves towards the +
side, this indicates better fuel efficiency.

NOTE

The ECO gauge shows only an

approximate indication of fuel effi-
ciency.
.

After resetting the trip meter, the

average rate of fuel consumption is not
shown until you have driven for 1 mile
(or 1 km). Before that time, the ECO

Meters and gauges

162

(165,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

gauge does not operate.

Combination meter settings

Meter and vehicle settings can be set on
the combination meter.

Type A combination meter

Various adjustments can be made, such
as switching units shown on the combina-
tion meter and adjusting the warning tone
volume.
While the ignition switch is in the “OFF”
position, each press of TRIP RESET
switch results in items shown in the table
below being switched.

Item

Combination

meter display

Possible

settings

A trip

—

B trip

—

Gauge
needle
sweep
function

On/Off

Changing
the unit*

mile/km

Warning
volume*

Lv. 1/Lv. 2/Lv. 3

*: If available

NOTE

If you switch the units on the combi-

nation meter, the units on the multi-
function display (black and white) also
switches accordingly.
.

If either of the following conditions

is met, the combination meter setting
mode will be canceled.

– The driver’s door is opened.
– The TRIP RESET switch is not
operated for approximately 10 sec-
onds or more.

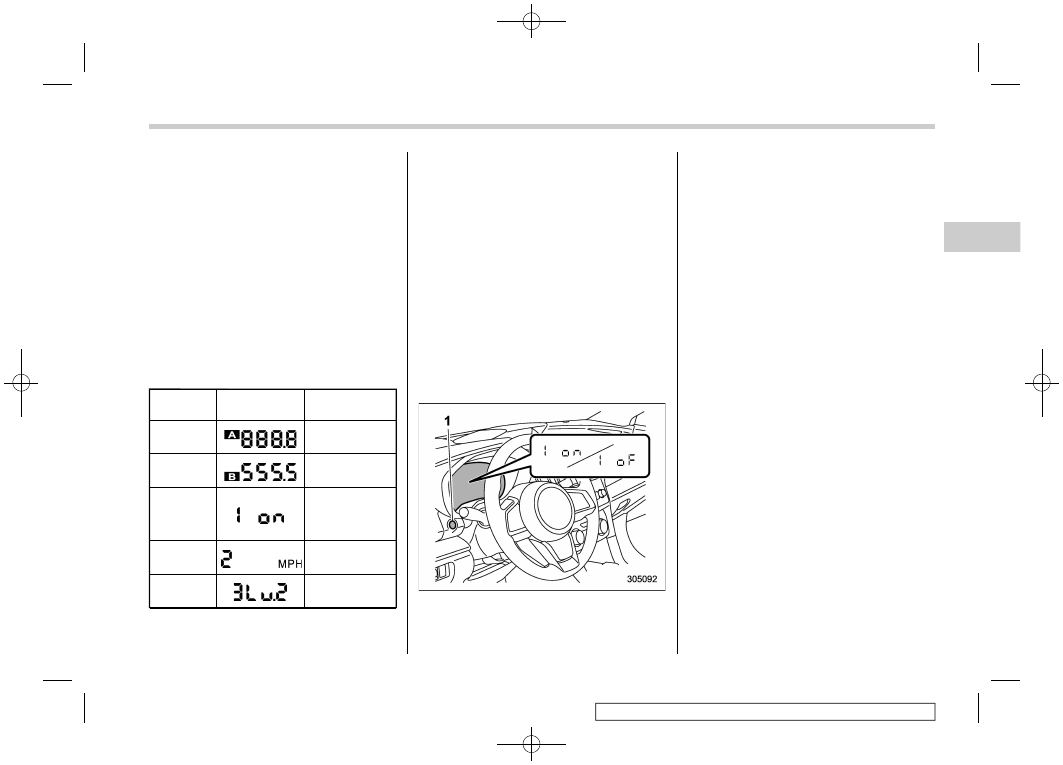

Switching method

1. Push the ignition switch in the “OFF”
position.

TRIP RESET switch

2. Press the TRIP RESET switch repeat-

edly until the item you want to change is
displayed.
3. Press and hold the TRIP RESET
switch while the item to be changed is
displayed, the setting of the item will be
switched.

Type B combination meter

Meter and vehicle settings can be set on
the combination meter display (color
LCD). Refer to “Menu screens” FP195.

Meters and gauges

163

Instruments

and

controls

(166,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

3-5. Illumination brightness
control

The illumination brightness of the instru-
ment panel illuminates under the following
conditions.
.

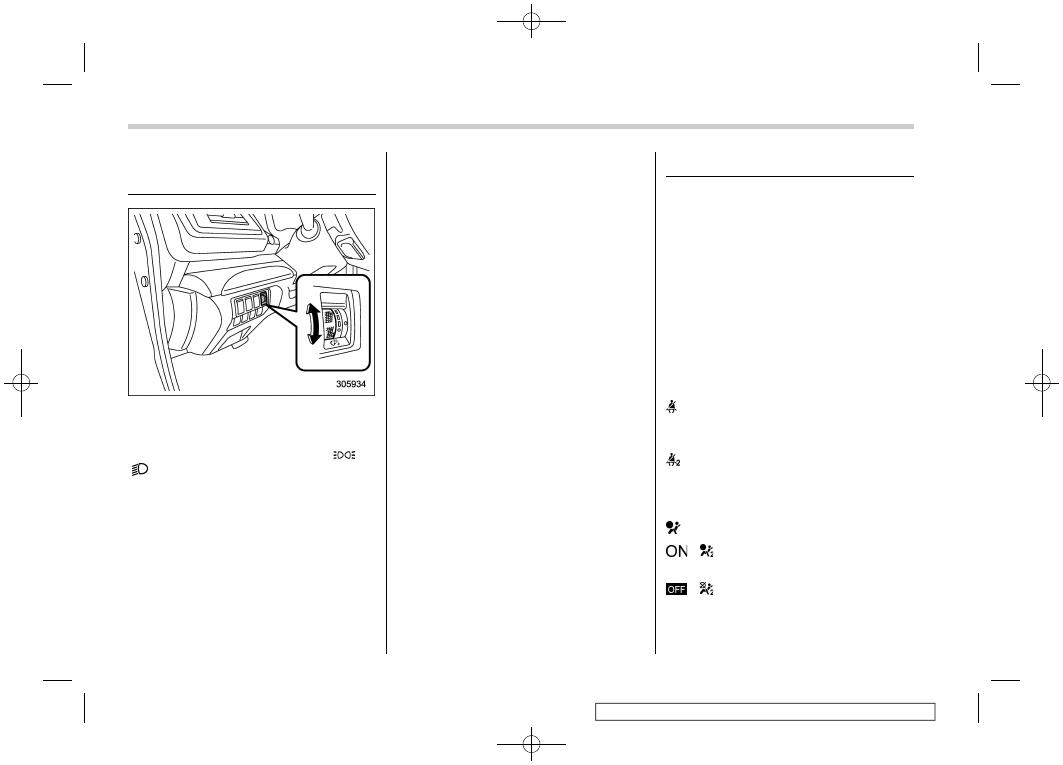

When the light switch is in the “

” or

“

” position

When the light control switch is in the

“AUTO” position and the headlights illumi-
nate automatically

You can adjust the illumination brightness
for better visibility.

To brighten, turn the control dial upward.
To darken, turn the control dial downward.

NOTE

When the control dial is turned fully

upward, the illumination brightness
becomes the maximum and the auto-
matic dimming function does not work
at all.
.

The brightness setting is not can-

celed even when the ignition switch is
turned to the “LOCK”/“OFF” position.

Auto dimmer cancel function

When the ambient light is bright, the
illumination brightness is set to the max-
imum regardless of the position of the
control dial. In this case, you cannot adjust
the illumination brightness by using the
control dial. When the ambient light is dark,
you can dim the illumination brightness as
described above.

The operational/non-operational setting
and sensitivity of the auto dimmer cancel
function can be changed by your SUBARU
dealer. Contact your SUBARU dealer for
details.

3-6. Warning and indicator

Initial illumination for system
check

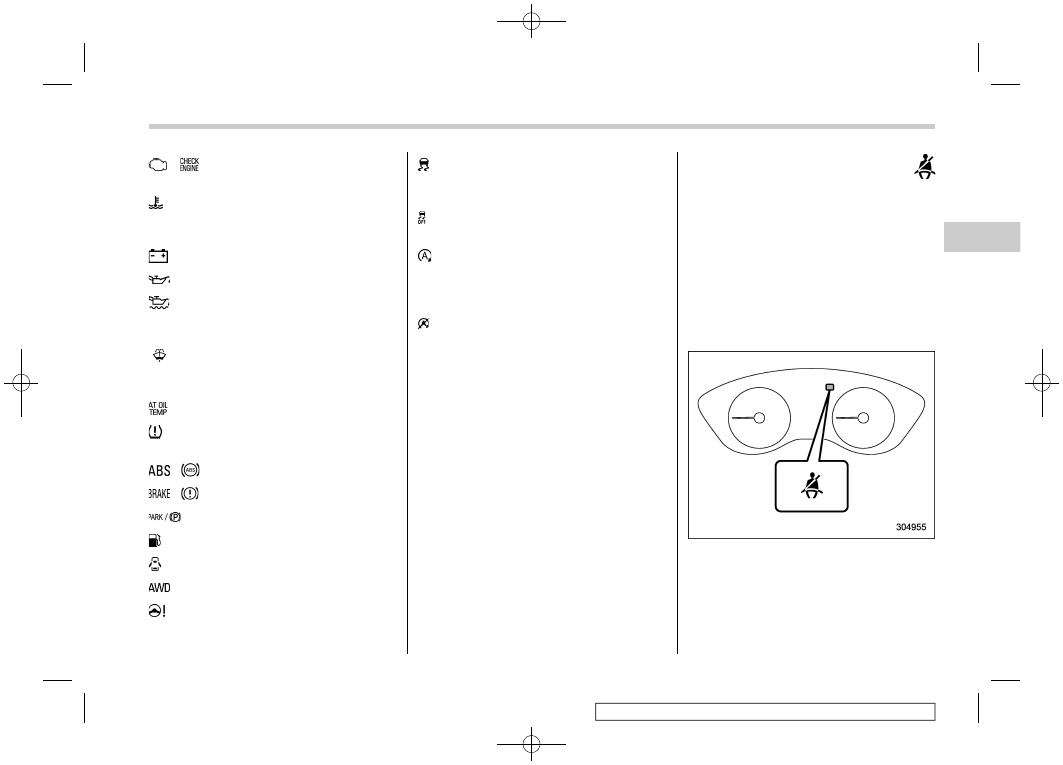

Several of the warning and indicator lights
illuminate when the ignition switch is
initially turned to the “ON” position. This
permits checking the operation of the
bulbs.

Apply the parking brake and turn the
ignition switch to the “ON” position. For
the system check, several of the following
lights illuminate and then turn off after
several seconds or after the engine has
started.

: Seatbelt warning light (The seatbelt

warning light turns off only when the
driver fastens the seatbelt.)

: Front passenger’s seatbelt warning

light (The seatbelt warning light turns
off only when the front seat passenger
fastens the seatbelt.)

: SRS airbag system warning light

: Front passenger’s frontal airbag

ON indicator light

: Front passenger’s frontal airbag

OFF indicator light

Illumination brightness control

164

(167,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

: CHECK ENGINE warning light/

Malfunction indicator light

: Coolant temperature low indicator

light/Coolant temperature high warn-
ing light

: Charge warning light

: Oil pressure warning light

: Engine low oil level warning light

(models without combination meter
display (color LCD))

: Windshield washer fluid warning light

(models without combination meter
display (color LCD))

: AT OIL TEMP warning light

: Low tire pressure warning light (U.S.-

spec. models)

: ABS warning light

: Brake system warning light

: Electronic parking brake light

: Low fuel warning light

: Door open warning light

: AWD warning light

: Power steering warning light

: Vehicle Dynamics Control warning light/

Vehicle Dynamics Control operation
indicator light

: Vehicle Dynamics Control OFF indicator

light

: Auto Start Stop warning light/Auto Start

Stop OFF indicator light (yellow) (mod-
els without combination meter display
(color LCD))

: Auto Start Stop No Activity Detected

indicator light (models without combi-
nation meter display (color LCD))

If any lights fail to illuminate, it indicates a
burned-out bulb or a malfunction of the
corresponding system.
Consult your authorized SUBARU dealer
for repair.

Seatbelt warning light
and chime

Your vehicle is equipped with a seatbelt
warning device at the driver’s and front
passenger’s seat, as required by current
safety standards.
With the ignition switch turned to the “ON”
position, this device reminds the driver and
front passenger to fasten their seatbelts by
illuminating the warning lights in the loca-
tions indicated in the following illustration
and sounding a chime.

Driver’s warning light

– CONTINUED –

Warning and indicator

165

Instruments

and

controls

(168,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

Front passenger’s warning light

Operation

If the driver and/or front passenger have/
has not yet fastened the seatbelt(s) when
the ignition switch is turned to the “ON”
position, the seatbelt warning light(s) will
flash for several seconds, to warn that the
seatbelt(s) is/are unfastened. If the driver’s
seatbelt is not fastened, a chime will also
sound simultaneously.

NOTE

If the driver’s and/or front passen-

ger’s seatbelt(s) are/is still not fastened
6 seconds later, the seatbelt warning
device operates as follows according
to the vehicle speed.

– At speeds lower than approxi-
mately 9 mph (15 km/h)

The warning light(s) for unfastened
seatbelt(s) will alternate between
steady illumination and flashing at
15-second intervals. The chime will
not sound.
– At speeds higher than approxi-
mately 9 mph (15 km/h)
The warning light(s) for unfastened
seatbelt(s) will alternate between
flashing and steady illumination at
15-second intervals and the chime
will sound while the warning light(s)
is/are flashing.

It is possible to cancel the warning

operation that follows the 6-second
warning after turning ON the ignition
switch. When the ignition switch is
turned ON next time, however, the
complete sequence of the warning
operation resumes. For further details
about canceling the warning operation,
please contact your SUBARU dealer.

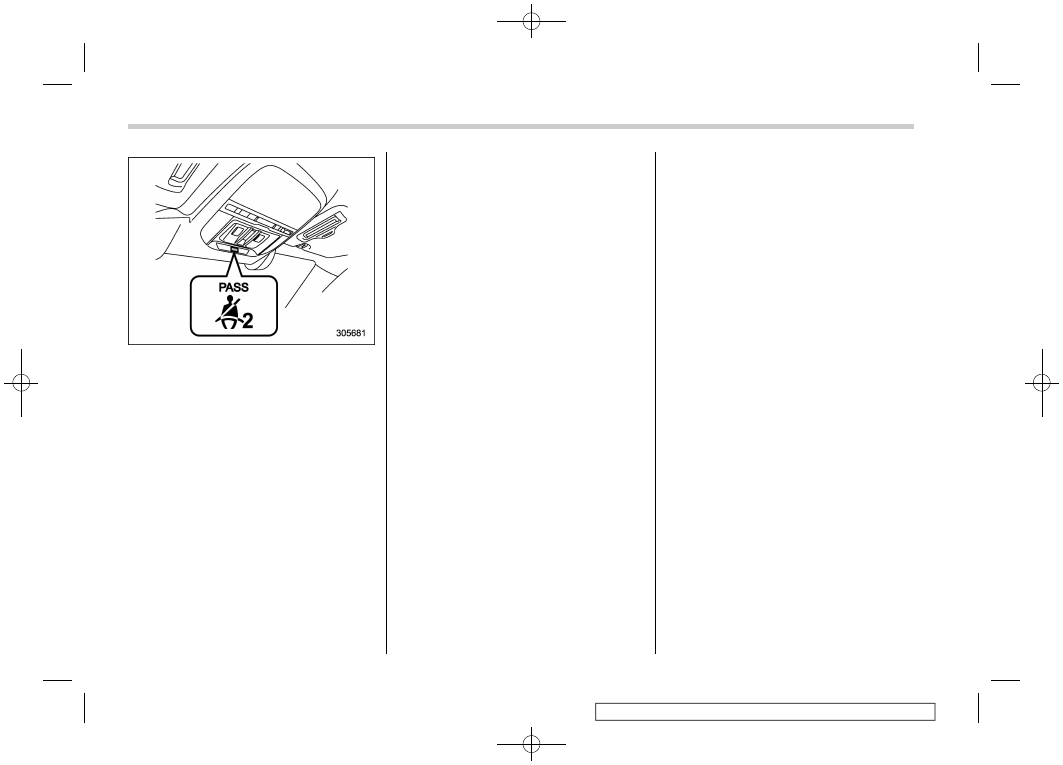

If there is no passenger on the front
passenger’s seat, the seatbelt warning
device for the front passenger’s seat will
be deactivated. The front passenger’s
occupant detection system monitors
whether or not there is a passenger on
the front passenger’s seat.
Observe the following precautions. Failure
to do so may prevent the device from
functioning correctly or cause the device to

fail.
.

Do not install any accessory such as a

table or TV onto the seatback.
.

Do not store a heavy load in the

seatback pocket.
.

Do not allow the rear seat occupant to

place his/her hands or legs on the front
passenger’s seatback, or allow him/her to
pull the seatback.
.

Do not use front seats with their back-

ward-forward position and seatback not
being locked into place securely. If any of
them are not locked securely, adjust them
again. For adjusting procedure, refer to
“Manual seat” FP35.

If the seatbelt warning device for the front
passenger’s seat does not function cor-
rectly (e.g., it is activated even when the
front passenger’s seat is empty or it is
deactivated even when the front passen-
ger has not fastened his/her seatbelt), take
the following actions.
.

Ensure that no article is placed on the

seat other than a child restraint system and
its child occupant, although we strongly
recommend that all children sit in the rear
seat properly restrained.
.

Ensure that there is no article left in the

seatback pocket.
.

Ensure that the backward-forward po-

sition and seatback of front passenger’s

Warning and indicator

166

(169,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

seat are locked into place securely by
moving the seat back and forth.

If still the seatbelt warning device for front
passenger’s seat does not function cor-
rectly after taking relevant corrective ac-
tions described above, immediately con-
tact your SUBARU dealer for an inspec-
tion.

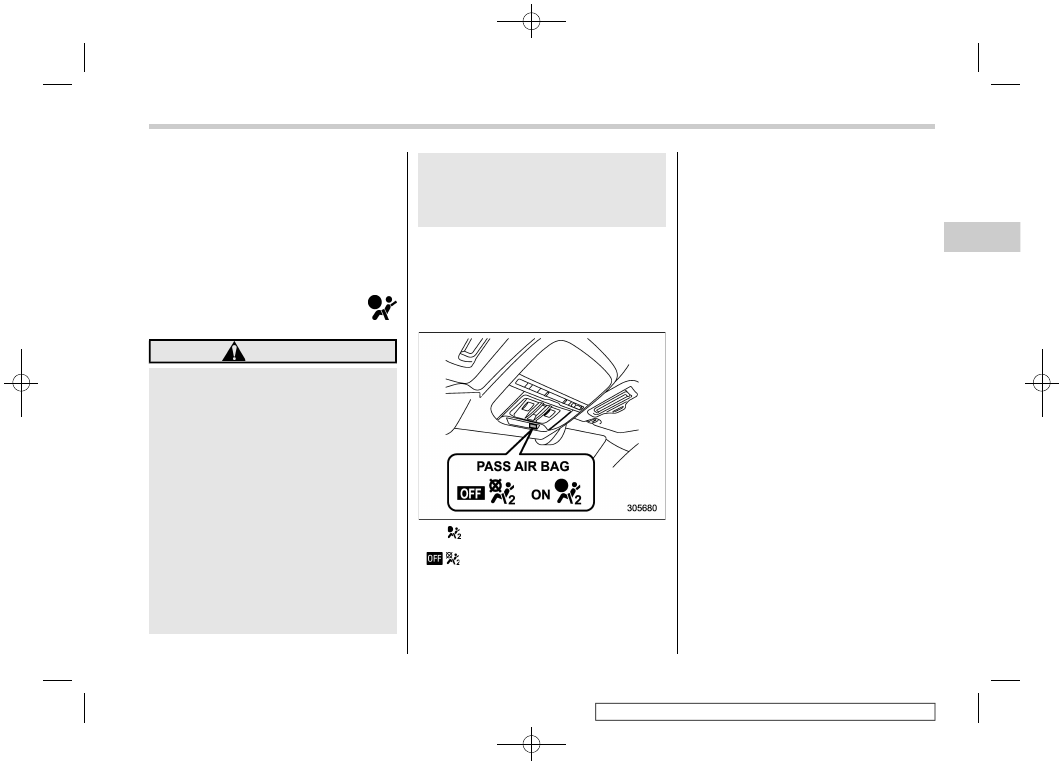

SRS airbag system
warning light

WARNING

If the warning light exhibits any of
the following conditions, there may
be a malfunction in the seatbelt
pretensioners and/or SRS airbag
system. Immediately take your vehi-
cle to your nearest SUBARU dealer
to have the system checked. Unless
checked and properly repaired, the
seatbelt pretensioners and/or SRS
airbag will not operate properly in
the event of a collision, which may
increase the risk of injury.

Flashing or flickering of the warn-

ing light

No illumination of the warning

light when the ignition switch is
first turned to the “ON” position

Continuous illumination of the

warning light

Illumination of the warning light

while driving

For details about the components mon-
itored by the warning light, refer to “SRS
airbag system monitors” FP101.

Front passenger’s frontal air-
bag ON and OFF indicators

: Front passenger’s frontal airbag ON

indicator

: Front passenger’s frontal airbag OFF

indicator

The front passenger’s frontal airbag ON
and OFF indicators show you the status of
the front passenger’s SRS frontal airbag.

The indicator is displayed near the map
lights.
When the ignition switch is turned to the
“ON” position, both the ON and OFF
indicators illuminate for 6 seconds during
which time the system is checked. Follow-
ing the system check, both indicators turn
off for 2 seconds. After that, one of the
indicators illuminates depending on the
status of the front passenger’s SRS frontal
airbag determined by the SUBARU ad-
vanced frontal airbag system monitoring.
If the front passenger’s SRS frontal airbag
is activated, the passenger’s frontal airbag
ON indicator will illuminate while the OFF
indicator will remain off.
If the front passenger’s SRS frontal airbag
is deactivated, the passenger’s frontal
airbag ON indicator will remain off while
the OFF indicator will illuminate.
With the ignition switch turned to the “ON”
position, if both the ON and OFF indicators
remain illuminated or off simultaneously
even after the system check period, the
system is malfunctioning. Contact your
SUBARU dealer immediately for an in-
spection.

– CONTINUED –

Warning and indicator

167

Instruments

and

controls

Content .. 8 9 10 11 ..
