Power rear gate (if equipped)

WARNING

.

When operating the power rear

gate, observe the following pre-
cautions. Ignoring the precau-
tions may result in an injury (e.
g., anyone’s body is hit against
the rear gate or is caught in the
rear gate, etc.)

– Make sure there are no people

around the rear gate.

– Never let anyone get close to

the rear gate.

.

When closing the rear gate, be

extremely careful to prevent any-
one’s fingers, arms, neck, head
or other objects from being
caught in the rear gate. Other-
wise, serious personal injury may
be caused by entrapment.

.

After opening the rear gate on a

slope using the power rear gate
feature, the rear gate may close.
Make sure that the rear gate has
stopped completely after open-
ing it.

.

When leaving the vehicle, always

carry the key for safety and never
allow an unattended child to

remain in the vehicle. Failure to
follow this procedure could re-
sult in injury to a child operating
the power rear gate.

.

The driver should be aware of and

pay careful attention to his/her
responsibilities.

.

Use the power rear gate only

when the area around the rear
gate is clearly visible and when
you have checked that there is no
danger of people being caught in
the gate.

CAUTION

.

When closing the rear gate after

opening it, make sure to use the
power rear gate. If you close the
rear gate instructionly with extra
force, the power rear gate may
be damaged.

.

Do not install any accessories

other than genuine SUBARU
parts on the rear gate. If the
weight of rear gate increases
excessively, the rear gate stay
cannot support the rear gate
sufficiently when opening the
rear gate. Also, the power rear
gate may not function properly or

may malfunction.

The power rear gate operates only when
all of the following conditions are satisfied.
.

The vehicle is stopped completely.

.

The outside temperature is within a

range of −228F to 1408F (from −308C to
608C).
.

The ignition switch is in the “LOCK”/

“OFF” or “ACC” position. Or, the ignition
switch is in the “ON” position and the select
lever is in the “P” position.

We recommend using the power rear gate
function in most circumstances instead of
instruction operation.

NOTE

.

Do not press the power rear gate

button repeatedly while the power rear
gate is operating. Otherwise, the sys-
tem may ignore the button operation in
order to avoid being damaged.
.

If the vehicle starts to move while the

power rear gate is operating, the sys-
tem sounds a buzzer and closes the
rear gate automatically. At this time, if
the system detects jamming, it will
deactivate the power rear gate and the
rear gate will not be closed. If this
occurs, close the rear gate instructionly.
For details, refer to “Instruction rear gate”

Rear gate

142

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(145,1)

FP141.
.

If you try to open the rear gate using

the power rear gate function immedi-
ately after closing the rear gate using
the power rear gate function, an elec-
tronic chirp will sound and the rear gate
will not open. Wait for a while before
trying to open the rear gate via the
power rear gate function.
.

If either of the operating conditions

has not been satisfied while operating
the power rear gate, an electronic chirp
will sound and the power rear gate will
be deactivated. In this case, the rear
gate may stop opening or closing
suddenly.

!

Operation

NOTE

.

The rear gate will remain unlocked

even after closing it. Always lock the
rear gate when leaving the vehicle.
.

If you cannot open/close the rear

gate by performing the operation de-
scribed here, a short electronic chirp
will sound three times (beep, beep,
beep).

!

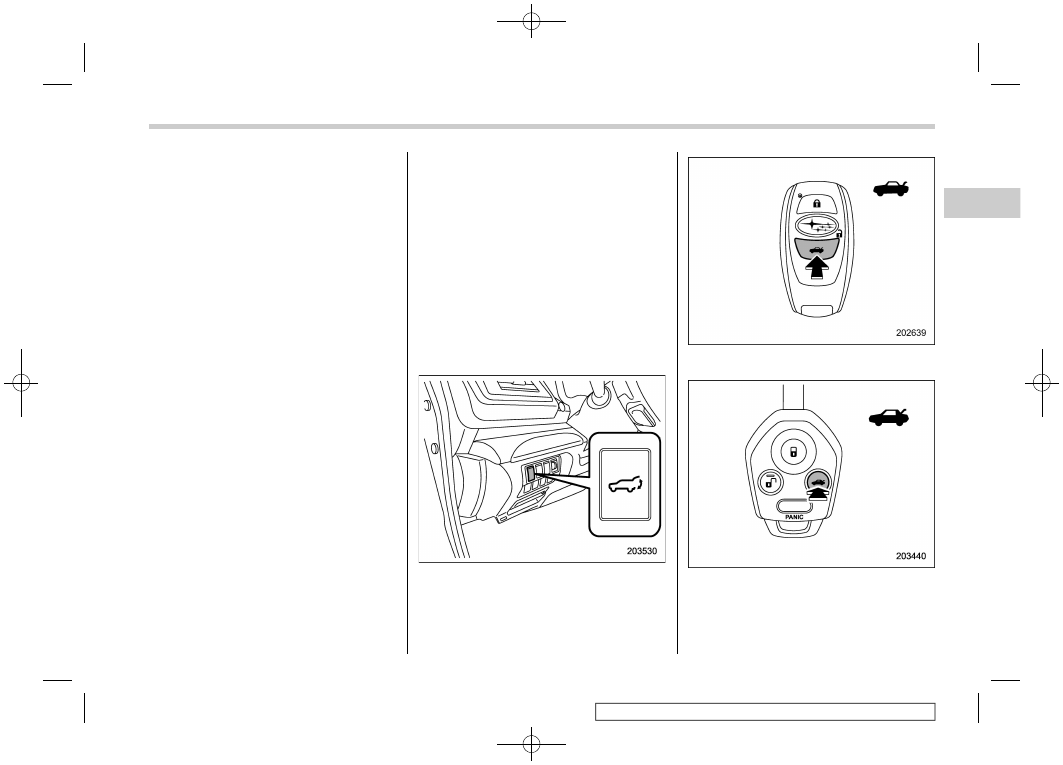

By the power rear gate button
(other than the buttons on the
rear gate)

Power rear gate button on the instrument
panel

Power rear gate button on the access key
fob

Power rear gate button on the transmitter

To open the rear gate:
Press and hold the power rear gate button
when the rear gate is closed. The rear gate

– CONTINUED –

Rear gate

143

2

Keys

and

doors

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(146,1)

will open automatically. Then an electronic
chirp and the hazard warning flashers will
operate as follows:
.

When operating the power rear gate

button on the instrument panel/transmitter:
sounds and flashes twice.
.

When operating the power rear gate

button on the access key fob: sounds and
flashes four times.

NOTE

While the rear gate is locked, you
cannot open the rear gate by operating
the power rear gate button on the
instrument panel. In such a case,
unlock the rear gate before operating
the power rear gate button.

To pause the opening rear gate:
Briefly press the power rear gate button
while the rear gate is being opened. Then
an electronic chirp will sound twice and the
hazard warning flashers will flash twice.
If you press the power rear gate button
again, the rear gate will close.
You can open the rear gate by pressing the
power rear gate button briefly while the
rear gate is being closed.

NOTE

The rear gate cannot be paused when it
is in the approximately 2 in (5 cm) range
from the fully closed position. The
system will ignore any button operation
and the rear gate will continue to open.

To close the rear gate:
Press and hold the power rear gate button.
Then an electronic chirp will sound twice
and the hazard warning flashers will flash
twice. If you briefly press the power rear
gate button again, the rear gate will open.

NOTE

T h e o p e r a t i o n a l / n o n - o p e r a t i o n a l
setting of the power rear gate using

power rear gate button can be changed
by your SUBARU dealer. Contact your
SUBARU dealer for details.

!

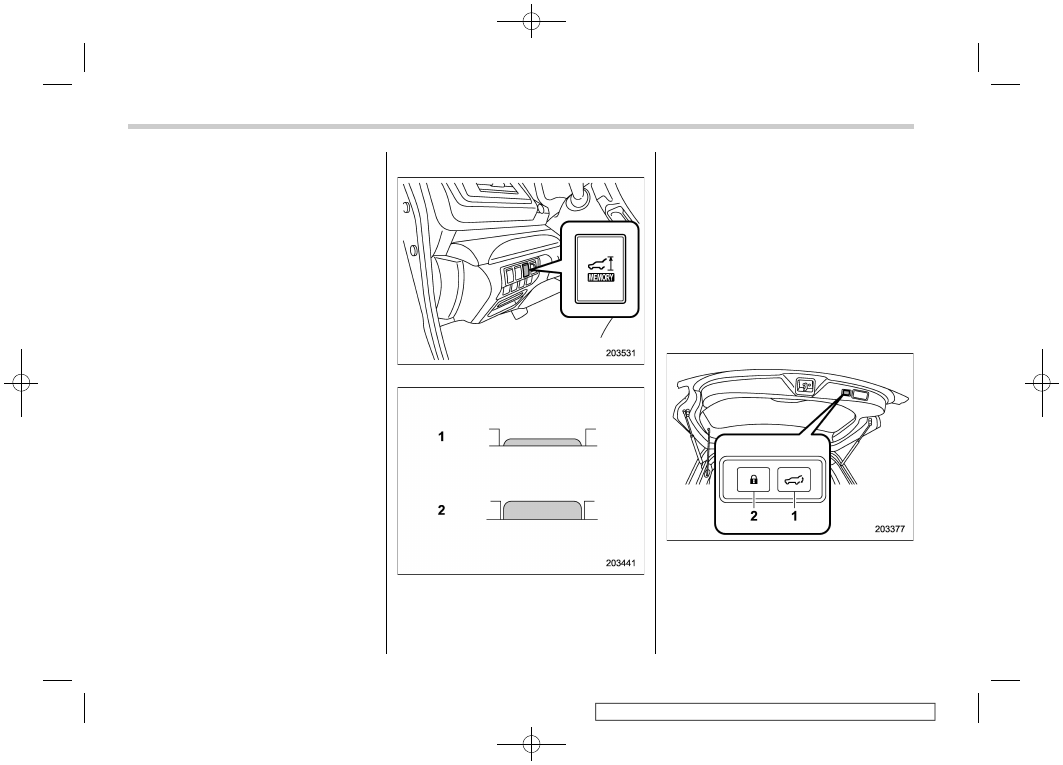

By the buttons on the rear gate

NOTE

After performing the following proce-
dures, an electronic chirp will sound
twice and the hazard warning flashers
will flash twice.

Rear gate opener button

Rear gate

144

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(147,1)

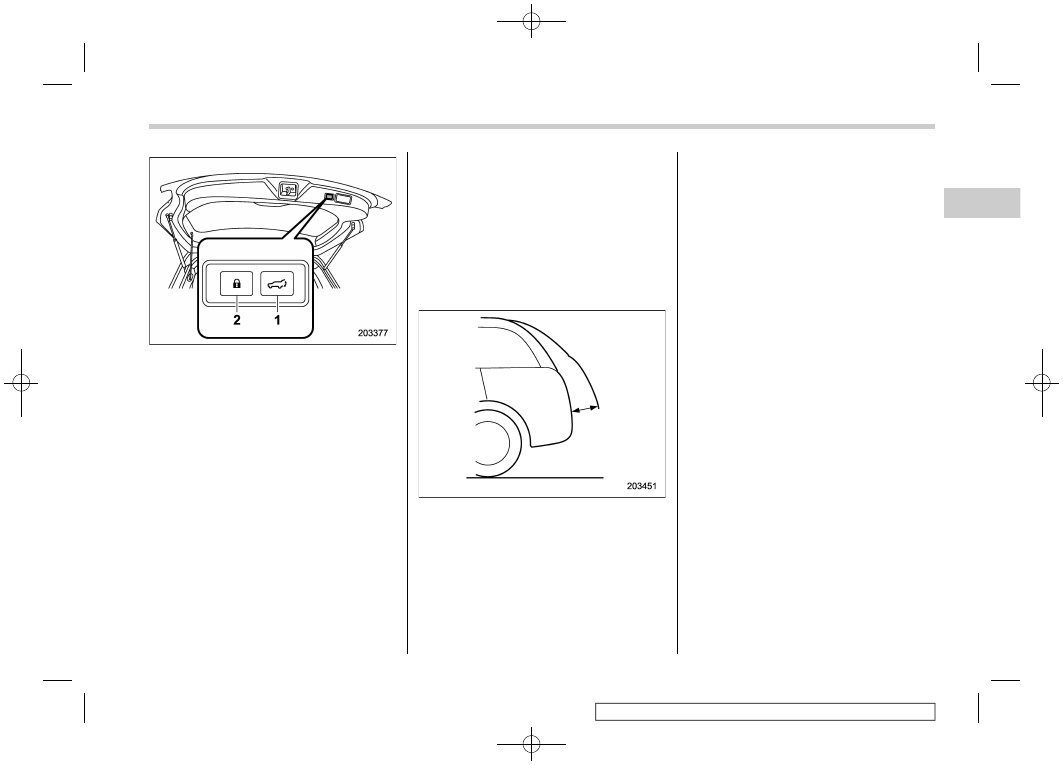

Power rear gate button on the inside edge
of the rear gate
1)

Power rear gate button

2)

Power rear gate lock button (if equipped)

To open the rear gate:
1. For models with “keyless access with
push-button start system”, carry the ac-
cess key fob. For models without “keyless
access with push-button start system”,
unlock the rear gate.
2. Briefly press the rear gate opener
button when the rear gate is closed.

The rear gate will open automatically.

To pause the opening rear gate:
Briefly press either of the following buttons
while the rear gate is being opened.
.

Rear gate opener button

.

Power rear gate button on the inside

edge of the rear gate

If you press the power rear gate button
again, the rear gate will close. You can
open the rear gate by pressing the power
rear gate button briefly while the rear gate
is being closed.

NOTE

The rear gate cannot be paused when it
is in the approximately 2 in (5 cm) range
from the fully closed position. The
system will ignore any button operation
and the rear gate will continue to open.

To close the rear gate:
Briefly press either of the following but-

tons.
.

Rear gate opener button

.

Power rear gate button on the inside

edge of the rear gate

If you press the power rear gate button
again, the rear gate will open.

To Lock the doors using the power rear
gate lock button:
Carry the access key fob, and press the
power rear gate lock button. All doors, the
rear gate and the fuel lid are locked, and
the rear gate will be closed. Also, the
hazard warning flashers will flash once,
and an electronic chirp will sound once.

NOTE

.

By pushing the power rear gate lock

button for more than 2 seconds, all
doors are locked, however, the auto
door closing function of the rear gate
will be canceled.
.

If any of the doors is not fully closed,

the outside warning chime sounds five
times to alert you that the doors are not
properly closed.

!

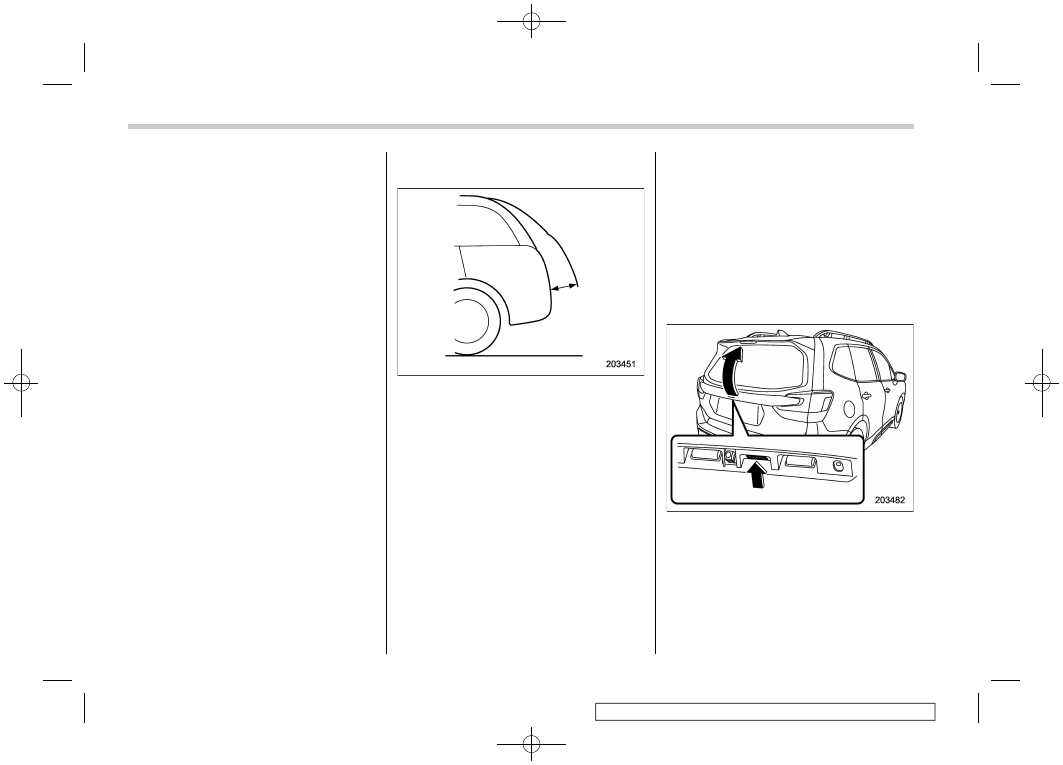

By instruction operation

To open the rear gate:
Lift up the rear gate, when the rear gate at
midway position. The rear gate will open
automatically.

– CONTINUED –

Rear gate

145

2

Keys

and

doors

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(148,1)

To close the rear gate:
Pull down the rear gate when the rear gate
is opened. The rear gate will close auto-
matically.

NOTE

.

If the rear gate is moved slowly, it

may not operate automatically open or
close.
.

When leaving the vehicle, make sure

that all doors and the rear gate are
completely locked.

!

Instruction operation

NOTE

Using the power rear gate operation is
recommended. Instruction operation will
require physical effort.

The power rear gate can be closed
instructionly. Refer to “Instruction rear gate”
FP141.

!

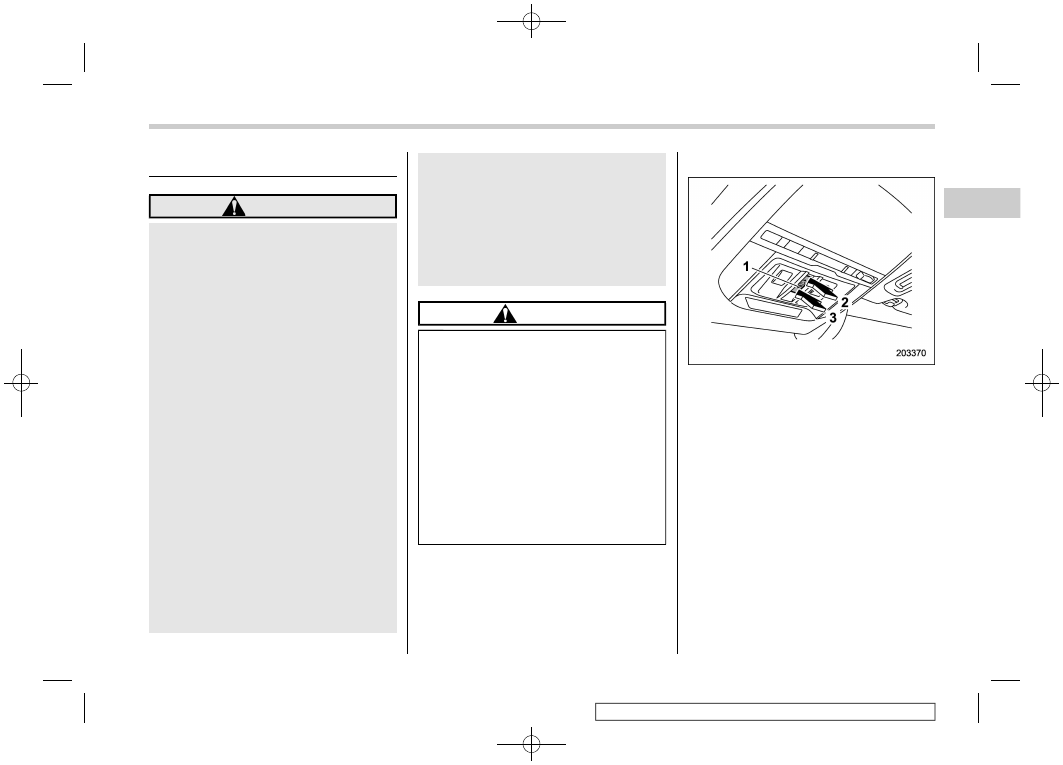

Memory function

Memory switch

Memory switch status
1)

ON status

2)

OFF status

Your desired rear gate height can be

registered.

Registration of the rear gate height:
To register the rear gate height, perform
the following procedures while the ignition
switch is in the “LOCK”/“OFF” position.
1. Open the rear gate using the power
rear gate function.
2. With the rear gate at the desired
height, stop it using the power rear gate
function.
3. Press the memory switch to select the
“ON” status.

Power rear gate button on the inside edge
of the rear gate
1)

Power rear gate button

2)

Power rear gate lock button (if equipped)

4. With the rear gate at the desired
height, press and hold the power rear gate

Rear gate

146

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(149,1)

button on the inside edge of the rear gate
until an electronic chirp is heard and the
hazard warning flashers flash three times.
The electronic chirp and the flashing
hazard warning flashers confirm the se-
lected rear gate height has been regis-
tered.

NOTE

.

To change the registered height,

press the memory switch to select the
“OFF” status and perform the register-
ing procedure again.
.

It is possible to register the height

from approximately 2 in (5 cm) or more
from the completely closed position.

Retrieval of the rear gate height:
To open the rear gate and stop it at the
registered height, perform the following
procedure.
1. Press the memory switch to select the
ON status.
2. Press and hold any of the power rear
gate switches.

Even if any of the power rear gate switches
are pressed and held while the memory
switch is in the OFF status, you can stop it
at the registered height by pressing the
memory switch to select the ON status
before the rear gate reaches the registered

height.

NOTE

The rear gate will open to the position
that is stored in the memory function
even if the rear gate is opened by the
reverse function.

!

Reverse function

WARNING

.

Do not let parts of your body get

caught when operating the re-
verse function. If the reverse
function does not operate for
some reason, this may lead to
serious injury or accidents.

.

The reverse function may not

operate if foreign objects are
caught in the rear gate just before
it closes completely. Be careful
not to catch your fingers and
other body parts.

.

The reverse function may not

operate depending on the object
shape and the manner in which it
was caught. Be careful not to
catch your fingers and other
body parts.

CAUTION

.

If the reverse function is operated

3 times consecutively, automatic
opening and closing of the power
rear gate function will be can-
celed and the rear gate will stop
opening or closing suddenly.
However, the rear gate may open
or close depending on the rear
gate height when automatic op-
eration is ceased. Be careful that
the rear gate does not hit any-
one’s head or face, etc. and that
fingers and baggage, etc. are not
caught in it.

.

Take care not to damage the

touch sensors. Otherwise, the
reverse function may cease to
operate.

If, while opening or closing using power
rear gate, the rear gate catches persons or
baggage or hits an obstacle, an electronic
chirp will sound 3 times and the rear gate
will operate as follows.

When opening the rear gate: The rear
gate will automatically close.

When closing the rear gate: The rear
gate will automatically open.

– CONTINUED –

Rear gate

147

2

Keys

and

doors

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(150,1)

1)

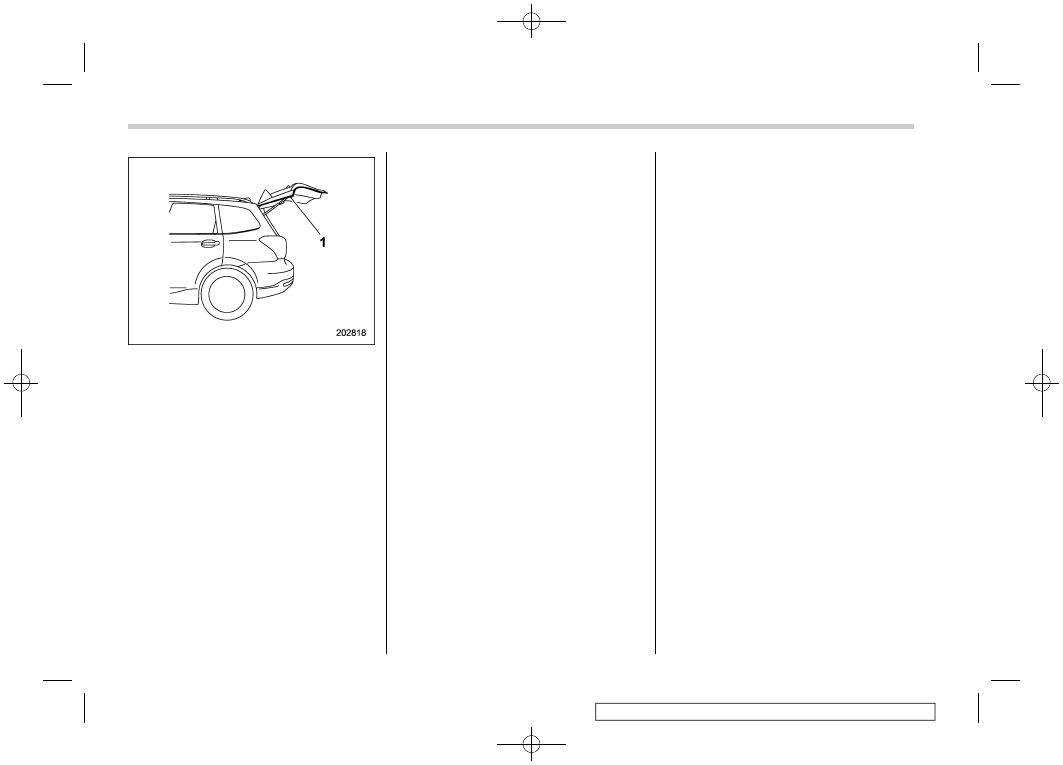

Touch sensor

Touch sensors are attached on the left and
right edges of the rear gate. If the touch
sensors detect fingers, baggage, etc.
while closing by the power rear gate
function, an electronic chirp will sounds 3
times and the rear gate will open auto-
matically.

NOTE

When the rear gate is opened using the
reverse function, it will be opened fully
or to the height registered in the
memory function.

!

Rear gate drop prevention function

The rear gate is lowered by the weight of
snow and such, an electronic chirp will
sound and the rear gate drop prevention
function will apply braking to the rear gate
so that it prevents a rapid closure of the
rear gate.

NOTE

.

If there is snow on the rear gate, only

use the power rear gate function after
removing the snow.

!

Selecting audible signal operation

Using an electronic chirp, the power rear
gate will give you an audible signal before
starting its operation. If desired, the audi-
ble signal can be turned off by a SUBARU
dealer. Consult your SUBARU dealer for
details.

For models with “keyless access with
push-button start system”, you can turn
the audible signal off by operating the
combination meter display (color LCD).
For details, refer to “Keyless Entry Sys-
tem” FP196.

The ON/OFF setting of the audible signal
also works as the audible signal settings
for the “remote keyless entry system” and
the “keyless access with push-button start
system”. However, for the warning chime

such as that caused by “Reverse function”
FP147
or “Rear gate drop prevention
function” FP148,
it cannot be set as non-
operational.

Rear gate

148

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(151,1)

2-10. Moonroof (if equipped)

WARNING

Never let anyone’s hands, arms,
head or any objects protrude from
the moonroof. A person could be
seriously injured if any of the follow-
ing conditions occur.

.

The vehicle stops suddenly.

.

The vehicle turns sharply.

.

The vehicle is involved in an

accident.

.

Body parts protruding from the

vehicle are struck by outside
objects.

To avoid serious personal injury
caused by entrapment, always con-
form to the following instructions
without exception.

.

Before closing the moonroof,

make sure that no one’s hands,
arms, head or other objects will
be accidentally caught in the
moonroof.

.

Always carry the key when you

leave the vehicle for safety rea-
sons and never allow an unat-
tended child to remain in the

vehicle. Failure to follow this
procedure could result in injury
to a child operating the moon-
roof.

.

Never try to check the anti-en-

trapment function by deliberately
placing part of your body in the
moonroof.

CAUTION

.

Do not sit on the edge of the open

moonroof.

.

Do not operate the moonroof if

falling snow or extremely cold
conditions have caused it to
freeze shut.

.

Do not touch the moving parts of

the moonroof while the moonroof
is operating.

.

If the moonroof does not close,

we recommend that you have the
system checked by a SUBARU
dealer.

The moonroof operates only when the
ignition switch is in the “ON” position.

&

Moonroof switch

1)

OPEN/CLOSE switch

2)

Open

3)

Close

To open the moonroof:
Press the rear side of the “OPEN/CLOSE”
switch. The sun shade will also be opened
together with the moonroof. The moonroof
will stop at a position approximately 6 in
(15 cm) away from the fully opened
position. Slide the switch rearward again
to open the moonroof completely.

To close the moonroof:
Press the front side of the “OPEN/CLOSE”
switch.
To stop the moonroof at a selected mid-
way position while opening or closing it,
momentarily push the switch to the

– CONTINUED –

Moonroof

149

2

Keys

and

doors

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content   ..  16  17  18  19   ..
