北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

Ventilator control .................................................... 4-2

Center ventilators .................................................. 4-2
Side ventilators...................................................... 4-2

Climate control panel ............................................. 4-2

Type A ................................................................... 4-3
Type B ................................................................... 4-4
Type C ................................................................... 4-5

Automatic climate control operation

(type B and C) ...................................................... 4-6

Sensors ................................................................. 4-6

Manual climate control operation .......................... 4-7

Airflow mode selection........................................... 4-7
MAX A/C mode (for type B and C) .......................... 4-8
Temperature control ............................................... 4-8
Fan speed control .................................................. 4-9
Air conditioner control ........................................... 4-9

Air inlet selection ...................................................4-9
To turn off the climate control system.....................4-9

Defrosting.............................................................. 4-10
Operating tips for heater and air conditioner .... 4-10

Cleaning ventilation grille ..................................... 4-10
Efficient cooling after parking in direct sunlight .... 4-10
Lubrication oil circulation in the refrigerant

circuit................................................................ 4-11

Checking air conditioning system before

summer season ................................................. 4-11

Cooling and dehumidifying in high humidity and

low temperature weather conditions................... 4-11

Air conditioner compressor shut-off when

engine is heavily loaded .................................... 4-11

Refrigerant for your climate control system .......... 4-11

Air filtration system...............................................4-11

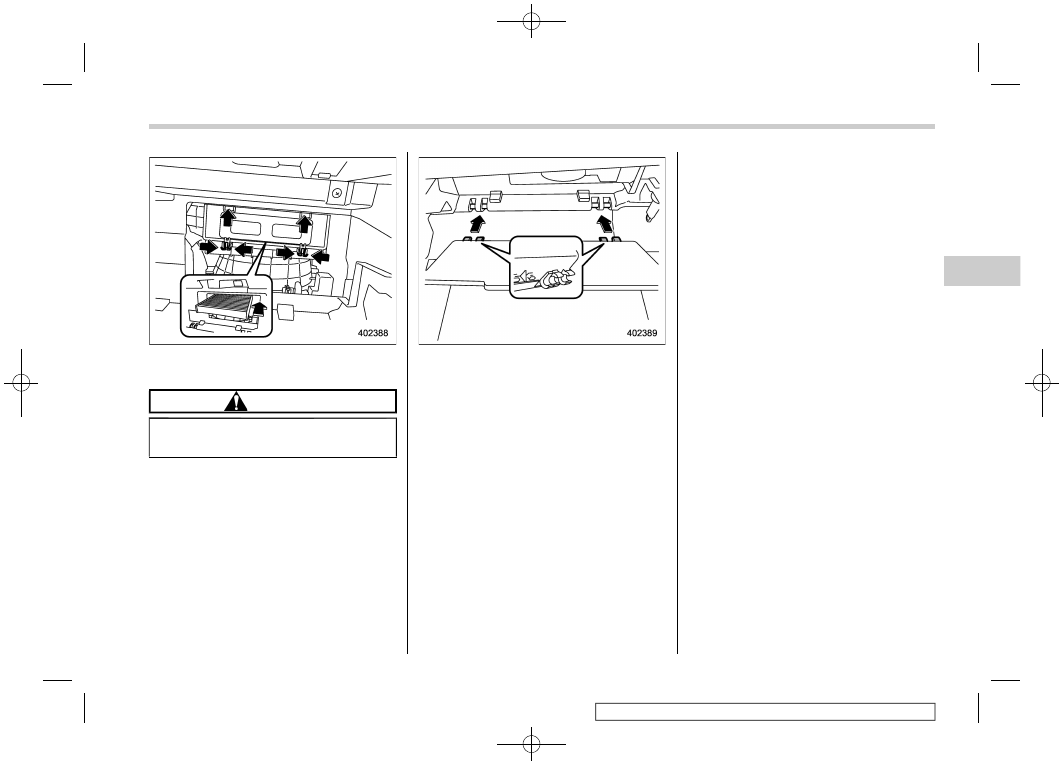

Replacing a cabin air filter .................................... 4-12

Climate control

(234,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

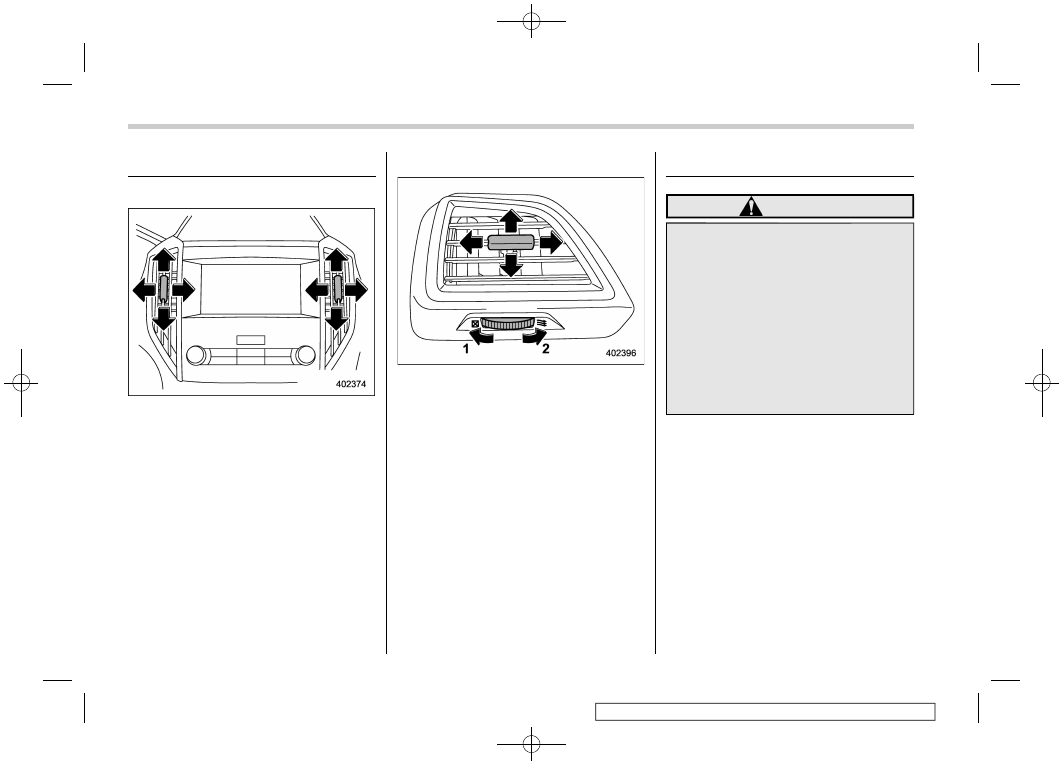

Ventilator control

Center ventilators

To adjust the airflow direction, move the
tab. To close the ventilator, move the tab all
the way down.

Side ventilators

Side ventilators
1)

Open

To adjust the flow direction, move the tab.

Climate control panel

WARNING

The cooling function operates

only when the engine is running.

Do not leave children or adults

who would normally require the
support of others alone in your
vehicle. Pets should not be left
alone either. On hot, sunny days,
temperatures in a closed vehicle
could quickly become high en-
ough to cause severe or possibly
fatal injuries to people or ani-
mals.

Climate control/Ventilator control

4-2

(235,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

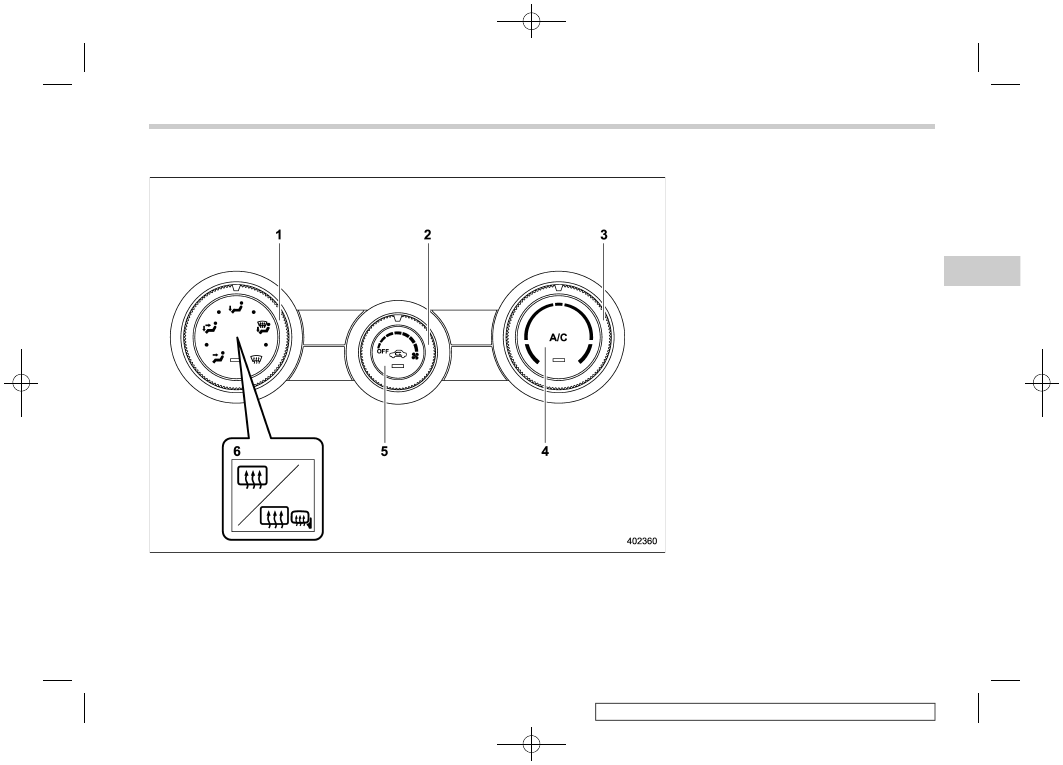

Type A

Airflow mode selection dial (Refer to
“Airflow mode selection” F4-7.)

Fan speed control dial (Refer to “Fan
speed control” F4-9.)

Temperature control dial (Refer to “Tem-
perature control” F4-8.)

Air conditioner button (Refer to “Air
conditioner control” F4-9.)

Air inlet selection button (Refer to “Air
inlet selection” F4-9.)

Rear window defogger button and out-
side mirror defogger button (if equipped)
(Refer to “Defogger and deicer” F3-86.)

– CONTINUED –

Climate control/Climate control panel

4-3

(236,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

Type B

Temperature control dial (Refer to “Auto-
matic climate control operation (type B
and C)” F4-6 and/or “Temperature con-
trol” F4-8.)

AUTO button (Refer to “Automatic cli-
mate control operation (type B and C)”
F4-6.)

Air conditioner button (Refer to “Air
conditioner control” F4-9.)

Air inlet selection button (Refer to “Air
inlet selection” F4-9.)

MAX A/C button (Refer to “MAX A/C
mode (for type B and C)” F4-8.)

Defroster button (Refer to “Defrosting”
F4-10.)

Rear window defogger button and out-
side mirror defogger button (if equipped)
(Refer to “Defogger and deicer” F3-86.)

Airflow mode selection dial (Refer to
“Airflow mode selection” F4-7.)

Fan speed control dial (Refer to “Fan
speed control” F4-9.)

10) ON/OFF button (Refer to “Automatic

climate control operation (type B and
C)” F4-6.)

NOTE

The climate control screen is displayed
on the multi-function display (color
LCD). Refer to “Climate control screen”
F3-48.

Climate control/Climate control panel

4-4

(237,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

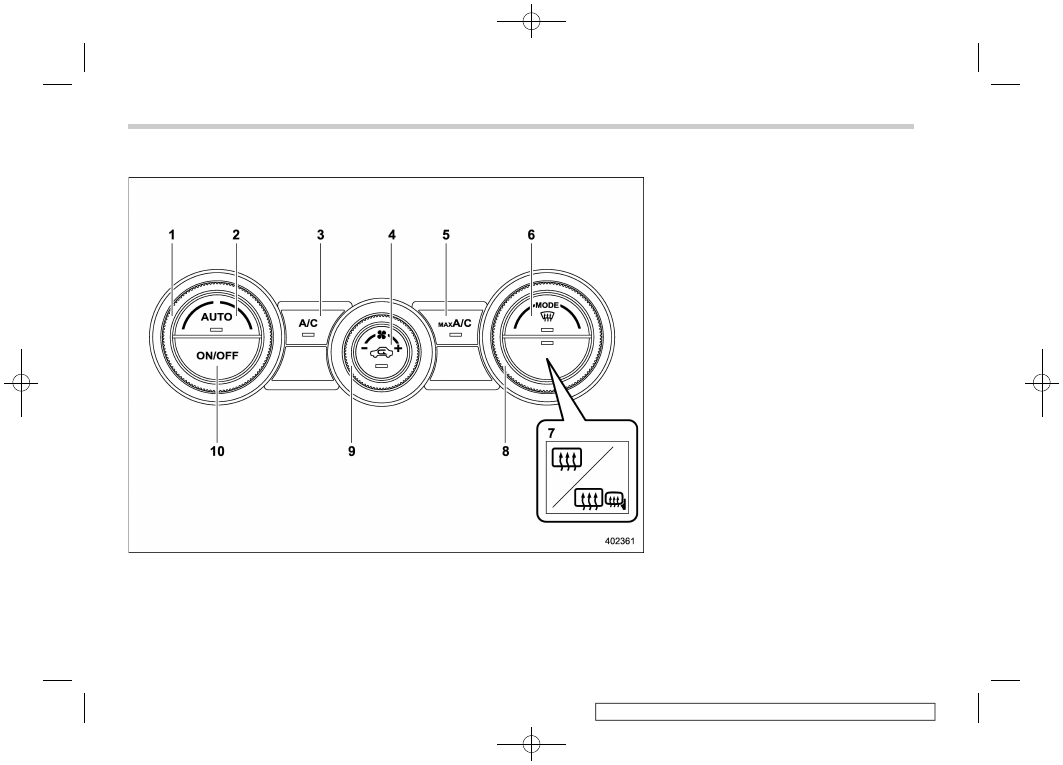

Type C

Driver’s side temperature control dial
(Refer to “Automatic climate control
operation (type B and C)” F4-6 and/or
“Temperature control” F4-8.)

AUTO button (Refer to “Automatic cli-
mate control operation (type B and C)”
F4-6.)

Air conditioner button (Refer to “Air
conditioner control” F4-9.)

Air inlet selection button (Refer to “Air
inlet selection” F4-9.)

MAX A/C button (Refer to “MAX A/C
mode (for type B and C)” F4-8.)

Defroster button (Refer to “Defrosting”
F4-10.)

Rear window defogger button and out-
side mirror defogger button (if equipped)
(Refer to “Defogger and deicer” F3-86.)

Passenger’s side temperature control
dial (Refer to “Temperature control” F4-
8.)

SYNC button (Refer to “SYNC mode
(type C)” F4-8.)

10) Fan speed control dial (Refer to “Fan

speed control” F4-9.)

11) Airflow mode selection button (Refer to

“Airflow mode selection” F4-7.)

12) ON/OFF button (Refer to “Automatic

climate control operation (type B and
C)” F4-6.)

NOTE

The climate control screen is displayed
on the multi-function display (color
LCD). Refer to “Climate control screen”
F3-48.

Climate control/Climate control panel

4-5

(238,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

Automatic climate control
operation (type B and C)

When this mode is selected, the fan speed,
airflow distribution, air-inlet control, and air
conditioner compressor operation are
automatically controlled. To activate this
mode, perform the following.
1. Press the AUTO button. The indicator
light “FULL AUTO” on the multi-function
display (color LCD) illuminates.
2. Set the preferred temperature using
the temperature control dial.

NOTE

Operate the automatic climate con-

trol system when the engine is running.
.

Even when cooling is not necessary,

the air conditioner compressor will
automatically turn on if the temperature
is set much lower than the current
outlet air temperature. Even in this
case, the “A/C” indicator light on the
control panel illuminates.
.

The controllable temperature range

may vary depending on the regional
specifications of the vehicle.
.

If you operate any of the buttons on

the control panel other than the ON/
OFF button, rear window defogger
button, SYNC button and temperature
control dial(s) during FULL AUTO mode

operation, the “FULL” indicator light on
the multi-function display (color LCD)
will turn off and the “AUTO” indicator
light will remain illuminated. You can
then manually control the system as
desired using the button you operated.
To change the system back to the FULL
AUTO mode, press the AUTO button.

To turn off the climate control system,
press the ON/OFF button. Then the air
inlet selection will be set to the following.
.

When the air inlet selection is set to

auto mode: Outside air circulation
.

When the air inlet selection is set to

manual mode: No change

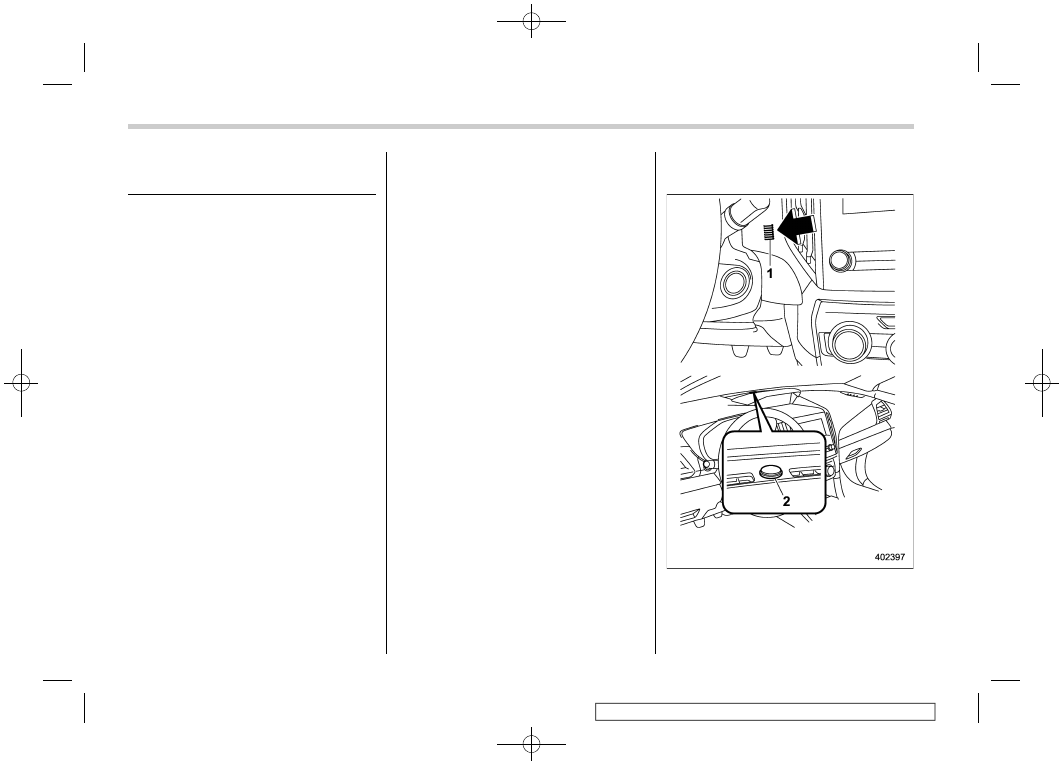

Sensors

The sensors are located as follows.

Interior air temperature sensor

Solar sensor

The automatic climate control system
employs several sensors. These sensors

Climate control/Automatic climate control operation (type B and C)

4-6

(239,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

are delicate. If they are not treated properly
and become damaged, the system may
not be able to control the interior tempera-
ture correctly. To avoid damaging the
sensors, observe the following precau-
tions.
.

Do not subject the sensors to impact.

Keep water away from the sensors.

Do not cover the sensors.

Manual climate control op-
eration

Airflow mode selection

Select the airflow mode by using the
airflow mode selection dial (type A and B)
or the airflow mode selection button (type
C).

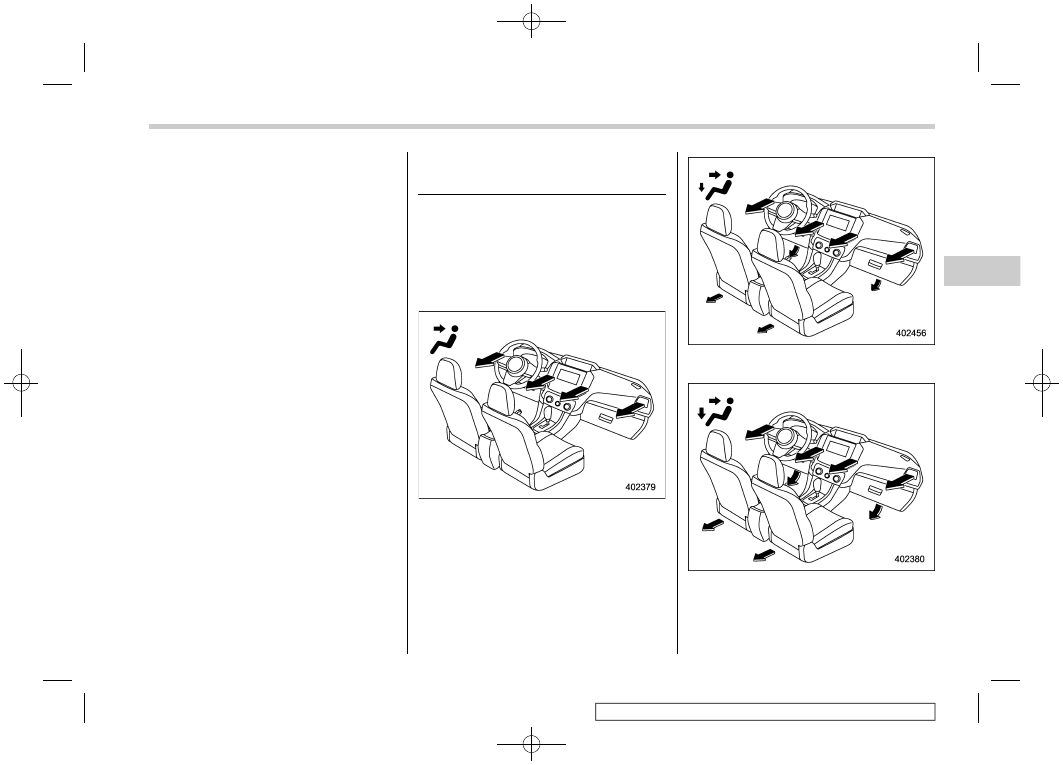

Airflow modes are as follows.

Ventilation: Instrument panel outlets

Ventilation 2 for type B and C: Instru-
ment panel outlets and foot outlets

Bi-level: Instrument panel outlets and foot
outlets

– CONTINUED –

Climate control/Manual climate control operation

4-7

(240,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

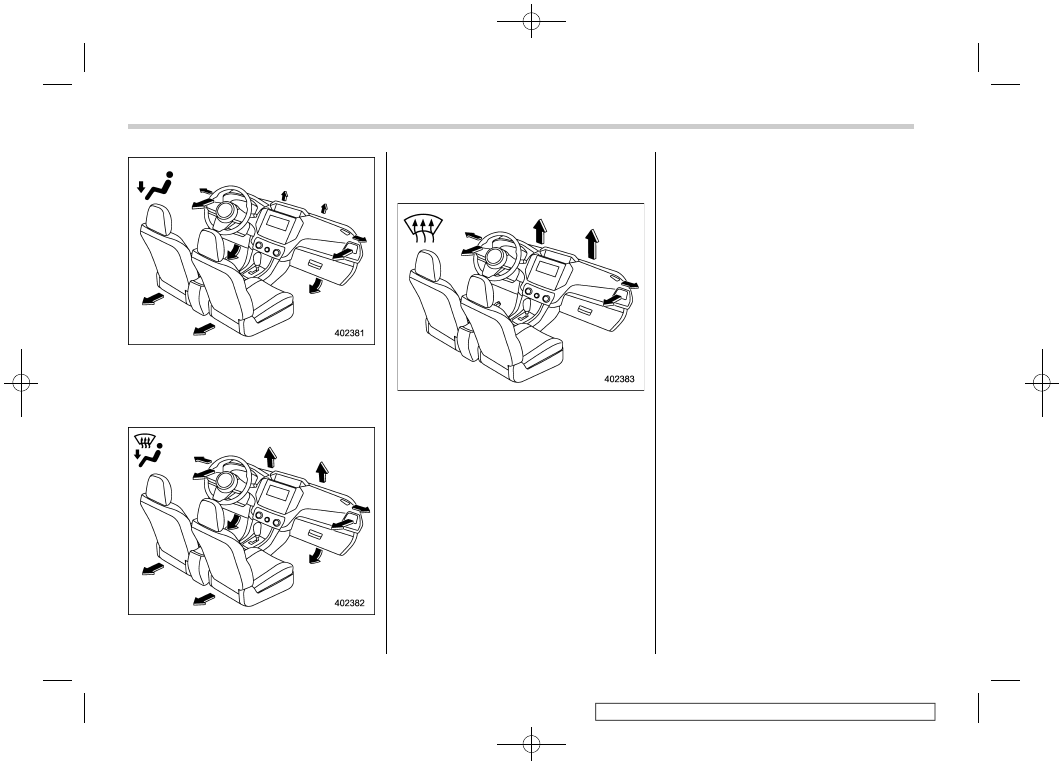

Heat: Foot outlets, both side outlets of the
instrument panel and some through wind-
shield defroster outlets (A small amount of
air flows to the windshield and both side
windows to prevent fogging.)

Heat-def: Windshield defroster outlets,

foot outlets and both side outlets of the
instrument panel (Refer to “Defrosting”
F4-10.)

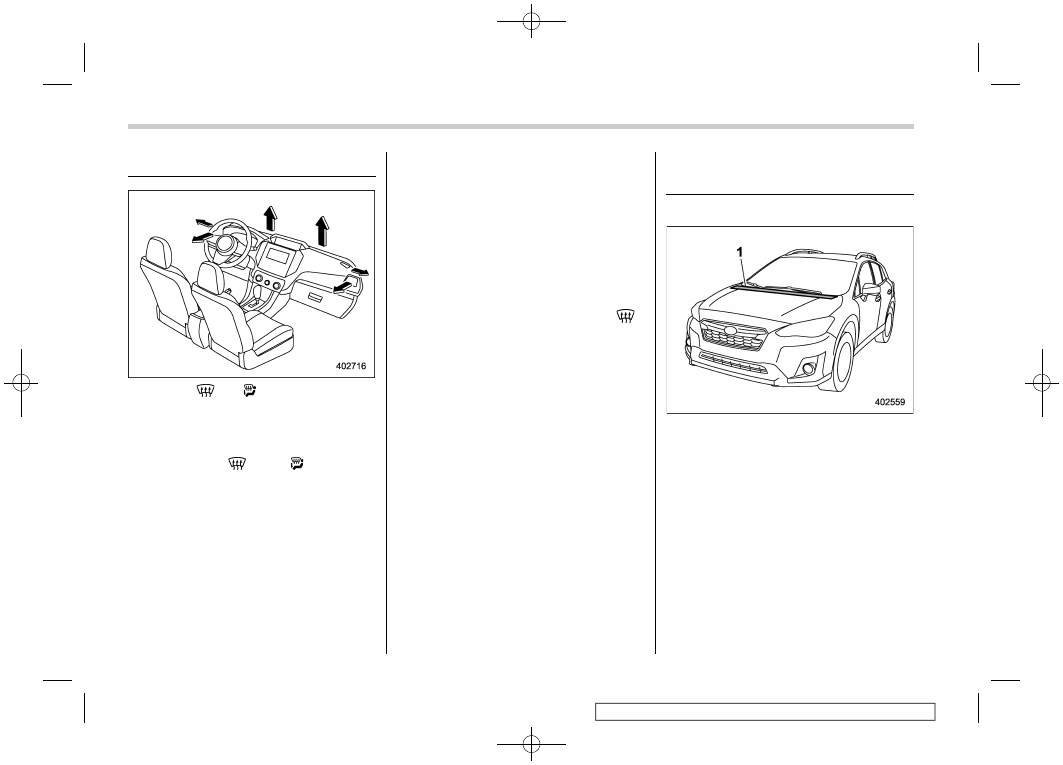

Defrost: Windshield defroster outlets and
both side outlets of the instrument panel
(Refer to “Defrosting” F4-10.)

MAX A/C mode (for type B and
C)

For quicker cooling, press the MAX A/C
button.
When the MAX A/C mode is on, the
following settings will be changed auto-
matically.
.

The air conditioner will turn on.

The temperature will be set on the

lowest.
.

The fan speed will be set on the

maximum speed.
.

The air inlet will be set to recirculation.

The air flow mode setting will be set to

ventilation mode.

To turn off MAX A/C mode and return the
previous setting, press the MAX A/C
button again.

Temperature control

Turn the temperature control dial to set the
preferred interior temperature.

NOTE

The controllable temperature range
may vary depending on the regional
specifications of the vehicle.

SYNC mode (type C)

When the SYNC mode is turned on, both
the driver’s and passenger’s side tem-
peratures are synchronized using the
driver’s side temperature control dial.
Press the SYNC button to turn on the
SYNC mode. The SYNC button indicator
will illuminate.
Press the SYNC button again or turn the
passenger’s side temperature control dial
to cancel the SYNC mode. The SYNC
button indicator will not illuminate. In this
case, temperature control on the driver’s
side and passenger’s side is separated.

Climate control/Manual climate control operation

4-8

(241,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

The temperature will be controlled indivi-
dually using the driver’s and passenger’s
temperature control dials.

Fan speed control

Select the preferred fan speed by turning
the fan speed control dial.

Air conditioner control

The air conditioner operates only when the
engine is running.
Press the air conditioner button while the
fan is in operation to turn on the air
conditioner. When the air conditioner is
on, the “A/C” indicator light illuminates.
To turn off the air conditioner, press the
button again.

NOTE

For efficient defogging or dehumidify-
ing in cold weather, turn on the air
conditioner. If the ambient temperature
decreases to approximately 328F (08C),
the air conditioner and dehumidifica-
tion system may not operate properly.

Air inlet selection

Select the air inlet by pressing the air inlet
selection button.

Recirculation:

When the indicator light on the air inlet
selection button illuminates, interior air is
recirculated inside the vehicle. Press the
air inlet selection button to the ON position
for fast cooling with the air conditioner or
when driving on a dusty road.

Outside air circulation:

When the indicator light on the air inlet
selection button does not illuminate, out-
side air is drawn into the passenger
compartment. Press the air inlet selection
button to the OFF position when the
interior has cooled to a comfortable tem-
perature and the road is no longer dusty.

WARNING

Continued operation in the ON posi-
tion may fog up the windows. Switch
to the OFF position as soon as the
outside conditions are no longer
dusty.

To turn off the climate control
system

To turn off the climate control system:
.

Type A: select the “OFF” position using

the fan speed control dial.
.

Type B and C: press the ON/OFF

button.

Climate control/Manual climate control operation

4-9

(242,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

Defrosting

Select the “

” or “ ” mode to defrost or

dehumidify the windshield and front door
windows.

NOTE

When the “

” or “ ” mode is

selected, the air conditioner compres-
sor operates automatically regardless
of the position of the air conditioner
button to defrost the windshield more
quickly. However the indicator on the
air conditioner button will not illumi-
nate. At the same time, the air inlet
selection is automatically set to the
outside air mode.

For type A climate control system, in
this state:

– You cannot stop the air condi-
tioner compressor by pressing the
air conditioner button.
– You cannot select the recircula-
tion mode by pressing the air inlet
selection button.

For types B and C climate control

system, after defrosting the windshield
by pressing the defroster button “

”,

pressing the button again returns the
system to the setting that had been
selected before the defroster was acti-
vated.

Operating tips for heater and
air conditioner

Cleaning ventilation grille

Front ventilation inlet grille

Always keep the front ventilation inlet grille
free of snow, leaves, or other obstructions
to ensure efficient heating and defrosting.
Since the condenser is located in front of
the radiator, this area should be kept clean
because cooling performance is impaired
by any accumulation of insects and leaves
on the condenser.

Efficient cooling after parking
in direct sunlight

After parking in direct sunlight, drive with
the windows open for a few minutes to

Climate control/Defrosting

4-10

(243,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

allow outside air to circulate into the
heated interior. This results in quicker
cooling by the air conditioner. Keep the
windows closed during the operation of the
air conditioner for maximum cooling effi-
ciency.

Lubrication oil circulation in
the refrigerant circuit

Operate the air conditioner compressor at
a low engine speed (at idle or low driving
speeds) a few minutes each month during
the off-season to circulate its oil.

Checking air conditioning
system before summer sea-
son

Check the air conditioner unit for refriger-
ant leaks, hose conditions, and proper
operation each spring. Have the air con-
ditioning system checked by your
SUBARU dealer.

Cooling and dehumidifying in
high humidity and low tem-
perature weather conditions

Under certain weather conditions (high
relative humidity, low temperatures, etc.) a
small amount of water vapor emission
from the air outlets may be noticed. This
condition is normal and does not indicate

any problem with the air conditioning
system.

Air conditioner compressor
shut-off when engine is
heavily loaded

To improve acceleration and gas mileage,
the air conditioner compressor is designed
to temporarily shut off during air condi-
tioner operation whenever the accelerator
is fully depressed such as during rapid
acceleration or when driving on a steep
upgrade.

Refrigerant for your climate
control system

Your air conditioner uses ozone friendly
refrigerant HFC134a. Therefore, the meth-
od of adding, changing or checking the
refrigerant is different from the method for
CFC12 (freon). Consult your SUBARU
dealer for service. Repairs needed as a
result of using the wrong refrigerant are not
covered under warranty.

Air filtration system

Your vehicle’s air conditioning system is
equipped with an air filtration system.
Replace the cabin air filter according to
the replacement schedule found in the
“Warranty and Maintenance Booklet”. This
schedule should be followed to maintain
the filter’s dust collection ability. Under
extremely dusty conditions, the filter
should be replaced more frequently. Have
your filter checked or replaced by your
SUBARU dealer. For replacement, use
only a genuine SUBARU air filter kit.

CAUTION

Contact your SUBARU dealer if the
following occurs, even if it is not yet
time to change the filter:

Reduction of the airflow through

the vents.

Windshield gets easily fogged or

misted.

NOTE

The filter can influence the air condi-
tioning, heating and defroster perfor-
mance if not properly maintained.

– CONTINUED –

Climate control/Air filtration system

4-11

(244,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

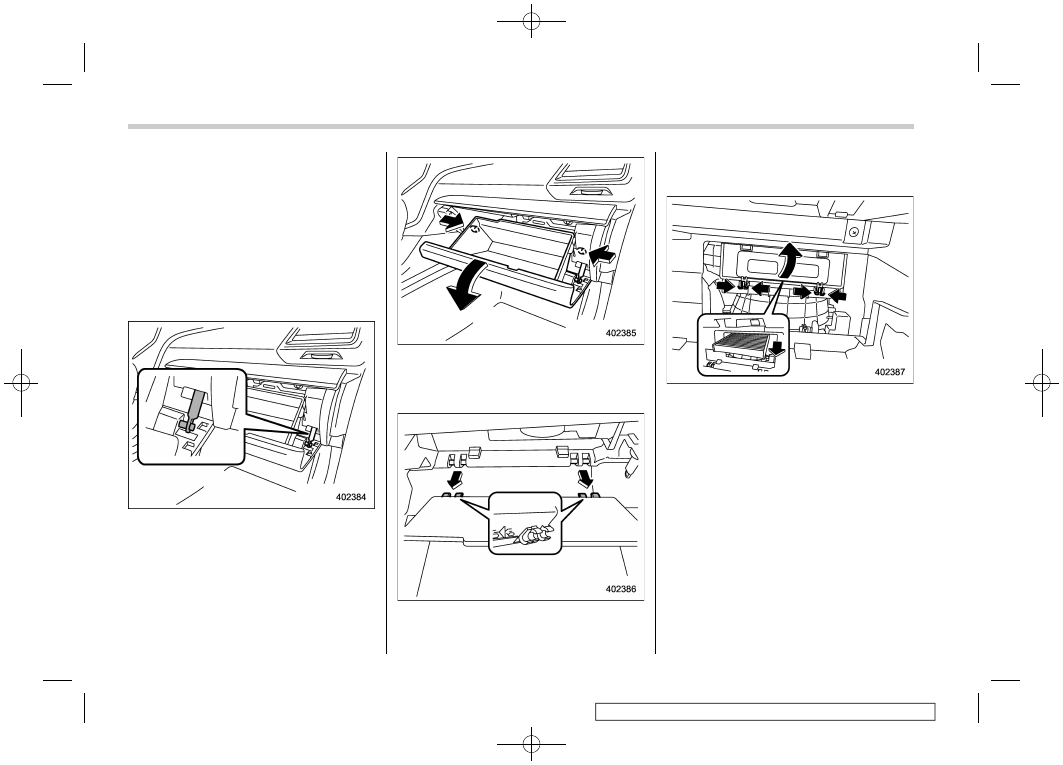

Replacing a cabin air filter

1. Remove the glove box.

NOTE

We recommend that you take measures
to protect the center console with
masking tape first, so that you avoid
scratching the center console with the
glove box.

(1) Open the glove box.

(2) Remove the damper shaft from the
glove box.

(3) Push in the stoppers located on
both sides of the glove box and then
pull down the glove box as far as it will
go.

(4) Pull out the glove box horizontally
and remove the hinge portion. When

doing this, be careful not to damage
the hinge.

2. Remove the cabin air filter according to
the following procedure in order to prevent
dust on the air cleaner from falling to the
inside of its housing.

(1) Pinch both tabs and remove the
filter cover.
(2) Gently tilt down the end of the filter
and slowly pull it out 0.4 in (1 cm).
(3) Slowly pull out the rest of the filter.

Climate control/Air filtration system

4-12

(245,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

3. Replace the cabin air filter with a new
one and then reinstall the cover.

CAUTION

The arrow mark on the filter must
point UP.

4. Reinstall the glove box, and connect
the damper shaft.
5. Close the glove box.

Climate control/Air filtration system

4-13

(2,1)

Model "ALL_MODEL_MEMO" EDITED: 2017/ 11/ 6

Left Page

— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

(247,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

Antenna ................................................................... 5-2

Roof antenna (for Rod type) ................................... 5-2
Roof antenna (for Shark fin type) ........................... 5-2

Audio set ................................................................. 5-3

Audio

(248,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

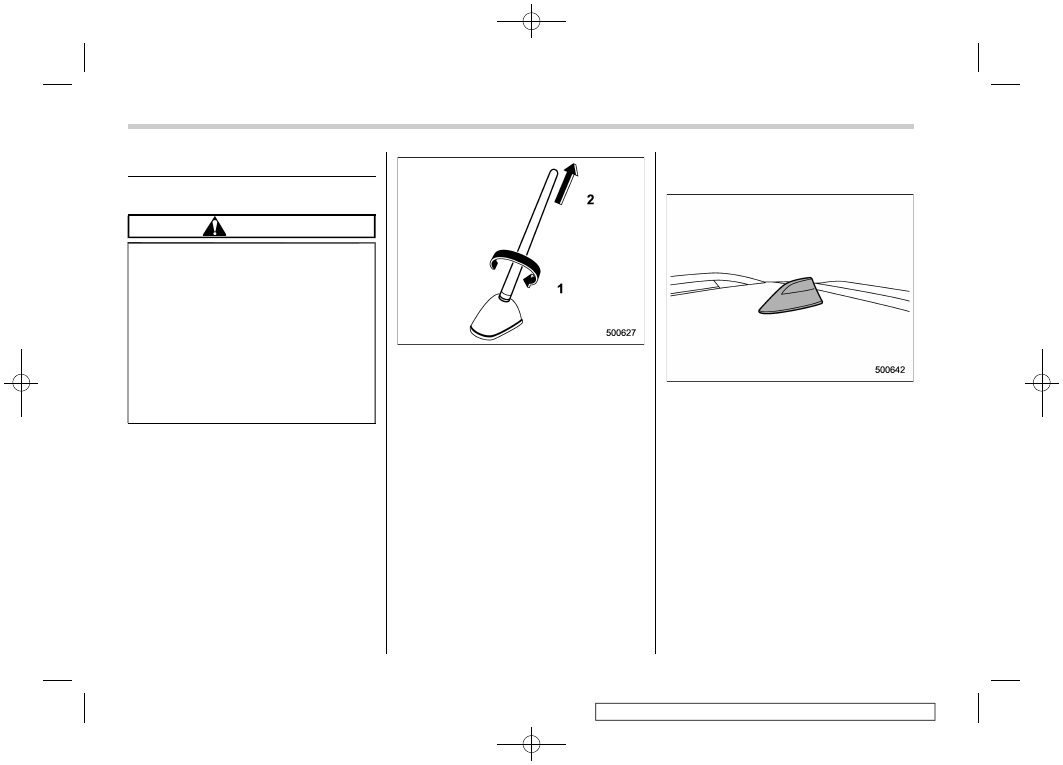

Antenna

Roof antenna (for Rod type)

CAUTION

Be sure to remove the antenna

rod before entering garages,
parking towers and other loca-
tions with low ceilings.

Remove the antenna rod before

washing your car at a car wash. If
the antenna rod remains at-
tached, it may scratch the roof.

When reinstalling the removed

antenna rod, be sure to fully
tighten it.

Unscrew

Remove

The roof antenna is installed on the roof.

The antenna rod can be removed by
unscrewing it from its base.

Roof antenna (for Shark fin
type)

The roof antenna is installed on the roof.

Audio/Antenna

5-2

Content .. 13 14 15 16 ..
