11-67

Maintenance and service

– CONTINUED –

T BAJA-Sport

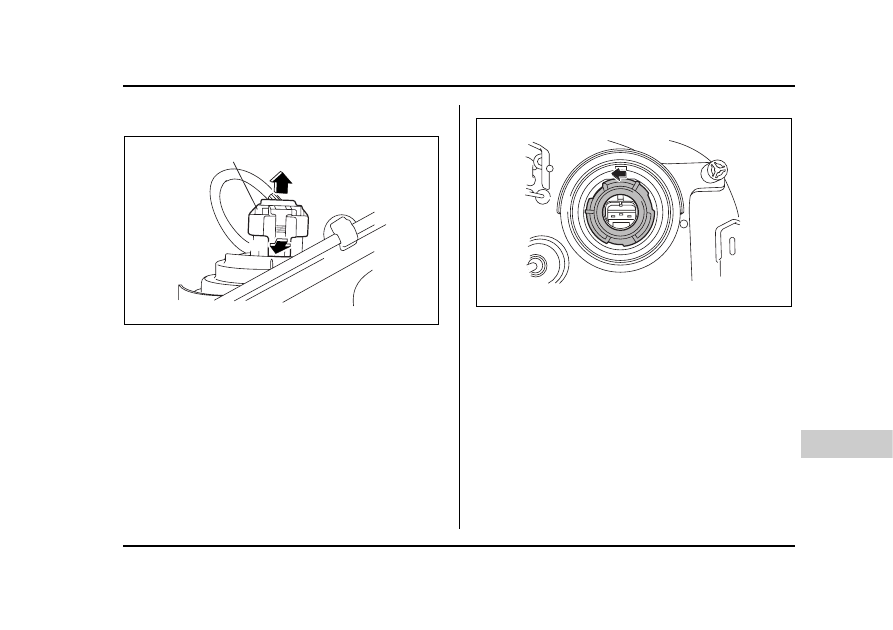

1) Electrical connector
2) Push

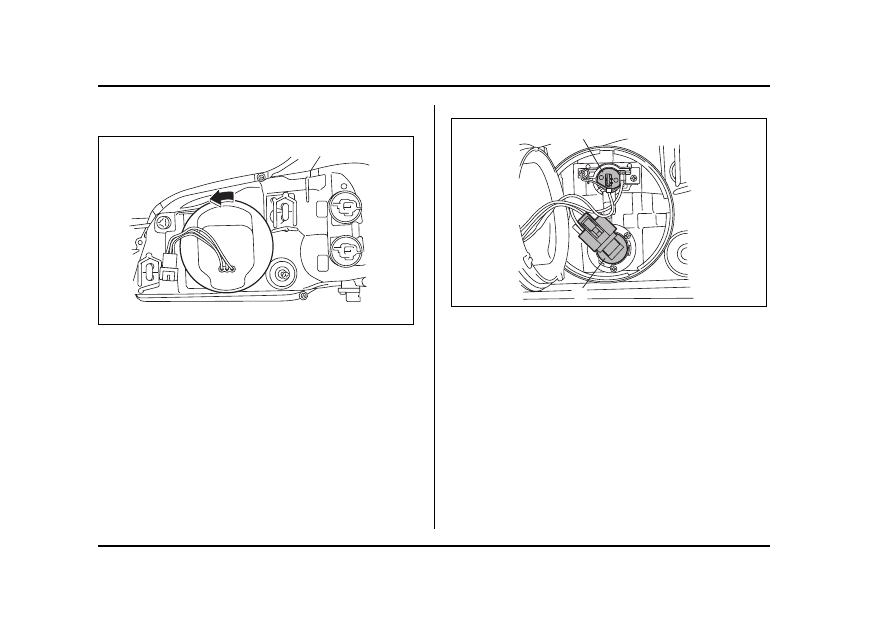

1. Disconnect the electrical connector while pressing
the lock release tab.

2. Remove the bulb holder from the headlight assem-
bly by turning it counterclockwise.
3. Remove the bulb from the headlight assembly.
4. Install the new bulb.
5. Install the bulb holder in the headlight assembly by
turning it clockwise until it locks.
6. Remove the electrical connector.

1

2

UBB045BB

UBB046BA

11-68

Maintenance and service

T BAJA-Turbo

1) Low beam light bulb
2) High beam light bulb

Remove the headlight bulb cover, by turning it coun-
terclockwise.

UBB039BA

1

2

UBB040BB

11-69

Maintenance and service

– CONTINUED –

T Low beam light bulbs

0

1) Electrical connector
2) Red cable
3) Black cable

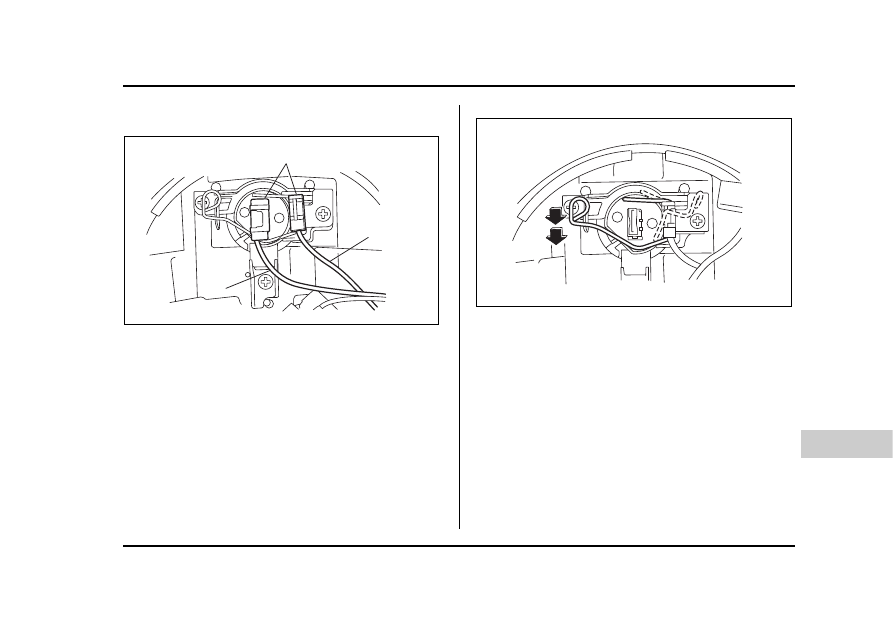

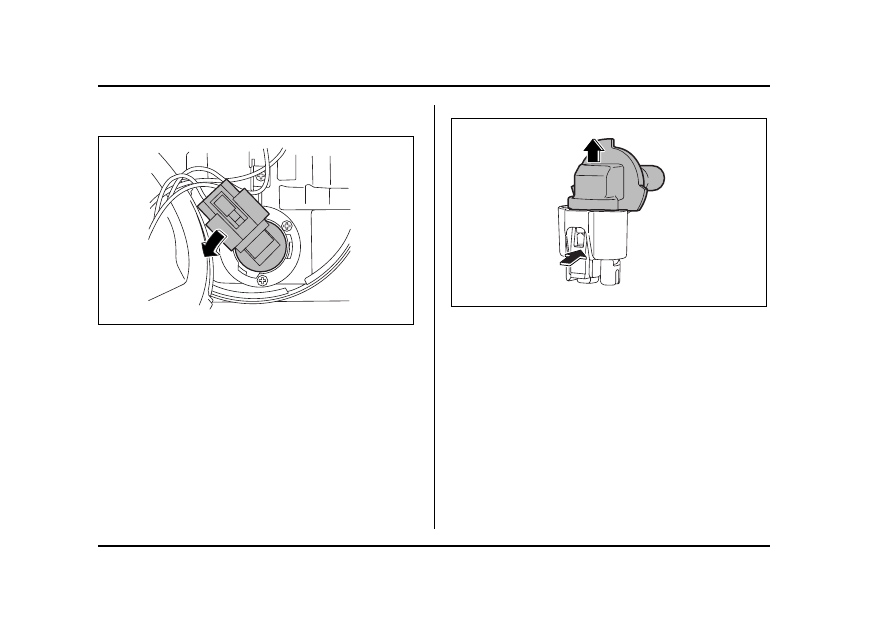

1. Disconnect the electrical connector for the black
cable.

2. Remove the retainer spring.
3. Replace the bulb, then set the retainer spring se-
curely.
4. Reconnect the electrical connector for black cable.
5. Install the headlight bulb cover.

1

2

3

UBB041BB

UBB042BA

11-70

Maintenance and service

T High beam light bulbs

0

1) Push

1. Disconnect the electrical connector from the bulb.
2. Remove the bulb from the headlight assembly by
turning it counterclockwise.
3. Replace the bulb with new one.
4. Reconnect the electrical connector. At this time,
use care not to touch the bulb surface.
5. To install the bulb to the headlight assembly, turn it
clockwise until it clicks.
6. Install the headlight bulb cover.

„ Front fog light

„

Replacing bulbs

„

Front fog light

„

Front

„

Fog light

It may be difficult to replace the bulbs. Have your

UBB043BA

1

UBB044BB

11-71

Maintenance and service

– CONTINUED –

SUBARU dealer replace the bulbs if necessary.

„ Front turn signal light, parking light

and side marker light

„

Replacing bulbs

„

Front turn signal light

„

Replacing bulbs

„

Parking light

„

Front

„

Turn signal light, parking light and  side marker light

The headlight assembly must be removed before the
front turn signal light and parking light bulbs can be re-
placed. When the headlight assembly has been re-
moved and then reinstalled, it may become necessary
to make a headlight aiming adjustment. After a bulb
has been replaced, it is recommended that the head-
light aiming adjustment be made at a SUBARU dealer.

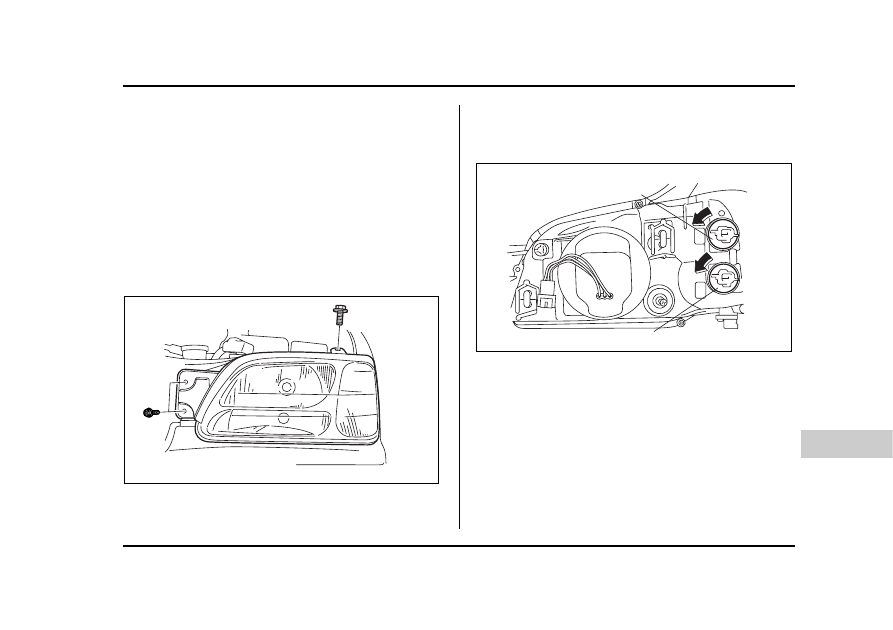

1. Remove the headlight assembly mounting screws
located at the top of and the front of the headlight as-

sembly using a Phillips screwdriver or an open-end
wrench.
2. Move the headlight assembly forward.

1) Front turn signal light bulb
2) Front turn signal light bulb/parking and front side

marker light bulb

3. Remove the bulb socket from the headlight assem-
bly by turning it counterclockwise.

UBB016BA

1

2

UBB039CB

11-72

Maintenance and service

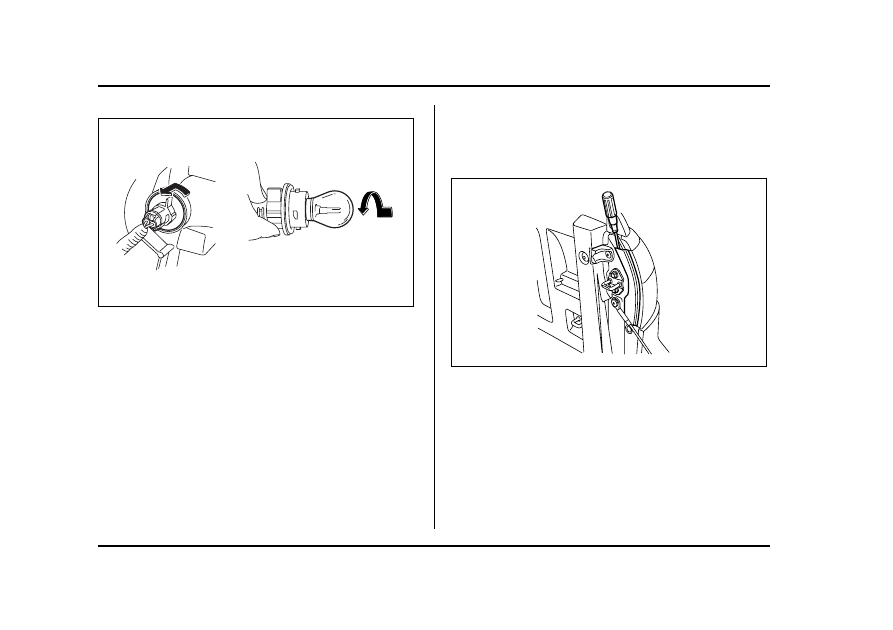

4. Remove the bulb from the socket by pushing it and
turning counterclockwise. Install a new bulb in the
socket.
5. Set the bulb socket into the headlight assembly and
turn it clockwise until it locks.
6. Set the headlight assembly into the vehicle body.
Tighten the mounting screws.

„ Rear combination lights

„

Replacing bulbs

„

Rear combination lights

„

Rear

„

Combination lights

Rear combination lights are composed of the rear turn
signal/brake/tail light and backup lights.

T Rear turn signal/Brake/Tail and Backup lights
The rear turn signal/brake/tail light is one bulb with two

filament types.
If any one of them malfunctions, replace the bulb with
a new one.
1. Open the tailgate.

2. Pry the cover from the side of the rear combination
light.

UBB020BA

UBB083BA

11-73

Maintenance and service

– CONTINUED –

3. Remove the rear combination light mounting bolts.
Then, slide the rear combination light assembly to the
rear and remove it from the vehicle.

1) Backup light bulb
2) Brake/turn/tail/light bulb

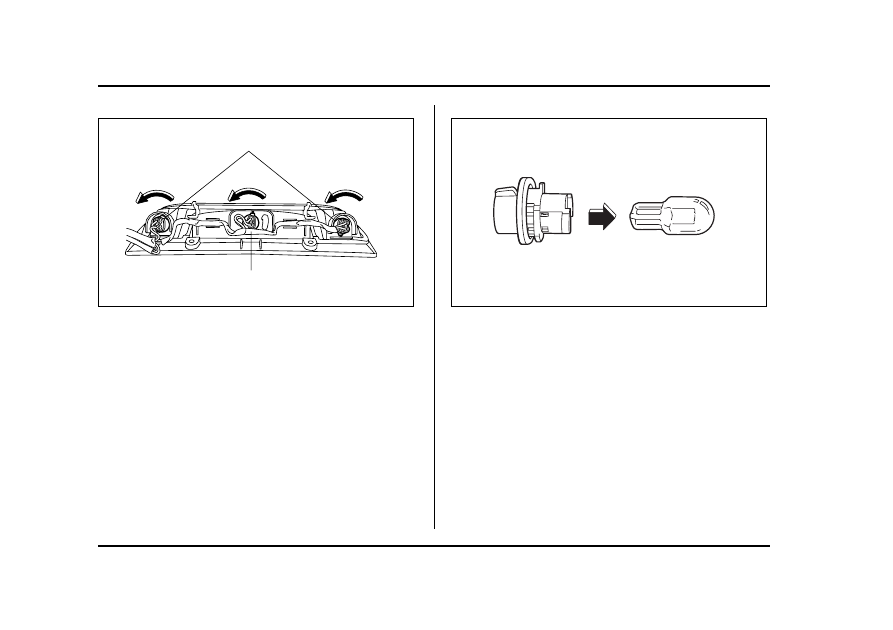

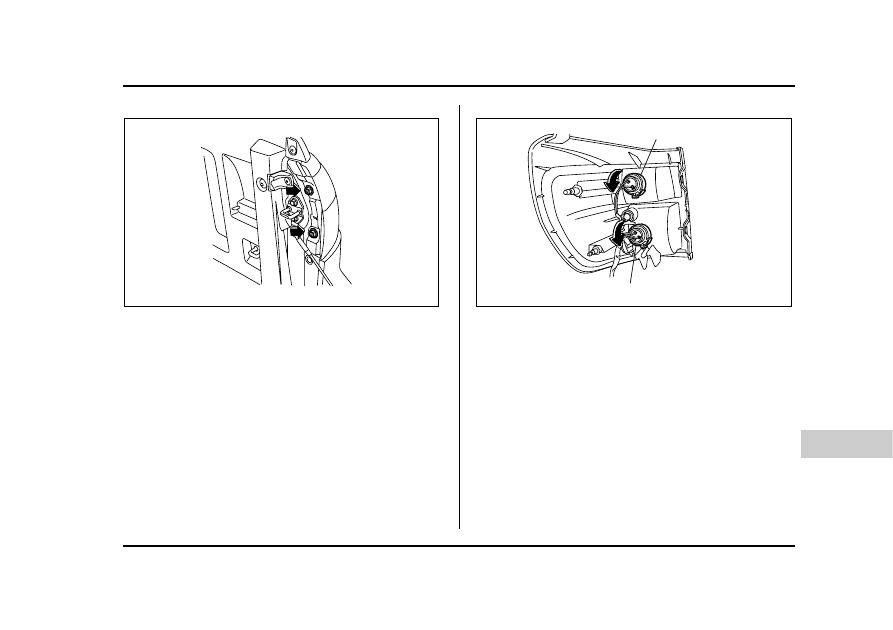

4. Remove the bulb socket from the rear combination
light assembly by turning it counterclockwise.
5. Remove the bulb from the socket by pulling it.
6. Install a new bulb into the socket by pushing it.
7. Set the bulb socket into the rear combination light
assembly and turn it clockwise until it stops.
8. Mount the rear combination light assembly into the
vehicle body with two mounting bolts.
9. Install the cover by inserting the knobs into the
places.

UBB084BA

2

1

UBB085BB

11-74

Maintenance and service

„ Tail light (on the tailgate)

„

Replacing bulbs

„

Tail light

„

Tail light

1. Open the tailgate.

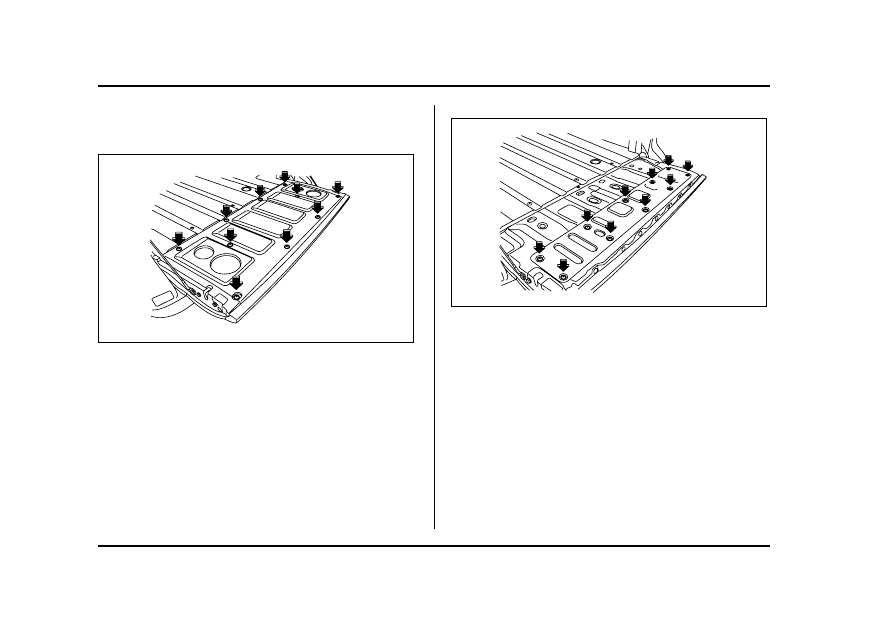

2. Remove the tailgate trim by loosening the installa-
tion screws.

3. Remove the tail light cover by loosening the instal-
lation screws.

UBB086BA

UBB087BA

11-75

Maintenance and service

– CONTINUED –

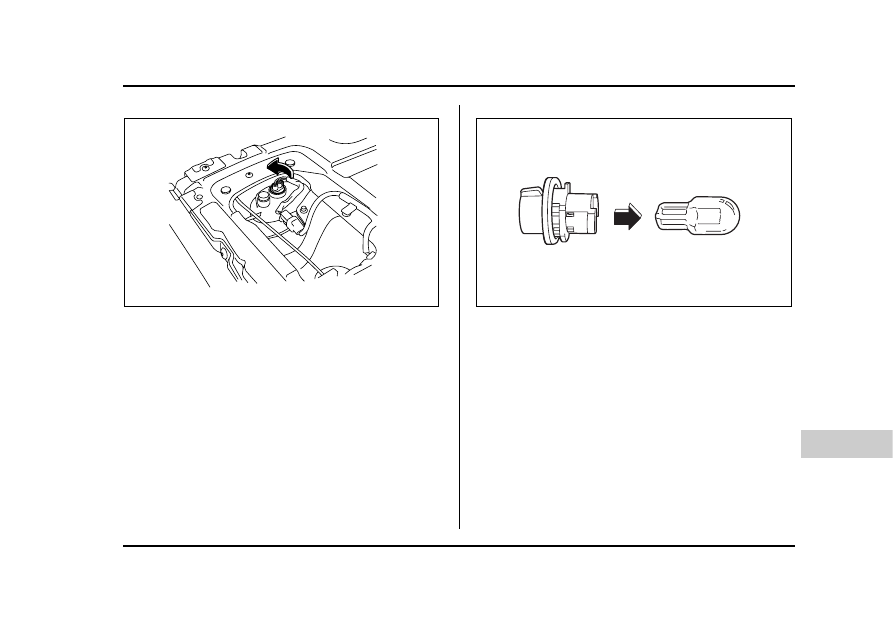

4. Remove the bulb socket from the tail light by turn-
ing it counterclockwise.

5. Remove the bulb from the socket by pulling it.
6. Install a new bulb into the socket by pushing it.
7. Install the bulb socket into the tail light by turning it
clockwise until it stops.
8. Install the tail light cover and the tailgate trim.

UBB088BA

UBB048BA

11-76

Maintenance and service

„ License plate light

„

License plate light

„

Replacing bulbs

„

License plate light

0

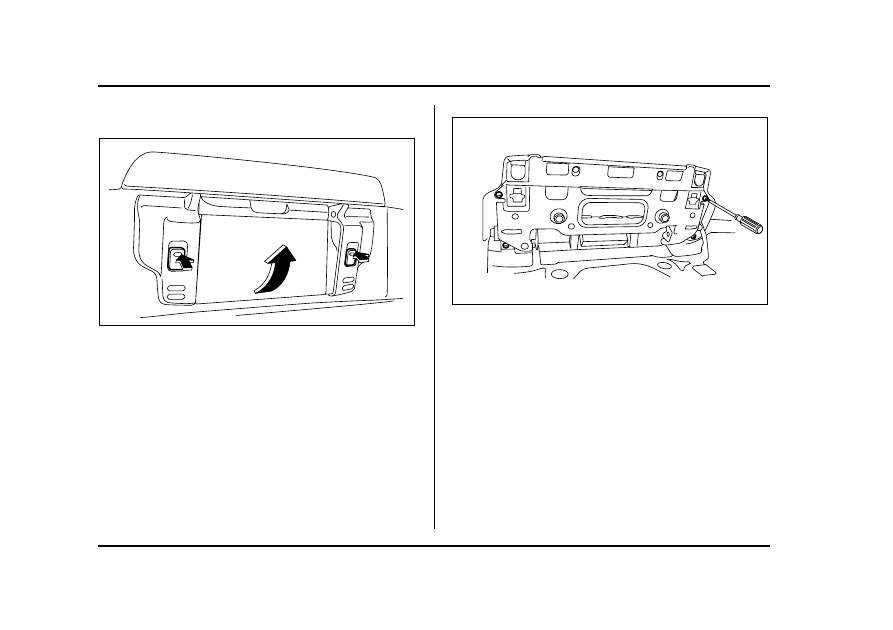

1. Push two release buttons and pull the license plate
bracket up until it clicks.

2. Remove the two cover installation screws.
3. Push the license plate bracket back to the original
position.

UBB096BA

UBB097BA

11-77

Maintenance and service

– CONTINUED –

4. Remove the screw from the side of the cover.
5. Remove the cover.

6. Remove the bulb socket from the license plate
bracket by turning it counterclockwise.
7. Pull the bulb out of the socket.
8. Install a new bulb in the socket by pushing it.
9. Install the bulb socket into the license plate bracket.
10.Install the covers by reversing procedures for re-
moval.

UBB092BA

UBB093BA

11-78

Maintenance and service

„ Map light, dome light and door step

light

„

Replacing bulbs

„

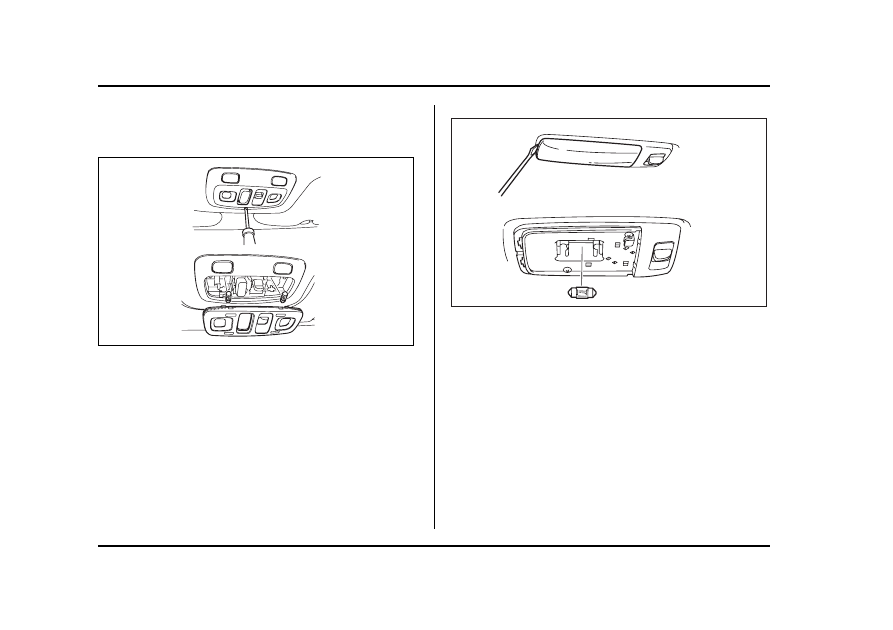

Dome light

„

Dome light

„

Replacing bulbs

„

Map light

Map light

Dome light

UBB068BA

HSB088BA

11-79

Maintenance and service

– CONTINUED –

Door step light

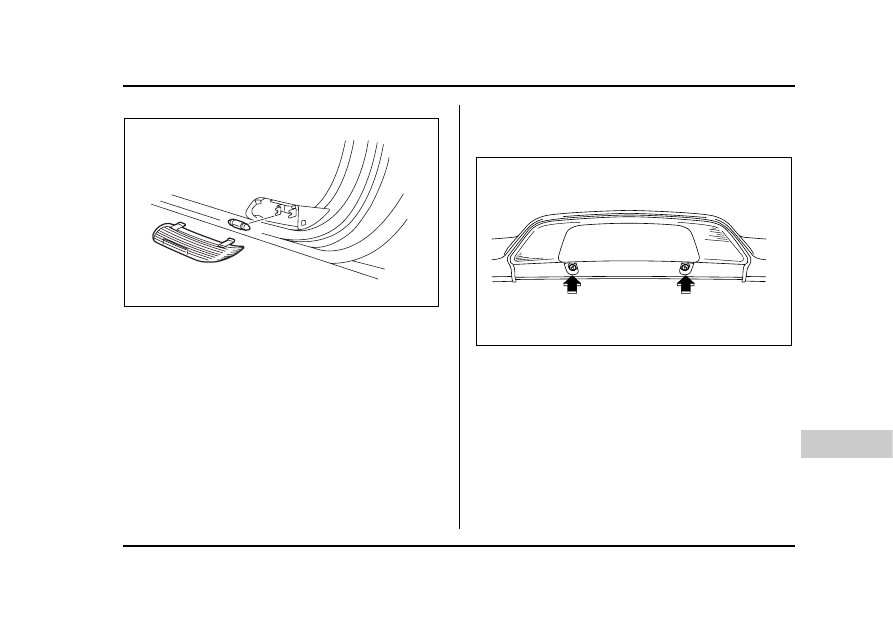

1. Remove the lens by prying the edge of the lens with
a flat-head screwdriver.
2. Pull the bulb out of the socket. Install a new bulb.
3. Reinstall the lens.

„ High mount stop and cargo light as-

sembly

„

Replacing bulbs

„

High mount stop light assembly

„

Replacing bulbs

„

Cargo light assembly

„

High mount stop and cargo light assembly

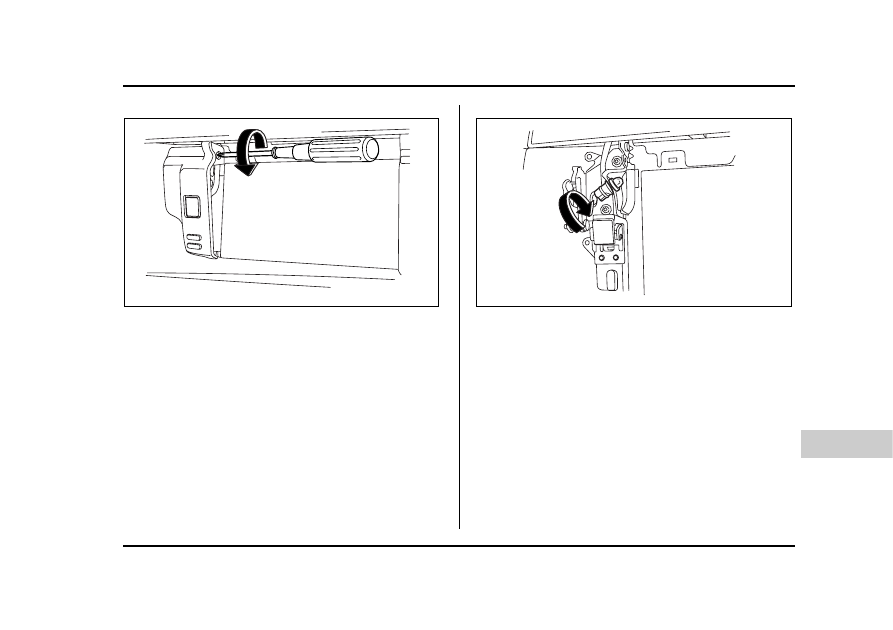

1. Remove the high mount stop light mounting
screws.

UBS037AA

UBB089BA

11-80

Maintenance and service

1) Cargo lights
2) High mount stop lights

2. Remove the bulb socket from the light assembly by
turning it counterclockwise.

3. Remove the bulb from the socket by pulling it.
4. Install a new bulb in the socket by pushing it.
5. Set the socket into the light assembly and turn it
clockwise until it clicks.
6. Mount the light assembly with the mounting
screws.

1

2

UBB090BB

UBB048BA

11-81

Maintenance and service

– CONTINUED –

„ Sport activity lights (if equipped)

„

Sport activity lights

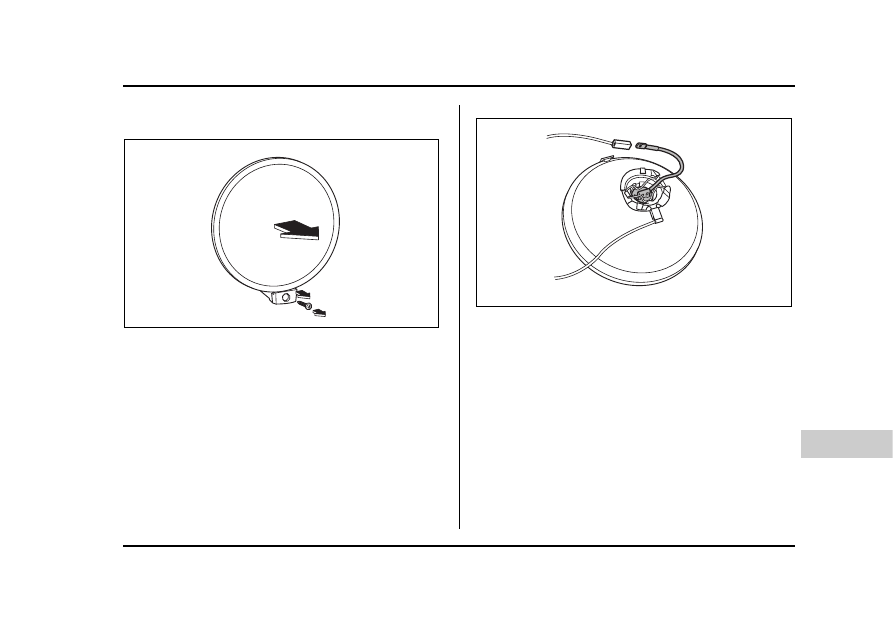

1. Remove front lamp screw and remove the lens and
reflector.

2. Disconnect the two wires from the lamp electrical
connector.
3. Squeeze the bulb retainer spring to remove.
4. Replace the bulb, then reset the retainer spring se-
curely.
5. Reconnect the bulb wire to the electrical connector.
6. Install the lens and reflector in the housing and se-
cure with the screw.

NOTE

Other bulbs may be difficult to replace. Have your
SUBARU dealer replace these bulbs if necessary.

UBB081BA

UBB082BA
