Subaru Legacy IV (2008 year). Service manual - part 962

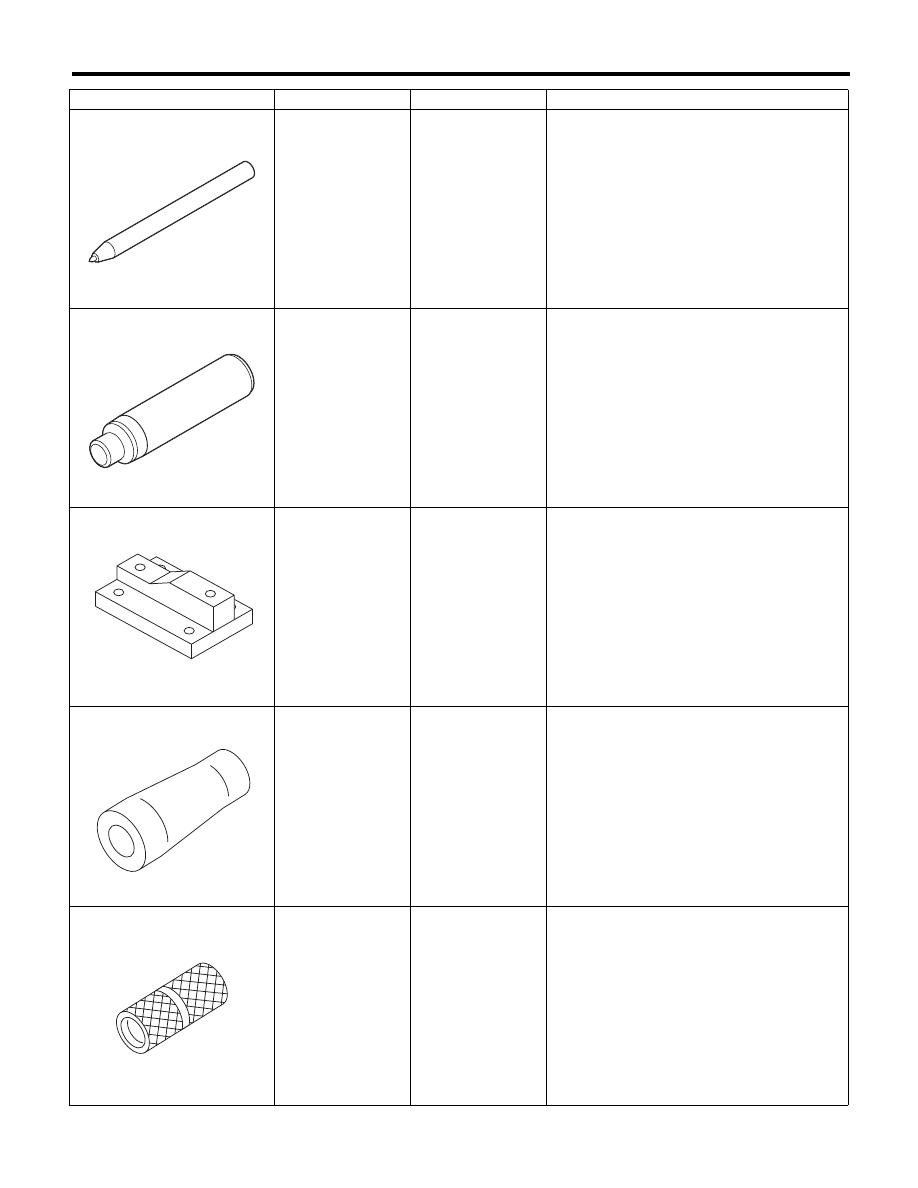

PS-10

General Description

POWER ASSISTED SYSTEM (POWER STEERING)

34099FA060

PUNCH HOLDER

Used for crimping.

34199FE000

INSTALLER &
REMOVER

Used for removing and installing the rack oil seal
(outer & inner).

34199AG000

BOSS D

• Used when inspecting characteristic of gear-
box assembly and disassembling it.
• Used together with STAND (926200000).

34199AG030

GUIDE

Used for installing seal ring of rack.

34199AG070

FORMER

Used for forming seal ring of pinion.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST34099FA060

ST34199FE000

ST34199AG000

ST34199AG030

ST34199AG070

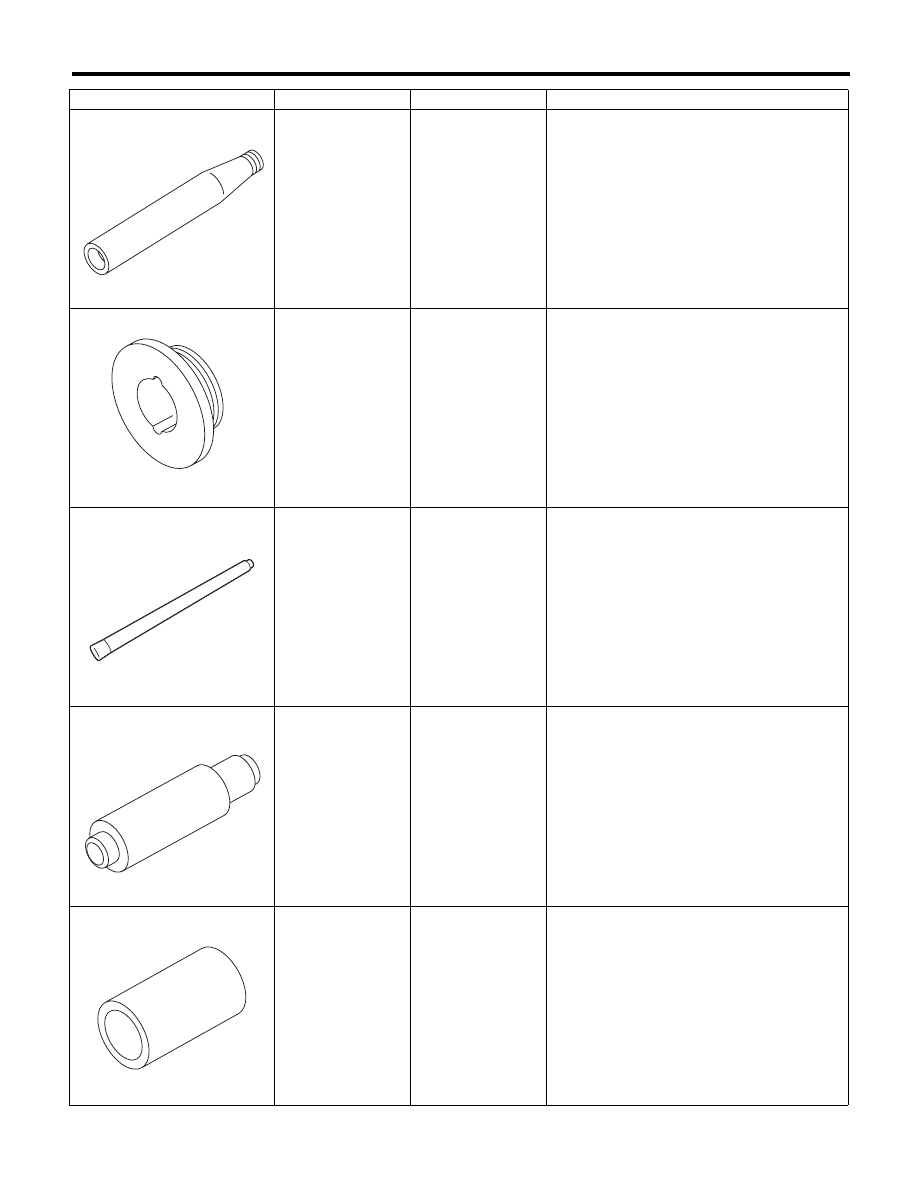

PS-11

General Description

POWER ASSISTED SYSTEM (POWER STEERING)

34199AG020

GUIDE

Used for installing seal ring of pinion.

34199AG050

GUIDE G (24)

• Used for forming seal ring of rack.
• Used together with FORMER PISTON
(34199AG080).

34099FA140

OIL SEAL
REMOVER

Used for removing oil seal.

34199AG090

INSTALLER &
REMOVER

• Used for installing oil seal of valve housing.
• Used together with the SEAL INSTALLER.
(34099FA130)
• Used for installing ball bearing of valve hous-
ing.
• Used for removing oil seal and ball bearing
from valve housing.

34199AG080

FORMER PISTON

• Used for forming seal ring of rack.
• Used together with the GUIDE G (24)
(34199AG050).

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST34199AG020

ST34199AG050

ST34099FA140

ST34199AG090

ST34199AG080

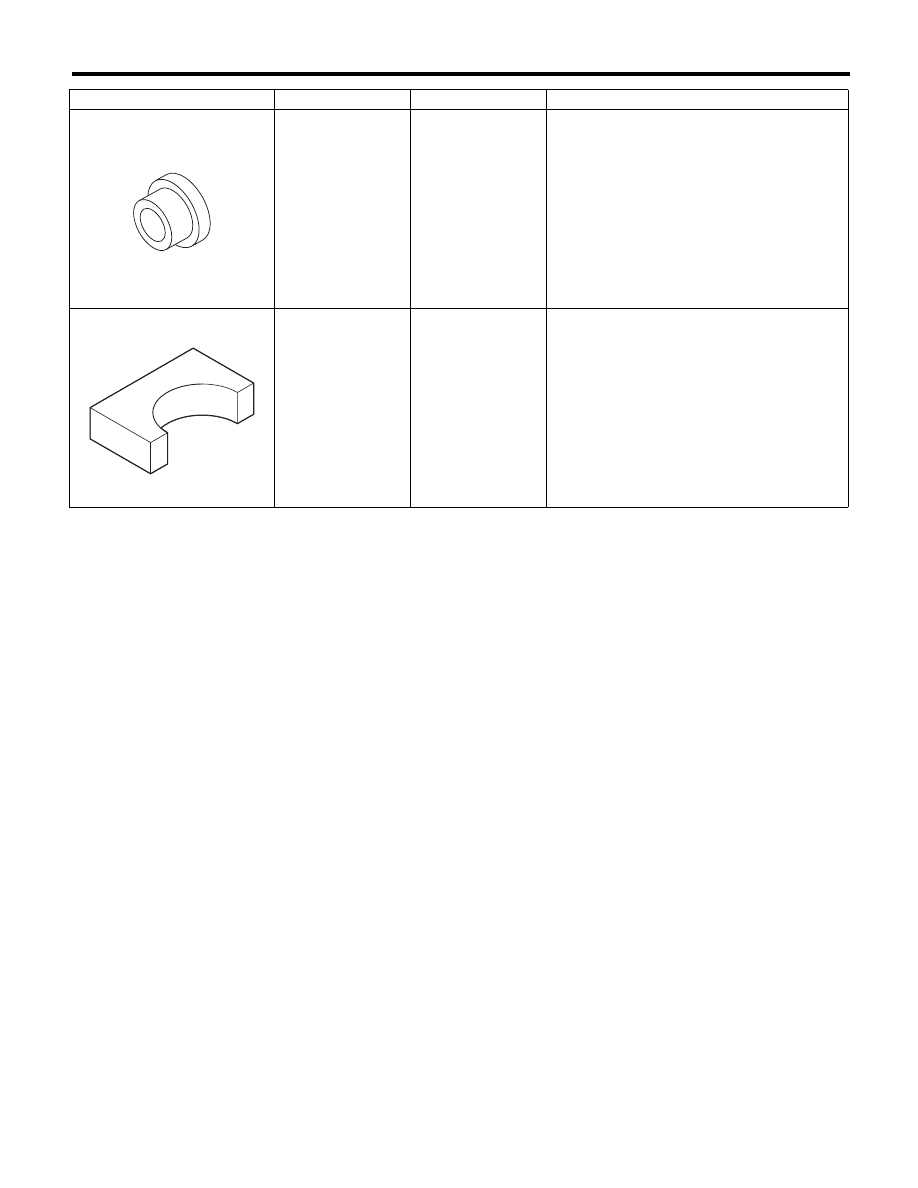

PS-12

General Description

POWER ASSISTED SYSTEM (POWER STEERING)

34199AG010

INSTALLER

Used for pressing-fit oil seal of gearbox cylinder.

34199FE020

BASE

Used for crimping.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST34199AG010

ST34199FE020

PS-13

Steering Wheel

POWER ASSISTED SYSTEM (POWER STEERING)

2. Steering Wheel

A: REMOVAL

1) Disconnect the ground cable from the battery.
2) Set the tire to the straight-ahead position.
3) Remove the airbag module. <Ref. to AB-14, RE-
MOVAL, Driver’s Airbag Module.>

WARNING:
Always refer to “Airbag System” before per-
forming service on the airbag modules. <Ref. to
AB-4, CAUTION, General Description.>
4) Place alignment marks on the steering wheel
and steering shaft.

5) Remove the steering wheel nut, and then draw
out the steering wheel from shaft using steering
puller.

B: INSTALLATION

WARNING:
Always refer to “Airbag System” before per-
forming service on the airbag modules. <Ref. to
AB-4, CAUTION, General Description.>
1) Align the center position of the roll connector.
<Ref. to AB-25, ADJUSTMENT, Roll Connector.>
2) Install in the reverse order of removal.

NOTE:
Align the alignment marks on the steering wheel
and steering shaft.

Tightening torque:

39 N·m (4.0 kgf-m, 28.8 ft-lb)

Column cover-to-steering wheel clearance:

2 — 4 mm (0.08 — 0.16 in)

CAUTION:
Insert the roll connector guide pin into the
guide hole on the lower end of the steering
wheel surface. Avoid damaging the pin.

C: INSPECTION

1) Check the steering wheel for deformation. If the
deformation is excessive, replace the steering
wheel.
2) Check the splines on the steering wheel for dam-
age. If the damage is excessive, replace the steer-
ing wheel.

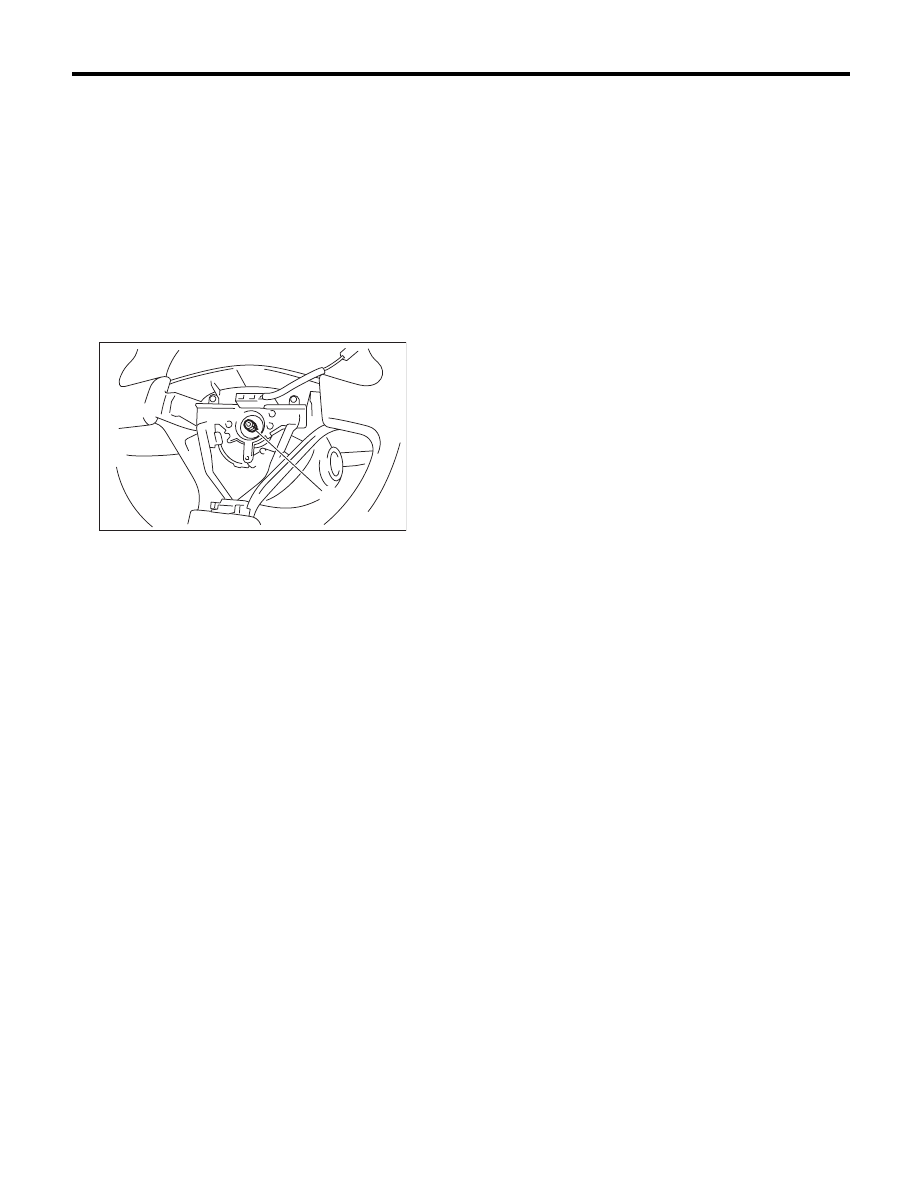

(1) Alignment mark

(1)

PS-00552
