RS-2

General Description

REAR SUSPENSION

1. General Description

A: SPECIFICATION

Refer to “FS” section for rear suspension specifica-
tions. <Ref. to FS-2, SPECIFICATION, General
Description.>

NOTE:
• Front and rear toe-in and front camber can be
adjusted. Adjust if the toe-in or camber tolerance
exceeds specifications.
• Other items indicated in the specifications table
cannot be adjusted. If other items exceed specifica-
tions, check the suspension parts and connections
for deformation, and replace with new parts as re-
quired.

(1) Front



A – B = Positive: Toe-in, Negative: Toe-out
D = Individual toe angles

B

A

(1)

FS-00269

RS-3

General Description

REAR SUSPENSION

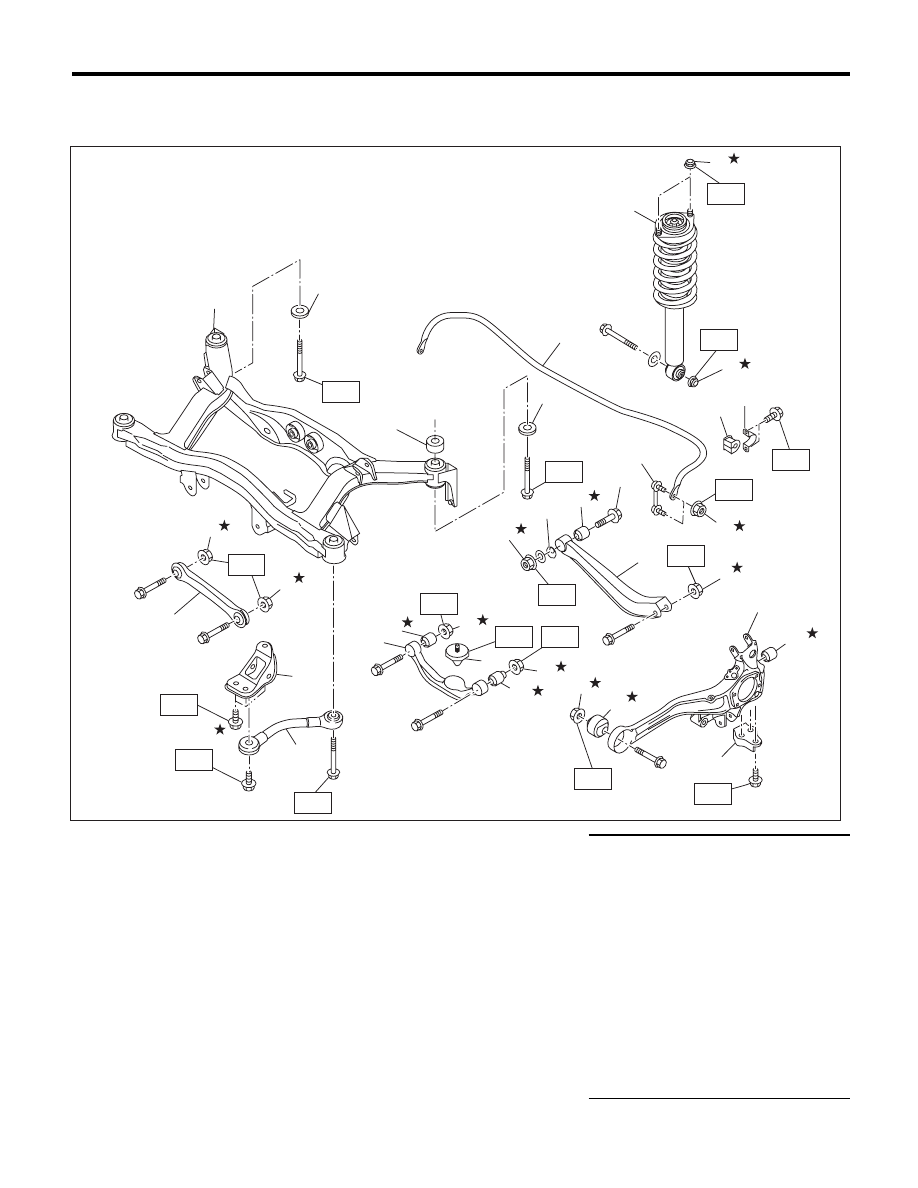

B: COMPONENT

1. REAR SUSPENSION

(1)

Shock absorber

(14)

Rear arm bracket

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Self-locking nut

(15)

Helper

T1: 30 (3.1, 22.4)

(3)

Stabilizer

(16)

Upper link

T2: 32 (3.3, 24)

(4)

Stabilizer bushing

(17)

Upper link bushing (inner side)

T3: 38 (3.9, 28)

(5)

Bracket

(18)

Upper link bushing (outer side)

T4: 44 (4.5, 32.5)

(6)

Stabilizer link

(19)

Front link

T5: 57 (5.8, 42)

(7)

Rear link

(20)

Rear sub frame

T6: 60 (6.1, 44)

(8)

Adjusting bolt

(21)

Sub frame support arm

T7: 62 (6.3, 46)

(9)

Rear link bushing

(22)

Sub frame lower stopper

T8: 65 (6.6, 48)

(10)

Adjusting washer

(23)

Spacer

T9: 120 (12.2, 89)

(11)

Rear arm

(24)

Stabilizer link bracket (model with
aluminum rear arm)

T10: 125 (12.7, 92)

(12)

Rear arm rear bushing

T11: 150 (15.3, 111)

(13)

Rear arm front bushing

T12: 175 (17.8, 129)

(1)

(2)

(2)

(2)

(2)

(2)

(2)

(2)

(2)

(2)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

(18)

(19)

(20)

(22)

(22)

(21)

T5

T10

T10

T12

T11

T5

T8

T9

T2

T12

T12

T5

T7

T1

T3

T4

(23)

(24)

T6

RS-00238

RS-4

General Description

REAR SUSPENSION

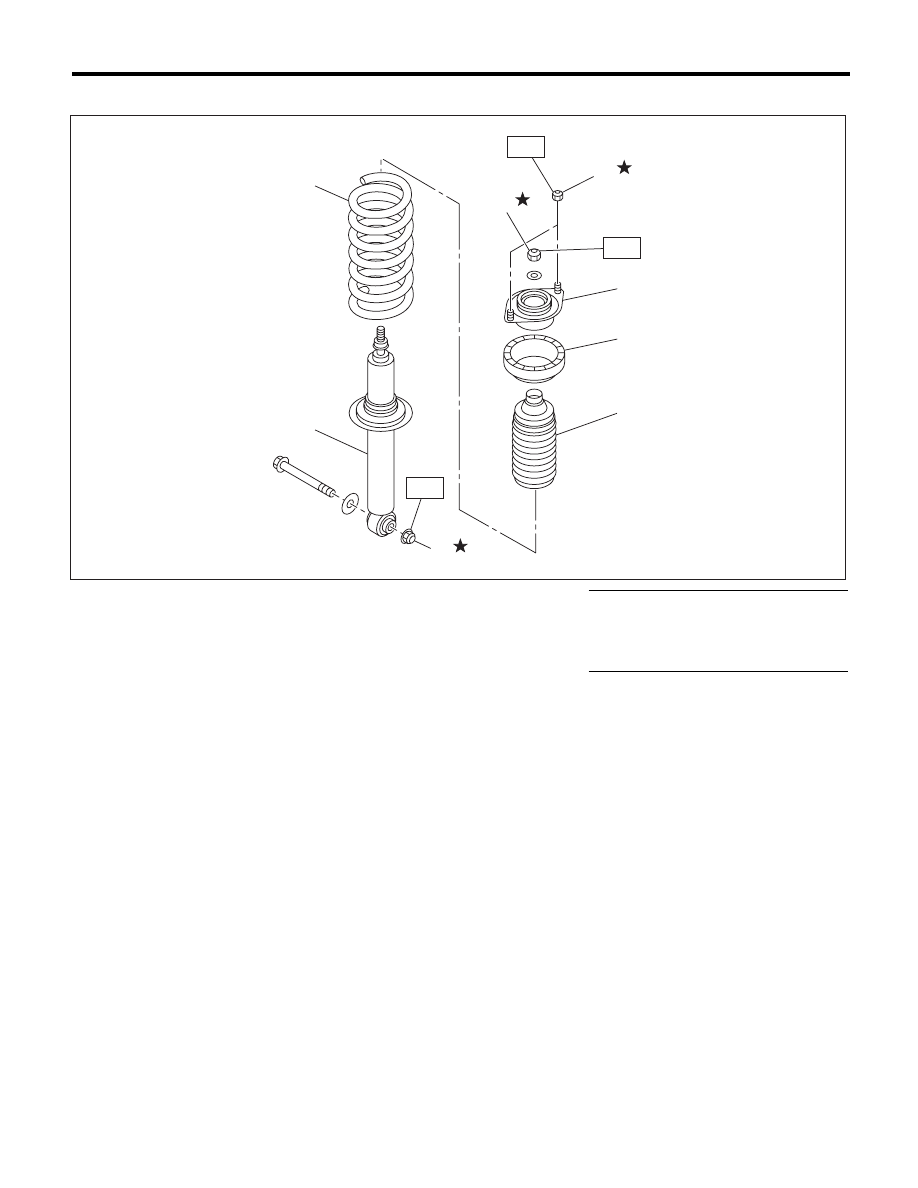

2. SHOCK ABSORBER

C: CAUTION

• Wear appropriate work clothing, including a cap,
protective goggles and protective shoes when per-
forming any work.
• Before disposing of shock absorbers, be sure to
bleed the gas out completely. Also, do not expose
to flames or fire.
• Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly and replacement.
• Use SUBARU genuine grease etc. or equivalent.
Do not mix grease etc. of different grades or man-
ufacturers.
• Before securing a part on a vise, place cushion-
ing material such as wood blocks, aluminum plate,
or cloth between the part and the vise.
• Be sure to tighten fasteners including bolts and
nuts to the specified torque.
• Place shop jacks or rigid racks at the specified
points.

(1)

Mount

(4)

Coil spring

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Upper rubber sheet

(5)

Shock absorber

T1: 30 (3.1, 22.4)

(3)

Dust cover

(6)

Self-locking nut

T2: 35 (3.6, 26)









T3: 62 (6.3, 46)

RS-00037

(4)

(5)

(6)

(6)

(6)

(3)

(2)

(1)

T3

T2

T1

RS-5

General Description

REAR SUSPENSION

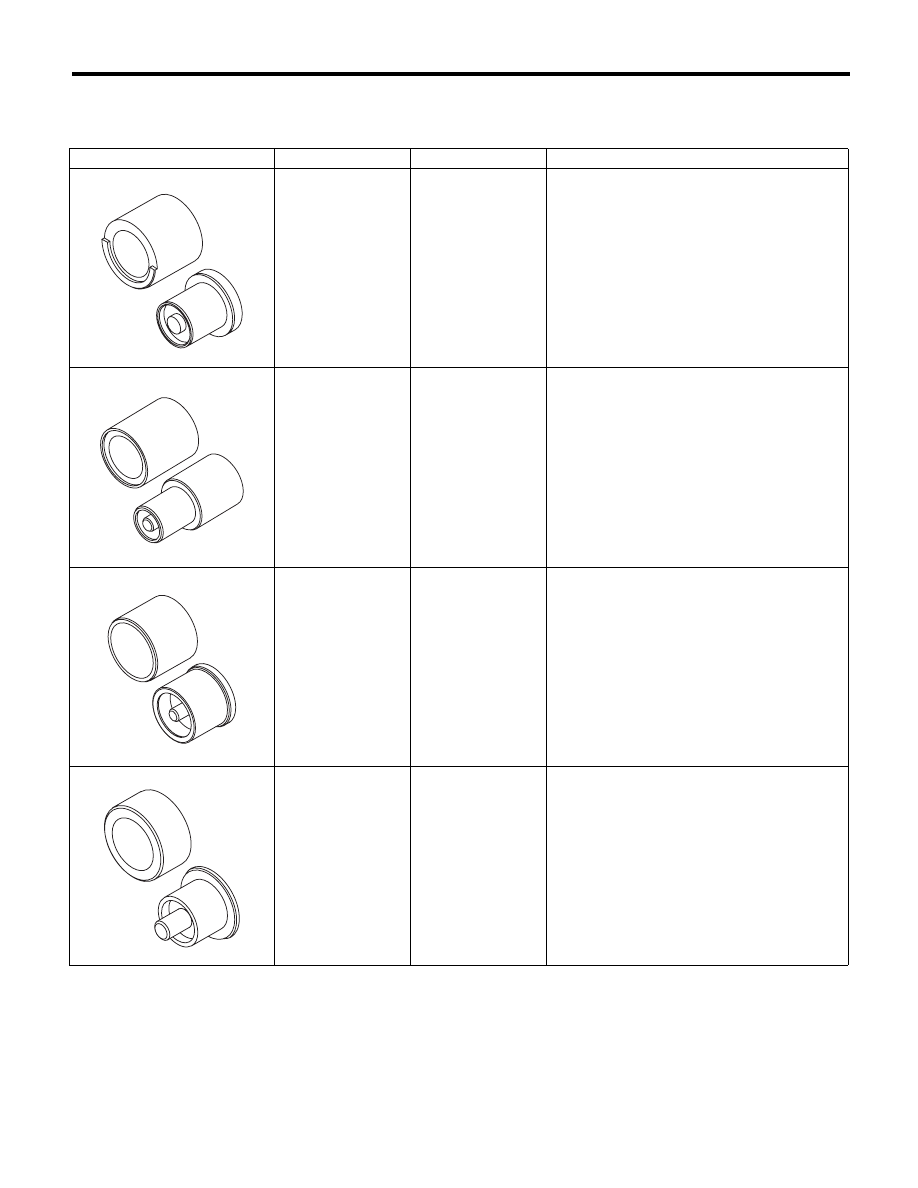

D: PREPARATION TOOL

1. SPECIAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

20099AE000

INSTALLER &
REMOVER

Used for replacing the rear link bushing.

20099AE010

INSTALLER &
REMOVER

Used for replacing the upper link bushing.

20099AE020

INSTALLER &
REMOVER SET

Used for replacing the rear arm front bushing.

20099AE040

INSTALLER &
REMOVER SET

Used for replacing the rear arm rear bushing.

ST20099AE000

ST20099AE010

ST20099AE020

ST20099AE040
