Subaru Legacy IV (2008 year). Service manual - part 619

GD(H6DO)-96

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

BV:DTC P0332 KNOCK SENSOR 2 CIRCUIT LOW (BANK 2)

1. OUTLINE OF DIAGNOSIS

NOTE:
For the detection standard, refer to DTC P0327. <Ref. to GD(H6DO)-94, DTC P0327 KNOCK SENSOR 1
CIRCUIT LOW (BANK 1 OR SINGLE SENSOR), Diagnostic Trouble Code (DTC) Detecting Criteria.>

BW:DTC P0333 KNOCK SENSOR 2 CIRCUIT HIGH (BANK 2)

1. OUTLINE OF DIAGNOSIS

NOTE:
For the detection standard, refer to DTC P0328. <Ref. to GD(H6DO)-95, DTC P0328 KNOCK SENSOR 1
CIRCUIT HIGH (BANK 1 OR SINGLE SENSOR), Diagnostic Trouble Code (DTC) Detecting Criteria.>

GD(H6DO)-97

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

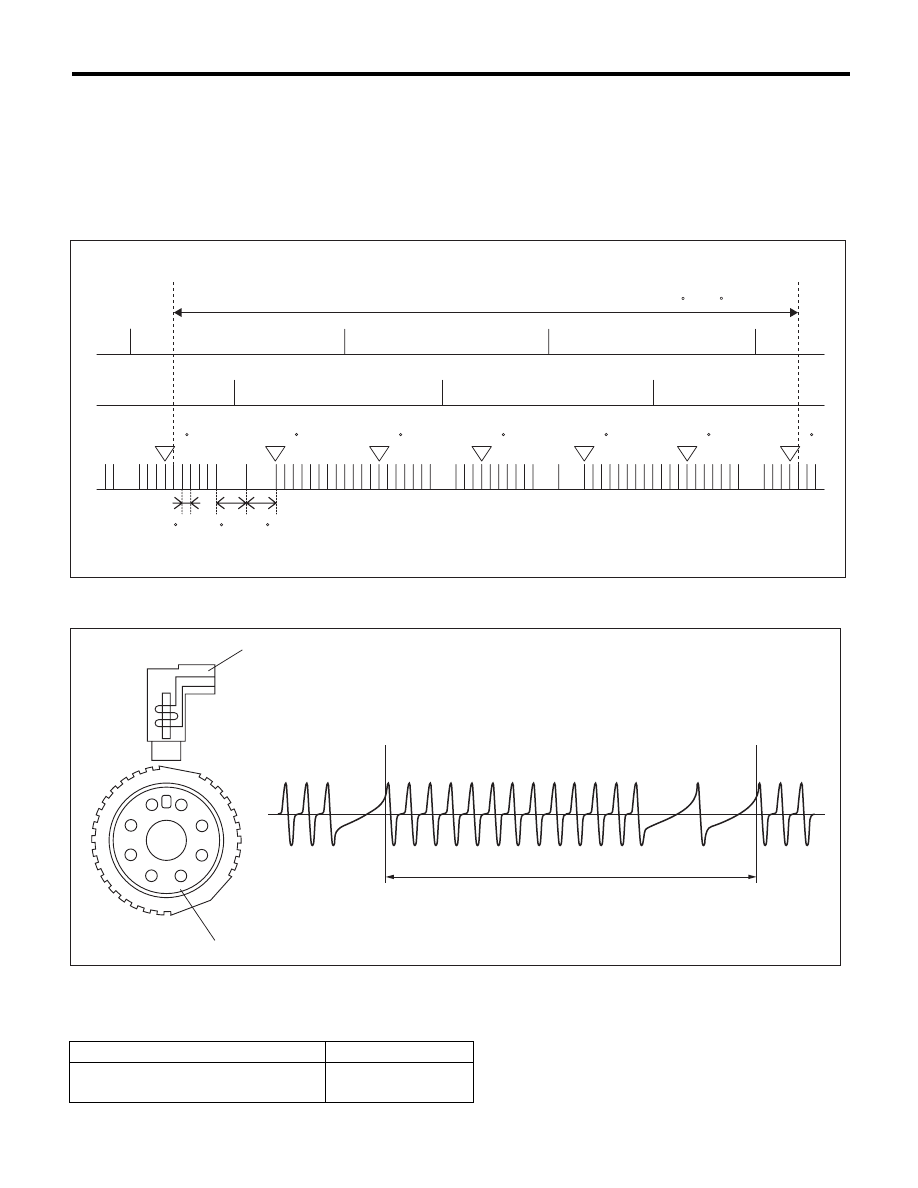

BX:DTC P0335 CRANKSHAFT POSITION SENSOR “A” CIRCUIT

1. OUTLINE OF DIAGNOSIS

Detect the open or short circuit of the crankshaft position sensor.
Judge as NG when the crank signal is not input even though the starter was rotated.

2. COMPONENT DESCRIPTION

3. ENABLE CONDITION

4. GENERAL DRIVING CYCLE

Always perform the diagnosis continuously.

(A)

Camshaft signal (RH)

(B)

Camshaft signal (LH)

(C)

Crankshaft signal

(1)

Crankshaft position sensor

(2)

Crank sprocket

(3)

Crankshaft half-turn

Secondary Parameters

Enable Conditions

None



(A)

(C)

#6BTDC10 CA

#3BTDC10 CA

#2BTDC10 CA

#5BTDC10 CA

#4BTDC10 CA

10 CA

30 CA

30 CA

#1BTDC10 CA

#1BTDC10 CA

EN-03092

(B)

Number of camshaft signal - 3 is normal at two engine revolution in a range of 0 CA - 0 CA.

EN-02188

(1)

(2)

(3)

GD(H6DO)-98

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

5. DIAGNOSTIC METHOD

• Abnormality Judgement

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Time Needed for Diagnosis: 3000 ms
Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.

• Normality Judgement

Judge as OK and clear the NG if the continuous time while the following conditions are established is more
than the predetermined time.

Time Needed for Diagnosis: Less than 1 second

Judgement Value

Malfunction Criteria

Threshold Value

Starter switch

ON

Crankshaft position sensor signal

Not detected

Battery voltage

t 8 V

Judgement Value

Malfunction Criteria

Threshold Value

Crankshaft position sensor signal

Input exists

Battery voltage

t 8 V

GD(H6DO)-99

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

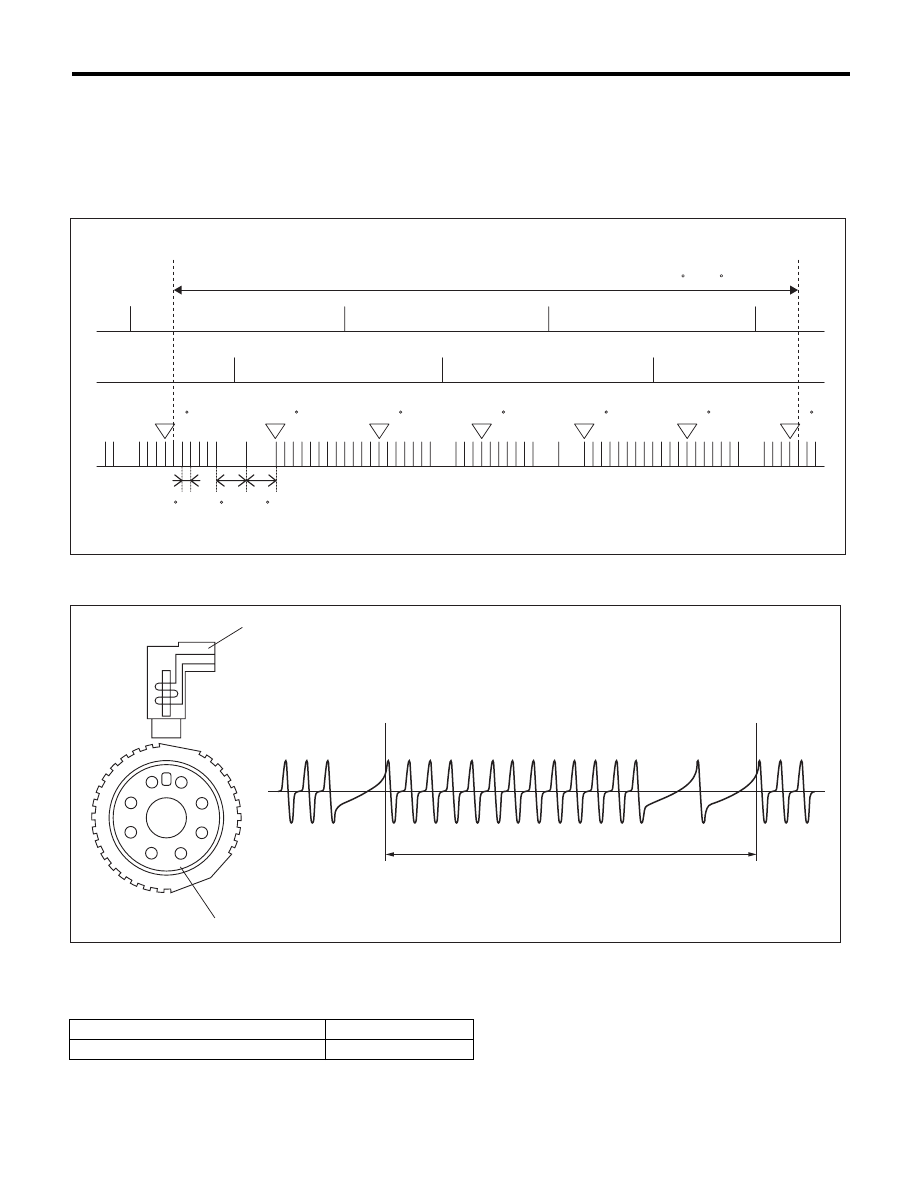

BY:DTC P0336 CRANKSHAFT POSITION SENSOR “A” CIRCUIT RANGE/

PERFORMANCE

1. OUTLINE OF DIAGNOSIS

Detect for faults in crankshaft position sensor output properties.
Judge as NG when there is a problem in the number of crankshaft signals for every revolution.

2. COMPONENT DESCRIPTION

3. ENABLE CONDITION

(A)

Camshaft signal (RH)

(B)

Camshaft signal (LH)

(C)

Crankshaft signal

(1)

Crankshaft position sensor

(2)

Crank sprocket

(3)

Crankshaft half-turn

Secondary Parameters

Enable Conditions

Battery voltage

t 8 V

Engine speed

< 3000 rpm

(A)

(C)

#6BTDC10 CA

#3BTDC10 CA

#2BTDC10 CA

#5BTDC10 CA

#4BTDC10 CA

10 CA

30 CA

30 CA

#1BTDC10 CA

#1BTDC10 CA

EN-03092

(B)

Number of camshaft signal - 3 is normal at two engine revolution in a range of 0 CA - 0 CA.

EN-02188

(1)

(2)

(3)
