Subaru Legacy IV (2008 year). Service manual - part 1153
CC-5
Cruise Control Command Switch
CRUISE CONTROL SYSTEM
3. Cruise Control Command
Switch

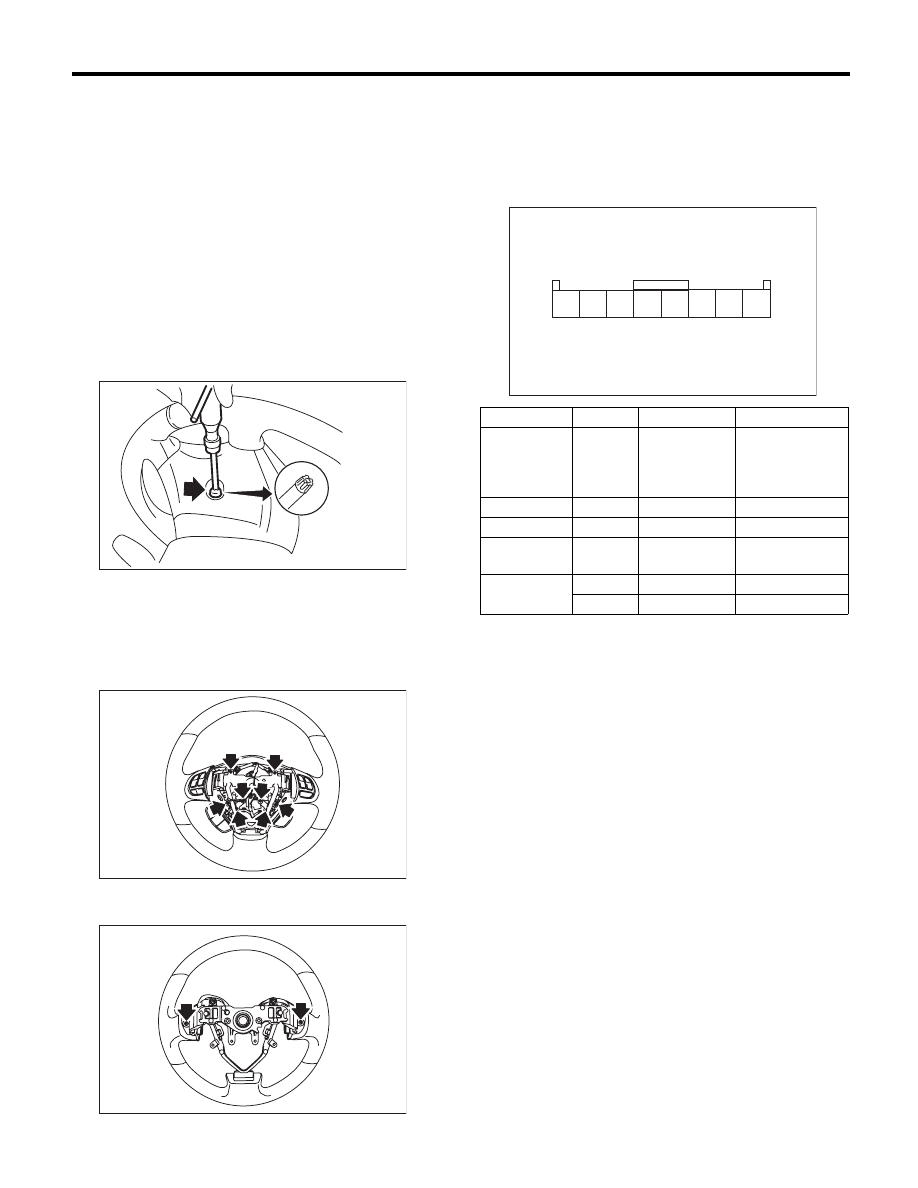

A: REMOVAL
CAUTION:
Before servicing, be sure to read the notes in
the “AB” section for proper handling of the
driver’s airbag module. <Ref. to AB-4, CAU-
TION, General Description.>
1) Set the front wheels in straight ahead position.
2) Turn the ignition switch to OFF.
3) Disconnect the ground cable from battery and
wait for at least 20 seconds before starting work.
4) Using TORX
®
bit T30 (1), loosen two TORX
®
bolts which secure the driver’s airbag module.
5) Disconnect the airbag module connector on
back of the airbag module.
6) Remove the steering wheel. <Ref. to PS-13, RE-
MOVAL, Steering Wheel.>
7) Remove the eight screws to remove the lower
cover from steering wheel.
8) Remove the screw on the backside of the steering
wheel to remove the cruise control command switch.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
Measure the cruise control command switch resis-
tance.
If NG, replace the cruise control command switch.
CC-00018
(1)
CC-00515
CC-00516
Switch
Position
Terminal No.
Standard
CANCEL
SET/COAST
RESUME/
ACCEL
All OFF
7 and 6
Approx. 4 k
:
CANCEL
ON
7 and 6
Less than 1
:
SET/COAST
ON
7 and 6
Approx. 250
:
RESUME/
ACCEL
ON
7 and 6
Approx. 1500
:
MAIN
(CRUISE)
OFF
8 and 6
1 M
: or more
ON
8 and 6
Less than 1
:
CC-00487
2 3
1
4 5 6 7 8
