EI-3

General Description

EXTERIOR/INTERIOR TRIM

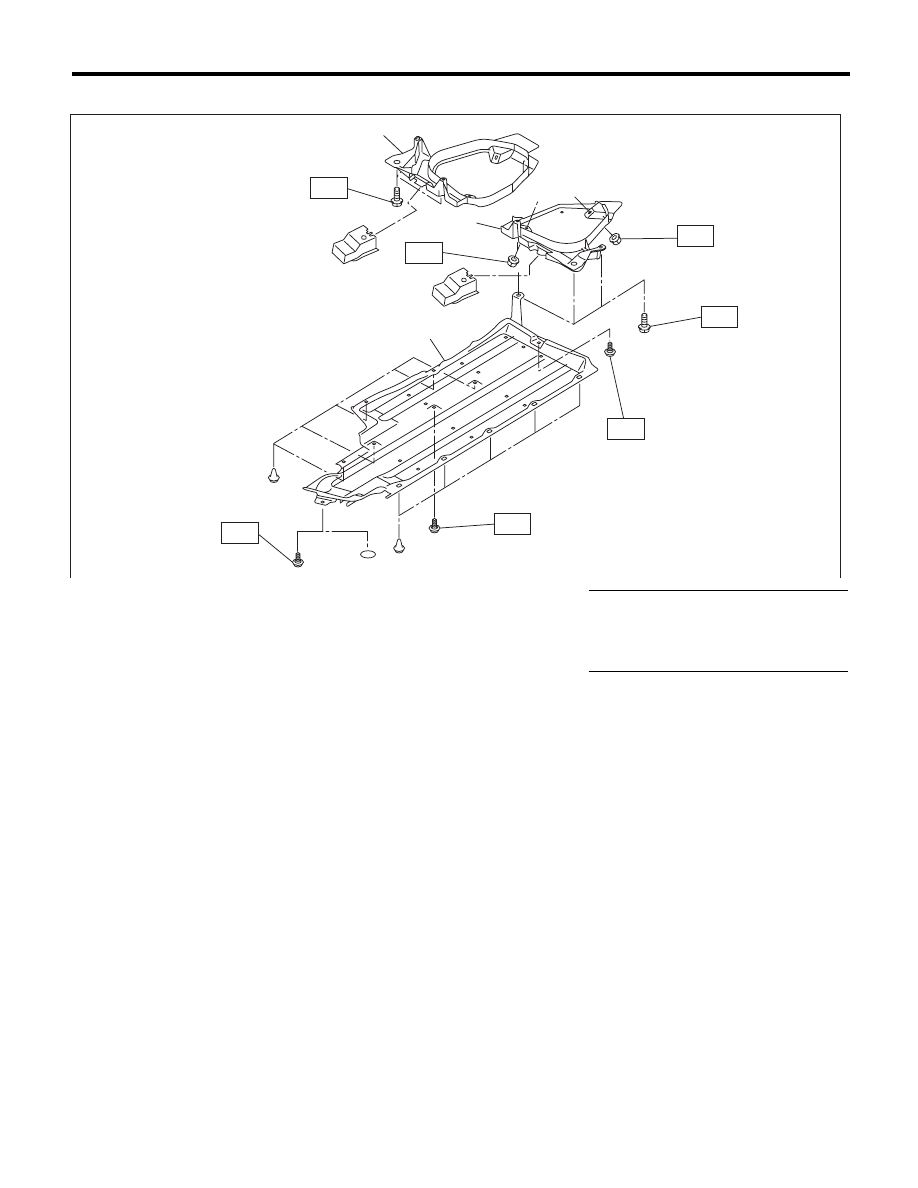

3. UNDER PROTECTOR

(1)

Floor under protector

(3)

Fuel tank protector LH

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Fuel tank protector RH





T1: 7.5 (0.76, 5.5)









T2: 9 (0.92, 6.4)









T3: 17.5 (1.78, 12.9)

(1)

(2)

(3)

T3

T1

T2

T3

T1

T1

T2

EI-01756

EI-4

General Description

EXTERIOR/INTERIOR TRIM

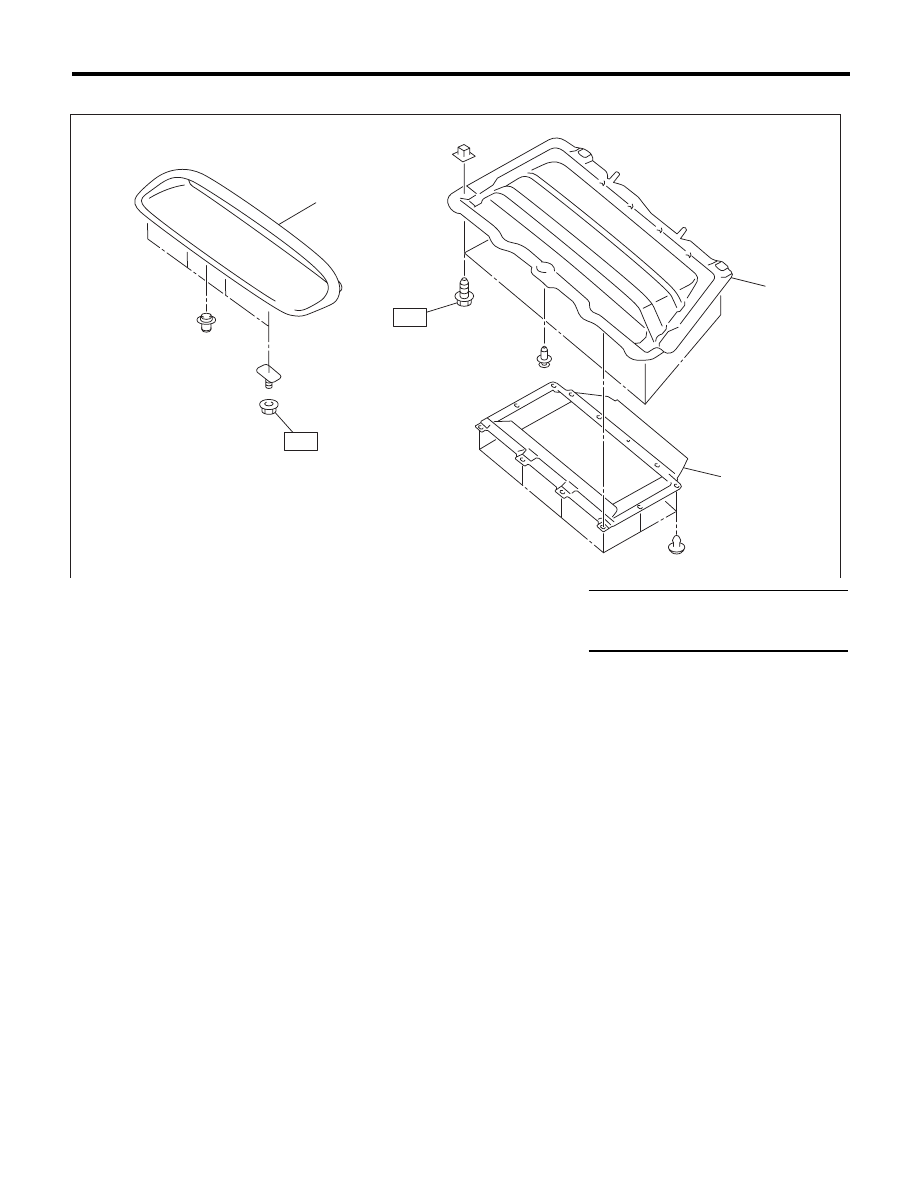

4. FRONT HOOD GRILLE

(1)

Front hood grille

(3)

Grille duct lower

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Grille duct upper





T1: 1.0 (0.1, 0.74)

T2: 4.5 (0.46, 3.32)

EI-01436

(2)

(3)

(1)

T1

T2

EI-5

General Description

EXTERIOR/INTERIOR TRIM

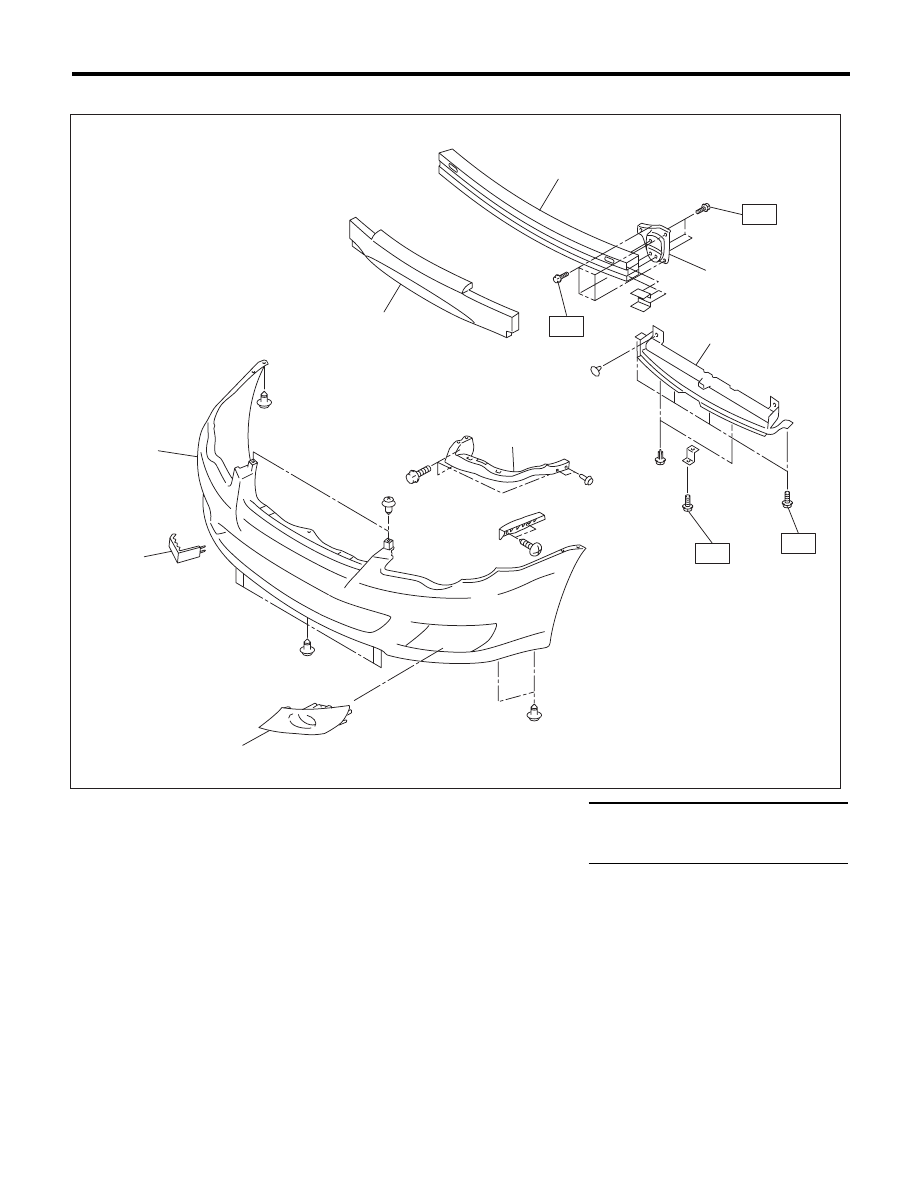

5. FRONT BUMPER

(1)

Bumper face

(5)

Energy absorber foam

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Towing hook cover

(6)

Bumper beam reinforcement

T1: 7.5 (0.76, 5.5)

(3)

Fog light cover

(7)

Bumper beam bracket

T2: 33 (3.4, 24)

(4)

Side bracket

(8)

Radiator guide





EI-01717

T1

T2

T2

(8)

(7)

(6)

(5)

T1

(1)

(2)

(4)

(3)

EI-6

General Description

EXTERIOR/INTERIOR TRIM

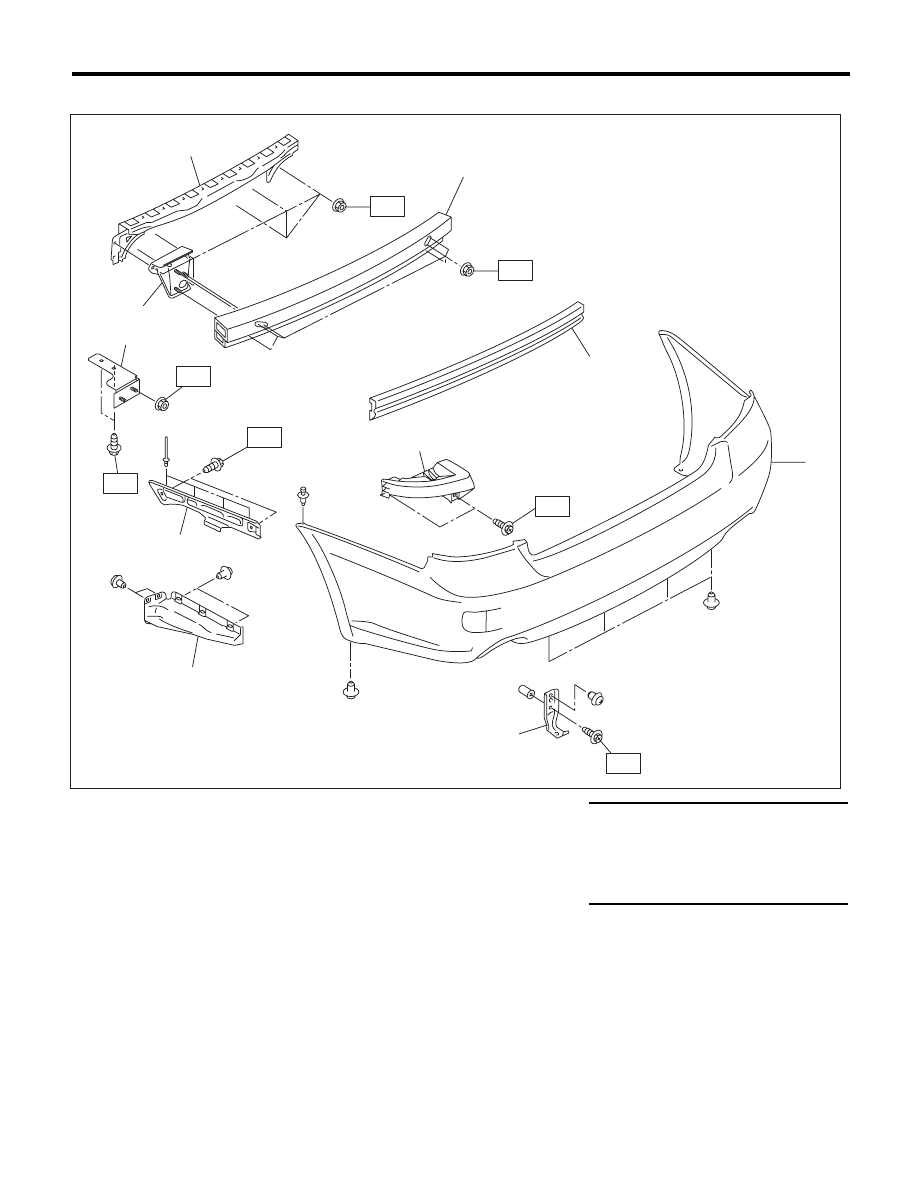

6. REAR BUMPER (SEDAN MODEL)

(1)

Bumper face

(7)

Bracket corner

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Energy absorber foam

(8)

Bumper side support lower

T1: 2 (0.2, 1.48)

(3)

Bumper beam reinforcement

(9)

Bumper side support upper

T2: 7.5 (0.76, 5.5)

(4)

Bumper beam bracket

(10)

Rear bumper gusset (for installing
trailer hitch, OUTBACK only)

T3: 33 (3.4, 24)

(5)

Beam upper rear

T4: 72 (7.3, 53.1)

(6)

Lower bracket

EI-01718

(1)

(6)

(7)

T1

T2

(2)

(8)

(9)

(10)

(5)

(3)

(4)

T3

T3

T2

T2

T4
